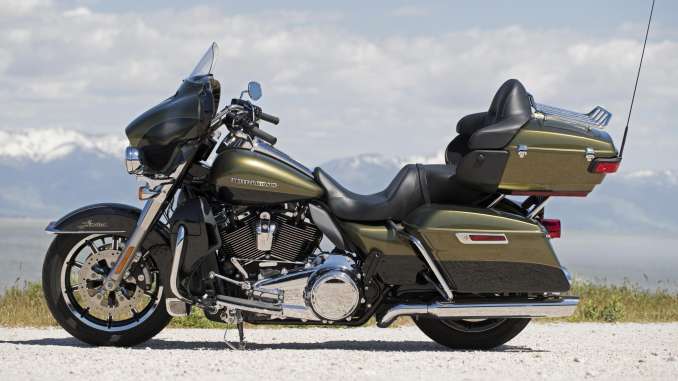

2018 Harley-Davidson Ultra Limited Low:

The Ultra Limited Low model has been designed with lowered front and rear suspension, giving it the lowest seat height in H-D touring, just 26.5 inches (673mm) off the ground. There’s also an extended-reach side stand and smaller diameter grips.

2018 Harley-Davidson Ultra Limited Low Totalmotorcycle.com Key Features

You don’t have to be big in stature to ride a machine that’s big on touring features.

Harley-Davidson Touring Story – Long haul comfort. No restraints.

Harley-Davidson® Touring models feature long haul comfort combined with power that will unleash your soul. Spanning decades of heritage and nostalgia, Touring bikes began their lineage in 1936 when the Motor Company introduced a new engine design nicknamed the Knucklehead. From that heritage grew the powerful Milwaukee Eight® engine with more power, comfort, and handling to go the distance, making piling up the miles
rewarding and comfortable for both rider and passenger.

2018 Harley-Davidson Ultra Limited Low Totalmotorcycle.com Features and Benefits

Settle into the low seat for high miles.

Lowered Front And Rear Suspension

The lowest seat height in H-D® touring, just 26.5-inches off the ground. It puts the ground within a short reach of your boot soles and makes lifting off the side stand easier.

Extended Reach Side Stand

Custom built side stand for easy accessibility and reach so you have total control on your bike.

Less Reach for Your Arms and Fingers

With a closer handlebar position and reduced diameter grips, working the clutch and front brake levers is easy for smaller riders.

Milwaukee-Eight® V-Twin Engine

A powerful, cool-running engine with crisp throttle response and a pure, soul-satisfying rumble.

Batwing Fairing & Splitstream Air Vent

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.

Premium BOOM!™ Box 6.5 Infotainment System

A stylish 6.5-inch full-color touch screen display with voice activation for hands-free mobile phone, media, and navigation. Delivers powerful, pure sound and dynamic full-range audio.

Reflex™ Linked Brembo® Brakes with Standard ABS

The front and rear brakes are electronically linked to provide exactly the right amount of brake to each tire no matter the road condition. No matter how good you are, this will make you a better rider.

Responsive Suspension

High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.

Premium Tour-Pak™ Luggage Carrier

A sleek yet spacious Tour-Pak™ luggage carrier that can easily house both rider and passenger helmets along with extra travel essentials.

2018 Harley-Davidson Ultra Limited Low – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD

Pricing⁶

• Vivid Black $26,899
• Color  $27,499
• Two-Tone  $27,949

Engine

• Engine ¹ Twin-Cooled™ Milwaukee-Eight^® 107
• Bore 3.937 in.
• Stroke 4.375 in.
• Displacement 107 cu in
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

• Length 102.4 in.
• Seat Height, Laden ⁷ 25.6 in.
• Seat Height, Unladen 26.6 in.
• Ground Clearance 4.6 in.
• Rake (steering head) (deg) 26
• Trail 6.7 in.
• Wheelbase 64 in.
• Tires, Front Specification BW 130/80B17 65H
• Tires, Rear Specification BW 180/65B16 81H
• Fuel Capacity 6 gal.
• Oil Capacity (w/filter) 5 qt.
• Weight, As Shipped 873 lb.
• Weight, In Running Order 908 lb.
• Luggage Capacity -Volume 4.7 cu ft

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 114 ft-lb
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 29
• Lean Angle, Left (deg.) 28
• Fuel Economy: Estimated City/Hwy ⁵ 43 mpg

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁹ Contrast Chrome Impeller Cast Aluminum
• Wheels, Rear Type Contrast Chrome Impeller Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁸ High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp indicator
• Gauges Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Color
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch standard
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• FM Standard
• Weather Band (WB) Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• SiriusXM Presets 20 – P&A Upgrade for Boom! Box 6.5GT (USA & Canada only)
• Languages ”English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only ”English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Voice Recognition Languages: Tuner/Media/Navigation ”English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• Rider/Passenger Intercom Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages ”English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portuguese”
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
• 7. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 9. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Ultra Limited Low – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $ See Below for Pricing in CDN

Pricing

• Vivid Black $ 32,199
• Color $ 32,899
• Two-Tone $ 33,399

Dimensions

• Length 2,600 mm
• Seat Height, Unladen 675 mm
• Ground Clearance 115 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tires, Front Specification BW 130/80B17 65H
• Tires, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.7 l
• Weight, As Shipped 396 kg
• Weight, In Running Order 412 kg
• Luggage Capacity -Volume 0.132m³

Engine

• Engine ¹ Twin-Cooled™ Milwaukee-Eight™ 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,746 cc
• Compression Ratio 10.0:1
• Fuel System ³ Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type Contrast Chrome Impeller Cast Aluminum
• Wheels, Rear Type ⁸ Contrast Chrome Impeller Cast Aluminum
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Performance

• Engine Torque Testing Method J1349
• Engine Torque ² 154 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31.9
• Lean Angle, Left (deg.) 31.8
• Fuel Economy: Estimated City/Hwy ⁵ 5.5 l/100 km

Electric

• Lights (as per country regulation), Indicator Lamps ⁷ High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp indicator
• Gauges Limited gauges with white LED backlighting and large font, and new raised “stadium-style” lighted tic band

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch/6.5 inch P&A Upgrade
• Headset Specifications (if equipped) 16-64 ohms
• AM Standard
• FM Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Hands-free Mobile Phone – via Bluetooth Standard
• Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• Text-to-Speech (TTS) Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, European Portugese
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Recommended 91 octane or higher fuel (R+M)/2.
• 2. Values shown are nominal. Performance may vary by country and region.
• 3. Standard and optional fuel systems may vary by country.
• 4. See motorcycle owner’s manual for complete details.
• 5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
• 6. Measurement reflects 180 lb. (81.7 kg) operator weight.
• 7. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
• 8. Standard and optional wheels may vary by country and region.

2018 Harley-Davidson Ultra Limited Low – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ See Below for Pricing in  GBP (On The Road inc 20% Vat)

Pricing⁵

• Vivid Black £23,895
• Color £24,245
• Two-Tone £24,645

Engine

• Engine ² Twin-Cooled™ Milwaukee-Eight^® 107
• Bore 100 mm
• Stroke 111.1 mm
• Displacement 1,745 cc
• Compression Ratio 10.0:1
• Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
• Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers

Dimensions

• Length 2,600 mm
• Seat Height, Unladen 675 mm
• Ground Clearance 115 mm
• Rake (steering head) (deg) 26
• Trail 170 mm
• Wheelbase 1,625 mm
• Tyres, Front Specification BW 130/80B17 65H
• Tyres, Rear Specification BW 180/65B16 81H
• Fuel Capacity 22.7 l
• Oil Capacity (w/filter) 4.7 l
• Weight, As Shipped 396 kg
• Weight, In Running Order 412 kg
• Luggage Capacity -Volume 0.132 m³

Performance

• Engine Torque Testing Method EC 134/2014
• Engine Torque ³ 152 Nm
• Engine Torque (rpm) 3,250
• Lean Angle, Right (deg.) 31.9
• Lean Angle, Left (deg.) 31.8
• Fuel Economy Testing Method EC 134/2014
• Fuel Economy: Estimated Hwy/City 5.9 l/100 km
• CO2 Emissions Testing Method EC 134/2014
• CO2 Emissions 136 g/km

Drivetrain

• Primary Drive Chain, 34/46 ratio
• Gear Ratios (overall) 1st 9.593
• Gear Ratios (overall) 2nd 6.65
• Gear Ratios (overall) 3rd 4.938
• Gear Ratios (overall) 4th 4
• Gear Ratios (overall) 5th 3.407
• Gear Ratios (overall) 6th 2.875

Chassis

• Wheels, Front Type ⁷ Contrast Chrome Impeller Cast Aluminium
• Wheels, Rear Type Contrast Chrome Impeller Cast Aluminium
• Brakes, Caliper Type 32 mm, 4-piston fixed front and rear

Electric

• Lights (as per country regulation), Indicator Lamps ⁶ High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS
• Gauges Limited gauges with white LED backlighting and large font, and new raised “stadium-style” lighted tic band

Infotainment

• Infotainment system Boom!™ Box 6.5GT
• Type Colour
• Watts Per Channel 25
• Speakers 4
• Speaker Size 5.25 inch standard/6.5 inch – P&A Upgrade
• Headset Specifications (if equipped) 16-64 ohms
• FM Standard
• MW Standard
• LW Standard
• SD Card, Flash Drive and MP3 – via USB Connection Supported
• Hands-free Mobile Phone – via Bluetooth Standard
• Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
• USB USB/MTP/iPod/iPhone
• Bluetooth Phone/Media Supported

• 1. Availability of colours may vary from dealer to dealer and is subject to change without further notice.
• 2. Recommended 95 octane or higher fuel (R+M)/2.
• 3. Values shown are nominal. Performance may vary by country and region.
• 4. See motorcycle owner’s manual for complete details.
• 5. Prices shown are suggested retail prices only. Please contact your nearest dealer for further details.
• 6. Security system includes immobiliser and siren.
• 7. Standard and optional wheels may vary by country and region.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
