2019 Harley-Davidson Roadster Guide

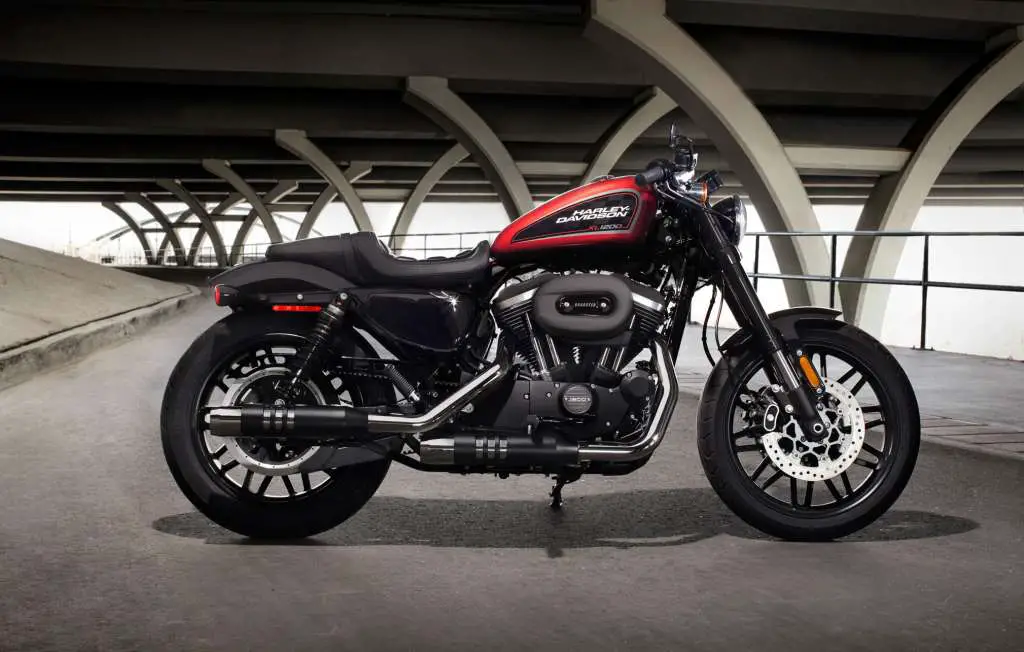

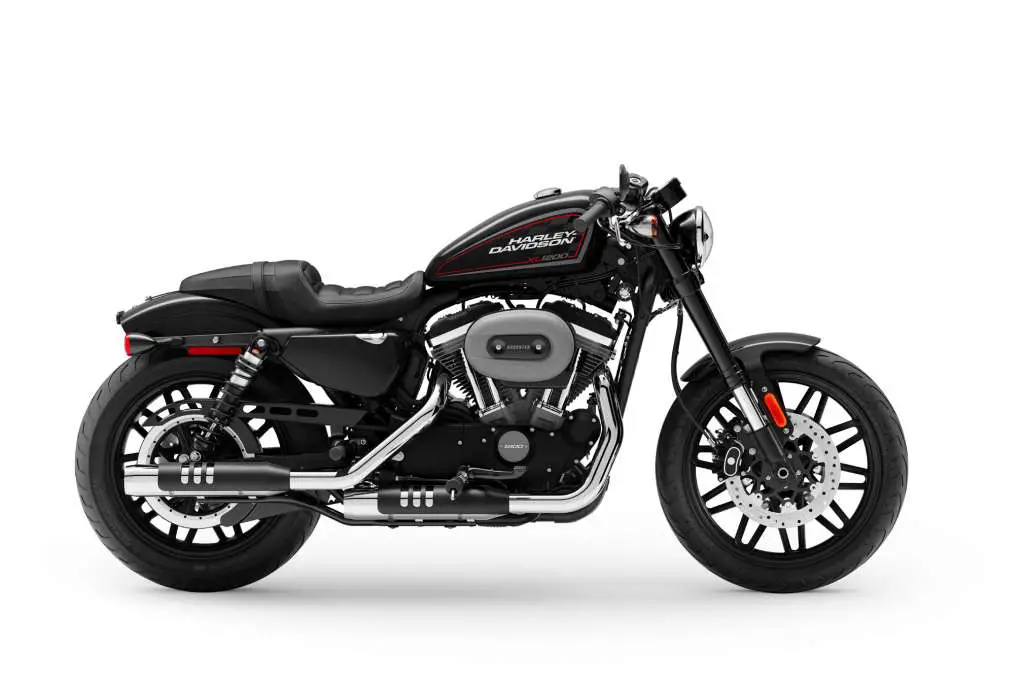

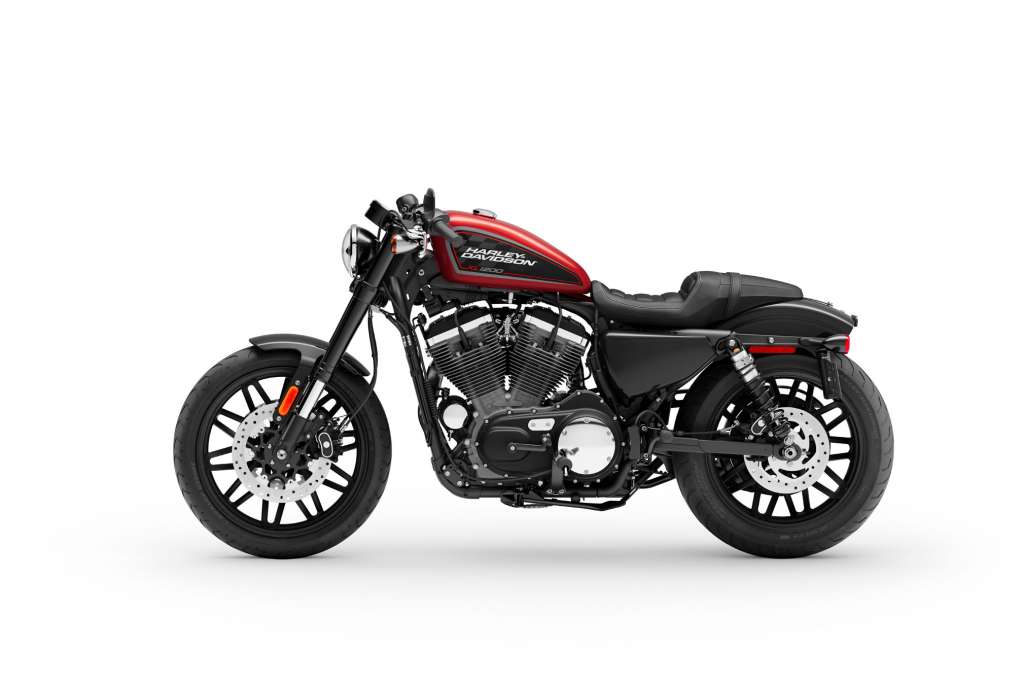

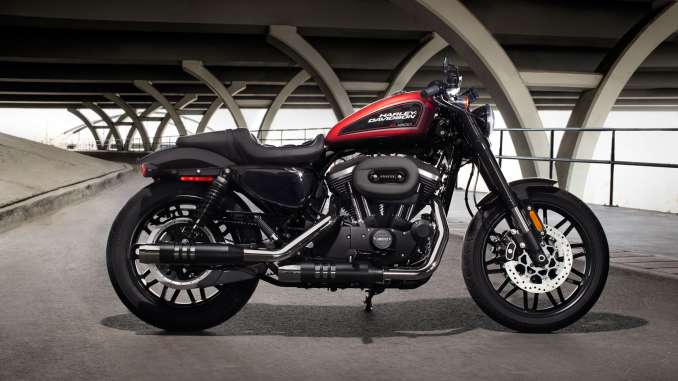

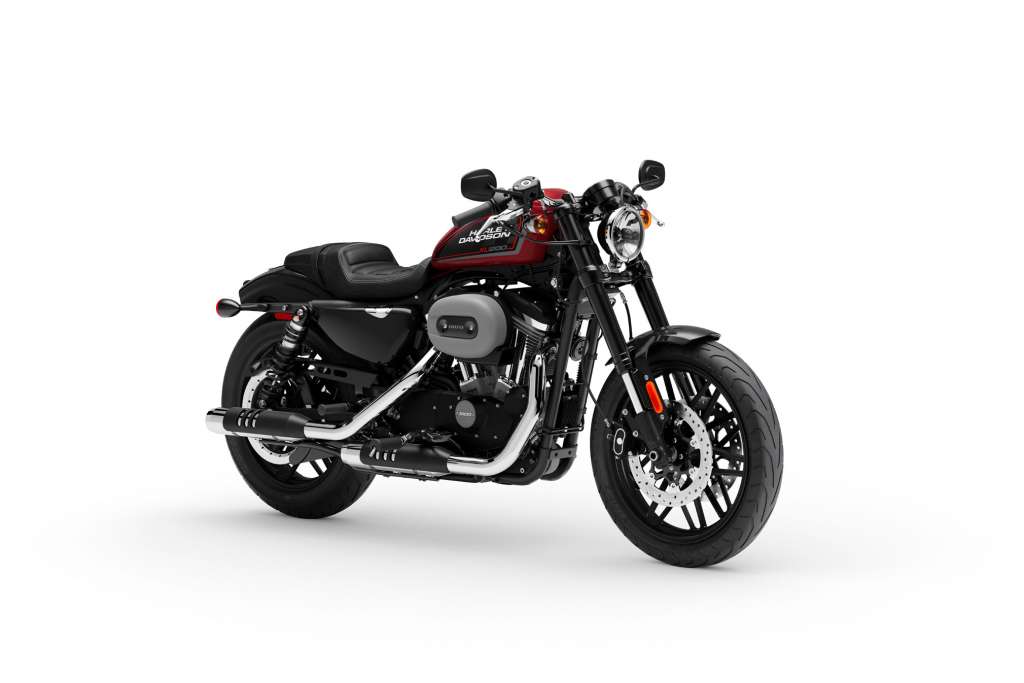

2019 Harley-Davidson Roadster

2019 Harley-Davidson Roadster 2019 Harley-Davidson Roadster 2019 Harley-Davidson Roadster 2019 Harley-Davidson Roadster

AUTHENTIC THROWBACK SOUL MEETS A MODERN RIDE.

2019 Harley-Davidson Roadster:

ADRENALINE MIXED WITH A SHOT OF GARAGE-BUILT CUSTOM STYLE

The adrenaline of the Roadster™ comes from a 1200cc V-Twin, 43mm inverted front forks, dual disc brakes, adjustable rear suspension, speedo with tach, mid-mount controls, and lowered bars. The style? Chopped rear fender, side mount license plate (US only), 19” front and 18” rear wheels, iconic tank and new graphics.

2019 Roadster™

It’s a street-eating machine with tucked in, fast back style and 1200cc of corner-cranking torque.

TURN IT LOOSE AT THE NEAREST GREEN LIGHT













2019 Harley-Davidson Roadster Totalmotorcycle.com Key Features

Engine

Air-cooled, Evolution®

Engine Torque

76 ft-lb

Weight, As Shipped

551 lb.

Seat Height, Laden

29.5 in.





2019 Harley-Davidson Roadster Totalmotorcycle.com Features and Benefits

Evolution engine on a 2019 Roadster motorcycle
1200 cc Air-Cooled Evolution® Engine

An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminium heads and cylinders improve air-cooling efficiency.

Blacked-Out Styling

There’s plenty of black to bring a dark edge to the garage-built look of the Roadster™ motorcycle. The mirrors, belt guard and headlamp are black. The oval air cleaner has a black insert. There are slotted black exhaust shields and a blacked-out powertrain.

Cockpit on a 2019 Roadster motorcycle
Lowered bars & Speedo with Tach

You get the performance, and the look and feel of slammed handlebars that put you in an aggressive riding position. The gauge includes a speedometer and tach so you can keep track of what’s going on in your power plant.

Front suspension on a 2019 Roadster motorcycle
43mm Front Suspension with Inverted Forks

The 43mm front suspension with inverted forks features cartridge damping and the brawny look of massive new triple clamps. They’ll keep your rubber on the road when the pavement gets rough.

Front tire on a 2019 Roadster motorcycle
Dual Disc Front Brakes with Floating Rotors

Dual disc front brakes with floating rotors so you can be more confident in your stopping with all that muscle behind you.

Seat on a 2019 Roadster motorcycle
Aggressive and Comfortable Two-Up Seat

The optimal combination of comfort and custom style. It’s a low profile, two-up seat with a nice, deep scoop to keep you firmly planted under acceleration, and it puts you just 29.5 inches off the ground for a low center of gravity and confident handling.

Spoke wheels on a 2019 Roadster motorcycle
Light-Weight Offset Split 5-Spoke Wheels

19-inch front and 18-inch rear wheels that give the bike a custom look, easy-steering and a better power to weight ratio.







2019 Harley-Davidson Roadster – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11299 – $11649
USD
Canada MSRP Price: $12999 – $13399 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

Pricing6

  • Vivid Black $11,299
  • Color $11,649
  • ABS Option $795
  • Security System Option $395
  • California Emissions $100
  • Freight $360

Engine

  • Engine 1 Air-cooled, Evolution®
  • Bore 3.5 in.
  • Stroke 3.8 in.
  • Displacement 1,202 cc (73.4 cu in)
  • Compression Ratio 10:01
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields

Dimensions

  • Length 86 in.
  • Seat Height, Laden 7 29.5 in.
  • Seat Height, Unladen 30.9 in.
  • Ground Clearance 5.9 in.
  • Rake (steering head) (deg) 28.9
  • Trail 5.5 in.
  • Wheelbase 59.3 in.
  • Tires, Front Specification 120/70R19 M/C
  • Tires, Rear Specification 150/70R18 M/C
  • Fuel Capacity 3.3 gal.
  • Oil Capacity (w/filter) 2.8 qt.
  • Weight, As Shipped 551 lb.
  • Weight, In Running Order 571 lb.

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 76 ft-lb
  • Engine Torque (rpm) 3,750
  • Lean Angle, Right (deg.) 30.8
  • Lean Angle, Left (deg.) 31.1
  • Fuel Economy Testing Method Estimated City/Hwy
  • Fuel Economy 5 48 mpg

Drivetrain

  • Primary Drive Chain, 38/57 ratio
  • Gear Ratios (overall) 1st 9.315
  • Gear Ratios (overall) 2nd 6.653
  • Gear Ratios (overall) 3rd 4.948
  • Gear Ratios (overall) 4th 4.102
  • Gear Ratios (overall) 5th 3.517

Chassis

  • Wheels, Front Type 9 Black Offset, Split 5-Spoke Cast Aluminum
  • Wheels, Rear Type Black Offset, Split 5-Spoke Cast Aluminum
  • Brakes, Caliper Type Dual-piston front, Dual-piston rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engie diagnostics, low fuel warning, low battery, security system (optional) and ABS (optional)
  • Gauges Dual Gauge – 4 “Digital Speedometer / Analog Tachometer



2019 Harley-Davidson Roadster – Totalmotorcycle.com Canada Specifications/Technical Details

Pricing6

  • Vivid Black $ 12,999
  • Colour $ 13,399
  • ABS Option $ 615
  • Security System Option $ 355

Engine

  • Engine 1 Air-cooled, Evolution®
  • Bore 88.9 mm
  • Stroke 96.8 mm
  • Displacement 1,202 cc
  • Compression Ratio 10:01
  • Fuel System 3 Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields

Dimensions

  • Length 2,185 mm
  • Seat Height, Unladen 785 mm
  • Ground Clearance 150 mm
  • Rake (steering head) (deg) 28.9
  • Trail 140 mm
  • Wheelbase 1,505 mm
  • Tires, Front Specification 120/70R19 M/C
  • Tires, Rear Specification 150/70R18 M/C
  • Fuel Capacity 12.5 l
  • Oil Capacity (w/filter) 2.6 l
  • Weight, As Shipped 250 kg
  • Weight, In Running Order 259 kg

Performance

  • Engine Torque Testing Method J1349
  • Engine Torque 2 103 Nm
  • Engine Torque (rpm) 3,750
  • Lean Angle, Right (deg.) 30.8
  • Lean Angle, Left (deg.) 31.1
  • Fuel Economy: Estimated City/Hwy 5 4.9 l/100 km

Drivetrain

  • Primary Drive Chain, 38/57 ratio
  • Gear Ratios (overall) 1st 9.315
  • Gear Ratios (overall) 2nd 6.653
  • Gear Ratios (overall) 3rd 4.948
  • Gear Ratios (overall) 4th 4.102
  • Gear Ratios (overall) 5th 3.517

Chassis

  • Wheels, Front Type 9 Black Offset, Split 5-Spoke Cast Aluminum
  • Wheels, Rear Type Black Offset, Split 5-Spoke Cast Aluminum
  • Brakes, Caliper Type Dual-piston front, Dual-piston rear

Electric

  • Lights (as per country regulation), Indicator Lamps 8 High beam, neutral, low oil pressure, turn signals, engie diagnostics, low fuel warning, low battery, security system (If equipped), ABS (if equipped)
  • Gauges Dual Gauge – 4 “Digital Speedometer / Analog Tachometer



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
