2019 Honda CRF125FB Big Wheel Guide

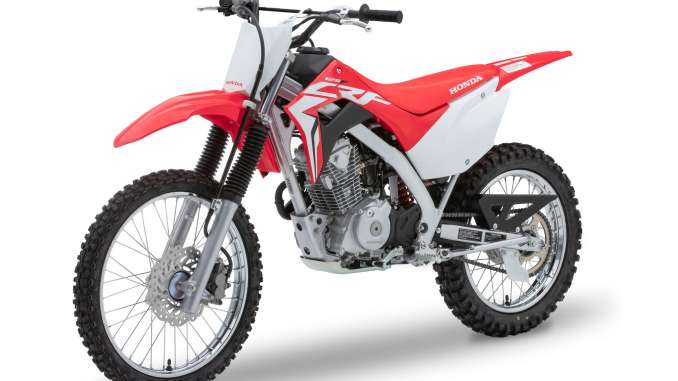

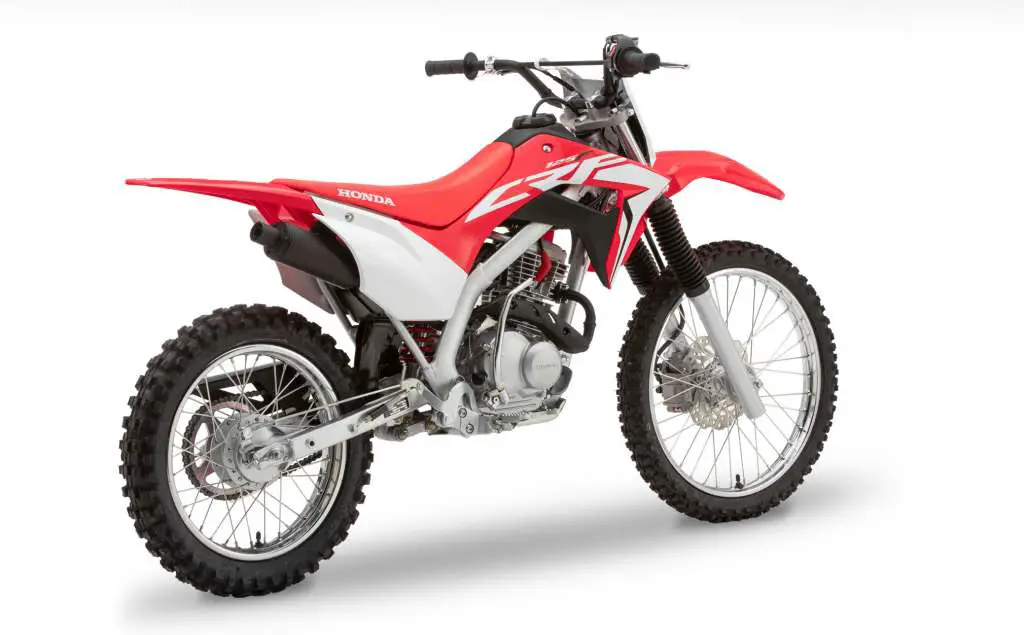

2019 Honda CRF125FB Big Wheel

2019 Honda CRF125FB Big Wheel 2019 Honda CRF125FB Big Wheel 2019 Honda CRF125FB Big Wheel

BIGGER WHEELS AND BIGGER FUN.

2019 Honda CRF125FB Big Wheel:

CRF Performance Line technology such as fuel injection and twin-spar frame design is now bestowed on the CRF Trail Line, advancing the 2019 CRF125F and CRF125F Big Wheel into modern off-road motorcycles that maximize fun and ride enjoyment. The electronically controlled Keihin fuel-injection system delivers smooth, seamless, linear power at any rpm and throttle setting—ideal for new motorcyclists and equally advantageous for advanced riders on technical trails or when going through big elevation changes—and the model is 50-state off-road legal. The all-new twin-spar frame is made of steel and extensively tested and developed for a confidence-inspiring chassis wrapped in new body panels and graphics that match those of the model’s race-oriented CRF siblings. Both CRF125F models retain the proven 124.9cc SOHC engine and four-speed gearbox for strong power and intuitive shifting feel. In terms of hardware, the two versions differ only in wheel size, swingarm length and final-drive gearing, resulting in a difference in seat height of 1.8 inches. Instructors or parents will appreciate the peace of mind that comes with putting a rider on a secure and nimble machine, and maintenance is simplified with fuel injection—no jets to change or to clog with fuel residue if the bike sits for an extended period. Electric start, low-fuel indicator light, ignition “key on” indicator, and Honda’s earned reputation for making the best-built and most dependable motorcycles on the trail mean pride of ownership all week and fun and thrills every weekend.

All young riders aren’t equal—at least when it comes to how tall they are, and what riding skills they’ve developed. Neither are all adults, for that matter. And because we all know that, Honda is happy to serve up the CRF125F Big Wheel. Oh, and by the way, it gets some big improvements this year too.



The CRF125F Big Wheel is a simple concept, but a genius execution. We take our awesome CRF125F and set it up with larger diameter wheels and a longer swingarm. That means the bike also features a two-inch-taller seat height. The result? A combination that makes it perfect for thousands of teens and smaller adults who just want to get out on the trails and have fun.

It’s loaded with features too, and since it’s a Honda, it’s also famously reliable—a big plus, because riding is a lot more fun than wrenching. But for 2019 that engine now comes with fuel injection. That makes a great engine even better, first because it broadens up the power, but most of all because you can say goodbye to clogged up pilot jets after the bike’s sat out the winter. It also means easier starting and better running in cold weather or at high altitudes, and less pollution.

In addition, there’s a new twin-spar steel frame, and more suspension travel at each end for an even more plush ride. An electric starter makes it easy to get going, while a four-speed transmission gives you all the control of a full-sized bike.

The long and short of it: Sized to fit taller riders just right, but without putting them on a bike that’s too big or that gives them too much power too soon, the CRF125F Big Wheel is another great choice in our off-road line.

Be A Responsible Rider: All parents need to consider their youngsters’ age, size, ability and maturity before allowing them to ride. Obtain a copy of “Off-Road Safety Tips” from your local Honda Dealer.

Electric Starter

Turn a key, push a button—that’s all it takes to get the CRF125F Big Wheel going. Add in a generous dose of Honda reliability and you’ll find the CRF125F Big Wheel is super easy to own.

Sized Right for You

With its single-overhead-cam engine and air-cooled, 125cc four-speed transmission, the CRF125F Big Wheel will fit a wide range of riders. It has enough power for teens and small adults without being intimidating for younger riders.

Fuel-Injected Engine

New for 2019, CRF125F Big Wheel’s fuel injection makes starting easier than ever, and automatically compensates for cold weather or high altitudes. Plus, it runs cleaner!









2019 Honda CRF125FB Big Wheel Totalmotorcycle.com Key Features

2019 Updates

  • All-new electronically controlled Keihin fuel-injection system replaces carburetor. FI delivers linear and hesitation-free power for easier-to-control delivery at all points in the powerband.
  • Twin-spar steel frame, with heavy-duty design inspired by the frame architecture of the CRF Performance Line, provides the right balance of rigidity and suppleness for trail-bike comfort.
  • Suspension travel increased (by 10mm increase in front, 12mm rear) for improved plushness and better bottoming resistance.
  • New 1 gallon steel fuel tank with integrated fuel pump and fuel filter. Low-fuel indicator on handlebar illuminates when .2 gallons remain. New frame design shields tank in the event of a fall.
  • All-new bodywork and graphics match styling of CRF Performance Line.
  • New handlebar-mounted, multiple-function switch incorporates starter button, ignition “key on” indicator, fuel-injection system status, and low-fuel indicator light. (Replaces reserve setting on petcock.)
  • New ratchet-style fuel tank cap reduces possibility of loosening during ride.
  • Half-waffle grips have a smaller circumference for a better fit with smaller hands.
  • New seat foam is 5mm taller, yet seat height on the standard version is only 2mm higher, due to seat placement in the new frame. (Seat height on Big Wheel version isn’t increased from 2018.)

Engine/Drivetrain

  • The 124.9cc SOHC engine returns with smoother, more linear power delivery.
  • Four-speed gearbox is well matched to the broad power spread.
  • Electric starter makes getting going a breeze, with kick-start backup included.

Chassis/Suspension

  • CRF125F and CRF125F Big Wheel have seat heights of 29.1 inches and 30.9 inches, respectively.
  • CRF125F has wheel sizes of 17 and 14 inches front and rear, respectively. CRF125F Big Wheel has 19- and 16-inch wheels.
  • The 31mm fork provides plush front-suspension action.
  • Pro-Link® rear-suspension design with sophisticated single shock for consistent action.
  • Smooth stopping power provided by hydraulic front brake with 220mm rotor and 95mm rear drum brake.
  • Front brake lever is adjustable to work with varying hand sizes.
  • Styling follows that of the race-winning CRF Performance Line.
  • Meets CARB and EPA off-road emissions standards.
  • Consult owner’s manual for optional racing parts
  • Specifications subject to change









2019 Honda CRF125FB Big Wheel Totalmotorcycle.com Features and Benefits

Proven Manual Clutch

Honda’s heavy-duty clutch is durable and helps promote smooth shifting.

Half-Waffle Grips

Just like the pros use, the CRF125F Big Wheel gets upgraded, half-waffle pattern grips. Might as well start them off right!

Electric Starter

Push-button starting makes getting started easier in all kinds of conditions, and the efficient design adds minimal weight.

Keyed Ignition Switch

For added security, the keyed ignition switch lets you control who goes riding and when, important if you have younger riders in the house.

More Front Suspension Travel

In addition to the rear-suspension travel increase, we also gave the CRF125F Big Wheel more travel up front for a balanced, plush ride.

Bigger Wheels

With a 19-inch front wheel and a 16-inch wheel in the rear, the CRF125F Big Wheel will fit taller riders a little better. The right-sized bike is as important as wearing the right-sized boots or helmet.

Front Disc Brake

The front disc brake provides superior stopping power with the front disc rotor drilled for lightness and better wet-weather performance.

Tough Bodywork

Riders can be tough on equipment, and taking a spill is a natural part of learning. But the CRF125F Big Wheel can handle it: with tough plastic fenders, tank and other body parts inspired by our bigger CRF motocross bikes, the CRF125F Big Wheel is engineered to shrug off the minor dings of the real world.

Reliable Engine

The CRF125F Big Wheel’s dependable four-stroke single-cylinder engine offers good performance with a wide powerband—perfect for a wide range of riders, including beginners. And for 2019, new fuel injection makes it even better and more efficient.

Four-Speed Transmission

The four-speed gearbox is just like a full-sized motorcycle’s, giving your younger rider all the control they need.

Fuel Injection

New for 2019, fuel injection means the CRF125F Big Wheel starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency. And say goodbye to clogged pilot jets when you put this bike away for storage.

Intermediate Seat Height

It’s important to have a bike that’s sized right for your rider. The CRF125F Big Wheel’s 30.9-inch seat height helps build confidence right from the start.

Pro-Link® Rear Suspension

Progressive linkage connects a single heavy-duty shock to the swingarm, delivering an excellent combination of spring and damping rates over a wide range of riding conditions. This year the CRF125F Big Wheel gets nearly an extra ¾ inch of suspension travel, too.

New Steel Frame and Swingarm

Less experienced riders are hard on equipment, especially when they’re just starting out. That’s why we gave the CRF125F Big Wheel a strong, new, twin-spar-type steel frame and swingarm that are built to handle the bumps and dings of off-road riding.

Clean-Running Engine

Another benefit of fitting the CRF125F Big Wheel with fuel injection? Now it even meets California’s stringent CARB emissions standards for off-road motorcycles—good news for everyone.

Sealed Battery

The maintenance-free sealed battery helps ensure that your CRF125F Big Wheel is ready to ride when you are.









2019 Honda CRF125FB Big Wheel – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: starting from $
USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS

ENGINE

ENGINE
Engine Type 124.9cc air-cooled single-cylinder four-stroke
Bore And Stroke 52.4mm x 57.9mm
Compression Ratio 9.0:1
Valve Train SOHC; two-valve
Induction Fuel-injection, 22mm throttle bore
Ignition Full Transistorized

DRIVE TRAIN

DRIVE TRAIN
Transmission Four-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

CHASSIS / SUSPENSION / BRAKES
Front Suspension 31mm telescopic fork; 5.9 inches of travel
Rear Suspension Pro-Link® single-shock; 6.6 inches of travel
Front Brake 220mm hydraulic disc
Rear Brake Drum
Front Tire 70/100-19
Rear Tire 90/100-16

DIMENSIONS

DIMENSIONS
Rake 27°30′ (Caster Angle)
Trail 94mm (3.7 inches)
Wheelbase 49.4 inches
Seat Height 30.9 inches
Curb Weight 199 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
Fuel Capacity 1.0 gallon
Ground Clearance 10.3 inches

OTHER

OTHER
Emissions Meets California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red
Model ID CRF125FB

FACTORY WARRANTY INFORMATION

FACTORY WARRANTY INFORMATION
Duration Six Months transferable limited warranty; extended warranty available with a Honda Protection Plan.







2019 Honda CRF125FB Big Wheel – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine type

Air-cooled, single-cylinder, 4-stroke

Displacement

125 cc

Bore & stroke

52.4 mm x 57.9 mm

Compression ratio

9:1

Valve train

SOHC; 2-valve

Fuel delivery

PGM-FI electronic fuel injection with 22 mm throttle body

Transmission

Four-speed with manual clutch

Final drive

#428 chain, 13T/49T

Chassis & Suspension

Front suspension

31 mm leading-axle Showa fork; 168 mm (6.6 in.) travel

Rear suspension

Pro-Link® Showa single shock; 168 mm (6.6 in.) travel

Dimensions & Additional Information

Tires

Front: 70/100-19
Rear: 90/100-16

Brakes

Front: 220 mm hydraulic wave disc
Rear: Drum

Ground clearance

262 mm (10.3 in.)

Seat height

785 mm (30.9 in.)

Wheelbase

1,255 mm (49.4 in.)

Curb weight

90.3 kg (199 lb) including required fluids and full tank of gas—ready to ride

Fuel capacity

3.7 litres; low-fuel light comes on at 0.8 litres

Colour

Extreme Red

Warranty

6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus









2019 Honda CRF125FB Big Wheel – Totalmotorcycle.com European Specifications/Technical Details

NA





2019 Honda CRF125FB Big Wheel – Totalmotorcycle.com Australian Specifications/Technical Details









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
