2019 Husqvarna SVARTPILEN 401 Guide

2019 Husqvarna SVARTPILEN 401

2019 Husqvarna SVARTPILEN 401 2019 Husqvarna SVARTPILEN 401 2019 Husqvarna SVARTPILEN 401 2019 Husqvarna SVARTPILEN 401 2019 Husqvarna SVARTPILEN 401

THE SIMPLE APPROACH.

2019 Husqvarna SVARTPILEN 401:

The Husqvarna VITPILEN 401 marks the start of an entirely new segment in the motorcycling world, it is free of excess and reduced to its simplest form. This bike aims to appeal to an entirely new generation of motorcycle users. It’s for those less interested in the hype and hyperbole of modern day motorcycling and who prefer a simpler, more style-orientated approach. Its technologically advanced 4-stroke single-cylinder 375 cc engine is housed in an incredibly stripped down but progressive layout that offers excellent performance, yet doesn’t boast about how racy it is. The basic idea and inspiration behind the bike was to create something completely reduced, while turning heads from an aesthetic point of view.

Ultimately it’s as accessible as a motorcycle can be, it’s honest and can be ridden by anyone with the will to learn.

The SVARTPILEN 401 is a progressive, rugged motorcycle with timeless appeal, designed to endure the demands of urban exploration. Drawing inspiration from Husqvarna Motorcycles’ pioneering heritage, this bike also looks ahead, innovates and guides the future of motorcycling in a whole new direction. A motorcycle that offers the perpetual enjoyment of owning something unique and special, combined in an individualistic and technically advanced package – allowing a rider to simply enjoy the thrill of the ride.

EXTERIOR
The design idea for the SVARTPILEN 401 is to strip away all unnecessary gimmicks and to create a simple, progressive mix of classic thinking and modern design. This way of thinking is synonymous with the Swedish heritage of Husqvarna Motorcycles and can be clearly seen on the SVARTPILEN 401. The lightweight and narrow bodywork is shaped into the SVARTPILEN 401’s design and intelligently allows for seamless movement while riding. Its black colour, rugged tyres and protective parts give the motorcycle a rigorous look to match its urban exploration intentions.







2019 Husqvarna SVARTPILEN 401 Totalmotorcycle.com Key Features

STYLE & DESIGN:

In terms of style and design, the VITPILEN 401 is reduced to nothing more than what is absolutely essential. With respect to the past it is simple, obvious and forward thinking in terms of the technology used, as well as the entire package itself.



BODYWORK:

The way in which the volume was sculpted is extremely sleek and pure, forming clean and soft lines. By contrast the shape itself is very intentional and well defined.



RIDING POSITION:

It is most certainly very approachable and accessible. Dynamic thanks to a more engaging position, which is far forward enough to be in full control while remaining relaxed thanks to its clip-on handlebars and natural ergonomics.



INNOVATION / EQUIPMENT:

The surface treatment (the way in which the bike was sculpted) is distinctive in that there’s a contrast between the softness of the design and the extremely defined shapes on the tank. This forms very precise elements and fitting lines on the surface. Underneath, it is fully equipped with premium components including LED front and rear lights, WP suspension and a modern fuel-injected motor amongst other features.



THE RIDING EXPERIENCE:

The bike was designed to be as simple to ride as possible, without all the unnecessary electronics and rider assistance. It is designed for a ‘sit down and enjoy the ride’ experience.

With it’s unique, bold and rugged appearance, the Husqvarna SVARTPILEN 401 is a modern single-cylinder 4-stroke set in a compact and thoughtfully designed package. Beyond its styling and exterior though, it has a high-focus on functionality, so comes with rugged knobbly tyres, a practical tank rack and more robust protection than its VITPILEN 401 sibling, which includes a protective skid-plate and exhaust protector. The riding position on the SVARTPILEN 401 is also more upright because of its higher and straighter bars.



STYLE & DESIGN:

The SVARTPILEN 401 has a more rugged style to it. The parts are designed with an obligation to not just look good but to be fully functional as well. With a nod of respect to the honest and simple way that motorcycles were created in the past, yet with truly modern equipment and styling.



BODYWORK:

For the SVARTPILEN 401 functionality plays an important role and you can see that when you take a look at the bodywork, more robust protective parts were incorporated into the design – such as an exhaust protector, skid plate and tank rack, which form the basis for a modern day scrambler.



RIDING POSITION:

Fitting with its higher bars and knobbly tires, the riding position for the SVARTPILEN 401 is more upright and centred than its VITPILEN 401 sibling’s slightly tucked rider’s stance.



INNOVATION / EQUIPMENT:

The SVARTPILEN 401 is fully equipped with a split seat as well as knobbly tyres, a protective skid plate, exhaust protector in a modern chassis with progressive engine technology.



THE RIDING EXPERIENCE:

Who knew being seated completely upright could be this relaxed? Rediscover your urban environment aboard this agile, functional and raw riding machine.









2019 Husqvarna SVARTPILEN 401 Totalmotorcycle.com Features and Benefits

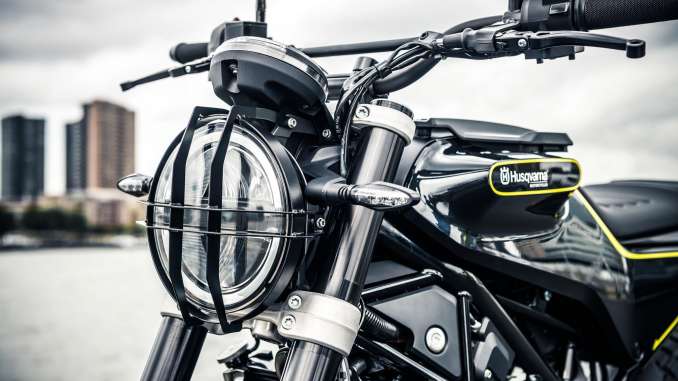

Headlight and taillight

The ‘Real Street’ range features a modern full LED headlight with a distinctive circular running light and two reflectors for high/low beam. Besides the added safety of the bright LEDs and saving energy, the headlight is a design feature that contributes to the unique style represented by the VITPILEN and SVARTPILEN 401 models. The taillight is also full red LED and through the design, seems to hover above the rear wheel. The SVARTPILEN 401 gets a protective cage structure on the front headlight.



Frame

The lightweight steel-trellis frame is a proven design, contributing to the easy and agile ride of the ‘Real Street’ range. Mass is grouped close to the centre of gravity to maximise manoeuvrability and precision. Made from high strength chromium molybdenum steel using hydro formed tubes and robot welding, designed with specific flex characteristics, the frame works in conjunction with the WP suspension to offer a comfortable and confident feel and combined with a tight turning circle for ease of use in urban environments.

Exhaust

The exhaust on the ‘Real Street’ range has been specifically designed to work well with the 375 cc engine and remain an aesthetically pleasing element that compliments the characters of the VITPILEN 401 and SVARTPILEN 401. Made from a combination of steel and aluminium, the exhaust system is integral for ensuring EURO IV regulations are met. Comprising of two parts, the pre-silencer is made from steel while the final silencer is made from aluminium. The final silencer is finished off with a raw aluminium look and the iconic Husqvarna logo.



Display

The ‘Real Street’ range features a simple and progressive, multifunctional display unit with all the relevant riding information – set in a round, character-defining design.



Bodywork

The bodywork is the same throughout the range, but differs in colour and in the perception of the proportions. The VITPILEN 401 bodywork is white; the SVARTPILEN 401 bodywork is black.



Seat

The seats are different on the VITPILEN 401 and the SVARTPILEN 401. High quality foam forms the base of both seats, but a long single piece, two-seater features on the VITPILEN 401, whereas the SVARTPILEN 401 features two single seats with different fabric from the VITPILEN 401. There will be options to remove the rear seat and fit a technical accessory on the SVARTPILEN 401.



Engine

The ‘Real Street’ range has a 375 cc, 44 hp (32kW), single-cylinder twin overhead camshaft engine that only weighs 36 kg, thanks to its compact modern design. The latest materials and production technologies deliver the bike’s ample torque and useful acceleration at all engine speeds, but also give it good manners in everyday use, with outstanding fuel economy. The engine delivers 37Nm of torque from low down in the RPM range, perfect for urban riding. Additionally, by implementing a counter balancer shaft, vibration is kept to a minimum delivering a smooth and comfortable ride. By using electronic fuel injection and a 46mm throttle body operated by a ride-by-wire system, the engine delivers a sharp but refined and very controllable power delivery.



Brakes

The ‘Real Street’ range is equipped with quality hydraulic brakes. The 320 mm front disc provides ample surface area for the opposed, four-piston callipers, while the 230 mm rear disc, provides the surface area for a single piston, floating calliper to clamp on to. Additionally, a state-of-the-art Bosch 2-channel ABS system is fitted.



Suspension

WP suspension has built a strong reputation for quality engineering and ongoing development and innovation. The WP units on the 401s provides smooth handling, consistency and predictability. The 43 mm upside down forks guarantee the highest levels of stability and precision.



Slipper clutch

The VITPILEN 401 and SVARTPILEN 401 are fitted with a slipper clutch.



The slipper clutch works by allowing the clutch to slip under heavy braking when torque levels get too high from downshifts. This prevents the rear wheel from hopping or sliding and a more controlled deceleration.



Handlebars

The VITPILEN 401 has clip-on handlebars while the SVARTPILEN 401 has raised offroad style centrally mounted handlebars. Additionally, the handlebars comprise of separate left and right side units mounted directly to the upper triple clamp in a clip-on fashion giving the VITPILEN a sporty and stylish feel.



Tank

The tank on the ‘Real Street’ range 401s holds 9.5 litres. The SVARTPILEN 401 also features a tank rack that can be used to strap additional items onto if needed.



Tyres

The unique knobbly tyres on the SVARTPILEN are strong and durable “Pirelli Scorpion Rally STRs”. While the VITPILEN wheels are fitted with Metzeler M5 tyres, which excel in all conditions the urban commuter could expect while also offering long durability.











2019 Husqvarna SVARTPILEN 401 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $  USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU
Engine
Engine type Single cylinder, 4-stroke
Displacement 375 ccm
Bore/stroke 89/60 mm
Power 32kW (43 hp) @ 9.000/min
Torque 37Nm @ 7.000/min
Compression ratio 12.6:1
Starter/battery Electric starter/12V 8Ah
Transmission 6 gears
Fuel system Bosch EFI (throttle body 46 mm)
Control 4 V/DOHC with cam levers
Lubrication wet sump with 2 oil pumps
Engine oil BelRay EXP 15W-50
Primary drive 30:80
Final drive 15:45
Cooling Liquid cooling
Clutch Multi disc slipper clutch
Engine management/ignition Bosch EMS

Chassis
Frame Chromium-Molybdenum-Steel trellis frame, powder coated
Subframe Chromium-Molybdenum-Steel trellis frame, powder coated
Handlebar aluminium forged
Front suspension WP-USD Ø 43 mm
Rear suspension WP-Monoshock
Suspension travel front/rear front 142mm / rear 150mm
Front brake ByBre, opposed four piston caliper, brake disc Ø 300 mm
Rear brake ByBre, single piston, floating caliper, brake disc Ø 230 mm
ABS Bosch 9.1MB Two Channel
Wheels front/rear Spoked wheels with aluminium rims, 3 x 17″; 4 x 17″
Tyres front/rear PIRELLI SCORPION RALLY STR 110/70-R17; 150/60-R17
Chain 5/8 x 1/4″ / X-Ring
Silencer Stainless steel/ Aluminum silencer with regulated catalytic converter
Steering head angle 65°
Triple clamp offset 33 mm
Trail 95 mm
Wheel base 1357 +/-15,5mm
Ground clearance 170 mm
Seat height 835 mm
Tank capacity (approx.) 9,5 litres/ 2.5 litres reserve
Weight (without fuel, approx) 150 kg







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
