THE WORLD’S FIRST DRONE EQUIPPED BIKE.

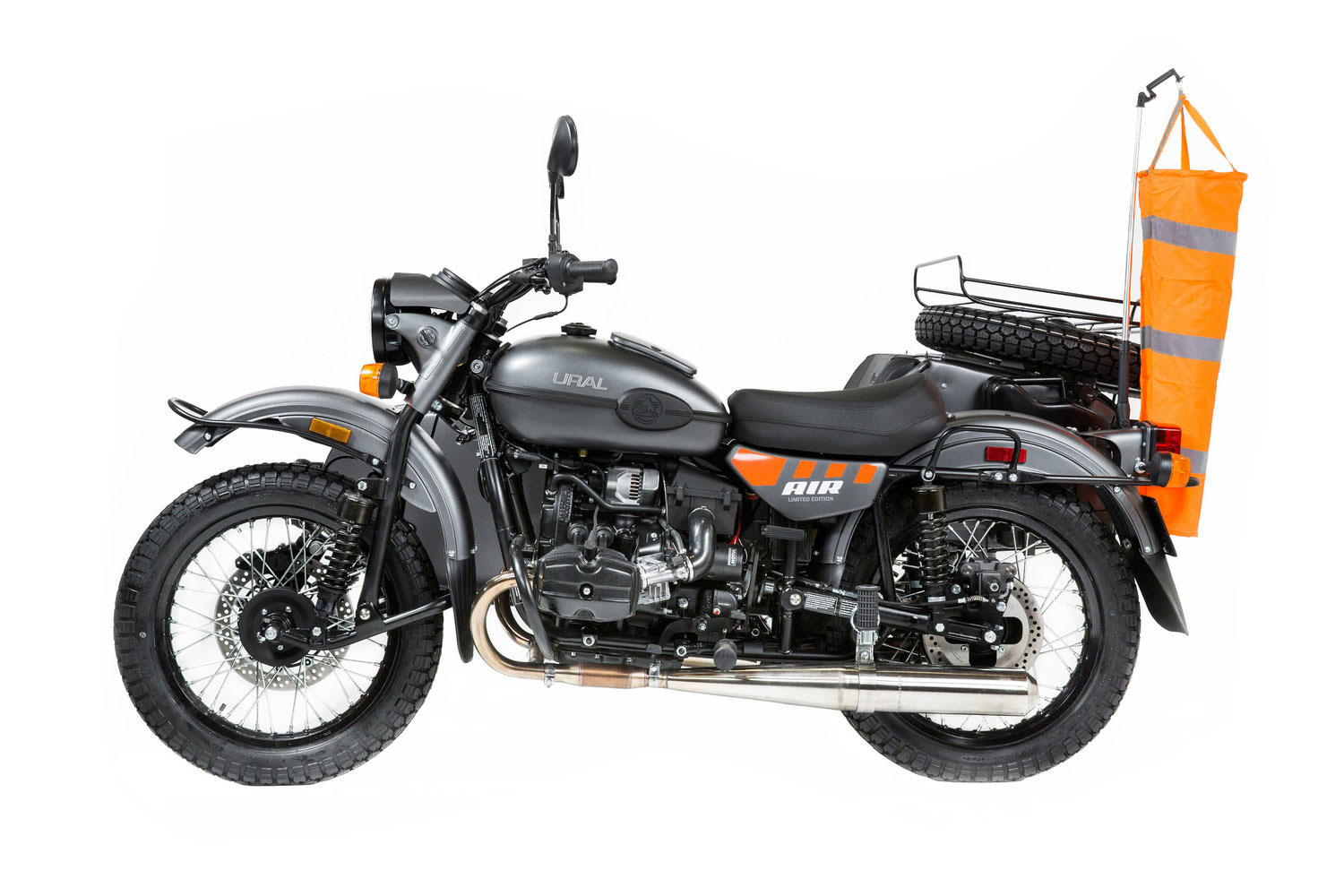

2019 URAL Air LE:
MEET URAL AIR
Urals are legendary for handling some of the most challenging terrain. This year’s Limited Edition Ural Air encourages riders to explore further… on the ground and in the air. The inspiration behind this LE was to open Ural riders to new experiences, and see their adventures from a different perspective. It also reflects our fascination with blending Ural’s classic design with cutting edge technologies.
GO FURTHER
What’s over the ridge? What’s just beyond your campsite? What obstacles lie ahead after a big storm? When the trail ends or nightfall is looming, the rider or passenger becomes a pilot, sending out their eye in the sky to determine the best route or quickest escape.
Total Built: 40 Units Worldwide
At US Dealerships: November 2018
2019 URAL Air LE Totalmotorcycle.com Key Features
WITH THE PUSH OF A BUTTON

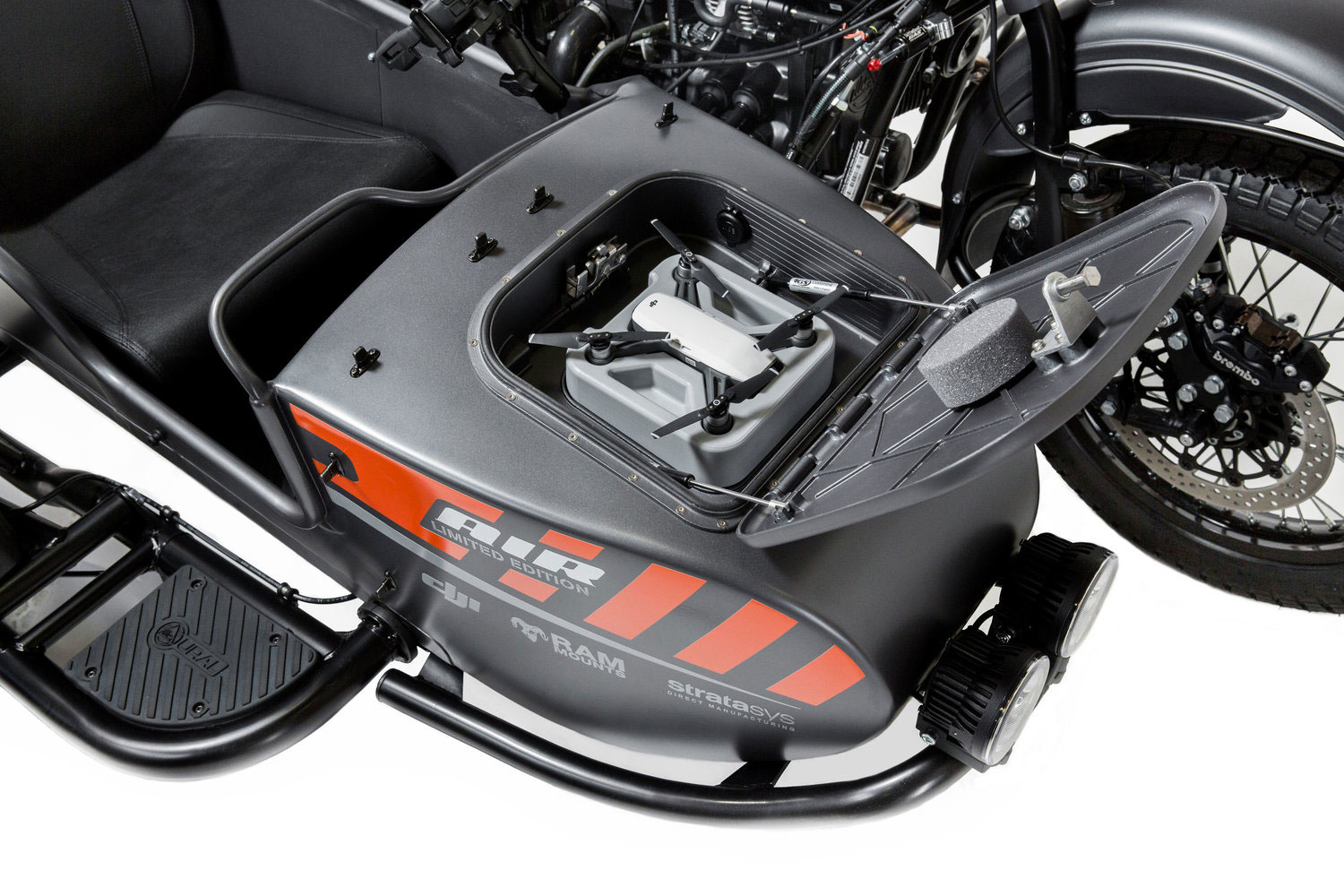

A specially designed compartment opens on the nose of the sidecar, revealing a DJI Spark drone. The drone controller is firmly attached to the sidecar with custom made RAM Mount. The sidecar passenger, turned navigator, can use the Spark’s video capturing technologies to gain the bird’s eye view of the path ahead.
Ural Air comes in Slate Grey metallic colorway with satin finish and features all black powertrain. Standard equipped with on-demand 2 wheel drive and sidecar mounted spare wheel this Gear Up based model takes you further.
As with previous Limited Edition Urals, there’s always an added bonus – Ural Air comes with a windsock…on a selfie stick. After all, you can’t operate a drone ship without proper wind tracking technology.
Total Built: 40 Units Worldwide
At US Dealerships: November 2018
SPECIAL FEATURES
DJI Spark Remote Combo
Spark is a mini drone that features all of DJI’s signature technologies, allowing you to seize the moment whenever you feel inspired.
With intelligent flight control options, a mechanical gimbal, and a camera with incredible image quality, Spark empowers you to push your creative boundaries.
Included: 1 intelligent flight batteries, charger, micro-USB cable, power cable, extra propeller pair, DJI Remote, storage box.
Drone Compartment by Stratasys Direct Manufacturing
The drone itself is not the only part of this LE that brings together Ural and modern technologies. The drone compartment, made by Stratasys, is a perfect showcase of the advantages of direct digital manufacturing solutions.
The door is activated by a push-button located under the nose of the sidecar tub and lifted by strong gas shocks.
RAM Mounts Custom Configuration
Using a specially configured RAM Mount, the drone’s controller is held firmly in place. The sidecar passenger turned navigator can use the Spark’s cutting edge video capturing technologies not only to assist the pilot, but also to capture and share the unique experience.
2019 URAL Air LE Totalmotorcycle.com Features and Benefits
•On Demand 2WD
•Black Powertrain
•Deluxe Solo Seat
•Drone Hatch
•USB charging port
•DJI Spark w/remote
•Custom RAM mounts for DJI Remote
•Universal Spare Wheel & Tire (Fits All 3 Positions)
•Luggage Rack
•Gas Tank w/ Built-In Storage
•Sidecar Power Outlet
•Sidecar Tonneau Cover
•Sidecar front bumper
•LED Sidecar Fog lights
•Jerry Can
•Utility Shovel
•Tool kit
•Telescopic selfie-stick
•Windsock
2019 URAL Air LE – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ 17999 USD
Canada MSRP Price: $21299 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU
Engine and Transmission
- Displacement, cc: 749
- Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
- Valve per cylinder: 2
- Bore and stroke (mm x mm): 78 x 78
- Max output (hp): 41 @ 5500 rpm
- Max torque (ft-lbs): 42 @ 4300 rpm
- Compression: 8.6:1
- Fuel system: Throttle body EFI
- Starting: Electric & Kickstart
- Clutch Double-disc dry
- Transmission type: Manual
- Speeds: 4 forward 1 reverse
- Primary drive (rear wheel): Driveshaft
- Final drive ratio: 4.62
- Engageable sidecar wheel drive: Yes, driveshaft
Physical Measurements
- Overall length, inch.: 98.8
- Overall heights, inch.: 54.3
- Overall width, inch.: 63.6
- Seat height, (unladen), inch.: 32.0
- Ground clearance (unladen),inch.: 6.8
- Dry weight, lbs: 730
Electrical
- Alternator: Denso, Peak Output 40 Amp @ 14vdc, 560 Wt
- Battery: FAYTX20HL (12V, 20A)
- Headlight: H4
- Spark plugs: NGK BPR6HS
Chassis
- Front suspension: IMZ leading link fork
- Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
- Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
- Wheels: 2.15X19 Aluminum rims with steel spokes
- Tires: Duro HF-308, 4.0×19″
- Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
- Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
- Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor
Misc.
- Fuel grade: 91 Octane, unleaded
- Fuel tank capacity, gallons: 5.0
- Reserve, gallons: app. 1
- Estimated fuel economy, mpg: 31-37
- Estimated range, miles: 155-185
- Recommended max cruising speed, mph: 70
- Max permissible weight, lbs:1325
- Trunk volume, cubic ft.: 2.9
Warranty
- 2-years parts and labor unlimited mileage.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
