MAXIMUM SPORT.

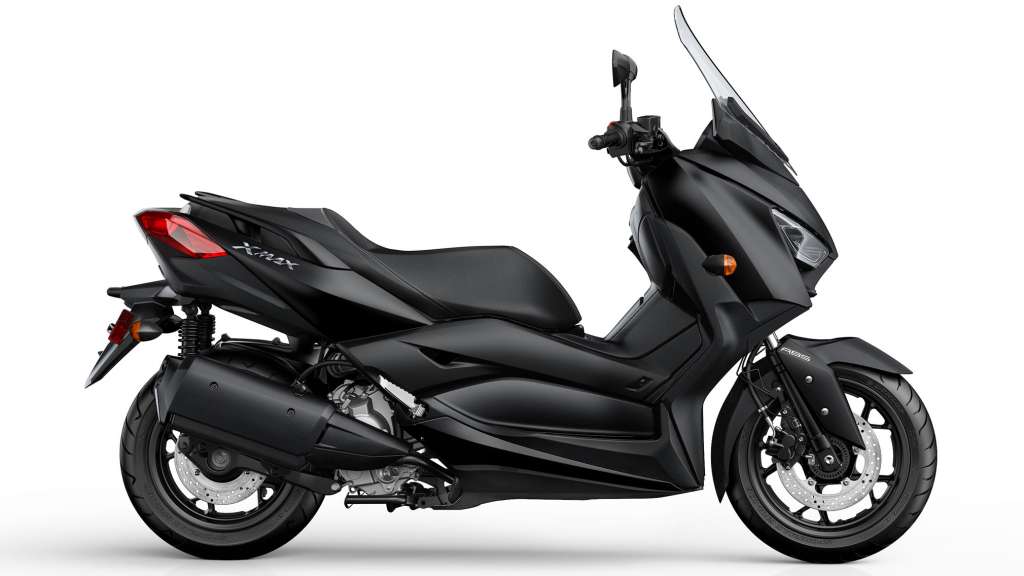

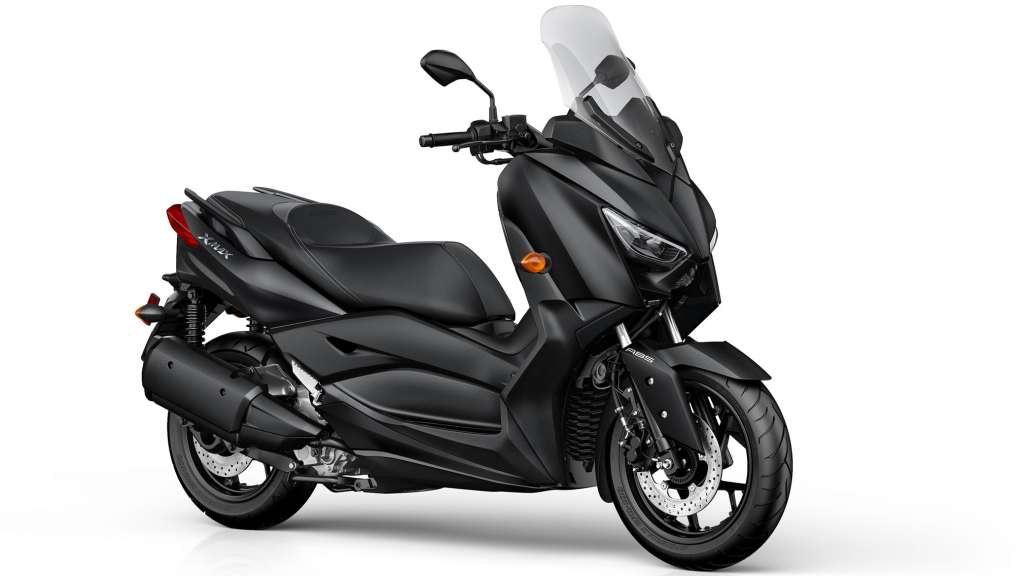

2019 Yamaha XMAX:

The ultimate Sport Scooter with a liquid‑cooled engine that is fuel efficient and performance proven.

75 MPG Estimated

2019 Yamaha XMAX Totalmotorcycle.com Key Features

Features

Top Features

• MAX Series DNA
  More than just a practical commuter, the stylish XMAX™ features aggressive, angular bodywork for a high-class appearance that elevates the XMAX beyond expectations.
• Sporty, Fuel Efficient Engine
  Featuring technology developed for use in Yamaha’s high-performance sport bikes, the XMAX motor is smooth, efficient and ready for everything from the day-to-day commute to fun rides on the weekend.
• Convenience and Technology
  With a fully-automatic transmission, the XMAX is exceedingly simple to ride, and comes standard with an extensive list of rider aids, including traction control and ABS. Combined with a frame designed for light and neutral handling, the XMAX makes for a confidence inspiring ride on any road.
• Luxury + Comfort + Practicality
  High-tech features distance the XMAX from your typical bare-bones scooter, including LED lighting and advanced instrumentation. With plenty of lockable onboard storage, a 12V power port to recharge small devices and an adjustable handlebar and windscreen, the XMAX is a ready to go whenever you are, whether you need to get groceries down the street or head across the state.

2019 Yamaha XMAX Totalmotorcycle.com Features and Benefits

Engine

• All-New Engine
  The XMAX is powered by an advanced 292cc liquid-cooled, four-valve single that develops smooth, tractable power. The cylinder is crafted from Yamaha’s DiASil aluminum for excellent heat dissipation, with a lightweight forged piston and forged crankshaft. A counterbalancer ensures minimal vibration, while the offset cylinder layout and semi-dry-sump lubrication system help reduce friction and drag inside the engine.
• Full Automatic Convenience
  Thanks to Yamaha’s Continuously Variable Transmission, the XMAX offers the convenience of truly ‘twist and go’ riding, which no gears and no clutch. This gives the XMAX an easy-going riding character that is ideal for busting city traffic on weekdays and enjoying a relaxing ride on the weekend. The CVT system also features a large air-cooling path for the drive belt, reducing heat and engine noise significantly.
• Fuel Injection and Traction Control
  Modern fuel injection features a 12-hole injector for excellent response, and just like Yamaha’s cutting edge supersport and sport-touring machines, the XMAX features a traction control system. TCS continuously monitors wheel speeds, and if the system detects rear tire slip, the engine smoothly cuts power to help prevent uncontrolled wheelspin.
• Impressive Fuel Economy and Range
  Thanks to the efficient engine design features and advanced powertrain, the XMAX delivers 75 mpg. Combined with a large 3.4-gallon fuel tank, the XMAX boasts impressive cruising range.

Chassis/Suspension

• MAX Series DNA
  The XMAX pushes the design envelope with advanced sport styling and aggressive, angular cues that set this Yamaha way ahead of the competition, for a high-class appearance that elevates the XMAX beyond expectations.
• Motorcycle-Type Front Fork
  Unlike most scooters, the XMAX features a large motorcycle-type front fork that bolts to the steering stem at both the top and bottom triple clamps. This provides an ideal balance of strength and chassis rigidity, allowing for better damping feel and shock absorption compared to typical scooter-style forks.
• Lightweight Steel Frame
  Designed for light and neutral handling character, the XMAX’s steel frame results in a wet weight of only 397 pounds fully fueled, for exceptional maneuverability.
• Large Wheels and Tires
  The XMAX features large 15-inch front and 14-inch rear wheels for enhanced handling and sporty style. The XMAX also mounts the latest Dunlop® Scoot Smart tires for good traction in both wet and dry conditions.
• Anti-Lock Braking System
  With large 267mm and 245mm front and rear disc brakes, the XMAX gives the rider controllable braking power backed up by the security of Yamaha’s anti-lock braking system, for confidence in all sorts of road conditions.

Additional Features

• Smart Key System
  Yamaha’s Smart Key system eliminates the need to use the key to access the machine. Starting the bike, accessing the storage compartments and fuel tank, and locking the handlebar can all be done using the proximity Smart Key.
• All-Inclusive Storage
  Further boosting convenience is a huge underseat storage area that locks securely to keep valuables safe, is large enough for two full-face helmets, and comes standard with LED lighting. The fairing also includes two additional storage bays, one of which locks electronically and includes a 12V DC outlet.
• LED Lighting
  Boosting both style and visibility, the XMAX uses LED lighting, with sharp LED taillights and brilliant all-LED headlights. LEDs also use less power and last much longer than conventional bulbs, reducing maintenance needs.
• Adjustable Handlebar and Windscreen
  The XMAX includes an adjustable handlebar, with 20mm of rearward adjustment, which can be changed quickly with zero additional parts. The XMAX also features a two-position windscreen that can be shifted two inches higher for additional wind protection. Finally, the sculpted saddle makes it easier to reach the ground at stops and works with the floorboards for a flexible all-day riding position.
• Ready to Accessorize
  Personalize your XMAX with a range of Genuine Yamaha Accessories, including luggage, accessory mounts, backrests and more. See the full range of accessories on www.ShopYamaha.com.

2019 Yamaha XMAX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $5599 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ See dealer for pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See dealer for pricing in AU

MSRP*

$5,599 – Matte Black – Available from November 2018

Engine

Engine Type

292cc liquid-cooled 4-stroke, SOHC single cylinder; 4 valves

Bore x Stroke

70.2mm x 75.9mm

Compression Ratio

10.9:1

Fuel Delivery

Fuel Injection

Ignition

TCI: Transistor Controlled Ignition

Transmission

Automatic CVT

Final Drive

V-Belt

Chassis

Suspension / Front

33mm telescopic fork; 4.3-in travel

Suspension / Rear

Dual shocks; 3.1-in travel

Brakes / Front

Hydraulic disc, 267mm; ABS

Brakes / Rear

Hydraulic disc, 245mm; ABS

Tires / Front

120/70-15 Dunlop® Scoot Smart

Tires / Rear

140/70-14 Dunlop® Scoot Smart

Dimensions

L x W x H

86.0 in x 30.5 in x 55.7 in – 57.7 in

Seat Height

31.3 in

Wheelbase

60.6 in

Rake (Caster Angle)

26.5°

Trail

3.7 in

Maximum Ground Clearance

5.3 in

Fuel Capacity

3.4 gal

Fuel Economy

75 mpg

Wet Weight

397 lb

Other

Warranty

1 Year (Limited Factory Warranty)

*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as
applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is
useful in making real-world comparisons with other models.

2019 Yamaha XMAX – Totalmotorcycle.com Canada Specifications/Technical Details

2019 Yamaha XMAX – Totalmotorcycle.com European Specifications/Technical Details

TBA

2019 Yamaha XMAX – Totalmotorcycle.com Australian Specifications/Technical Details

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
