LONG, LEAN MUSCLE TAKEN TO THE MODERN EDGE.

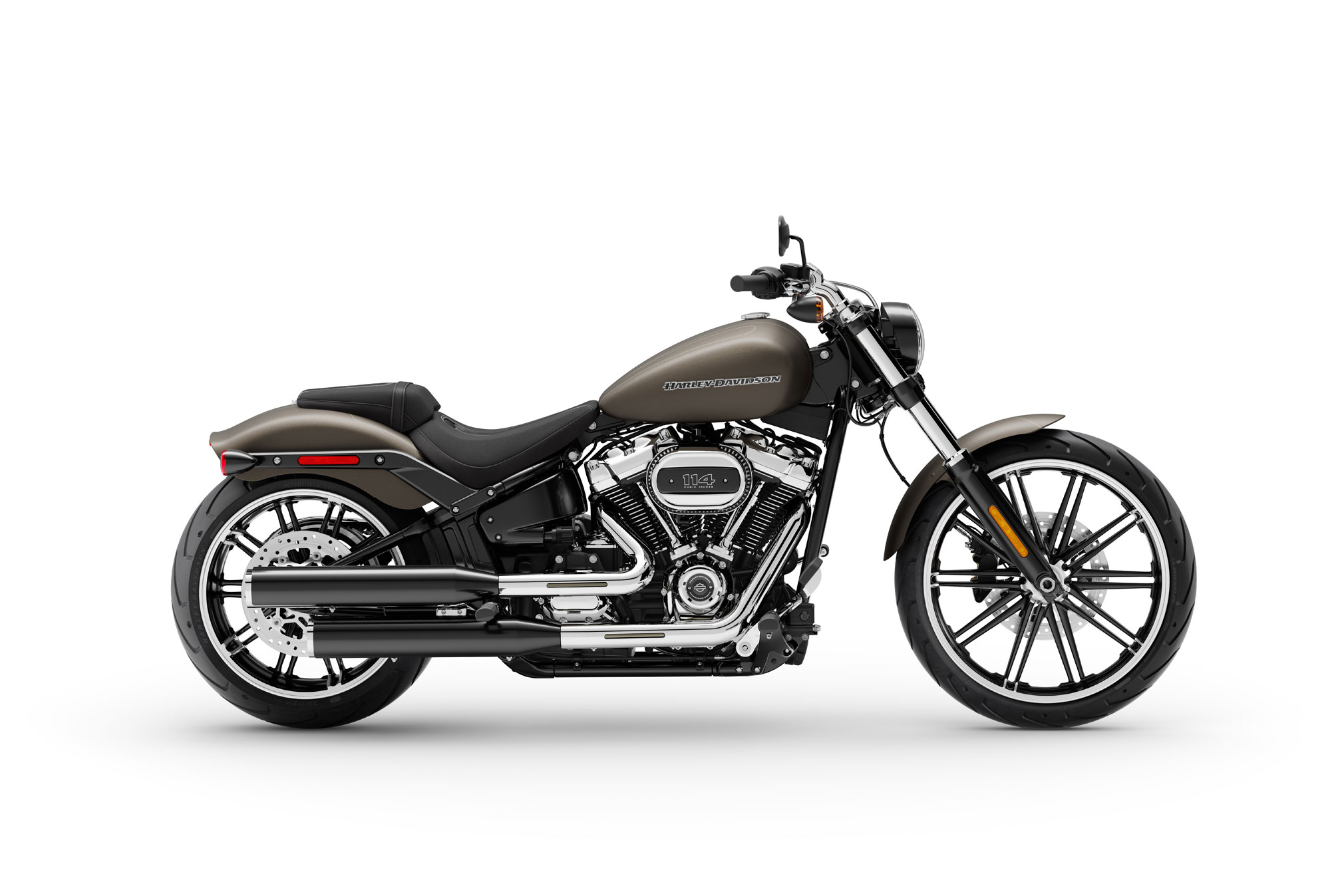

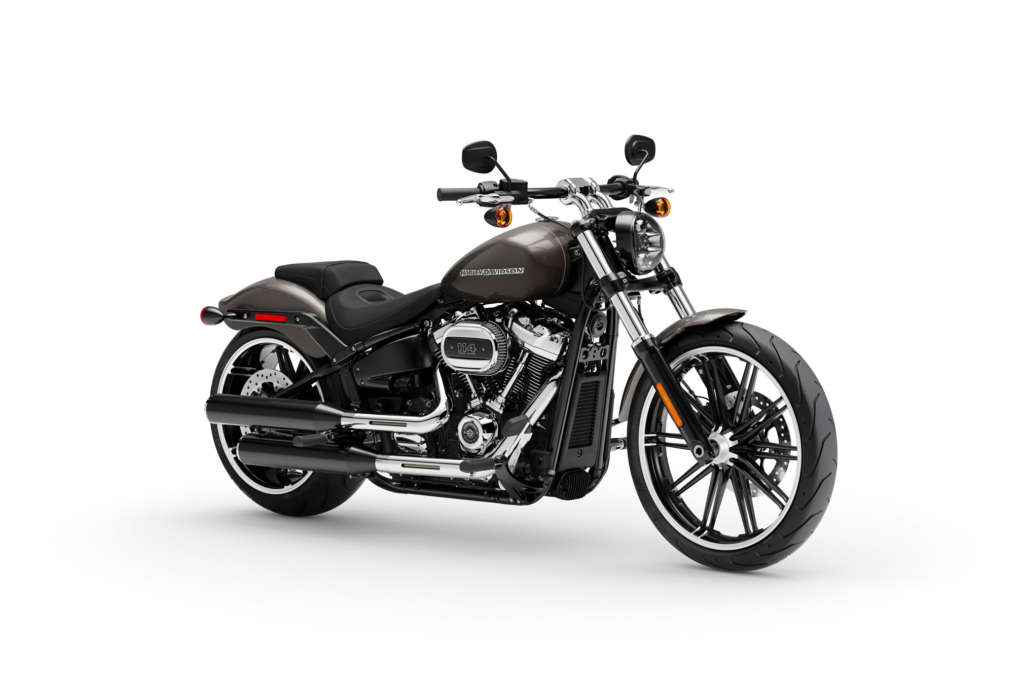

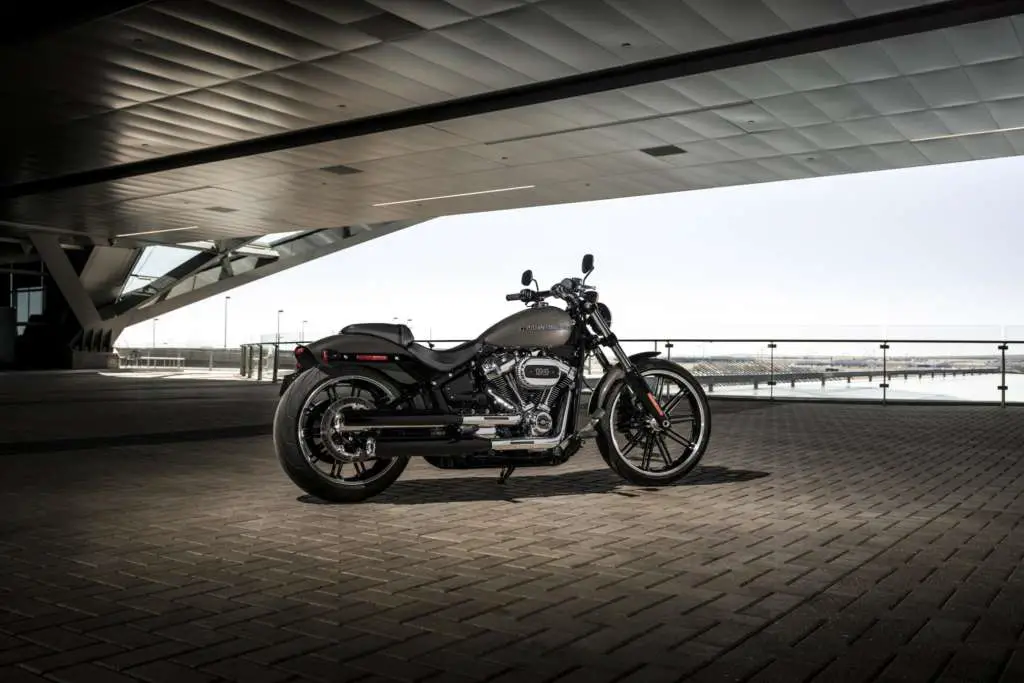

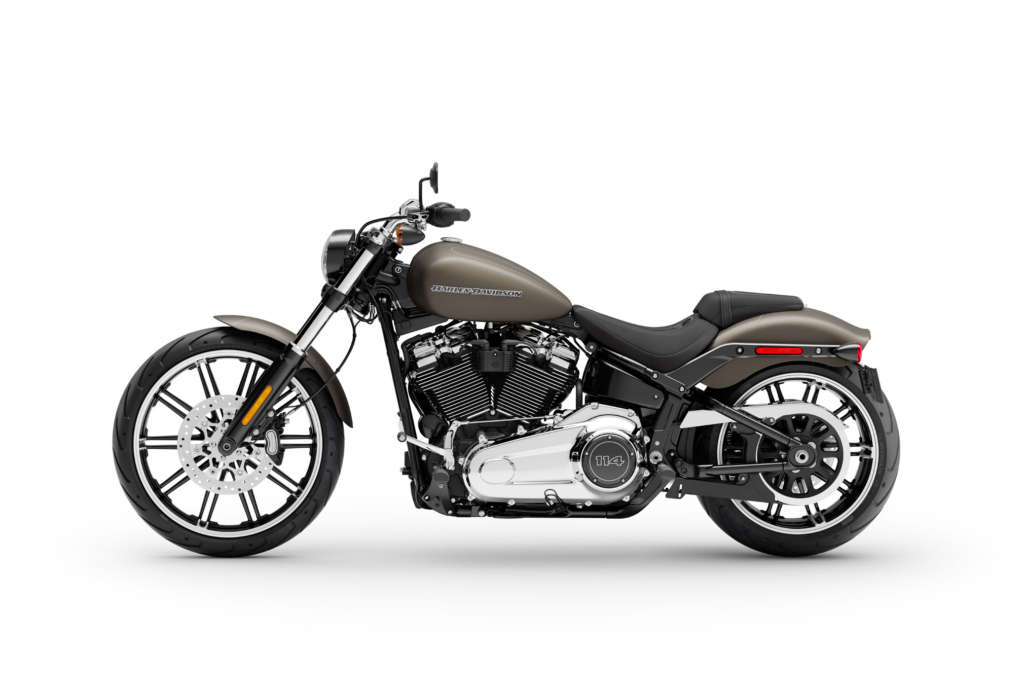

2020 Harley-Davidson Breakout 114:
The Breakout® 114 model takes long, lean muscle to the modern edge with the Milwaukee-Eight® 114 engine that stands out like a flexing bicep. It sends massive torque to the 240mm rear tire. There are custom details from fender to fender. And a re-invented Softail® frame and suspension.
The Breakout is a muscular modern chopper with pure ‘stop you in your tracks’ attitude. Be seen. Be respected. And when the light turns green, be gone.
2020 Harley-Davidson Breakout 114 Totalmotorcycle.com Key Features
One look at the Low Rider S is all it takes to see how far the Softail® family has come. It’s the latest in a new revolution of custom motorcycles we launched in 2018. With every Softail, you get a lighter frame, responsive new suspension, and the power of the Milwaukee-Eight® v-twin engine. In keeping with the custom tradition, each model has its own attitude and style. Ranging from the blacked-out nostalgia of the Heritage Classic to the futuristic edge of the Fat Bob® and FXDR 114 models. Find the one that fits your style. You’re in for one hell of a ride.
Engine
Milwaukee-Eight® 114
Engine Torque
119 ft-lb
Weight, As Shipped
648 lb.
Seat Height, Laden
25.6 in.
2020 Harley-Davidson Breakout 114 Totalmotorcycle.com Features
Milwaukee-Eight® 114 Engine
Loads of torque for blasting off from stoplights, hitting entrance ramps and rolling on the passing power. Pure sound with a soul-satisfying rumble.
240mm Rear Tire
A muscular tire that is the perfect embodiment of classic drag-bike heritage pumping through this ride.
Digital Riser Gauge
Wide digital instrumentation, mounted on risers to be close to your field of vision. Speed readout, fuel gauge, and gear indicator.
3.5 Gallon Tank
A smooth top fuel tank that accentuates the big, powerful Milwaukee-Eight® engine.
Softail® Frame
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.
High Performance Front Suspension
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.
High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.
2020 Harley-Davidson Breakout 114 – Totalmotorcycle.com American Specifications/Technical Details
US MSRP Price from: $20499 USD
Canada MSRP Price from: $25599 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AUS
Pricing
- Vivid Black $20,499
- Color $20,899
- Custom Color $21,449
- Two-Tone Custom Color $21,649
- ABS Option Standard
- Security System Option Standard
- California Emissions $200
- Freight $390
Engine
- Engine1 Milwaukee-Eight® 114
- Bore 4.016 in.
- Stroke 4.5 in.
- Displacement 114 cu in
- Compression Ratio 10.5:1
- Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 staggered; catalyst in muffler
Dimensions
- Length 93.3 in.
- Seat Height, Laden7 25.6 in.
- Ground Clearance 4.5 in.
- Rake (steering head) (deg) 34
- Trail 5.7 in.
- Wheelbase 66.7 in.
- Tires, Front Specification 130/60B21,63H,BW
- Tires, Rear Specification 240/40R18,79V,BW
- Fuel Capacity 3.5 gal.
- Oil Capacity (w/filter) 5 qt.
- Weight, As Shipped 648 lb.
- Weight, In Running Order 672 lb.
Performance
- Engine Torque Testing Method J1349
- Engine Torque2 119 ft-lb
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 26.8
- Lean Angle, Left (deg.) 26.8
- Fuel Economy Testing Method Estimated City/Hwy
- Fuel Economy5 47 mpg
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type9 Gloss black, Gasser II cast aluminum
- Wheels, Rear Type Gloss black, Gasser II cast aluminum
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
2020 Harley-Davidson Breakout 114 – Totalmotorcycle.com Canadian Specifications/Technical Details
Pricing
- Vivid Black $ 25,599
- Colour $ 26,049
- Custom Colour $ 26,799
- Two Tone Custom Colour $ 28,099
- ABS Option Standard
- Security System Option Standard
Engine
- Engine1 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 staggered; catalyst in muffler
Dimensions
- Length 2,370 mm
- Seat Height, Unladen 665 mm
- Ground Clearance 115 mm
- Rake 34
- Trail 145 mm
- Wheelbase 1,695 mm
- Tires, Front Specification 130/60B21,63H,BW
- Tires, Rear Specification 240/40R18,79V,BW
- Fuel Capacity 13.2 l
- Oil Capacity 4.7 l
- Weight, As Shipped 294 kg
- Weight, In Running Order 305 kg
Performance
- Engine Torque Testing Method J1349
- Engine Torque2 161 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 26.8
- Lean Angle, Left (deg.) 26.8
- Fuel Economy: Estimated City/Hwy5 5 l/100 km
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type9 Gloss black, Gasser II cast aluminum
- Wheels, Rear Type Gloss black, Gasser II cast aluminum
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
