2020 Kawasaki KLX140G Guide

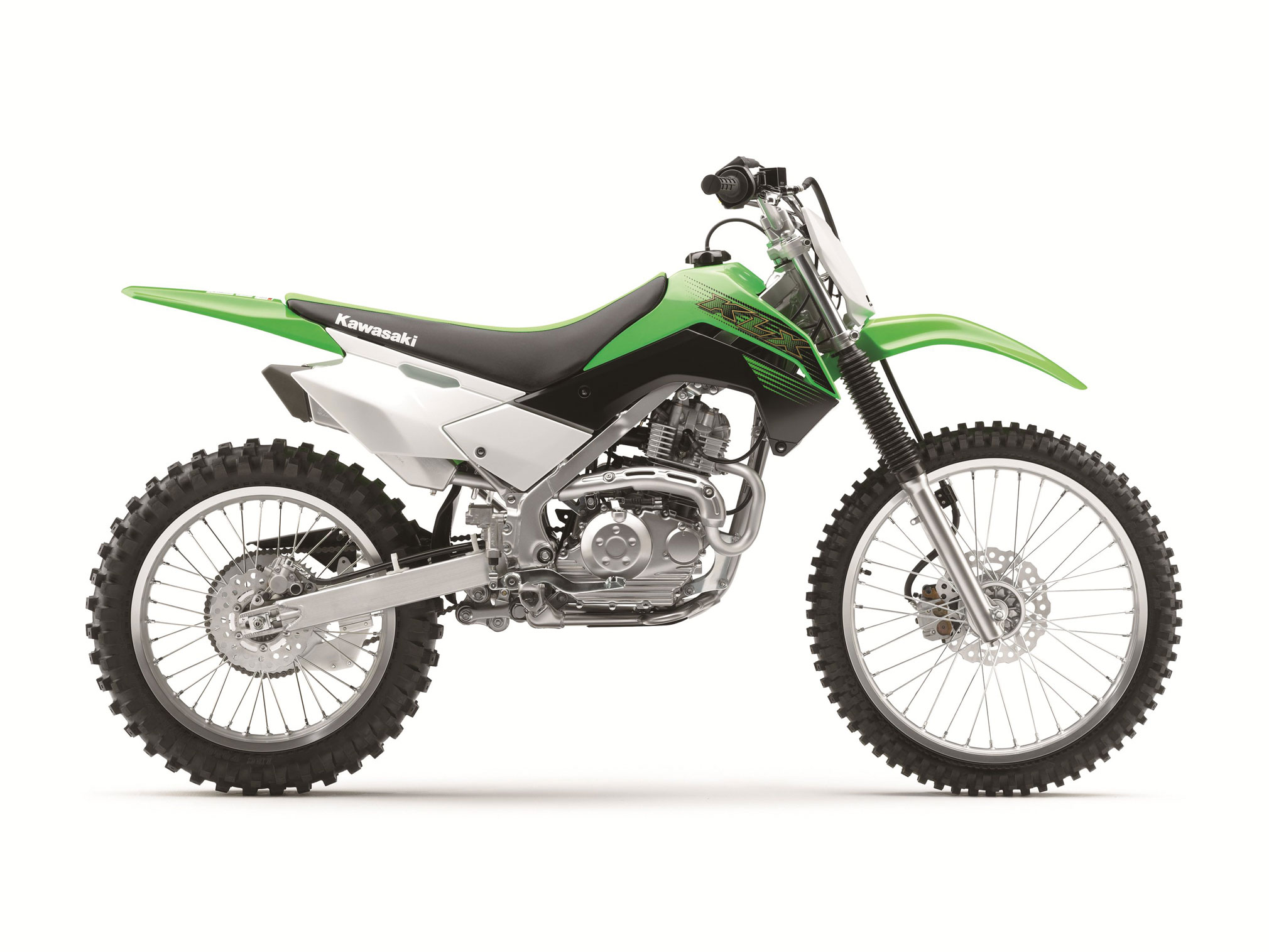

2020 Kawasaki KLX140G

2020 Kawasaki KLX140G 2020 Kawasaki KLX140G 2020 Kawasaki KLX140G


2020 Kawasaki KLX140G:

The KLX140G offers a comfortable fit and a reliable, confidence-inspiring ride with larger wheels that’s ideal for off-road adventures. Light overall weight and roomy ergonomics make learning easier, allowing riders to focus on fun, while the dependability and low-maintenance of the KLX140G make it the ultimate companion on the trail.



2020 Kawasaki KLX140G Totalmotorcycle.com Key Features

The Kawasaki KLX® family of off-road motorcycles are widely popular for their low maintenance, easy-to-ride character, and incredible capabilities while on trails. The five models consist of two engine configurations and are built to suit a variety of riders.

The KLX®250 dual-purpose motorcycle is built to take riders to new places. Borrowing notes from the KX™ line and Kawasaki’s racing heritage, this 2020 street legal, dual purpose motorcycle is designed to cut through the busy traffic of an inner city or climb up a back trail to see the city from a more beautiful view.

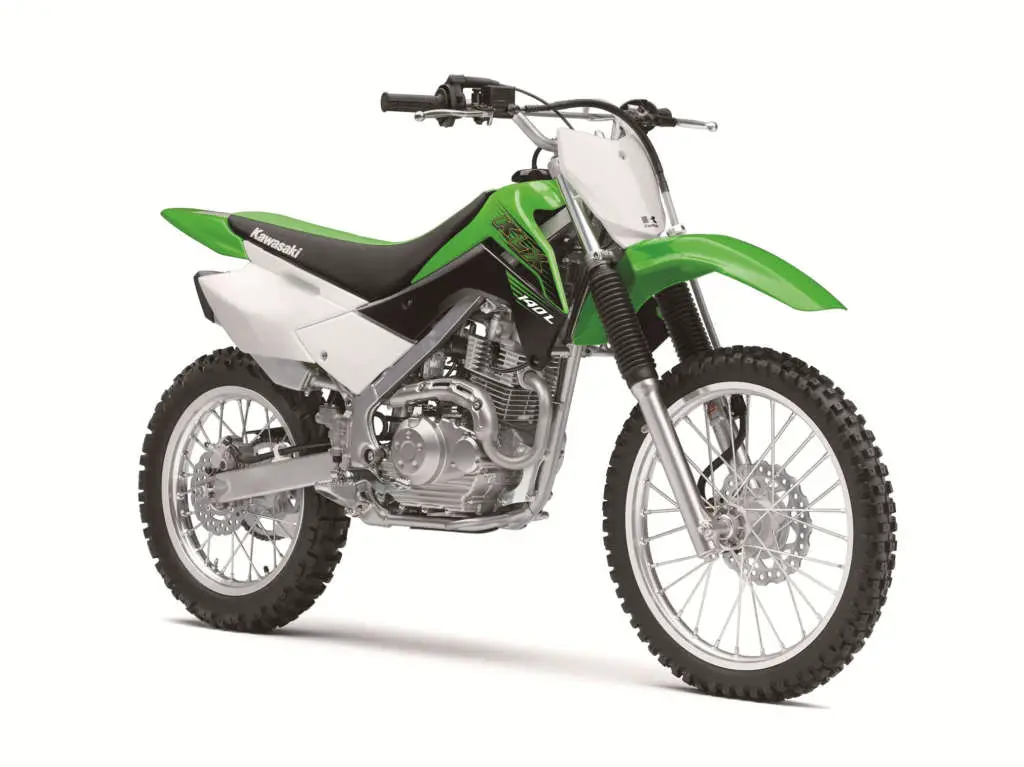

The KLX®140 motorcycle is available in three model variations, and is designed to provide a natural terrain experience with memories to last a lifetime. The powerful 144cc, four-stroke, air-cooled, single-cylinder engine features an electric starter and keyless ignition. Its broad and smooth high-revving 144cc engine utilizes a manual clutch and five-speed transmission to offer an efficient and user-friendly feel. The KLX140 uses a 17” front and 14” rear wheel, while the mid-sized KLX®140L motorcycle is equipped with a 19” front and 16” rear wheels to accommodate taller riders, providing extra ground clearance on the KLX140L. The KLX®140G comes equipped with full-size off-road wheels and tires, using a 21” front and 18” rear.

The KLX®110 is a great motorcycle for a new rider who is looking to experience dirt for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The bigger KLX®110L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110), longer suspension travel and an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch.



2020 Kawasaki KLX140G Totalmotorcycle.com Features and Benefits
  • Full-size wheels (21F, 18R) and ground clearance (12.4-inch)
  • Adjustable long travel suspension



2020 Kawasaki KLX140G – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3699 USD
Canada MSRP Price: $4349 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)



4-stroke, 1-cylinder, SOHC, air-cooled



Bore x Stroke

58.0 x 54.4mm

Compression Ratio


Fuel System

Keihin PB20


Digital DC-CDI


5-speed with wet multi-disc manual clutch

Final Drive



Front Suspension / Wheel Travel

33mm telescopic fork/7.5 in

Rear Suspension / Wheel Travel

Uni-Trak® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping/7.9 in

Front Tire


Rear Tire


Front Brakes


Rear Brakes



Frame Type

Tube, semi-double cradle


27°/4.6 in

Overall Length

78.9 in

Overall Width

31.1 in

Overall Height

44.7 in

Ground Clearance

12.4 in

Seat Height

33.9 in

Curb Weight

218.2 lb**

Fuel Capacity

1.5 gal


52.4 in

Color Choices

Lime Green


6 Months

Kawasaki Protection Plus™ (optional)

12, 24, or 36 months




2020 Kawasaki KLX140G – Totalmotorcycle.com  Canadian Specifications/Technical Details


Displacement 144cc
Type 4-stroke, Single
Bore and stroke 58.0 x 54.4 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves, screw type adjusters
Fuel system Keihin PB20 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric


Front: type Single 220 mm petal disc
Front: calipers Dual-piston caliper
Rear: type Single 190 mm petal disc
Rear: calipers Single-piston caliper


Overall length 2,005 mm
Overall width 790 mm (31.1 in.)
Overall height 1,135 mm
Wheelbase 1,330 mm
Ground clearance 315 mm
Seat height 860 mm
Curb mass** 99 kg
Fuel capacity 5.8 litres (1.3 gal.)


Transmission 5-speed
Final drive Chain
Primary reduction ratio 2.880 (72/25)
Gear ratio: 1st 2.667 (40/15)
Gear ratio: 2nd 1.895 (36/19)
Gear ratio: 3rd 1.474 (28/19)
Gear ratio: 4th 1.182 (26/22)
Gear ratio: 5th 1.000 (24/24)
Final reduction ratio 4.385 (57/13)
Clutch Wet multi-disc, manual, cable operation


Type Box section perimeter, high-tensile steel
Wheel travel: front 190 mm
Tire: front 2.75-21 45M
Wheel travel: rear 200 mm
Tire: rear 4.10-18 59M
Caster (rake) 27°
Trail 116 mm


Suspension, front 33 mm telescopic fork
Suspension, rear Uni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and rebound damping


Warranty 6 months warranty




2020 Kawasaki KLX140G – Totalmotorcycle.com European Specifications/Technical Details




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
