2020 KTM 350 SX-F Guide

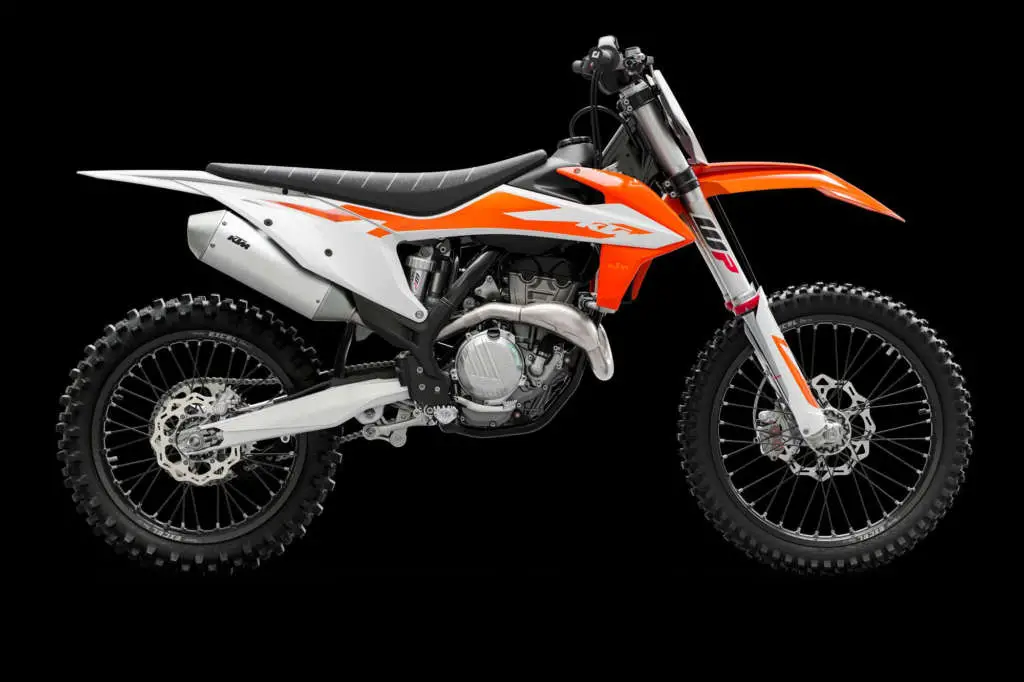

2020 KTM 350 SX-F

2020 KTM 350 SX-F 2020 KTM 350 SX-F 2020 KTM 350 SX-F

SHREDDING WITH NIMBLE AGILITY.

2020 KTM 350 SX-F:

The KTM 350 SX-F continues to deliver a dominant mix of horsepower and agility. It has an exceptional power-to-weight ratio with torque similar to that of a 450, without losing its 250-like agility. When you’re looking for more than one advantage, this powerful, lightweight racer combines all your needs into one dominant package with serious championship pedigree to back it up.



2020 KTM 350 SX-F Totalmotorcycle.com Key Features

 NEW graphics for a READY TO RACE appearance.
 NEW WP XACT front fork setting for improved damping, and new fork piston for improved
performance. Features proven, sophisticated air spring design with separate damping
functions.
 NEW WP XACT rear shock setting and new compression adjuster for improved tuning.
 Compact DOHC (double overhead camshaft) engine with cutting-edge cylinder head
featuring titanium valves and super-light finger followers with a hard DLC coating.

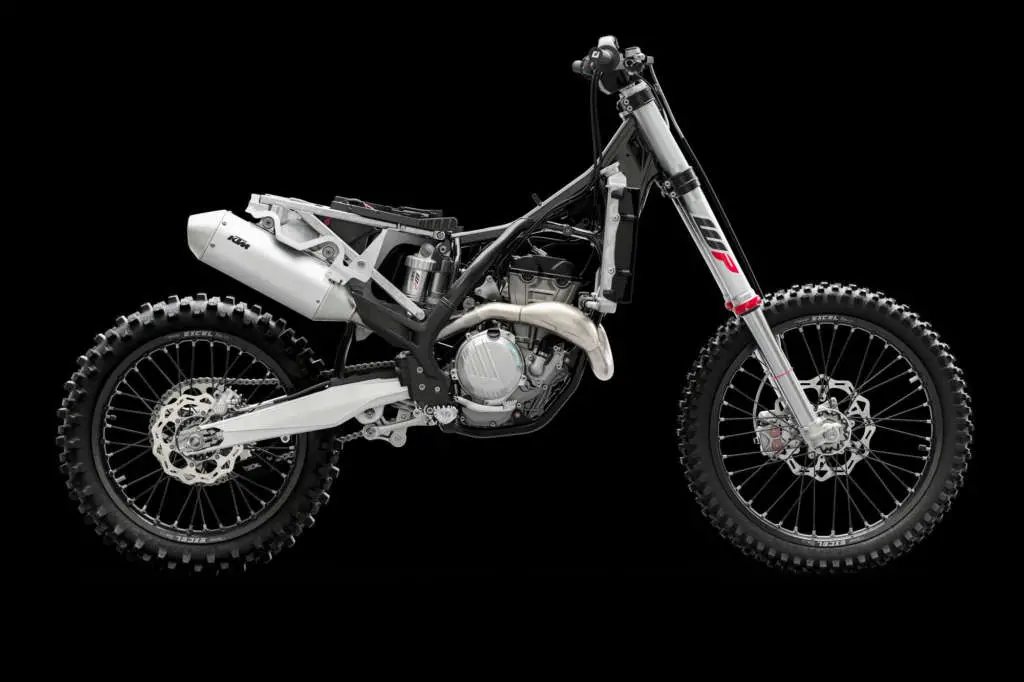

 High-tech, lightweight chrome-moly steel frame with optimized stiffness provides a great
blend of comfort and stability.
 Single-piece cast aluminum swingarm features a long rear axle slot for increased
adjustability, offering better straight-line stability.
 Bodywork features a slim design for optimal comfort, control and freedom of movement.
 Air box and air boot designed to provide maximum protection of the air filter against soiling
and better airflow for optimal performance. Air filter can be accessed without tools for quick
servicing. Optional perforated airbox cover included in the by-pack.
 Header pipe with FDH (Flow Design Header) resonator system for improved performance.
 Handlebar map switch selects between two maps and activates traction and launch control
for better traction and more efficient starts.
 Hydraulic Brembo clutch system offers light operation and highly controllable modulation of
the clutch.
 High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and
are combined with lightweight Wave discs.
 Handlebar clamps feature a separated lower clamp and bridge-type upper clamp for more
torsional stiffness.
 KTM’s “No Dirt” foot peg design keeps the peg pivot from becoming clogged, ensuring the
foot peg is always in the correct position.
 Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Excel rims and Dunlop
MX 3S tires.
 “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any
condition.



THE NEW KTM SX RANGE IS OUT NOW!

After the race is before the race and when it comes to competing in the most prestigious championships around the world, this mantra is an important one to live by. KTM’s desire to win in AMA Supercross and the FIM Motocross World Championship continues to be demonstrated with outstanding performances in each series thanks to KTM’s focus on creating the sharpest weapons for the toughest battles. This READY TO RACE mindset and development in the most challenging arenas is translated directly into our serial production models.

Following on from last year’s ground-breaking introduction of a new KTM SX generation, for model year 2020 the 2-stroke KTM 125 SX, KTM 150 SX and KTM 250 SX, and the 4-stroke KTM 250 SX-F, KTM 350 SX-F and KTM 450 SX-F have received performance enhancing engine updates to ensure they remain at the fore and as battle-ready as ever. These detailed refinements, that have been developed with KTM´s test riders in Europe and the USA along with factory racers around the globe, complement the high-quality serial components that the KTM SX range already boasts.

New graphics and colors give the range a fresh look for the new season, while an E-starter and a map select switch with integrated traction control and launch control on 4-stroke machines, premium brakes supplied by Brembo, No-Dirt footpegs are fitted as standard to KTM’s class-leading line-up. High quality exhaust systems, plastics and seats join the reworked WP XACT suspension with the proven AER technology, which offers enhanced handling for model year 2020.

Designed by the very same engineers that are responsible for the bikes raced by the likes of Jeffrey Herlings, Antonio Cairoli and Cooper Webb, the KTM sportminicycle line-up continues to set the benchmark in out-of-the-crate performance for junior riders. For MY2020 the KTM 50 SX, KTM 65 SX and KTM 85 SX have a new look and feature the WP XACT suspension for precise handling and stability in the toughest motocross terrain.

All of the junior models boast premium components such as high-quality Formula brakes, a high-strength steel frame, ergonomically designed bodywork and high-performance engines. For model year 2020 the KTM 65 SX has a reworked ignition curve for improved performance, while the carburetor has been optimized for better power delivery. Its bigger brother, the KTM 85 SX, has a new transmission drive shaft fixing for safer sprocket fixation. The KTM 85 SX also has a reworked muffler with improved packing wool, which saves weight.

In addition, the KTM SX-E 5 will join the sportminicycles as another competitive option for junior riders. Based on the KTM 50 SX with its high-end chassis, but powered by an electric motor, the KTM SX-E 5 is easy to ride, has zero emissions, low noise and requires minimal maintenance – giving riders more options for places to ride, whilst being easy to use. The height of the bike is also completely adjustable, and it is aimed at riders aged from 4 to 10 years old, making it an exciting new model in the KTM line-up. The KTM SX-E 5 will be launched this summer.

“To be the consistent performer at any level of racing, you have to continue to progress in development. The work never stops – whether that’s here in Mattighofen, or with our engineers in the USA. The KTM SX range model year 2020 has received a number of updates to complement last year’s groundbreaking new generation models, and we can see that our continued efforts in development are paying off – our athletes both in Supercross and Motocross have enjoyed some fantastic results so far this season. Utilizing the same R&D team as their bigger brothers, the KTM sportminicycle models remain at the very forefront of junior racing competition with detailed refinements for MY2020. In addition, we are excited for the highly anticipated launch of the all-new KTM SX-E 5 electric minicycle, which will arrive this summer,” said KTM´s Senior Product Manager Offroad, Joachim Sauer.



2020 KTM 350 SX-F Totalmotorcycle.com Features and Benefits

ENGINE & EXHAUST
4-strokes have taken motocross to unthinkable new extremes in a playground where KTM is the dominant force. Lighter and more compact than ever thought possible, these well-balanced engineering masterpieces deliver class-leading power in the most dynamic way. Straight from the showroom floor, KTM 4-strokes offer READY TO RACE performance of the highest caliber.

CHASSIS
The KTM 350 SX-F has a lightweight, high-tech steel frame, carried over from the 2019 model. It plays an integral role in the bike’s renowned maneuverability, while also providing accurate rider feedback. Its refined flex characteristics ensure the bike soaks up those big hits while still delivering excellent agility and high-speed stability. The chassis also features additional innovative elements like “no dirt” footpegs and brackets for mounting an optional composite skid plate. For 2020, the suspension features improved damping characteristics. The reworked settings offer a slightly softer, more comfortable feel that, together with the dynamic, performance-oriented chassis, contribute to an intuitive, high-performance ride like no other.

ERGONOMICS & COMFORT
A rider’s ability to work together with the bike depends on how quickly and easily he can maneuver around his motorcycle. In order to ensure optimal rider control, KTM has focused extensively on the best ergonomics for high-level performance. The neutral riding position is comfortable and, through various handlebar positions, can also be adjusted to suit every rider and condition. A rider’s main interaction with the motorcycle comes through the bodywork, seat, footpegs and handlebars and these crucial contact points play a vital role in a rider’s ability to maintain balance and control. When it comes to ergonomics, KTM chose to use only the best quality products, ensuring the KTM 350 SX-F, as well as the entire SX range, provide unrivalled feeling and control out on the track.

BODYWORK & GRAPHICS
The KTM 350 SX-F is a standout performer that has made a huge impact on the industry. The contributions from KTM factory riders, as well as KTM R&D and Kiska Design, have helped to shape the bodywork and the success of this radical machine. The design that features across all 2020 SX models, achieves complete harmony between rider and bike, down to the finest detail. The main goal is to provide the perfect contact points for the rider to enjoy maximum freedom of movement and improved handling. The I-beam design for the front and rear fenders are prime examples of the intelligent design that appears in every element of the bodywork, guaranteeing maximum stability at the lowest possible weight.

SOFTWARE & ELECTRONICS
The KTM 350 SX-F is a revolutionary motorcycle at the forefront of progression in motocross. It features innovative electronics that help to refine its incredible power-to-weight ratio, while maximizing power delivery. Activated by a multifunctional handlebar map switch, a rider has instant access to traction control, launch control and even alternative power curves. KTM’s engineers have spent many hours pushing the boundaries of performance, making electronics a necessary innovation that ensures the most effective power delivery. KTM SX-F models also have the advantages of a proven electric starter. Just one simple push of a button and you’re READY TO RACE.



2020 KTM 350 SX-F – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $9,799 USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Engine Type: Single Cylinder, 4-Stroke
Displacement: 349.7 cc
Bore / Stroke: 88 / 57.5 mm
Compression Ratio: 14.2:1
Starter/Battery: Electric Starter / 12.8V, 2 Ah
Transmission: 5 Gears
Fuel System: Keihin EFI, 44 mm Throttle Body
Lubrication: Pressure lubrication with 2 oil pumps
Primary Ratio: 24:73
Final Drive: 14:50
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Sub Frame: Aluminum
Handle bar: Neken, Aluminum Ø 28/22 mm
Front Suspension: WP XACT USD Fork, Ø 48 mm
Rear Suspension: WP XACT Monoshock with Linkage
Suspension Travel Front/Rear: 310 mm / 12.2 in; 300 mm / 11.81 in
Front/Rear Brakes: Disc Brake 260 mm / 10.24 in; 220 mm / 8.66 in
Front/Rear Rims: 1.60x 21” / 2.15 x 19” Excel
Front/Rear Tires: 80/100-21” / 110/90-19” Dunlop MX3S
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.1º
Triple Clamp Offset: 22 mm
Wheelbase: 1,485 mm ± 10 mm / 58.5 ± 0.4 in
Ground Clearance: 370 mm / 14.6 in
Seat Height: 950 mm / 37.4 in
Tank Capacity, Approx: 7 L / 1.85 gal
Weight (without fuel), Approx: 99.5 kg / 219.4 lbs





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
