2020 KTM 350 XCF-W Guide

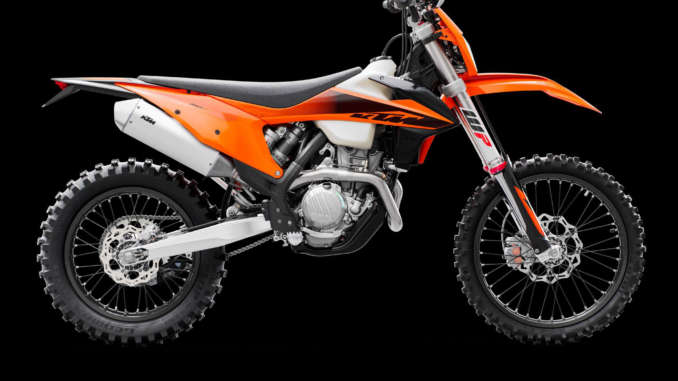

2020 KTM 350 XCF-W

2020 KTM 350 XCF-W

THE PERFECT MIX.

2020 KTM 350 XCF-W:

New for 2020, the KTM 350 XCF-W builds on the successful formula of offering 250-like agility and 450-like power. This offroad ripper, developed around an updated engine and chassis, sees advances in performance and handling for 2020, brining it even closer to the power of a 450 while getting ever closer to the agility of a 250 – so, the basic idea of this bike is easy to see, and has been a recipe for success right from the start.



2020 KTM 350 XCF-W Totalmotorcycle.com Key Features

▪ NEW offroad-only model that sheds the signals and mirrors and features more aggressive
mapping and a less restrictive power pack than the KTM 350 EXC-F, meaning more power
to put to the ground through the full-knobby tires and a lighter overall weight.
▪ NEW graphics for a READY TO RACE appearance.
▪ NEW frame developed in collaboration with KTM factory racers feature improved stiffness for
outstanding handling and straight-line stability.
▪ NEW aluminum head stays for improved engine fixation.
▪ NEW 40 mm longer subframe provides improved rear fender stability.
▪ NEW bodywork designed with superior ergonomics for increased freedom of movement and
improved handling and comfort.
▪ NEWLY shaped seat offers better ergonomics and comfort for long rides in demanding
terrain.
▪ NEW air box and velocity stack provide maximum protection of the air filter against soiling
and better airflow for optimal performance.
▪ NEW fuel tank with improved ergonomics and optimized fuel pump assembly.
▪ NEW exhaust system is more compact and shorter for better mass centralization and
features a new 2-piece header design for improved performance and easier mounting.
▪ NEW stronger and super-light Lithium-Ion battery offers better starting and reduced weight
for improved handling.
▪ REWORKED wiring harness and packaging for a compact electrical system.
▪ NEWLY designed radiators with an optimized cooling system for more efficient cooling and
12 mm lower mounting position for improved handling.
▪ REWORKED cylinder head is 200 g lighter for improved handling and features new flowoptimized
ports for outstanding engine performance.
▪ NEW CP piston and shorter cylinder produce an increased compression ratio (from 12.3 to
13.5:1) for improved power across the rpm range.
▪ REWORKED crankshaft with new small-end bearing for improved reliability.
▪ NEW lighter engine cases with a centralized shaft configuration to move the crankshaft
closer to the bike’s center of gravity for light handling.
▪ 42 mm Keihin throttle body provides instant throttle response and crisp fueling and features
new cable routing.
▪ NEW 6-speed transmission made by PANKL is made of a new stronger, forged raw material
which ensures the highest level of durability and reliability.
▪ UPDATED WP XPLOR forks with a split-function design feature a new calibrated mid-valve
piston for more consistent damping, new fork caps with new adjusters and new settings to
keep the front end higher for better rider feedback and increased bottoming resistance.
▪ UPDATED WP XPLOR rear shock with PDS technology features a new second piston and
reworked shape of the sealing cup for improved bottoming resistance while new settings
offer improved comfort.
▪ Updated selectable maps put the enhanced engine characteristics under the control of the
rider with the simple push of a button.
▪ Handlebar map switch selects between the two updated maps and activates traction and
launch control for a race-winning edge over the competition.
▪ The hydraulic Brembo clutch system offers light operation and highly controllable modulation
of the clutch.
▪ High-tech Brembo brakes have always been standard equipment on KTM offroad bikes and
are combined with lightweight Wave discs for maximum performance.
▪ KTM’s “No Dirt” foot peg design keeps the pegs pivot from becoming clogged, ensuring the
foot peg is always in the correct position.
▪ Super lightweight Galfer Wave rotors, CNC machined hubs, high-end Giant rims and Dunlop
GEOMAX AT81 tires.
▪ “No Dirt” shift lever prevents dirt from fouling the lever joint to ensure proper shifting in any
condition.





2020 KTM 350 XCF-W Totalmotorcycle.com Features and Benefits

ENGINE & EXHAUST
KTM continues its evolution of the sport with a new range of world-beating 4-stroke engines. The race-winning performance of KTM’s pros has filtered through to these powerful new motors, proving they’re capable of taking you to the front right out of the crate. The reworked engines are the most competitve, compact and light engines on the market, setting the benchmark in Enduro-specific performance, rideabilty and reliability. This means they are capable of winning in each engine class, from amateur level to the fastest professionals.

CHASSIS
KTM engineers take weight loss seriously. As a result, they have crafted the 2020 KTM XCF-W models to be the slimmest, lightest and quickest-turning offroad bikes available. And with an E-starter as standard, getting the big single turned over is as simple as pressing a button.

ERGONOMICS & COMFORT
Designed for complete harmony between rider and bike, KTM has exploited the knowledge from decades of race success to create perfect ergonomics on the KTM 350 XCF-W. Maximum rider comfort and movement in all conditions is guaranteed.

BODYWORK & GRAPHICS
With input from KTM’s factory riders, as well as KTM R&D and Kiska Design, the new bodywork of the KTM 350 XCF-W pushes the boundaries of progression even further. The result is a shape across the entire range that achieves complete harmony between rider and bike. The main goal was to provide the optimal contact points that allow a rider maximum freedom of movement and improved handling. The front and rear fenders feature an intelligent I-beam design, guaranteeing maximum stability with the lowest possible weight. A new tail light design fits perfectly to the new shape of the rear fender and the number plate carrier. The new in-mold graphics confirm the high-performance intentions of this bike, as well as KTM’s never-ending quest for race-winning progression.

SOFTWARE & ELECTRONICS
The state-of-the-art KEIHIN engine management system, with electronic fuel injection, features a new 42 mm throttle body, which provides an instantaneous response and maximum performance thanks to its unique injector position. The ECU features new maps adapted to the new exhaust, airbox and engine configuration and it regulates the unique traction control which can be activated by an optional map select switch. In addition, the ECU provides different maps for optimal power characteristics for each gear according to the information received by the gear sensor.



2020 KTM 350 XCF-W – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $See Dealer for pricing in  USD
Canada MSRP Price: $ See Dealer for Pricing in CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
Australia MSRP Price: See Dealer for Pricing in AU

Engine Type: Single Cylinder, 4-Stroke
Displacement: 349.7 cc
Bore/Stroke: 88 / 57.5 mm
Starter: Electric, Lithium Ion 12 V 2 Ah
Transmission: 6 Gears, Wide Ratio
Fuel System: Keihin EFI, 42 mm
Lubrication: Pressure Lubrication with 2 Pumps
Primary Ratio: 24:73
Final Drive: 14:52
Cooling: Liquid Cooling
Clutch: Wet Multi-Disc DDS-Clutch, Brembo Hydraulics
Ignition: Keihin EMS
Frame: Central Double-Cradle Type 25CrMo4 Steel
Subframe: Aluminum
Handlebar: NEKEN, Aluminum Ø 28/22 mm
Front Suspension: WP XPLOR USD Ø 48 mm
Re ar Suspension: WP XPLOR Shock with PDS
Suspension Travel Front/Rear: 300 mm / 11.8 in; 310 mm /12.2 in
Front/Rear Brakes: Disc Brake 260 mm / 220 mm
Front/Rear Rims: 1.60 x 21” / 2.15 x 18” Giant
Front/Rear Tires: 90/90-21” / 110/100-18” Dunlop GEOMAX AT81
Chain: 5/8 x 1/4 in
Silencer: Aluminum
Steering Head Angle: 26.5º
Triple Clamp Offset: 22 mm
Wheelbase: 1,482 mm ± 10 mm / 58.3 ± 0.4 in
Ground Clearance: 355 mm / 14 in
Seat Height: 960 mm / 37.8 in
Tank Capacity, Approx.: 8.5 L / 2.25 gal
Weight (without fuel), Approx.: 105.2 kg / 231.9 lbs





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
