2020 MV Agusta Superveloce 800 Guide

2020 MV Agusta Superveloce 800

2020 MV Agusta Superveloce 800 2020 MV Agusta Superveloce 800 2020 MV Agusta Superveloce 800 2020 MV Agusta Superveloce 800 2020 MV Agusta Superveloce 800

REVOLUTIONARY.

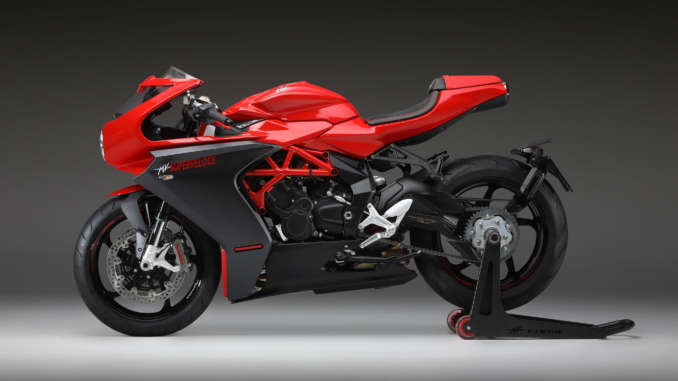

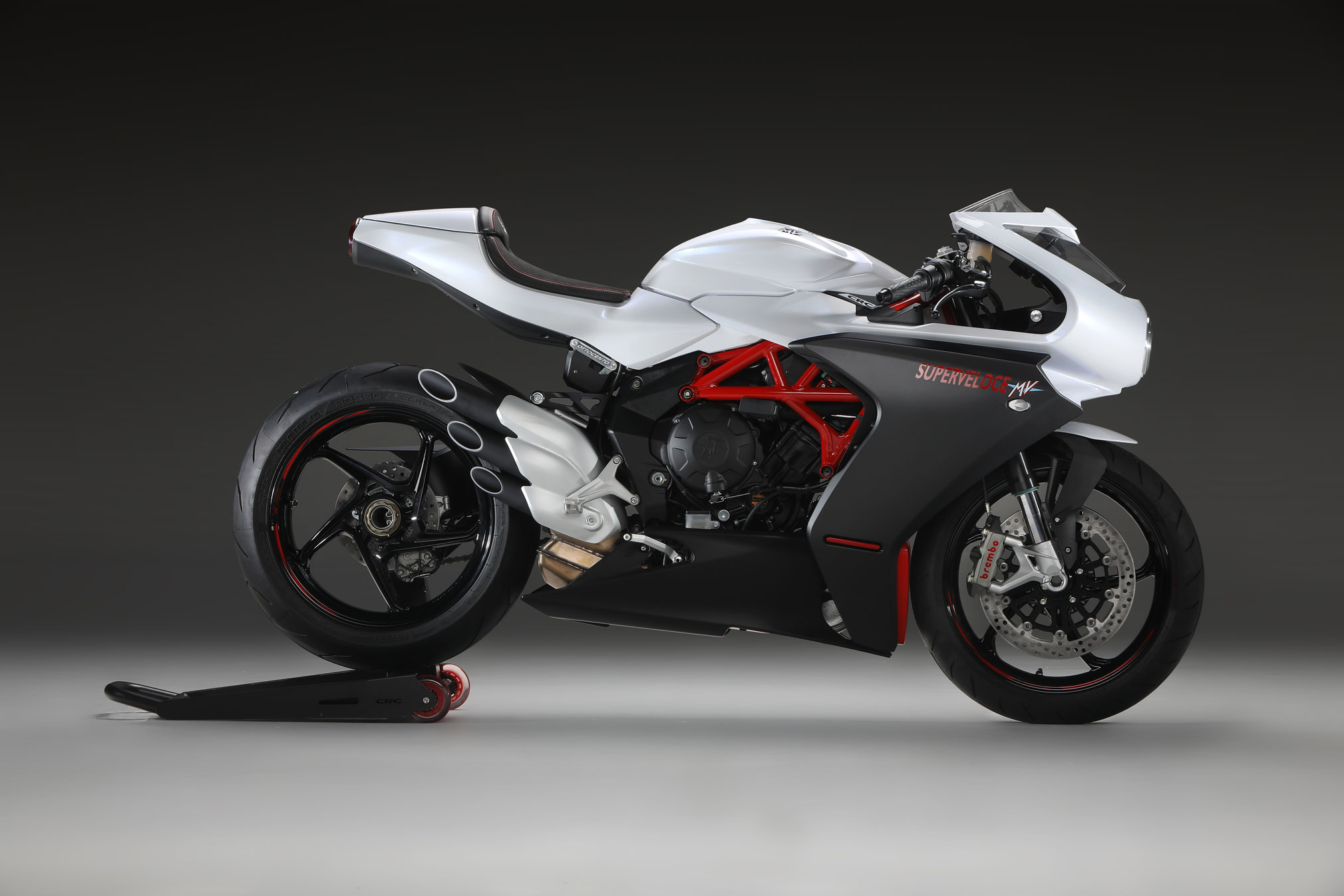

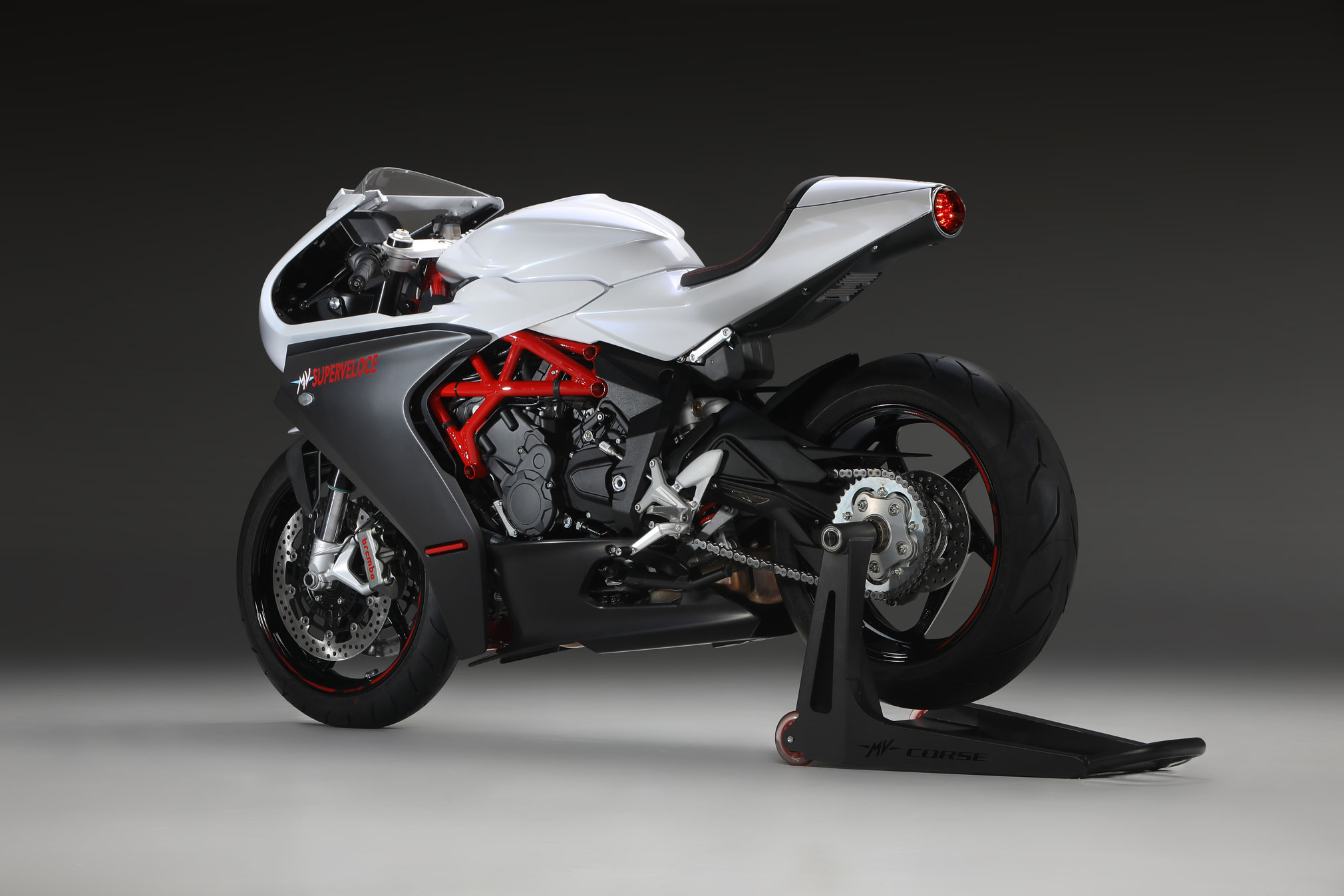

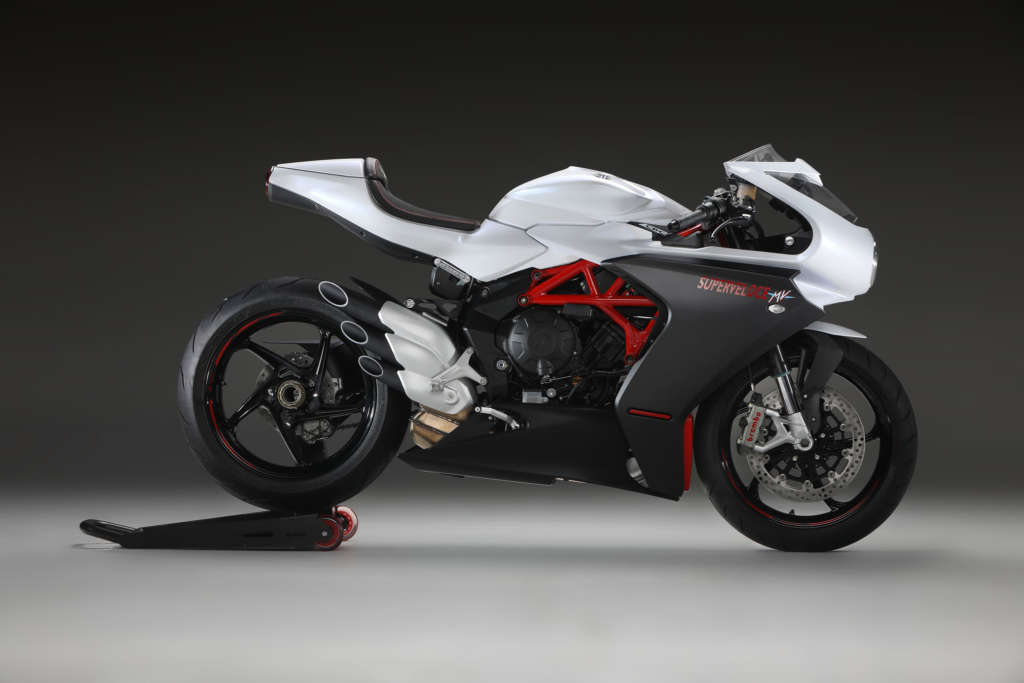

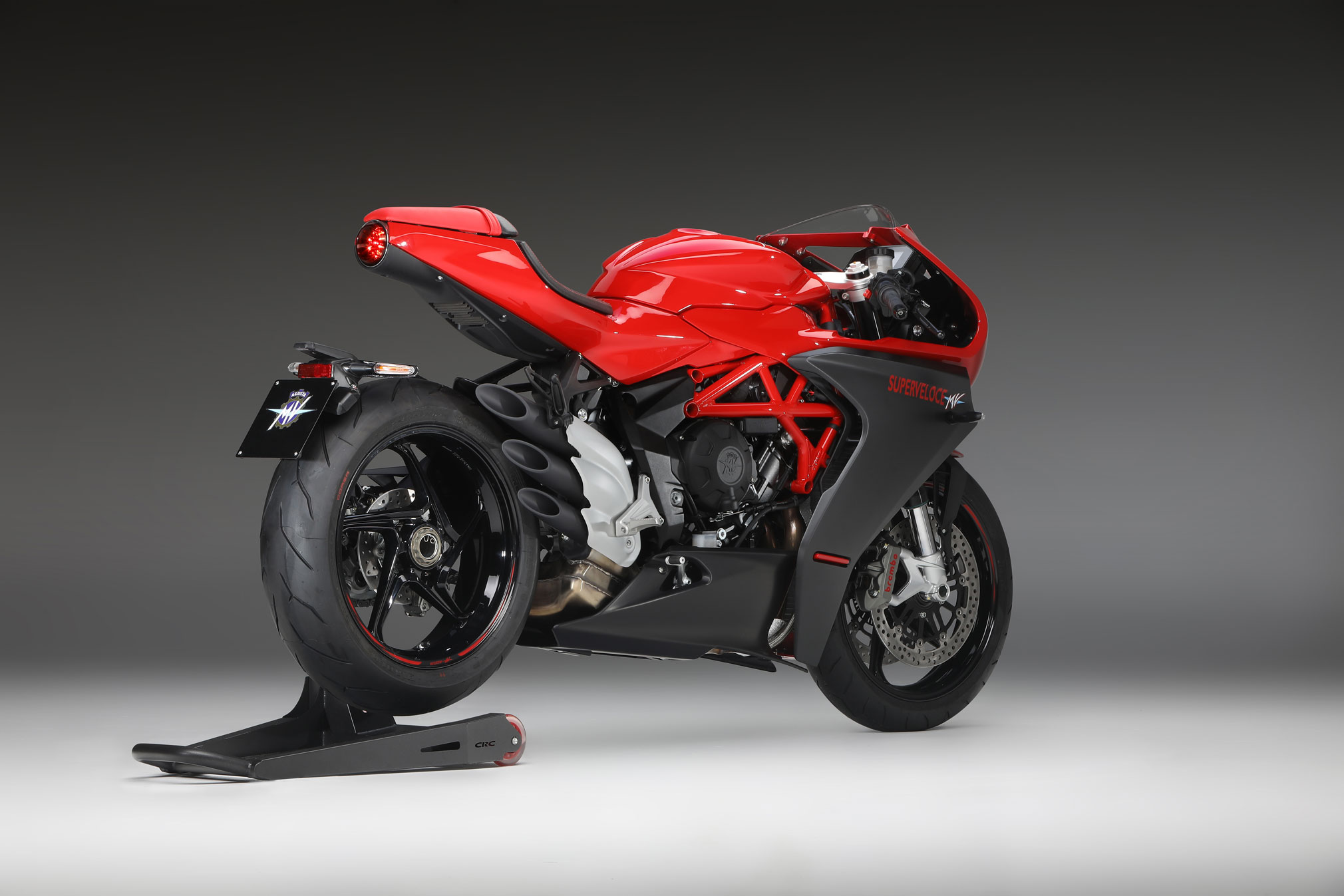

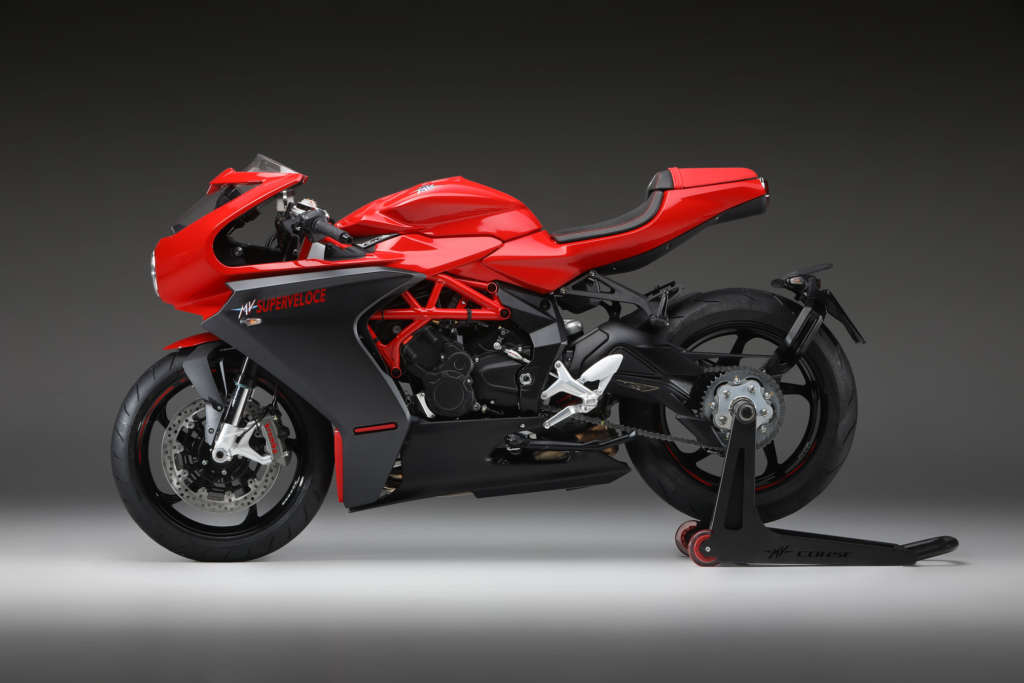

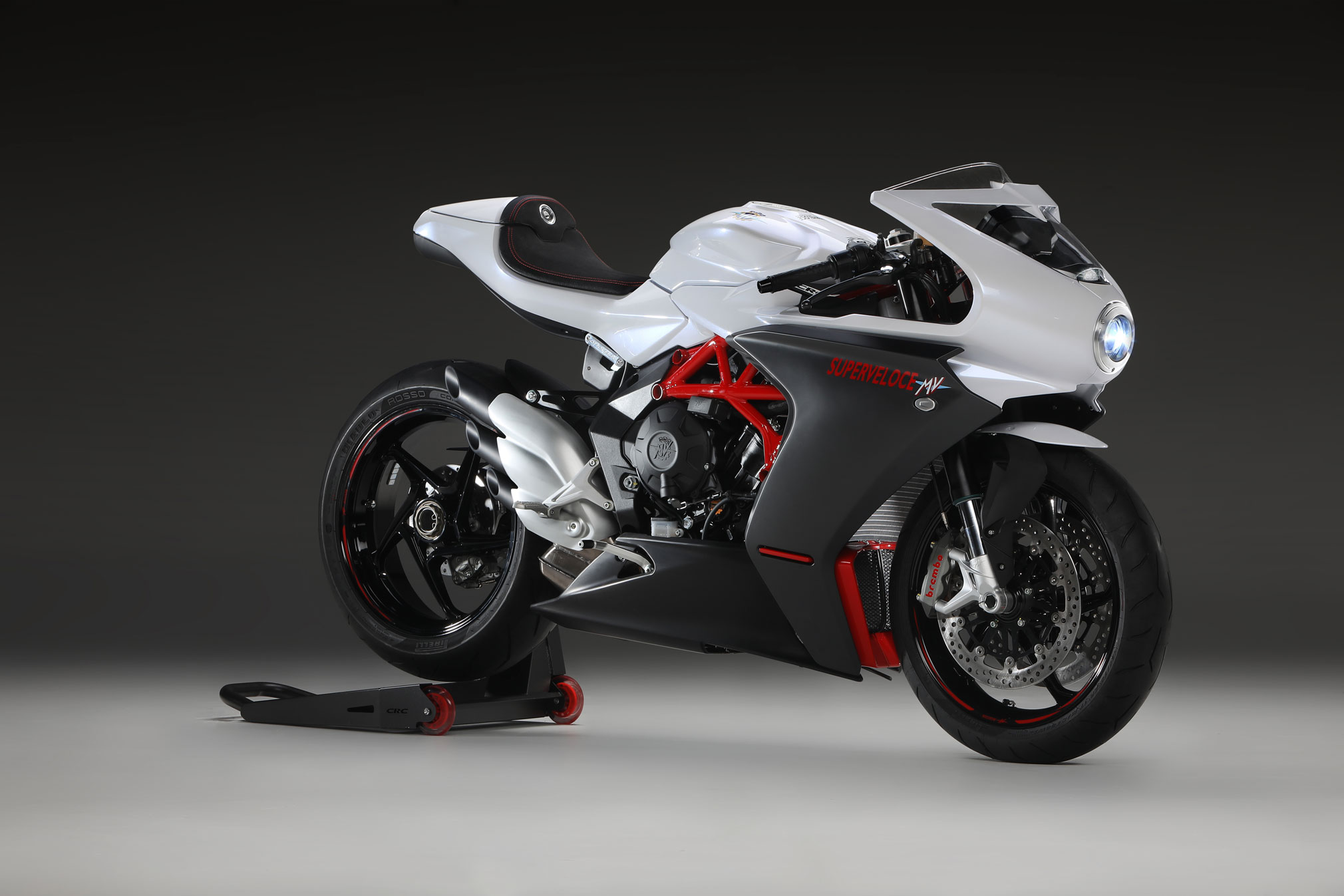

2020 MV Agusta Superveloce 800:

After outstanding success at EICMA 2018, the MV Agusta Superveloce 800 and Superveloce 800 Serie Oro have gone into standard production. Destined to become a milestone in the history of the company from Varese, Italy, this model celebrates the glorious sporting heritage of the brand with a modern twist. The combination of elements from the past and cutting-edge technology is extreme, so much as to revolutionize the very idea of ​​retro-inspired bikes. Every detail brings to memory the 37 world titles won, whilst also representing a link to the present, all with an audacious yet futuristic approach.



Details – Vintage according to MV Agusta

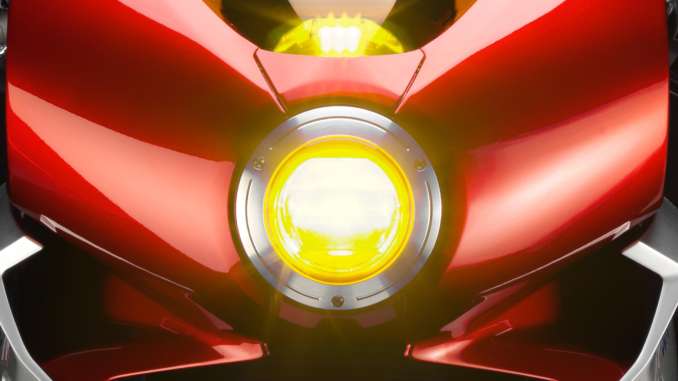

The headlight unit is characterized by a single elliptical, full LED double-function element. The LED position light is integrated in the dashboard support. The rear light cluster was designed specifically for the Superfast 800.
Design – Blast from the past

Obsessive attention to detail finds in the Superveloce 800 to defining example. Nothing escaped the designer’s eye. Superfast represents the perfect balance between modern forms and references to the past. The design could not ignore the spirit of a motorcycle inspired by the brand’s racing tradition, and every element is stripped down to its essential function and committed to performance.
Performance – No limits

Timeless forms and modern superbike performance. The attractiveness of the Superveloce go far beyond simple aesthetics. A motorcycle seduces with performance, acceleration and speed.
Technology – Into the future

The history of MV Agusta permeates every single detail of the Superveloce. But beyond its timeless design inspired by the glorious past, it revealed itself to be the most demanding riders.
Mechanics – racing emotions

The three-cylinder in-line engine with a counter-rotating shaft derives directly from that of the F3 800. It stands out for its elasticity, performance and compactness. 148 hp at 13,000 rpm promise exciting performance on any type of road. Besides, of course, on the track.
Electronics – Control in the hands

Sport, Race, Rain, Custom: there are four mappings dedicated to the Superveloce 800. Electronic “souls” capable of changing the character of the bike to shape it according to the needs of the driver or the road. Three maps are preset, the fourth completely customizable.
Safety – Top braking system

The braking system uses four-piston radial calipers and large-diameter discs. The goal is to offer state-of-the-art braking power, without forgetting ease of management, which is fundamental in all circumstances.
warranty

MV Agusta offers a new 3-year warranty on the entire range and a professional assistance service to all customers. Customize your experience by driving a MV and discovering the wide range of dedicated accessories and special parts.



2020 MV Agusta Superveloce 800 Totalmotorcycle.com Key Features

 MV AGUSTA PRESENTS THE NEW 2020 MODEL RANGE

Varese, 2nd November 2019 – Quality, technology, performance. But also quick delivery of spare parts and professional service. There’s more: expansion and improvement of the dealers network to offer clients timely, impeccable assistance. These are the short-term guidelines for MV Agusta, which has just set off on a growth path clearly envisioned by its CEO, Timur Sardarov.

To mark the company’s determination in pursuing the 2020 objectives, production of the Brutale 1000 RR, the four-cylinder naked Superbike replica, has started in Schiranna. 208 hp maximum power, advanced chassis and suspension as well as leading-edge aerodynamic solutions all make the four-cylinder Brutale a defining example of MV Agusta’s excellence in motorcycle manufacturing. As core priorities of the brand,  these values are reinforced today by the attention and the investments in Research and Development.

From the production line to dealers showrooms: Superveloce 800 Serie Oro and Superveloce 800 bring MV Agusta’s timeless fascination to the roads, with their intoxicating curves, classic and contemporary at the same time. The engine and the chassis are the pinnacle of engineering that position the Superveloce 800 among the most fascinating and dynamic sports bikes on the scene.

Beauty and functionality, exciting and confidence-inspiring riding:  Dragster 800 RR SCS and Brutale 800 RR SCS both feature the revolutionary SCS 2.0 (Smart Clutch System) for clutch-free starts and stopping. A technical innovation that allows to stop and restart without touching the clutch lever, making the most out of the in-line three-cylinder engine mated to a counter-rotating crankshaft. All of this with only 36g weight increase compared to a traditional clutch.

The magic and technology of MV Agusta, at a competitive price. Thanks to the rationalisation of the production process and to efficiencies gained in the engineering phase, MV Agusta proudly presents its new Rosso Range, made up of Brutale 800, Dragster 800 and Turismo Veloce 800. The Rosso Range models stand out for their bright red livery and their comprehensive outfitting, despite a price tag that is lower than that of the models they derive from.

Vision, futuristic technology, and the pursuit of a dream: these are the values behind the creation of a new Concept Bike that will be revealed at EICMA as world premiere and which production is due to start in the coming months. The irreverent spirit of American drag races was the inspiration for a project that elevates the performance of the bike it derives from in the most daring of interpretations.











2020 MV Agusta Superveloce 800 Totalmotorcycle.com Features and Benefits

Design and details

The CRC designers, led by Adrian Morton, have once again drawn exclusive lines, innovating in the retro motorcycle segment that has seen the same styles returning for a long time now. The shapes of the fairing are very streamlined, fulfilling their purpose of protecting the rider, without indulging in aesthetic form for its own sake. The design is so precise that it completely hides all screws and fixing points to the frame, without altering the harmony of the surfaces. The appeal of the elongated top fairing, the long and almost hidden tail fairing, and of the large side panels in the characteristic metallic silver (only on Superveloce 800 Serie Oro version) is clear from any angle, creating a three-dimensional, sculptural quality, reminiscent of past models.

The Superveloce 800 Serie Oro uses superstructures primarily created in carbon fibre and thermoplastic. Specifically, the side sections of the top fairing, the front and rear mudguard, the right and left belly pan, the under-seat shield, the cover of the intake ducts, the top fairing support, the windshield support, the upper and lower chain guards, the sides of the tail fairing, and the inner attachment of the fairing, are all in carbon fibre. Meanwhile, the standard version has fairings in thermoplastic material.

The front light cluster is composed of an elegant poly-ellipsoidal, full LED twin-function element. The LED day running light is effectively inserted into the instrumentation support. The rear circular light cluster also uses LEDs, and this too has been specially designed for the Superveloce 800.

Stand-out features of the Superveloce 800 Serie Oro include the components created by CNC processing, such as the original and specially produced fuel cap with leather strap, and the aluminium ring around the front and rear headlights.

The instrumentation is derived from that of the Brutale 1000 Serie Oro, composed of a second generation compact 5” TFT colour display, in this case featuring special graphics. The menu can be immediately accessed via a multi-function joystick on the left controls and selectors. The instrumentation manages incoming calls, messages and music thanks to a Bluetooth smartphone connection. Via mirroring, it is possible to use navigation functions thanks to the MV Ride App, which also allows smartphone access to data regarding bike use and routes that can then be shared. And there is more: the bike’s electronic settings can also be modified directly from the app (maps, traction control and electronic quick-shift). The Serie Oro is equipped with anti-theft and tracking.



Engine and electronics

The in-line, three-cylinder engine of the Superveloce 800 continues to be an example of excellence in motors of this type thanks to performance, thermodynamic efficiency, low weight and general compactness, as well as a counter-rotating crankshaft. The dual overhead camshaft manages 12 titanium intake and exhaust valves. The characteristic bore and stroke specs (79×54.3 mm) allow 798 cc displacement, with power and torque values equal to those of the F3 800: 148 hp (108 kW) at 13,000 rpm and 88 Nm (8.97 kgm) at 10,600 rpm. In the triple exit exhaust for track use configuration, with two exhaust pipes on the right and one on the left, the 800 Serie Oro reaches 153 hp at 13,250 rpm. The standard exhaust configuration has three exhaust pipes overlapping on the right side.

For use on the Superveloce 800, the engine has been completely remapped, enhancing the flexibility of output, and guaranteeing the usual responsiveness to the throttle without the extreme nature of a supersport model such as the F3 800.

The electronic set-up refreshes the already rich package offered with the F3 800: in addition to four engine settings, including one that is widely customisable. The Superveloce 800 standard and Serie Oro includes the MV EAS 2.1 Up&Down electronic gearbox and traction control with eight different settings as well as deactivation option.





Chassis, suspension and brakes

The technical basis for the Superveloce 800 and Superveloce 800 Serie Oro is the F3 800, of which the main dimensions are replicated. The side plates and central lattice are also the same as those on the F3, while the front and rear subframe are unique to this model. The riding position has been slightly revised, making it more comfortable and less restrictive compared to the F3 800, which is designed primarily for track use. The rider and passenger seats on the Superveloce 800 Serie Oro are covered in Alcantara, for a further touch of class.

Another distinctive visual and functional element compared to the F3 800 are the wheel rims, which are inevitably spoked on the Superveloce 800, with a 5.5” rear channel and 3.5” front channel. In addition, the rear suspension features an optimized link, common to the F3 and designed to guarantee increased comfort when the wheel begins to move. The shock absorber is also different, specially selected for this model.

The kit provided to purchasers of the Superveloce 800 Serie Oro includes truly unique components. Starting with the open “three-exit” exhaust, to be combined with dedicated control unit, also included in the kit. Cruise control offers comfort for a more relaxed driving experience. The DID Gold chain, specialised bike cover and GPS sensor complete this kit. Special parts, available for both versions, include a locator and anti-theft system.









2020 MV Agusta Superveloce 800 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $  USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: 19990€ Euro

Type Three cylinder, 4 stroke, 12 valve
Timing system “D.O.H.C” with mechanical chain tensioner
Total displacement 798 cm3 (48.7 cu. in.)
Compression ratio 13.3:1
Starting Electric
Bore x stroke 79 mm x 54.3 mm (3.1 in. x 2.1 in.) Max. power – r.p.m. (at the crankshaft) 108 kW (148 hp) at 13.000 r.p.m. Max. torque – r.p.m. 88 Nm (8.97 kgm) at 10.600 r.p.m.

Cooling system Cooling with separated liquid and oil radiators
Engine management system Integrated ignition – injection system MVICS
(Motor & Vehicle Integrated Control System) with six injectors Engine control unit Eldor EM2.0, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing tech- nology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention

Electronic quick shift MV EAS 2.1 (Electronically Assisted Shift Up & Down)
Clutch Wet, multi-disc slipper clutch
Transmission Cassette style; six speed, constant mesh
Primary drive 22/41
Gear ratio
First gear: 13/37
Second gear: 16/34
Third gear: 18/32
Fourth gear: 19/30
Fifth gear: 21/30
Sixth gear: 22/29
Final drive ratio 17/43

Voltage 12 V
Alternator 350 W at 5000 r.p.m.
Battery 12 V – 8.6 Ah

Wheelbase 1380 mm (54.33 in.)
Overall length 2030 mm (79.92 in.)
Overall width 730 mm (28.74 in.)
Saddle height 830 mm (32.68 in.)
Min. ground clearance 120 mm (4.72 in.)
Trail 99 mm (3.89 in.)
Dry weight 173 kg (381.4 lbs.)
Fuel tank capacity 16,5 l (4.36 U.S. gal.)

Maximum speed* 240.0 km/h (149.1 mph)

Type ALS Steel tubular trellis
Rear swing arm pivot plates material Aluminium alloy

Type Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Fork dia. 43 mm (1.69 in.)
Fork travel 125 mm (4.92 in.)

Type Progressive Sachs, single shock
absorber with rebound and compression damping and spring preload adjustment
Single sided swing arm material Aluminium alloy Wheel travel 123 mm (4.84 in.)

Front brake Double floating disc with Ø 320 mm
(Ø 12.6 in.) diameter, with steel braking disc and flange
Front brake caliper Brembo radial-type monobloc,
with 4 pistons Ø 34 mm (Ø 1.34 in.)
Rear brake Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)

ABS System Bosch 9 Plus with Race Mode and RLM (Rear wheel Lift-up Mitigation)

Front: Material/size Aluminium alloy 3.50 ” x 17 ”
Rear: Material/size Aluminium alloy 5.50 ” x 17 ”

Front 120/70 – ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II
Rear 180/55 – ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II

Material Thermoplastic

Titanium components Intake and exhaust valves
Exclusive content Dashboard TFT 5”color display – Cruise control – Bluetooth – GPS – App MVride for navigation mirroring, app-controlled engine, suspension and rider aids setup

Racing 3 exit exhaust system + Dedicated maps Carbon fiber rear mudguard – Tracking and Anti- theft protection – Fuel Cap (with leather strap) Front/Rear spoke wheels with aluminum rims

Environmental Standard Euro 4
Combined fuel consumption 6.4 l/100 km
CO2 Emissions 157 g/km



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
