2020 Suzuki GSX-R750 Guide

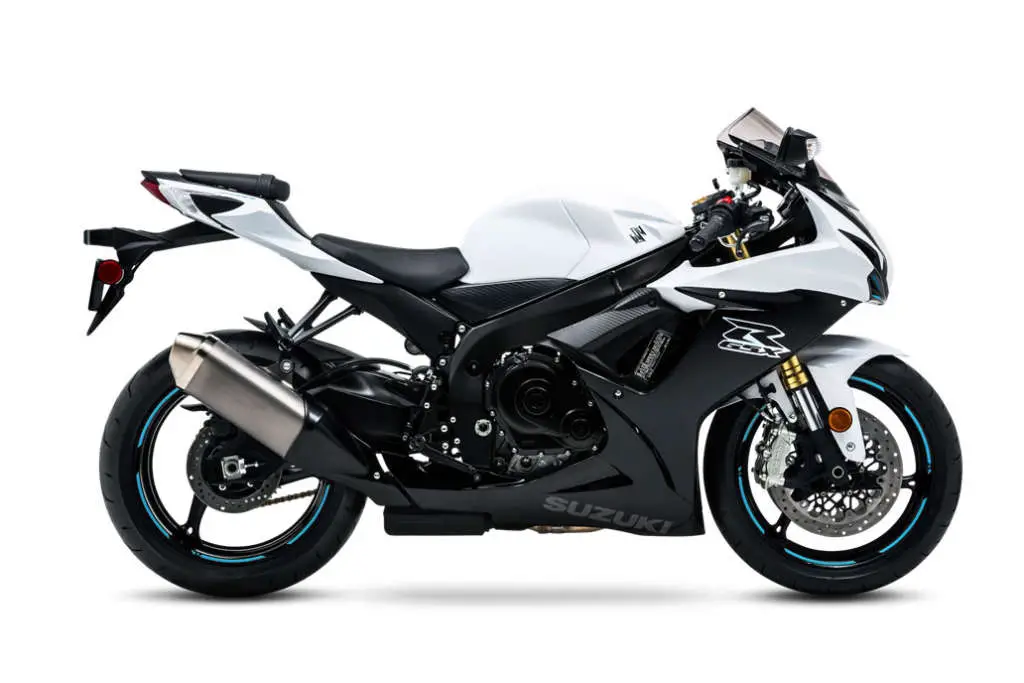

2020 Suzuki GSX-R750

2020 Suzuki GSX-R750 2020 Suzuki GSX-R750 2020 Suzuki GSX-R750 2020 Suzuki GSX-R750

2020 Suzuki GSX-R750: THE 750cc SPORTBIKE THAT NO ONE CAN TOUCH.

2020 Suzuki GSX-R750:

Over three decades ago, Suzuki revolutionized sportbikes with the introduction of the GSX-R750. Ever since then, the GSX-R750 has remained true to its original concept and championship-winning heritage. On the road or on the track, the GSX-R750 delivers a breathtaking combination of outstanding engine performance, crisp handling, compact size, and light weight. Its secret is an unequaled pairing of 750cc performance with the lightweight, compact chassis of a 600cc Supersport, complemented by technologically advanced suspension front and rear. Try a GSX-R750 and you’ll quickly realize this motorcycle defines performance riding from the center of the sportbike class.

In 1985, Suzuki unleashed the GSX-R750 to the world, which would become the foundation for today’s sportbikes. With unmatched engineering feats in light weight frames and power, it made its race track debut with a stunning victory at The Le Mans 24-hour World Endurance Championships!

Suzuki has remained true to the GSX-R’s original concept with continued evolution for the GSX-R750. The GSX-R750 remains the best choice for riders who appreciate a state-of-the-art 750cc engine combined with the compactness of a GSX-R600cc Supersport. When you ride a GSX-R750 you experience the breathtaking combination of outstanding race winning heritage, engine performance, crisp handling, compact size and light weight. It’s a winning combination that allows any rider to experience the exhilarating rush any time, any place, anywhere.





2020 Suzuki GSX-R750 Totalmotorcycle.com Key Features

Built to own the racetrack and let loose on the streets. Since 1985, the GSX-R has been continuously refined to deliver new levels of performance and agility. This legacy of innovation continues with over 1 million legends made.



Key Features
The GSX-R750’s look was born and raised on the racetrack, and for 2020 that styling has a pair of dual-color paint schemes. Riders can choose a glossy Glass Sparkle Black/Pearl Glacier White scheme or Metallic Matte Black/Glass Sparkle Black look that blends a shiny and flat finish. Each scheme includes complementary graphics and wheel rim accents.
The GSX-R750’s fuel-injected, 750cc, four-cylinder engine powers a balanced sportbike experience. This engine pulls strong off the bottom like a larger-displacement powerplant while it builds revs like a smaller mill – it’s the best of both worlds.
The Suzuki Drive Mode Selector (S-DMS) lets the rider adjust the engine’s power delivery to suit the riding conditions.
The twin-spar aluminum frame effectively connects the steering head with the swingarm pivot portion of the chassis in a way that balances light weight and strength. The engine is suspended below the frame to keep mass low and the wheelbase short to promote nimble handling.
The Showa Big Piston Front Fork (BPF) and remote reservoir rear shock absorber are fully adjustable to deliver exceptional handling.
Twin Brembo Monobloc, radially mounted front brake calipers grasp fully floating stainless steel brake rotors to deliver strong stopping power.







2020 Suzuki GSX-R750 Totalmotorcycle.com Features and Benefits
Engine Features
Compact, 750cc, four-cylinder engine with a race-proven over-square bore/stroke ratio produces remarkably strong high rpm power delivery.
The energy-efficient engine employs forged pistons, shot-peened connecting rods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes to reduce frictional and mechanical losses.
Lightweight titanium alloy valves are controlled by single-coil valve springs to reduce valve-train mass, reducing mechanical losses at high rpm.
Suzuki Dual Throttle Valve (SDTV) fuel injection uses eight fine-spray eight-hole injectors for improved fuel atomization, which contributes to more complete combustion.
An Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the intake and exhaust systems, resulting in better fuel economy and linear throttle response.
Advanced MotoGP-developed transistorized ignition control programming helps maintain more precise spark timing across the range of engine speed and temperature.
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road or track conditions and personal tastes.
Four-into-one stainless steel exhaust system with a titanium muffler is fitted with a Suzuki Exhaust Tuning (SET) valve that maximizes torque and improves throttle response, especially in the low- to mid-rpm range.
The close-ratio six-speed transmission features a taller first-gear ratio and shorter ratios for second, third, fourth, and sixth gear, making it easier for a racer to get a good start while improving straight-line acceleration and drive out of corners.
Race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.
Chassis Features
Lightweight and compact twin-spar aluminum alloy frame is constructed of five cast sections to produce a balance of light weight and strength.
The frame is mated with a cast aluminum swingarm and multi-piece rear sub-frame that’s ready for racetrack use.
Race-developed, lightweight Showa Big Piston Front Fork (BPF) delivers superb feedback and consistent performance.
Single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.
Electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.
Front brakes with fully floating 310mm discs are grasped by radial-mount, four-piston Brembo Monobloc calipers.
Three-spoke cast aluminum alloy wheels are shod with lightweight, high-grip front and rear tires for sharp handling.
Three-way adjustable foot pegs, adjustable shift lever, and short fuel tank help compose a comfortable riding position that permits the rider movement required for performance riding.
Compact, lightweight instrument cluster with a built-in lap timer/stopwatch and programmable engine rpm indicators to alert the rider to certain shift points.
Trim, simple, and lightweight bodywork creates an exciting, aerodynamic style that truly works well at speed.
Distinctive multi-reflector headlight with vertically stacked high- and low-beam halogen bulbs is centered between position lights on each side.
Bright, durable LED tail light, with clear lens.
The front turn signal are integrated into the rearview mirrors while the rear tail section houses the rear signals.
The lightweight instruments also include an analog tachometer and LCD readouts that show speed, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS, and gear position indicators.
Attention to rider comfort and confidence includes a carefully shaped seat with a high-grip cover.
The wheel rims have pin stripes punctuated by “R” logos that highlight the bike’s identity.
Additional Features
Stylized Suzuki “S” 3-D emblems on the fuel tank and the fork upper bracket denotes the quality, sophistication, and performance legacy of the brand.
Optional single seat cowl can replace the passenger seat for an even more aggressive look or for use on solo rides or track days.
A variety of Genuine Suzuki Accessories for GSX-R owners are available, including a large selection of Suzuki logo apparel.
12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).







2020 Suzuki GSX-R750 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12,499 USD
Canada MSRP Price: $13299 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
Engine
Engine 750cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC
Bore x Stroke 70.0 mm x 48.7 mm (2.756 in. x 1.917 in.)
Compression Ratio 12.5:1
Fuel System Fuel injection with SDTV
Starter Electric
Lubrication Wet sump
Drivetrain
Clutch Wet, multi-plate type
Transmission 6-speed constant mesh
Final Drive Chain, RK525ROZ5Y, 116 links
Chassis
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, single shock, coil spring, oil damped
Brakes Front Brembo, 4-piston, twin disc
Brakes Rear Nissin, 1-piston, single disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5 US gal.) / 16.0 L (4.2 US gal.) CA model
Color Glass Sparkle Black/Pearl Glacier White or Metallic Matte Black No.2/Glass Sparkle Black
Electrical
Ignition Electronic ignition (transistorized)
Spark Plugs NGK CR9EIA-9 or DENSO IU27D
Headlight 12V 65W (H9 high-beam) and 12V 55W (H7 low-beam)
Tail Light LED
Dimensions and Curb Weight
Overall Length 2030 mm (79.9 in.)
Overall Width 710 mm (28.0 in.)
Wheelbase 1135 mm (44.7 in.)
Wheelbase 1390 mm (54.7 in.)
Ground Clearance 130 mm (5.1 in.)
Seat Height 810 mm (31.9 in.)
Curb Weight 190 kg (419 lb.)
Warranty
Warranty 12 month unlimited mileage limited warranty
Extension Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).





Manufacturer’s Suggested Retail Price (also referred to as “MSRP”, “Base MSRP” or the “Starting At” price), excludes taxes, title, license and registration fees, destination freight and delivery charges, dealer fees, and optional equipment.







2020 Suzuki GSX-R750 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE FEATURES
Type 4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement 750cc
Bore x Stroke 70.0 mm x 48.7 mm
Compression Ratio 12.5 : 1
Fuel System Electronic Fuel Injection
Starter Electric
Lubrication Wet sump
Ignition Electronic ignition (Transistorized)
DRIVETRAIN FEATURES
Transmission 6-speed, constant mesh
Final Drive RK525ROZ5Y, 116 links, Chain
CHASSIS FEATURES
Suspension Front Inverted Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, Disc, Twin
Brakes Rear Disc
Tires Front 120/70ZR17M/C (58W), tubeless
Tires Rear 180/55ZR17M/C (73W), tubeless
Fuel Tank Capacity 17.0 L (4.5 US gal )
DIMENSIONS
Overall Length 2030 mm (79.9 in)
Overall Width 710 mm (28.0 in)
Overall Height 1135 mm (44.7 in)
Wheelbase 1390 mm (54.7 in)
Ground Clearance 130 mm ( 5.1 in)
Seat Height 810 mm (31.9 in)
Curb Weight 190 kg (419 lbs )
WARRANTY
Standard Warranty 12 Month unlimited mileage limited warranty









2020 Suzuki GSX-R750 – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
