2021 Ducati TK-01RR Guide

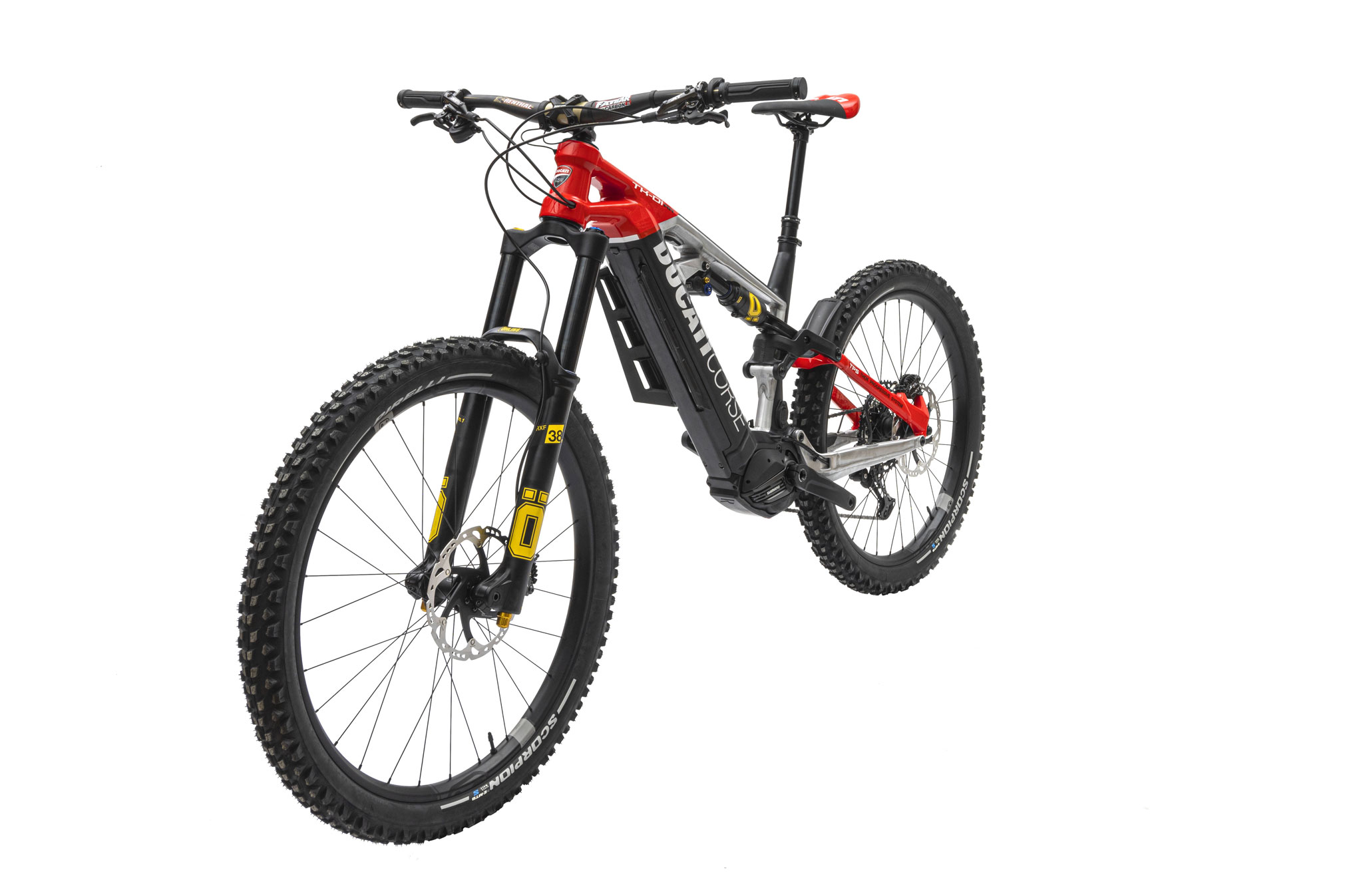

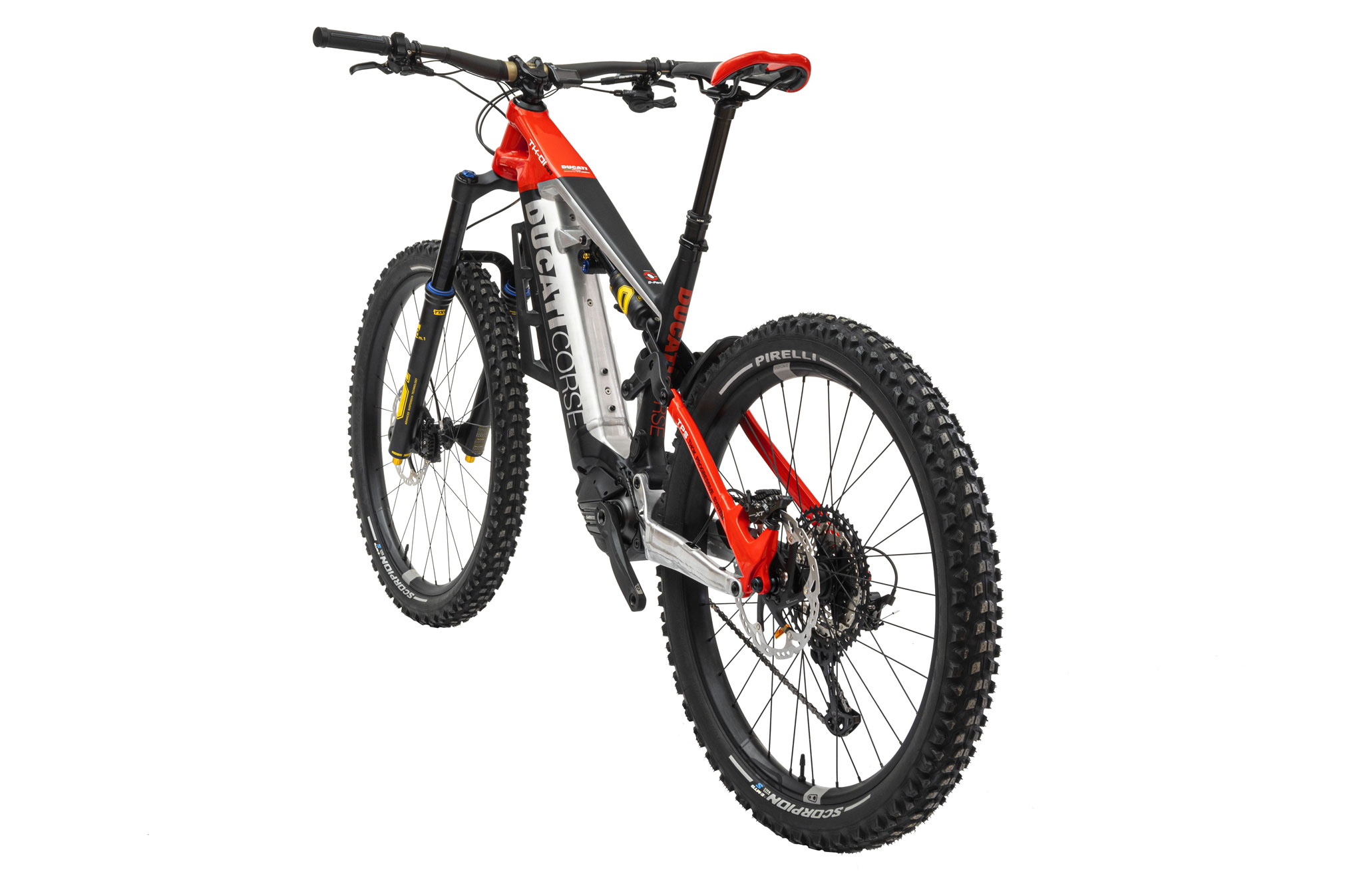

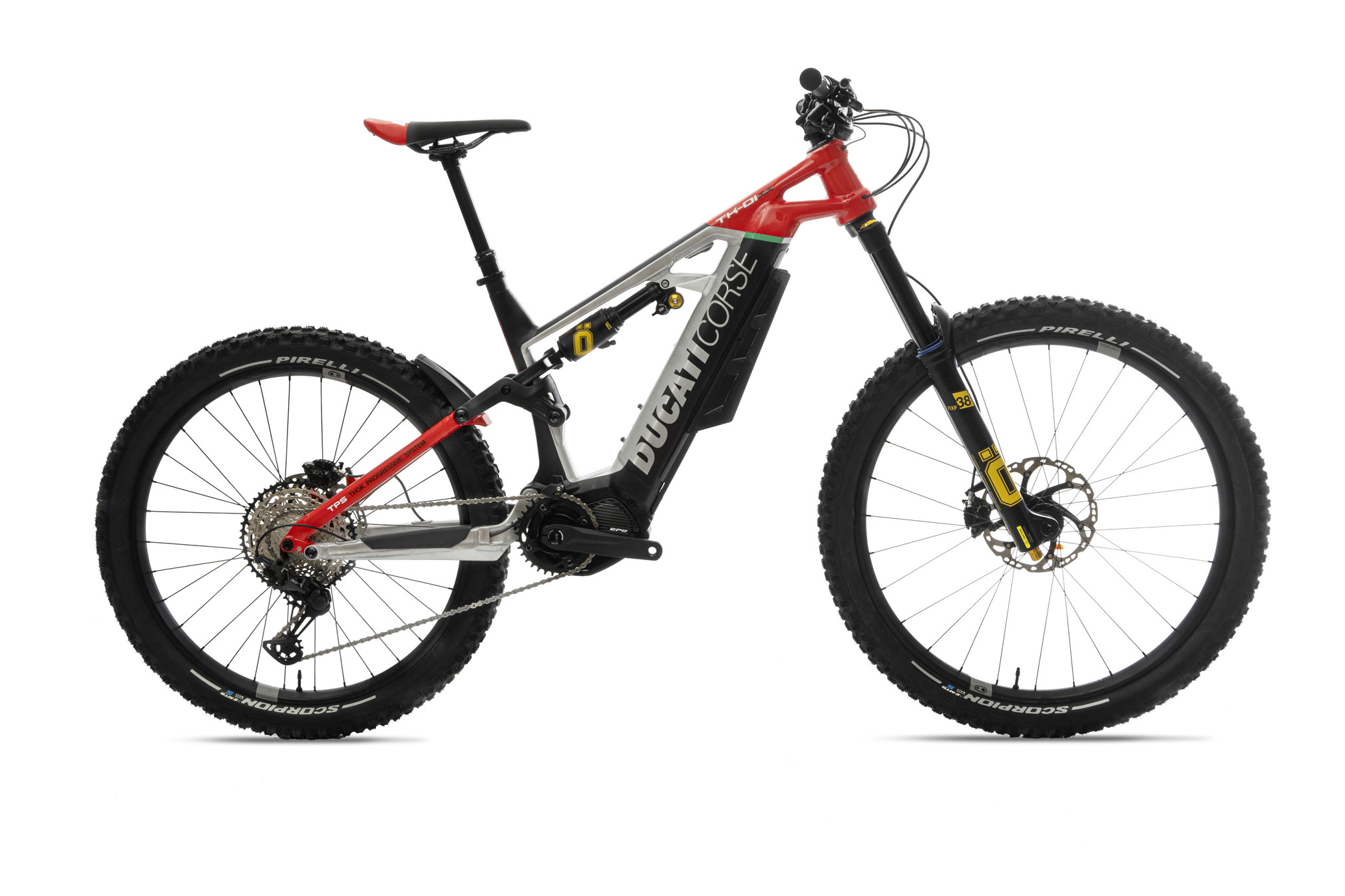

2021 Ducati TK-01RR

2021 Ducati TK-01RR 2021 Ducati TK-01RR 2021 Ducati TK-01RR

2021 Ducati TK-01RR : eBike DUCATI POWERED BY THOK.

Introducing the new 2021 Ducati TK-01RR…

The new TK-01RR is an e-enduro that adopts the most modern technical solutions, with the aim of making every riding phase exciting and letting you experience off-road in its maximum expression, even on the most inaccessible routes.

The new Shimano EP8 drive unit is pure performance, with a weight of 2.6 kg which makes it one of the lightest and most compact engines in the segment and a maximum torque of 85Nm with a maximum servo assistance ratio of 400%. The torque is always delivered with maximum fluidity and naturalness, also thanks to a 36% reduction in friction compared to the MIG-RR model. Combined with the new Shimano E-tube Project App, the EP8 system allows advanced degrees of customization, to adapt the character of the engine to your needs. The application allows you to vary maximum torque, acceleration and assistance timing in real time, even using the smartphone wirelessly.

The new aluminium frame features a verticalized downtube that houses an integrated 630Wh Shimano battery, thus ensuring good autonomy without sacrificing the handling given by a low centre of gravity. The geometries of the TK-01RR are geared towards more extreme e-enduro use, with a 64.5° head angle, an elongated top tube and a 75.5° vertical seat tube. The introduction of the new 1.8″ tapered standard head tube brings an innovation in terms of design and style, but above all greater stiffness in the steering area, particularly important for tackling the most difficult passages at high speeds.

The TK-01RR is fitted with high-end components, such as the 12-speed transmission and Shimano XT brakes. This four-piston system, in combination with 203 mm discs with “Ice technologies” cooling function, always guarantees powerful and adjustable braking. The brand new 180mm Öhlins RXF 38 fork is muscular and ensures steering precision and a wide range of customization options. In addition, the fully adjustable 170mm Öhlins TTX shock absorber offers excellent descent progressivity without compromising pedalling.







2021 Ducati TK-01RR Totalmotorcycle.com Key Features

E-MTBs have various points in common with motorcycles, including the ability to convey great emotions deriving from the sense of escape and freedom, but also the possibility of discovering new landscapes and experiencing unforgettable adventures. For this reason, Ducati and Thok E-bikes have developed a range of products that have a strong appeal to the sporting soul of the brand and are ready to meet the needs of the most demanding riders, whether they are motorcyclist or not.





2021 Ducati TK-01RR Totalmotorcycle.com Features and Benefits

The new TK-01RR is an e-enduro that adopts the most modern technical solutions, with the aim of making every riding phase exciting and letting you experience off-road in its maximum expression, even on the most inaccessible routes

TK01 – RR

A modern e-Enduro featuring the latest technological solutions. Capable of tackling any kind of route, both uphill and downhill, offering loads of fun and complete safety.

Shimano Steps EP8

Weighing in at just 5.7 lb, the Shimano EP8 is one of the lightest drive units currently available on the market. With a maximum torque of 85 Nm and reduced friction, it ensures excellent pedalling power with smooth, direct and natural delivery, guaranteeing complete control of the vehicle. Combined with the E-Tube Project app, the assistance levels (eco, trail, and boost) can be fully customised to each route, and to suit each rider’s individual needs.

Frame

A 6061 aluminum alloy frame with hydroformed, forged and CNC machined parts. The new “enduro oriented” contours, featuring a verticalized seat tube (75.5°) and a 64.5° steering angle, allow for any obstacle to be overcome. The new standard 1.8” tapered head tube provides for a more rigid steering area with an entirely unique design.

Suspensions

Ohlins RXF38 air fork, with 38mm stanchions, 180mm travel, fully adjustable custom-tuned Ducati TTX air shock absorber, 170mm travel with Horst four-bar TPS (Thok Progressive System) linkage.

Battery

Integrated 630Wh Shimano

Tires and rims

Differentiated Crankbrothers Synthesis aluminum rims, 29” x 31mm front and 27.5” x 35mm rear. The 2.6” Pirelli Scorpion S tires, specifically developed for e-MTBs, guarantee excellent durability and maximum grip under all conditions.





Ducati World Première Episode 3: New SuperSport 950, Panigale V4 SP and Ducati TK-01RR Presented

  • Ducati presents the new 2021 models of its sports bike range with the SuperSport 950, the new Panigale V4 SP and updates for the Panigale V4 which improves year by year
  • The SuperSport 950, renewed in aesthetics and electronics, brings sporty riding to everyday life, ideal for riders who want to enter  the world of Ducati sports bikes
  •  The Panigale V4 SP: 214 hp, 91.1 lb-ft (12.6 kgm) of torque and a dry weight of 381.4 lbs. (173 kg), numbered, with a dedicated livery and equipped with all the technical features to enhance its qualities in track use
  • Also unveiled is the range of Ducati electric mountain bikes powered by Thok with the new Ducati TK-01RR enduro e-MTB and the renewed All Mountain Ducati MIG-S

Borgo Panigale, Bologna, November 18, 2020 – Ducati continues to unveil its new 2021 models to the world with the Ducati World Première web series. From the world of electric mountain bikes, passing through the SuperSport, up to the Panigale V4, Ducati illustrates the concepts of sportiness and performance that distinguish it in the third episode.

The world of racing competition has always been a source of inspiration for Ducati, performance is in fact in the company’s DNA in all forms. The SuperSport 950 is the right bike to bring sporty riding into everyday life, without having to compromise, especially in terms of comfort. For 2021 the model has been revised in design, enriched with electronic equipment and gear.

The aesthetic link between SuperSport 950 and Panigale V4 is now even stronger. The front view is defined by the new full-LED headlight supported by two fins and flanked by two air intakes that widen the view. The DRL clearly recalls the sharp luminous signature of the Panigale V4 and is made thanks to a refined opal that diffuses the light evenly.

The fairings have been redesigned to accentuate the sportiness of the bike and the fluidity of the shapes. The air vents coming from the water radiator are inspired by the double extractor of the Panigale V4.

The genetic makeup of the SuperSport 950 is that of a true sports bike with single-sided swingarm, a trellis frame fixed to the engine that acts as a stressed element to reduce weight and bulk, ergonomics with raised handlebars for greater control even with the passenger, seat revised to maximize rider comfort through greater longitudinal usability, multi-adjustable suspension, three-spoke “Y” aluminium wheels and Pirelli Diablo Rosso 3 tires, radial master cylinders for brake and clutch and high-performance Brembo braking system with double 320 mm disc for a dry weight of 405.7 lbs. (184 kg).

Electronics is one of the areas most affected by the development of the new SuperSport 950, equipped with electronic controls based on information from Bosch’s 6-axis inertial platform, capable of instantly detecting roll, yaw and pitch angle of the motorcycle in the space. The electronic package consists of Cornering ABS, Traction Control, Wheelie Control and Electronic Shifting. The adjustment of the electronic settings, as well as the Riding Modes (Sport, Touring, Urban) is done through the menu of the new 4.3” full-TFT display with graphics and interface inspired by that of the Panigale family.

The Panigale V4 is the sporting Ducati par excellence derived directly from MotoGP and, like racing bikes, is constantly being innovated and improved from year to year.

The electronic package that equips the Panigale V4 evolves and now includes the latest generation Ducati Traction Control which is even more predictive: DTC EVO 3 with a strategy derived from Ducati Corse.

The Riding Mode strategy is also new, specifically the Race Riding Mode has been split into two distinct mappings, allowing the rider to have two different configurations to define the best set-up based on the track and his riding style.

For 2021 Ducati is expanding the Panigale family by introducing the Panigale V4 SP version, which marks the return of the historic “SP” (Sport Production) acronym. The Panigale V4 SP is numbered, and the number is engraved on the machined steering head.

The Panigale V4 SP – 214 hp, 91.1 lb-ft (12.6 kgm) of torque and a dry weight of 381.4 lbs. (173 kg) – has a dedicated livery and is equipped with all the technical features to enhance its qualities in track use. Many elements derive from the Superleggera V4: carbon rims, brake calipers and master cylinders, dry clutch and the same chain size (520).

The most important component for the improvement of the dynamic qualities are certainly the precious 5 split-spoke carbon rims, 3.1 lbs (1.4 kg) lighter than the forged aluminium ones of the Panigale V4 S which reduce rolling inertia, making the bike significantly more agile and light in changes of direction.

The exclusive Brembo Stylema R® front brake calipers ensure high braking power, as well as exceptional consistency of performance even during a long track sessions without changes to the brake lever stroke. The calipers are activated by a Brembo MCS radial pump, which allows for rapid adjustment of the braking feeling to suit the rider’s needs.

The Desmosedici Stradale of the “SP” mounts a dry clutch, which allows it to be even more effective on the track when riding to the limit, and is coupled to a final drive with 520 chain, narrower and therefore lighter than the one fitted to the Panigale V4 S.

The Rizoma anodized aluminum footpegs mounted on the Panigale V4 SP are fully adjustable to adapt to the ergonomics of each rider and maximize ground clearance for use on the track. The bike is also equipped with a racing kit for track use that allows the removal of the rear-view mirrors, license plate holder and open clutch cover.

The livery of the Panigale V4 SP is inspired by the one used in the winter tests by the official MotoGP and Superbike teams, reworked by the Ducati Style Centre. The fuel tank is in exposed aluminum, the fairings are matte black enriched with fluorescent red details and carbon components, such as the front mudguard and wings.

The bike is equipped with a racing kit for track use. It includes machined from solid aluminum caps for the removal of the rear view mirrors, a kit for the removal of the license plate holder, open clutch cover and includes the Ducati Data Analyzer + with GPS module.

E-MTBs, like motorbikes, are able to convey great emotions deriving from the sense of escape, freedom and adrenaline. Ducati, which entered this world in 2018, introduces the new Ducati TK-01RR e-enduro and significant technical updates on the All Mountain Ducati MIG-S.

The Ducati MIG-S is an All Mountain capable of exploring any trail, ensuring excellent handling for the rider. For 2021 it adopts a new 630Wh Shimano battery which guarantees an increase in autonomy of about 26%. The MIG-S has also been revised in the geometry of the frame, with an elongated top tube and a vertical seat tube (74.7°), thus obtaining greater riding comfort, traction and control in the more technical passages.

The Ducati TK-01RR is completely new: an e-enduro with 630Wh Shimano battery that adopts the most modern technical solutions, with the aim of making every riding phase exciting and allowing the rider to experience off-road at its maximum expression, even on the most inaccessible routes. The new Shimano EP8 motor is pure performance, with a weight of 5.7 lbs. (2.6 kg) which makes it one of the lightest and most compact engines in the segment and a maximum torque of 85Nm with a maximum servo assistance ratio of 400%. Combined with the new Shimano E-tube Project App, the EP8 system allows advanced degrees of customization to adapt the character of the engine to your needs.

Everything in the TK-01RR is geared towards the most extreme e-enduro use, from the geometries to the high-end components such as the 12-speed transmission and Shimano XT brakes, the brand new 180 mm Öhlins RXF 38 fork and the Öhlins TTX shock absorber with 170 mm rear travel, fully adjustable. The TK-01RR is equipped with Pirelli Scorpion S tyres, developed specifically for e-MTBs.









2021 Ducati TK-01RR – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7995 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
FRAME THOK  6061 Aluminium, Forged and CNC machined, headtube tapared 1.8, 29″/27,5″ geometry, integrated down tube battery, enclosed internal cable, fully sealed cartridge bearing , 170 mm travel
POWER SUPPLY SHIMANO –  EP8 (250W – 85Nm) – integrated  battery  SHIMANO 630 Wh with on/off Easy Touch
DISPLAY SHIMANO  – Display SC-E7000 LCD display  with remote control E7000
FORK ÖHLINS – RXF38 Air TTX18, Boost – 29″,180 mm of travel, compression and rebound adjust
REAR SHOCK ÖHLINS – TTX Air- custom tuned Ducati
DISK BRAKES SHIMANO – Deore XT  4 pistons calipter  with Ice Technologies rotor  203 mm diameter
REAR DERAILLEUR SHIMANO  – Deore XT 12 S
SHIFT LEVER SHIMANO -12 SLX
CASSETTE SHIMANO – 12 S – 10-51T
CRANK FSA – 165 mm with chainring 34 T
WHEELSET  CRANKBROTHERS – Synthesis – Alloy  – 29″ x 31 mm, 27,5″ x 35mm
STEM DUCATI  – CNC Alloy   35 mm, 50  mm length
HANDLEBAR  RENTHAL .Carbon – 35 mm, rise 20 mm , 800 mm width
GRIPS DUCATI – Lock-On grip , regular size
FRONT TIRE PIRELLI – Scorpion  E-MTB S  , TR, SmartGrip, HyperWall    29″ x 2.6
REAR TIRE PIRELLI – Scorpion E-MTB S , TR, SmartGrip, HyperWall,  27,5″ x 2.6
SEATPOST KS – dropper post micro height adjustable with remote control (S:125 mm – M/150 L/XL:170 mm)
SADDLE DUCATI Fit – hollow Cr.Mo rail
PEDALS Alloy pedals
SIZES   S – M – L – XL



Size         (mm) S M L XL
Seat Tube length – center to Top 385 415 450 495
Top Tube length , Orizzontal 582 600 629 660
BB Hight 355 355 355 355
BB Drop 15 15 15 15
ChainStay length 453 453 453 453
Seat Tube Angle 75,5° 75,5° 75,5° 75,5°
Head Tube Angle 64,5° 64,5° 64,5° 64,5°
Head Tube length 105 115 131 149
Wheel Base 1212 1233 1265 1298
Stack 623 623 638 654
Reach 423 439 464 491
Handlebar Width 800 800 800 800
Stem length 50 50 50 50
Crank length 165 165 165 165
Fork Offset 44 44 44 44
Dropper 100 150 170 170
Standover 783 783 783 783
Trail 133.6 133.6 133.6 133.6



2021 Ducati TK-01RR – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2021 Ducati TK-01RR – Totalmotorcycle.com European Specifications/Technical Details

FRAME

THOK 6061 T4 T6 Aluminium, Forged and CNC machined, headtube tapared 1.8, 29″/27,5″ geometry, integrated down tube battery, enclosed internal cable, fully sealed cartridge bearing , 170 mm travel

ENGINE

SHIMANO – EP8 (250W – 85Nm)

BATTERY

SHIMANO 630 Wh with on/off Easy Touch

SUSPENSIONS

Front fork: Öhlins – RXF38 Air TTX18, Boost – 29″, 15 x 110 mm, Offset 44, 38 mm chassis, 180 mm of travel, compression and rebound adjust Rear shock: Öhlins – TTX Air, metric 230 x 65 mm – custom tuned Ducati

REAR SUSPENSION LAYOUT

TPS Thok Progressive System (Horst Link)

BRAKE

SHIMANO – Deore XT 4 pistons calipter with Ice Technologies rotor ( increased performances) 203 mm diameter front and rear. Mineral oil.

WHEELS

Front: CRANKBROTHERS – Synthesis – Alloy 29″ x 31 mm Rear: CRANKBROTHERS – Synthesis – Alloy 27,5″ x 35 mm

TYRES

Front: PIRELLI – Scorpion E-MTB S , TR, SmartGrip, HyperWall 29″ x 2.6 Rear: PIRELLi – Scorpion E-MTB S , TR, SmartGrip, HyperWall, 27,5″ x 2.6

POST SEAT

KS – dropper post micro height adjustable, remote control (S:125 mm – M/150 L/XL:170 mm)

HANDLEBAR

RENTHAL . Carbon 35 mm, rise 20 mm , 800 mm width

WEIGHT

N/A

DISPLAY

SHIMANO – Display SC-E7000 LCD display with remote control E7000






Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
