2021 Honda CB650R ABS: MAKING 4-CYLINDER HISTORY SINCE 1969.

Introducing the 2021 Honda CB650R ABS…

Honda’s Neo Sports Café middleweight gains Showa’s 41mm Separate Function Big Piston forks, plus EURO5 compliance for its high-revving four cylinder engine. Other updates include more forward-set handlebars, improved LCD dash and USB Type-C socket under the seat. New side panels accentuate the minimalist styling.



2021 Honda CB650R ABS Totalmotorcycle.com Key Features

Honda has always thrived on exploring new boundaries – in design as well as engineering. In 2018, the CB1000R, CB300R and CB125R brought a fresh identity to its naked motorcycle line-up, mixing café racer inspirations with a forward-looking ultra-minimalist look under the ‘Neo Sports Café’ design theme.

One segment remained for the new aesthetic to find expression: the hugely competitive naked middleweight arena and in 2019, the CB650R confidently took on this role. Aimed at a young demographic that looks to show off in style and enjoy to the maximum a combination of exhilarating four cylinder engine performance and light, versatile, refined chassis handling, it has proved a great success.

Building on the momentum, for 2021 the CB650R receives a major front suspension upgrade, plus a range of detail improvements to enhance comfort, usability and practicality.



CLASSIC AFRICA TWIN COLOUR SCHEME AND EURO5-HOMOLOGATED CB650R AND CBR650R JOIN HONDA’S 2021 YEAR MODEL LINE-UP

  • Pearl Glare White Tricolor paint scheme to be made available on the CRF1100L Africa Twin
  • CB650R and CBR650R homologated for EURO5 and now come with Showa’s ‘Big Piston’ front forks

Following the announcement of new colour schemes and EURO5 homologation for the CB500F, CB500X and CBR500R, and the introduction of the new CB125F, Honda Motor Europe today confirms three more additions to its 2021 year model line-up.

The CRF1100L Africa Twin will now be available in the classic Pearl Glare White Tricolour paint scheme synonymous with the original XRV650 Africa Twin, which was launched in 1988 during Honda’s run of four consecutive (1986 to 1989) victories in the Paris Dakar Rally with the NXR750 – the inspiration for the Africa Twin.

The tricolor look is currently available only on the continent-crossing ‘Adventure Sports’ version of the Africa Twin. With over 70% of customers choosing it ahead of the Matt Ballistic Black Metallic option, the evocative paint scheme will also now sit alongside the ‘CRF’ Grand Prix Red and Matt Ballistic Black Metallic colourways of the Africa Twin itself.

In 2019, the Africa Twin’s 1100cc engine made the CRF1100L Africa Twin the first Honda motorcycle to meet EURO5 emission standards. Now, further news for Honda’s 2021 model line line-up comes with EURO5 homologation for the CB650R and CBR650R four cylinder middleweights, thanks to revised ECU, cam lobes and intake timing, as well as the addition of a crank pulsar.

Both the CB650R and CBR650R will now also come equipped with Showa’s Separate Function Big Piston* (SFF-BP) 41mm USD forks for improved feel, bump absorption and control, and a number of other detail improvements to enhance comfort, usability and practicality.

*Full name: Showa Separate Function front Fork Big Piston (SFF-BP)







2021 Honda CB650R ABS Totalmotorcycle.com Features and Benefits

The major news of the CB650R’s update is application of 41mm Showa Separate Function Big Piston USD forks* – high quality suspension that further heighten the bike’s handling ability.

EURO5 compliance for the engine has been achieved with no loss of top end power; other improvements include slightly more forward-set handlebars, improved visibility for the LCD display and USB Type-C charging socket under the seat. New side panels and rear mudguard are minor cosmetic changes.

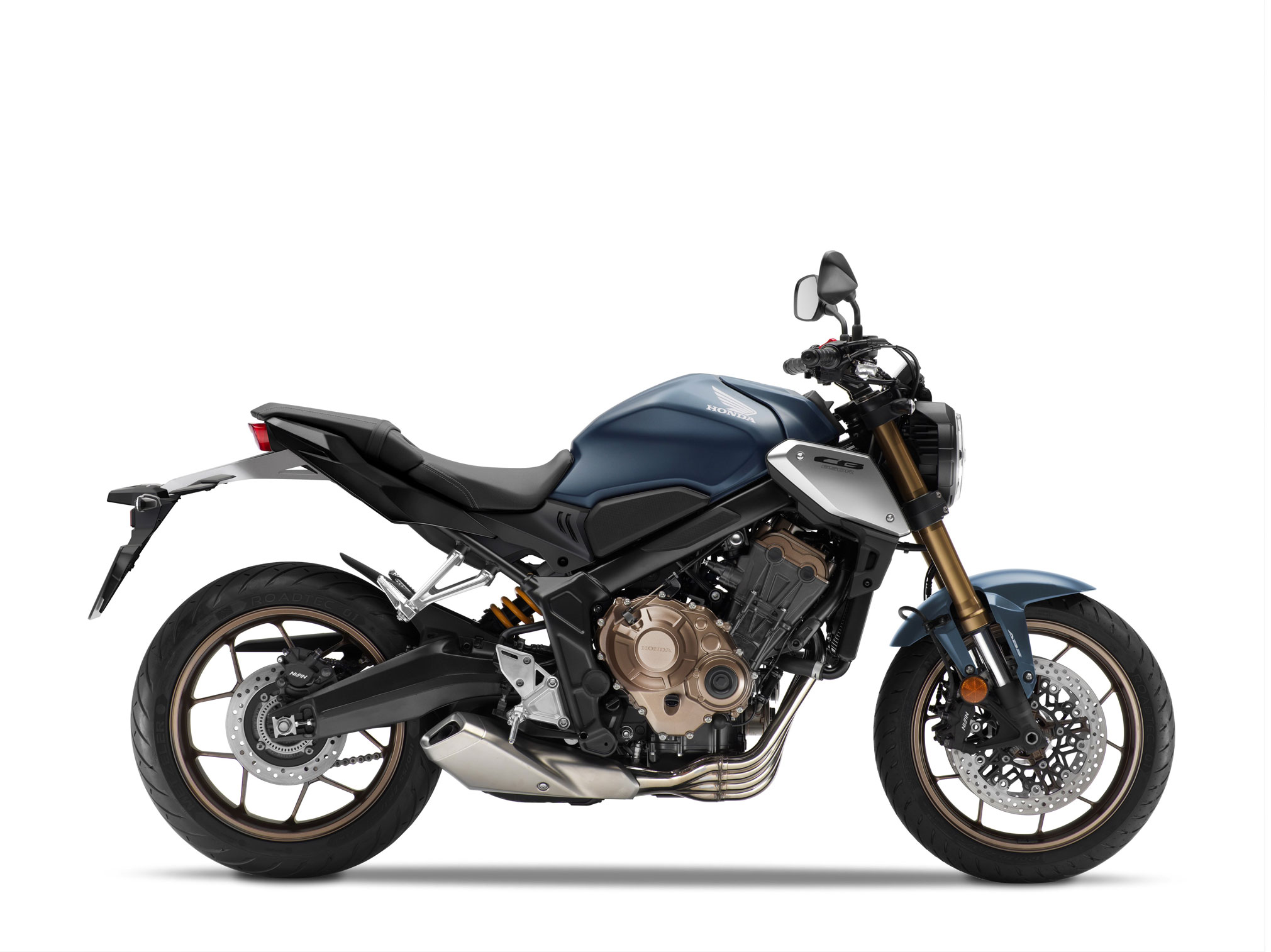

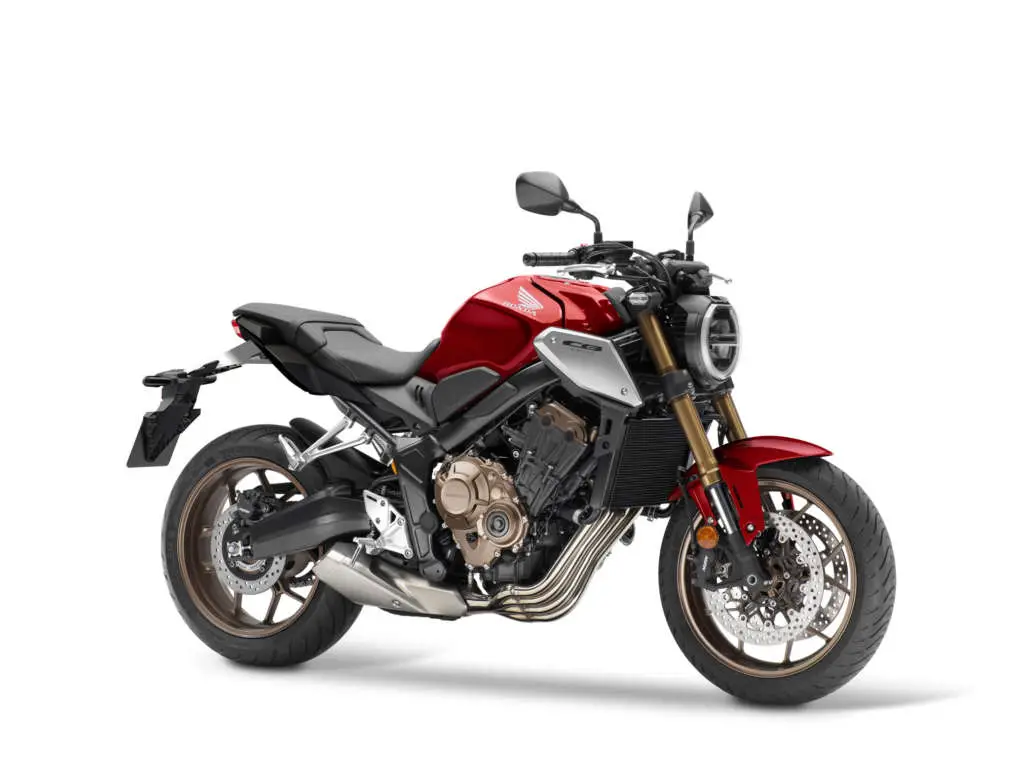

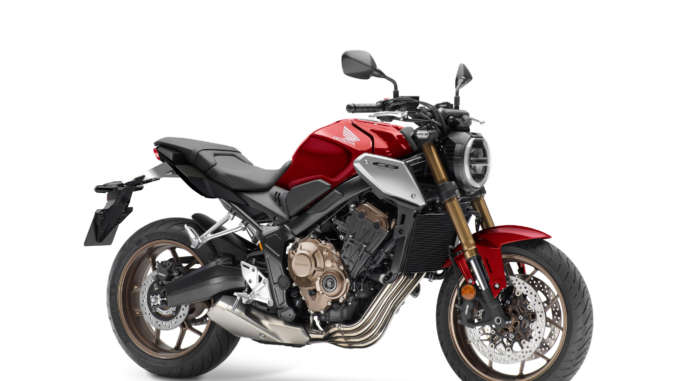

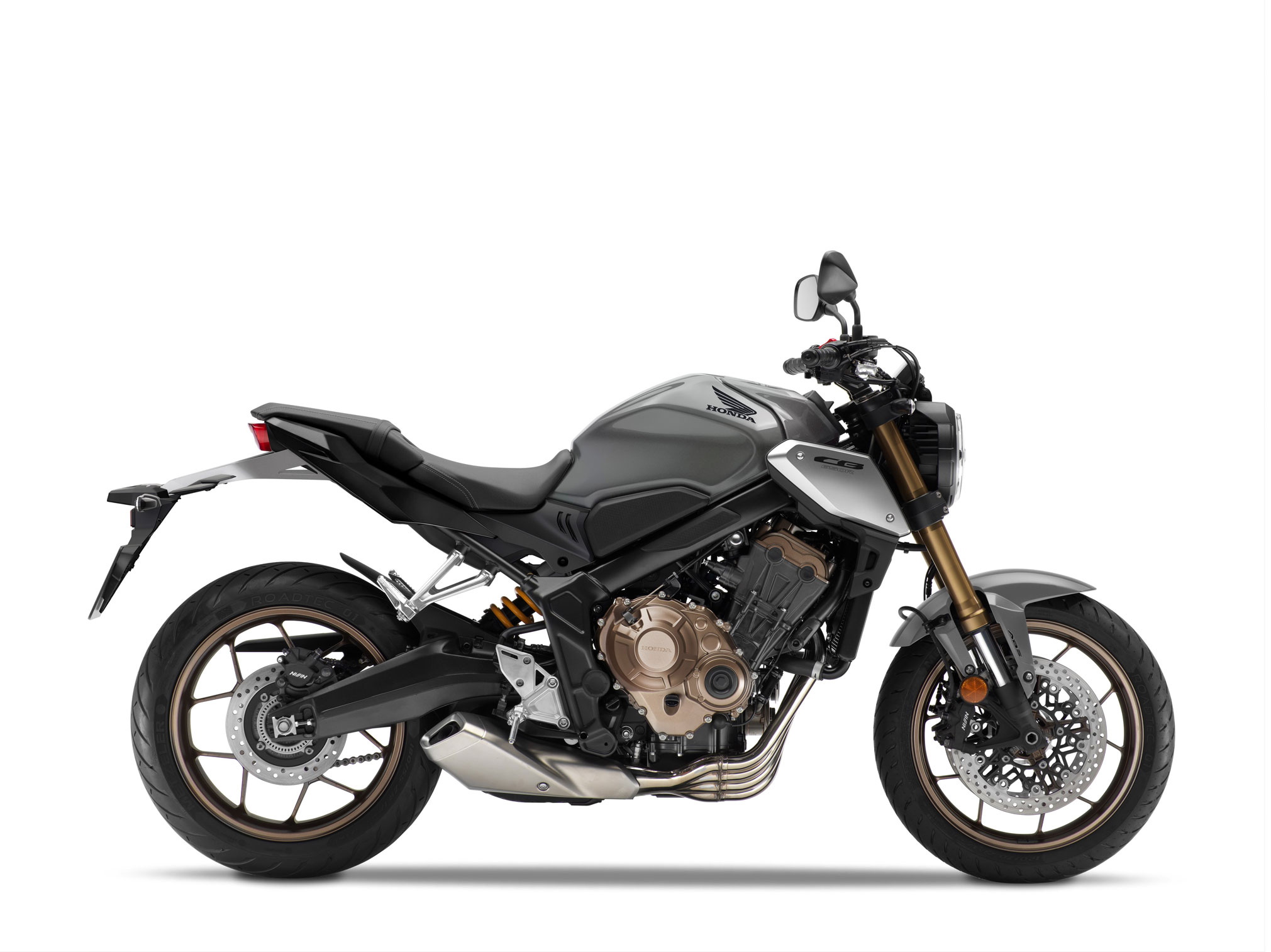

The 2021 CB650R will be available in the following colour options:

Pearl Smoky Gray **NEW**

Mat Gunpowder Black Metallic

Candy Chromosphere Red

Mat Jeans Blue Metallic

*Full name: Showa Separate Function front Fork Big Piston (SFF-BP)



Chassis

  • New Showa Separate Function Big Piston (SFF-BP) USD forks
  • Four-piston, radial-mount front brake calipers and floating discs
  • 120/70-ZR17 and 180/55-ZR17 front and rear tyres



The CB650R’s steel diamond frame uses pressed swingarm pivot plates and twin elliptical spars with a rigidity balance specifically tuned (stiffer around the headstock and more flexible in the spar sections) to deliver balanced handling characteristics, with high levels of rider feedback. Rake is set at 25.5° with trail of 101mm and wheelbase of 1,450mm. Kerb weight is 202.5kg.

Showa’s Separate Function Big Piston (SFF-BP) 41mm USD forks are a major upgrade. A pressure separation damper in one fork tube and spring mechanism in the other deliver high damping performance and lighter weight. Together with the use of a larger sized piston the result is increased feel, bump absorption and control. Adjustable for 7-stage spring preload, the single-tube monoshock operates directly on the curvaceous gravity die-cast aluminium swingarm.

Four-piston radial-mount front brake calipers work on 310mm wave-pattern floating discs, and are paired with a single-piston rear caliper and 240mm disc. The ABS is a two-channel system.

Cast aluminium wheels mount 120/70-ZR17 and 180/55-ZR17 front and rear tyres.



Styling & equipment

  • New side panels and rear mudguard/number plate mount
  • Handlebar angle increased for easier low-speed manoeuvring
  • LCD display now easier to read; USB Type-C socket under the seat



Tightly wrapped and aggressive, the CB650R’s Neo Sports Café style features the signature compact ‘Trapezoid’ proportion of short, stubby tail and short overhang headlight. The long fuel tank is a key motif of the family design; its smooth lines accentuate the solidity of real metal surfaces and crown the engineering of the four cylinder powerplant. It also houses the ignition.

New, smaller side panels accentuate the minimalism, as does the rear mudguard, which is now constructed from steel rather than nylon plastic. There’s also now a USB Type-C socket located under the seat, for easy charging of a mobile device. Seat height remains 810mm.

The round headlight is one of the key words of the Neo Sports Café design language. It’s LED, as is the rest of the lighting. Sharp LCD instruments use the CB1000R as a baseline and include a Shift Up, Gear Position and Peak Hold indicator. For 2021 readability has been improved with a change of LED angle and font size.

Another detail change is an increase in the handlebar angle, up 3° to 35°. This adjustment makes tight, slow-speed turns and U-turns easier.



Valerio Aiello of Honda’s Rome R&D Department on the Neo Sports Café design aesthetic:

‘The entire current Neo Sport Café range from Honda is the result of the CB4 Concept model presented at EICMA in 2015. Our desire was to explore the world of the café racer and reinterpret it in a modern key.

All the models of this CB series are not simply retro-vintage motorcycles, but rather neo-classics – that is, modern motorbikes showcasing classic design styles combined with modern techniques.

We wanted to create a new stylistic dimension, different from the muscular streetfighters of the last few years, and at the same time, far from the simpler café-racer style. The end result is that none of the bikes from the competition resemble the Neo Sports Café range and, like them or not, they are easily recognisable as Hondas. The competitors have classic or very modern motorcycles in their ranges, but in my opinion, not something that goes in the wake of both styles.

During development of the CB4 concept, I found inspiration from outside the world of motorcycles, in watches. I’ve always liked their technicality and one of the key concepts used during the Neo Sports Café design was ‘Mechanical Art’.

‘Mechanical Art’ is the desire to show the beauty of the various mechanical elements to which Honda has always given great importance. Watches do this very well indeed, with their mechanics always creating a certain charm.’





Engine

  • 70kW peak power, 63Nm peak torque with 35kW A2 licence option
  • Honda Selectable Torque Control (HSTC)
  • Full EURO5 compliance



The 649cc, DOHC 16-valve engine is tuned to create the purest, most enjoyable mid-sized four cylinder performance possible, with the classically fast ‘pick-up’ through the rev range and hard-hitting, high-revving top end for which Honda’s in-line’s fours are renowned. Peak power of 70kW arrives @ 12,000rpm with peak torque @ 63Nm delivered at 8,500 rpm. An easy 35kW conversion is available for A2 licence holders.

Through the 2021 update the only changes to engine specification are for EURO5 compliance; this has required revisions to the ECU, cam lobes, intake timing, exhaust pipe, catalyser and silencer, as well as the addition of a crank pulsar.

Direct cam actuation makes for a compact cylinder head; bore and stroke is set at 67mm x 46mm with compression ratio raised of 11.6:1. Iridium spark plugs are employed and twin air ducts – either side of the fuel tank – feed the airbox and produce a throaty intake roar.

Asymmetric piston skirts minimise bore contact and reduce friction. Ferrous spines on the outer surface of the cylinder sleeves reduce oil consumption (and friction) with improved heat transfer and a silent SV cam chain reduces frictional losses by using a Vanadium coating on its pins. Internal water channelling from cylinder head to cylinders does away with most of the exterior hoses.

The engine uses a compact internal architecture, stacked six-speed gearbox and starter layout with the cylinders canted forward 30°. An assist/slipper clutch eases upshifts while managing rear-wheel lock up under hard braking and rapid downshifts. Honda Selectable Torque Control (HSTC) is fitted to manage rear wheel traction; it can be turned off should the rider choose.

Fuel consumption of 20.4km/l (WMTC mode) gives a range of over 300km from the 15.4L fuel tank.





Accessories

A range of Genuine Honda Accessories is available for the CB650R:



Several aluminium parts and aluminium inserts to maximise the Neo Sport Café design that CB650R and CB1000R have in common (meter visor, front mudguard panels, shroud covers, side covers, seat cowl)

Under cowl

Wheel stripes

Tank bag and seat bag – the same as those for Honda’s native flagship the CB1000R

Quick shifter

Front visor

12V socket

Heated grips

Tank pad



2021 Honda CB650R ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ USD
Canada MSRP Price: $  CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)







2021 Honda CB650R ABS – Totalmotorcycle.com Canada Specifications/Technical Details







2021 Honda CB650R ABS – Totalmotorcycle.com European Specifications/Technical Details
ENGINE
Type Liquid-cooled 4-stroke 16-valve DOHC inline-4 cylinder
Engine Displacement (cm³) 649cc
Bore ´ Stroke (mm) 67.0 x 46.0
Compression Ratio 11.6:1
Max. Power Output 70kW/12,000rpm
Max. Torque 63Nm/8,500rpm
Oil Capacity 2.7L
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 15.4L
Fuel Consumption 20.4km/litre
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/8.6AH
ACG Output 370W
DRIVETRAIN
Clutch Type Wet, multiplate disc
Transmission Type 6-speed
Final Drive Chain
FRAME
Type Steel diamond
CHASSIS
Dimensions (LxWxH) 2130 x 780 x 1075mm
Wheelbase 1450mm
Caster Angle 25.5°
Trail 101mm
Seat Height 810mm
Ground Clearance 150mm
Kerb Weight 202.5kg
Turning radius
SUSPENSION
Type Front 41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks
Type Rear Monoshock damper with 7 stage adjustable preload, 43.5mm stroke
WHEELS
Rim Size Front Hollow section 6-spoke cast aluminium
Rim Size Rear Hollow section 6-spoke cast aluminium
Tyres Front 120/70ZR17 M/C (58W)
Tyres Rear 180/55ZR17 M/C (73W)
BRAKES
ABS System Type 2 channel; hydraulic dual disc 310mm front, hydraulic disc 240mm rear
INSTRUMENTS & ELECTRICS
Instruments Digital speedometer, digital bar graph tachometer, dual trip meter, digital bar graph fuel gauge, gear position and upshift indicator, digital clock
Headlight LED
Taillight LED
