2021 KTM 350 XC-F Guide

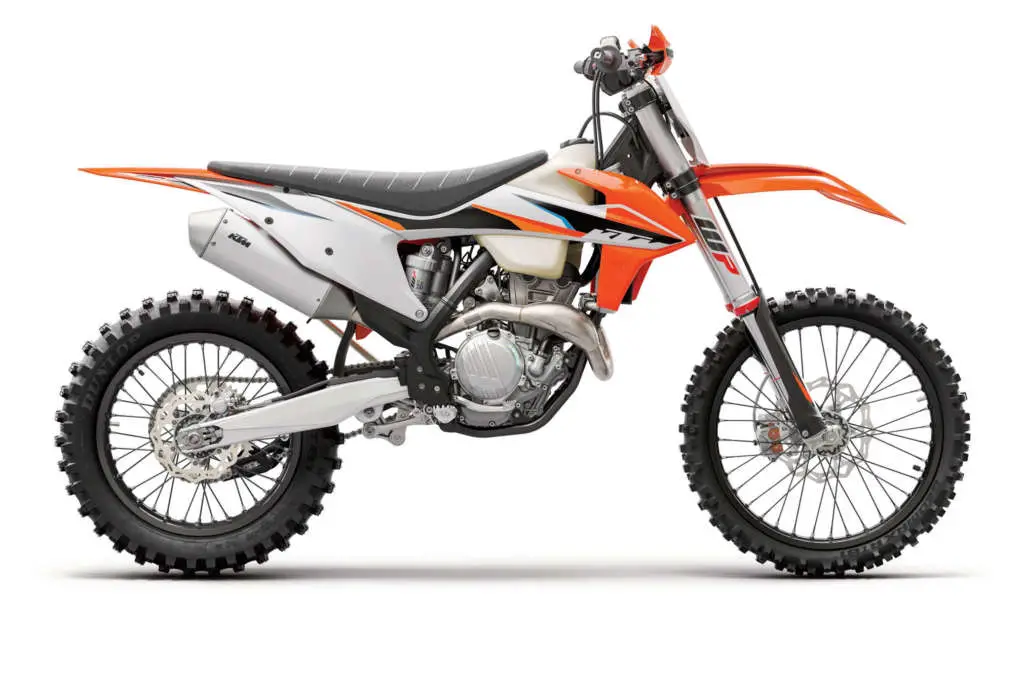

2021 KTM 350 XC-F

2021 KTM 350 XC-F 2021 KTM 350 XC-F 2021 KTM 350 XC-F

2021 KTM 350 XC-F : THE ULTIMATE COMBO.

Introducing the 2021 KTM 350 XC-F…

Taking lesson learned from Tony Cairoli’s dominating career aboard the 350 SX-F, and insights from top 350 EXC-F enduro riders, we created the KTM 350 XC-F. Sharing the same aggressive motocross personality but with a refined chassis setup, state-of-the-art motor internals and EMS, the 350 XC-F, like Tony, is a flat-out, offroad-ripping legend!







2021 KTM 350 XC-F Totalmotorcycle.com Key Features

CUTTING-EDGE 4-STROKES
KTM refuses to knock down a gear in its mission to make the EXC-F models the most competitive 4-stroke machines on the market today.

Low weight, unbeatable torque, efficient engine management, sensitive delivery, and even more reliability have been KTM development priorities over recent years. Developed for riders of any skill range, the 2021 KTM EXC-F models are race-winning machines across all offroad racing disciplines.

ENGINE
Compact dimensions with class-leading power output, KTM’s fuel-injected 4-stroke engines are the most refined and powerful on the market. They feature enduro-specific exhaust systems, latest-technology electronic fuel-injection, and several internal components that all help deliver efficient power throughout the rev range. These Euro IV homologated engines are the lightest and most competitive yet, with an unrivaled power-to-weight ratio.





2021 KTM 350 XC-F Totalmotorcycle.com Features and Benefits

Exhaust

When it comes to power delivery and performance, the exhaust on all 4-stroke models plays a key role and packs a punch that is hard to beat. It features a model-specific header pipe with an advanced resonator called FDH (Flow Design Header), which is a small chamber around the pipe. The design allows the exhaust to be disassembled without removing the shock absorber and also provides better access to the shock. The aluminum sleeve, end cap and internal design of the silencer allow for slimmer ergonomics, making the bike feel narrower, without compromise to regulatory noise limits.

Engine

The engine of the KTM 350 XC-F features a compact and very light (60 lbs) construction. Its DOHC (double overheard camshaft) design with lightweight titanium valves and DLC coated cam followers allows for lively but strong engine characteristics. Fitted with the latest electronic fuel injection system and an E-starter, it has an extremely wide usable speed range, high performance and incredibly efficient rideability. The KTM 350 XC-F engine shares the same layout as the 250 XC-F, resulting in playful handling that is similar to a 250 machine.

Airbox

The airbox on the KTM 350 XC-F ensures optimal flow dynamics, and together with the intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage that minimizes incorrect installation. As found on previous models, filter maintenance is quick and easy and does not require tools – a standard, original feature from KTM.

Frame

The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on precisely calculated stiffness of the frame. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to more precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tips the scales at less than 2 pounds.

Seat

Ergonomically perfect, the seat has a high foam volume, which offers great comfort and durability, while keeping the weight low.

Handlebar

All KTM XC models are equipped with the same high-strength aluminum tapered NEKEN handlebar. The handlebar allows for four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Additionally, the bike is fitted with a map-select switch on the handlebar for selecting alternative engine maps. The rider also has the option to activate TRACTION CONTROL from this switch; a unique feature which guarantees more efficient traction, especially in slippery conditions, and can be activated with the push of a button during riding.

Footpegs

Sophisticated ´No Dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the EXC models, which are 6 mm higher than the XC versions.

Seat

Ergonomically perfect, the seat has a high foam volume, which offers great comfort and durability, while keeping the weight low.

Handlebar

All KTM XC models are equipped with the same high-strength aluminum tapered NEKEN handlebar. The handlebar allows for four different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any wire or glue, on the left. Additionally, the bike is fitted with a map-select switch on the handlebar for selecting alternative engine maps. The rider also has the option to activate TRACTION CONTROL from this switch; a unique feature which guarantees more efficient traction, especially in slippery conditions, and can be activated with the push of a button during riding.

Decals

Simply riding a KTM 350 XC-F attracts the attention of onlookers, but the new inlay graphics definitely make them turn for a second look.





2021 KTM 350 XC-F – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ 10699 USD
Canada MSRP Price: $ 11799 CDN
Europe/UK MSRP Price: £ 8499 (On The Road inc 20% Vat)

ENGINE

  • TRANSMISSION6-speed
  • STARTERElectric starter
  • STROKE57.5 mm
  • BORE88 mm
  • CLUTCHMulti-plate clutch, Brembo hydraulics
  • DISPLACEMENT349.7 cm³
  • EMSKeihin EMS
  • DESIGN1-cylinder, 4-stroke engine

CHASSIS

  • WEIGHT (WITHOUT FUEL)100.5 kg
  • TANK CAPACITY (APPROX.)8.5 l
  • FRONT BRAKE DISC DIAMETER260 mm
  • REAR BRAKE DISC DIAMETER220 mm
  • FRONT BRAKEDisc brake
  • REAR BRAKEDisc brake
  • CHAIN5/8 x 1/4″
  • FRAME DESIGNCentral double-cradle-type 25CrMo4 steel
  • FRONT SUSPENSIONWP XACT-USD, Ø 48 mm
  • GROUND CLEARANCE370 mm
  • REAR SUSPENSIONWP XACT Monoshock with linkage
  • SEAT HEIGHT950 mm
  • STEERING HEAD ANGLE63.9 °
  • SUSPENSION TRAVEL (FRONT)310 mm
  • SUSPENSION TRAVEL (REAR)300 mm



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
