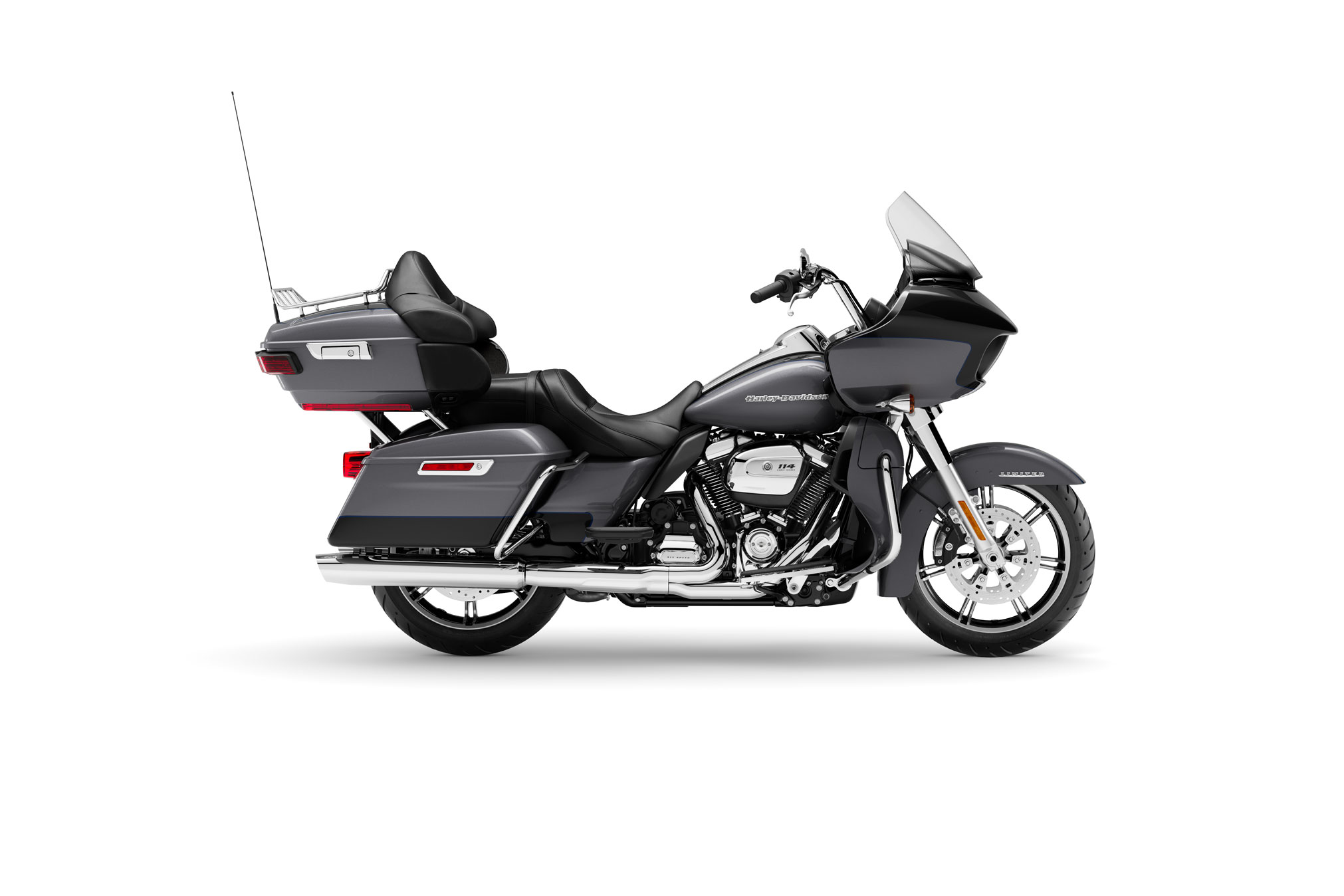

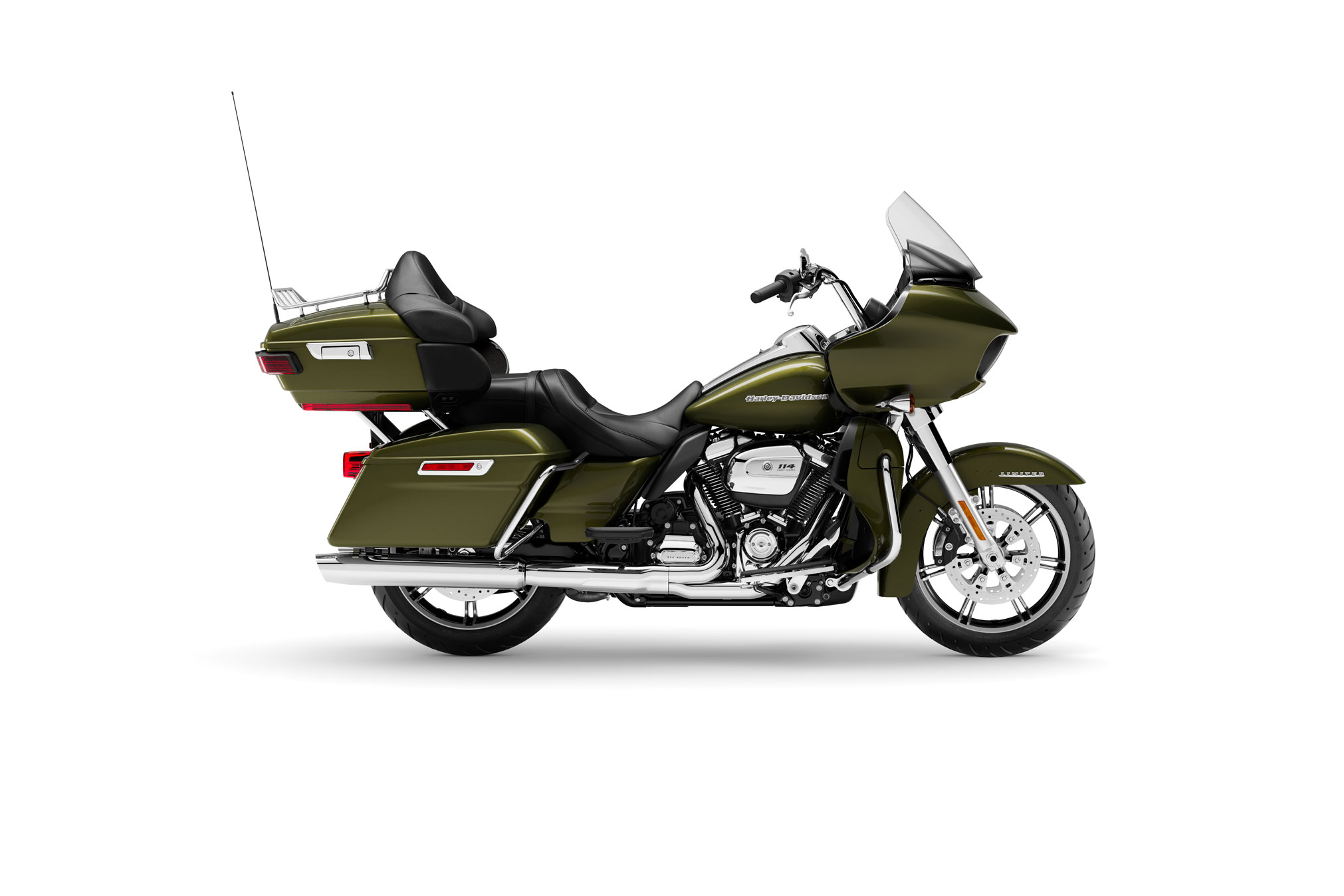

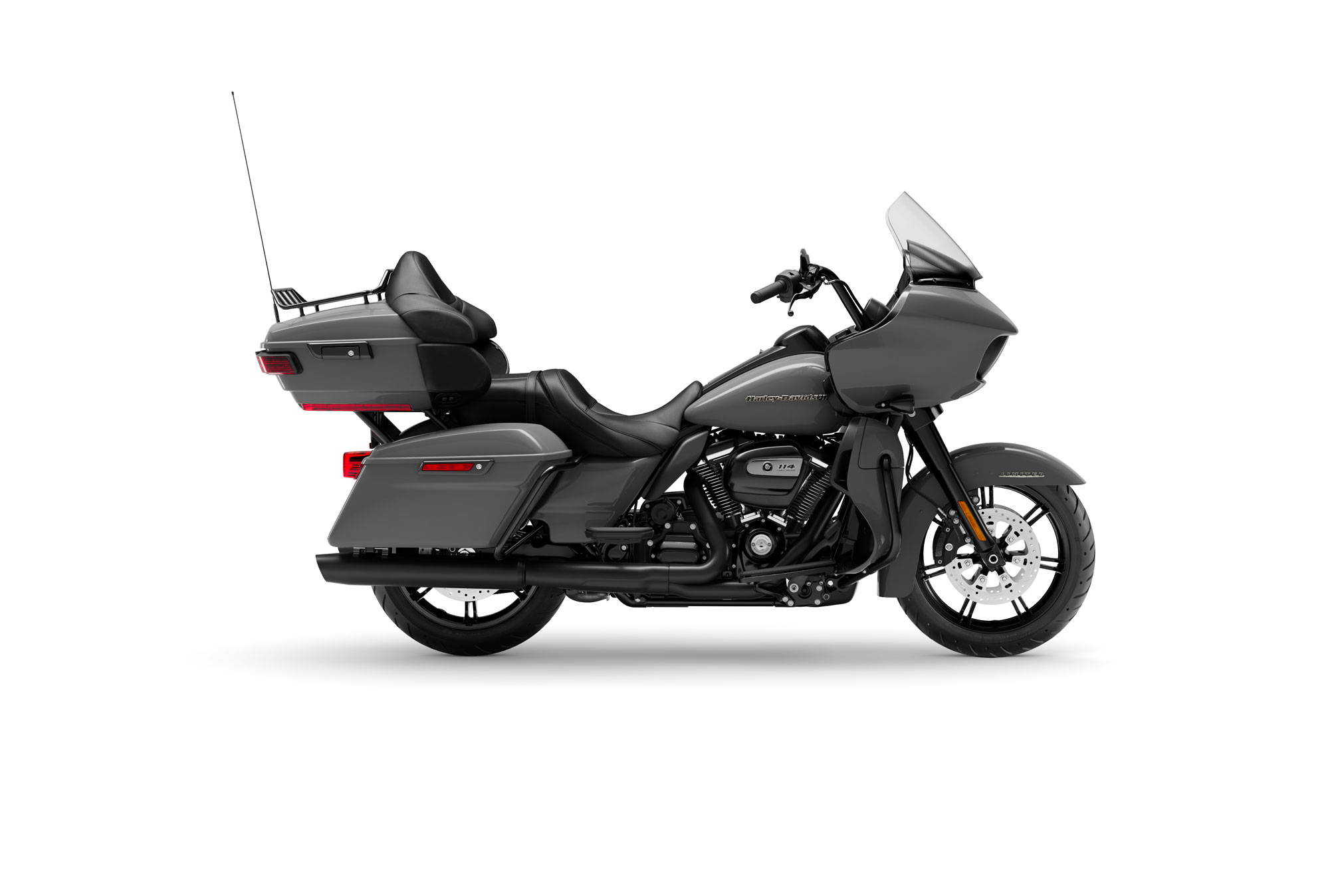

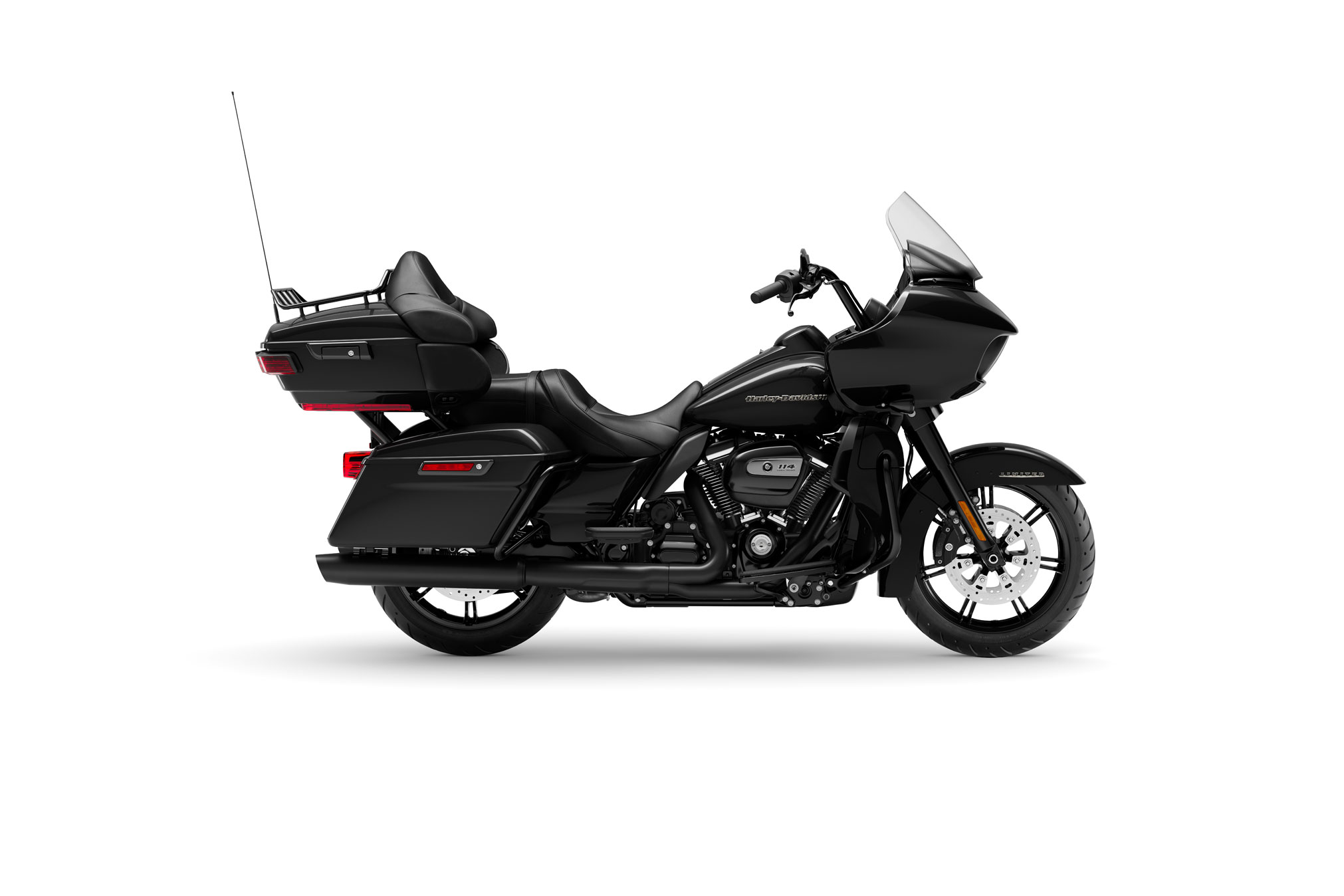

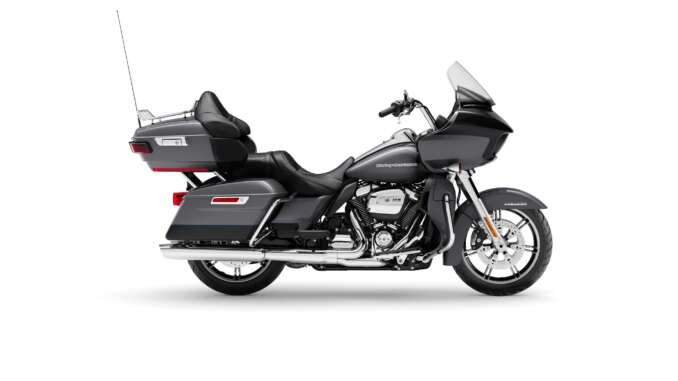

2022 Harley-Davidson Road Glide Limited: MASTERFUL TOURING.
Introducing the 2022 Harley-Davidson Road Glide Limited…
A masterful touring machine built to cover mile after mile with gear and a passenger. Features include a frame-mounted, aerodynamic shark nose fairing with dual Daymaker LED headlamps, Tour-Pak® luggage carrier, Boom!™ Box GTS infotainment system, heated hand grips, cruise control, Slicer II custom wheels and Twin Cooled™ Milwaukee-Eight® 114 engine.
A masterful touring machine built to chase the horizon in style.
2022 Harley-Davidson Road Glide Limited Totalmotorcycle.com Key Features
GRAND AMERICAN TOURING
The category we’ve created from the ground up. Go the distance, in style. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson® motorcycle.
Harley-Davidson designs its Grand American Touring models for riders forever seeking that next adventure. Grand American Touring models take riders beyond the horizon with the comfort and convenience that makes the journey spectacular, from the company that started the cross-country experience. All Harley-Davidson Grand American Touring models are powered by a smooth-running Milwaukee-Eight® V-Twin engine. Emulsion-technology rear shock absorbers feature a single knob to hydraulically adjust pre-load for optimal ride and control. The 49mm forks with dual bending valve suspension technology deliver linear damping characteristics for a smooth ride. Reflex™ linked Brembo® brakes with ABS are a standard feature on each Touring model.
Cornering Rider Safety Enhancements by Harley-Davidson, an option for all Touring models, will assist the rider in maintaining the rider’s intended path through a curve. The option package provides the following enhancements: Electronically Linked Brakes, Cornering-ABS, Cornering-Traction Control with standard and rain mode, Drag Torque Slip Control, Vehicle Hold Control, and Tire Pressure Monitoring (TPMS).
For 2022 these Grand American Touring models feature exciting new paint color options.
- Upright riding position
- Floorboards
- Passenger seat with backrest
- Saddlebags
- Frame mounted fairing
- Infotainment
- Rider safety enhancements available
THIS IS THE RIGHT BIKE FOR
- Riders seeking fully-loaded comfort and performance
- Covering mile after mile with gear and a passenger
- Milwaukee-Eight® 114 V-Twin engine and sharknose fairing
2022 Harley-Davidson Road Glide Limited Totalmotorcycle.com Features and Benefits
MILWAUKEE-EIGHT® 114 ENGINE
The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.
REFLEX™ LINKED BREMBO® BRAKES WITH STANDARD ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.
BOOM!™ BOX GTS INFOTAINMENT SYSTEM
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.
FRAME-MOUNTED SHARK NOSE FAIRING
A distinctive aerodynamic shark-nose fairing with triple split stream vents that deliver smooth air flow and reduce head buffeting.
HEATED HANDGRIPS
Equipped with six settings, so you can easily adjust on the fly for the heat you need.
RESPONSIVE SUSPENSION
High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.
PREMIUM TOUR-PAK® LUGGAGE CARRIER
A sleek yet spacious Tour-Pak® luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.
2022 Harley-Davidson Road Glide Limited – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: from $27,729 (Black), $29424 (Color), $29879 (Two Tone), $30724 (Vivid Black w/Black Finish), $31419 (Color w/Black Finish, $31874 (Two-Tone w/Black Finish) USD
Canada MSRP Price: from $34299 (Black), $34999 (Color), $35599 (Two Tone), $36699 (Vivid Black w/Black Finish), $37499 (Color w/Black Finish, $37999 (Two-Tone w/Black Finish) CDN
Europe/UK MSRP Price: from £27,295 (Black), £27795 (Color), £28145 (Two Tone), $28995 (Vivid Black w/Black Finish), $29345 (Color w/Black Finish, $29995 (Two-Tone w/Black Finish) GBP (On The Road inc 20% Vat)
| Dimensions | FLTRK Road Glide® Limited | Notes |
| Length | 102.2 in. (2,595 mm) | |
| Overall Width | 36.6 in. (930 mm) | |
| Overall Height | 56.1 in. (1,425 mm) | |
| Seat Height, Laden | 27.2 in. (690 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen | 28.9 in. (735 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance | 5.1 in. (130 mm) | |
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 26 | |
| Fork Angle (deg) | 29.25 | |
| Trail | 6.7 in. (170 mm) | |
| Wheelbase | 64 in. (1,625 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear | |
| Tires, Front Model | D408F | |
| Tires, Front Specification | BW 130/70B18 63H | |
| Tires, Rear Model | D407T | |
| Tires, Rear Specification | BW 180/55B18 80H | |
| Fuel Capacity | 6 gal. (22.7 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1 qt. (.95 l) | |
| Primary Chain Case Capacity | 1.1 qts. (1 l) | |
| Coolant Capacity | 0.8 qt. (0.76 l) | |
| Weight, As Shipped | 897 lb. (407 kg) | |
| Weight, In Running Order | 932 lb. (423 kg) | |
| Gross Vehicle Weight Rating | 1,360 lb. (617 kg) | |
| Gross Axle Weight Rating, Front | 500 lb. (227 kg) | |
| Gross Axle Weight Rating, Rear | 927 lb. (420 kg) | |
| Luggage Capacity -Volume | 4.7 cu ft (0.132 m3) |
| Engine | FLTRK Road Glide® Limited | Notes |
| Engine | Twin-Cooled™ Milwaukee-Eight® 114 | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore | 4.016 in. (102 mm) | |
| Stroke | 4.5 in. (114.3 mm) | |
| Displacement | 114 cu in (1,868 cc) | |
| Compression Ratio | 10.5:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | Paper, washable | |
| Exhaust | 2:1:2 dual exhaust with 4 in. tapered mufflers | |
| Lubrication System | Pressurized, dry-sump with oil cooler |
| Drivetrain | FLTRK Road Glide® Limited | Notes |
| Primary Drive | Chain, 34/46 ratio | |
| Final Drive | Belt, 32/68 ratio | |
| Clutch | Mechanically actuated 10 plate wet, Assist and Slip | |
| Transmission | 6-Speed Cruise Drive® | |
| Gear Ratios (overall) 1st | 9.593 | |
| Gear Ratios (overall) 2nd | 6.65 | |
| Gear Ratios (overall) 3rd | 4.938 | |
| Gear Ratios (overall) 4th | 4 | |
| Gear Ratios (overall) 5th | 3.407 | |
| Gear Ratios (overall) 6th | 2.875 |
| Chassis | FLTRK Road Glide® Limited | Notes |
| Frame | Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded | |
| Swingarm | Mild steel, two piece drawn and welded section; forged junctions; MIG welded | |
| Front Fork | 49mm Dual Bending Valve | |
| Front Fork, Optional | ||
| Rear Shocks | Premium standard height hand-adjustable rear suspension | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | Gloss Black Slicer II | 4 |
| Wheels, Front Type | Slicer II cast aluminum with clear coat | 4 |
| Wheels, Front Width | 3.5 in. (89 mm) | |
| Wheels, Front Height | 18 in. (457 mm) | |
| Wheels, Rear Type | Slicer II cast aluminum with clear coat | 4 |
| Wheels, Rear Width | 5 in. (127 mm) | |
| Wheels, Rear Height | 18 in. (457 mm) | |
| Brakes, Caliper Type | 32 mm, 4-piston fixed front and rear | |
| Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5.1 mm) | |
| Brakes, Front is dual | Yes | |
| Brakes, Rear Diameter | 11.8 in. (300 mm) | |
| Brakes, Rear Thickness | 0.28 in. (7.1 mm) | |
| Front brake lever free travel | N/A | |
| Rear brake pedal free travel | N/A | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 4.6 in. (117 mm) | |
| Suspension Travel, Rear | 3 in. (76 mm) |
| Performance | FLTRK Road Glide® Limited | Notes |
| Engine Torque Testing Method | J1349 | |
| Engine Torque | 122 ft-lb (166 Nm) | 5 |
| Engine Torque (rpm) | 3,000 | |
| Power (Hp/kW) | 93 HP / 69 kW @ 5020 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 32 | |
| Lean Angle, Left (deg.) | 32 | |
| Maximum hill-starting ability | N/A | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 43 mpg (5.5 l/100 km) | 6 |
| CO₂ Emissions Testing Method | N/A | |
| CO₂ Emissions | N/A |
| Electric | FLTRK Road Glide® Limited | Notes |
| Battery | Sealed, maintenance-free, 12V, 28-amp/hour, 405 cca (per Battery Council International Rating) | |
| Charging | Three-phase, 48-amp system (600W @ 13V, 2000 rpm, 625W max power @13V) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam | |
| Lights (as per country regulation), Tail/Stop | 8W/28W | |
| Lights (as per country regulation), Front Signal Lights | 8W/28W | |
| Lights, Rear Turn Signals | LED | |
| Gauges | Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators. | |
| Auxiliary Lamps | N/A | |
| Electric Power Outlet | Electric power accessory port in fairing and tourpak | |
| GPS System | Boom! Box GTS audio system with GPS and touchscreen | |
| Reverse Gear | N/A |
| Warranty And Service | FLTRK Road Glide® Limited | Notes |
| Warranty | 24 months (unlimited mileage) | 7 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 8 |
Notes
- Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- Recommended 91 octane or higher fuel (R+M)/2.
- Standard and optional wheels may vary by country and region.
- Values shown are nominal. Performance may vary by country and region.
- The combined fuel economy numbers were derived using a combination of estimated city and highway values. Fuel economy estimates are derived from US EPA exhaust emission certification data on a sample motorcycle from the corresponding family under ideal laboratory conditions. Your actual fuel economy will vary depending on your personal riding habits, road and driving conditions, vehicle condition and maintenance, tire pressure, vehicle configuration (parts and accessories), and vehicle loading (cargo, rider and passenger weight). Break-in mileage may vary.
- See motorcycle owner’s manual for complete details.
- Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
