2022 Honda CRF300L Rally Guide

2022 Honda CRF300L Rally: CHOOSE YOUR DESTINATION.

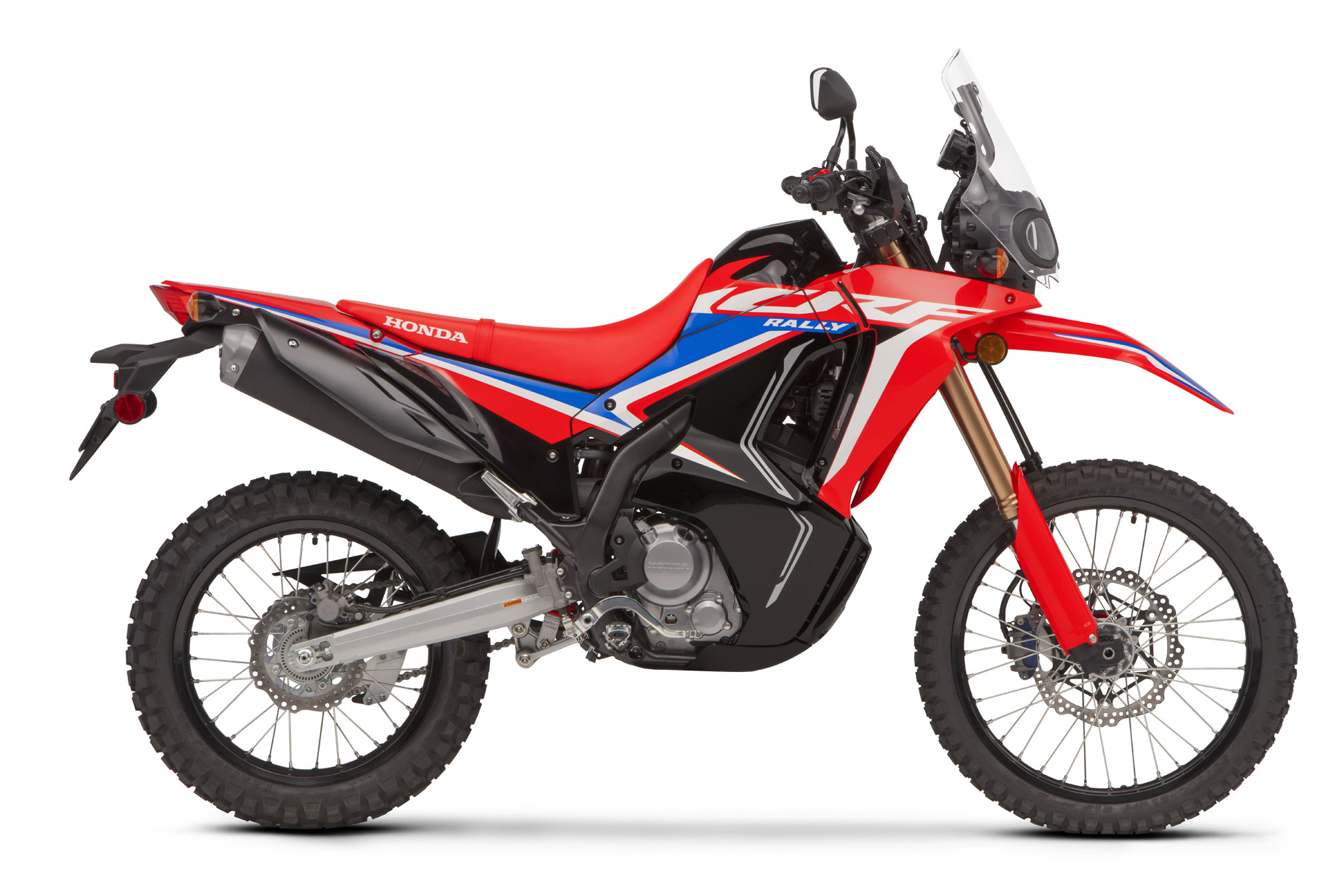

Introducing the 2022 Honda CRF300L Rally…

Made for the adventurous dual-sport rider, the new CRF300 RALLY is a small capacity machine packing serious credentials. With styling drawn directly from the competition-specification HRC CRF450 RALLY, it adds long-range ability and comfort to its off-road performance thanks to a large fuel tank and wind-cheating nose fairing and screen. Now lighter in weight, with more power and torque from its engine, the CRF300 RALLY is the perfect travelling partner – around town, or around the world.

DRIVING FORCE
More power, less weight and improved comfort set for new horizons.
We’ve cut a full 4kg out of the CRF300 RALLY’s chassis, and built an extra 2.7L capacity into the fuel tank, for greater range between fill-ups. To add comfort for those long days in the saddle, the handlebar position is higher. Seat height is 10mm lower and there are now rubber inserts in the footpegs. And the liquid-cooled, 4V DOHC single-cylinder EURO5-spec engine is equipped with an Assist/Slipper Clutch and produces more peak power at 20.1kW, with improved torque of 26.6Nm, for strong all-round response. There’s also extra ground clearance – always welcome off-road – and a Gear Position indicator in the dash.

GOOD TO GO
The open road beckons. Where will it take you?
The CRF300 RALLY is about the freedom delivered by the lightweight chassis, long-travel suspension and responsive engine. But it’s also about independence; the long-range autonomy that a big fuel tank allows, added to the sense of go-anywhere potential stored away in this motorcycle’s comprehensive abilities.

Honda CRF300 Rally good to goHonda CRF300 Rally is about freedom
It is engineered to serve up a real taste of adventure to riders that want an easy to manage machine, whether for the daily commute, weekend tour or global journeys. All of the detail improvements – more power, less weight, larger tank range, improved riding position and extra ground clearance – combine to further perfect a quest-ready package, wherever you’re headed.

Where the dirt ends and road begins, the CRF300L Rally is waiting to bring adventure bike capability to your everyday commute. The nimble design and plentiful low-end power combine with smart features for an ideal transportation solution through busy streets and bumpy trails. The bodywork is inspired by Dakar Rally racebikes, which means it looks as good as it performs. The tall windscreen provides solid protection against the elements. And the long motocross-style seat gives you all-day comfort and allows you to easily move around in the saddle. If you have a dual sport that’s even lighter and more affordable in mind, make sure you check out our 2022 CRF300L.

Based on the standard CRF300L, but with comfort-focused upgrades including hand guards, increased fuel capacity and a frame-mounted wind screen, the CRF300L Rally evokes images of the Dakar while delivering practicality and value. Suitable for longer-distance adventuring than its standard sibling, the Rally version is also a stellar commuter.

2022 Honda CRF300L Rally Totalmotorcycle.com Key Features

Standard Features

• Rally-style bodywork and windscreen
• 10.2 inches of front suspension travel
• 10.2 inches of rear suspension travel
• 286cc liquid-cooled single-cylinder four-stroke
• A dirtbike that’s street-legal

PERFORMANCE
SINGLE-CYLINDER ENGINE
A single is the perfect choice for a bike like the CRF300L Rally. It’s light, simple, and very fuel efficient.

DOUBLE-OVERHEAD-CAM CONSTRUCTION
Honda engines have always been a hallmark of superior engineering. The engine in the CRF300L Rally is a perfect example. The double-overhead-cam construction is free-revving, super efficient, and full of low-maintenance features.

FUEL INJECTION
Fuel injection means your bike automatically compensates for cold weather running or high-altitude operation. Better yet, it’s very fuel efficient, and you will never have to worry about clogged carburetor jets if your bike’s been sitting for a while.

STYLING
RALLY BIKE STYLING
The tall windscreen, the extra-coverage fairing and side panels, and the blended, frame-mounted bodywork are all marks of a true rally machine. The CRF300L Rally looks awesome, like our championship-winning Dakar Rally racebikes, but you’ll appreciate the extra wind- and weather protection too.

CRF450R-INSPIRED BODYWORK
The CRF300L Rally features bodywork design based on our CRF450R motocross bikes. It’s not only good looking, but functional too, with smooth transitions between the bodywork elements, tank, and seat, making it easy to move around on the bike.

SLIM SEAT FRONT
The CRF300L Rally seat front is slim, making it easier to move forward on the bike, or to get your feet down at stops.

MORE FOOTROOM
The relative positions of the engine and footpegs in the chassis give you more footroom, a real bonus when wearing heavy off-road riding boots.

POLISHED BLACK RIMS
The black rims look great and are easy to keep clean, thanks to their polished surface.

ENGINEERING
ENGINE COUNTERBALANCER
Because it features a counterbalancer, the engine is a smooth runner. You get the narrow overall width and power advantages of a single along with the smoothness of a multi-cylinder bike.

FUEL INJECTION
Fuel injection means the CRF300L Rally starts right up, even in cold weather. Compared to a carbureted bike, it also helps reduce emissions and enhance performance and fuel efficiency.

INTEGRATED REAR MASTER CYLINDER
We’ve integrated the rear brake’s fluid reservoir right into the master-cylinder construction. The design is clean, compact, and tucks in making it more damage resistant off-road.

LARGE SIDESTAND FOOT
We gave the CRF300L Rally a large sidestand foot. It seems like a small detail, but you’ll appreciate it when riding off-road, or even on-road if you need to park in an asphalt lot on a hot day.

VERSATILITY
COMFORTABLE SEATING POSITION
With a long, motocross-style seat, you can move forward and back, left and right with ease, helping you navigate changing terrain in comfort.

CARGO CONVENIENCE
Special cargo hooks make it easy to secure a light load to the passenger seat with bungee cords. It’s just another one of the nice touches that help make these bikes so versatile. It also has a storage box on the left side for small items you need to keep secure.

DIGITAL INSTRUMENTATION
The CRF300L Rally’s digital instrument cluster has large, easy-to-read numbers and indicators. You also get a speedometer, clock, twin tripmeter, a tachometer, and more.

LARGE FUEL TANK
The CRF300L Rally fuel tank has a 3.4 gallons capacity, enough for even longer adventures.

PASSENGER READY
With its long seat and fold-up frame-mounted passenger footpegs, the CRF300L Rally is fully equipped to carry a passenger so you can share the fun.

RUBBER-INSERT PEGS
The CRF300L Rally’s footpegs feature rubber inserts. It’s the best of both worlds: On longer trips, the rubber damps out any vibration, while the cleated steel pegs still grip your boots well off road.

HANDLING
21-INCH/18-INCH FRONT AND REAR WHEELS
A 21-inch front and 18-inch rear wheel give you a wide selection of tire choices for everything from serious off-road trail riding to smooth on-road adventures.

DISC BRAKES
The CRF300L Rally features front and rear hydraulic discs for excellent stopping power and brake feel, both for on- and off-road use.

MORE GROUND CLEARANCE
When we redesigned the engine and chassis, we mounted the engine higher in the frame, which lets us increase the ground clearance to 10.9 inches.

INVERTED FORK
An inverted Showa® fork features large 43mm sliders. That makes it strong and helps add to the CRF300L Rally’s excellent handling in on or off-road conditions.

PRO-LINK REAR SUSPENSION
Thanks to our single-shock Pro-Link rear suspension, the CRF300L Rally delivers excellent comfort, traction and handling, while also improving rider confidence.

STRONG STEEL FRAME
The sturdy steel frame is strong and designed to survive in the real world of rough pavement or off-road trails. Because of the fine-tuned frame rigidity, you get even better feedback.

2022 Honda CRF300L Rally Totalmotorcycle.com Features and Benefits

DESIGN / STYLING
The CRF300L Rally is adventure-ready, with a largest-in-class, 3.4 gallon fuel tank. Considering the model’s excellent fuel economy, range is considerable—over 250 miles in testing.

As with the Monster Energy Honda factory rally machines, the rear section is kept slim, which enables easy rider movement and concentrates the mass neat the front of the bike. The striking red, white, black and blue graphics mimic the look of the CRF Performance line, and are complemented by a black frame.

Components are light to keep overall vehicle weight relatively low.

Riding Position
The riding position is designed for good rider input and vehicle maneuverability. Handlebar sweep allows for a natural elbow position and light steering, and vibration is minimized via handlebar weights (5.8 ounces each) and rubber foot peg platforms. The seat has a rubber mounting cushion and is 190 mm wide for comfort, though the front is narrow to facilitate the rider’s feet touching the ground when needed. Passenger pegs come standard.

Meter
The digital meter features black characters on a white background, and characters are large for good visibility. In addition to speed, clock and rpm readings, functions include gear position, fuel mileage and fuel consumption.

ENGINE / DRIVETRAIN
The liquid-cooled, single-cylinder, four-stroke power plant, has bore-and-stroke figures of 76.0 mm and 63.0 mm, respectively, for a 286 cc displacement. Power output is particularly strong in the rev range’s lower and middle areas, which are used often in both city riding and off-road going.

Good throttle control is achieved, especially at low rpm, thanks in part to a large, 38 mm throttle body and an exhaust system that also delivers low sound output while keeping vibrations to a minimum. The engine features a valve train with a rocker-arm design, enabling a compact cylinder head, while the counterbalancer provides smooth running.

Transmission
The six-speed gearbox features close spacing in the lower gears and wide spacing in the higher gears, enabling optimum gear selection while still allowing comfortable high-speed cruising—a great balance between suitability for city, long-distance and off-road applications.

Clutch
The CRF300L Rally has a very light clutch-lever pull, thanks in part to an assist/slipper clutch that also provides good performance during aggressive downshifting.

CHASSIS / SUSPENSION
Overall vehicle weight is low, thanks to careful selection of components. For example, the lower triple clamp is constructed from aluminum instead of steel, minimizing steering effort and keeping the center of gravity low.

Frame / Swingarm
Through optimization of its main components, the frame’s weight is minimized, while optimized lateral rigidity allows maneuverability and good rider feel. Diameter of the cradle tubes is 25.4 mm. In addition, ground clearance is a considerable 10.9 inches, reducing the chance of interference during riding in rough off-road conditions. Similarly, the swingarm’s lateral and torsional rigidity are optimized, and its overall cross section is designed to deliver a uniform distribution of twist, resulting in good feel and predictable handling. The swingarm’s weight is low, minimizing sprung weight for excellent suspension action.

Suspension
A 43 mm inverted Showa fork is paired with a Pro-Link® single-shock rear system. Front and rear suspension travel are 10.2 inches and 10.4 inches, respectively, for excellent on- and off-road performance.

Wheels / Brakes
As with high-performance off-road machines, the wheel sizes are 21 inches at the front and 18 inches rear, enabling smooth rolling over rough terrain. The black aluminum rims have been polished, resulting in a glossy appearance and easy cleaning. The rear axle is hollow to minimize unsprung weight.

Hydraulic brakes are used front and rear, with 296 and 220 mm rotors, respectively, controlled stops in varying conditions. The rear-brake master cylinder incorporates the reservoir, similar to the design used on the CRF Performance line, for a simple, clean design. Conveniently, ABS can be turned off at the rear, providing a different riding feel in off-road conditions.

ACCESSORIES
A number of Honda Accessories are offered, including an electrical socket, wider foot pegs, heated grips, a top box, a rack and more.

• Meets current EPA and CARB standards
• California version differs slightly due to emissions equipment

2022 Honda CRF300L Rally – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6099 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment Specifications subject to change

2022 Honda CRF300L Rally – Totalmotorcycle.com Canada Specifications/Technical Details

NA

2022 Honda CRF300L Rally – Totalmotorcycle.com European Specifications/Technical Details

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment Specifications subject to change

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
