2022 Honda XR650L Guide

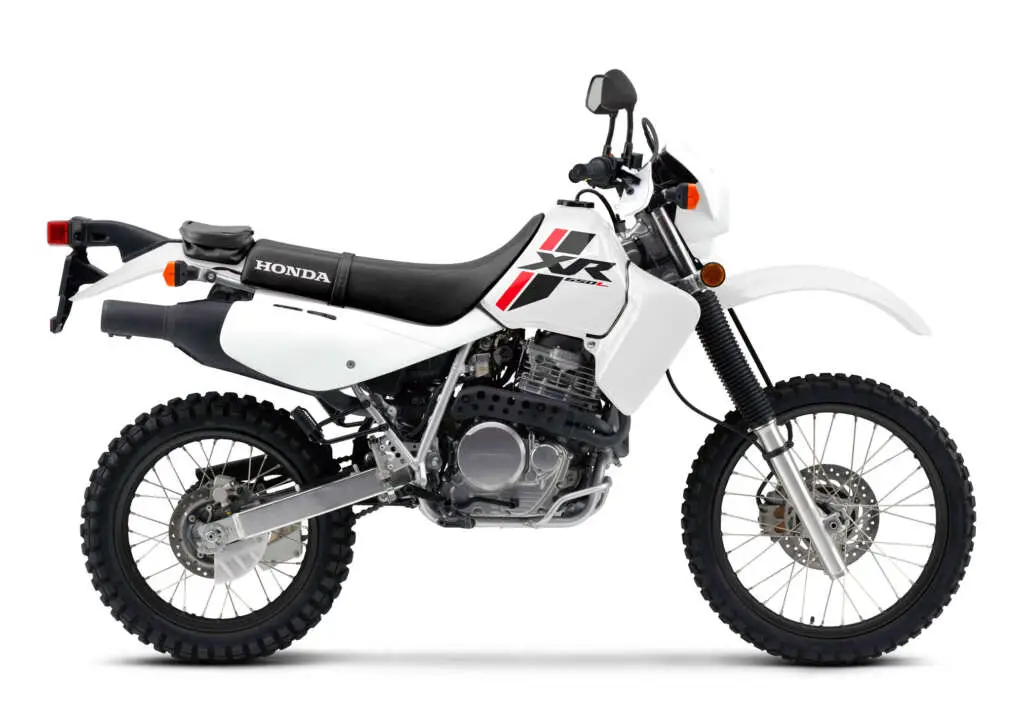

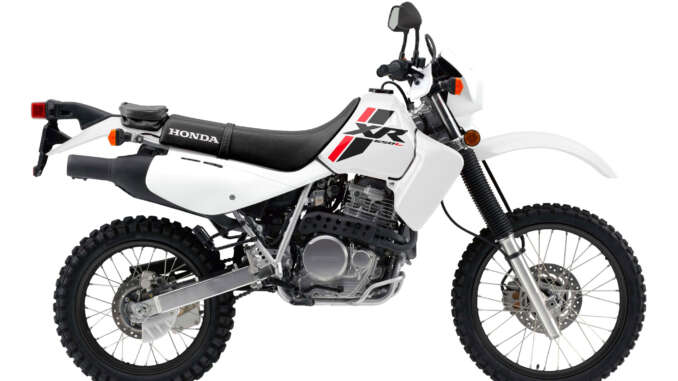

2022 Honda XR650L

2022 Honda XR650L

2022 Honda XR650L: READY FOR ROAD AND TRAIL.

Introducing the 2022 Honda XR650L…

Yes, the XR650L has been a familiar part of Honda’s lineup for many years, but there’s a reason the tried-and-true dual-sport model continues to be popular with customers. The XR650L is highly adaptable, opening the door to adventure on single-track trails, dirt roads and backroads, while also delivering capable transportation in the city. The result of those characteristics – plus a proud Baja heritage – is a diehard following of riders, who will be pleased to know that the model has received an aesthetic facelift for the 2022 model year.

THIRTY YEARS . . . AND COUNTING
Everyone knows that a Honda XR650L is the one bike you can always count on, no matter how gnarly the road or trail. Everything about this bike is rugged, simple, and proven: the 644cc air-cooled single-cylinder engine, the strong steel frame, the long-travel suspension. Electric starting makes getting underway a snap—same for restarts in rocky trail sections. It’s fully street legal, and roomy enough to carry a passenger. And while the 2022 XR650L is still as tough as an anvil, for 2022 it has a new, fresh, contemporary look thanks to a total graphic makeover. Black rims match the black seat, tool bag, and fork gaiters; the white-on-white bodywork has a super-clean look; and the new tank graphics pay tribute to the 650’s Honda XR heritage. Whether you’re using it for off-road adventures or as the ultimate post-apocalyptic commuter, the XR650L has never looked this good.



2022 Honda XR650L Totalmotorcycle.com Key Features

Standard Features

644cc air-cooled single-cylinder engine

Honda’s patented Radial Four-Valve Combustion Chamber (RFVCTM)

Electric starter

21-inch front wheel

Pro-Link® rear suspension

Disc brakes front and rear

Street legal/dirt ready



PERFORMANCE
FOUR-STROKE ENGINE
The XR650L’s four-stroke, single-cylinder engine offers good fuel efficiency and a wide powerband. In addition, its proven powerplant requires very little maintenance.

DISC BRAKES
Front and rear disc brakes provide superior stopping power. Both front and rear disc rotors are drilled for lightness and better wet-weather performance.

CONVENIENCE
ELECTRIC STARTER
Adventure is just the push of a button away. The XR650L’s electric starter takes all the drama out of restarting off-road, or getting underway on a cold morning or after the bike’s been sitting all week.

VERSATILITY
STREET-LEGAL FEATURES
Fully equipped for the street—including turn signals, license-plate light, mirrors, speedometer and more. There’s even a grab strap and footpegs for a passenger.

PASSENGER READY
With a passenger grab strap, folding passenger pegs, a long MX-style seat and plenty of Honda power, the XR650L lets you carry a passenger with ease.

DESIGN
SEALED BATTERY
No maintenance hassles here, even in the case of an off-road tip over. The sealed battery has plenty of cranking power for the electric starter, and is well protected from the vibrations of off-road riding.

DRY-SUMP LUBRICATION
The XR’s dry-sump design keeps the engine compact and eliminates the oil pan for superior ground clearance and damage resistance. Plus, with the engine oil in the frame, the frame itself acts like a giant oil cooler.

BLACK RIMS
In keeping with it clean new look this year, we’ve given the XR650L black rims front and rear. It’s amazing how much cleaner they make the bike look, especially combined with the black fork boots, black seat, and black tool bag.

HANDLING
18-INCH REAR WHEEL
The 18-inch rear wheel gives you a better overall ride and more sidewall protection against flats, and still offers a wide choice of on- or off-road tires.

21-INCH FRONT WHEEL
The 21-inch front wheel gives you a wide choice of tire selection for different riding conditions.

LONG-TRAVEL FRONT SUSPENSION
With a full 11.6 inches of travel, the air-adjustable 43mm fork also offers 16-position compression damping adjustability, letting you fine-tune it to deal with the bumps of off-road riding.

PRO-LINK® REAR SUSPENSION
Honda Pro-Link® rear suspension system offers compliant and comfortable ride quality with a high level of wheel control. Initial rates are soft for supple action over small bumps and ripples, while increasingly stiffer rates resist bottoming and maintain rear-wheel control over rougher surfaces.

STEEL FRAME
The XR650L’s steel frame is designed to handle the intensity of off-road travel. Plus, the frame’s backbone doubles as the engine’s oil tank, saving weight and space.







2022 Honda XR650L Totalmotorcycle.com Features and Benefits

ENGINE / DRIVETRAIN

  • Bulletproof 644 cc SOHC four-stroke engine produces power and torque ideally suited for both on- and off-road riding.
  • Radial Four-Valve Combustion Chamber (RFVC) allows excellent combustion efficiency and high power output.
  • 42.5mm constant-velocity (CV) carburetor offers crisp throttle response, excellent rideability and maximum power.
  • Reliable electric starter system allows easy push-button starting.
  • Gear-driven counterbalancer minimizes bothersome and tiring vibration.
  • Free-flowing, 2-into-1 exhaust system with quiet, USDA-qualified spark arrester/muffler.
  • Maintenance-free automatic cam-chain tensioner and maintenance-free CD ignition with electronic advance keep you out of the shop and on the road.
  • Dry-sump engine maximizes power by minimizing crankshaft windage and engine temperature.
  • Durable five-speed transmission offers a gear for every on- or off-road situation.
  • Heavy-duty, multi-plate clutch.
  • Heavy-duty, low-maintenance #520 O-ring-sealed drive chain.

CHASSIS / SUSPENSION

  • Honda Racing-inspired colors and graphics.
  • Semi-double-cradle steel frame is lightweight, strong and offers precise handling manners.
  • 43 mm Showa cartridge fork features 16-position compression damping adjustability and superb off-road performance.
  • Pro-Link® rear suspension.
  • Lightweight, strong and durable aluminum box-section swingarm with quick-detach rear wheel.
  • Front and rear disc brakes offer superb stopping power.
  • Lightweight yet super-strong wheels.
  • Frame-mounted passenger footrests for two-up riding capability.
  • Aggressive, dual-purpose front and rear tires offer excellent performance both on- and off-road.
  • 18-inch rear wheel for greater tire selection.
  • Lightweight rims and hubs feature straight-pull spokes.
  • Combination headlight/number plate and dual airflow shrouds direct cool air to the engine.
  • Enduro-style headlight features high/low beams.
  • Motocross-style seat is comfortable and allows maximum rider movement.
  • Large, durable fenders keep debris off the rider.
  • Lightweight tubular engine guard.
  • Wide-section, folding, cleated foot pegs are comfortable and self-cleaning.
  • Flex-mounted turn signals resist breakage.
  • Compact speedometer features tripmeter/odometer, a neutral light as well as high-beam, turn-signal and side-stand indicators.
  • High-quality controls include comfortable grips and brush guards.

Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

  • Meets current CARB and EPA standards.
  • California version differs slightly due to emissions equipment











2022 Honda XR650L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $6999 USD
Canada MSRP Price: $ NA CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

ENGINE

Type 644 cc air-cooled, dry-sump, single-cylinder four-stroke
Valve Train SOHC; four valve RFVC
Bore x Stroke 100.0mm x 82.0mm
Compression Ratio 8.3:1
Induction 42.5 mm diaphragm-type CV carburetor
Ignition CD w/ electronic advance
Starter Electric
Transmission Five-speed
Clutch Multiplate wet
Final Drive #520 O-ring sealed chain; 15T/45T

SUSPENSION

Front 43 mm air-adjustable leading-axle Showa cartridge telescopic fork w/ 16-position compression damping adjustability; 11.6 in. travel
Rear Pro-Link Showa single shock w/ spring preload, 20-position
compression damping and 20-position rebound damping adjustability; 11.0 in. travel

BRAKES

Front Single 2-piston hydraulic caliper w/ 256 mm disc
Rear Single 1-piston hydraulic caliper w/ 220 mm disc

TIRES

Front 3.00-21
Rear 4.60-18
MEASUREMENTS
Rake (Caster Angle) 27°
Trail 102 mm (4.0 in.)
Length 86.2 in.
Width 33.7 in.
Height 49 in.
Seat Height 37.0 in.
Ground Clearance 13.0 in.
Wheelbase 57.3 in.
Fuel Capacity 2.8 gal., incl. 0.6 gal. reserve
Curb Weight* 346 lbs.

OTHER

Color White

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA and CARB emissions standards





2022 Honda XR650L – Totalmotorcycle.com Canada Specifications/Technical Details

NA







2022 Honda XR650L – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
