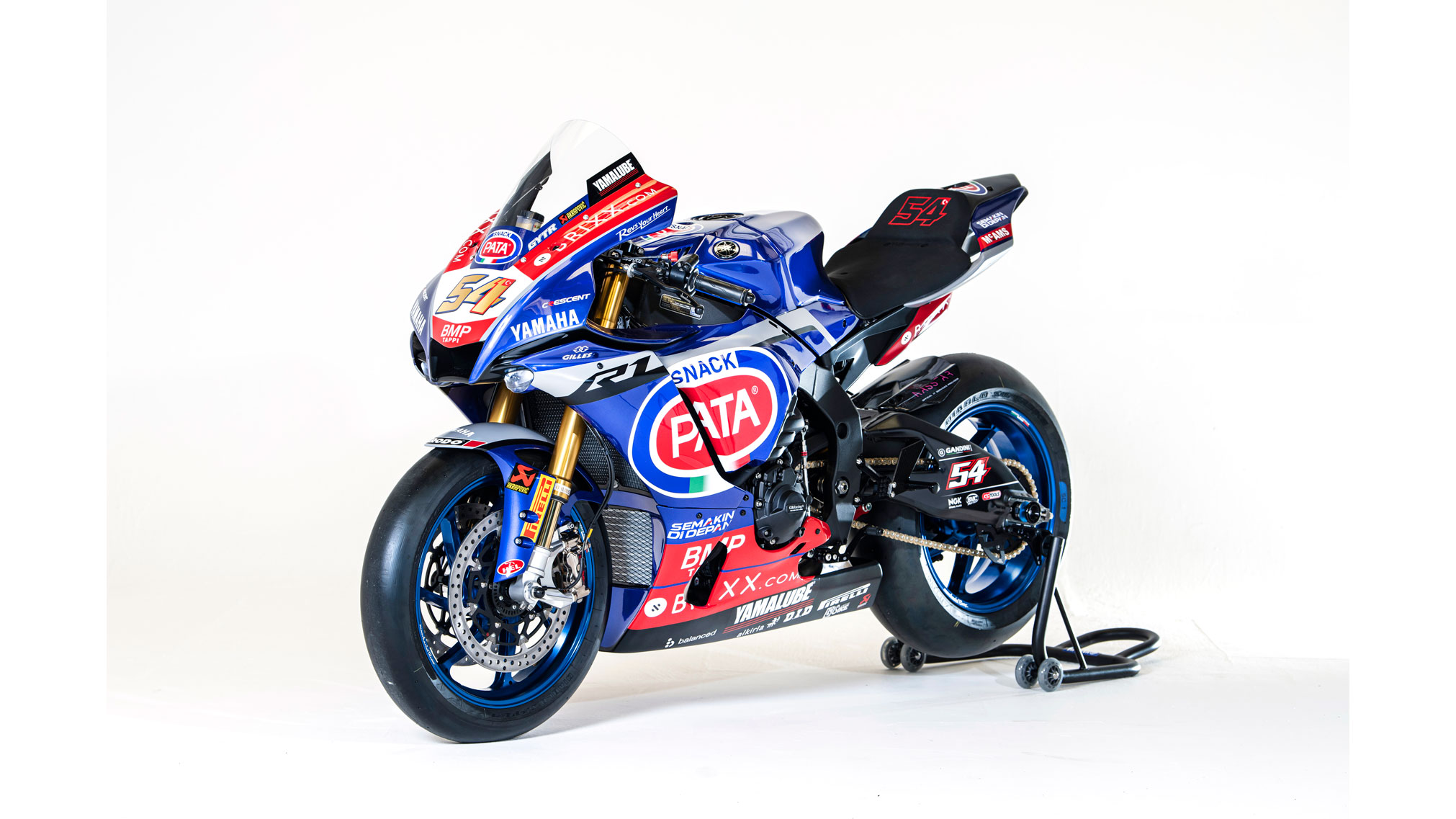

2022 Yamaha YZF-R1 World Championship Replica Limited Edition: FULLY NEXT-GENERATION.
Introducing the new 2022 Yamaha YZF-R1 World Championship Replica Limited Edition…
Yamaha Motor Europe and Crescent Yamaha, home of the Pata Yamaha with Brixx WorldSBK team, are proud to announce the Limited Edition Toprak Razgatlıoğlu Yamaha R1 World Championship Replica, celebrating the Turkish star’s 2021 FIM Superbike World Championship title and his spectacular on-track exploits.
Unveiled online, this exclusive track-only machine is strictly limited to 21 pieces globally, reflecting the historic 2021 season – a celebration of the Turkish rider’s first World Title, along with Yamaha’s first WorldSBK Manufacturers’ Championship since 2009 and Pata Yamaha with Brixx WorldSBK’s Championship Teams’ victory, culminating in the ‘Triple Crown’.
Each of these exclusive Yamaha R1 machines will be built in the Crescent Racing PRO SHOP, using the experience and skills amassed during the last six years running the Official Yamaha WorldSBK project.
This makes for the ultimate “track-ready” WorldSBK replica R1, producing 205 bhp at the rear wheel (an increase of 20 bhp over the standard R1) with linear torque delivery via the WorldSBK-spec Akrapovic exhaust and latest GYTR race ECU, weighing under 175kg (with all fluids – a huge 26kg reduction from the standard bike). The R1’s class-leading handling is taken to another level via this significant weight reduction and addition of the legendary Ohlins suspension components, factory-spec upper fork clamp and forged Marchesini wheels.
And while nobody can out-brake Razgatlıoğlu, the Brembo Racing system on this exclusive R1 guarantees full power, fade-free retardation at any circuit. To fight for the WorldSBK Championship, it’s the details that matter – and the Toprak WorldSBK replica shines bright with the deepest quality paintwork, highest quality components throughout, titanium fasteners, and an attention to detail in the track-ready build which leaves no doubt that this R1 has be developed and delivered directly from the Crescent Yamaha squad.
Just about everything on the latest R1 can directly trace its origins back to the racetrack, where Yamaha’s race winning MotoGP® and WorldSBK bikes have been developing and testing the advanced technology that you can now see and experience on your R1.
Featuring next‑generation R‑Series styling, sophisticated electronic control, supersport braking and suspension performance and a high‑performance crossplane engine.
Right from the very start the R1 was developed without compromise, and this pure and focused design philosophy is what makes this high-tech race-bred Yamaha the most exciting supersport bike of our time.
R history. Your future.
Every piece of advanced technology on the R1 has been developed using the knowledge gained from Yamaha’s involvement in racing at the highest level. The remarkable 998cc 4-cylinder EU5 crossplane engine is a direct descendant of the M1 unit – while the aerodynamic bodywork comes straight from racetrack development.
But above all, it’s the R1’s incredible array of smart electronics that make this bike so very special. Equipped with everything from a ride-by-wire throttle through to a Launch Control System (LCS), Engine Brake Management (EBM) as well as Brake Control (BC) and much more, this is the ultimate Yamaha supersport that is built to lead the way on the road and track. And it comes in a sporty new duo-tone Icon Blue with matte blue colour scheme, as well as the dynamic Yamaha Black option.
2022 Yamaha YZF-R1 World Championship Replica Limited Edition Totalmotorcycle.com Key Features
All Toprak Replica Limited Edition R1s will also include the following significant assets:
- Unique limited edition badging and technician-signed build identification
- Framed limited edition certificate, signed personally by Razgatlıoğlu and Team Principal Paul Denning, certifying the edition number alongside VIN number and the purchaser’s details
- VIP hospitality passes for two people to a 2022 WorldSBK event of choice as a VIP guest of the team, with pit-box visit and the opportunity to spend time with Razgatlıoğlu
- Personalised machine set up and one-on-one rider coaching day with Crescent Yamaha’s James Hillier OR Niall Mackenzie (UK circuit only; overseas set up and training by arrangement)
- A personal signed piece of riding equipment, genuinely used by Razgatlıoğlu during the 2021 WorldSBK Championship campaign
At a glance
- Aerodynamic M1-style bodywork
- High-efficiency 998cc EU5 engine
- High-quality finish with new duo-tone colouring
- 43 mm KYB front forks
- Brake Control (BC) system
- Engine Brake Management (EBM) system
- Next generation LED headlights and position lights
- Ride-by-wire APSG throttle
- Launch Control (LCS) system
- High-friction brake pads
- Bridgestone Battlax RS11 tyres – 200 wide rear
- TFT instruments with EBM and BC displays
TOP FEATURES
- MotoGP®-Derived Crossplane Crankshaft Engine
The 998cc inline-four-cylinder engine features Yamaha’s exclusive crossplane crankshaft technology derived from Yamaha’s YZR-M1 MotoGP® race bike. Every aspect of this unique engine is built to thrill. - Digital Superbike Technology
The R1 features a cableless ride-by-wire Yamaha Chip Controlled Throttle (YCC-T®) system that transforms the rider’s inputs into motion, with a full suite of IMU-powered electronic rider aids that bring new meaning to the term “rider confidence.” - Superbike Brakes & Tires
The YZF-R1 utilizes track-focused braking hardware, featuring potent 4-piston radial-mounted front calipers, stainless steel front brake lines, big 320mm front rotors with high-friction pads and a compact ABS unit. The Bridgestone® RS11 tires ensure true racetrack-ready traction with balanced road feel and handling. - Sharp, Sleek Styling
The YZF-R1 features beautifully integrated bodywork and sleek, stylish lines which create an unmistakably aggressive, aerodynamic profile. - Legendary R-Series Handling
Built around Yamaha’s refined Deltabox aluminum frame technology and mounting high-spec, fully-adjustable KYB® suspension, the YZF-R1 exemplifies over 20 years of chassis technology developed on racetracks around the world. - Next Level R-Series Evolution
In developing the R1, Yamaha engineers combined feedback gleaned from top-level riders and the world’s most challenging race circuits. Advanced electronic systems boost rider confidence and control while the engine, suspension, brakes and aerodynamics complete the package.
2022 Yamaha YZF-R1 World Championship Replica Limited Edition Totalmotorcycle.com Features and Benefits
Yamaha Motor Europe and Crescent Yamaha, home of the Pata Yamaha with Brixx WorldSBK team, announce the Limited Edition Toprak Razgatlıoğlu Yamaha R1 World Championship Replica, celebrating the Turkish star’s 2021 FIM Superbike World Championship title and his spectacular on-track exploits.
Crescent Yamaha, home of the Pata Yamaha with Brixx WorldSBK team, and Yamaha Motor Europe are proud to announce the Limited Edition Toprak Razgatlıoğlu Yamaha R1 World Championship Replica, celebrating the Turkish star’s 2021 FIM Superbike World Championship title and his spectacular on-track exploits.
This exclusive track-only machine is strictly limited to 21 pieces globally, reflecting the historic 2021 season – a celebration of the Turkish rider’s first World Title, along with Yamaha’s first WorldSBK Manufacturers’ Championship since 2009 and Pata Yamaha with Brixx WorldSBK’s Championship Teams’ victory, culminating in the ‘Triple Crown’.
ENGINE
- Cutting-Edge CP4® Engine
The R1’s 998cc inline-four-cylinder engine features Yamaha’s exclusive crossplane crankshaft technology derived from Yamaha’s YZR-M1 MotoGP® race bike. By equalizing inertial forces at the crankshaft, the CP4 motor delivers a direct feeling of linear torque, giving the rider the ultimate connection between throttle grip and the rear wheel. - High-Output Engine Technology
Titanium connecting rods use Yamaha’s precision fracture-split method to ensure maximum reliability with minimal weight. Combined with titanium intake valves and forged pistons, these lightweight parts help achieve the CP4’s high redline and over-rev capability. The cylinder block is also offset from the crankshaft, reducing friction loads on the pistons and bores. - High-Performance Intake System
The cylinder head, intake system, fuel injectors and airbox work together to enhance part-throttle performance. And by creating a smaller and shorter intake tract, new injectors are able to spray fuel directly against the intake valves for improved fuel atomization. - Refined Rocker-Arm Valvetrain
Compact rocker-arm valve actuation uses optimized geometry to allow for larger valve lift than conventional cam-driven systems, while using lower cam lobes and reduced spring pressure to reduce friction losses. - Titanium Exhaust System
The R1 is equipped with a muffler and heat shields manufactured primarily from lightweight titanium. The compact midship muffler also centralizes mass low in the frame and as close to the center of the machine as possible for optimal handling. - Compact Stacked Transmission
A 6-speed transmission features close-ratio gearing to best match the high-revving engine. The transmission also “stacks” the input/output shafts to centralize mass and to keep the overall engine size shorter front-to-back, which optimizes engine placement in the frame for outstanding weight balance. - Advanced Clutch
Yamaha’s assist and slipper clutch is used to give the rider more confident downshifts when entering corners aggressively, while still smoothly handling the torque of the R1’s high-output motor.
CHASSIS/SUSPENSION
- Brake Control (BC) System with ABS
Developed on racetracks around the world, Yamaha’s Brake Control (BC) System works with an Anti-lock Braking System (ABS) to minimize brake slip under aggressive braking or on less than ideal surfaces. The adjustable BC System uses the IMU to provide progressive brake force intervention as lean angle increases which boosts rider confidence when braking mid-corner. - Supersport Braking Components
The YZF-R1 features 4-piston radial-mounted front calipers riding on big 320mm rotors for excellent stopping power, with a high-friction pad compound, and supported by a 220mm rear disc with compact floating caliper. The ABS hydraulic unit is light and compact, and the high-quality braided stainless steel front lines provide firm yet responsive control and feel. - Fully Adjustable KYB® Fork
The R1 features an inverted KYB® front fork with 43mm inner tubes and a 4.7 inch stroke with full adjustability for incredible front-end feel on the track. The shim-stack damping pistons improve road feel under aggressive conditions. All adjustments are also made on the top of the fork legs for simplified tuning. - Linkage-Type KYB® Shock
The fully adjustable KYB® shock utilizes a rear bottom link pivot position that is optimally placed to provide exceptional handling and excellent transmission of engine torque to the track surface. Internal settings are also revised to match the upgraded front fork. - Bridgestone® RS11 Tires
The R1 mounts the latest Bridgestone® RS11 tires which are designed to offer true racetrack-ready traction with balanced road feel and handling. - Race-Ready Magnesium Wheels
The 10-spoke cast magnesium wheels significantly lower rotational mass compared to conventional aluminum cast alloy rims, reducing unsprung weight for quicker direction changes and responsive handling. - Compact Deltabox Frame
The slim aluminum Deltabox frame, magnesium subframe and aluminum swingarm contribute to a compact chassis design with outstanding track-focused handling. The motor mounts use the engine as a stressed member of the frame for optimal rigidity balance and fantastic cornering performance on the race track. - Aluminum Fuel Tank
The aluminum alloy fuel tank weighs in at a full 3.5 pounds less than a comparable steel tank, further reducing overall weight, and is sculpted to give the rider a natural lower body connection to the machine.
ADDITIONAL FEATURES
- Sleek Styling
The YZF-R1 features beautifully integrated bodywork and sleek, stylish lines which create an unmistakably aggressive, aerodynamic profile. - All-LED Lighting
LED headlights are both lightweight and compact, allowing for a more streamlined design of the front cowling with excellent visibility. The lights deliver a broad spread of illumination. LED front turn signals are integrated into the mirrors for improved aerodynamics while the LED tail light is stylish and highly visible. - Full-Color Instruments
The R1 features a brilliant full-color, thin-film transistor (TFT) meter, with front brake pressure and fore/aft G-force readouts which give the rider feedback from the machine. It features both street mode and a track mode that focuses on performance information, such as YRC settings (including EBM and BC systems), a zoomed-in view of the tachometer in the upper rpm range, a lap timer, gear position indicator and speed.
ELECTRONICS
- Ride-by-Wire Throttle System
The R1 features a ride-by-wire Yamaha Chip Controlled Throttle (YCC-T®) system built around the Accelerator Position Sensor with Grip (APSG), which eliminates the throttle cables. As before, YCC-T precisely senses throttle input by the rider and actuates the throttle valves to actively control intake volume, allowing for cutting-edge computerized engine management but in a lighter package. - Variable Intake System
The YZF-R1 features Yamaha’s Chip Controlled Intake (YCC-I®), a variable intake system that broadens the spread of power across the entire rpm range. By actively adjusting the length of the intake based on engine speed, the CP4 engine is able to provide a broad spread of power across the rpm range. - MotoGP®-Level Controllability
Yamaha’s Inertial Measurement Unit (IMU) combines a gyro sensor and G-sensor accelerometer that measures all six axes of movement in 3-D space at a rate of 125 calculations per second. This information is fed into the Engine Control Unit (ECU) to create a detailed picture of the motorcycle’s position, which then powers the R1’s rider-assisting technology package, Yamaha Ride Control (YRC). - Engine Brake Management (EBM)
The YZF-R1 features an Engine Brake Management (EBM) system that allows the rider to adjust engine braking to suit personal preferences and track conditions. The EBM system offers three levels of engine brake force to allow smoother corner entry. - Power Delivery Mode (PWR)
Power Delivery Mode (PWR) lets the rider adjust engine response to best match their preferences and riding conditions, adjusting throttle feel, responsiveness and overall power. The PWR system offers four settings of progressive power delivery. - Lean Angle-Sensitive Traction Control System (TCS)
The R1’s Traction Control System (TCS) calculates the differences in front and rear wheel speeds to monitor and reduce unwanted wheel spin during hard acceleration. Unlike many simplified TC systems, the R1 also uses the IMU to calculate lean angle, then adjusts the amount of TCS intervention to best suit the rider’s demands. The TCS offers ten separate settings enabling the rider to dial in the exact level of control needed. - MotoGP®-Developed Slide Control System (SCS)
Yamaha’s Slide Control System (SCS) comes directly from the Yamaha YZR-M1 MotoGP® race bike. By using the IMU to detect lateral slides under hard cornering acceleration, the ECU intervenes to regulate power delivery and seamlessly control the motorcycle’s cornering attitude. The SCS features four settings to suit rider preferences and track conditions. - Lift Control System (LIF)
The Lift Control System (LIF) utilizes the IMU to detect when the motorcycle’s nose pitches upwards higher or faster than desired, then progressively regulates engine power to maintain chassis attitude with minimal loss of forward drive. LIF offers four settings of adjustment for fine tuning - Launch Control System (LCS)
Built to deliver an optimum racetrack start every time, the R1’s Launch Control System (LCS) limits maximum engine rpm and throttle plate opening with input from the TCS and LIF systems to maximize acceleration from a standing start. The LCS offers three setting levels to adjust engine control and output. - Up & Down Quick Shift System (QSS)
The Up & Down Quick Shift System (QSS) uses a sensor on the shift linkage to modulate power during shifting, allowing for split-second clutchless shifts up and down through the gearbox. Full-throttle upshifts maximize forward drive under power, while the ECU precisely matches engine speed while downshifting for nearly instantaneous gear changes with minimal chassis disruption. The QSS can be adjusted between three settings with independent downshift function control.
2022 Yamaha YZF-R1 World Championship Replica Limited Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ See Dealer USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £39500 GBP (On The Road inc 20% Vat)
(Standard R1 specs)
Engine Type 998cc, liquid-cooled inline 4 cylinder DOHC; 4- valves per cylinder
Bore x Stroke 79.0mm x 50.9mm
Compression Ratio 13.0:1
Fuel Delivery Fuel injection with YCC-T and YCC-I
Transmission 6-speed; wet multiplate assist and slipper clutch
Final Drive Chain
Suspension / Front 43mm KYB® inverted fork, fully adjustable; 4.7- in travel
Suspension / Rear KYB® single shock, fully adjustable; 4.7-in
travel
Brakes / Front Dual 320mm hydraulic disc; Brake Control
System and ABS
Brakes / Rear 220mm hydraulic disc; Brake Control System and
ABS
Tires / Front 120/70ZR17 Bridgestone® BATTLAX RACING STREET RS11F
Tires / Rear 190/55ZR17 Bridgestone® BATTLAX RACING STREET RS11R
L x W x H 80.9 in x 27.2 in x 45.9 in
Seat Height 33.7 in
Wheelbase 55.3 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Maximum Ground
Clearance
5.1 in
Fuel Capacity 4.5 gal
Fuel Economy** 33 mpg
Wet Weight*** 448 lb
Warranty 1 Year (Limited Factory Warranty)
Color Team Yamaha Blue; Performance Black
2022 Yamaha YZF-R1 World Championship Replica Limited Edition – Totalmotorcycle.com Canada Specifications/Technical Details
(Standard R1 specs)
ENGINE
| ENGINE | Liquid-cooled, DOHC, 16-valves (4-valves / cyl), in-line four |
| DISPLACEMENT | 998 cc |
| BORE AND STROKE | 79 x 50.9 mm |
| COMPRESSION RATIO | 13:1 |
| MAXIMUM TORQUE | 11.5 kg-m (83.2 ft-lb.) @ 11,500 rpm |
| ENGINE MANAGEMENT | YCC-T, YCC-I, PWR, TCS, LCS, LIF, SCS, QSS, BRM, BC, CCU & SCU |
| FUEL DELIVERY | Mikuni 45 mm throttle body FI with twin injectors (primary & secondary) |
| ESTIMATED FUEL CONSUMPTION± | 14.4 kpl / 40.6 mpg (Imp.) |
| LUBRICATION | Wet sump |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | 6-speed |
| FINAL DRIVE | 520 series O-ring chain |
CHASSIS
| SUSPENSION (FRONT) | Fully adj. 43 mm inverted fork / 120 mm (4.7″) wheel travel |
| SUSPENSION (REAR) | Fully adj. bottom link Monocross / 120 mm (4.7″) wheel travel |
| BRAKES (FRONT) | Dual 320 mm discs / radial mount, 4-piston calipers / ABS & UBS-equipped |
| BRAKES (REAR) | 220 mm disc / single piston caliper / ABS |
| TIRES (FRONT) | 120/70ZR17 |
| TIRES (REAR) | 190/55ZR17 |
CRITICAL DATA
| LENGTH | 2,055 mm (80.9″) |
| WIDTH | 690 mm (27.2″) |
| HEIGHT | 1,150 mm (45.3″) |
| WHEELBASE | 1,405 mm (55.3″) |
| RAKE / TRAIL | 24° / 102 mm |
| GROUND CLEARANCE | 130 mm (5.1″) |
| SEAT HEIGHT | 855 mm (33.7″) |
| FUEL CAPACITY | 17 litres (3.7 Imp. gal.) |
| WET WEIGHT | 201 kg (443 lb.) |
| COLOUR(S) | World GP 60th Anniversary Edition Yamaha Racing Blue Performance Black |
2022 Yamaha YZF-R1 World Championship Replica Limited Edition – Totalmotorcycle.com European Specifications/Technical Details
(Standard R1 specs)
- Engine
Engine type
Liquid-cooled, 4-cylinder, EURO5, 4-stroke, 4-valves, DOHC
Displacement
998 cc
Bore x stroke
79.0 × 50.9 mm
Compression ratio
13,0 : 1
Maximum power
147,1 kW (200.0 PS) @ 13.500 rpm
Maximum torque
113.3 Nm (11.6 kg-m) @ 11,500 rpm
Lubrication system
Wet sump
Clutch type
Wet, Multiple Disc
Ignition system
TCI
Starter system
Electric
Transmission system
Constant Mesh, 6-speed
Final transmission
Chain
Fuel consumption
7.2 L/100 km
CO2 emission
168 g / km
Fuel system
Electronic Fuel Injection
- Chassis
Frame
Aluminium Deltabox, Diamond
Caster angle
24º
Trail
102 mm
Front suspension system
Telescopic forks
Rear suspension system
(link suspension), Swingarm
Front travel
120 mm
Rear travel
120 mm
Front brake
Hydraulic dual discs, Ø320 mm
Rear brake
Hydraulic single disc, Ø220 mm
Front tyre
120/70 ZR17M/C (58W) Tubeless
Rear tyre
190/55 ZR17M/C (75W) Tubeless
- Dimensions
Overall length
2.055 mm
Overall width
690 mm
Overall height
1.165 mm
Seat height
855 mm
Wheel base
1.405 mm
Minimum ground clearance
130 mm
Wet weight (including full oil and fuel tank)
201 kg
Fuel tank capacity
17 L
Oil tank capacity
4,9 L
