2022 Zero FX: LEAN AND MEAN.
Introducing the 2022 Zero FX…
The Zero FX draws from our rugged off-road roots. Locked and loaded for your favorite trails, shortcuts or rocketing away when traffic lights flash green, the Zero FX’s punchy Z-Force® powertrain, long legged suspension and dual sport equipment tackles virtually anything thrown its way.
2022 Zero FX Totalmotorcycle.com Key Features
ZF3.6 Modular
CONFIGURATION 3.60 KWH
CURB WEIGHT 247 LB
CITY RANGE 46 MILES
COMES STOCK WITH Off-road wheels & tires
85 MPH Top speed (max)
78 FT-LB Peak torque
100% ELECTRIC POWERTRAIN

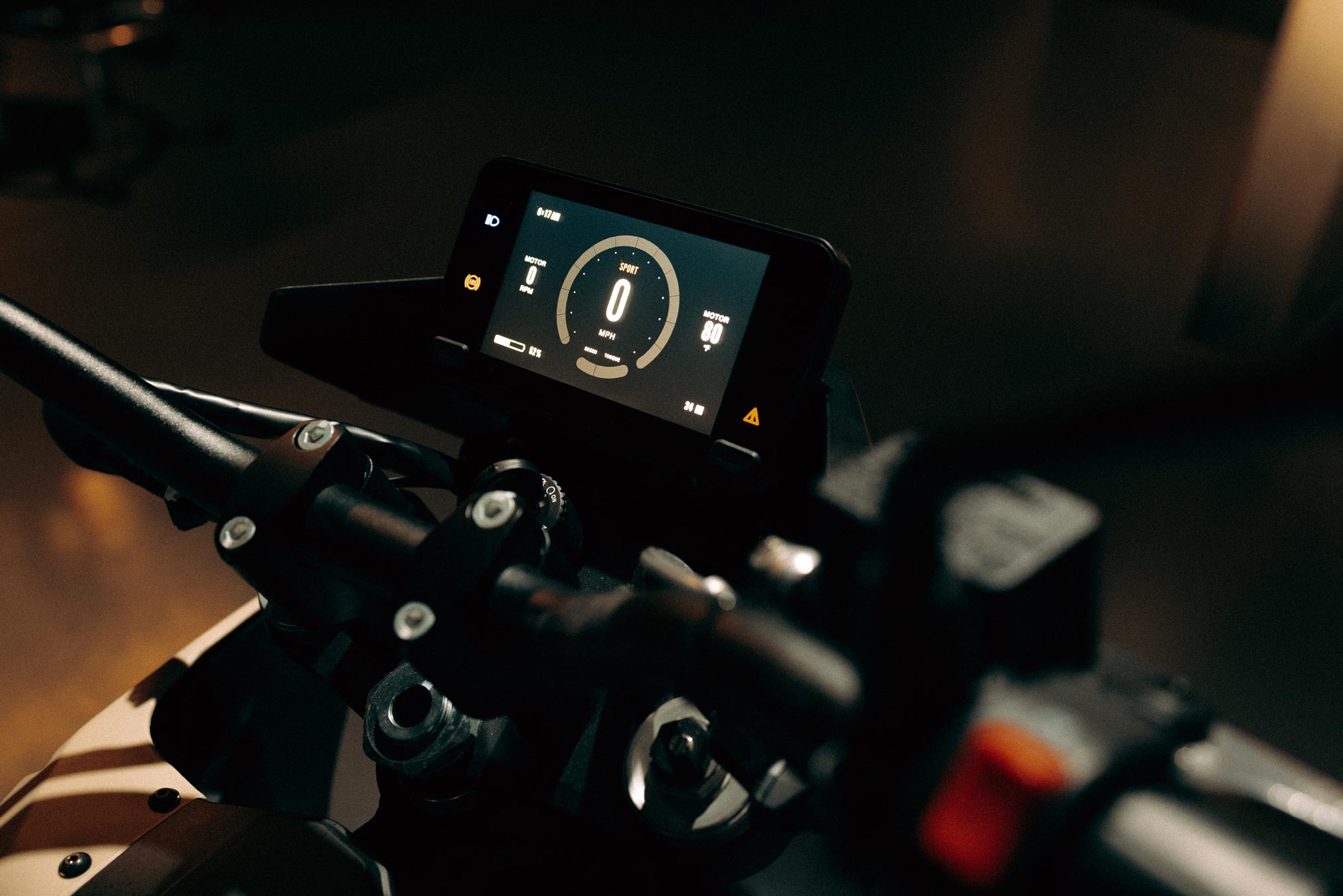

Low maintenance CYPHER II Operating system
CLUTCHLESS DIRECT DRIVE Transmission
BOSCH Generation 9 ABS
34.7 IN Seat height
5 YEARS/UNLIMITED MILES
ZF7.2
CONFIGURATION 7.20 KWH
CURB WEIGHT 289 LB
CITY RANGE 91 MILES
COMES STOCK WITH Off-road wheels & tires
85 MPH Top speed (max)
78 FT-LB Peak torque
100% ELECTRIC POWERTRAIN
Low maintenance CYPHER II Operating system
CLUTCHLESS DIRECT DRIVE Transmission
BOSCH Generation 9 ABS
34.7 IN Seat height
5 YEARS/UNLIMITED MILES
2022 Zero FX Totalmotorcycle.com Features and Benefits
TUNED IN TO YOUR RIDE
Crossing from smooth asphalt to loose gravel fire roads All good. Change performance profiles at the press of a button to master any terrain. The Zero FX is pre-programmed with Eco or Sport modes and performance can be fully customized using the Zero Motorcycles app where you can also see detailed ride stats.
CHARGE. SIMPLY.
Wake up, ready to ride, with a “full tank” every day. No expensive charge station required. A simple 110 V household outlet satisfies all the needs of the Zero FX’s 650-watt onboard charger. Every outlet is now a “fueling” station.
Crave faster refills Pick up an accessory Quick Charger to cut charge times by over 60%.
YOUR LOW MAINTENANCE RIDE
BUILT FOR RIDING ADVENTURES AND CAREFREE LIVING. FORGET ABOUT MESSY OIL CHANGES, DUST-CLOGGED FILTERS, FOULED SPARK PLUGS, TIME-WASTING TUNE-UPS AND GREASY CHAIN MAINTENANCE. THE ZERO FX’S MOTOR IS SEALED. IT HAS A SINGLE MOVING PART THAT EFFICIENTLY RELAYS YOUR THROTTLE HAND’S DESIRES TO YOUR REAR WHEEL VIA SUPER-EFFICIENT CARBON FIBER BELT-DRIVE SYSTEM. RIDE MORE, EASIER. THE ZERO FX’S ADVANCED BATTERY FEATURES LIFE-OF-MOTORCYCLE CELL TECHNOLOGY THAT’S COVERED BY A FIVE-YEAR, UNLIMITED MILEAGE WARRANTY.
INSTANT “FULL TANK”
There’s no faster way to “charge” than throwing in a fresh battery. The Zero FX’s optional hot-swappable batteries allow you to go from empty to full in seconds. Easily recharge drained modules using off-board charging accessories for a never-ending ride.
STRETCH YOUR ENDURANCE
Cruise through city streets. Or, hit the dirt. Push yourself and ride until your muscles throb or your legs give out. Most Zero FX riders find they’ve hit their endurance limits long before their battery. Continual improvements to the Z-Force® powertrain have imbued the Zero FX with the highest power and energy density battery in the industry. The Zero FX produces an impressive 91 miles of “city” riding on a single charge.
SWAPPABLE BATTERY CAPABILITY
The Zero FX is available in two battery configurations. The ZF3.6 features modular battery technology that allows riders to add a second battery to double range and makes it possible to fully “recharge” by quickly swapping batteries on the fly. The ZF7.2 is fully integrated into the motorcycle and is the more economical option for those looking to maximize the range of the Zero FX.
Zero Motorcycles’ Z-Force® battery is the most power and energy dense in the EV industry. The ZF7.2 offers a maximum battery capacity of 7.2 kWh that delivers up to 91 miles of city riding.
The battery is designed to last and backed by a five-year, unlimited mileage warranty. The Zero FX also features Long Term Storage Mode to optimize the battery’s state of charge and further improve long term battery health.
MOTOR
The Zero FX powerplant produces up to 78 ft-lb of torque. The air-cooled Interior Permanent Magnet (IPM) motor delivers impressive performance and fierce acceleration, which works in conjunction with regenerative braking to channel energy back into the battery.
No heavy, complicated or expensive liquid cooling. No routine maintenance. No fuss. This is the industry’s most efficient, powerful and compact motor.
FACE
The Zero FX’s distinctive face features twin projector beam headlamps and an integrated fly screen, leading the way with a visual style matched to the bike’s sharp attitude.
2022 Zero FX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $9495 to $11595 USD
Canada MSRP Price: $ See Dealer CAD
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
Range
ZF3.6 MODULAR
ZF7.2
City
46 miles (74 km)
91 miles (146 km)
Highway, 55 mph (89 km/h)
28 miles (45 km)
56 miles (90 km)
Combined
34 miles (55 km)
69 miles (111 km)
Highway, 70 mph (113 km/h)
19 miles (31 km)
39 miles (63 km)
Combined
27 miles (43 km)
54 miles (87 km)
Motor
ZF3.6 MODULAR
ZF7.2
Peak torque
78 ft-lb (106 Nm)
78 ft-lb (106 Nm)
Peak power
27 hp (20 kW) @ 4,300 rpm
46 hp (34 kW) @ 4,300 rpm
Top speed (max)
85 mph (137 km/h)
85 mph (137 km/h)
Top speed (sustained)
70 mph (113 km/h)
70 mph (113 km/h)
Type
Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller
High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power system
ZF3.6 MODULAR
ZF7.2
Power pack
Z-Force® Li-Ion intelligent modular
Z-Force® Li-Ion intelligent integrated
Max capacity
3.6 kWh
7.2 kWh
Nominal capacity
3.2 kWh
6.3 kWh
Charger type
650 W, integrated
650 W, integrated
Charge time (standard)
5.1 hours (100% charged) / 4.6 hours (95% charged)
9.7 hours (100% charged) / 9.2 hours (95% charged)
With one accessory charger
2.3 hours (100% charged) / 1.8 hours (95% charged)
4.1 hours (100% charged) / 3.6 hours (95% charged)
With max accessory chargers
1.6 hours (100% charged) / 1.1 hours (95% charged)
1.8 hours (100% charged) / 1.3 hours (95% charged)
Input
Standard 110 V or 220 V
Standard 110 V or 220 V
Drivetrain
ZF3.6 MODULAR
ZF7.2
Transmission
Clutchless direct drive
Clutchless direct drive
Final drive
90T / 18T, Poly Chain® HTD® Carbon™ belt
90T / 18T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
ZF3.6 MODULAR
ZF7.2
Front suspension
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension
Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel
8.60 in (218 mm)
8.60 in (218 mm)
Rear suspension travel
8.94 in (227 mm)
8.94 in (227 mm)
Front brakes
Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
Bosch Gen 9 ABS, J-Juan dual piston floating caliper, 240 x 4.5 mm disc
Rear brakes
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire
Pirelli Scorpion MT 90 A/T 90/90-21
Pirelli Scorpion MT 90 A/T 90/90-21
Rear tire
Pirelli Scorpion MT 90 A/T 120/80-18
Pirelli Scorpion MT 90 A/T 120/80-18
Front wheel
1.85 x 21
1.85 x 21
Rear wheel
2.50 x 18
2.50 x 18
Dimensions
ZF3.6 MODULAR
ZF7.2
Wheelbase
56.6 in (1,438 mm)
56.6 in (1,438 mm)
Seat height
34.7 in (881 mm)
34.7 in (881 mm)
Rake
25.4°
25.4°
Trail
4.1 in (104 mm)
4.1 in (104 mm)
Weight
ZF3.6 MODULAR
ZF7.2
Curb weight
247 lb (112 kg)
289 lb (131 kg)
Carrying capacity
383 lb (174 kg)
341 lb (155 kg)
Economy
ZF3.6 MODULAR
ZF7.2
Equivalent fuel economy (city)
486 MPGe (0.48 l/100 km)
486 MPGe (0.48 l/100 km)
Equivalent fuel economy (highway)
207 MPGe (1.13 l/100 km)
207 MPGe (1.13 l/100 km)
Typical cost to recharge
$0.40
$0.81
Pricing
ZF3.6 MODULAR
ZF7.2
MSRP
$9,495
$11,595
Warranty
ZF3.6 MODULAR
ZF7.2
Standard motorcycle warranty*
2 years
2 years
Power pack warranty*
5 years/unlimited miles
5 years/unlimited miles
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
