2023 Harley-Davidson Fat Bob 114 Guide

Review – Key Features – Features & Benefits – Specifications

2023 Harley-Davidson Fat Bob 114: AMPED-UP PERFORMANCE.

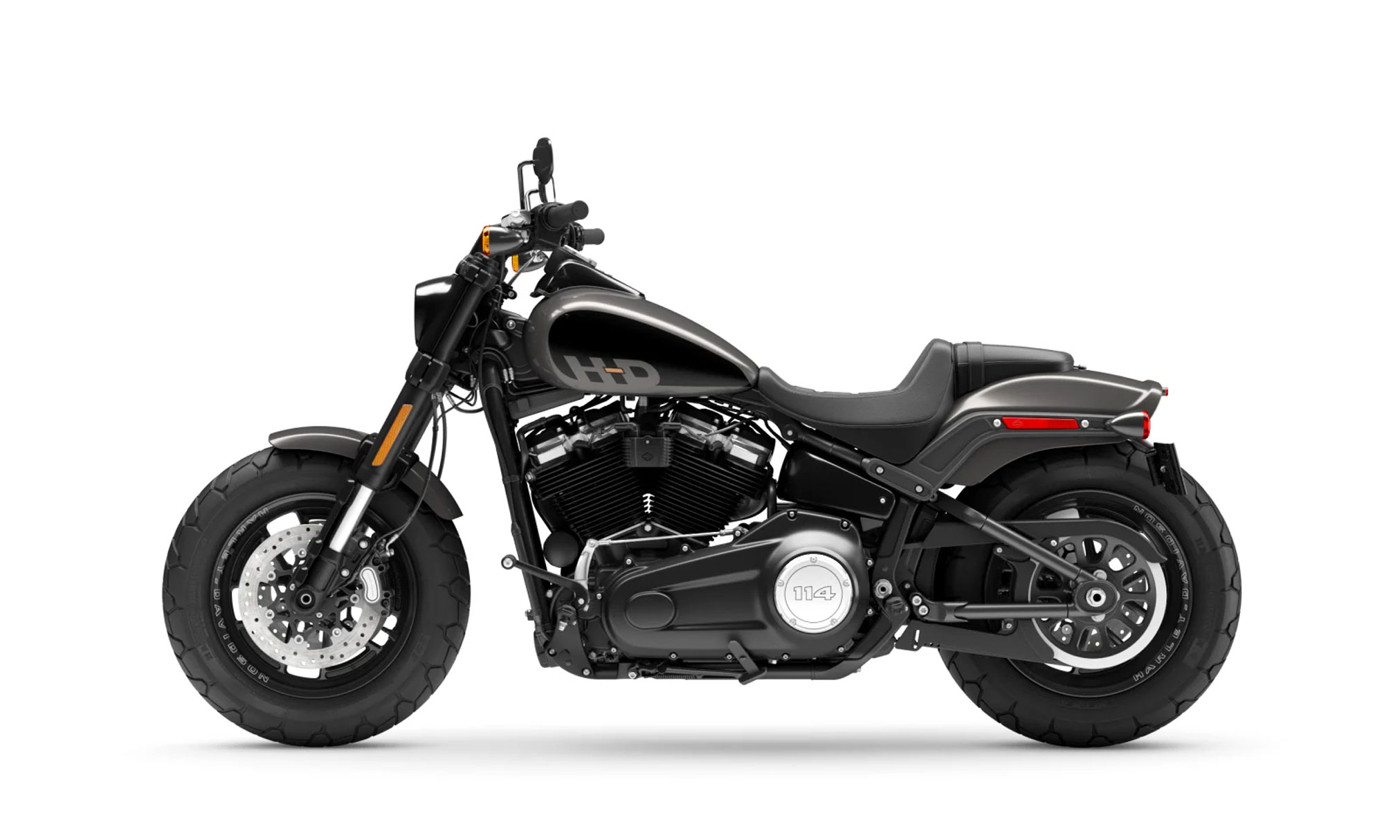

Introducing the 2023 Harley-Davidson Fat Bob 114…

From the modern, aggressive look of its 2-1-2 upswept exhaust and asphalt-devouring fat tires to the massive torque of the Milwaukee-Eight 114 engine to the ride of the Softail frame, to inverted front forks and easily adjustable rear suspension, the Fat Bob 114 is built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed. New for 2023, electronic cruise control is now a standard feature.

Muscle meets performance. Stopping power. A street-eater with an appetite for power. Built with muscular style and performance.
Amped-up performance in every ride.

2023 Harley-Davidson Fat Bob 114 Totalmotorcycle.com Key Features

• Upright riding position
• Forward foot controls
• Passenger seat
• Renegades seeking the utmost power and performance
• Conquering city streets with power and agility
• Milwaukee-Eight 114 V-Twin engine and custom-styled exhaust

2023 Harley-Davidson Fat Bob 114 Totalmotorcycle.com Features and Benefits

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

Authentic heritage meets modern technology for power, style, and the unadulterated riding experience – around town or along country roads.

MILWAUKEE-EIGHT 114
Loads of torque for on-demand power you can feel with each twist, along with the familiar H-D sound.

ELECTRONIC CRUISE CONTROL
For long-distance runs, there’s nothing better than letting your bike do all the work. Cruise Control puts you just minutes away from true riding bliss.

DUAL DISC FRONT BRAKES
These high-performance dual disc brakes help you keep all that power in check when you need to.

RACE-STYLE FORK TECHNOLOGY
Inverted race-style front fork design, with single-cartridge technology that improves response to steering input and braking and handling performance.

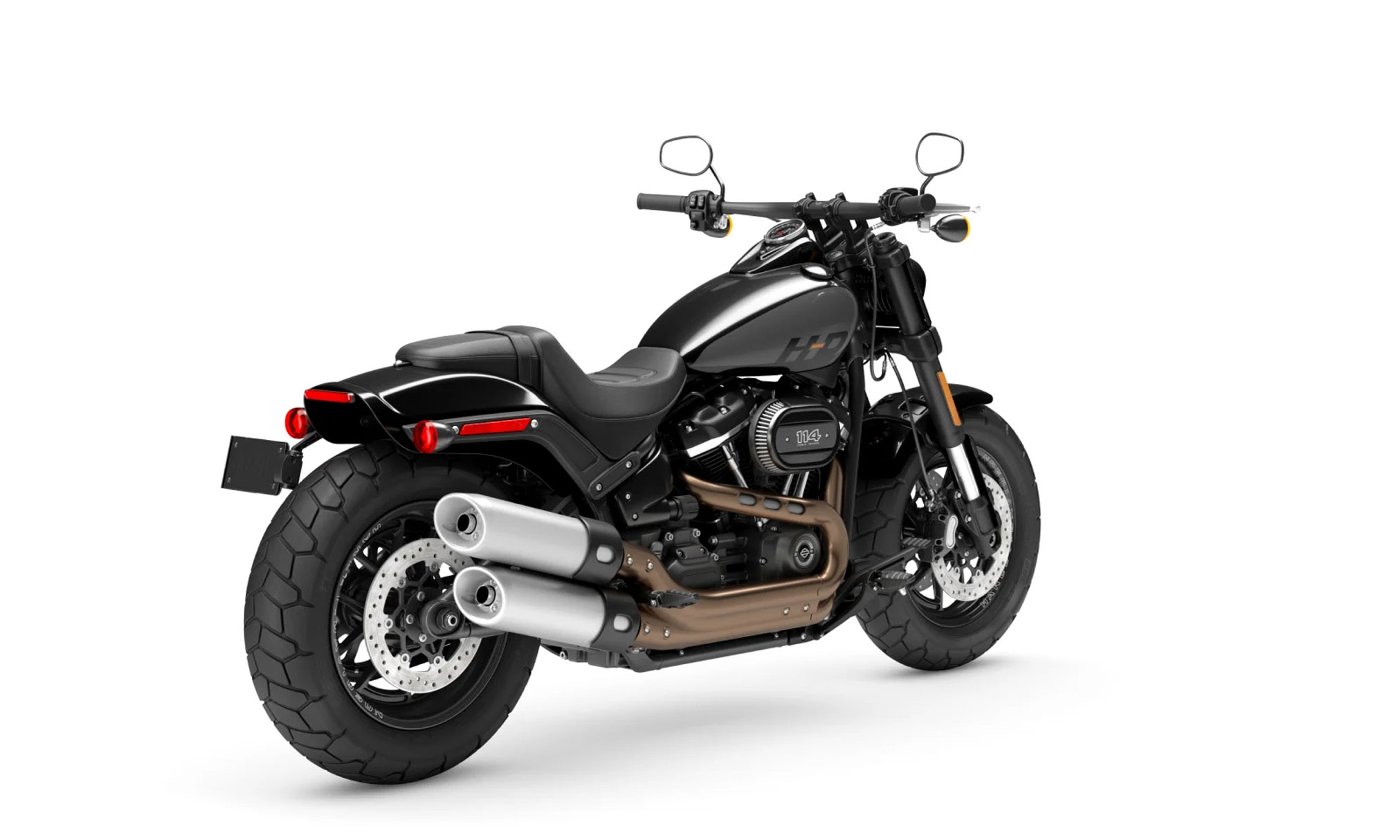

2-1-2 EXHAUST
Performance-inspired, upswept exhaust with a custom contrast finish.

2023 Harley-Davidson Fat Bob 114 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $18,899 to $19,424 USD
Canada MSRP Price: $23,999 to $24,649 CDN
Europe/UK MSRP Price: £18,995 to £19,435 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

92.1 in.

SEAT HEIGHT, LADEN ⁷

27.7 in.

GROUND CLEARANCE

4.7 in.

RAKE

28

TRAIL

5.2 in.

WHEELBASE

63.6 in.

TIRES, FRONT SPECIFICATION

150/80-16,71H,BW

TIRES, REAR SPECIFICATION

180/70B16,77H,BW

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

3.5 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

653 lb.

WEIGHT, IN RUNNING ORDER

675 lb.

ENGINE

ENGINE ¹

Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

118 ft-lb

ENGINE TORQUE (RPM)

3500

LEAN ANGLE, RIGHT (DEG.)

31

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

47 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁹

Denim black, Structure cast aluminum with laser etched graphics

WHEELS, REAR TYPE ⁹

Denim black, Structure cast aluminum with laser etched graphics

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

All LED, low beam, high beam and signature position lamp, Incandescent bullets

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.

2023 Harley-Davidson Fat Bob 114 – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,340 mm

SEAT HEIGHT, UNLADEN

710 mm

GROUND CLEARANCE

120 mm

RAKE

28

TRAIL

132 mm

WHEELBASE

1,615 mm

TIRES, FRONT SPECIFICATION

150/80-16,71H,BW

TIRES, REAR SPECIFICATION

180/70B16,77H,BW

TIRE, TYPE

Dunlop^™ Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

296 kg

WEIGHT, IN RUNNING ORDER

306 kg

ENGINE

ENGINE ²

Milwaukee-Eight^™ 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

160 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

95 HP / 71 kW @ 4750 rpm

LEAN ANGLE, RIGHT (DEG.)

31

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Denim black, Structure cast aluminum with laser etched graphics

WHEELS, REAR TYPE ⁴

Denim black, Structure cast aluminum with laser etched graphics

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

All LED, low beam, high beam and signature position lamp, Incandescent bullets

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

2023 Harley-Davidson Fat Bob 114 – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,340 mm

SEAT HEIGHT, UNLADEN

710 mm

GROUND CLEARANCE

120 mm

RAKE

28

TRAIL

132 mm

WHEELBASE

1,615 mm

TYRES, FRONT SPECIFICATION

150/80-16,71H,BW

TYRES, REAR SPECIFICATION

180/70B16,77H,BW

TYRE, TYPE

Dunlop^™ Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

13.2 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

296 kg

WEIGHT, IN RUNNING ORDER

306 kg

ENGINE

ENGINE ²

Milwaukee-Eight^™ 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-into-2 shorty dual; catalyst in muffler

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

155 Nm

ENGINE TORQUE (RPM)

3500

HORSEPOWER

93 HP / 69 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

31

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

5.5 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

128 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.311

GEAR RATIOS (OVERALL) 2ND

6.454

GEAR RATIOS (OVERALL) 3RD

4.793

GEAR RATIOS (OVERALL) 4TH

3.882

GEAR RATIOS (OVERALL) 5TH

3.307

GEAR RATIOS (OVERALL) 6TH

2.79

CHASSIS

FRONT FORK

Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring

REAR SHOCKS

Hidden, free piston, coil-over monoshock; 56mm stroke; toolless hydraulic preload adjustment

WHEELS, FRONT TYPE ⁴

Denim black, Structure cast aluminum with laser etched graphics

WHEELS, REAR TYPE ⁴

Denim black, Structure cast aluminum with laser etched graphics

BRAKES, TYPE

Front and rear black, Split 7-spoke floating rotors

BRAKES, CALIPER TYPE

4-piston fixed front and 2-piston floating rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

All LED, low beam, high beam and signature position lamp, Incandescent bullets

GAUGES

4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication

1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
