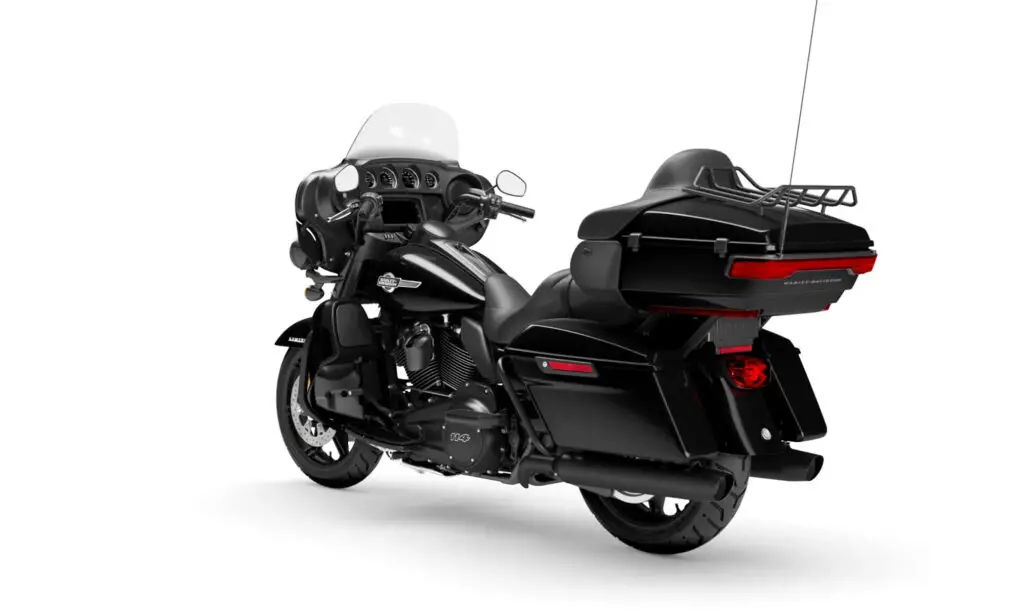

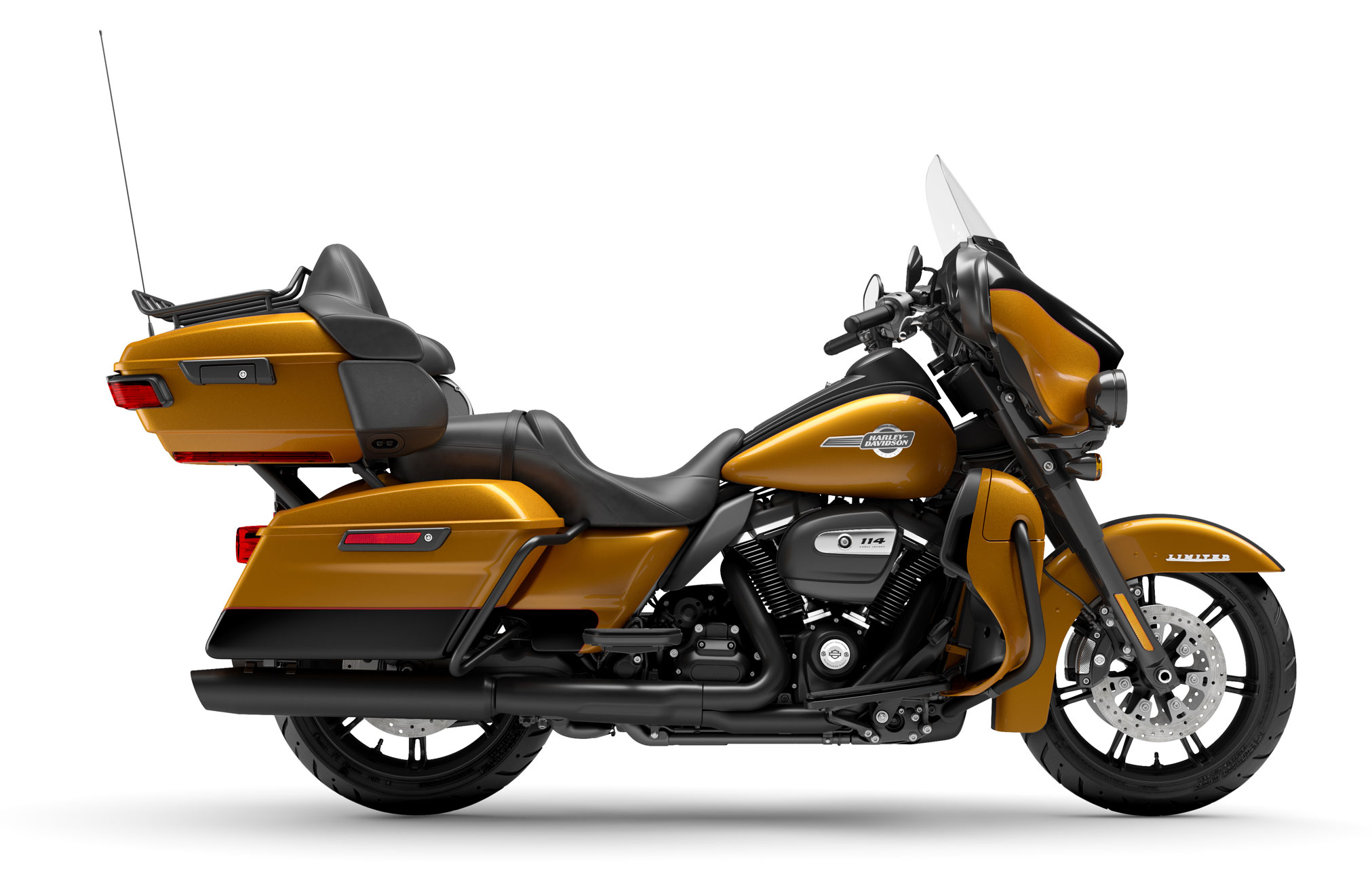

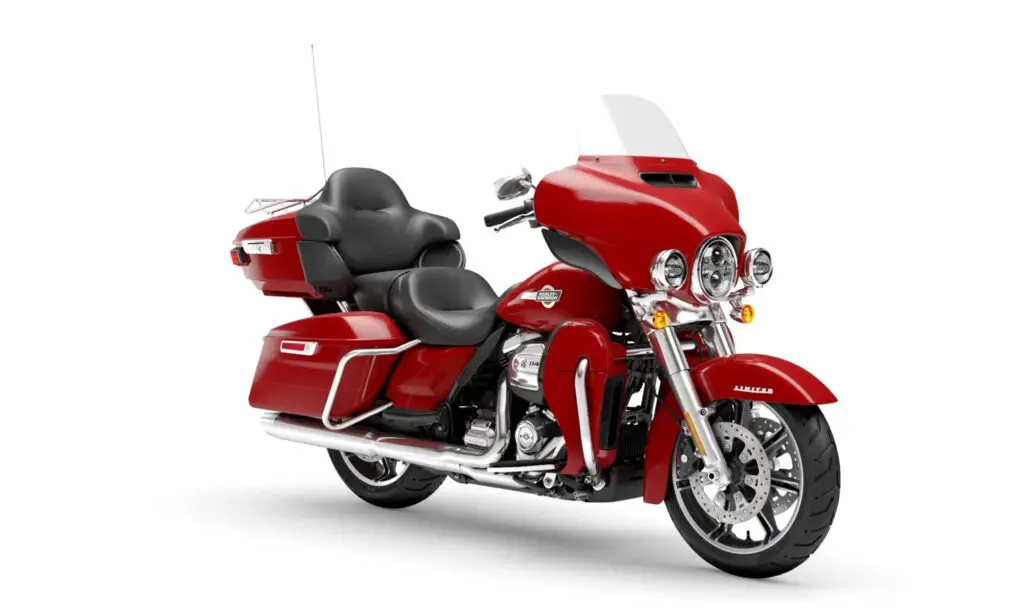

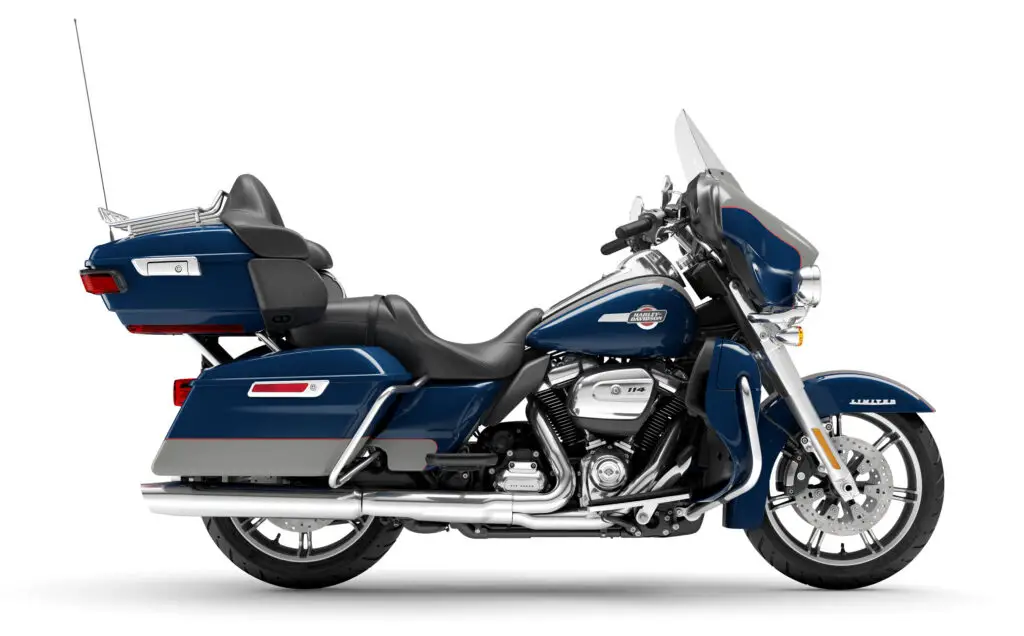

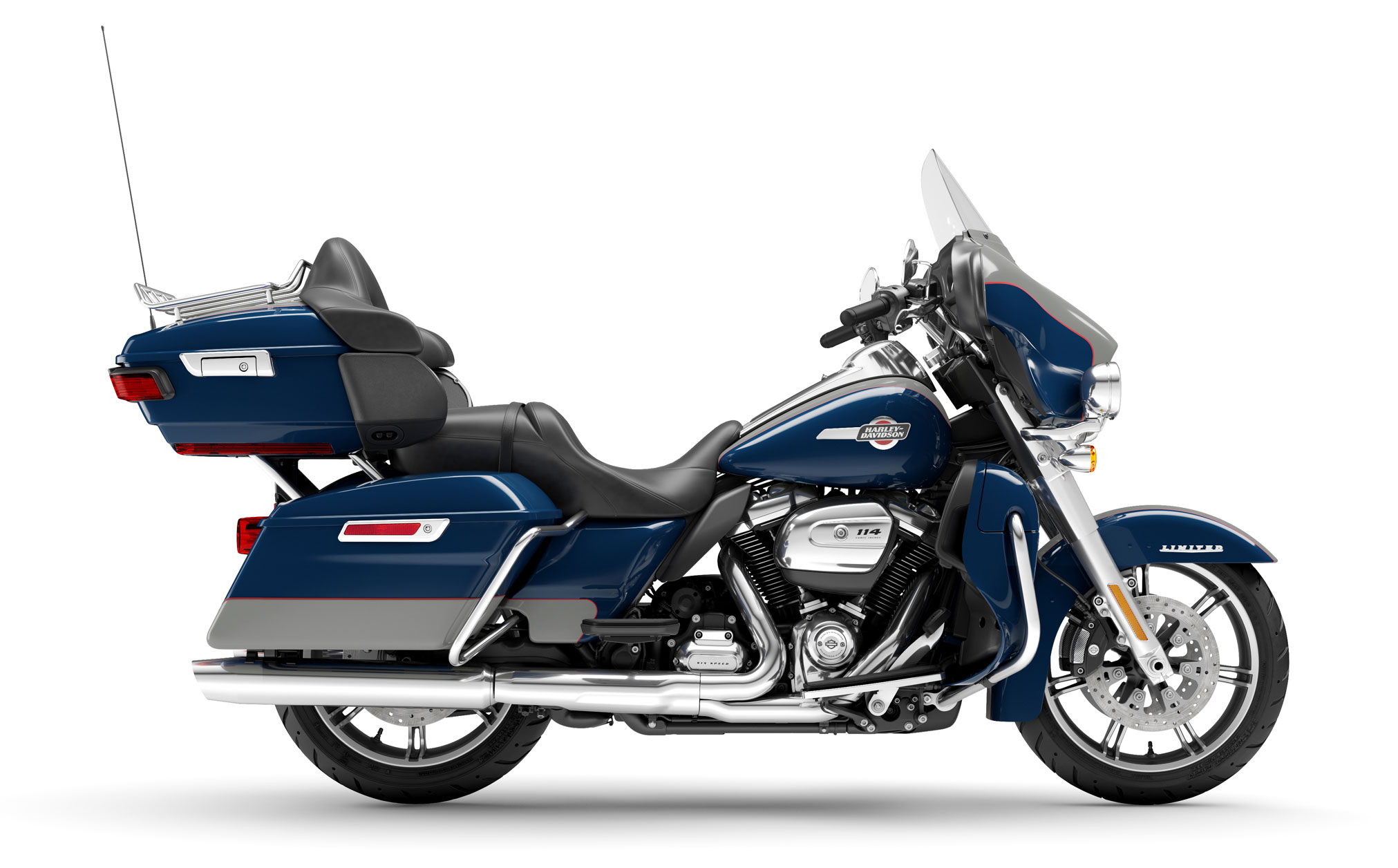

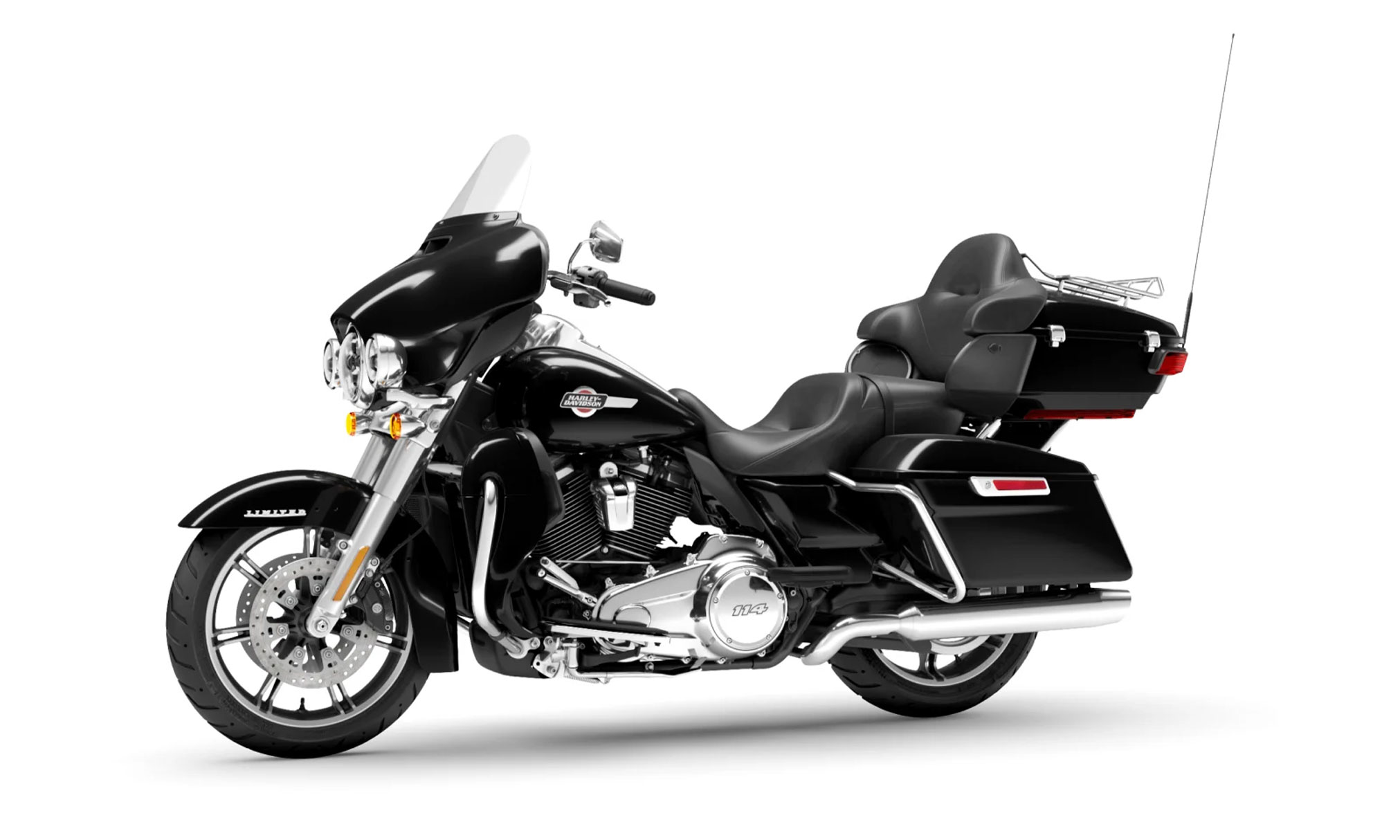

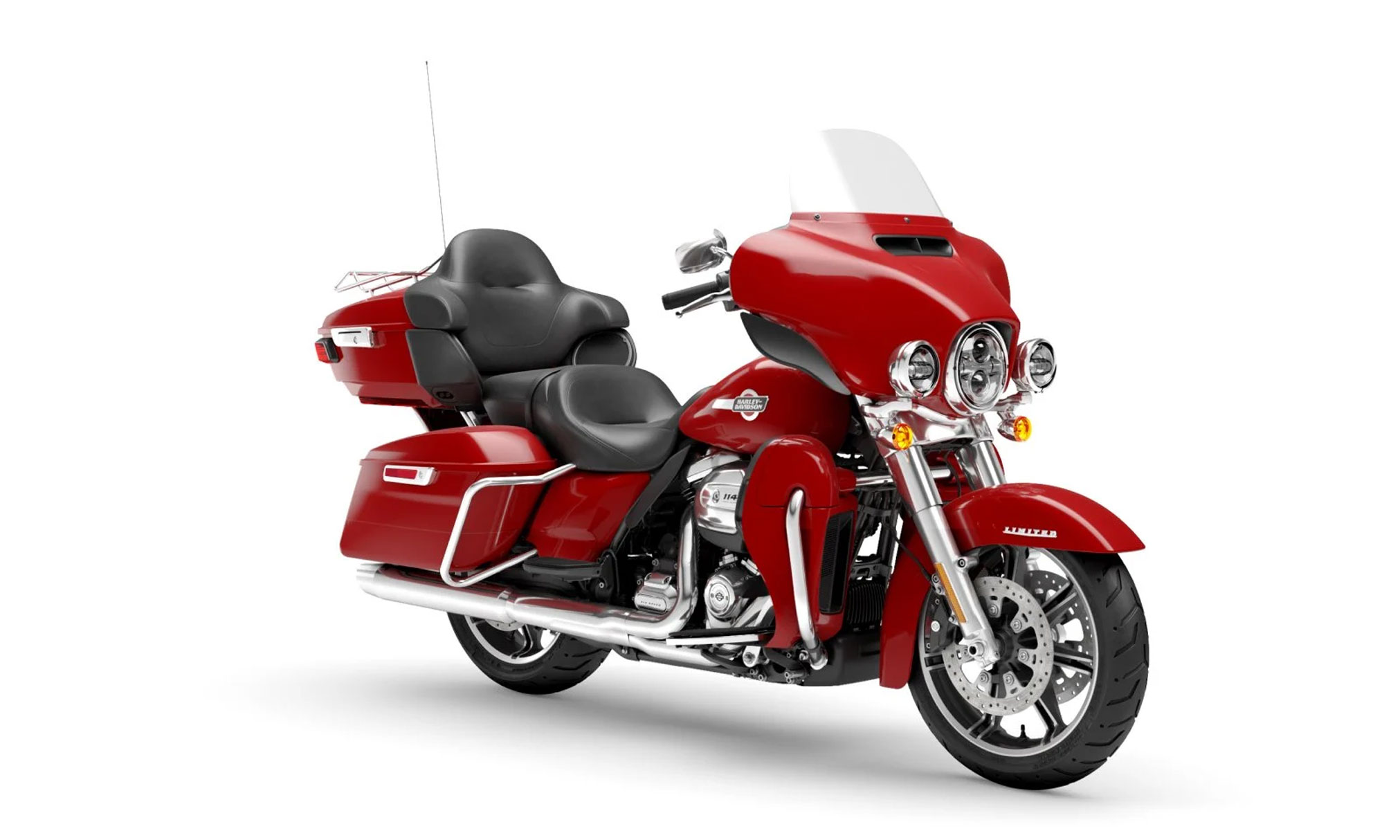

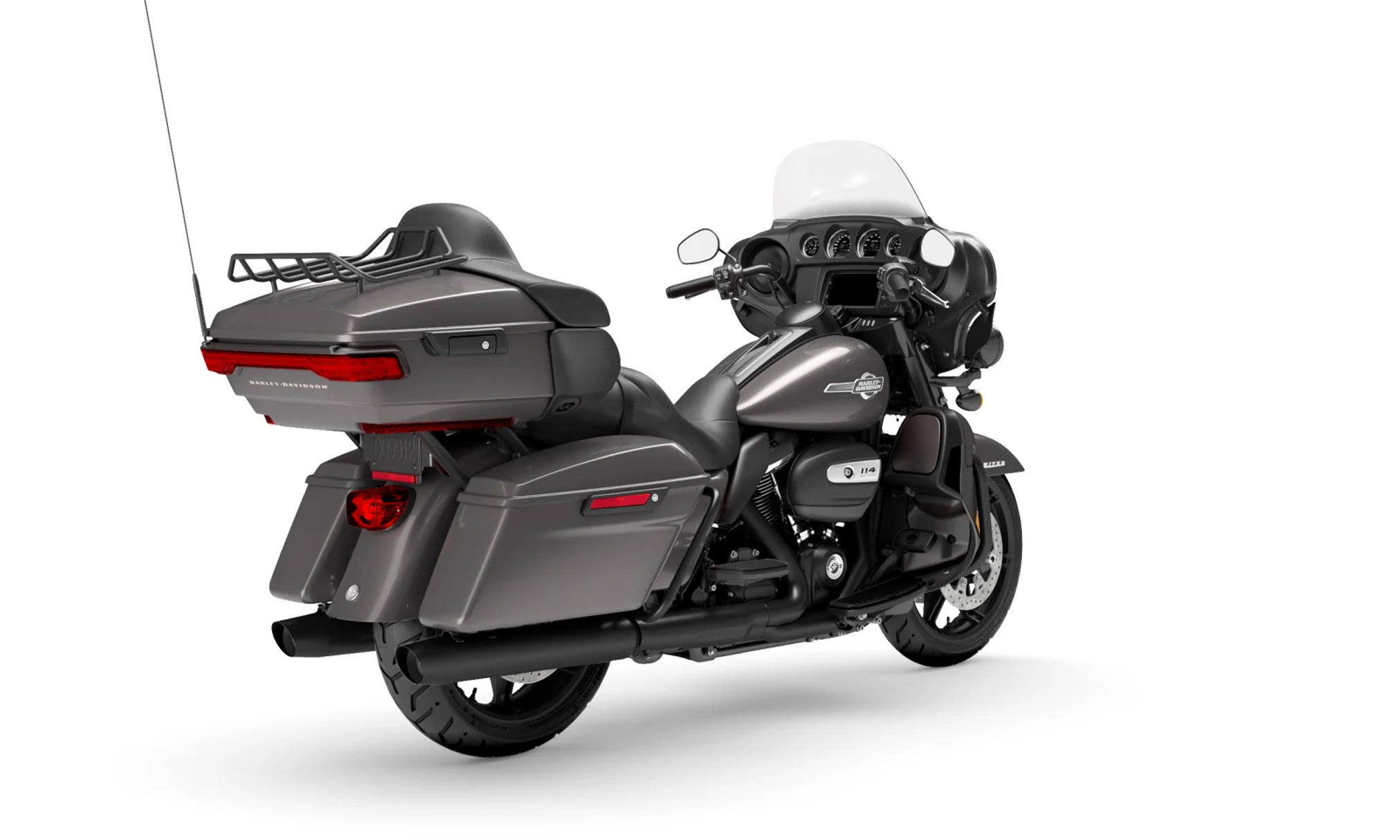

2023 Harley-Davidson Ultra Limited: EMPTY YOUR BUCKET LIST.

Introducing the 2023 Harley-Davidson Ultra Limited…

From its Twin-Cooled Milwaukee-Eight 114 V-Twin engine down to its heated hand grips, the Ultra Limited motorcycle has just the right balance: batwing fairing and a splitstream air vent for optimal air flow and reduced head buffeting, a BOOM! GTS infotainment system, electronic cruise control, responsive front and rear suspension, and a Tour-Pak carrier with room for two full-face helmets. If that’s not enough, you have the option of going with new bold Black finish, enveloping your ride in blacked-out styling fresh from us to you.

Unlimited horizons. All-day comfort for two. Empty your bucket list.

Premium touring performance with zero compromises to the ride.





2023 Harley-Davidson Ultra Limited Totalmotorcycle.com Key Features

• Upright riding position
• Floorboards
• Passenger seat with backrest
• Tall
• Saddlebags
• Fork mounted fairing
• Infotainment
• Rider safety enhancements available
• Riders seeking the fully-loaded touring experience
• Bold styling and comfort with a vented batwing fairing
• Twin-Cooled Milwaukee-Eight 114 engine and heated grips



2023 Harley-Davidson Ultra Limited Totalmotorcycle.com Features and Benefits

The category we’ve created from the ground up. Go the distance, in style. We’ve been building the motorcycles to help you discover it in the most epic way possible since we invented the fully dressed touring machine in the 1960’s. Entire continents; and all the mountain ranges, canyons, glaciers, small towns, deserts, cities, roadside attractions, adventures, and stories they contain; are yours for the taking in the saddle of a Harley-Davidson motorcycle.

The pursuit of adventure begins with a ride on a Harley-Davidson motorcycle. Make any weekend epic. Turn your commute into a daily thrill-seeker. A Harley-Davidson blows things wide open. Pure freedom. As big and real as it gets.

REFLEX LINKED BREMBO BRAKES WITH STANDARD ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line.

VENTED BATWING FAIRING
The bold styled vented batwing fairing delivers smooth air flow and reduced head buffeting.

TOURING FOR TWO
Equipped with a comfort seat for you and a passenger seat and backrest for your companion, saddle up and set out in maximum comfort.

PREMIUM TOUR-PAK LUGGAGE CARRIER
A sleek yet spacious Tour-Pak luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.

MILWAUKEE-EIGHT 114
The most displacement in standard H-D Touring models. You get 114 cubic inches of passing and horizon-chasing power.

ELECTRONIC CRUISE CONTROL
Set your own speed on the 6-Speed Cruise Drive Transmission. It provides smooth, quiet shifting and adapts to whatever terrain you’re riding on.







2023 Harley-Davidson Ultra Limited – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $29,799 to $32,799 USD
Canada MSRP Price: $35,699 to $41,699 CDN
Europe/UK MSRP Price: £29,995 to £35,495 GBP (On The Road inc 20% Vat)

DIMENSIONS

LENGTH

102.3 in.

SEAT HEIGHT, LADEN ⁷

27.5 in.

GROUND CLEARANCE

5.3 in.

RAKE

26

TRAIL

6.7 in.

WHEELBASE

64 in.

TIRES, FRONT SPECIFICATION

BW 130/70B18 63H

TIRES, REAR SPECIFICATION

BW 180/55B18 80H

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

6 gal.

OIL CAPACITY (W/FILTER)

5 qt.

WEIGHT, AS SHIPPED

880 lb.

WEIGHT, IN RUNNING ORDER

917 lb.

LUGGAGE CAPACITY -VOLUME

4.7 cu ft

ENGINE

ENGINE ¹

Twin-Cooled Milwaukee-Eight 114

BORE

4.016 in.

STROKE

4.5 in.

DISPLACEMENT

114 cu in

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ²

122 ft-lb

ENGINE TORQUE (RPM)

3000

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁵

43 mpg

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, OPTIONAL STYLE TYPE

Base model: Gloss black slicer II; Anniversary model: N/A

WHEELS, FRONT TYPE ⁹

Slicer II cast aluminum with clear coat

WHEELS, REAR TYPE ⁹

Slicer II cast aluminum with clear coat

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS ⁸

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights

GAUGES

Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

6.5 in.

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch standard

HEADSET SPECIFICATIONS (IF EQUIPPED)

16-64 ohms

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

HILL HOLD CONTROL (HHC)

Optional

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Optional

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Optional

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Optional

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Optional

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Optional



1. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
2. Values shown are nominal. Performance may vary by country and region.
3. Standard and optional fuel systems may vary by country.
4. See motorcycle owner’s manual for complete details.
5. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, surcharges (attributable to raw materials costs in the product supply chain), added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
7. Measurement reflects 180 lb. (81.7 kg) operator weight.
8. North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9. Standard and optional wheels may vary by country and region.



2023 Harley-Davidson Ultra Limited – Totalmotorcycle.com Canada Specifications/Technical Details

DIMENSIONS

LENGTH

2,600 mm

SEAT HEIGHT, UNLADEN

740 mm

GROUND CLEARANCE

135 mm

RAKE

26

TRAIL

170 mm

WHEELBASE

1,625 mm

TIRES, FRONT SPECIFICATION

BW 130/70B18 63H

TIRES, REAR SPECIFICATION

BW 180/55B18 80H

TIRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

399 kg

WEIGHT, IN RUNNING ORDER

416 kg

LUGGAGE CAPACITY -VOLUME

0.132 m³

ENGINE

ENGINE ²

Twin-Cooled Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM ³

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

J1349

ENGINE TORQUE ³

166 Nm

ENGINE TORQUE (RPM)

2750

HORSEPOWER

93 HP / 69 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

Estimated City/Hwy

FUEL ECONOMY ⁷

5.5 l/100 km

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, OPTIONAL STYLE TYPE

Base model: Gloss black slicer II; Anniversary model: N/A

WHEELS, FRONT TYPE ⁴

Slicer II cast aluminum with clear coat

WHEELS, REAR TYPE ⁴

Slicer II cast aluminum with clear coat

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP, FRONT SIGNAL LIGHTS

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights

GAUGES

Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch standard

HEADSET SPECIFICATIONS (IF EQUIPPED)

16-64 ohms

AM

Standard

FM

Standard

WEATHER BAND (WB)

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – Parts & Accessories upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

HILL HOLD CONTROL (HHC)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included



1. Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as colour are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change.
2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.
6. As measured using the MIC City and MIC Combined (115 km/h) tests.
7. Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.





2023 Harley-Davidson Ultra Limited – Totalmotorcycle.com Europe Specifications/Technical Details

DIMENSIONS

LENGTH

2,600 mm

SEAT HEIGHT, UNLADEN

740 mm

GROUND CLEARANCE

135 mm

RAKE

26

TRAIL

170 mm

WHEELBASE

1,625 mm

TYRES, FRONT SPECIFICATION

BW 130/70B18 63H

TYRES, REAR SPECIFICATION

BW 180/55B18 80H

TYRE, TYPE

Dunlop Harley-Davidson Series, bias blackwall front and rear

FUEL CAPACITY

22.7 l

OIL CAPACITY (W/FILTER)

4.7 l

WEIGHT, AS SHIPPED

399 kg

WEIGHT, IN RUNNING ORDER

416 kg

LUGGAGE CAPACITY -VOLUME

0.132 m³

ENGINE

ENGINE ²

Twin-Cooled Milwaukee-Eight 114

BORE

102 mm

STROKE

114.3 mm

DISPLACEMENT

1,868 cc

COMPRESSION RATIO

10.5:1

FUEL SYSTEM

Electronic Sequential Port Fuel Injection (ESPFI)

EXHAUST

2-1-2 dual exhaust with tapered mufflers

PERFORMANCE

ENGINE TORQUE TESTING METHOD

EC 134/2014

ENGINE TORQUE ³

160 Nm

ENGINE TORQUE (RPM)

3000

HORSEPOWER

87 HP / 65 kW @ 5020 rpm

LEAN ANGLE, RIGHT (DEG.)

32

LEAN ANGLE, LEFT (DEG.)

32

FUEL ECONOMY TESTING METHOD

EU 134/2014

FUEL ECONOMY

6.3 l/100 km

CO₂ EMISSIONS TESTING METHOD

EU 134/2014

CO₂ EMISSIONS

146 g/km CO2

DRIVE TRAIN

PRIMARY DRIVE

Chain, 34/46 ratio

GEAR RATIOS (OVERALL) 1ST

9.593

GEAR RATIOS (OVERALL) 2ND

6.65

GEAR RATIOS (OVERALL) 3RD

4.938

GEAR RATIOS (OVERALL) 4TH

4

GEAR RATIOS (OVERALL) 5TH

3.407

GEAR RATIOS (OVERALL) 6TH

2.875

CHASSIS

FRONT FORK

49mm Dual Bending Valve

REAR SHOCKS

Premium standard height hand-adjustable rear suspension

WHEELS, OPTIONAL STYLE TYPE ⁴

Base model: Gloss black slicer II; Anniversary model: N/A

WHEELS, FRONT TYPE ⁴

Slicer II cast aluminum with clear coat

WHEELS, REAR TYPE ⁴

Slicer II cast aluminum with clear coat

BRAKES, TYPE

Dual floating rotors (front), fixed rotor (rear)

BRAKES, CALIPER TYPE

32 mm, 4-piston fixed front and rear

ELECTRIC

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS

LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights

GAUGES

Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators

INFOTAINMENT

INFOTAINMENT SYSTEM

Boom! Box GTS

TYPE

Full Color TFT

SCREEN SIZE

165 mm

WATTS PER CHANNEL

25

SPEAKERS

4

SPEAKER SIZE

5.25 inch standard

HEADSET SPECIFICATIONS (IF EQUIPPED)

16-64 ohms

AM

Standard

FM

Standard

SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION

Supported

SIRIUSXM PRESETS

20 – P&A Upgrade (USA & Canada only)

LANGUAGES

English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic

HANDS-FREE MOBILE PHONE – VIA BLUETOOTH

Standard

VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY

Phone dependent

VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION

Phone dependent

TEXT-TO-SPEECH (TTS) LANGUAGES

Phone dependent

RIDER/PASSENGER INTERCOM

Standard

VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)

Standard

USB

USB/MTP/iPod/iPhone

BLUETOOTH

Phone/Media Supported

RIDER SAFETY ENHANCEMENTS

ANTI-LOCK BRAKE SYSTEM (ABS)

Included

ELECTRONIC LINKED BRAKING (ELB)

Included

HILL HOLD CONTROL (HHC)

Included

TIRE PRESSURE MONITORING SYSTEM (TPMS)

Included

CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)

Included

CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB)

Included

CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)

Included

CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)

Included



1. All prices shown are suggested retail prices only.

   Vehicle prices listed do not include an additional MSRP surcharge of £235 + vat (due to extraordinary raw materials and transportation costs) which is added to all MY23 Motorcycles and Trikes.

   Please speak with the dealership team for further details and to obtain a final on the road price.

2. Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
3. Values shown are nominal. Performance may vary by country and region.
4. Standard and optional wheels may vary by country and region.
5. Riding range estimates provided following the SAE J2982 and are based on expected performance of a fully-charged battery when operated under specified conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
