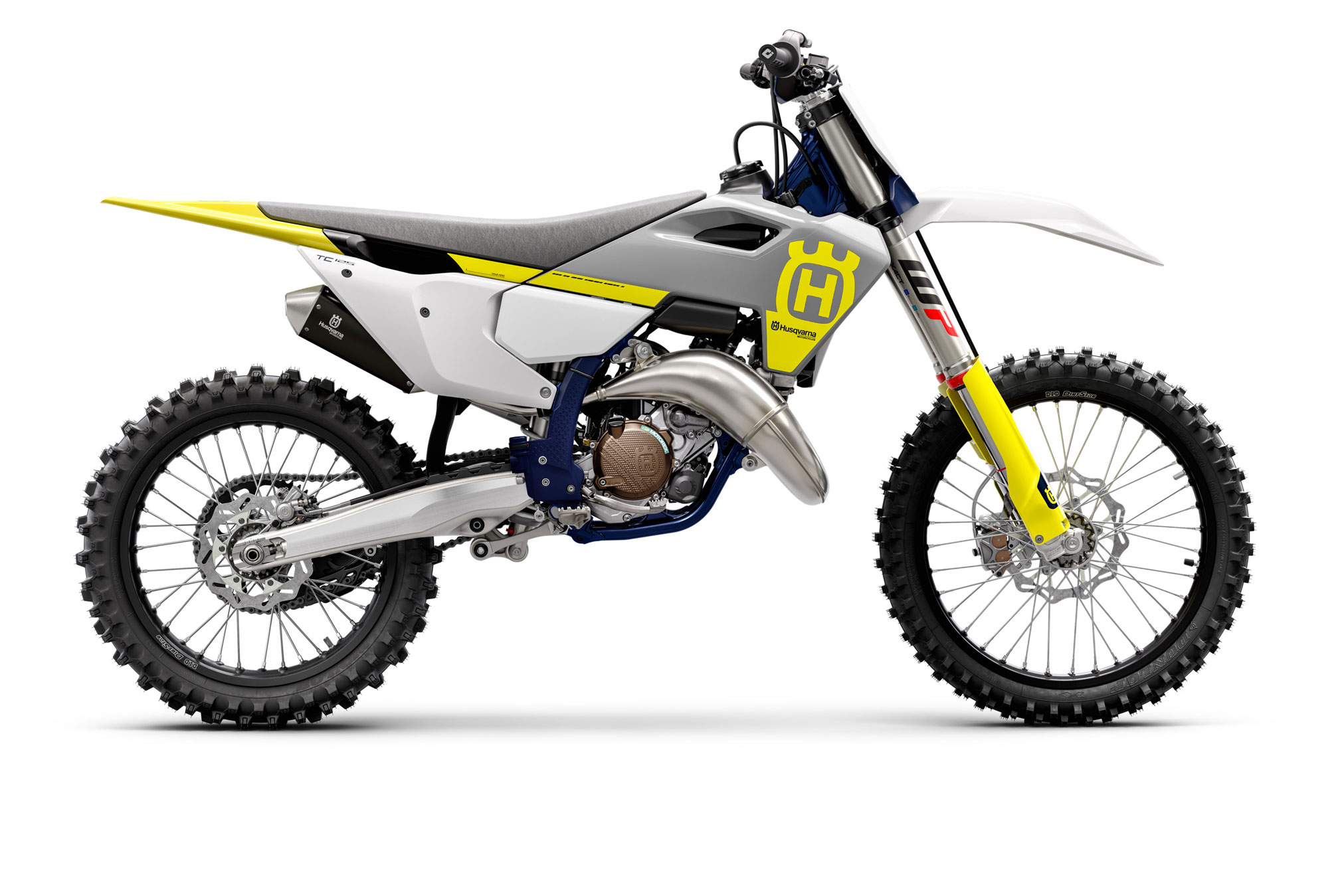

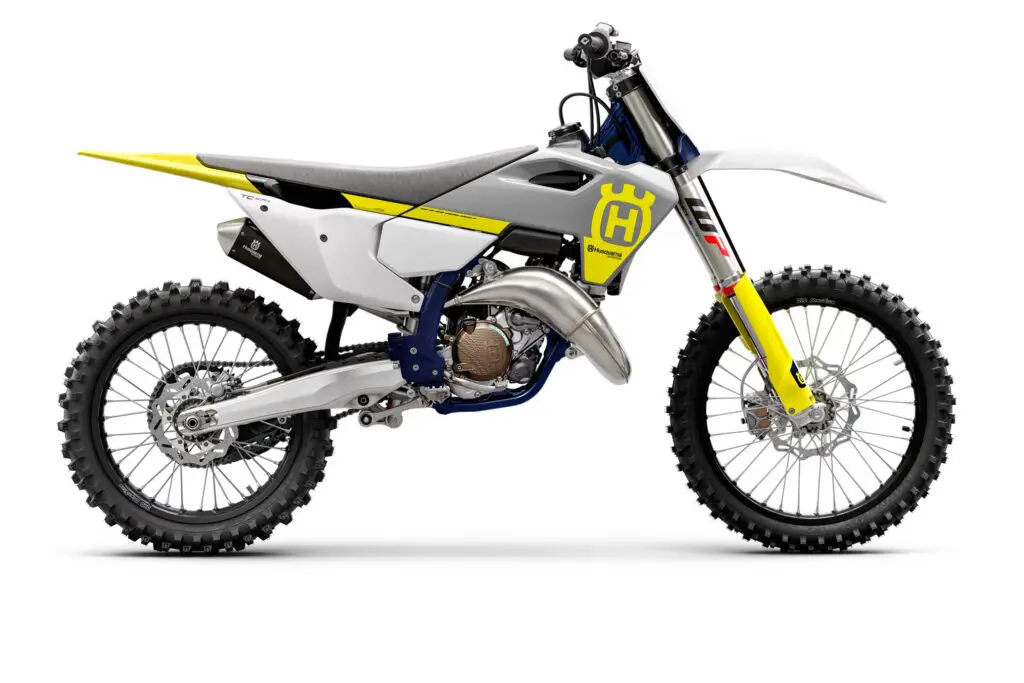

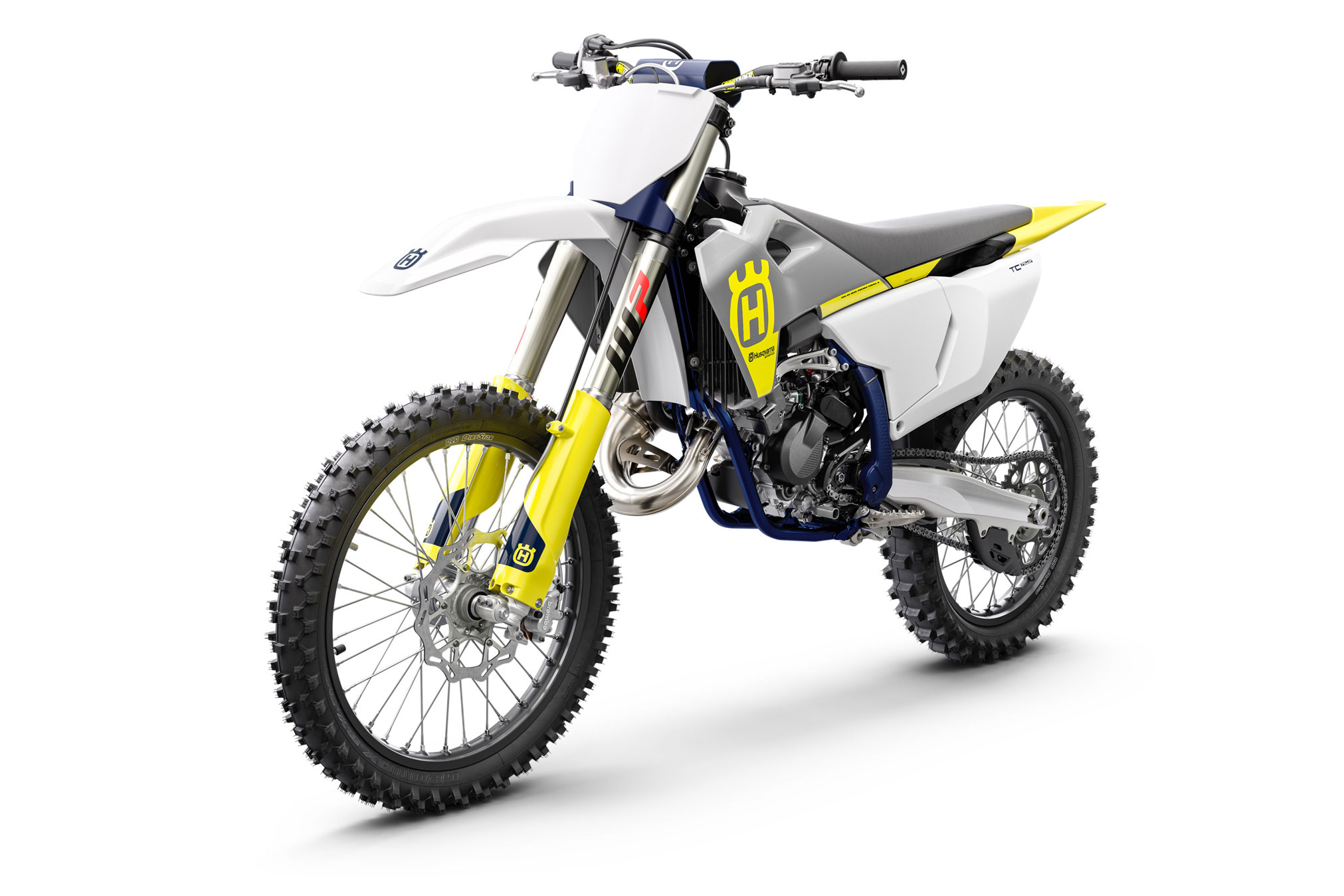

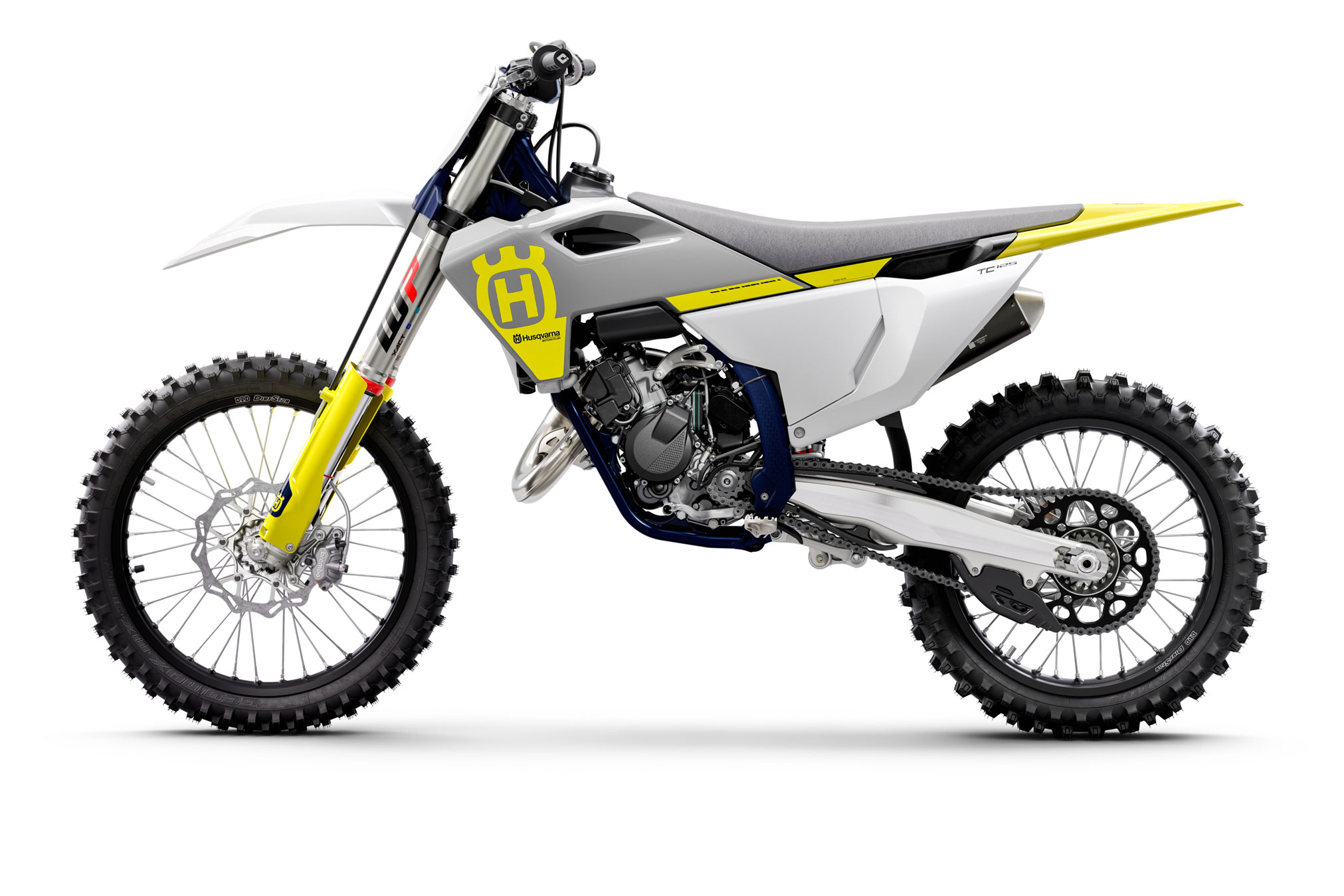

2023 Husqvarna TC125

2023 Husqvarna TC125 2023 Husqvarna TC125 2023 Husqvarna TC125 2023 Husqvarna TC125 2023 Husqvarna TC125

2023 Husqvarna TC125: PROGRESS YOUR POTENTIAL.

Introducing the 2023 Husqvarna TC125…

Small in capacity while big on capability, the 2023 TC 125 receives multiple technical upgrades headlined by the inclusion of EFI and E-Start technology. These revisions are instantly noticeable as after a simple push of a button, the engine starts easily, and, once out on track, the TC 125 delivers an improved experience for all riders. Further changes include a new cylinder with a highly innovative electronic exhaust control system, and a lighter crank for improved throttle response and reduced vibration. Continuing to benefit from class-leading components including WP Suspension, a ProTaper handlebar, and a polyamide-reinforced subframe, the TC 125 receives all-new bodywork and a striking new look to remain at the forefront of the highly competitive 125cc class.





2023 Husqvarna TC125 Totalmotorcycle.com Key Features

What is new for 2023:

  • New bodywork with specifically tailored ergonomics for easier movement on the motorcycle
  • New hydro-formed chromium-molybdenum frames significantly improve anti-squat behaviour
  • New topology-optimised die-cast aluminium swingarm provides optimal rigidity and low weight
  • New throttle body fuel injection on 2-stroke engines ensures class-leading power and rideability
  • New FC 250 and FC 350 DOHC engines deliver class-leading torque and peak power
  • New Quickshift sensor ensures seamless upshifting on all 4-stroke models
  • New electric start on both 2-stroke models
  • New aluminium-polyamide hybrid subframe construction provides specifically calculated rigidity and advanced durability
  • New WP XACT 48 mm front forks with AER technology offer more progressive end-of-stroke damping
  • New WP XACT rear shock design with CFD-optimised main piston and tool-free adjusters
  • New multifunctional Map Select Switch also activates the Quickshifter, Traction, and Launch Control
  • High-performance Brembo hydraulic clutch system
  • Premium-quality ProTaper handlebars
  • Electric start powered by a lightweight Li-Ion 2.0 Ah battery



HUSQVARNA MOTORCYCLES UNVEILS ITS NEW GENERATION OF MOTOCROSS MACHINERY

DESIGNED FROM THE GROUND UP WITH INNOVATIVE ENGINEERING TECHNIQUES THE FC AND TC MOTOCROSS MODELS CONTINUE TO OUTPERFORM THE COMPETITION

Continuing to deliver true motocross performance, the all-new 2023 Husqvarna Motorcycles’ TC and FC models further enhance the on-track riding experiences of all riders. Highly capable of competing at the highest levels of racing as standard, technical advancements across the five-motorcycle-strong range include new engines, suspension, frames, swingarms, and bodywork. Each of the 2-stroke and 4-stroke machines receive tailored developments for maximum performance.
Strengthening their positions as the leading 2-strokes on the market, the TC 125 and TC 250 are now equipped with Electronic Fuel Injection (EFI) and E-Start as standard. The throttle body fuel injection system ensures class-leading power and rideability, as well as enhancing reliability, and lowering overall running costs. Both machines are now easily started with the simple press of a button. These significant enhancements underline the continued evolution of these popular models, which set the benchmark for premium motocross machinery in the highly competitive 2-stroke sector.

The 2023 FC 250 and FC 350 are powered by all-new 4-stroke engines that are designed to be faster, lighter, and play a vital role in enhancing overall handling. Utilising the latest technology and electronic rider aids, these models remain at the forefront of motocross machinery development alongside the FC 450, which features a revised and repositioned engine to improve mass centralisation.

All machines in the motocross line-up are engineered to outperform the competition. Expertly assembled with high quality components for enhanced performance, reliability, and customisation, the FC and TC models are equipped with WP suspension for unsurpassed comfort and straight-line stability. The new WP XACT 48 mm front forks offer more progressive end-of-stroke damping thanks to an improved hydrostop. In addition, the WP XACT rear shock is designed with a refined main piston for improved comfort and features tool-free adjusters for fast setting changes. Complete with ProTaper handlebars, a Brembo clutch, and Dunlop tyres, each model is equipped with a map select switch for selectable engine maps and a personalised riding experience.

A competition-focused range of Technical Accessories and Apparel accompanies the release of all 2023 TC and FC machines. Included within the collection of high-quality components designed to improve performance and reliability are wheels, triple clamps, an exhaust, as well as many protective parts. For comfort, safety, and style, the Apparel Collection ensures riders of all abilities are fully equipped for every ride. Offering a full head-to-toe range that includes protective equipment and riding gear for all racers, all designs truly compliment Husqvarna Motorcycles’ 2023 TC and FC models.







2023 Husqvarna TC125 Totalmotorcycle.com Features and Benefits

Engine

The new TC 250 engine is at the pinnacle of 2-stroke performance and weighs just 23.9 kg. Complete with the latest technical innovations for 2023, the TC 250 receives significant updates with Electronic Fuel Injection (EFI) reducing running costs, removing the need for jetting changes, and improving reliability. The addition of E-Start adds to the simplicity of this popular model and guarantees fast starting in all conditions.

Cylinder

The new cylinder retains a 66.4 mm bore and with the introduction of EFI for 2023, the traditional powervalve is replaced with an electronic exhaust control system. This highly innovative technology manages the opening of the lateral exhaust ports before the main exhaust ports open to deliver strong, controllable power. The upper contour of the exhaust port features a machined finish for improved port timing and unrivalled performance.

Crankshaft

The crankshaft is designed with weight reduction in mind to increase the liveliness and throttle response from the engine. The perfect balance of rotating masses is achieved by balancing the weights of the crankshaft flywheel, the new rotor, and the counter balancer shaft.

Crankcases

High-pressure die cast production processes allow for the crankcases to be manufactured with a thinner wall thickness to keep the overall weight to a minimum and to position the shaft arrangements in the perfect position for optimised mass centralisation. This clever design aids the overall balance and agility of the TC 250 while redesigned, symmetrical engine mounts further improve flex characteristics.

Counter balancer shaft

The TC 250 features an innovative laterally mounted counter balancer shaft. This shaft significantly reduces engine vibration, resulting in a smoother and more comfortable ride.

DDS clutch

The Damped Diaphragm Steel (DDS) clutch fitted to the TC 250 is unique as a single diaphragm steel pressure plate is utilised instead of traditional coil springs. Housed inside a CNC machined steel basket, the overall clutch design contributes to the compact engine layout and features a damping system for improved traction and durability.

Gearbox

The TC 250 features a 5-speed gearbox manufactured exclusively by Pankl Racing Systems for the highest level of durability and ensures smooth and precise shifting. For 2023, a redesigned gear lever tip design offers improved leverage and prevents dirt build-up, even in the toughest conditions.

Chromium molybdenum frame

The proven chromium molybdenum steel frame is refined for 2023. A new shock mounting, which is no longer connected to the main tube, significantly improves the anti-squat behaviour of the chassis. With optimised wall thickness in high stress areas improving reliability, the frame continues to offer advanced geometries and flex characteristics aimed at providing unparalleled rider feedback, energy absorption, and exceptional straight-line stability. The frame is finished off in a premium metallic blue powder coating with redesigned standard frame protectors offering superior protection, durability, and grip in any condition. Additionally, the inclusion of forged brackets on the lower frame rails allows for easy installation of the skid plate, which is available as a technical accessory.

Polyamide-reinforced aluminium subframe

Made from 60% polyamide and 40% aluminium, the new two-piece subframe for 2023 ensures exceptional strength and durability at an overall weight of just 1.8 kg. The lower subframe spars and frame mounts are manufactured from cast aluminium for significantly improved reliability. The upper section of the subframe is made from injection-moulded polyamide to enable specific flex characteristics and ensure a lightweight construction.

Triple clamps

Matching the new frame design and suspension set-up, the CNC-machined triple clamps provide precisely calculated geometry for increased stability. Customised handlebar flex can be achieved by the new handlebar clamp which offers two mounting options – rubber-damped for less vibration or fixed for enhanced front-end feedback. The upper triple clamp is stiffer to ensure a smoother fork action and plays a vital role in the perfect alignment of the front wheel for superior handling.

WP XACT front suspension

The 48 mm split air forks now offer improved bottoming resistance thanks to a new hydrostop, which applies a progressive damping force in the last 40 mm of travel for even greater comfort. The WP forks are designed with a capsulated, adjustable air spring and pressurized oil chamber for smooth action and consistent damping. Oil and air bypasses reduce pressure peaks and in combination with a midvalve damping system, the forks provide precise feedback to the rider. The settings are easily adjusted via the single air pressure pre-load valve, as well as through easy access click adjusters for compression and rebound. For improved durability, new fork protection rings prevent dirt intrusion. Additionally, the air pump needed to adjust the fork’s air pressure is provided as standard.

WP XACT shock absorber

An all-new design results in a 15 mm shorter rear shock, which is 100 g lighter compared to the previous generation while the rear wheel travel is set at 293 mm. Inside the shock is a Computational Fluid Dynamics (CFD) optimised main piston for improved initial comfort which provides strong hold-up in all conditions. Different sized holes in the shims allow them to open more easily which reduces the overall stress of the oil flow. Complete with low friction SKF seals and a revised linkage system, consistent damping, comfort, and traction are guaranteed with rebound and both high and low speed compression now adjustable by hand.

Swingarm

The new hollow die-cast aluminium swingarm is manufactured from a single piece of aluminium using an improved die-cast production process for optimal stiffness and a 190 g weight reduction over previous versions. In order to optimise and match the flex characteristics from the new frame, a new 22 mm rear axle is fitted. Additionally, the chain guard and chain slider have been completely redesigned for improved durability and are less prone to hooking on external objects.



Functional bodywork

Clean, Swedish-inspired design and ergonomics are tailored to allow riders to perform at their best for extended periods of time. Adapted after countless hours of testing, the contact points and surfaces in the rider triangle have been repositioned for 2023 to improve comfort on the motorcycle. A new, flatter seat offers unrestricted movement with a high grip cover ensuring riders stay firmly in place under hard acceleration.

Airbox

Designed with precisely positioned inlet ducts aimed at reducing drag and air flow deformation, the airbox ensures unrestricted airflow with maximum filter protection. The TWIN AIR filter is easily accessed without tools, by simply removing the left side panel for easy maintenance.

Hydraulic clutch

The high-performance Brembo hydraulic clutch system guarantees even wear, near maintenance-free operation and perfect modulation in every condition. Meaning that play is constantly compensated so that the pressure point, and function of the clutch remain identical in cold or hot conditions, as well as over time. Countless hours of race-focused testing have proven the high-quality, Italian-made Brembo hydraulic systems’ exceptional reliability.

Hydraulic brakes

The highest level of quality is guaranteed with class-leading Brembo callipers made from single pieces of aluminium for strength at the lowest possible weight. Together with a redesigned 260 mm front and a 220 mm rear disc which offer improved dirt removal, superior stopping power and braking confidence is guaranteed in all conditions.

ProTaper handlebar

Developed between Husqvarna Motorcycles and leading handlebar manufacturer, ProTaper, the exclusive bend offers superior comfort, class-leading strength, and fatigue resistance at the lowest possible weight.

ODI grips

ODI lock-on grips feature an innovative integrated throttle mechanism and a glue-free installation. The throttle assembly offers easy free-play adjustment with the option to fit alternative cams for a personalised throttle action.

Footrests

All-new, CFD-designed footrests offer a 26.8% larger contact area to ensure better control of the machine while being less susceptible to hooking on deep ruts, take-offs when scrubbing, or trackside barriers. This was achieved by a new, narrower mounting design in the frame layout, which also helps reduce overall weight.



Wheels and tyres

Assembled with CNC-machined hubs, strong spokes, and black-anodised alloy rims by D.I.D, the wheels of the TC 250 are fitted with DUNLOP GEOMAX MX33 Motocross tyres which feature a proven block-within-a-block design for more progressive cornering and superior grip. For improved on-track agility and stability through ruts, the TC 250 is fitted with a 110/90-19 rear tyre while a 80/100-21 front tyre ensures optimal handling on a variety of riding surfaces.

Exhaust system

The header pipe on the TC 250 is designed using innovative 3D modelling. The result is a perfect shape aimed at delivering the optimum performance characteristics while also being very compact ensuring sufficient clearance in tight rutted corners.

Cooling system

Manufactured from high-strength aluminium, the radiators are designed using Computational Fluid Dynamics (CFD) to channel air in the most effective way. A large centre tube channels coolant through the frame to reduce pressure at this point in the system for a more consistent flow while a new internal thermostat further enhances reliability.

Fuel tank

A new 7.2 litre fuel tank integrates neatly into the revised bodywork. Due to the new fuel pump design and position, the tank is emptied further for increased running times. For improved safety, the external fuel line is specifically routed to make it less exposed and susceptible to damage.



EFI

The introduction of Electronic Fuel Injection on the TC 250 brings many benefits. The ECU from Vitesco constantly analyses the running condition of the engine and delivers the perfect air/fuel ratio at all times through the state-of-the-art 39 mm Keihin throttle body. The exciting addition of EFI allowed our engineers to develop two different engine maps, which can easily be selected via the handlebar-mounted switch for a personalised riding experience. Additionally, an important reed valve revision improves intake tract sealing and prevents excess fuel build up in the engine on extreme up or downhill sections for clean running at all times.

E-Start

For guaranteed, easy starting in all conditions, the TC 250 now features highly convenient electric start technology for the very first time. The reliable system removes the need for a kickstart completely. The 12,8V 2 Ah Lithium-Ion battery is positioned neatly under the seat and close to the centre of gravity for uncompromised handling. Stopping of the engine is now achieved via the same handlebar-mounted switch for improved ease of use and a simplified operation.

Map switch

Adding Electronic Fuel Injection (EFI) to the TC 250 allows for the introduction of two engine maps that cater for riders of all abilities. Map 1 is the standard option, that delivers linear, predictable power, while map 2 is aggressive with improved throttle response and a sharper, explosive power output. By simply pressing a button on the handlebar-mounted map switch, riders can toggle between the two options and select their chosen map.

EMS

The new Engine Management System (EMS) is designed to be smaller and lighter while also faster at processing data. It incorporates a new rollover sensor (ROS) which cuts the ignition and shuts off the engine for safety in the event of a severe crash, adding another level of safety to Husqvarna Motorcycles’ new generation motocross line-up.

Hour meter

A new hour meter comes with an integrated fuel level indicator which is visible on the FI status LED, indicating to the rider when the fuel level is becoming low.

Start/stop switch

The new combined start/stop switch is located on the right side of handlebar for easy, thumb-operated use. Not only simplify the starting and stopping of the engine, the removal of a designated stop only button from the handlebar reduces the risk of potential damage or activation in the event of a fall.









2023 Husqvarna TC125 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $ 8049 USD
Canada MSRP Price: $9599 CDN
Europe/UK MSRP Price: £8299 GBP (On The Road inc 20% Vat)

Engine
• Transmission 6-speed
• Starter Electric starter
• Stroke 54.5mm
• Bore 54mm
• Clutch Wet multi-disc DS clutch, Brembo hydraulics
• Displacement 124.8cm³
• EMS Vitesco Technologies EMS
• Design 1-cylinder, 2-stroke engine



Chassis
• Weight (without fuel) 92.5kg
• Tank capacity (approx.) 7.2l
• Front brake disc diameter 260mm
• Rear brake disc diameter 220mm
• Front brake Disc brake
• Rear brake Disc brake
• Chain X-Ring 5/8 x 1/4″
• Frame design Central double-cradle-type 25CrMo4 steel
• Front suspension WP XACT-USD, Ø 48 mm
• Ground clearance 350mm
• Rear suspension WP XACT Monoshock with linkage
• Seat height 939mm
• Steering head angle 63.9°
• Suspension travel (front) 305mm
• Suspension travel (rear) 293mm
