2023 Husqvarna TC85 17/14 Guide

2023 Husqvarna TC85 17/14: SMALLER BUT NO LESS CAPABLE.

Introducing the 2023 Husqvarna TC85 17/14…

Bridging the gap between the junior ranks and the full size models on offer from Husqvarna Motorcycles, the TC 85 is pivotal in the minicycle line-up. Featuring advanced hardware and utilising the latest in engine and chassis technology, the TC 85 is a highly capable machine in the hands of any youth racer.

Setting the bar in the ultra-competitive 85cc class, the TC 85 features much of the same technology found in the successful full-size Husqvarna motocross line-up. With a chromium molybdenum steel frame and state of the art WP suspension, young mini riders can focus on performing on track in total confidence. Featuring an engine that delivers a broad and controllable power delivery, the TC 85 offers top-level performance and durability for the stars of tomorrow.

2023 Husqvarna TC85 17/14 Totalmotorcycle.com Key Features

Husqvarna Motorcycles – Minicycles Model Year 2023

Designed for the highest levels of competition, Husqvarna Motorcycles’ TC 85, TC 65 and TC 50 Mini are fully equipped 2-stroke motocross machines that cater for youth racers of all ages and feature the very latest technology and high-quality components.

For 2023 the TC 85, TC 65, and TC 50 Mini models are stylishly adorned with a striking white, grey, and yellow color scheme.

Inspiring confidence with easily controllable power and unrestrictive ergonomics, youngsters can truly focus on riding to the best of their ability on any model from the Husqvarna Motorcycles minicycle range. With the TC 85, TC 65, and TC 50 Mini models setting the standard when it comes to top-level 2-stroke performance and durability on which they can safely enter the exciting world of offroad motorcycling.

2023 Technical Highlights:

• Striking new white, grey, and yellow TC 85, TC 65, and TC 50 Mini graphics – underline Husqvarna Motorcycles’ Swedish heritage
• New MAXXIS MAXXCROSS MX-ST tires for all models – exceptional straight-line stability and excellent traction
• All models deliver unrivalled engine performance and rideability
• Easily adjustable WP XACT forks with AER technology and XACT PDS monoshock – optimal performance and low weight
• Confidence-inspiring ergonomics and a high-grip seat cover for comfort and control
• New Formula clutch assembly on the TC 65 for improved action and durability
• New larger rear disc and brake components from Formula for enhanced TC 65 stopping power
• NEKEN tapered aluminum handlebars ensure optimized ergonomics
• Roller-actuated TC 85 throttle assembly for a smoother action in all conditions
• Black Excel rims and CNC-machined hubs for TC 85 – low unsprung weight and greater stability

2023 Husqvarna TC85 17/14 Totalmotorcycle.com Features and Benefits

Engine

The TC 85 engine uses the latest 2-stroke technology to deliver unrivalled performance and rideability in the ultra-competitive 85cc class.

Key to the engine is a power valve, which allows the power delivery to be tailored simply and effectively. Additionally, the roller-actuated throttle assembly delivers a smooth motion when opening the throttle.

• Roller-actuated throttle assembly → smooth throttle motion and advanced durability
• Engine – latest in 2-stroke technology

Cylinder and piston

The cylinder is designed around the power valve system. The system controls both the exhaust valve and the sub exhaust port for optimal power, torque, and controllability. As a result, the TC 85 delivers class-leading mid-range performance, reducing the need to use the clutch in loamy or sandy conditions.

• Cylinder and ports – top level performance using the latest 2-stroke technology

Crankshaft

The lightweight crankshaft features optimal balancing for minimal vibration. The precisely tailored rotational inertia of the crankshaft delivers unsurpassed torque and rideability.

• Crankshaft – precisely balanced

Crankcases

The crankcases are manufactured using a high-pressure die-cast production process that keeps wall thickness to a minimum while retaining strength and durability. The design of the cases is compact and aims at positioning the shaft arrangements as close as possible to the center of gravity for optimal handling.

Bodywork/seat

The TC 85 features progressive bodywork which precisely fits the proportions of an 85cc rider. The contact points and overall feeling allow younger riders to enjoy similar levels of control and comfort as older riders do on the larger models.

The ergonomics instill confidence while leaving room for free and unrestricted movement thanks to the broad and flat seat and one-piece airbox covers. A high-grip seat cover delivers superior comfort and control in all conditions.

Frame

The professionally crafted chromium-molybdenum steel frame is constructed using hydro-formed tubes joined by precision robot welding to ensure the highest level of consistent quality.

The frame employs a geometry aimed at tailoring flex characteristics for optimal handling and comfort. Together with the laterally-mounted cylinder head mountings the result is advanced torsional rigidity and longitudinal stiffness. This allows the frame to move in harmony with the suspension soaking up big hits while delivering optimal agility and high-speed stability.

Additionally, the frame is fitted with “no dirt” footrests that prevent the build-up of dirt collected through deep ruts and muddy terrain. The simple but effective self-cleaning system ensures the footrests don’t clog up with mud and always return to their original position for complete control in all conditions.

The frame is finished off in a highly durable blue powder coating with standard frame protectors.

• Hydro formed and robot welded → highest level of consistent quality
• Flex characteristics – advanced handling and comfort
• “No dirt” footrests → complete control in all conditions

Subframe

Made from lightweight aluminum, the subframe features a short and compact profile contributing to mass centralization and the overall light weight of the motorcycle.

• Short and compact profile – low weight and centralized masses

Swingarm

Manufactured using a gravity die-cast production process, the one-piece aluminum swingarm offers exceptional strength at the lowest possible weight. For easy maintenance, the chain adjustment markings are visible from above to make adjustment simple.

WP suspension

Mirroring the latest technology found in the Husqvarna full-size motocross range, the TC 85 features the latest WP suspension technology.

Up front, the WP XACT fork with AER technology consists of a 43 mm split-fork design using a capsuled air spring in the left leg and the trusted oil damping system in the right leg. Adjustment is made simple thanks to a single air pressure valve (charged using the supplied air pump) for preload, and easy access clickers for compression and rebound. The components offer advanced damping characteristics while being significantly lighter than conventional spring forks.

• WP XACT 43 mm → advanced damping characteristics
• Simple adjustment → single air chamber and supplied pump, easy access clickers

On the rear, a specific version of the WP XACT PDS shock absorber is fitted to the TC 85. PDS (Progressive Damping System) allows the rear end to stay stable over smaller bumps and rough terrain, while also soaking up bigger hits with ease.

The WP XACT PDS is fully adjustable for preload, compression and rebound.

• WP XACT PDS → advanced damping under all loads
• Fully adjustable preload, compression and rebound damping

Cooling

The radiators are designed using CFD (Computational Fluid Dynamics) to ensure the ideal passage of air through the cooling fins. Combined with an advanced routing of the coolant circuit, the system ensures optimum engine temperature for the highest performance in varying conditions.

The radiator protectors not only serve as protection from flying rocks and debris but also serve as a brace that diverts energy around the radiators in the event of an impact.

Airbox

The airbox is designed to offer the best possible performance with the highest level of filter protection. The air filter is easily accessed, without tools, by removing the left side panel. Easy maintenance is guaranteed thanks to the Twin Air filter and filter cage design, which features a simple fail-proof mounting system for safe and accurate filter installation.

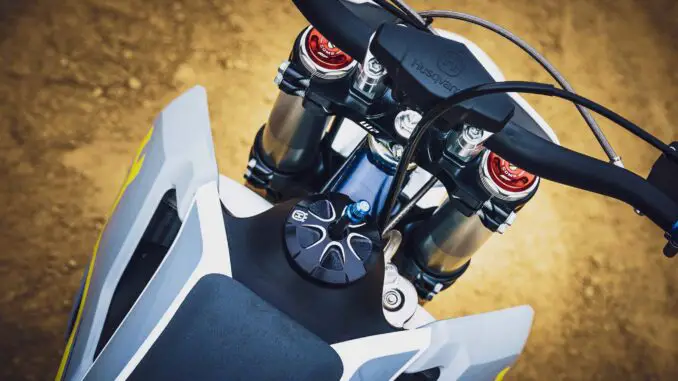

Handlebar, grips, throttle

The TC 85 features a lightweight and strong tapered aluminum handlebar fitted with a throttle assembly that allows for easy free play adjustment.

Additionally, the TC 85 is fitted with ODI lock-on grips as standard. The system includes a vulcanized grip on the right side while the lock-on grip on the left does not require glue or wire for mounting.

Wheels and tires

Black Excel rims and CNC-machined hubs are fitted with MAXXIS MX-ST tires that deliver outstanding performance on a wide variety of terrain. The pattern design and rubber compound offer exceptional straight-line stability and excellent traction and predictability.

• Black Excel wheels and CNC-machined hubs → low unsprung weight and great stability
• New MAXXIS MAXXCROSS MX-ST tires → exceptional straight-line stability and excellent traction and predictability
• Two wheel sizes (19/16 and 17/14) are perfect for competing in a range of 85cc classes or for varying rider size

Brakes

Formula floating brake calipers, with a 240 mm wave disc up front and 220 mm wave disc at the rear, provide exceptional brake feel and consistent brake pad wear to ensure confident braking in any riding condition.

Additionally, the clutch and brake assembly are designed to reduce wear and ensure maximum reliability and durability.

• Formula brake calipers, clutch and brake assemblies → superior stopping power and advanced reliability

Exhaust

The exhaust system is perfectly tailored to the engine’s power characteristics, contributing to the outstanding performance and all-round rideability.

The header pipe is made in a three-dimensional stamping process. Once the components are shaped, they are robot welded to ensure the highest level of quality and durability.

Gearbox

The TC 85 features a lightweight 6-speed gearbox with motocross-specific ratios and a progressive shifting action that allows the rider to select the next gear with confidence. Additionally, similar to the footrest design, a self-cleaning gear selector prevents the build-up of dirt ensuring complete control in all conditions.

Clutch

The TC 85 features a compact and durable diaphragm spring clutch. The exclusive characteristics of this system include a single diaphragm steel pressure plate instead of traditional coil springs.

The clutch is actuated via a Formula hydraulic system meaning that play is always compensated for and that the clutch point remains the same under different conditions as well as over time.

Graphics

The TC 85 features striking new graphics in white, grey, and yellow, which depict the Swedish heritage of the Husqvarna brand. Applied using an in-mold process, the graphics offer unrivalled durability for a long-lasting finish.

2023 Husqvarna TC85 17/14 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $6599 USD
Canada MSRP Price: $7549 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
