2023 Indian FTR R Carbon: FLAT TRACK ROOTS.
Introducing the 2023 Indian FTR R Carbon…
AS PREMIUM AS IT GETS
The FTR R Carbon boasts championship pedigree and premium street style.
Chiseled, muscular, and sophisticated, the FTR R Carbon is the essence of what a motorcycle should look like. Totally inspired by our flat track roots, the very things that make it stylish also make it so incredibly functional. It’s not only beautiful standing still.
Poised For Thrills
The character of a high-revving, liquid-cooled American V-twin is unique, and at the heart of what makes FTR R Carbon remarkable. 120hp and 87 ft-lbs of torque provide a torque curve that’s as fat as it is flat, and races effortlessly to its 9000rpm redline.
2023 Indian FTR R Carbon Totalmotorcycle.com Key Features
Headlining the 2023 model year news is the introduction of a new FTR mid-range trim, the FTR Sport. Replacing FTR S, the FTR Sport sits just below the premium FTR R Carbon, but above of the FTR and FTR Rally – creating four distinct trim models for riders to choose from.
Designed for riders to cut loose and enjoy the pure sport of motorcycling, the FTR Sport’s bold aesthetics and sporty componentry, including a number plate, chin fairing and seat cowl, take the FTR’s energetic attitude to another level. A totally unique take on American V-twin performance with an unmistakable, muscular style, the FTR truly is an American original.
New for 2023, the FTR Sport and FTR R Carbon are upgraded with a four-inch round touchscreen display powered by RIDE COMMAND, featuring navigation. Three ride modes (Sport, Standard, Rain) provide unique performance experiences for varying preferences and riding conditions, while Lean Angle Sensitive Stability Control and ABS provide confident, predictable handling in all conditions. The FTR R Carbon separates itself as the premium offering with carbon fiber components, premium seat, fully adjustable Öhlins gold front forks and a gold piggyback shock. The FTR Sport touts a new tank panel design and is available in Black Metallic with Indy Red accents and White Lightning with Indy Red and Black Metallic accents. The iconic Indian Script logo tank panels are exclusive to the FTR R Carbon, which is finished with a classy Cloud Silver and Championship Gold pinstriping.
While primary componentry carry-over for FTR and FTR Rally models, all four FTR models now offer a new sport exhaust muffler, and a retuned front braking system, which provides a firmer feel. Indian Motorcycle also moved the speedometer up for easier viewing and added a new clutch for improved feel and performance. With the new tank panel design, as seen on FTR Sport, and the addition of bold, vibrant colors, the refreshed FTR further broadens the appeal of the FTR lineup to more riders. The FTR is available in Metallic Black, contrasted by Lifted Lime branding with matching rear shock, and Stealth Gray, featuring Orange Burst branding, rear shock and wheels. Finally, the FTR Rally features 19- and 18-inch cast wheels wrapped with knobby tires. The FTR Rally is available in new Black Smoke paint, Desert Earth frame, and the iconic Indian Motorcycle Headdress logo emblazed across the tank. Pricing for the FTR lineup begins at $13,499.
For added personalization, Indian Motorcycle is launching nine new FTR accessories. Through a brand partnership with Gilles Tooling, Indian Motorcycle is offering co-branded pieces, including Performance Adjustable Rearsets, and three Billet components: Bar End Weights, an Oil Cap and a Radiator Cap. Performance Adjustable Levers will also be available in spring 2023. In addition, Indian Motorcycle has expanded its carbon fiber offering with three new pieces, including an Exhaust Heat Shield, Frame Guard and a Sprocket Cover. To enhance comfort, Indian Motorcycle has introduced a durable and weather-resistant Comfort+ Seat, which combines comfortable ergonomics with additional padding where needed most.
INDIAN MOTORCYCLE ANNOUNCES 2023 MODEL YEAR LINEUP; REVISES FTR LINEUP & DEBUTS INDIAN CHALLENGER ELITE
- FTR Lineup Adds Fresh, Vibrant Colors, While New FTR Sport & FTR R Carbon Upgrade to Four-Inch Round Touchscreen Display with Navigation
- Indian Challenger Elite Delivers the Ultimate in Style & Exclusivity
- New Sapphire Blue Smoke Paint with Black Smoke & Titanium Metallic Smoke Combine Premium Quality with Head-Turning Style
- From Scout to Indian Pursuit, the 2023 Lineup Offers Models & Styles for Any Rider
- New Indian Motorcycle Accessories Further Expand Personalization Options
MINNEAPOLIS, MN – November 8, 2022 – Indian Motorcycle, America’s First Motorcycle Company, today announced its 2023 model year lineup, featuring the new FTR Sport and Indian Challenger Elite, along with various model updates and new accessories across the line. In addition, the 2023 lineup features a variety of new color options, highlighted by vibrant color schemes for FTR and FTR Sport on newly designed tank covers.
“Fully loaded with models and styles for the widest range of riders, the 2023 lineup is a powerful testament to our team’s relentless effort to build and refine a truly comprehensive product offering over the past nine years,” said Mike Dougherty, President for Indian Motorcycle. “This effort has been focused across the line and within each model lineup, as evidenced by the introduction of the FTR Sport – the addition of which creates four unique FTR offerings, each with its own style and personality.”
2023 Indian FTR R Carbon Totalmotorcycle.com Features and Benefits
LOOK FAST, EVEN STANDING STILL
The FTR lineup features a thoughtfully refined engine, a suspension tuned for the street, and 17 in tires and wheels; together delivering world-class performance while making the bike feel compact and maneuverable.
THE INTERSECTION OF STYLE AND PERFORMANCE
With DNA proven in American Flat Track, the legacy continues with more refinements of the iconic FTR platform—taking street performance, approachability, and control to a whole new level. This unmatched American V-twin is waiting to be your next weekend escape.

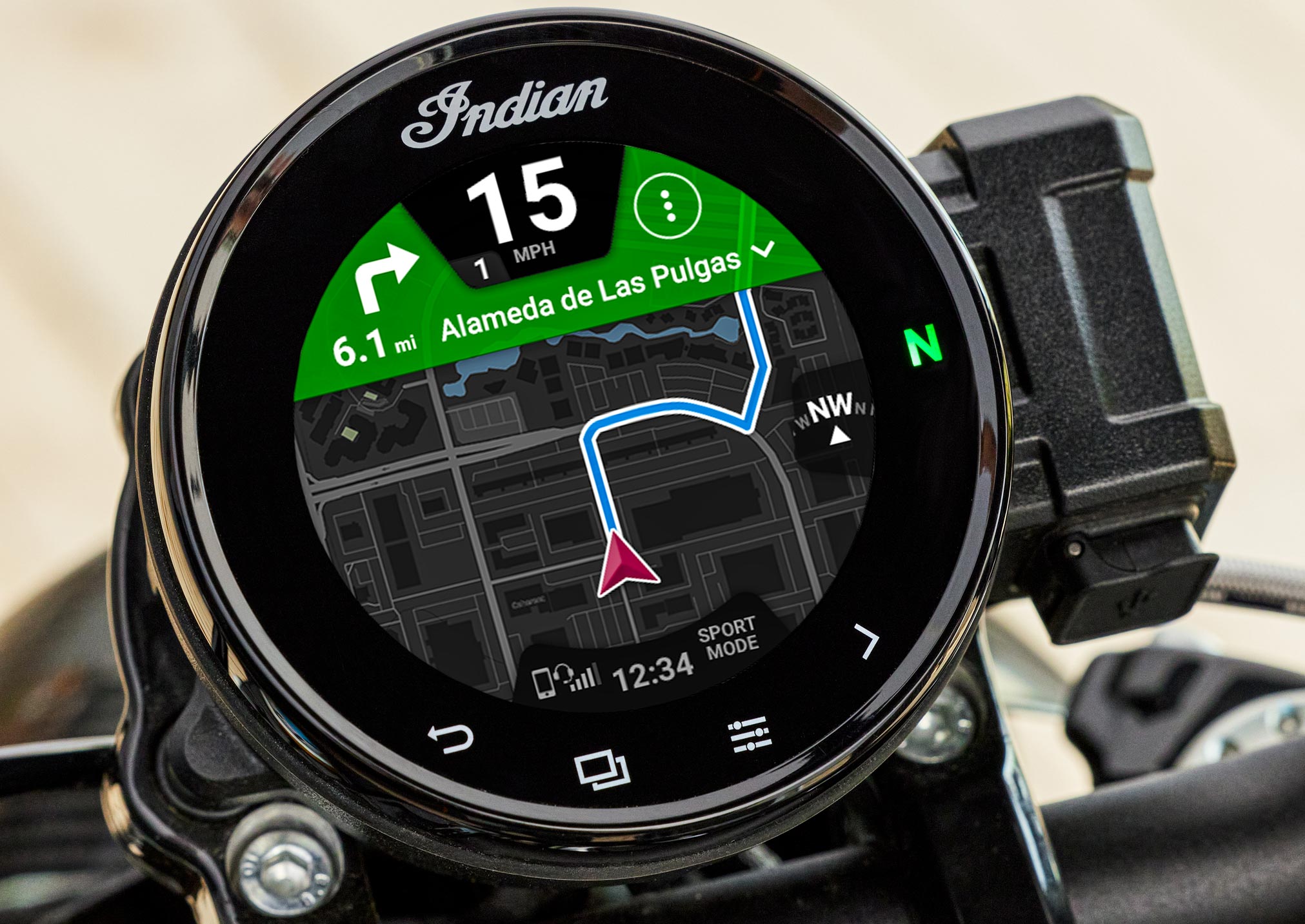

4 inch touchscreen powered by RIDE COMMAND
Design detail meets modern function in a class-leading and industry first 4-inch touchscreen powered by RIDE COMMAND, featuring intuitive search navigation with Bluetooth® tethering. What’s more, it’s completely customizable to your preferences with the touch of a finger.
The Best Ride Enhancing Tech
Three ride modes (Sport, Standard, Rain) maximize your thrills and Lean Angle Sensitive Stability Control and ABS provide confident, predictable handling in all conditions. Traction control, cornering pre-control, and wheelie mitigation are there too. If your inner demon wants to make things more interesting, Traction Control and Wheelie Mitigation are easily turned off.
Fully Adjustable Öhlins® Suspension
Fully adjustable Öhlins® front and rear suspension let you dial in your ride to the exact feel you want – keeping you planted on city streets or back roads without sacrificing telepathically light handling.
Confidence Inspiring Riding Position
Originally designed after our dominant, championship winning FTR 750 flat track racer, the new FTR R Carbon is fully optimized for ultimate street performance, where real riders dominate. Lightweight 17-inch cast wheels front and back are easily flickable and wear super sticky Metzeler Sportec® rubber that glue you to the road.
Stopping Power
Fully adjustable 43mm upside down front fork and single, exposed rear shock make the FTR R Carbon stand out in the crowd. Massive Brembo 4-piston mono block calipers grab dual 320mm rotors and are specifically tuned for incredible control and braking power. Stoppies are optional, and only two fingers away if you’re so inclined.

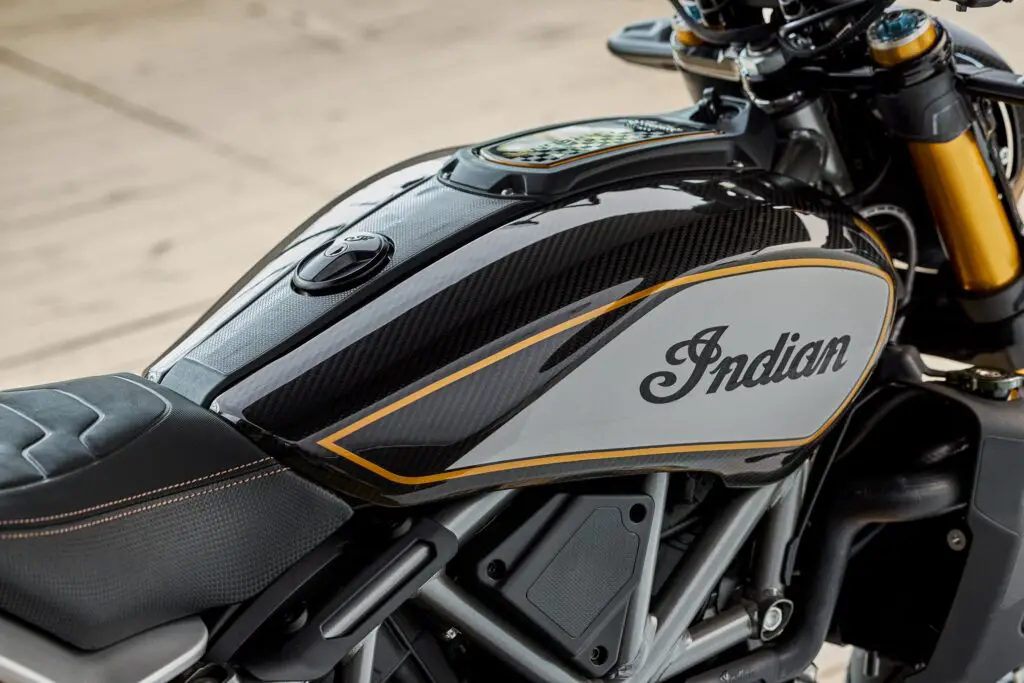

It’s in the details
Unmatched fit and finish come courtesy of a premium stitched seat and carbon fiber components throughout. You’ll get unmatched comfort – and emotion – every time you sit on it.
Make FTR R Carbon Your Own
The FTR is the Swiss Army Knife® of the moto world—a versatile and indispensable tool to meet all your two-wheeled needs. And with Genuine Factory Accessories, you can take FTR to yet another level. Whether you’re looking for extra performance, premium style, increased comfort, or dedicated function—personalizing is easy and gives you the ability to transform FTR just the way you want it.
2023 Indian FTR R Carbon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $17249 USD
Canada MSRP Price: $ 19,999 CDN
Europe/UK MSRP Price: £16695 GBP (On The Road inc 20% Vat)
Engine & Drivetrain
Bore x Stroke
4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio
12.5:1
Displacement
73 cu in (1203 cc)
Drive/Driven Clutch
Assist & Slip, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin
Exhaust
2-into-1, Catalyst in collector
Gear Ratio (1st)
12.270 : 1
Gear Ratio (2nd)
8.341 : 1
Gear Ratio (3rd)
6.646 : 1
Gear Ratio (4th)
5.639 : 1
Gear Ratio (5th)
4.985 : 1
Gear Ratio (6th)
4.278 : 1
Horsepower
120 HP
Peak Torque
87 ft-lbs (118 Nm)
Peak Torque RPM
6,000 rpm
Transmission/Final Drive
2.647 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.4 gal (12.9 L)
Ground Clearance
6.5 in (165 mm)
GVWR
948 lb (430 kg)
Lean Angle
43°
Overall Height
51 in (129.5 cm)
Overall Length
87.5 in (2223 mm)
Overall Width
32.7 in (830 mm)
Rake/Trail
25.3° / 3.9 in ( 99.9 mm)
Seat Height
30.7 in (780 mm)
Weight (Dry Weight / Running Order)
486 lbs (221 kg) / 518 lbs (235 kg)
Wheelbase
60 in (1,524 mm)
Brakes
Front Brakes
Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Rear Brakes
Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Sportec M9 RR 120/70ZR17 58W
Front Wheel
Cast 17 in x 3.5 in
Rear Tires
Metzeler Sportec M9 RR 180/55ZR17 73W
Rear Wheel
Cast 17 in x 5.5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel
120 mm
Rear Suspension
Ohlins Fully Adjustable Piggyback IFP
Rear Travel
120 mm
Features
Color / Graphics
Carbon Fiber
Factory Warranty
2 Years, Unlimited Miles
Gauges
N/A
Infotainment
4 in Touchscreen powered by RIDE COMMAND. Model year 2023 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic and intuitive destination search,. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, Taillight, Turn Signals
Standard Equipment
Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie and rear lift Mitigation, USB Charge Port, Cruise Control
2023 Indian FTR R Carbon – Totalmotorcycle.com Canada Specifications/Technical Details
Engine & Drivetrain
Bore x Stroke
4.016 in x 2.898 in (102 mm x 73.6 mm)
Compression Ratio
12.5:1
Displacement
73 cu in (1203 cc)
Drive/Driven Clutch
Assist & Slip, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin
Exhaust
2-into-1, Catalyst in collector
Gear Ratio (1st)
12.270 : 1
Gear Ratio (2nd)
8.341 : 1
Gear Ratio (3rd)
6.646 : 1
Gear Ratio (4th)
5.639 : 1
Gear Ratio (5th)
4.985 : 1
Gear Ratio (6th)
4.278 : 1
Horsepower
120 HP
Peak Torque
87 ft-lbs (118 Nm)
Peak Torque RPM
6,000 rpm
Transmission/Final Drive
2.647 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.4 gal (12.9 L)
Ground Clearance
6.5 in (165 mm)
GVWR
948 lb (430 kg)
Lean Angle
43°
Overall Height
51 in (129.5 cm)
Overall Length
87.5 in (2223 mm)
Overall Width
32.7 in (830 mm)
Rake/Trail
25.3° / 3.9 in ( 99.9 mm)
Seat Height (Laden)
30.7 in (780 mm)
Weight (Dry Weight / Running Order)
486 lbs (221 kg) / 518 lbs (235 kg)
Wheelbase
60 in (1,524 mm)
Brakes
Front Brakes
Brembo Dual 320mm t5 Rotor / 4 Piston Caliper
Rear Brakes
Brembo Single 260mm t5 Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Sportec M9 RR 120/70ZR17 58W
Front Wheel
Cast 17 in x 3.5 in
Rear Tires
Metzeler Sportec M9 RR 180/55ZR17 73W
Rear Wheel
Cast 17 in x 5.5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Ohlins Fully Adjustable Inverted Telescopic Cartidge Fork
Front Travel
120 mm
Rear Suspension
Ohlins Fully Adjustable Piggyback IFP
Rear Travel
120 mm
Features
Color / Graphics
Carbon Fiber
Factory Warranty
2 Years, Unlimited Miles
Gauges
N/A
Infotainment
4 in Touchscreen powered by RIDE COMMAND. Model year 2023 bikes include a complimentary 1-year trial of RIDE COMMAND+ (after which, fees apply) which includes features like live weather/traffic and intuitive destination search,. Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, Taillight, Turn Signals
Standard Equipment
Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stabilitiy Control, Traction Control, Wheelie and rear lift Mitigation, USB Charge Port, Cruise Control
2023 Indian FTR R Carbon – Totalmotorcycle.com Europe Specifications/Technical Details
Engine
Engine Type Liquid Cooled V-Twin
Displacement 1203 cc
Bore x Stroke 102 mm x 73.6 mm
Compression Ratio 12.5:1
Electronic Fuel Injection System Closed loop fuel injection / 60 mm bore
Performance
Peak Torque RPM 6000 rpm
Peak Torque 118 Nm
Drivetrain
Primary Drive Gear Drive Wet Clutch
Clutch Assist & Slip, Multi-Plate
Gear Ratio (Overall)
1st 12.270 : 1
2nd 8.341 : 1
3rd 6.646 : 1
4th 5.639 : 1
5th 4.985 : 1
6th 4.278 : 1
Final Drive 2.647:1
Suspension
Suspension: Front – Type/Travel Ohlins Fully Adjustable Inverted Telescopic Cartridge
Suspension: Rear – Type/Travel Ohlins Fully Adjustable Piggyback IFP / 120mm
Chassis
Brakes/Front Brembo Dual 320mm t5 Rotor / 4 Piston Calliper
Brakes/Rear Brembo Single 260mm t5 Rotor / 2 Piston Calliper
Front Tyres Metzeler Sportec 120/70ZR17 58W
Rear Tyres Metzeler Sportec 180/55ZR17 73W
Wheels Cast Black with Indian Motorcycle Red Pinstripe (17 in x 3.5 in / 17 in x 5 in)
Exhaust 2-into-1, Catalyst in collector
Dimensions
Wheelbase 1525 mm
Seat Height 780 mm
Ground Clearance 165 mm
Overall Length 2223 mm
Overall Width 830 mm
Overall Height 1295 mm
Lean Angle 45°
Rake 25,3°
Trail 99.9 mm
Fuel Capacity 13.0L
GVWR 430kg
Weight (Empty tank / full of fuel) 221 kg / 235 kg
Features
Colour / Graphics Carbon Fiber
Factory Warranty 2 years
Standard
Standard Equipment Ride Modes (Rain, Standard, Sport), Lean Angle Sensitive ABS, Stability Control, Traction Control, Wheelie Control with Rear Lift Mitigation, USB Charge Port, Cruise Control)
Lights LED Headlight, Taillight, Turn Signals
Electrical
Gauges N/A
Infotainment 4″ Touchscreen powered by RIDE COMMAND
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
