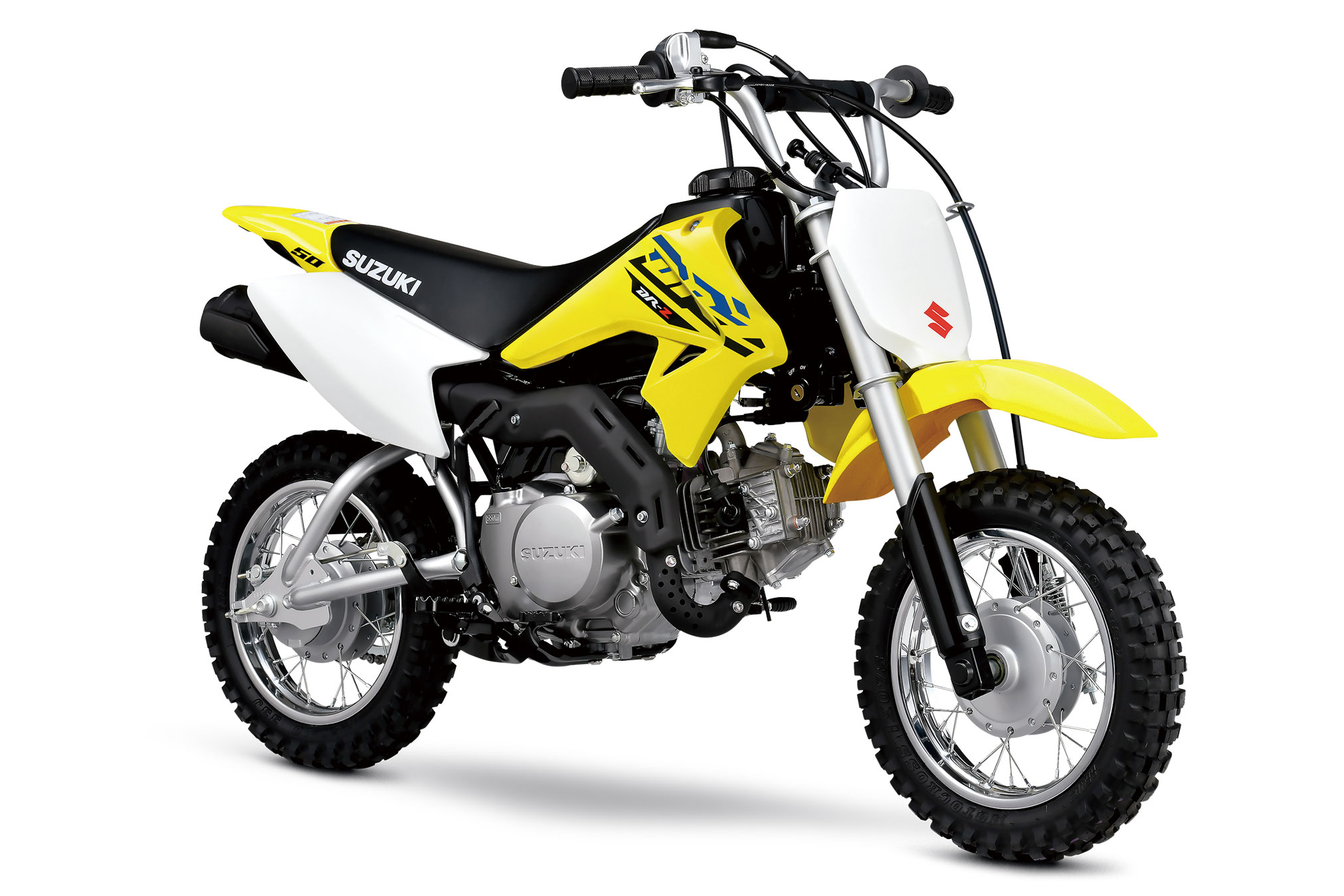

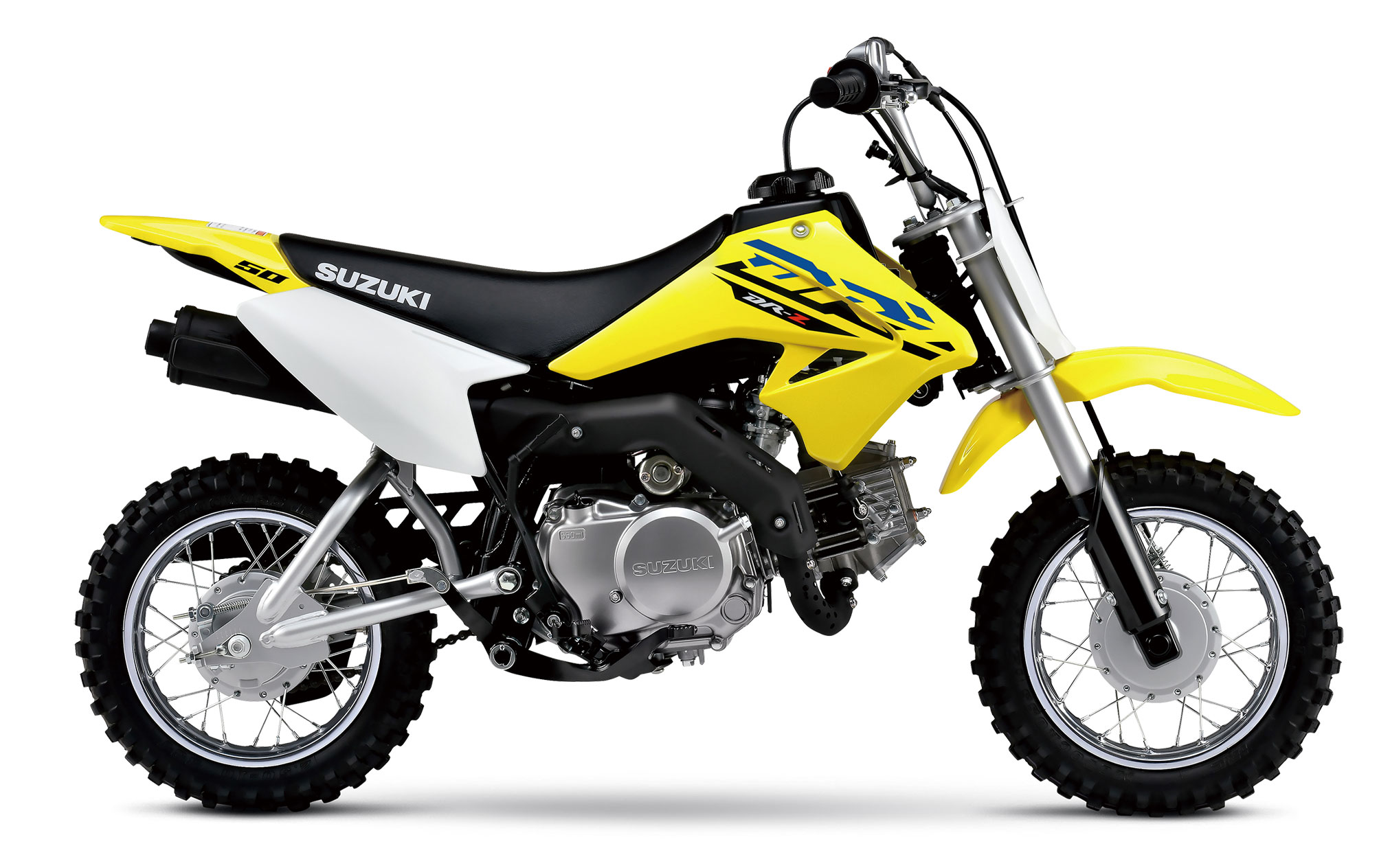

2023 Suzuki DR-Z50: LUCKY YOU.
Introducing the 2023 Suzuki DR-Z50…
The ideal way to introduce young, beginning riders to the sport of motorcycling, the 2023 Suzuki DR-Z50 wraps big bike looks around a platform developed to keep adults in control of the ride. This compact, Suzuki-built mini-bike brings ease and convenience to riders just getting started on two wheels. With an automatic clutch, three-speed transmission, electric starting, and a low 22-inch seat height, this race-styled bike will help build confidence and riding ability for young, supervised riders. The 49cc engine delivers a smooth, controllable power band, and adult supervisors can adjust its power level so young riders can learn at a proper pace.
This motorcycle can be in the family for years, thanks to its rugged construction and sturdy 10-inch wheels; the Suzuki DR-Z50 combines a reliable engine with quality running gear that’s built to last. The DR-Z50 is the ideal way to get your whole family involved in motorcycling!
2023 Suzuki DR-Z50 Totalmotorcycle.com Key Features
RELIABLE ENGINE
Powered by a reliable, 49cc, four-stroke engine, the DR-Z50 has plenty of torque to deliver the right level of controllable performance for a younger rider. Clean-burning four-stroke engine is EPA Emissions and California red sticker compliant.
ADJUSTABLE THROTTLE LIMITER
The DR-Z50’s engine has a smooth power band with peak power that can be controlled via the adjustable throttle limiter that allows supervising adults to control engine output to suit the rider’s ability.
ELECTRIC START
Starting the DR-Z50 requires a simple push of the electric start button. Riders can also kick-start the bike, so a fun day of riding is always available.
KEYED IGNITION
Adult supervision is essential, so young riders get off to a safe and fun start to motorcycling. The DR-Z50 provides the security of a keyed ignition, so the engine can’t run unless an adult has switched it on.
INVERTED FRONT FORKS
Inverted front forks have a RM-Z-inspired design to produce enjoyable riding on a variety of terrain surfaces, with 3.8 inches of front wheel travel to absorb bumps.
AUTOMATIC CLUTCH
The easy-to-use automatic clutch smoothly transmits power through the three-speed transmission, so beginning riders learn key-shifting techniques, while discovering the joy of riding.
LIGHT WEIGHT
Don’t be fooled by the DR-Z50’s light weight: It has a durable steel frame and swingarm designed to carry a wide range of riders and can easily tackle a variety of riding conditions.
2023 Suzuki DR-Z50 Totalmotorcycle.com Features and Benefits
Powered by a reliable, 49cc, four-stroke engine, the DR-Z50 has plenty of torque to deliver the right level of controllable performance for a younger rider.
The DR-Z50’s engine has a smooth power band with peak power that can be controlled via the adjustable throttle limiter that allows supervising adults to control engine output to suit the rider’s ability.
Starting the DR-Z50 requires a simple push of the electric start button. Riders can also kick-start the bike, so a fun day of riding is always available.
Adult supervision is essential, so young riders get off to a safe and fun start to motorcycling. The DR-Z50 provides the security of a keyed ignition, so the engine can’t run unless an adult has switched it on.
Clean-burning four-stroke engine is EPA Emissions compliant.
The 2023 DR-Z50 is eligible for California off-highway vehicle (OHV) registration.
Spark-arrestor equipped muffler is environmentally friendly, yet has a pleasant exhaust note.
TRANSMISSION FEATURES
The easy-to-use automatic clutch smoothly transmits power through the three-speed transmission, so beginning riders learn key-shifting techniques, while discovering the joy of riding.
CHASSIS FEATURES
Inverted front forks have a RM-Z-inspired design to produce enjoyable riding on a variety of terrain surfaces, with 3.8 inches of front wheel travel to absorb bumps.
Aggressive RM-Z-inspired styling with bright yellow bodywork and complementary black, blue, and red graphics let the rider enjoy a big bike look and appeal.
Don’t be fooled by the DR-Z50’s light weight: It has a durable steel frame and swingarm designed to carry a wide range of riders and can easily tackle a variety of riding conditions.
Low 22-inch seat height puts entry-level riders at ease. A slightly forward-leaning riding position allows for maximum rider mobility.
Strong braking performance is provided by front and rear drum brakes. Adjustable front brake lever fits a variety of different-sized hands for optimum young rider control.
SAFETY INFORMATION
The DR-Z50 is designed for use by children and off-road use only—do not use on public roads. Single rider only—weight limit 40 kg (88 pounds).
The DR-Z50 is not recommended for children under age seven. Parental supervision is required during operation.
Rider must always wear a helmet, eye protection, and protective clothing. Ride safely and be thoughtful of others.
ADDITIONAL FEATURES
6-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*
*Subject to separate coverage for certain parts and the exclusions and limitations described in the New Off-Road Motorcycle Limited Warranty.
A variety of Genuine Suzuki Accessories for DR-Z50 families are available, including a large selection of Suzuki logo apparel.
2023 Suzuki DR-Z50 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $2499 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
Engine49cc, 4-stroke, air-cooled, single cylinder, OHC
Bore x Stroke0 mm x 41.8 mm (1.53 in. x 1.64 in.)
Compression Ratio7:1
Fuel SystemMikuni VM13, single carburetor
StarterElectric with back-up primary kickstarter
LubricationWet sump
ClutchAutomatic clutch
Transmission3-speed constant mesh
Final DriveChain, DID 428DS, 78 links
Suspension FrontInverted telescopic, coil spring
Suspension RearSwingarm type, coil spring, oil damped
Brakes FrontDrum brake
Brakes RearDrum brake
Tires Front50 – 10 33J, tube type
Tires Rear50 – 10 33J, tube type
Fuel Tank Capacity0 L (0.8 US gal.)
ColorChampion Yellow No. 2
IgnitionElectronic ignition (CDI)
Spark PlugNGK CR7HSA or DENSO U22FSR-U
Overall Length1320 mm (52.0 in.)
Overall Width580 mm (22.8 in.)
Overall Height790 mm (31.1 in.)
Wheelbase935 mm (36.8 in.)
Ground Clearance135 mm (5.3 in.)
Seat Height560 mm (22.0 in.)
Curb Weight54 kg (119 lb.)
Warranty6-month limited warranty
ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)
2023 Suzuki DR-Z50 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
Type | 4-stroke, air-cooled, single cylinder, OHC |
Displacement | 49 cc |
Bore x Stroke | 39.0 mm (1.53 in) x 41.8mm (1.64 in) |
Compression Ratio | 9.7 : 1 |
Fuel System | Mikuni VM13, single carburetor |
Ignition | Electronic ignition (CDI) |
CHASSIS
Length | 1320 mm (52.0 po) |
Width | 580 mm (22.8 po) |
Height | 790 mm (31.1 po) |
Wheelbase | 935 mm (36.8 po) |
Seat Height | 560 mm (22.0 po) |
Curb Mass | 54 kg (121 lbs) |
Suspension Front | Inverted telescopic, coil spring |
Suspension Rear | Swingarm type, coil spring, oil damped |
Brakes Front | Drum Brakes |
Brakes Rear | Drum Brakes |
Tires Front | 2.50-10 33J |
Tires Rear | 2.50-10 33J |
Fuel Tank | 3.0 L (0.8 US gal.) |
WARRANTY
6 months factory warranty
2023 Suzuki DR-Z50 – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
