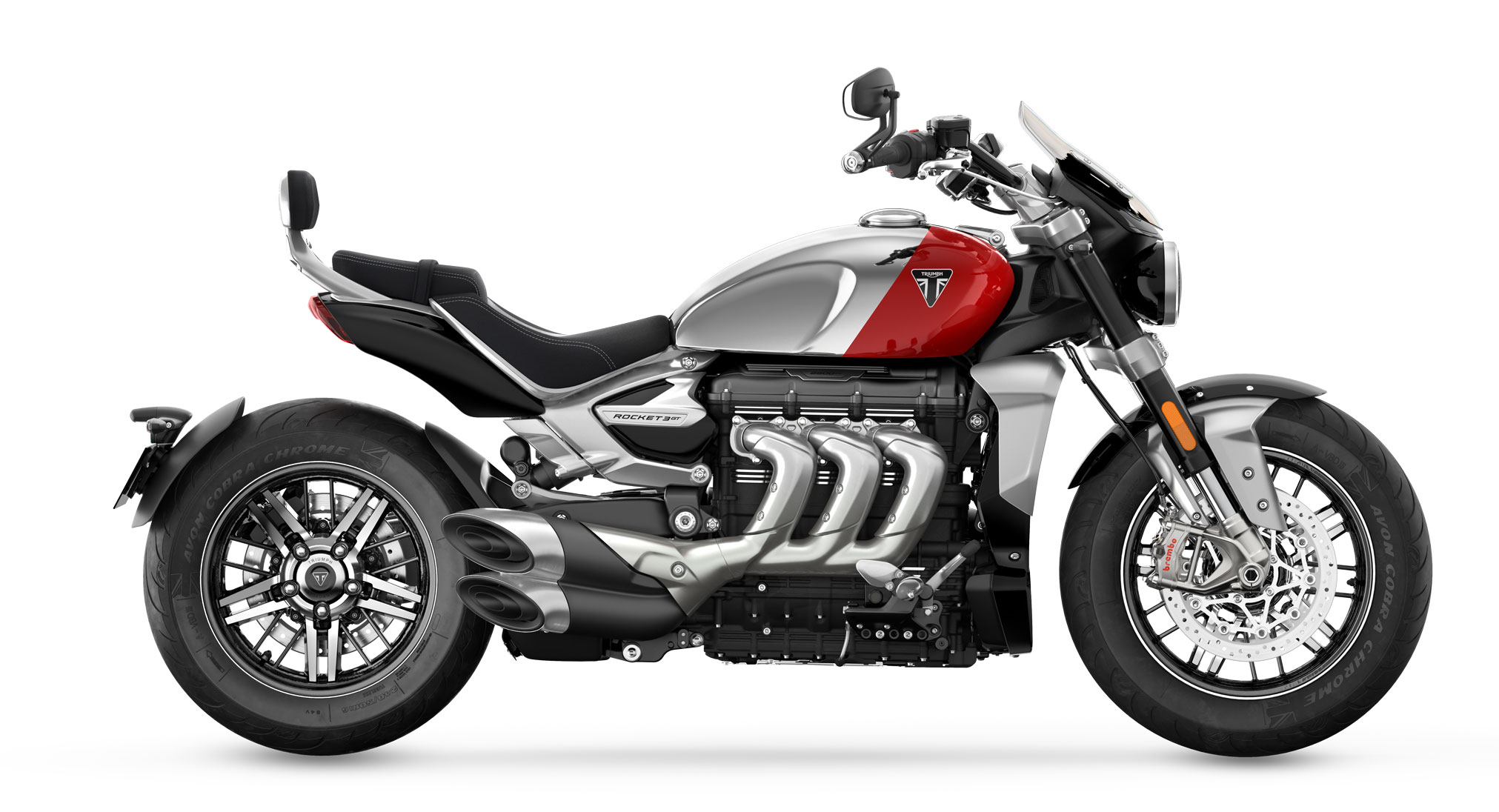

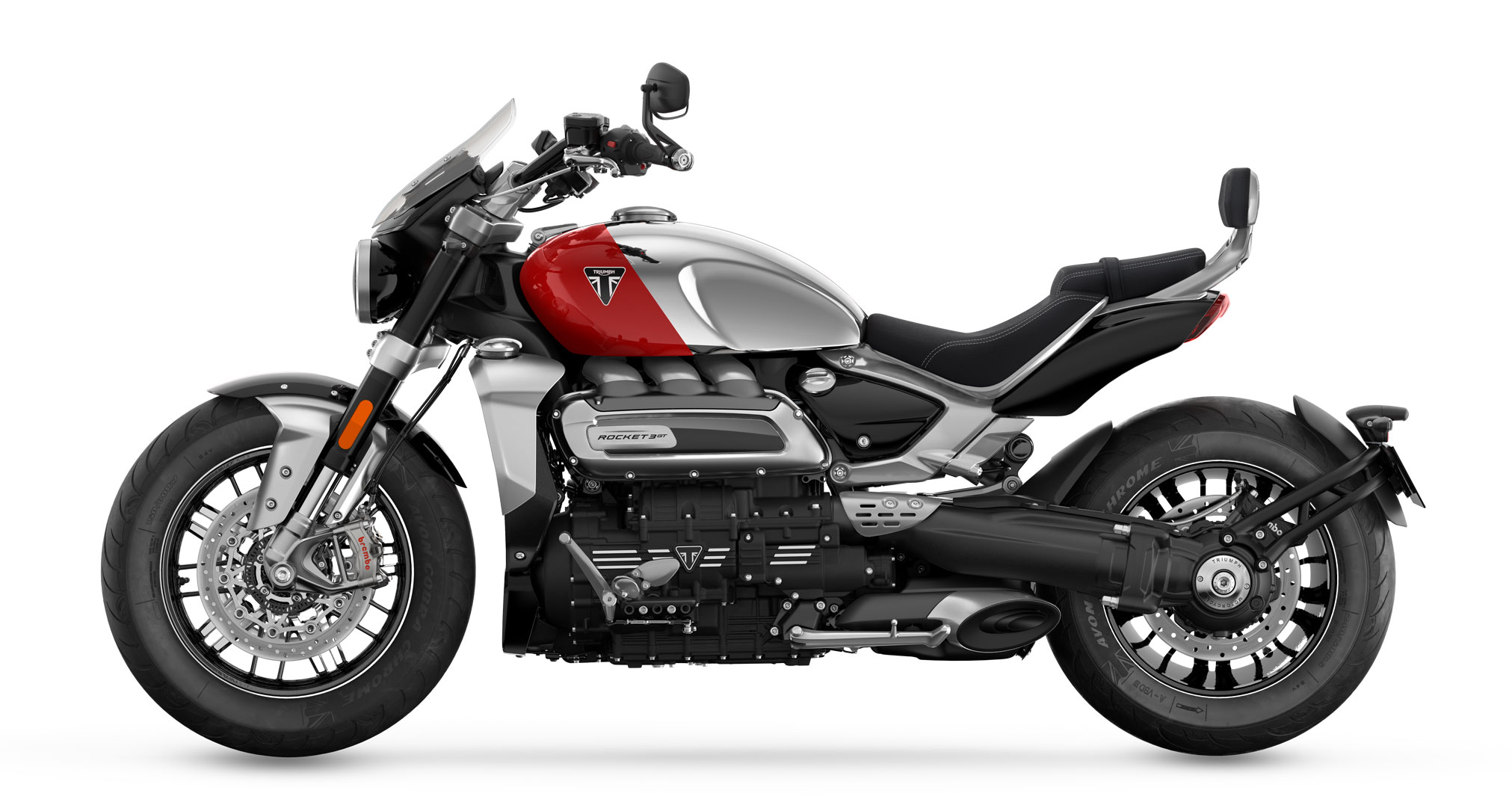

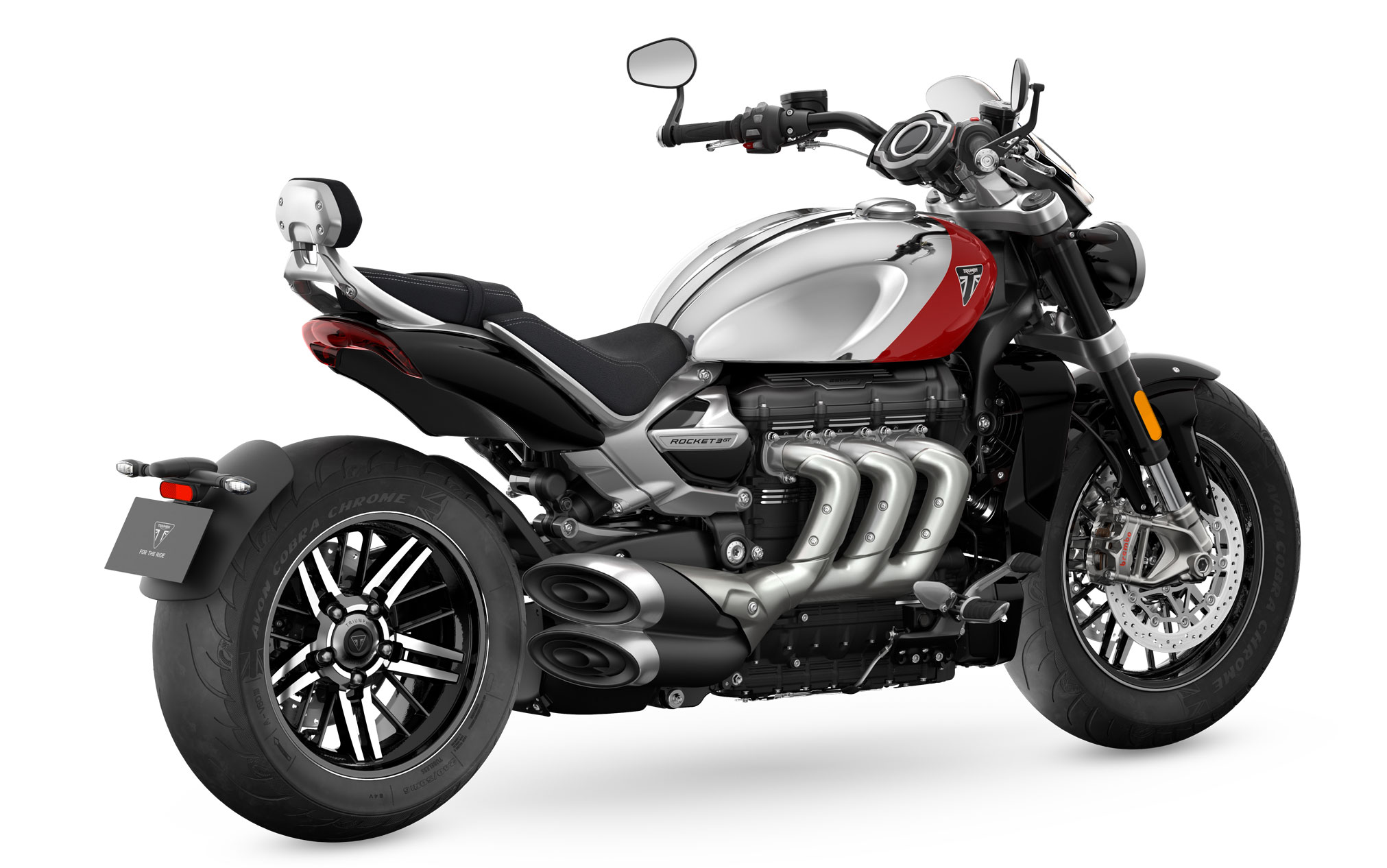

2023 Triumph Rocket 3GT Chrome Edition: FLAWLESS TOURING PERFORMANCE.
Introducing the 2023 Triumph Rocket 3GT Chrome Edition…
Muscular presence and brutal power, in complete laid-back comfort. The Rocket 3 GT redefined the cruiser category, with the incredible numbers of its spec sheet and its effortless touring capability.
Now, new for 2023, and available for one year only, the Rocket 3 GT Chrome Edition sits alongside the Rocket 3 R beautifully, sharing the same flawless full chrome tank with an eye-catching and distinctive Diablo Red.
Jet Black headlight bowls, fly screen, front mudguard, radiator cowls, side panels and rear bodywork complement the lustrous red and chrome perfectly, while Matt Aluminium Silver fork guards and upper radiator cowls highlight the stunning lines and tie-in beautifully with the matching exhausts and intakes.
The largest capacity of any production motorcycle in the world, the Rocket 3 delivers record-breaking torque, and the premium specification and technology to match. Ride-by-wire throttle, plus optimised cornering traction control and ABS ensure safety in all conditions while the four riding modes can be changed to suit conditions and rider preference.
High-quality components feature across the motorcycle, with two-way adjustable Showa 47mm USD forks and a fully adjustable Showa piggyback monoshock, ensuring rider comfort, either solo or two-up with luggage.
Record-breaking performance, laid-back attitude and effortless touring capability. Now beautifully swathed in chrome, for one year only.
Braking is always assured and confidence-inspiring, thanks to the top-spec twin Brembo Stylema calipers, matched to 320mm discs.
Astonishing performance and presence, with incredible comfort, laid-back riding attitude and effortless touring capability.
The new Rocket 3 GT delivers astonishing performance and presence, incredible comfort, laid-back cruiser riding attitude, supreme touring capability, all while heralding the genesis of a new motorcycle legend.
This is an all-new class-creating riding experience, with the largest engine capacity ever seen on a production motorcycle and unparalleled world-leading torque figures that are an amazing 71% higher than the closest competition. An incredibly flat, rich torque curve reaches its peak at 4,000 rpm and holds maximum torque all the way through the mid-range to deliver effortless acceleration and response in any gear.
Peak power is 165 HP at 6,000 rpm (11% up on the previous generation), so the new Rocket 3 offers a thrilling ride with more power from a low 3,500 rpm and all the way up to a new higher redline of 7,000 rpm. It also features the most advanced technology and highest level of specification ever seen on a Rocket.
All these attributes contribute to the new Rocket 3 GT’s sublime touring capability and comfort for every day, any gear, easy riding. As a pure Triumph original, the new Rocket 3 GT is the pinnacle in style, muscular presence and finish… and you can further enhance this incredible ride with over 50 new custom Rocket 3 accessories adding even more style, practicality and touring capability.
THE ALL-NEW ROCKET 3 GT ENGINE
The Rocket 3’s 2,500cc triple is the world’s largest production motorcycle engine and is optimised to deliver 18kg mass savings over the previous Rocket generation, for thrilling performance and all-day, any gear, effortless touring capability.
ROCKET 3 GT INCREDIBLE ACCELERATION & TORQUE
With 221 Nm of peak torque, the Rocket 3 GT is the ultimate muscle roadster built to go even further, and tour with even more comfort. This is the world’s highest torque of any production motorcycle, delivered across the entire rev range in one smooth and seamless flow.
The amazing combination of engine power, torque delivery and advanced chassis set-up of the Rocket 3 GT delivers incredible acceleration and unparalleled performance.
TWO MAGNIFICENT ROCKETS
This is the genesis of an all-new generation of Triumph’s ultimate motorbike legend. Equipped with a world’s largest production motorcycle engine capacity of 2500cc, the new Rocket 3 line-up delivers the highest torque of any production motorbike and unparalleled acceleration with a beautifully smooth, responsive and incredibly refined ride.
The new Rocket 3 motorcycle range is in a class of its own, with truly imposing muscular presence and magnificent style. The rocket 3 brings a sublime feel and comfort for all-day easy riding.
Rocket 3
COMBINING THE HIGHEST LEVEL OF SPECIFICATION AND TECHNOLOGY WITH ALL OF TRIUMPH’S INCREDIBLE HANDLING.
ENGINE
Class-defining triple performance from the largest production motorcycle engine in the world.
TORQUE
The highest torque of any production motorbike delivered across the entire rev range in one smooth and seamless flow.
POWER
Thrilling performance with peak power that is 11% up on the previous generation Rocket.
WEIGHT
A transformation in handling capability is delivered by major weight savings achieved by an all-new aluminium frame and premium cast and forged components
2500 CC ENGINE
Class-defining triple performance from the largest production motorcycle engine in the world.
163 LB-FT PEAK TORQUE
The highest torque of any production motorcycle, delivered across the entire rev range in one smooth and seamless flow.
165 HP PEAK POWER
Thrilling performance with peak power that is 11% up on the previous generation Rocket.
88 LB LIGHTER
A transformation in handling capability is delivered by major weight savings achieved by an all-new aluminum frame and premium cast and forged components.
Launched in 2004, Triumph’s legendary Rocket III was a pure original with more muscle, presence and torque than any of the competition. Now, the all-new Rocket 3 R and Rocket 3 GT line-up heralds the genesis of a new motorcycle legend.
With the world’s largest production motorcycle engine at 2,500cc, the new Rocket 3s deliver more power, 11% up on the previous generation, and the highest torque of any production motorcycle you can buy with 221Nm @ 4,000 rpm. Combining imposing muscular stance and magnificent style, the highest levels of technology, Triumph’s class-leading handling, all of the Rocket’s world-renowned presence and all-day easy riding capability, the new Rockets are in a class of their own.
2023 Triumph Rocket 3GT Chrome Edition Totalmotorcycle.com Key Features
THE TRIUMPH CHROME COLLECTION
TEN BEAUTIFULLY HAND-CRAFTED AND DISTINCTIVE LIMITED EDITION MOTORCYCLES
Inspired by the classic custom look that has been a significant part of Triumph’s iconic history, from the original chromed tank of the 1937 Speed Twin to the 1960s Tritons, and all the way up to the birth of the custom classic generation, this new collection of beautiful, limited editions celebrates the craftsmanship and artistry that sits at the heart of Triumph’s DNA.
All available for one year only, each of the ten new limited edition motorcycles in this stunning collection bring a unique, bold and beautiful new take on the latest generation of Triumph’s legendary modern classic Bonneville line-up and world leading Rocket 3, with a hand-crafted and distinctive chrome scheme, accompanied by new Chrome Edition accessory kits.
Following high demand for the 2022 Gold Line limited editions, which brought brighter colours and beautifully hand-finished schemes to eight of Triumph’s most iconic modern classics, now 2023 sees the introduction of a new ten-model-strong range of stunning, limited edition motorcycles – the Chrome Collection.
Inspired by the custom chrome design heritage of the brands iconic past, the Chrome Collection celebrates Triumph’s state-of-the-art chrome-detailing facility and the expert teams of specialist design and manufacturing engineers who have perfected the process over many years, across hundreds of accessories, beautiful badges and detailing. The result is a flawless chrome finish every time – distinctive, stylish and exquisitely hand-crafted.
Encompassing Triumph’s legendary Bonneville line-up and the world leading Rocket 3, each of the ten new limited editions feature a unique Chrome Edition scheme, chosen specifically to reflect each model’s rich heritage, and exquisitely finished to reinforce Triumph’s renowned reputation for premium quality and exceptional detailing. Together with the thrilling performance, neutral handling and modern capability of the modern classics range, these stunning specials combine contemporary design with nostalgic echoes of the Bonneville’s deep and rich history.
Available to order now, these exclusive limited editions are available for one year only and will be coming into dealerships around the world from late 2022/early 2023.
Two new class-defining Rocket 3s
- Rocket 3 R – The ultimate muscle roadster, with instantaneous world-leading torque, incredible control, comfort and capability.
- Rocket 3 GT – Astonishing performance and presence, with sublime comfort,laid-back cruiser riding attitude and even more effortless touring capability.
The biggest production motorcycle engine in the world
- The all-new 2,500cc triple engine delivers incredible acceleration and performance
- The highest torque of any production motorcycle you can buy with 221 Nm @ 4,000 rpm
- Thrilling power with 167 PS @ 6,000 rpm, 11% up on previous generation
- Distinctive new hydroformed exhaust headers, delivering a deep growling triple sound
Pure muscular presence and magnificent style
- Dominating new Rocket 3 imposing silhouette, poise and stance
- Signature design features, including twin LED headlights, innovative sculpted 3-header exhaust run, hidden folding pillion footrests and 20-spoke cast aluminium wheels with imposing 240mm rear tyre
- Comfortable and interchangeable twin and single seat set-ups
- Premium finish and detailing
Phenomenal handling and commanding ride
- More than 40kg lighter than its predecessor
- The highest specification of equipment, including top spec Brembo Stylema® Monobloc brakes and adjustable Showa suspension
- Ride-enhancing technology, including 2nd generation TFT instruments with illuminated switch cubes, Optimised Cornering ABS & Traction Control, four riding modes (Road, Rain, Sport and Rider-configurable), all-LED lighting, Hill Hold control, cruise control, keyless ignition and heated grips as standard on the GT (heated grips are accessory fit on the R)
50+ dedicated new Rocket 3 accessories
- New comprehensive luggage range and all new accessories for enhanced comfort, practicality, style and security
- New ‘Highway’ inspiration kit, showcasing the extensive range of touring capability
2023 Triumph Rocket 3GT Chrome Edition Totalmotorcycle.com Features and Benefits

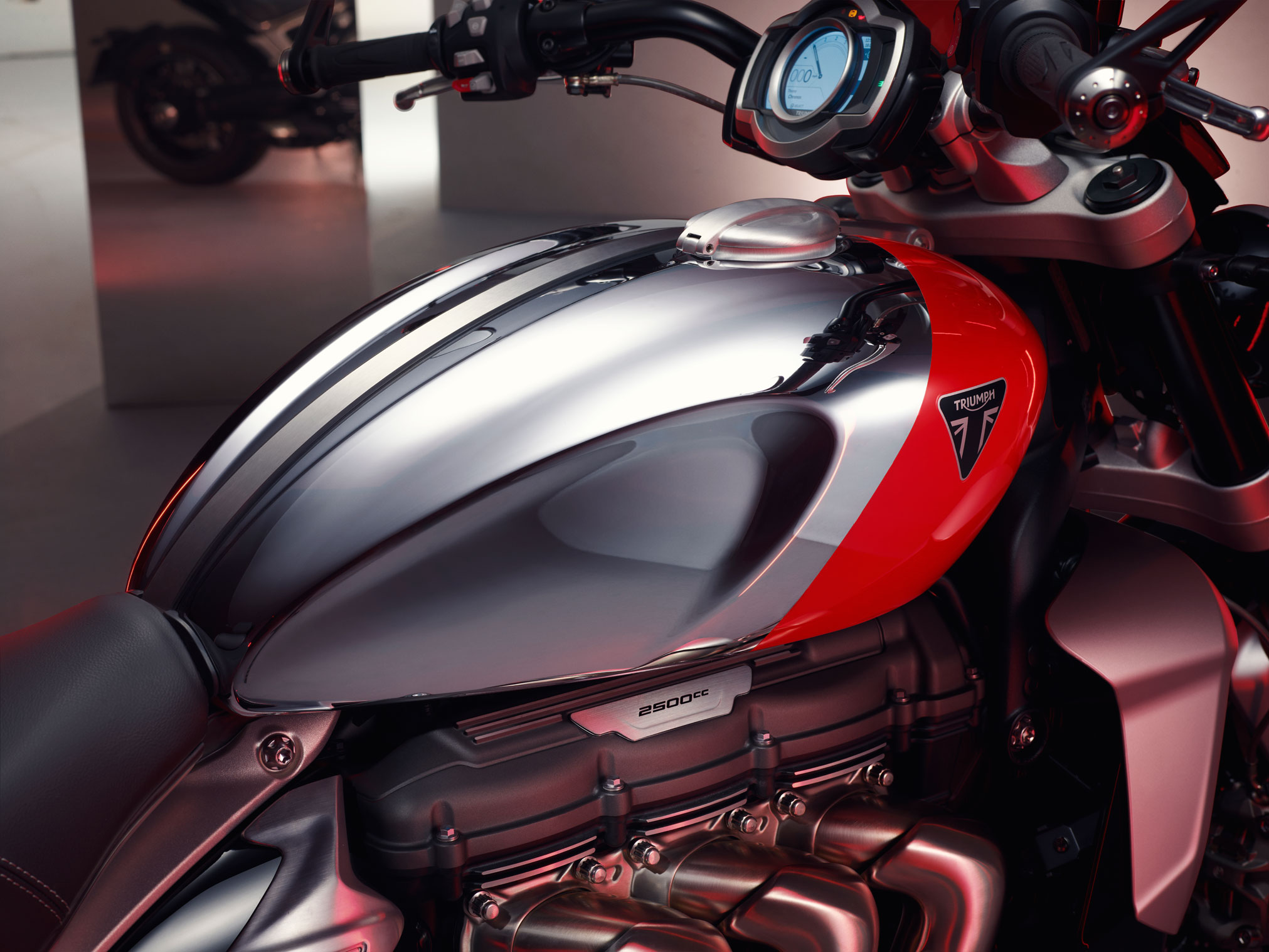

- Striking chrome fuel tank with eye-catching and distinctive Diablo Red accent
- Complemented with Jet Black headlight bowls and fly screen, front mudguard, radiator cowls, side panels and rear bodywork
Two Magnificent Choices
The new Rocket 3 line-up introduces two amazing all-new model choices. The Rocket 3 R delivers instantaneous world-leading torque, incredible control, comfort and capability, while the Rocket 3 GT is built to go even further, in more comfort, with even more effortless touring capability.
The Biggest Production Motorcycle Engine In The World
Both new Rocket 3 models are equipped with the all-new 2,500cc triple engine, which offers even higher capacity and performance than its predecessor – for amazing acceleration and all-day any-gear effortless riding, two-up or on your own.
The new Rocket 3 engine brings an amazing step up in peak power with 167 PS @ 6,000 rpm, which is 11% up on its predecessor. With more power from a low 3,500rpm, and all the way up to a higher red line of 7,000rpm, the new Rocket 3 delivers a staggering level of performance.
The Rocket 3 engine also has the highest torque figure of any production motorcycle available to buy, with 221 Nm – an astounding 71% more than its closest competition. With an incredibly flat and rich torque curve, reaching a peak at 4,000rpm, it holds maximum torque all the way through the mid-range, delivering effortless acceleration and response in any gear.
This is the world’s biggest production motorcycle engine featuring several mass optimised performance enhancements; including a new crankcase assembly, new lubrication system comprising dry sump and integral oil tank and new balancer shafts – together giving an 18kg engine weight saving over the previous generation.
The distinctive hydroformed three-header exhaust run is an iconic design detail on both the Rocket 3 R and Rocket 3 GT. This has been innovatively engineered for the perfect exhaust routing, flowing from the header into the combined cat box and onto the triple exit silencer, delivering a distinctive and unique deep growling triple Rocket soundtrack.
For exceptional levels of rider comfort and a commanding level of control over the Rocket 3’s powerful performance, a new ’torque assist’ hydraulic clutch provides the rider with a light clutch action by reducing lever effort. Furthermore, the Rocket 3’s all-new high-performance six-speed helical-cut gearbox is precision-engineered to be smoother, stronger and lighter than a standard gearbox, and is designed specifically to allow for the increased torque capacity of this new generation.
Just like all the latest range of Triumphs, the Rocket 3 engine delivers modern capability with ride-by-wire throttle, as well as a sensitively incorporated liquid cooling system for enhanced performance and an even more efficient ride.
Both Rocket 3 models feature a high first major service interval of 10,000 miles/16,000 km.
Pure Muscular Presence And Magnificent Style
With beautifully distinctive details, such as the new signature twin LED headlight, including Triumph maker’s mark triangle branding and the sculpted 3-header exhaust run, the new
Rocket 3 line-up has an incredibly imposing poise and stance.
In addition, the all-new lightweight multi-spoke cast aluminium wheels enhance the muscular contemporary style, with the Rocket 3 R’s wheels featuring a beautiful blacked-out finish, while the Rocket 3 GT model goes one step further with exposed machining on rim and spokes. Both models are also fitted with Avon Cobra Chrome tyres, developed especially for the new Rocket 3, with an imposing 240mm rear wheel width. The new tyres have exquisite detailing, and both feature a new tread pattern developed for great grip and high mileage durability.
Contributing to the Rocket 3’s clean, uncluttered styling are the beautifully engineered single-sided swingarm, with offset monoshock suspension and high-value finishing on the bevel box, The stylish internally wired handlebars further reinforce the bike’s muscular feel and commanding riding position. The Rocket 3 R model features roadster-style handlebars, while the Rocket 3 GT model has touring-oriented handlebars enhancing its touring comfort and capability.
Both new Rocket 3 models come with a sculpted rider and pillion saddle, featuring cast aluminium finishers under the seat and creating a unique flowing line through the bike. The set-up for each Rocket 3 has been designed to be easily changed from twin to single seat set-up with optional addition of an accessory infill pad available to further enhance the single seat look. The Rocket 3 R features a roadster rider and pillion saddle, with a low 773mm seat height, while the Rocket 3 GT features a touring rider and pillion saddle set-up with an even more accessible 750mm seat height. The Rocket 3 GT additionally benefits from a brushed aluminium pillion backrest.
For maximum comfort for every rider, each Rocket 3 model offers a range of rider-adjustable ergonomics. The mid-foot controls of the Rocket 3 R have two vertical position settings to choose from (0mm / -15mm), while the Rocket 3 GT offers feet-forward foot controls with three horizontal position choices (-25mm / 0mm / +25mm), and also a height adjustable pillion backrest.
The new Rocket 3 range also benefits from Triumph’s class-defining level of finish and detailing, contributing to its magnificent style. These beautiful features include a muscular sculpted fuel tank with Triumph’s signature design DNA, brushed stainless steel tank strap and beautiful aluminium Monza-style cap, brushed aluminium air-box cover, brushed aluminium Monza-style coolant and oil caps, machined fins on the crankcases, head and cam cover, brushed exhaust heat shields and end caps, and elegant hidden folding pillion footrests with unique foldaway design.
Complementing their unique looks, each Rocket 3 motorcycle comes in a choice of two alternative premium paint schemes
Rocket 3 R
- Korosi Red
- Phantom Black
Rocket 3 GT
- Silver Ice and Storm Grey with a Korosi Red pinstripe decal
- Phantom Black
Phenomenal Handling And Commanding Ride
The all-new Rocket 3 R and GT include the highest-ever specification of premium brakes and suspension components, plus state-of-the-art ride-enhancing technology, all designed to deliver phenomenal handling, superior comfort and all-day touring capability.
Highest ever specification of chassis, suspension and brakes
With a weight saving of more than 40kg, the new Rocket 3 R and GT are both more than 13% lighter than the previous generation.
The Rocket 3 line-up features an all-new high-specification mass-optimised aluminium frame with an innovative design that contributes to the new Rocket 3’s overall weight saving and provides an incredible torque-to-weight ratio, over 25% higher than the closest competition.
Furthermore, the new Rocket 3 motorcycles feature a fully adjustable Showa monoshock rear suspension unit with piggyback reservoir (adjustable rebound, compression and preload), and 47mm adjustable Showa front forks (with rebound and compression adjustability) to deliver superior riding comfort and exceptional touring capability and handling.
Topping off the high-specification engineering innovation are the highest specification Brembo Stylema® calipers which are fitted to both new Rocket 3 models. In addition, this new design allows increased airflow around the brake pads which helps the calipers cool quicker for even better performance.
Ride Enhancing Technology
Taking the capability to the highest-ever level, the Rocket 3s feature a class-leading standard of rider-focused technology, including:
2nd generation TFT instruments
Both models feature Triumph’s latest generation full-colour TFT instruments, which is more sophisticated, more personalisable and offers much more functionality than the instruments on the previous generation. The TFT unit is angle-adjustable for optimum visibility and has a stylish design and two information layout themes that can be personalised, allowing the rider to update the start-up screen message with their name.
Optimised Cornering ABS – supported by an IMU
The Optimised Cornering ABS is fitted as standard on both Rocket 3 R and GT. This maintains the optimum braking performance, whatever the lean angle.
Optimised Cornering Traction Control – supported by an IMU
Both Rocket 3 models also feature Optimised Cornering Traction Control as standard. This maintains the optimum level of traction control for the lean angle of the bike.
IMU – Inertial Measurement Unit
An advanced Inertial Measurement Unit (IMU) developed in partnership with Continental, supports the optimum function of the Optimised Cornering ABS and Traction Control. This takes constant measurements of roll, pitch, yaw, lean angle and acceleration rates, responding with appropriate active safety features.
4 riding modes
Both models feature Road, Rain, Sport and Rider-configurable riding modes which adjust the throttle response and traction control settings to suit rider preference and riding conditions. The riding modes are easily changed on the move via the intuitive
illuminated switch cubes.
All-LED lighting with DRL* headlight
Both Rocket 3 models come with all-LED lighting, including a new twin LED headlight unit, tail light, indicators (*in applicable markets) and number plate light. The headlights also incorporate LED Daytime Running Lights (*in applicable markets) which provide excellent visibility and a distinctive light profile.
Hill Hold Control
Both models features hill hold control as standard. This feature prevents the bike rolling backwards for enhanced rider confidence and maximum control, even with a pillion and when fully loaded. The system applies the rear brake until sensing that the rider is starting to move off, and is activated using the front brake lever. The feature is switchable via the bike set-up menu.
Cruise Control
Electronic cruise control is fitted as standard to both Rocket 3 models. This feature reduces rider fatigue over long journeys and can be easily accessed while riding
for maximum convenience and safety.
Keyless ignition and steering Lock
Triumph’s keyless ignition system is fitted as standard on both models. The system recognises the proximity of the keyless fob and then enables ignition via the switch cube mounted start button. There is also the ability to disable the key’s wireless transmission function at the touch of a button for even greater security.
Heated grips
Heated grips are also fitted as standard to the Rocket 3 GT, and are available as an accessory on the Rocket 3 R. These are neatly integrated with a button on the left hand grip providing greater rider comfort, with two modes.
USB charging
Both new Rocket 3s feature a 5V USB power socket under the seat, for charging
personal equipment.
High specification optional accessories
Triumph Shift Assist
The Triumph Shift Assist allows ‘up and down’ gear changes without the use of the clutch, reducing the rider’s effort and fatigue and improving the overall riding experience and shift times. The feature can be fitted to both Rocket 3 models as an accessory.
World’s first integrated GoPro control system
The new Rocket 3 motorcycles come ready to be fitted with the ground-breaking motorcycle integrated GoPro control system, which is only available from Triumph. This feature enables GoPro camera operation, which is facilitated by an accessory fitted Bluetooth connectivity module. The connection and control is displayed on the TFT instruments, enabling intuitive video and photo operation via the switchgear.
Turn-by-turn navigation system
Powered by Google, this exclusive Triumph feature facilitates navigation through an accessory Bluetooth connectivity module. Once the rider has selected the route on the ‘My Triumph’ app, the instruments present turn symbols on the screen using simple graphic icons. With this system, the rider has at their disposal a navigation system, a route planner, their final destination and points of interest such as hotels, petrol stations and restaurants.
My Triumph app
For iOS™ and Android™ phones, riders can download for free the new My Triumph app, which delivers the connected navigation function. The navigation, route planner, final destination and points of interest (hotels, fuel, restaurants etc.) are all controlled by the rider through this app.
Google and Android are trademarks of Google LLC.
Integrated phone and music operation
The new Rocket 3s feature full Bluetooth phone integration, with clear display on the colour TFT instruments, and intuitive phone operation via the switchgear, allowing the rider to select music, control the volume and take calls. This is facilitated through an accessory fitted Bluetooth connectivity module.
Tyre Pressure Monitoring System (TPMS)
For enhanced rider safety and control, both Rocket 3 models can be fitted with the accessory TPMS.
50+ DEDICATED NEW ROCKET 3 ACCESSORIES
The new Rocket 3 R and GT can be personalised to suit the rider’s preferences with over fifty genuine Triumph accessories that have all been designed, engineered and tested alongside the development of these all-new motorcycles.
Accessories that enhance the Rocket 3’s luggage, comfort, practicality, style and security are all available from the global network of Triumph dealerships.
The new Rocket 3 luggage range:
- Innovative Triumph patented cast aluminium pannier ‘retractable & ‘lockable’ mounting system
- 20L sports panniers
- 12L magnetic tank bag
- Innovative Triumph patented 9L quick-release tail pack
- New comfort accessories include:
- Roadster and touring handlebars
- Touring and sport seat
- Rider seat pad
- Comfort pillion seat
- Passenger backrest and pads with billet machined plate
- Passenger backrest rack
- Forward and mid foot controls
- Knee pads
- New style accessories include:
- Sport screen
- LED indicators (*in applicable markets)
- New security accessories include:
- Track+ Thatcham approved tracker with 24/7 monitoring by UK-based secure call-centre
- Protect+ Thatcham approved alarm system
- U-lock
- Disc lock
- Alarm disc lock
- Chain and lock
- Secure ground anchor
New Highway Inspiration Kit
To showcase the additional level of touring capability that can be added to the Rocket 3, we’ve combined a selection of luggage and touring focused accessories that riders can use as the starting point to design their own Rocket 3 R & GT, or to have fitted by their dealer as a complete set.
The Highway inspiration kit includes:
- Luggage rack
- Sports panniers
- Pannier mount kit
- Triumph Shift Assist
- Triumph TFT Connectivity System
2023 Triumph Rocket 3GT Chrome Edition – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $25000 USD
Canada MSRP Price: $29200 CDN
Europe/UK MSRP Price: £22,200 (On The Road inc 20% Vat)
ENGINE & TRANSMISSION
Type Inline 3-cylinder, water-cooled, DOHC
Capacity 2458 cc
Bore 110.2
Stroke 85.9
Compression 10.8:1
Max Power EC 165 HP (123 kW) @ 6,000rpm
Max Torque EC 163 LB-FT @ 4,000rpm
System Ride-by-Wire, fuel injected
Exhaust Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive Shaft, bevel box
Clutch Wet, multi-plate hydraulically operated, torque assist
Gearbox 6-speed
CHASSIS
Frame Full aluminium frame
Swingarm Single-sided, cast aluminium
Front Wheel 17 x 3.5in cast aluminium
Rear Wheel 16 x 7.5in cast aluminium
Front Tire 150/80 R17 V
Rear Tire 240/50 R16 V
Front Suspension Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel.
Rear Suspension Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Front Brakes Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
DIMENSIONS & WEIGHTS
Width Handlebars 34.8in (886mm)
Height Without Mirror 42in (1066 mm)
Seat Height 29.5in (750mm)
Wheelbase 66in (1677mm)
Rake 27.9 º
Trail 5.3in (134.9mm)
Dry Weight 648.2lb (294kg)
Tank Capacity 18 Litres
FUEL CONSUMPTION
Fuel Consumption 6.82 l/100km (32.43 MPG)
CO2 Figures EURO 5 Standard: 158g/km
SERVICE
Service Interval 10,000 miles/12 months service interval, whichever comes first
2023 Triumph Rocket 3GT Chrome Edition – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION
Type Inline 3-cylinder, water-cooled, DOHC
Capacity 2458 cc
Bore 110.2
Stroke 85.9
Compression 10.8:1
Max Power EC 165 HP (123 kW) @ 6,000rpm
Max Torque EC 163 LB-FT @ 4,000rpm
System Ride-by-Wire, fuel injected
Exhaust Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive Shaft, bevel box
Clutch Wet, multi-plate hydraulically operated, torque assist
Gearbox 6-speed
CHASSIS
Frame Full aluminium frame
Swingarm Single-sided, cast aluminium
Front Wheel 17 x 3.5in cast aluminium
Rear Wheel 16 x 7.5in cast aluminium
Front Tire 150/80 R17 V
Rear Tire 240/50 R16 V
Front Suspension Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel.
Rear Suspension Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Front Brakes Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
DIMENSIONS & WEIGHTS
Width Handlebars 34.8in (886mm)
Height Without Mirror 42in (1066 mm)
Seat Height 29.5in (750mm)
Wheelbase 66in (1677mm)
Rake 27.9 º
Trail 5.3in (134.9mm)
Dry Weight 648.2lb (294kg)
Tank Capacity 4.8 US gal
FUEL CONSUMPTION
Fuel Consumption 6.82 l/100km (32.43 MPG)
CO2 Figures EURO 5 Standard: 158g/km
SERVICE
Service Interval 10,000 miles/12 months service interval, whichever comes first
2023 Triumph Rocket 3GT Chrome Edition – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
Type Inline 3-cylinder, water-cooled, DOHC
Capacity 2458 cc
Bore 110.2 mm
Stroke 85.9 mm
Compression 10.8:1
Max Power EC 167PS /165 bhp (123 kW) @ 6,000rpm
Max Torque EC 221Nm @ 4,000rpm
System Ride-by-Wire, fuel injected
Exhaust Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive Shaft, bevel box
Clutch Wet, multi-plate hydraulically operated, torque assist
Gearbox 6-speed
CHASSIS
Frame Full aluminium frame
Swingarm Single-sided, cast aluminium
Front Wheel 17 x 3.5in cast aluminium
Rear Wheel 16 x 7.5in cast aluminium
Front Tyre 150/80 R17 V
Rear Tyre 240/50 R16 V
Front Suspension Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster. 120mm travel
Rear Suspension Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 107mm rear wheel travel.
Front Brakes Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
DIMENSIONS & WEIGHTS
Width Handlebars 886 mm
Height Without Mirror 1066 mm
Seat Height 750 mm
Wheelbase 1677 mm
Rake 27.9 º
Trail 134.9 mm
Dry Weight 294 kg
Tank Capacity 18 L
FUEL CONSUMPTION
Fuel Consumption 7.0 l/100km (40.4 mpg)
CO2 Figures EURO 5 Standard: 158g/km
SERVICE
Service Interval 10,000 miles (16,000 km) /12 months service interval, whichever comes first
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
