2023 Triumph Scrambler 900: FUN. BEAUTIFUL. CAPABLE.
Introducing the 2023 Triumph Scrambler 900…
The newly re-named Scrambler 900 comes in three colours, with a classic Triumph Jet Black, a new Carnival Red and Jet Black scheme with striking and contemporary new graphics, plus a new Matt Khaki scheme that celebrates the Scrambler’s iconic off-road heritage.
With a modern scrambler design, rider-focused technology and intuitive handling, the New Street Scrambler is born for freedom and fun.
BORN FOR FREEDOM AND FUN
Thrilling torque-rich Bonneville performance. The new updated stylish and accessible urban Scrambler 900 is here.
“Guaranteed fun and a very successful look” Motociclismo.
Rugged off-road attitude, cool versatility and iconic style, with the capability and performance for all-road fun.
Introducing for model year 2023, a new and exciting range of colour options. These new colours come hand-in-hand with a new name for our class-defining 900cc model. From model year 2023, the Street Scrambler is named Scrambler 900.
Scrambler 900 (previously Street Scrambler)

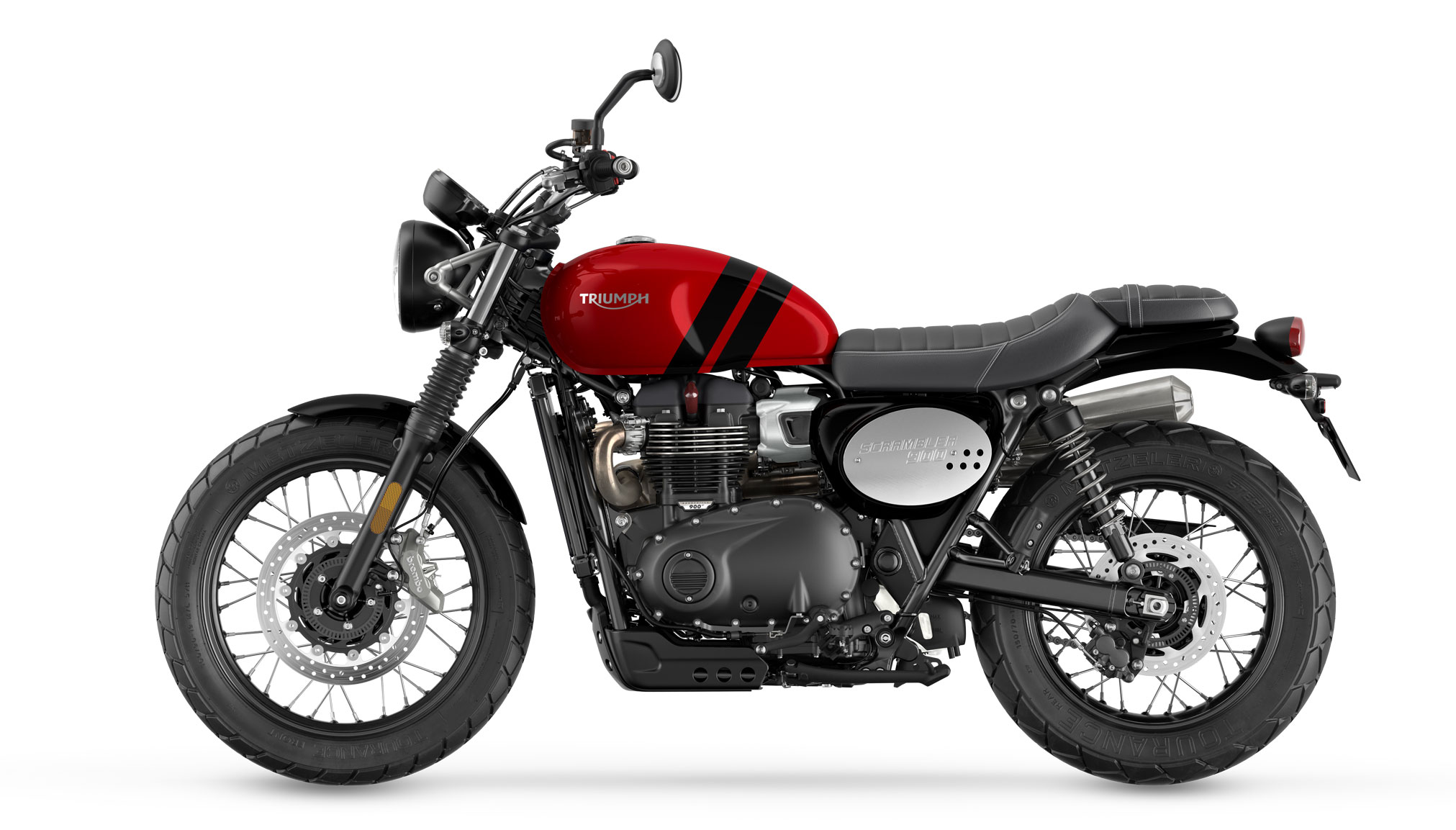

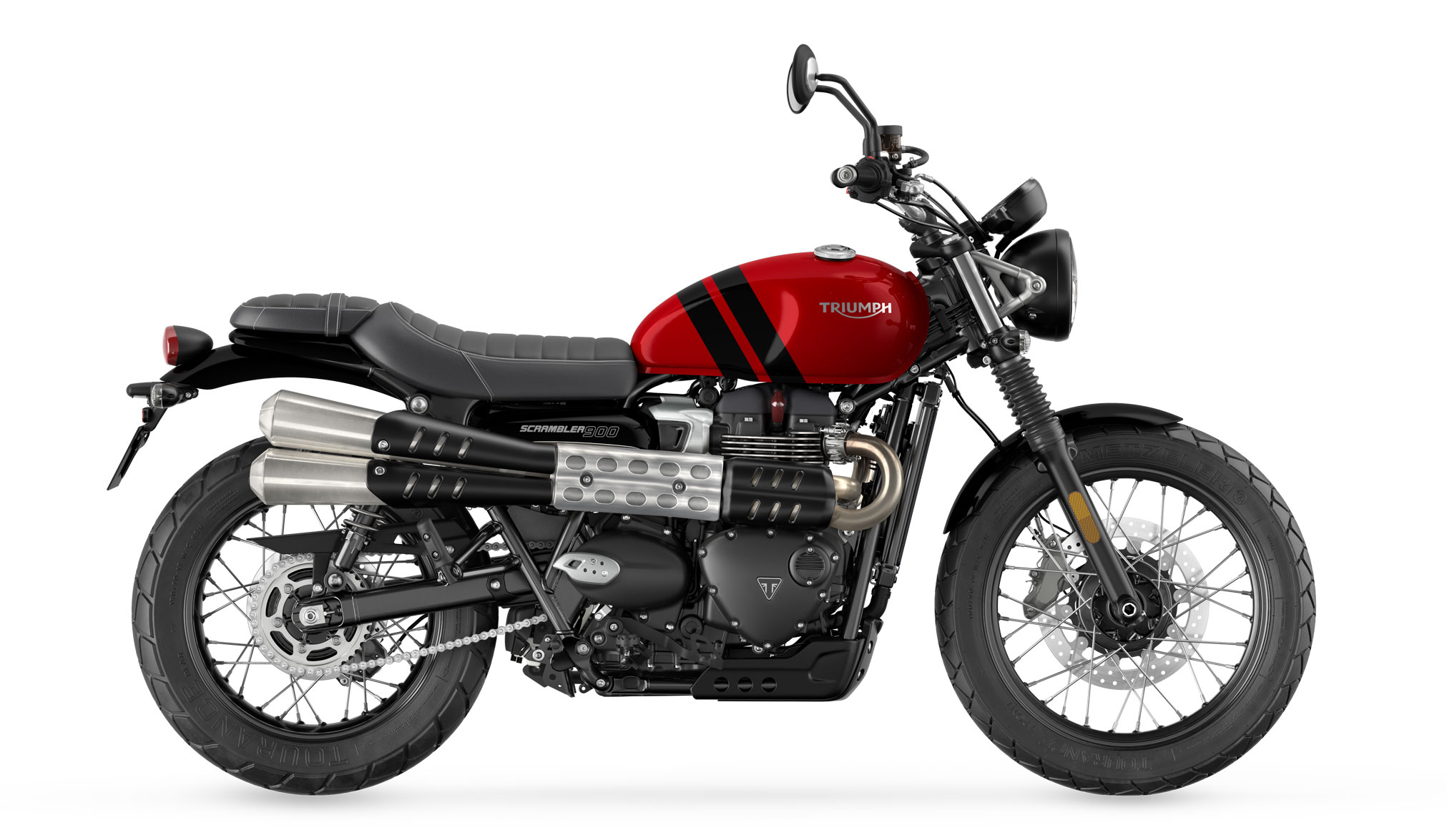

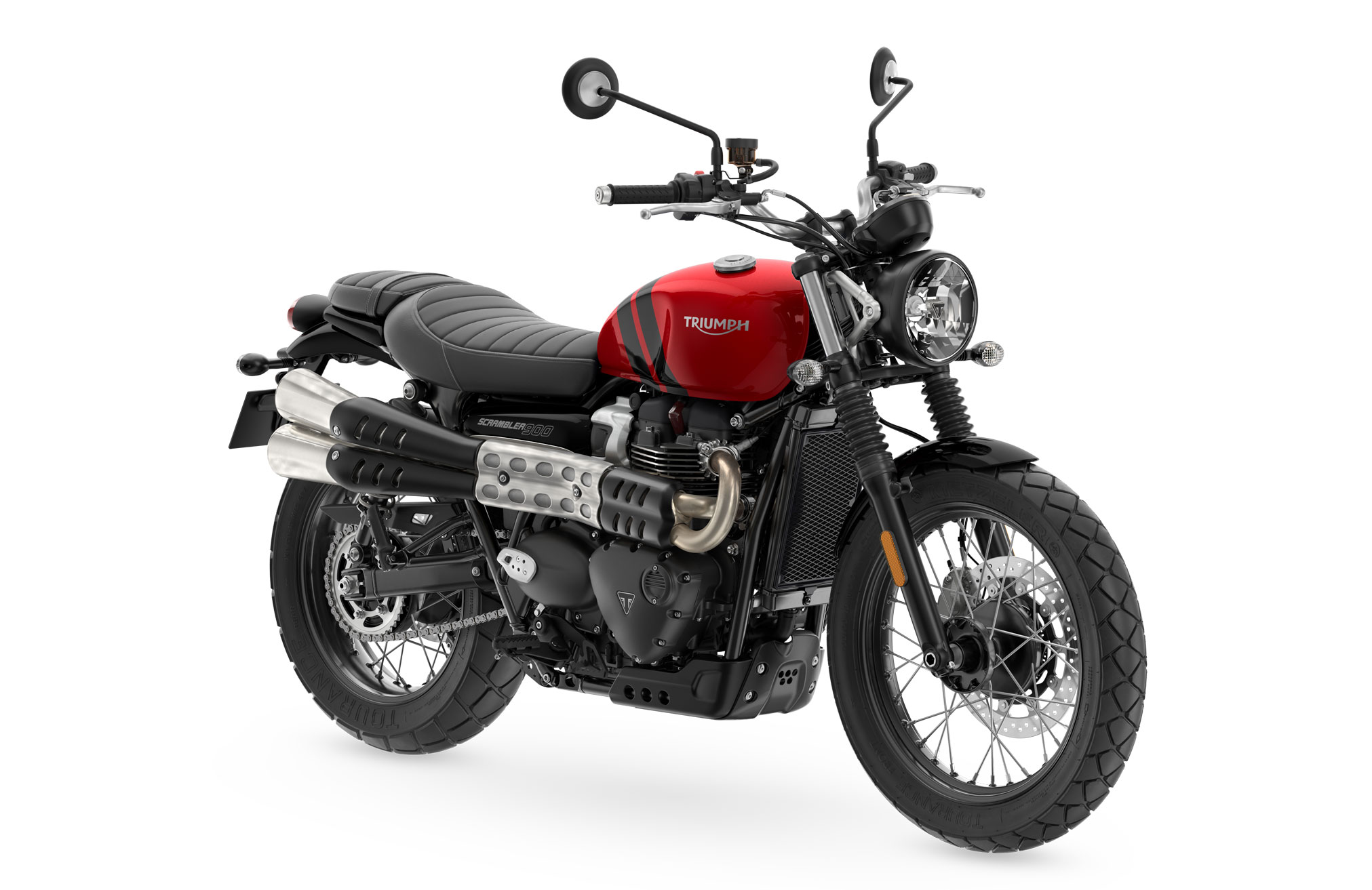

For model year 2023, the newly re-named Scrambler 900 comes in three colours, with a classic Triumph Jet Black, a new Carnival Red and Jet Black scheme with striking and contemporary new graphics, plus a new Matt Khaki scheme that celebrates the Scrambler’s iconic off-road heritage.
The new Carnival Red and Jet Black paint scheme includes a Carnival Red fuel tank with contemporary Jet Black stripe detailing and Jet Black side panel, frame cowl and mudguards.
The iconic new Matt Khaki colour scheme features a Matt Khaki fuel tank with Matt Jet Black side panel, frame cowl and mudguards.
2023 Triumph Scrambler 900 Totalmotorcycle.com Key Features
- Carnival Red & Jet Black NEW
- Matt Khaki NEW
- Jet Black
| Engine | 900cc twin engine (Euro 5 compliant) |
| Compliance | A2 compliant (Accessory fit conversion kit) |
| Suspension | Cartridge front forks and preload-adjustable twin rear shocks |
| Brakes | Brembo front brake and switchable ABS |
| Clutch | Torque assist clutch |
| Traction Control | Ride-by-wire throttle with switchable traction control |
| Riding Modes | 3 riding modes (Road, Rain and Off-Road) |
| Lighting | LED rear light |
| Service | 10,000 miles/12 months service interval, whichever comes first |
| Immobilizer | Immobilizer and under seat USB charging |
EXCITING NEW COLOURS AND NEW NAMES FOR TRIUMPH’S MODERN CLASSICS RANGE
Introducing for model year 2023, a new and exciting range of colour options for the entire Bonneville range, building on the great success of last year’s Gold Line Editions, which responded to customer requests for brighter, more distinctive, and more elegant colour options across the legendary Modern Classics line-up.
These new colours come hand-in-hand with new names for two of the class-defining 900cc models, chosen to better represent the family connections across Triumph’s iconic Bonneville line-up, and their specific engine capacities. From model year 2023, the Street Twin is re-named Speed Twin 900, and the Street Scrambler is re-named the Scrambler 900.
2023 Triumph Scrambler 900 Totalmotorcycle.com Features and Benefits
CONTEMPORARY SCRAMBLER STYLE
Iconic Triumph scrambler silhouette with clean lines and rugged stance, minimal bodywork and modern finishes. Beautifully evolved with even more premium custom style, finish and detailing.
SCRAMBLER 900
The Scrambler 900 comes with a host of beautiful new details, including a new side panel with aluminium number-board, featuring an embossed logo, new headlight brackets and throttle body finishers.
900CC BONNEVILLE ENGINE
Thrilling Bonneville performance. 64 HP of peak power and 59 LB-FT peak torque. The Euro 5 compliant 900cc high torque engine delivers strong power and torque across the whole rev range.
HIGH SPECIFICATION
Ride-by-wire technology provides great rideability, safety and control, while Euro 5 engine updates deliver lower emissions for 2021.
COMFORTABLE RIDERS ERGONOMICS
Accessible low seat height ensures comfortable “standover” ergonomics for feet flat on the floor maneuverability, providing confidence-inspiring handling.
SCRAMBLER CHASSIS SETUP
Unique Scrambler frame, wide aluminum handlebars and mid-position pegs deliver a commanding riding position for urban roads plus greater capability on unsurfaced trails.
ADJUSTABLE SUSPENSION
Preload adjustable twin shocks with grey springs and black shrouds, deliver 4.7 inches rear wheel travel for a comfortable ride on any terrain.
WIRE SPOKED WHEELS
19” wire-spoked front wheel adds to the commanding riding position while Metzeler Tourance tires provide maximum mileage on the street and great traction on light off-road surfaces.
CONFIDENCE INSPIRING RIDE
High-specification Brembo front brake, ride-by-wire technology and torque-assist clutch for improved rideability and more comfort over long journeys.
LOW SEAT HEIGHT
Accessible low 31.1 inch seat height gives great confidence, control and handling for all riders.
RIDER FOCUSED TECHNOLOGY
Switchable ABS can be turned off reflecting the bike’s dual-purpose capabilities, while switchable traction control manages torque when traction is compromised.
ADVANCED RIDING MODES
Choose from road, rain or off-road modes to suit conditions. Road and rain modes adjust throttle map and traction control while off-road mode turns off ABS and traction control.
2023 Triumph Scrambler 900 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $11,295 USD
Canada MSRP Price: $12,845 CDN
Europe/UK MSRP Price: £9,595 (On The Road inc 20% Vat)
| ENGINE & TRANSMISSION | |
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Capacity | 900 cc |
| Bore | 84.6 |
| Stroke | 80 |
| Compression | 11.0:1 |
| Max Power EC | 65 PS / 64.1 bhp (47.8 kW) @ 7250 rpm |
| Max Torque EC | 80 Nm @ 3250 rpm |
| System | Multipoint sequential electronic fuel injection |

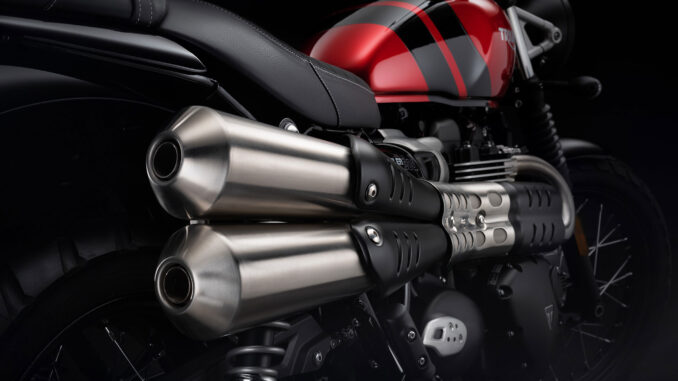

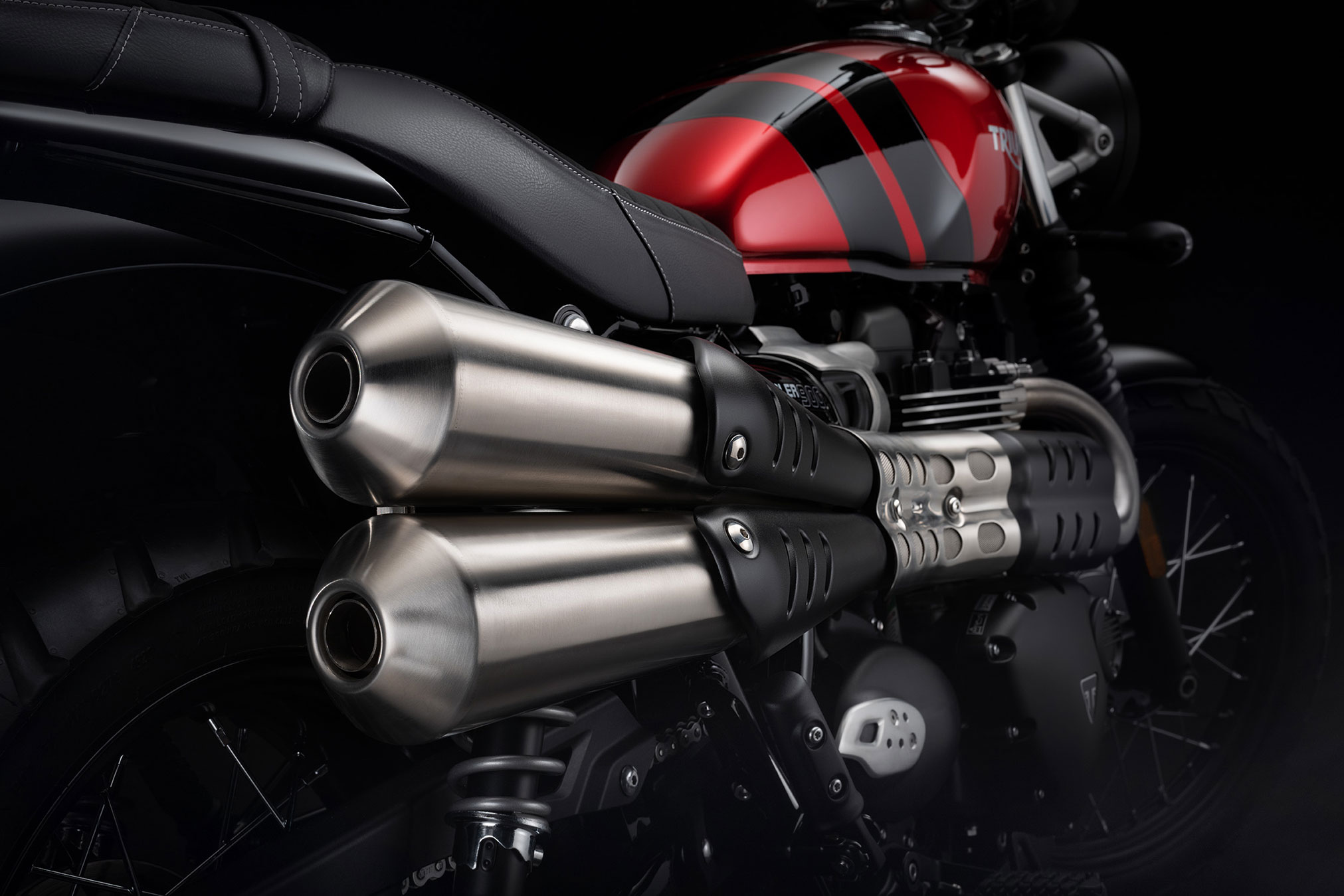

| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin high-level brushed stainless steel silencers |
| Final Drive | O ring chain |
| Clutch | Wet, multi-plate torque assist clutch |
| Gearbox | 5 speed |
| CHASSIS | |
| Frame | Tubular steel, with twin cradles |
| Swingarm | Twin-sided steel fabrication |
| Front Wheel | Spoked steel rims, 19’’ x 2.5’’ |
| Rear Wheel | Spoked steel rims, 17’’ x 4.25’’ |
| Front Tire | 100/90-19 Metzeler Tourance |
| Rear Tire | 150/70 R17 Metzeler Tourance |
| Front Suspension | Ø 41mm forks with cartridge damping. 120mm travel |
| Rear Suspension | Twin shocks with adjustable preload. 120mm rear wheel travel |
| Front Brakes | Single Ø310mm floating disc, Brembo 4-piston fixed axial caliper, ABS |
| Rear Brakes | Single Ø255mm disc, Nissin 2-piston floating caliper, ABS |
| Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
| DIMENSIONS & WEIGHTS | |
| Width Handlebars | 835 |
| Height Without Mirror | 46.5” (1180mm) |
| Seat Height | 31.1” (790mm) |
| Wheelbase | 56.9” (1445mm) |
| Rake | 25.6 º |
| Trail | 109 |
| Tank Capacity | 3.17 gal (12 L) |
| Wet Weight | 492 lbs (223 kg) |
| FUEL CONSUMPTION | |
| Fuel Consumption | 54.7 mpg (4.3 liters/100km) |
| CO2 Figures | 99 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.” |
2023 Triumph Scrambler 900 – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Capacity | 900 cc |
| Bore | 84.6 |
| Stroke | 80 |
| Compression | 11.0:1 |
| Max Power EC | 65 PS / 64.1 bhp (47.8 kW) @ 7250 rpm |
| Max Torque EC | 80 Nm @ 3250 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin high-level brushed stainless steel silencers |
| Final Drive | O ring chain |
| Clutch | Wet, multi-plate torque assist clutch |
| Gearbox | 5 speed |
CHASSIS
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Frame | Tubular steel, with twin cradles |
| Swingarm | Twin-sided steel fabrication |
| Front Wheel | Spoked steel rims, 19’’ x 2.5’’ |
| Rear Wheel | Spoked steel rims, 17’’ x 4.25’’ |
| Front Tire | 100/90-19 Metzeler Tourance |
| Rear Tire | 150/70 R17 Metzeler Tourance |
| Front Suspension | Ø 41mm forks with cartridge damping. 120mm travel |
| Rear Suspension | Twin shocks with adjustable preload. 120mm rear wheel travel |
| Front Brakes | Single Ø310mm floating disc, Brembo 4-piston fixed axial caliper, ABS |
| Rear Brakes | Single Ø255mm disc, Nissin 2-piston floating caliper, ABS |
| Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
DIMENSIONS & WEIGHTS
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Width Handlebars | 835 |
| Height Without Mirror | 1180 |
| Seat Height | 790 |
| Wheelbase | 1445 |
| Rake | 25.6 º |
| Trail | 109 |
| Dry Weight | 492 lbs (223 kg) |
| Tank Capacity | 12 |
FUEL CONSUMPTION
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Fuel Consumption | 54.7 mpg (4.3 L / 100km) |
| CO2 Figures | 99 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.” |
SERVICE
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Service Interval | 10,000 miles/12 months service interval, whichever comes first |
2023 Triumph Scrambler 900 – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Capacity | 900 cc |
| Bore | 84.6 mm |
| Stroke | 80 mm |
| Compression | 11.0:1 |
| Max Power EC | 65 PS / 64.1 bhp (47.8 kW) @ 7250 rpm |
| Max Torque EC | 80 Nm @ 3250 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed stainless steel 2 into 2 exhaust system with twin high-level brushed stainless steel silencers |
| Final Drive | O ring chain |
| Clutch | Wet, multi-plate torque assist clutch |
| Gearbox | 5 speed |
CHASSIS
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Frame | Tubular steel, with twin cradles |
| Swingarm | Twin-sided steel fabrication |
| Front Wheel | Spoked steel rims, 19’’ x 2.5’’ |
| Rear Wheel | Spoked steel rims, 17’’ x 4.25’’ |
| Front Tyre | 100/90-19 Metzeler Tourance |
| Rear Tyre | 150/70 R17 Metzeler Tourance |
| Front Suspension | Ø 41mm forks with cartridge damping. 120mm travel |
| Rear Suspension | Twin shocks with adjustable preload. 120mm rear wheel travel |
| Front Brakes | Single Ø310mm floating disc, Brembo 4-piston fixed axial caliper, ABS |
| Rear Brakes | Single Ø255mm disc, Nissin 2-piston floating caliper, ABS |
| Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
DIMENSIONS & WEIGHTS
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Width Handlebars | 835 mm |
| Height Without Mirror | 1180 mm |
| Seat Height | 790 mm |
| Wheelbase | 1445 mm |
| Rake | 25.6 º |
| Trail | 109 mm |
| Tank Capacity | 12 L |
| Wet Weight | 223 kg |
FUEL CONSUMPTION
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Fuel Consumption | 4.3 litres / 100 km |
| CO2 Figures | 99 g/km “EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results.” |
SERVICE
| SCRAMBLER 900 Specifications | |
| Feature | Details |
| Service Interval | 10,000 miles/16,000 Km or 12 Months, whichever comes first |
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
