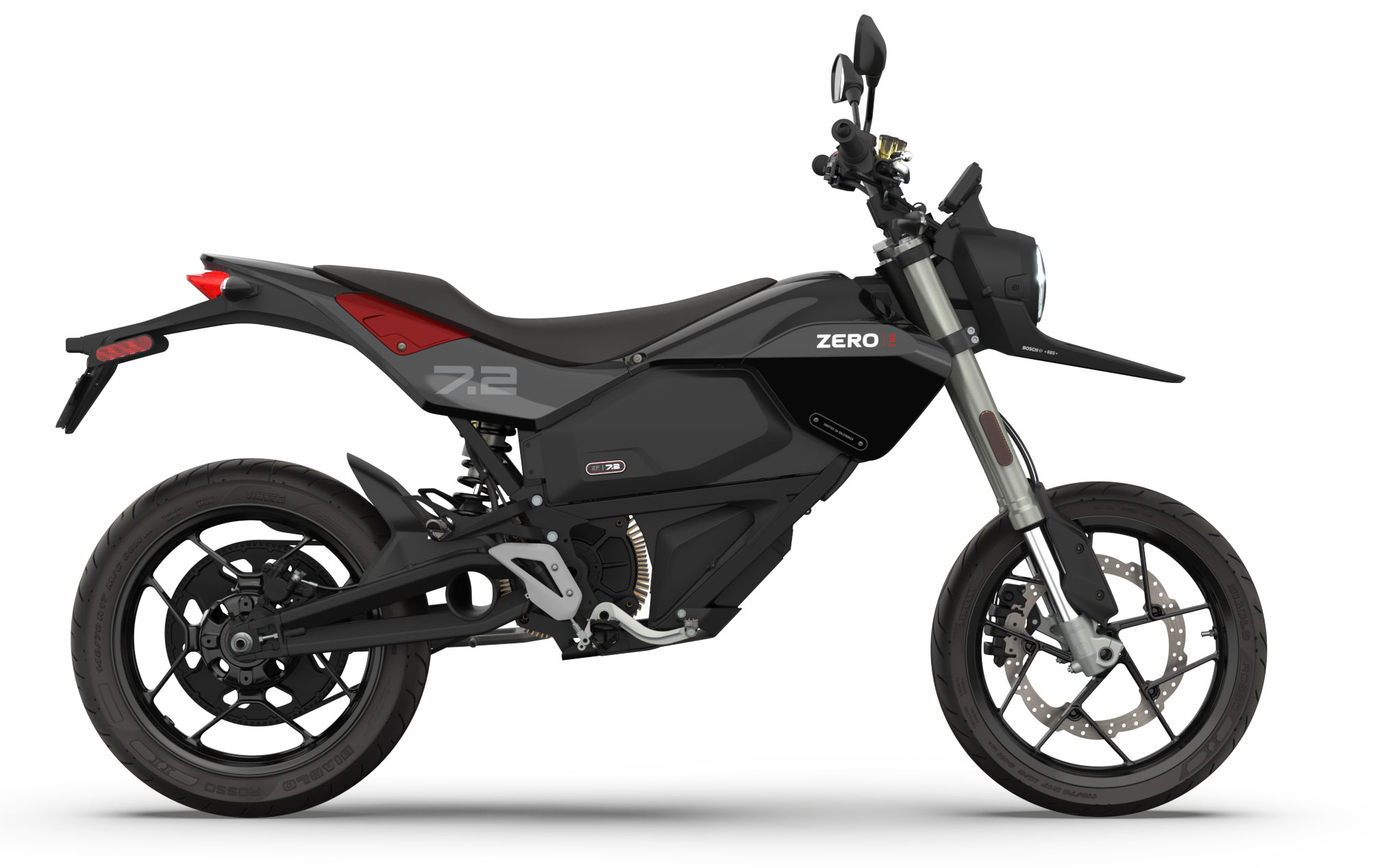

2023 Zero FXE: FUTURISTIC STEALTH eBIKE.
Introducing the 2023 Zero FXE…
When we partnered with award-winning design firm, Huge Design, they intended to craft the motorcycle of the future. The future has officially arrived. The FXE is both breathtaking in its profile as it is record-breaking in its performance. Such a combination of style and technology creates an experience that has never been seen in motorcycling, and only could have come from the worldwide leader in electric motorcycles and powertrains. The future has arrived.
The future isn’t dark, but the all-new 2023 FXE is. All new high gloss black makes our futuristic FXE stealthier than ever.
2023 Zero FXE Totalmotorcycle.com Key Features
161 KM
SEAT HEIGHT 836 MM
TOP SPEED (MAX) 137 KM/H
9.2 HOURS Standard charge time
78 FT-LB Peak torque
100% ELECTRIC POWERTRAIN
Low maintenance
CYPHER II
Operating system
CLUTCHLESS DIRECT DRIVE
Transmission
135 KG Curb weight
BOSCH Generation 9 ABS
5 YEARS/UNLIMITED MILES
Power pack warranty
2023 Zero FXE Totalmotorcycle.com Features and Benefits
After a few years, a ton of sketches, and stunning concept bike – the production version of Zero FXE was born, designed to advance the way we think about transportation.
Staying very true to the concept designs, the production-based FXE did not disappoint. With an equally breathtaking profile and performance, the FXE was a welcomed addition to the Zero line up.
Now, on the 1-year anniversary of the model that set the design standard for the future of electric motorcycles, the 2023 FXE comes in an all-new high gloss black, making our futuristic bike stealthier than ever.
DESIGN
Zero partnered with Bill Webb in 2018 on a Custom build of the Zero FXS. Ultimately we wanted to utilize the build to inspire elements of future Zero motorcycles. Many concept builds push the envelope so far it doesn’t translate to the reality of riding and functionality. Bill Webb took a different approach. He set out to create something that pushed the boundary but relatable and something that could become a reality. We were not surprised when the Motorcycle industry loved the bike. This enthusiasm went well beyond our industry.
THE BIKE OF TOMORROW. AVAILABLE TODAY.
ADVANCED DESIGN INSPIRED BY THE CONCEPT BUILD BY HUGE DESIGN IN SAN FRANCISCO. DESIGNED TO ADVANCE THE WAY WE THINK OF TRANSPORTATION. AFFORDABLE LUXURY HAS NEVER OFFERED SUCH AN UNCOMPROMISING COMBINATION OF PERFORMANCE AND STYLE.
TECHNOLOGY
Built on the foundation of the revolutionary Zero ZF 75-5 powertrain and Cypher II operating system, the road before the FXE is always bright thanks to new LED head and tail lights as well as a full color and bonded TFT dash to literally outshine motorcycles well above its station. Brains and brawn.
PERFORMANCE PROFILE
Transform performance profiles with the press of a button to perfectly conquer city streets or your local supermoto track. The Zero FXE is pre-programmed with Eco or Sport modes. Connect using your mobile device to customize performance or get stats on your ride.
EXPERIENCE
The FXE is lighter than any motorcycle with this much power, has no gears and clutch, and an upright riding position making it the most user-friendly vehicle on the road. This bike truly becomes a seamless extension of the rider. Gliding effortlessly through traffic has never been so fun. The FXE is the motorcycle rides as smooth as it looks.
ACCESSIBLE
THE MOST AFFORDABLE NEW MODEL FROM ZERO MOTORCYCLES, WORLDWIDE LEADER IN ELECTRIC MOTORCYCLES.
DASH
Full-color and bonded 5” TFT dash. The Zero FXE dash projects the specs you need: speed, state of charge, power output, selected riding profile, projected recharge time. Sync with your smartphone to turn it into a secondary customizable dash or view detailed ride stats.
MOTOR
The Zero FXE powerplant produces up to 78 ft-lb of torque. The air-cooled Interior Permanent Magnet (IPM) motor delivers impressive performance and fierce acceleration, which works in conjunction with regenerative braking to channel energy back into the battery.
No heavy, complicated or expensive liquid cooling. No routine maintenance. No fuss. This is the industry’s most efficient, powerful, and compact motor.
SUSPENSION
The Zero FXE’s Showa suspension offers outstanding articulation and full adjustability. With nearly 9 inches of rear travel, the Zero FXE offers superior damping to smooth out the road’s imperfections.
WHEELS AND TIRES
The Zero FXE’s responsive handling matches its lean, mean looks. Pirelli Diablo Rosso II tires are mounted on stylish cast alloy wheels to form a system that delivers maximum grip. A hollow front axle shaves unsprung weight to improve handling.
BRAKES
The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration under hard braking. Braking is actuated via levers that can be adjusted for improved ergonomics. ABS can be switched on or off by the rider.
DIRECT DRIVE
Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly accelerate with pure efficiency as energy quietly transforms into propulsion. The Zero FXE is direct drive. Its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt.
ONBOARD CHARGER
The Zero FXE’s discreetly accessible 650 W onboard charger can be plugged into any household outlet. Charge times can be slashed by using optional Quick Chargers.
FRAME
The Zero FXE’s precision-built aircraft-grade aluminum frame is an exercise in efficiency. When fully built the minimalist Zero FXE tips the scales at 298 poun
2023 Zero FXE – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $12995 USD
Canada MSRP Price: $16795 CAD
Europe/UK MSRP Price: £13685 GBP (On The Road inc 20% Vat)
Range
ZF7.2
City
100 miles (161 km)
Highway, 55 mph (89 km/h)
60 miles (97 km)
Combined
75 miles (121 km)
Highway, 70 mph (113 km/h)
40 miles (64 km)
Combined
57 miles (92 km)
Motor
ZF7.2
Peak torque
78 ft-lb (106 Nm)
Peak power
46 hp (34 kW) @ 4,300 rpm
Top speed (max)
85 mph (137 km/h)
Top speed (sustained)
75 mph (121 km/h)
Type
Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
Controller
High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration
Power system
ZF7.2
Power pack
Z-Force® Li-Ion intelligent integrated
Max capacity
7.2kWh
Nominal capacity
6.3 kWh
Charger type
650 W, integrated
Charge time (standard)
9.7 hours (100% charged) / 9.2 hours (95% charged)
With one accessory charger
4.1 hours (100% charged) / 3.6 hours (95% charged)
With max accessory chargers
1.8 hours (100% charged) / 1.3 hours (95% charged)
Input
Standard 110 V or 220 V
Drivetrain
ZF7.2
Transmission
Clutchless direct drive
Final drive
90T / 18T, Poly Chain® HTD® Carbon™ belt
Chassis / Suspension / Brakes
ZF7.2
Front suspension
Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping
Rear suspension
Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping
Front suspension travel
7.00 in (178 mm)
Rear suspension travel
8.94 in (227 mm)
Front brakes
Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc
Rear brakes
Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc
Front tire
Pirelli Diablo Rosso II 110/70-17
Rear tire
Pirelli Diablo Rosso II 140/70-17
Front wheel
3.00 x 17
Rear wheel
3.50 x 17
Dimensions
ZF7.2
Wheelbase
56.0 in (1,422 mm)
Seat height
32.9 in (836 mm)
Rake
24.4°
Trail
2.8 in (71 mm)
Weight
ZF7.2
Curb weight
298 lb (135 kg)
Carrying capacity
332 lb (151 kg)
Economy
ZF7.2
Equivalent fuel economy (city)
533 MPGe (0.44 l/100 km)
Equivalent fuel economy (highway)
213 MPGe (1.10 l/100 km)
Typical cost to recharge
$0.81
Pricing
ZF7.2
MSRP
$15,695
Warranty
ZF7.2
Standard motorcycle warranty
2 years
Power pack warranty
5 years/unlimited miles
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
