2023 Zero S: EVERYTHING IN LIFE IS INTERCONNECTED.

Introducing the 2023 Zero S…

The model that originally defined electric motorcycle street riding is still able to thrill riders all over the world. Stunning acceleration at any RPM, sharp lines and sporty ergonomics transform your daily ride into a thrill. This foundational powertrain delivers ranges up to 89 miles in the city and 45 miles on the highway.









2023 Zero S Totalmotorcycle.com Key Features

ZF 7.2

  • CURB WEIGHT 313 LB
  • SEAT HEIGHT 31.80 IN
  • TOP SPEED (MAX) 98 MPH
  • $0.81 Typical cost to charge
  • 78 FT-LB Peak torque
  • 1 HOUR CHARGE TIME With Charge Tank
  • 100% ELECTRIC POWERTRAIN Low maintenance
  • CYPHER II Operating system
  • 89 MILES City range
  • CLUTCHLESS DIRECT DRIVE Transmission
  • BOSCH Generation 9 ABS
  • 5 YEARS/UNLIMITED MILES Power pack warranty



ZF 7.2 Power Tank

  • CURB WEIGHT 357 LB
  • SEAT HEIGHT 31.80 IN
  • TOP SPEED (MAX) 98 MPH
  • $1.21 Typical cost to charge
  • 78 FT-LB Peak torque
  • 100% ELECTRIC POWERTRAIN Low maintenance
  • CYPHER II Operating system
  • 134 MILES City range
  • CLUTCHLESS DIRECT DRIVE Transmission
  • BOSCH Generation 9 ABS
  • 5 YEARS/UNLIMITED MILES Power pack warranty





2023 Zero S Totalmotorcycle.com Features and Benefits

PURE PERFORMANCE
Transform performance profiles with the press of a button to perfectly conquer city streets, urban arteries or twisty back roads. The Zero S is pre-programmed with Eco or Sport modes. Connect using your mobile device to customize performance or get stats on your ride.

PERFORMANCE PROFILES
Pure stealth. Propelled by the industry’s most advanced tech, the Z-Force® powertrain slingshots you forward. No shifting. All torque. Just smooth acceleration at the twist of a throttle. The Zero S strips away the noise, fumes and vibration so all you feel is the uninterrupted flow of the ride.

Transform performance profiles with the press of a button to perfectly conquer city streets, urban arteries or twisty back roads. The Zero S is pre-programmed with Eco or Sport modes. Connect using your mobile device to customize performance or get stats on your ride.

CHARGE UP TO 6X FASTER.
The Charge Tank option funnels up to 85 miles of riding into the Zero S for every hour of charging when plugged into a Level 2 charge station. One cup of coffee now equals ~30 miles of riding. Or, charge fully in as little as an hour depending on battery size. Learn more.

CHARGING. MEET HOUSEHOLD OUTLET.
No special charging equipment required. Your standard household outlets just became “fueling” stations that deliver daily rides at a fraction of the cost of gasoline. Plug in at night and start every day with a full “tank.” Learn more.

RIDE MORE. MAINTAIN LESS.
Goodbye costly powertrain maintenance and stale waiting room donuts. Sophisticated. Simple. The Z-Force® powertrain eliminates the greasy mess of fossil burners. No oil, spark plugs, clutches, filters, chain adjustments or expensive tune-ups. Instead, a carbon fiber belt directly connects the rear wheel to a motor that uses a single moving part to deliver torque at levels beyond conventional superbikes.

Always advancing. Code for the Z-Force® powertrain is constantly refined to deliver improved performance. The Zero App easily delivers the upgrades using your mobile device. Learn more.

BATTERY
Zero Motorcycles’ Z-Force® battery is the most power and energy dense in the EV industry. The Zero S comes with the ZF7.2 battery. Add a Power Tank accessory to expand battery capacity by 3.6 kWh.

The battery is designed to last and backed by a five-year, unlimited mileage warranty. The Zero S also features Long Term Storage Mode to optimize the battery’s state of charge and further improve long term battery health.

MOTOR
The impressive Z-Force® motor produces smooth power and up to 116 ft-lb with a design so efficient it only requires passive air-cooling. Roll on the throttle for massive acceleration. Roll off the throttle to progressively channel energy back into the battery.

No heavy, complicated or expensive liquid cooling. No fuss. No routine maintenance. This is the industry’s most efficient, powerful, and compact brushless motor.

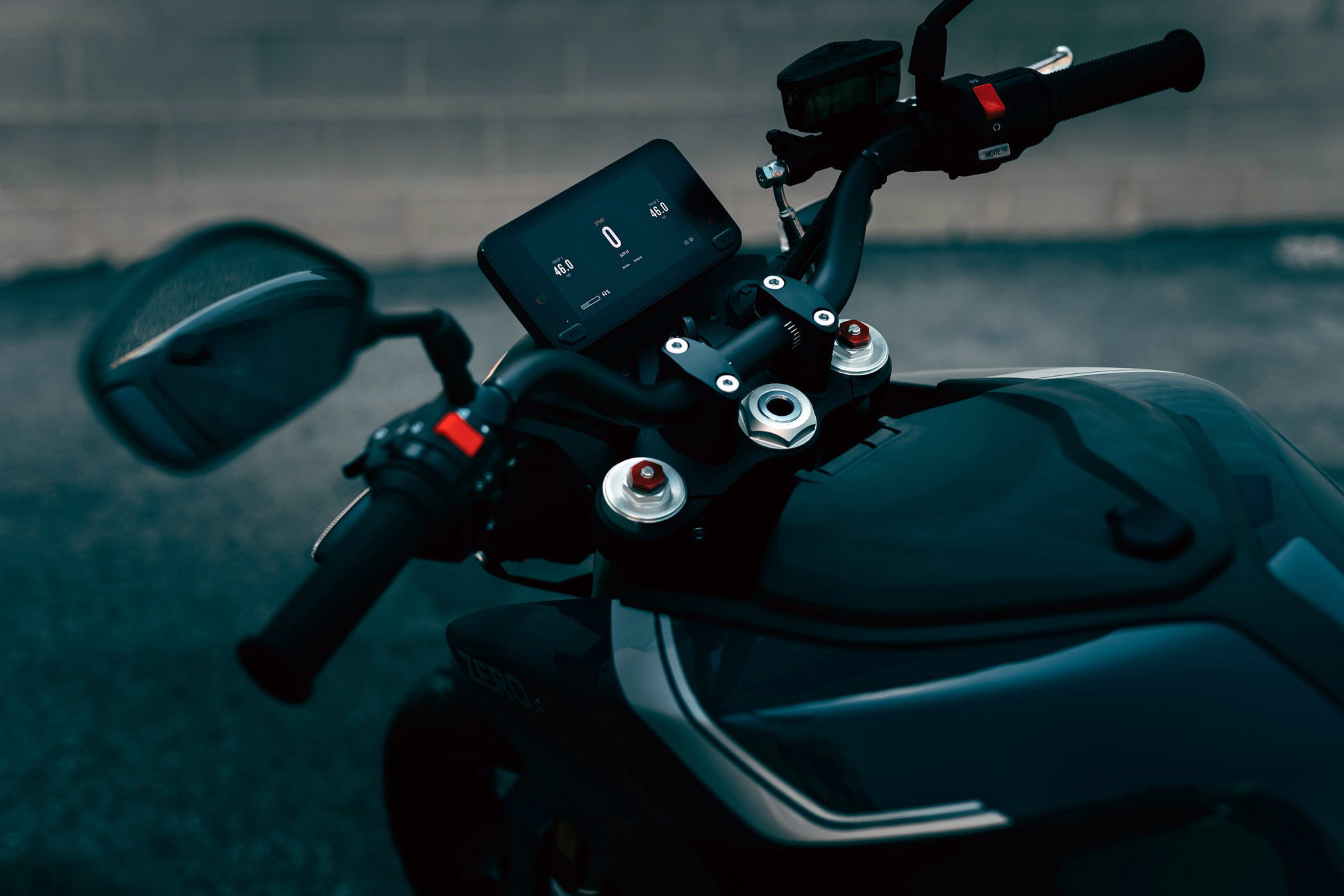

DASH
The Zero S comes equipped with a full color display to project the specs you need: speed, state of charge, power output, selected riding mode and more. Sync with your smartphone to customize the information that is displayed on your dash.

SUSPENSION
Zero collaborated with Showa to develop smooth suspension with superior small bump compliance and predictable control of bigger impacts. The entire suspension system can be fully and easily adjusted to glide over any city street or rip down your favorite twisty roads.

WHEELS AND TIRES
Corner with confidence. Pirelli Diablo Rosso II tires are mounted on stylish cast alloy wheels to form a system that delivers maximum grip. A hollow front axle shaves unsprung weight to improve handling.

BRAKES
The Bosch anti-lock brake system (ABS) delivers confident braking. Tested for just about any situation you can imagine, the system optimizes deceleration when you hit your brakes hard. Braking is actuated via levers that can be adjusted for improved ergonomics. ABS can be switched on or off by the rider.

DIRECT DRIVE
Strip away clutches, gears, shifting, chains and all their weighty complexities. Seamlessly rocket to speeds in excess of 100 mph with pure efficiency as energy quietly transforms into propulsion. The Zero S is direct drive. Its state-of-the-art motor connects directly to the rear wheel using a carbon fiber belt.

STANDARD CHARGE PORT
Simple. Subtle. The standard charge port is discrete. A lightweight cable easily connects the onboard charger to any standard household outlet. No additional charging equipment required.

THE TANK
No motorcycle “tank” on earth is more versatile. The standard Zero S tank is equipped with spacious lockable storage. Interested in faster charging or greater range? Swap the standard tank for either the Charge Tank option or







2023 Zero S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $12995 USD
Canada MSRP Price: $16795 CAD
Europe/UK MSRP Price: £16040 GBP (On The Road inc 20% Vat)

Range
ZF 7.2
ZF 7.2 POWER TANK

City

89 miles (143 km)

134 miles (216 km)



Highway, 55 mph (89 km/h)

54 miles (87 km)

82 miles (132km)



Combined

68 miles (109 km)

101 miles (163 km)



Highway, 70 mph (113 km/h)

45 miles (72 km)

67 miles (108 km)



Combined

60 miles (97 km)

90 miles (145 km)



Motor

ZF 7.2

ZF 7.2 POWER TANK



Peak torque

78 ft-lb (106 Nm)

78 ft-lb (106 Nm)



Peak power

46 hp (34 kW) @ 4,300 rpm

46 hp (34 kW) @ 4,300 rpm



Top speed (max)

98 mph (158 km/h)

98 mph (158 km/h)



Top speed (sustained)

72 mph (116 km/h)

72 mph (116 km/h)



Type

Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor

Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor



Controller

High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration

High efficiency, 550 amp, 3-phase brushless controller with regenerative deceleration



Power system

ZF 7.2

ZF 7.2 POWER TANK



Power pack

Z-Force® Li-Ion intelligent integrated

Z-Force® Li-Ion intelligent integrated



Max capacity

7.2 kWh

10.8 kWh



Nominal capacity

6.3 kWh

9.5 kWh



Charger type

1.3 kW, integrated

1.3 kW, integrated



Charge time (standard)

5.2 hours (100% charged) / 4.7 hours (95% charged)

7.5 hours (100% charged) / 7.0 hours (95% charged)



With Charge Tank option

1.5 hours (100% charged) / 1.0 hour (95% charged)

N/A



With one accessory charger

3.1 hours (100% charged) / 2.6 hours (95% charged)

4.4 hours (100% charged) / 3.9 hours (95% charged)



With max accessory chargers

1.6 hours (100% charged) / 1.1 hours (95% charged)

2.2 hours (100% charged) / 1.7 hours (95% charged)



Input

Standard 110 V or 220 V

Standard 110 V or 220 V



Drivetrain

ZF 7.2

ZF 7.2 POWER TANK



Transmission

Clutchless direct drive

Clutchless direct drive



Final drive

90T / 18T, Poly Chain® HTD® Carbon™ belt

90T / 18T, Poly Chain® HTD® Carbon™ belt



Chassis / Suspension / Brakes

ZF 7.2

ZF 7.2 POWER TANK



Front suspension

Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping

Showa 41 mm inverted cartridge forks, with adjustable spring preload, compression and rebound damping



Rear suspension

Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping

Showa 40 mm piston, piggy-back reservoir shock with adjustable spring preload, compression and rebound damping



Front suspension travel

6.25 in (159 mm)

6.25 in (159 mm)



Rear suspension travel

6.35 in (161 mm)

6.35 in (161 mm)



Front brakes

Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc

Bosch Gen 9 ABS, J-Juan asymmetric dual piston floating caliper, 320 x 5 mm disc



Rear brakes

Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc

Bosch Gen 9 ABS, J-Juan single piston floating caliper, 240 x 4.5 mm disc



Front tire

Pirelli Diablo Rosso II 110/70-17

Pirelli Diablo Rosso II 110/70-17



Rear tire

Pirelli Diablo Rosso II 140/70-17

Pirelli Diablo Rosso II 140/70-17



Front wheel

3.00 x 17

3.00 x 17



Rear wheel

3.50 x 17

3.50 x 17



Dimensions

ZF 7.2

ZF 7.2 POWER TANK



Wheelbase

55.5 in (1,410 mm)

55.5 in (1,410 mm)



Seat height

31.8 in (807 mm)

31.8 in (807 mm)



Rake

24.0°

24.0°



Trail

3.2 in (80 mm)

3.2 in (80 mm)



Weight

ZF 7.2

ZF 7.2 POWER TANK



Curb weight

313 lb (142 kg)

357 lb (162 kg)



Carrying capacity

404 lb (183 kg)

359 lb (163 kg)



Economy

ZF 7.2

ZF 7.2 POWER TANK



Equivalent fuel economy (city)

477 MPGe (0.49 l/100 km)

477 MPGe (0.49 l/100 km)



Equivalent fuel economy (highway)

240 MPGe (0.98 l/100 km)

240 MPGe (0.98 l/100 km)



Typical cost to recharge

$0.81

$1.21



Pricing

ZF 7.2

ZF 7.2 POWER TANK



MSRP

$12,995

$15,890



Warranty

ZF 7.2

ZF 7.2 POWER TANK



Standard motorcycle warranty*

2 years

2 years



Power pack warranty*

5 years/unlimited miles

5 years/unlimited miles



*standard warranty





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
