2024 Aprilia RSV4 Factory SE-09 SBK 1100: THE AUTHENTIC SUPERBIKE.
Introducing a numbered special edition that combines the speed of Aprilia’s most advanced factory-derived supersports bike ever with iconic livery that celebrates the RSV4’s first WSBK triumph with Max Biaggi in Brno in 2009. Featuring prestigious lines, the Aprilia RSV4 Factory SE-09 SBK comes kitted out to deliver maximum performance on the track while each unit’s unique sequence number is emblazoned on the fuel tank for a truly exclusive touch.
For an authentic superbike experience. TIMELESS SPEED. A HOMAGE TO SUCCESS.
2024 Aprilia RSV4 Factory SE-09 SBK 1100 Totalmotorcycle.com Key Features
A tribute to triumph
The RSV4 Factory SE-09 SBK’s livery echoes the distinctive colours that are indelibly linked with the RSV4’s racing debut. Bold, explosive black combines with red and white details on the top fairing, lug, fuel tank and tail fairing. A unique mix with an elegant simplicity that will immediately remind any racing fan of the RSV4’s extraordinary dominance in the WSBK world. With seven world titles (three rider, four constructor), 44 victories and 102 podium finishes, it is truly one of the successful records of any factory-derived bike.
APRILIA RSV4 FACTORY AND TUONO V4 FACTORY SE-09 SBK
- AT THE AUSTIN MOTOGP ROUND THE SPECIAL EDITION THAT CELEBRATES THE APRILIA RSV4’S FIRST LEGENDARY VICTORY MAKES ITS DÉBUT
- THE ICONIC LIVERY OF MAX BIAGGI’S FIRST TRIUMPH IN BRNO IS BACK, THE WIN THAT MARKED THE BEGINNING OF A HISTORIC SPORTING STORY, AN ABSOLUTE DOMINATION COMPRISING SEVEN WORLD TITLES, 44 WINS, AND 102 PODIUMS
It was 26 July 2009 when Max Biaggi, on the Brno circuit, took the first unforgettable victory of the Aprilia RSV4 in the World Superbike Championship. No one could have known it at the time, but that was the first episode of a story that became legendary. It was the start of one of the most victorious stories ever for a single model in the most important factory derivative championship in the world, with an extraordinary collection of seven world titles (3 Rider and 4 Manufacturer), 44 wins and 102 podiums.
Today, Aprilia celebrates that historic day for the brand by bringing back the iconic livery symbolic of the RSV4’s spectacular sporting début on the crowning jewel of the V4 range: the superbike RSV4 Factory and the hypernaked Tuono V4 Factory. In this special version, RSV4 Factory and Tuono V4 Factory also come standard with carbon front brake air intakes and with a carbon front mudguard. The progressive numbering of the model appears on the fuel tank.
This is how the SE-09 SBK special numbered edition is born, unveiled for the first time in public during the weekend of the MotoGP Grand Prix of the Americas in Austin, Texas.
It was the Aprilia Racing factory riders, Aleix Espargaró and Maverick Viñales, currently protagonists in the top world motorcycling championship astride the RS-GP prototypes from Noale, who christened the RSV4 Factory and the Tuono V4 Factory in this new, exciting, and evocative version.

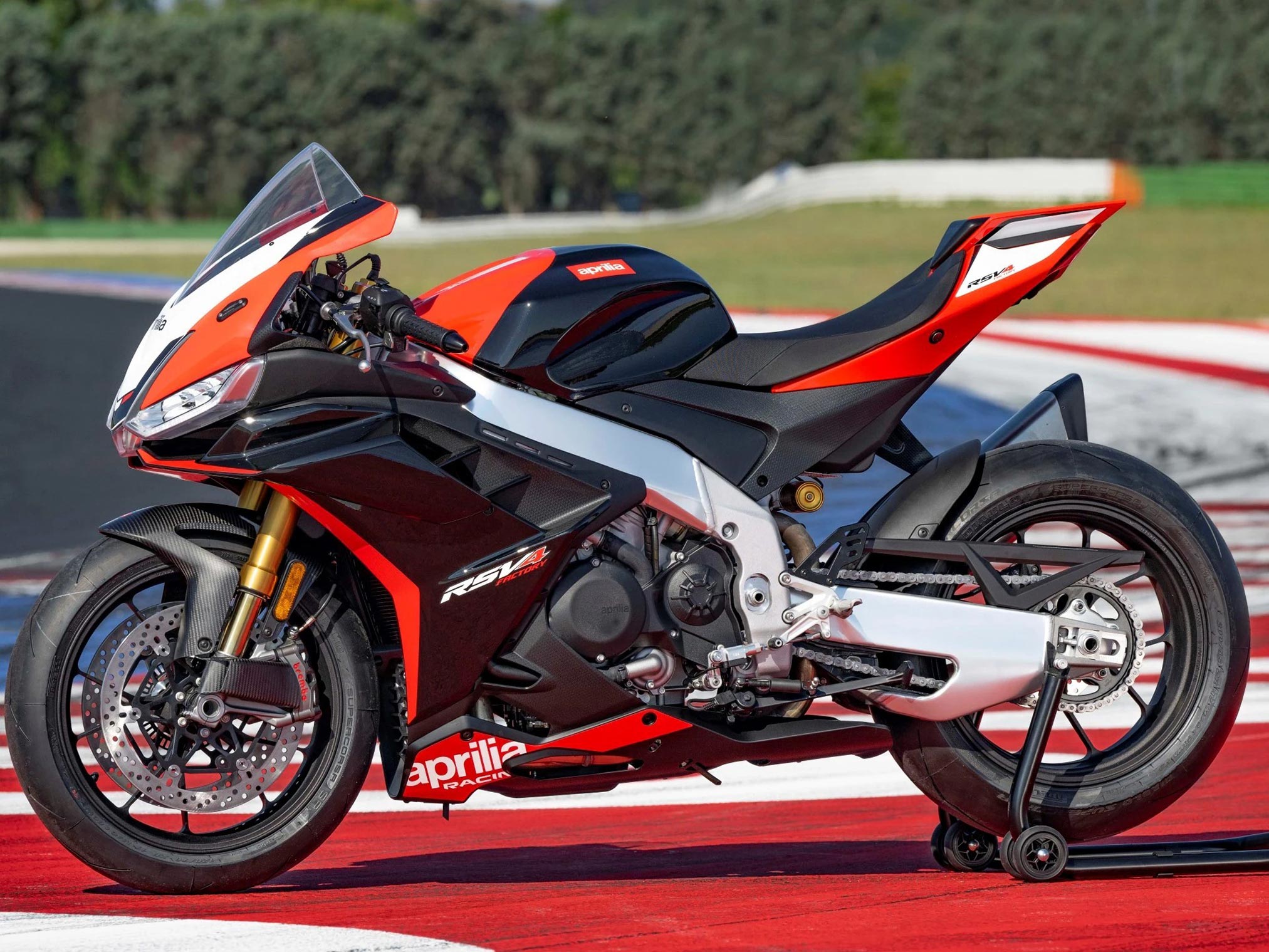

The Aprilia V4 Factory SE-09 SBK machines stand out for their livery dominated by black with the characteristic red and white trim on the top fairing, lug, fuel tank, and tail fairing, exactly like the RSV4 that astonished the world at its début on the WSBK stage. An unmistakeable mix in its linear simplicity, which brings the brand from Noale and its legendary sporting history to the mind of any motorcycling enthusiast.
2024 Aprilia RSV4 Factory SE-09 SBK 1100 Totalmotorcycle.com Features and Benefits
Forged on the racetrack
The exclusive nature of the RSV4 Factory SE-09 SBK goes way beyond aesthetics. The RSV4 Factory version has always boasted exceptional gear but this beast also benefits carbon fibre, an ultra-lightweight material that is found in the front mudguard and the air intakes that cool the front brake callipers. Each bike’s unique sequence number is displayed along the fuel tank, ensuring this RSV4 is destined to become a collector’s item… but one which is raring to take to the track.
Racing feeling
The RSV4 Factory SE-09 SBK sports the latest evolution of the mighty Aprilia 65° V4 engine. Its 217 horsepower output is kept in check by Öhlins semiactive suspension, finetuned courtesy of meticulous teamwork by engineers from both the Swedish brand and Noale on a mission with a very clear main goal: to deliver maximum performance and maximum “riding feeling”. Special Smart EC 2. technology enables simple, customisable fork and shock absorber calibration with a choice of semiactive and manual modes.
Numbered special edition

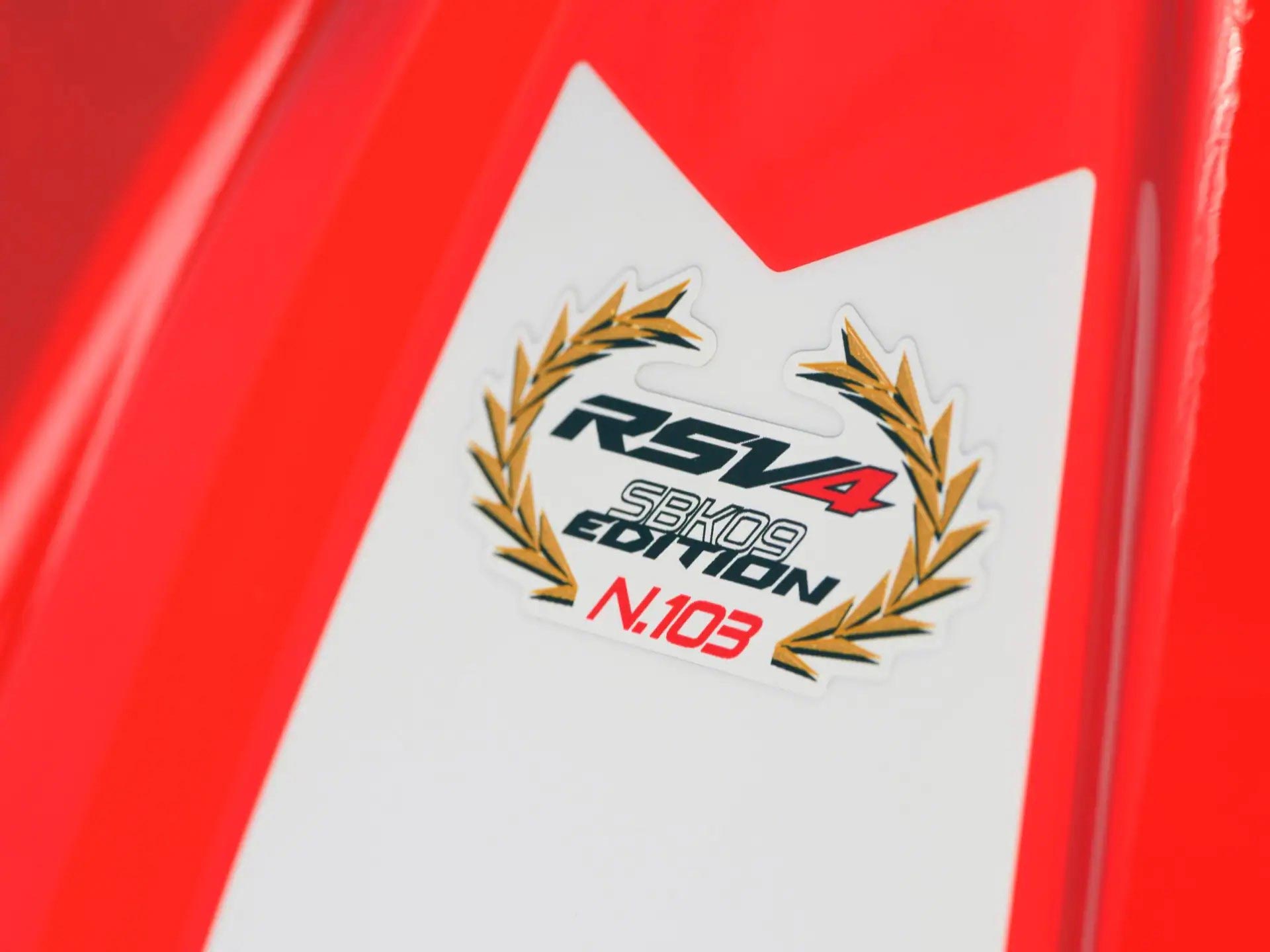

The model’s unique sequence number is proudly emblazoned on the fuel tank, making every RSV4 Factory SE-O9 SBK truly one of a kind.
DRL lights
The triple LED front light cluster with perimetral DRL lights exemplifies Aprilia’s sports bike illumination. It also includes a “bending lights” function in the form of two extra headlights that increase visibility on the lean by illuminating the inside of a curve.
Racing kit
The front mudguard and front brake air intakes are made from carbon, with the latter delivering efficient ventilation of the Brembo Stylema® monoblock front brake callipers and maintaining stable braking, even in the sharpest manoeuvres.
Engine
An uncompromising, phenomenal experience that represents the apex of Aprilia bikes destined for competition. This is the extraordinary vision that the RSV4 Factory SE-09 SBK brings to life with its 217 horsepower and 125 Nm torque at 10500 rpm.
Chassis
The RSV’s exceptional chassis feeling is delivered courtesy of Öhlins Smart EC 2.0 and an advanced aluminium fork with a lower reinforced brace. Designed to lower masses and increase the stability, it was inspired by the Aprilia RS-GP involved in MotoGP.
2024 Aprilia RSV4 Factory SE-09 SBK 1100 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 26499 USD
Canada MSRP Price: $28745 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)
ENGINE TYPE Aprilia 4 longitudinal 65° V4 cylinder, 4-strokes, liquid cooling system, double
overhead camshaft (DOHC), four valves per cylinder
BORE AND STROKE 81 x 53.32 mm
TOTAL ENGINE
CAPACITY
1.099 cc
COMPRESSION RATIO 13.6:1
MAXIMUM POWER AT
CRANKSHAFT
217 HP (159.5 kW) at 13,000 rpm
MAXIMUM TORQUE AT
CRANKSHAFT
125 Nm at 10,500 rpm
POWER SUPPLY Airbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8
injectors and Ride-By-Wire engine management.
TRANSMISSION 6-speed cassette type gearbox
Gear lever with Aprilia Quick Shift electronic system (AQS)
CLUTCH Multi plate wet clutch with mechanical slipper system
PRIMARY DRIVE Straight cut gears and integrated flexible coupling, drive ratio: 73/44 (1,659)
SECONDARY DRIVE Chain: Drive ratio: 41/16 (2,562)
CONTROLS
MANAGEMENT
APRC system (Aprilia Performance Ride Control) that includes engine maps
(AEM), engine brake control (AEB), traction control (ATC), wheelie control
(AWC), launch control (ALC), cruise control (ACC), speed limiter (APT). 6
riding modes (3 Road, 3 Track)
CHASSIS Aluminium dual beam chassis with pressed and cast sheet elements
Available adjustments: headstock position and angle, engine height,
swingarm pin height
Smart EC 2.0 electronically managed Öhlins steering damper
FRONT SUSPENSION Smart EC 2.0 electronically managed Öhlins NIX fork. 43 mm stanchions,
with TIN surface treatment Aluminium radial calliper mounts, adjustable in
hydraulic compression and rebound damping and spring pre-load, 125 mm
travel
REAR SUSPENSION Upside-down double braced aluminium swingarm;
Öhlins TTX monoshock with Smart EC 2.0 electronically managed piggyback, fully adjustable in: spring pre-load, wheelbase and hydraulic
compression and rebound damping. 115 mm travel
BRAKES Front: Dual 330-mm diameter floating stainless steel disc with lightweight
stainless steel rotor and aluminium flange with 6 pins. Brembo Stylema®
monobloc radial callipers with 4 30 mm opposing pistons. Sintered pads.
Radial pump and metal braided brake hose
Rear: 220 mm diameter disc; Brembo calliper with two 32 mm separate
pistons. Sintered pads. Pump with integrated tank and metal braided hose
Bosch ABS with cornering function and 3 map settings, equipped with RLM
(Rear wheel Lift-up Mitigation) strategy
WHEELS Forged aluminium alloy wheels, completely machined, with 5 split spoke
design.
Front: 3.5”x17”
Rear: 6”x17”
TYRES Radial tubeless.
front: 120/70 ZR 17
rear: 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)
DIMENSIONS Wheelbase: 1435.8 mm
Length: 2055 mm
Width: 735 mm
Saddle height: 845 mm
Headstock angle: 24.6°
Trail: 104.5 mm
KERB WEIGHT 202 kg (90% fuel)
EMISSIONS
COMPLIANCE
Euro 5
CONSUMPTION 6.90 litres/100 km
CO2 EMISSIONS 160 g/km
FUEL TANK CAPACITY 17.9 litres (including 4-litre reserve)
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
