2024 BMW M1000RR Guide

2023 BMW M1000RR
ReviewKey FeaturesFeatures & BenefitsSpecifications

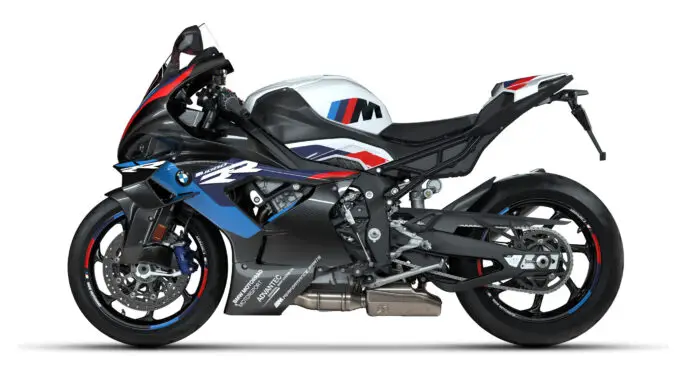

2023 BMW M1000RR

2024 BMW M1000RR: TAKE ADVANTAGE OF THE WIND.

Introducing the 2024 BMW M1000RR…

The M brake ducts and optional M Aero wheel covers were created in collaboration with BMW Motorsport experts. The M brake ducts are directly integrated into the new front-wheel mudguards, which in turn have been optimised for improved airflow around the fork legs and brake calipers. Their first time in use on a series motorcycle, the M brake ducts reduce the temperature of the brake calipers. The M Aero wheel covers, also made of visible carbon, reduce turbulence at the front wheel and unleash your bike’s full potential on long straights at speeds greater than 250 km/h.

For all those driven by their passion and ready to take on challenges. For all those who refuse to give up one single millimetre or millisecond: The BMW M RR is the superbike homologated for racing. It was perfected in the wind tunnel and further developed on the circuit. It has optimised aerodynamics and uses carbon, resulting in a significantly higher top speed of 314 km/h. Its engine and chassis remain as powerful and direct as ever. The M RR stands for absolute performance and exclusivity down to the last detail. Just the typical M.

The optimised front and side trim panels are made of carbon to ensure greater performance and increase the top speed by 8 km/h. In addition, the new aerodynamics relieve strain on the rider by reducing the downforce of the wind: for sustained, fast, focused riding. The newly designed M winglets made of carbon, on the other hand, increase the downforce of the front wheel by up to 6.3 kg – even when leaning. And they provide 22.6 kg of downforce at 300 km/h, giving riders more confidence during extreme tilts and at high cornering speeds.





2024 BMW M1000RR Totalmotorcycle.com Key Features

Colors

Light White / M Motorsport (standard)
M Competition Pkg: Black Storm Metallic/M Motorsport (optional)











2024 BMW M1000RR Totalmotorcycle.com Features and Benefits

Options and Packages

No changes



Standard Equipment

Ultimate Care Break-In Service has been added.







2024 BMW M1000RR – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $33,345 USD
Canada MSRP Price: $ CDN
Europe/UK MSRP Price: £ GBP (total selling price)

Engine Liquid-cooled inline 4-cylinder
Capacity cc 999
Bore x stroke mm 80.0 x 49.7
Power hp 205 @ 13,000 rpm
Torque lb-ft. 83 @ 11,000 rpm
Max. engine speed rpm 15,100
Compression ratio 13.5:1
Fuel Power rated at 98 RON. 95-98 RON knock control
Valvetrain DOHC, valve actuation via single cam followers

BMW ShiftCam variable intake cam control

Valves per cylinder 4
Intake / Exhaust valve diameter mm 33.5 / 27.2
Throttle body diameter mm 48
Engine control BMS-0
Emission control Closed-loop three-way catalytic converter
Alternator watts 450
Battery Volta / Ah M lightweight battery 12v / 5 Ah
Headlamp LED free-form twin low-beam, LED free-form high-beam
Starter kW 0.8
Clutch Self-reinforcing multi-plate anti-hopping oil bath clutch,

mechanically operated

Gearbox 6-speed, constant-mesh
Primary ratio 1.652
Transmission gear ratios I 2.647
II 2.091
III 1.727
IV 1.500
V 1.360
VI 1.261
Secondary ratio 2.706
Rear wheel drive type Chain
Frame construction type Aluminum composite bridge frame, engine self-supporting
Front suspension Upside-down telescopic fork, 45 mm slide tube diameter

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Rear suspension Aluminum underslung double-sided swingarm

Central spring and shock absorber

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Suspension travel front / rear inches 4.7 / 4.6
Wheel castor inches 3.9
Steering head angle degrees 23.6
Brakes, front Twin M 320 mm / 12.6-inch floating disks

4-piston fixed calipers

Brakes, rear Single 220 mm / 8.7-inch, two-piston fixed caliper
ABS BMW Motorrad ABS Pro, partially integral, disengageable
Traction control BMW Motorrad DTC
Wheels Standard M Carbon wheels
Wheels, front / rear inches 3.50 x 17 / 6.00 x 17
Tires, front / rear 120/70 ZR17 / 200/55 ZR17
Length x width x height inches 81.6 x 33.4 x 47.4
Wheelbase inches 57.4
Seat height inches 32.8
Curb weight lbs. 423
Dry weight lbs.  375
Permitted total weight lbs. 897
Fuel tank capacity gallons 4.35
Acceleration, 0-60 mph seconds 3.1
Top speed mph 189+









2024 BMW M1000RR – Totalmotorcycle.com Canada Specifications/Technical Details

Engine Liquid-cooled inline 4-cylinder
Capacity cc 999
Bore x stroke mm 80.0 x 49.7
Power hp 205 @ 13,000 rpm
Torque lb-ft. 83 @ 11,000 rpm
Max. engine speed rpm 15,100
Compression ratio 13.5:1
Fuel Power rated at 98 RON. 95-98 RON knock control
Valvetrain DOHC, valve actuation via single cam followers

BMW ShiftCam variable intake cam control

Valves per cylinder 4
Intake / Exhaust valve diameter mm 33.5 / 27.2
Throttle body diameter mm 48
Engine control BMS-0
Emission control Closed-loop three-way catalytic converter
Alternator watts 450
Battery Volta / Ah M lightweight battery 12v / 5 Ah
Headlamp LED free-form twin low-beam, LED free-form high-beam
Starter kW 0.8
Clutch Self-reinforcing multi-plate anti-hopping oil bath clutch, mechanically operated
Gearbox 6-speed, constant-mesh
Primary ratio 1.652
Transmission gear ratios I 2.647
II 2.091
III 1.727
IV 1.500
V 1.360
VI 1.261
Secondary ratio 2.706
Rear wheel drive type Chain
Frame construction type Aluminum composite bridge frame, engine self-supporting
Front suspension Upside-down telescopic fork, 45 mm slide tube diameter

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Rear suspension Aluminum underslung double-sided swingarm

Central spring and shock absorber

Spring preload, rebound and compression adjustable

Optional DDC electronically adjustable damping

Suspension travel front / rear mm 120 / 118
Wheel castor mm 101.4
Steering head angle degrees 23.6
Brakes, front Twin M 320 mm / 12.6-inch floating disks

4-piston fixed calipers

Brakes, rear Single 220 mm / 8.7-inch, two-piston fixed caliper
ABS BMW Motorrad ABS Pro, partially integral, disengageable
Traction control BMW Motorrad DTC
Wheels Standard M Carbon wheels
Wheels, front / rear inches 3.50 x 17 / 6.00 x 17
Tires, front / rear 120/70 ZR17 / 200/55 ZR17
Length x width x height mm 2,085 x 899 x 1,224
Wheelbase mm 1,456
Seat height mm 832
Curb weight kg 193
Dry weight kg 170
Permitted total weight kg 407
Fuel tank capacity litres 16.5
Acceleration, 0-60 mph seconds 3.1
Top speed km/h 300+













2024 BMW M1000RR – Totalmotorcycle.com European Specifications/Technical Details

Engine

Rated output

156 kW (212 hp) at 14,500 rpm

Emission control

Closed-loop 3-way catalytic converter

Type

Water/oil-cooled in-line four-cylinder, four-stroke engine with four titanium valves per cylinder and BMW Shiftcam variable intake camshaft control

Bore x stroke

80 mm x 49.7 mm

Capacity

999 cc

Max. torque

113 Nm at 11,000 rpm

Compression ratio

13.5 : 1

Mixture control

Electronic injection, variable intake pibe

Exhaust emission standards

EU 5

Performance / fuel consumption

Maximum speed

314 km/h

Fuel consumption per 100 km based on WMTC

6.5 l

CO2 emission based on WMTC

151 g/km

Fuel type

Premium unleaded (max. 5 % ethanol, E5), 95-98 ROZ/RON (max. rated output with ROZ 98)

Electrical system

Alternator

450 W

Battery

M Lightweight Battery, 12 V / 5 Ah, Lithium-ion

Power transmission

Clutch

Multiplate clutch in oil bath, anti-hopping clutch

Gearbox

Claw-shifted 6-speed gearbox with straight cut gears

Drive

Chain 525 17/46

Traction control

BMW Motorrad DTC

Chassis / brakes

Frame

Bridge-type frame, cast aluminium, co-supporting engine

Front wheel location / suspension

Upside-down telescopic fork, diameter 45 mm, spring preload, rebound and compression stages adjustable

Rear wheel location / suspension

Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable spring preload

Suspension travel, front / rear

120 mm / 118 mm

Wheelbase

1,457 mm

Castor

101.4 mm

Steering head angle

66.2°

Wheels

M Carbon wheels

Rim, front

3.50 x 17″

Rim, rear

6.00 x 17″

Tyre, front

120/70 ZR17

Tyre, rear

200/55 ZR17

Brake, front

M Twin disc brake, diameter 320 mm, 4-piston fixed caliper

Brake, rear

M Single disc brake, diameter 220 mm, 2-piston fixed caliper

ABS

BMW Motorrad Race ABS (partial integral)

ABS Pro

ABS Pro (settings for Rain, Road, Dynamic mode, no ABS Pro in Race and Race Pro mode 1-3)

Dimensions / weights

Seat height at unladen weight

832 mm

Inner leg curve at unladen weight

1,845 mm

Usable tank volume

16.5 l

Reserve

approx. 4 l

Length

2,085 mm

Width

899 mm (above mirror)

Dry weight

170 kg (M Competition Package 169.8 kg) without battery

Unladen weight, road ready, fully fuelled

193 kg (M Competition Package 191.8 kg)

1)

Permitted total weight

407 kg

Payload (with standard equipment)

214 kg

1) According to Guideline (EU) 168/2013 with all operating fluids, with standard equipment and refuelled with min. 90% of the usable fuel tank capacity.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
