2024 Ducati Panigale V2 Guide

2024 Ducati Panigale V2
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 Ducati Panigale V2 2024 Ducati Panigale V2 2024 Ducati Panigale V2 2024 Ducati Panigale V2 2024 Ducati Panigale V2

2024 Ducati Panigale V2: NEW LOOK AND REFINED ELECTRONICS.

Introducing the new 2024 Ducati Panigale V2…

Sporty and elegant soul.

The Panigale twin flaunts a simple design and clear-cut lines, with sophisticated electronics that make it equally high-performance and enjoyable on both road and track. The new Black on Black livery transmits power at first glance, as well as even more audacious style.

The twin-cylinder Panigale has a completely new look and refined electronics thanks to the use of the Inertial Platform, and is even better performing and safer on the track, not to mention fully exploitable and enjoyable on the road thanks to a more comfortable seat and revised suspension setup.

Its name lets the lovers of Borgo Panigale twin-cylinders know that the model is powered by the 955cc Superquadro.

Fun on the road, performance and safety on the track

The perfect fusion of power and elegance

The Panigale V2 Is a beefy yet compact bike of essential design with clear-cut lines that convey power without compromising classic Ducati superbike flair.







2024 Ducati Panigale V2 Totalmotorcycle.com Key Features

Sports essence

A simple design with clear-cut lines that convey power, without compromising classic Ducati superbike flair. The Panigale V2 features the single-sided aluminum swingarm, the hallmark of every high-end sports Ducati. The extensive fairing envelopes the refined monocoque frame, highlighting a more compact Superquadro twin-cylinder engine, smaller in comparison to the Desmosedici Stradale.

“Double layer” fairing

A main fairing extends upwards and merges into the tank with its muscular shoulders, while a secondary layer serves as an air vent. This ‘double layer’ solution revives the clean lines typical of Ducati sports bikes, famed for their full-fairing look. The fairing underside is visually connected to the under-engine silencer, which terminates in a single lateral pipe.

Panigale look

Dominating the front end are the two large air intakes, the upper parts of which incorporate the full LED headlight. The front vents merge with the air intake layout via ducts that reduce pressure loss, thus boosting intake efficiency. The headlight is reduced in size with the specific intention of giving the intakes themselves – especially with the bike at standstill – a more menacing air, like two enormous mouths.

Perfect Ducati style

The tail is built on a steel trellis subframe lined with plastic covers that runs from the vertical cylinder to the tailpiece, the winged design of which is inspired by a car spoiler. The tailpiece incorporates the full LED taillight, also wing-shaped. Although it has a one-piece assembly, the light has two distinct parts in line with Ducati sports bike tradition.

Compact, muscular lines for high-level performance
Complete with sophisticated electronics, designed to offer the rider complete riding freedom in total safety.

Black on Black livery

The new color scheme highlights the audacious character of the Panigale V2. The predominance of dark matte grey is broken up with glossy black elements, for a refined and attractive overall look. The livery is finished with the Panigale V2 logo and subtle red details on the tank, fairings and wheels. The Black on Black livery also brings a new-look seat featuring updated graphics and materials.

955 cc Superquadro

The Superquadro is as enjoyable on the road as it is effective and responsive on track, delivering 155 hp at 10,750 rpm and torque of 104 Nm at 9000 rpm. Together with the commemorative Panigale V2 Bayliss, the Panigale V2 is the only twin in the Ducati Panigale range, which also includes the V4, V4 S, V4 SP 2 and V4 R versions

Pirelli Diablo Rosso IV Corsa as standard

The Panigale V2 mounts Pirelli Diablo Rosso IV Corsa tires as standard which, with their multi-compound technology, ensure maximum grip in all conditions, on both road and track.

Monocoque frame

The extensive fairing envelopes the refined monocoque frame and highlights the forms of the Superquadro twin. The ‘double layer’ fairing – which sees a main fairing extending upwards and embrace the tank and a secondary layer serving as an air vent – showcases the clean lines typical of Ducati sports bikes, elegant and unique

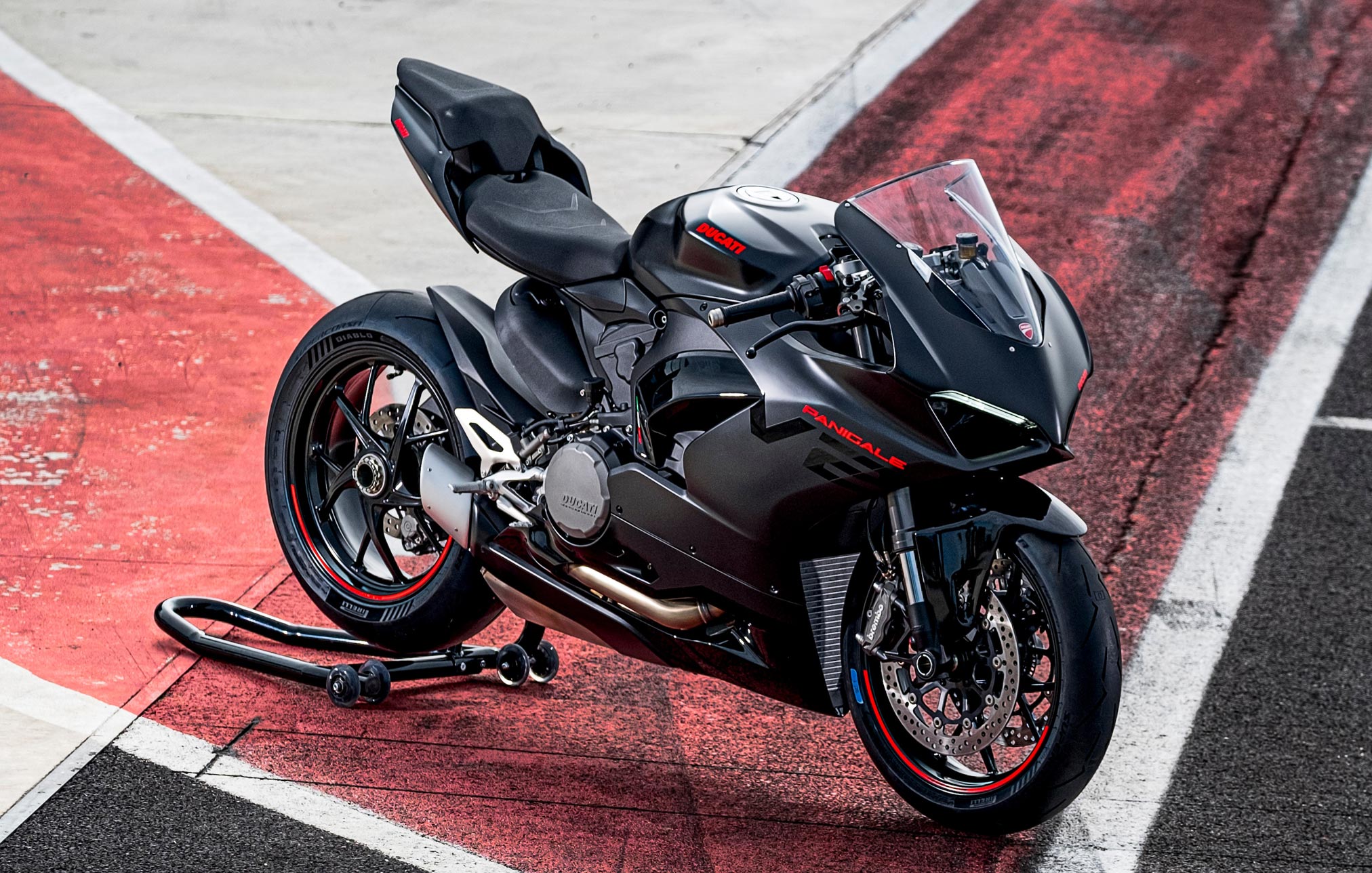

New Black on Black Livery for the Panigale V2: When Boldness Meets Performance

  • The Borgo Panigale twin-cylinder super sports bike ensures an exhilarating and high-performance experience on the track while maintaining maximum safety
  • With the Panigale family, Ducati offers all enthusiasts the most sophisticated technological solutions, derived directly from the world of racing
  • The Panigale V2 becomes even bolder with the new Black on Black Livery, soon available in  dealerships

The Panigale V2 effortlessly fuses sportiness and elegance, instantly capturing attention with its powerful presence. Crafted by Ducati technicians through extensive research, this super sports bike from Borgo Panigale offers track riding enthusiasts an unparalleled experience, delivering remarkable performance and evoking a range of unique emotions.

The Panigale V2, characterized by compact and muscular lines, is equipped with sophisticated electronics, designed to let the rider exploit its performance in total safety. The new standard Pirelli Diablo Rosso IV Corsa tires also confirm the true sports bike DNA.

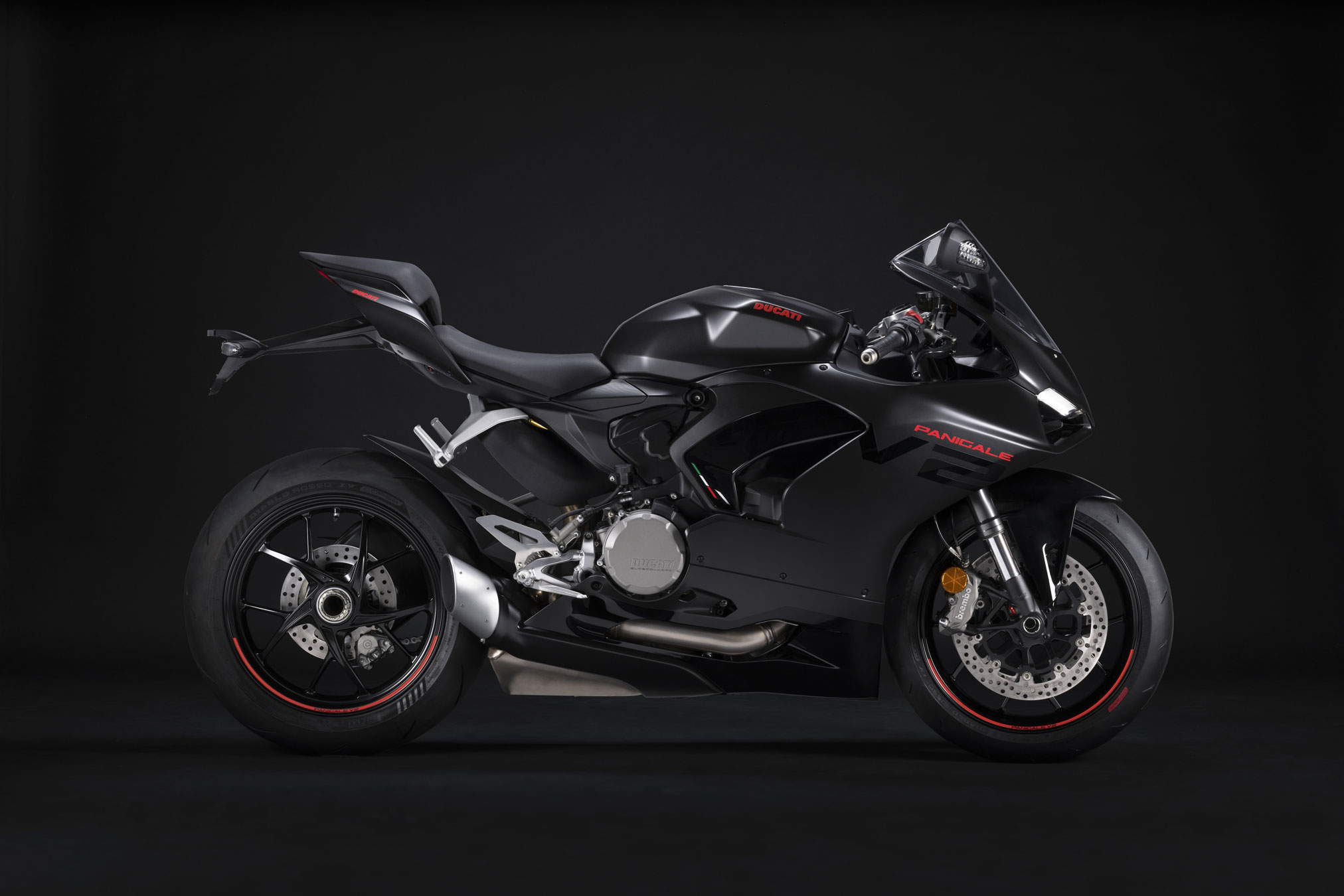

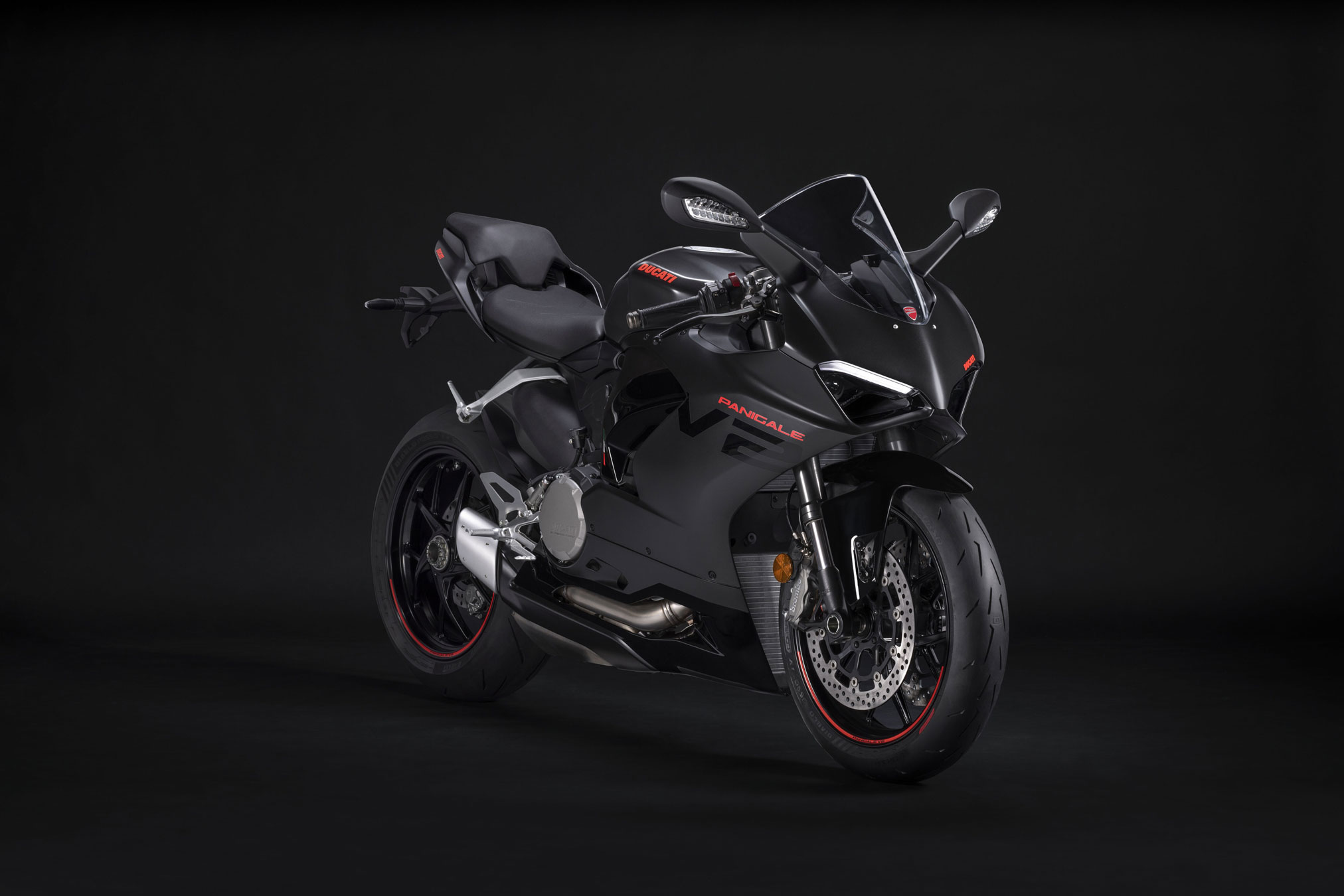

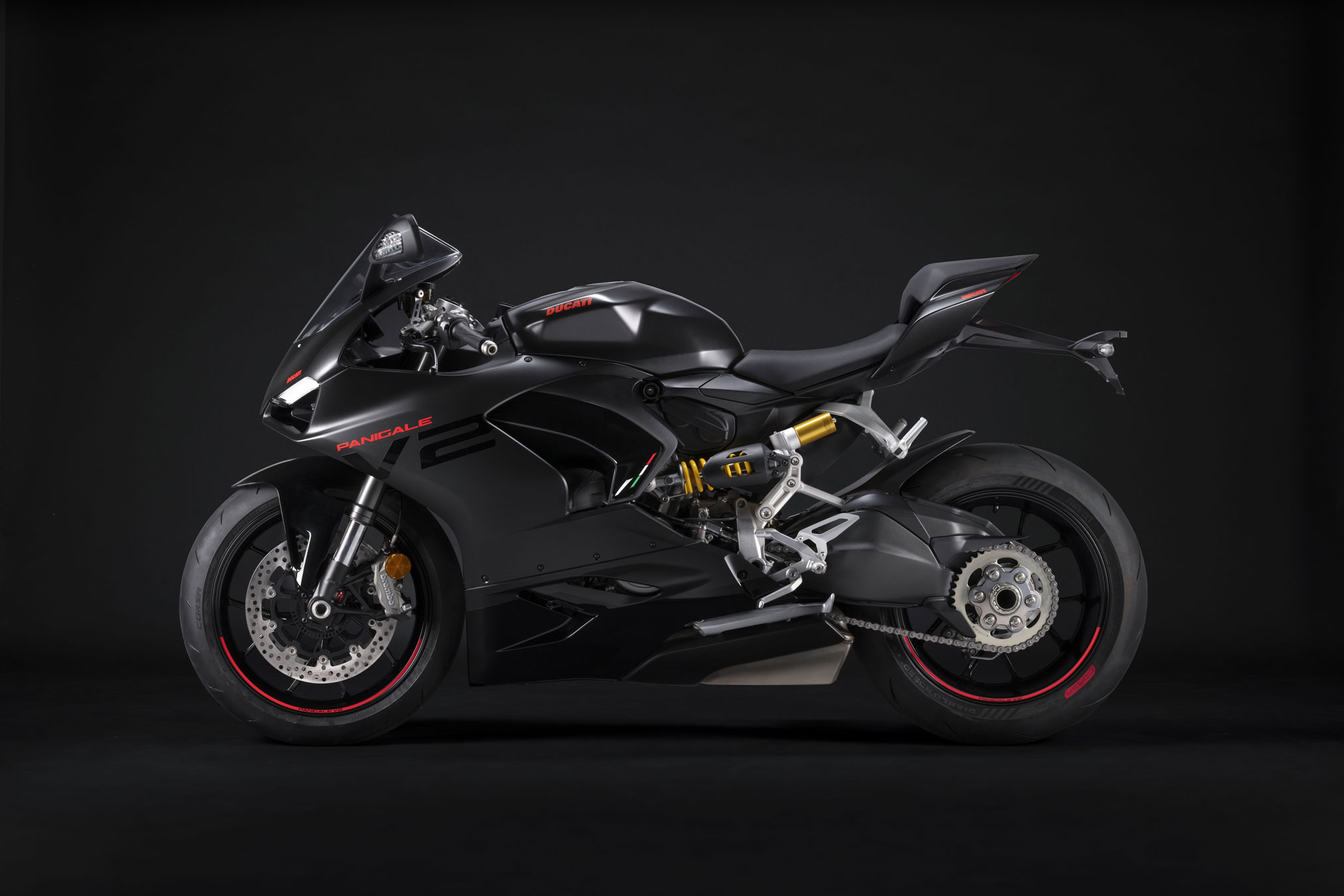

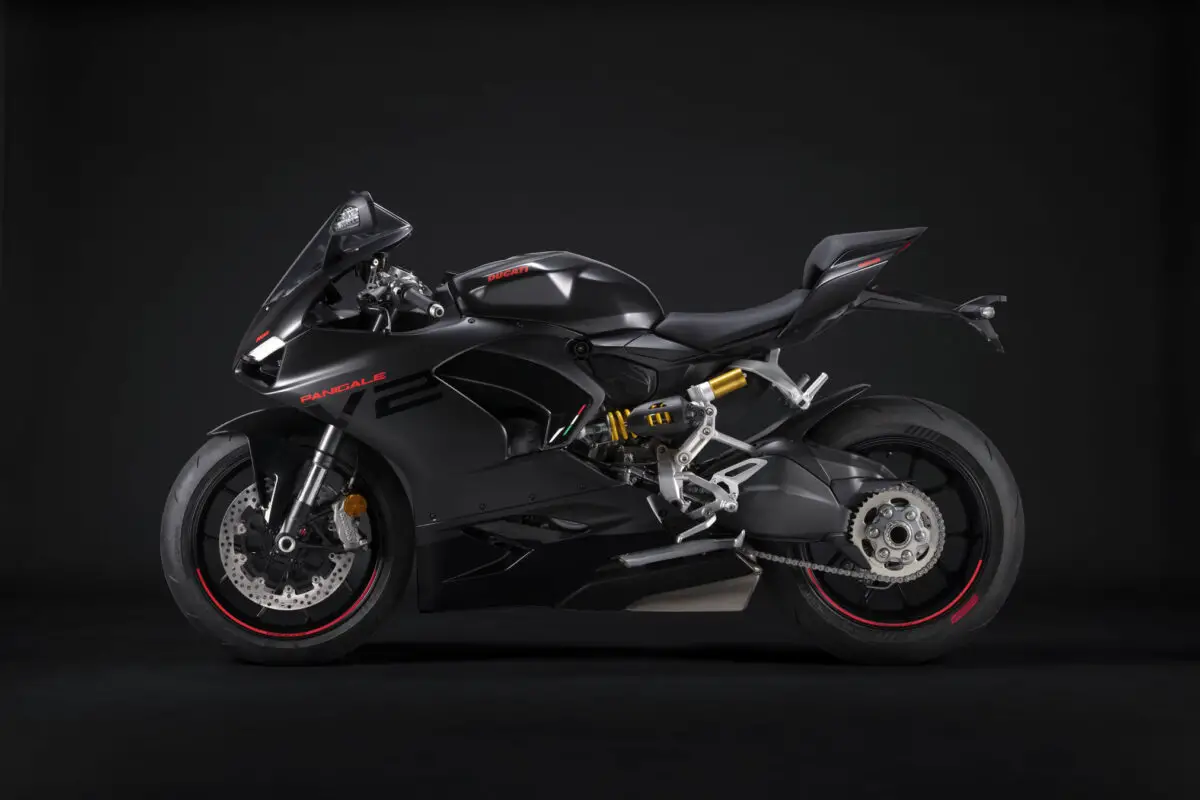

For 2024, Ducati updates the color range of the Panigale V2 with a new Black on Black Livery, which accompanies the classic Ducati Red.

The new livery enhances the bold character of the Panigale V2. The predominance of dark matte grey is intercut with glossy black elements for a refined final combination. The livery is completed by the Panigale V2 logo and the red details on the tank, fairings and wheels. Another new feature introduced with the Black on Black Livery is the seat, with renewed graphics and materials.

The Panigale V2 stands as a compact yet muscular motorcycle that seamlessly combines a powerful presence with a streamlined design. Its essential aesthetics and unmistakable profiles effortlessly convey a sense of power, while still retaining the characteristic elegance found in Ducati sports bikes. The bike’s design showcases its Monocoque frame, with carefully crafted surfaces that accentuate the contours of the Superquadro twin-cylinder engine. At the front, the dominant features are the dual air intakes seamlessly integrated with the full-LED headlamp. Adding to the bike’s allure, the “double layer” fairing incorporates a primary fairing that gracefully extends to envelop the fuel tank, complemented by a secondary fairing serving as an air extractor. This design choice offers the typical essentiality of Ducati sports bikes, emphasizing elegance and uniqueness.

A sporty style that integrates fully with the power expressed by the Panigale V2 engine, the 955 cc Superquadro twin-cylinder. The Superquadro is as enjoyable to ride on the road as it is powerful and responsive on the track, with its 155 hp at 10,750 rpm and a torque value of 76.7 ft-lbs. (104 Nm) at 9,000 rpm.

Safety and total bike control are always guaranteed by the electronic equipment of the Panigale V2, based on the use of the 6-axis inertial platform. The electronic package includes ABS Cornering EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Ducati Quick Shift up/down (DQS) EVO 2 and finally Engine Brake Control (EBC) EVO, which helps the rider to optimize the stability of their Ducati in extreme cornering conditions.

Together with the celebratory Panigale V2 Bayliss, the Panigale V2 is the only twin-cylinder in Ducati’s Panigale range.





2024 Ducati Panigale V2 Totalmotorcycle.com Features and Benefits

Injectors and ducts
The Panigale V2 mounts two injectors per cylinder, one above and one below the throttle body, larger, and re-angled.
Despite having the same flow rate, the intake ducts lose less pressure than their predecessors, improving intake efficiency.

Compact silencer
The silencer boasts an internal layout that is better able to abate spikes in noise, back pressure remaining equal.

90° V cylinders
The Panigale V2 engine acts as a stressed member of the frame. Set 90° apart, the cylinders are banked rearwards around the crankshaft axis, resulting in a 21° angle between front cylinder and horizontal plane.
The two cylinder heads and aluminium top covers feature a ribbed design to reduce mechanical noise. The crankcases are vacuum diecast using Vacural® technology to optimize weight saving and ensure consistent wall thickness and increased strength. The crankcase cover, clutch cover and sump are all in die-cast aluminum.

Transmission
Transmission involves a six-speed gearbox with the Ducati Quick Shift up/down EVO system and a wet clutch. The latter comes complete with an anti-patter and progressive self-servo mechanism.

Monocoque frame
Attached directly to the cylinder heads, the monocoque frame houses the steering head bearings, contained in two aluminum bushes. In addition to working as a frame, the monocoque also serves as an air-box. It contains not just the air filter but also the throttle bodies and the fuel circuit, complete with injectors, and is sealed off by the aluminum fuel tank bottom.

Front-end geometry
The front-end geometry has 24° of rake and 94 mm of trail, while the double-sided swingarm has been replaced with a sophisticated, fully die-cast aluminum single-sided swingarm.
The wheelbase is 1436 mm and the weight distribution is 52% at the front and 48% at the rear.

Suspension
The Panigale V2 features the 43 mm Showa BPF fork at the front, fully adjustable in its spring pre-load, compression and rebound damping.
The Showa Big Piston Fork (BPF) considerably improves damping control at low speed, ensuring lower-pressure oil feed and reducing the amount of fluid needed for compression and rebound adjustment.

Wheels and tires
The Panigale V2 has a 5-spoke, 3.5 inch wheel at the front and 5.5 inch wheel at the rear, both rolling on Pirelli Diablo Rosso IV Corsa tires, specifically 120/70 ZR17 at the front and 180/60 ZR17 at the rear.
Pirelli’s first multi-compound bike tyre, the Diablo Rosso IV Corsa combines racetrack performance with road versatility, making it ideal for the Panigale V2.

4.3” TFT display
Instrumentation on the Panigale V2 features a 4.3″ TFT display. The graphics and interface facilitate menu browsing and setting adjustment while allowing more immediate identification of the selected Riding Mode.
The Riding Mode interface clearly and immediately shows any changes being made to the settings. This is done thanks to the explanatory graphics of the system being adjusted and a graduated scale indicating whether the modification is better suited to performance or vehicle safety/stability.

Electronic controls
The comprehensive and modern electronic equipment, based on the 6-axis inertial platform, leaves no doubt that the Panigale V2 possesses the DNA of a high-end sports bike.
The new electronics package raises active safety and dynamic control standards thanks to the ABS cornering function and quick shift up/down, in addition to traction control, engine brake control and wheelie control. All controls are integrated into the three Riding Modes (Race, Sport and Street) and can be adjusted via the 4.3″ color TFT dashboard. Featuring a user-friendly graphic interface inspired by that of the Panigale V4, menu navigation, settings adjustment and identification of the selected Riding Mode couldn’t be easier.

Lights and indicators
The front headlight assembly is extremely compact thanks to the adoption of two small LED low beam / high beam modules. The Daytime Running Light and the upper rim of the dual headlight assembly create a ‘browed’ look, the modern hallmark of Ducati sports bikes. At the rear, the full LED taillight features a two-part design as per Ducati sports tradition. The dual red arch of the side light makes the Panigale V2 both unmistakable and assertive. Front and rear LED indicators complete the lighting system.

Electronics
ABS Bosch Cornering EVO
The ABS system on the Panigale V2 features the cornering function (which keeps the ABS working even with the bike leaned over) and has the same intervention logic and control as on the V4.

Ducati Wheelie Control (DWC) EVO
The Panigale V2 is also equipped with the latest version of Ducati Wheelie Control (DWC) EVO. Using the data feed from the 6D IMU, this system keeps wheelies in check while maximizing acceleration easily and safely.

Ducati Traction Control (DTC) EVO 2
The new Ducati Traction Control (DTC) EVO 2 strategy is an offshoot of the Ducati Desmosedici GP18.

Engine Brake Control (EBC) EVO
The EBC (Engine Brake Control) system was developed to help riders optimize bike stability under extreme turn-in conditions; it does so by balancing the forces applied to the rear tyre under severe engine-braking conditions.

Riding Mode
Riding Modes provide users with three different pre-set riding styles so that Panigale V2 performance can be adapted to rider, track/route and weather conditions.

Ducati Data Analyser + GPS (DDA+ GPS)
The Ducati Data Analyser + GPS (DDA + GPS), allows assessment of bike and rider performance by showing traces for specific data items.

Ducati Lap Timer GPS (DLT GPS)
The DLT GPS feature automatically records and saves lap times and displays them directly on the dashboard each time the bike crosses the finish line, the coordinates of which are set by pressing the flasher button.

Ducati Multimedia System (DMS)
The Panigale V2 can be used with the Ducati Multimedia System (DMS). This lets riders take incoming calls, select and listen to music or receive text messages via Bluetooth.









2024 Ducati Panigale V2 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $18,295 to $18,595 USD
Canada MSRP Price: $20,595 to $20,895 CDN
Europe/UK MSRP Price: from £16,795 to 17,095 GBP (On The Road inc 20% Vat)

Engine

Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled

Displacement

955 cc

Bore x Stroke

100 x 60,8 mm

Compression Ratio

12.5:1

Power

114 kW (155 hp) @ 10.750 rpm

Torque

104 Nm (76,7 lb-ft) @ 9.000 rpm

Fuel injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.

Exhaust

2-1-2-1 system, with 2 catalytic converters and 2 lambda probes

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

Primary Drive

Straight cut gears; Ratio 1.77:1

Ratio

1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24

Final Drive

Chain; Front sprocket 15; Rear sprocket 43

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch

Frame

Monocoque Aluminum

Front Suspension

Fully adjustable Showa BPF fork. 43 mm chromed inner tubes

Front Wheel

5-spokes light alloy 3.50″ x 17″

Front Tire

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Rear Suspension

Fully adjustable Sachs unit. Aluminum single-sided swingarm

Rear Wheel

5-spokes light alloy 5,50” x 17”

Rear Tire

Pirelli Diablo Rosso IV Corsa 180/60 ZR17

Wheel travel (front/rear)

120 mm (4.72 in) – 130 mm (5.12 in)

Front Brake

2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with EVO Cornering ABS

Rear Brake

245 mm disc, 2-piston calliper with Cornering ABS EVO

Instrumentation

Digital unit with 4,3″ TFT color display

Dry Weight

176 kg (388 lb)

Kerb weight

200 kg (441 lb)

Seat Height

840 mm (33,1 in)

Wheelbase

1.436 mm (56,5 in)

Rake

24°

Front wheel trail

94 mm (3.70 in)

Fuel tank capacity

17 l – 4.5 gallon (US)

Number of seats

Dual seat

Safety Equipment

Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Engine Brake Control (EBC) EVO, Auto tire calibration

Standard equipment

Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Auto-off indicators

Ready for

Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Ducati Lap Timer GPS (DLT GPS) and anti-theft

Warranty (months)

24 months unlimited mileage

Maintenance

12,000 km (7,500 m)/12 months

Valve clearance adjustment (km)

24,000 km (15,000 m)

Emissions CO2

139 g/km

Consumptions

6,0 l/100km





2024 Ducati Panigale V2 – Totalmotorcycle.com Canada Specifications/Technical Details

Engine

Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled

Displacement

955 cc

Bore x Stroke

100 x 60,8 mm

Compression Ratio

12.5:1

Power

114 kW (155 hp) @ 10.750 rpm

Torque

104 Nm (76,7 lb-ft) @ 9.000 rpm

Fuel injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.

Exhaust

2-1-2-1 system, with 2 catalytic converters and 2 lambda probes

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

Primary Drive

Straight cut gears; Ratio 1.77:1

Ratio

1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24

Final Drive

Chain; Front sprocket 15; Rear sprocket 43

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch

Frame

Monocoque Aluminum

Front Suspension

Fully adjustable Showa BPF fork. 43 mm chromed inner tubes

Front Wheel

5-spokes light alloy 3.50″ x 17″

Front Tire

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Rear Suspension

Fully adjustable Sachs unit. Aluminum single-sided swingarm

Rear Wheel

5-spokes light alloy 5,50” x 17”

Rear Tire

Pirelli Diablo Rosso IV Corsa 180/60 ZR17

Wheel travel (front/rear)

120 mm (4.72 in) – 130 mm (5.12 in)

Front Brake

2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston callipers with EVO Cornering ABS

Rear Brake

245 mm disc, 2-piston calliper with Cornering ABS EVO

Instrumentation

Digital unit with 4,3″ TFT color display

Dry Weight

176 kg (388 lb)

Kerb weight

200 kg (441 lb)

Seat Height

840 mm (33,1 in)

Wheelbase

1.436 mm (56,5 in)

Rake

24°

Front wheel trail

94 mm (3.70 in)

Fuel tank capacity

17 l – 4.5 gallon (US)

Number of seats

Dual seat

Safety Equipment

Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Engine Brake Control (EBC) EVO, Auto tire calibration

Standard equipment

Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Auto-off indicators

Ready for

Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Ducati Lap Timer GPS (DLT GPS) and anti-theft

Warranty (months)

24 months unlimited mileage

Maintenance

12,000 km (7,500 m)/12 months

Valve clearance adjustment (km)

24,000 km (15,000 m)

Emissions CO2

139 g/km

Consumptions

6,0 l/100km





2024 Ducati Panigale V2 – Totalmotorcycle.com European Specifications/Technical Details

Engine

Superquadro: L-twin cylinder, 4 valve per cylinder, Desmodromic, liquid cooled

Displacement

955 cc

Bore x Stroke

100 x 60,8 mm

Compression Ratio

12.5:1

Power

114 kW (155 hp) @ 10.750 rpm

Torque

104 Nm (76,7 lb-ft) @ 9.000 rpm

Fuel injection

Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.

Exhaust

2-1-2-1 system, with 2 catalytic converters and 2 lambda probes

Gearbox

6 speed with Ducati Quick Shift (DQS) up/down EVO 2

Primary Drive

Straight cut gears; Ratio 1.77:1

Ratio

1=37/15 2=30/16 3=27/18 4=25/20 5=24/22 6=23/24

Final Drive

Chain; Front sprocket 15; Rear sprocket 43

Clutch

Hydraulically controlled slipper and self-servo wet multiplate clutch

Frame

Monocoque Aluminium

Front Suspension

Fully adjustable Showa BPF fork. 43 mm chromed inner tubes

Front Wheel

5-spokes light alloy 3.50″ x 17″

Front Tyre

Pirelli Diablo Rosso IV Corsa 120/70 ZR17

Rear Suspension

Fully adjustable Sachs unit. Aluminum single-sided swingarm

Rear Wheel

5-spokes light alloy 5,50” x 17”

Rear Tyre

Pirelli Diablo Rosso IV Corsa 180/60 ZR17

Wheel travel (front/rear)

120 mm (4.72 in) – 130 mm (5.12 in)

Front Brake

2 x 320 mm semi-floating discs, radially mounted Brembo Monobloc M4.32 4-piston calipers with EVO Cornering ABS

Rear Brake

245 mm disc, 2-piston caliper with Cornering ABS EVO

Instrumentation

Digital unit with 4,3″ TFT colour display

Dry Weight

176 kg (388 lb)

Kerb weight

200 kg (441 lb)

Seat Height

840 mm (33,1 in)

Wheelbase

1.436 mm (56,5 in)

Rake

24°

Front wheel trail

94 mm (3.70 in)

Fuel tank capacity

17 l – 4.5 gallon (US)

Number of seats

Dual seat

Safety Equipment

Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 2, Ducati Wheelie Control (DWC) EVO, Engine Brake Control (EBC) EVO, Auto tyre calibration

Standard equipment

Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Auto-off indicators

Ready for

Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Ducati Lap Timer GPS (DLT GPS) and anti-theft

Warranty (months)

24 months unlimited mileage

Maintenance

12,000 km (7,500 m)/12 months

Valve clearance adjustment (km)

24,000 km (15,000 m)

Standard

Euro 5

Emissions CO2

139 g/km

Consumptions

6,0 l/100km



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10046 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
