2024 Honda Gold Wing DCT: TOTAL SENSE OF FREEDOM.

Introducing the 2024 Honda Gold Wing DCT…

PERFECTION OF THE RIDE
Wherever you’re drawn to, the GL1800 Gold Wing is the motorcycle for the ride, beautifully finished and designed to make touring more enjoyable. Powered by a magnificent 1,833cc, six-cylinder engine, you have seven-speed Dual Clutch Transmission (DCT), all housed in a sophisticated, nimble-handling chassis. The Gold Wing is built for a pure riding experience.

POWER AND ELEGANCE COMBINED

If you’re seeking the perfect touring motorcycle that embodies the adventurous spirit and love for exploration, look no further than the Honda Gold Wing and Gold Wing Automatic DCT, renowned as the original and incomparable benchmarks for two-wheel touring machines. From their refined bodywork to the roomy luggage space, these motorcycles offer it all with cutting-edge features such as Android Auto™ and Apple CarPlay™ compatibility paired with either a conventional six-speed transmission or the innovative seven-speed automatic DCT transmission. For 2024, both trims also boast a bold new colorway, the striking Matte Armored Green Metallic. So, take the ultimate road trip and join the legacy with the one and only Honda Gold Wing.

Want more from motorcycling? Find it, here.
The Gold Wing is all about the ride. Its engine – a six-cylinder mechanical masterpiece – responds, instantly to each command. Throttle By Wire (TBW) engine management features four riding modes – TOUR, SPORT, ECON and RAIN – with throttle feel and delivery optimized for low-speed control. With strong power throughout the rev range that you can enjoy, no matter where your next riding adventure takes you.

Agile handling, puts you in control on every journey.
This is a motorcycle built to handle corners, joyfully. Its aluminum twin-beam frame uses double wishbone front suspension, to reduce sliding friction from bumps and steering input. Steering input is also separated from suspension action and the result is light, nimble handling from walking speeds up.

The choice is yours.
Enjoy the luxury of long distance on the Gold Wing with its 7-speed DCT gearbox as standard. To explore the engines full potential and strong performance, opt for manual. However, for longer journeys, Automatic modes such as Drive and Sport anticipate your every move, with a gear ready for you to utilize.

Technology to support your journey.
The expansive, 7-inch full-colour TFT display provides infotainment information as well as riding mode management, suspension adjustment and navigation. And, to keep in touch with the world, via Apple CarPlay™ and Android Auto™, meaning you can replicate the functions on your phone, to the TFT Display.

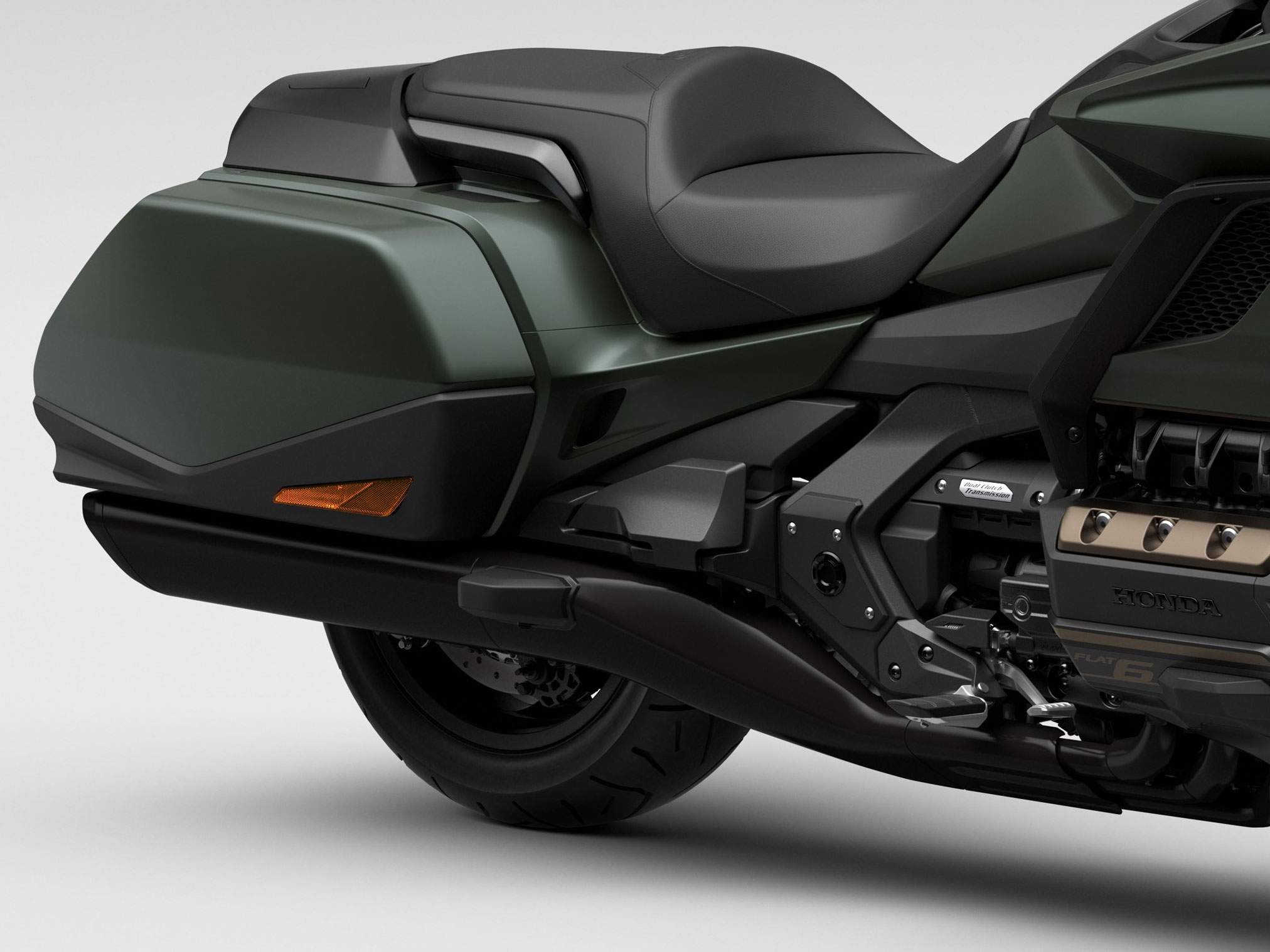

Pannier space for all that matters
Sleek, with room for what you need; there’s 60L capacity between the two panniers. They open with a button and hydraulic dampers provide a smooth action. Also, a USB Type-C socket is tucked away in the left pannier, ready to plug straight into.

Smart key operation
Simply keep the Smart Key in your pocket, press the start button and go. There’s no need to manually unlock the panniers, the Gold Wing senses the Smart Key as you approach, unlocks and locks them as you move away.

Tire pressure measuring system
The Gold Wing now comes equipped with the Tire pressure monitoring system (TPMS) to ensure you can be aware of any changes in tire pressure wherever you are. Available on the Gold Wing, the TPMS warning sign will appear on the display when there is a change in pressure.

1,833cc, 24V SOHC flat six-cylinder engine
Revel in this mechanical masterpiece and enjoy a hugely strong, 170Nm of torque peaking at just 4,500rpm, delivered with unique character. Acceleration from standstill on through the rev-range is effortless and exhilarating.

Finely honed chassis
Under the sleek bodywork, a strong, aluminum twin-beam frame provides rock-solid stability in a straight line. The single-sided rear Pro-Arm operates through Pro-Link offering balanced rigidity. Dual Combined Braking System (D-CBS) distributes braking force evenly, and with ABS control, enabling efficient stopping power and providing you with full confidence.

Rider infotainment
Cockpit instrumentation highlights everything you need to know in luxurious detail. The navigation system features a gyrocompass, for continued guidance in long tunnels or areas where GPS signal can be challenging, while the audio system and lightweight speakers show off ultimate sound quality.

Adjustable, electronically-operated windscreen
The windscreen provides excellent wind protection – or opens up a sense of freedom for what’s to come. The height and angle can be adjusted electronically by simply pushing the button up or down on the left handlebar; it also memorises your favourite positions and will auto-adjust accordingly.

Aids for easy riding
For life on the open road, many details contribute to create an enjoyable ride. Throttle By Wire provides smooth control when utilising cruise control, supporting an effortless transition to the specified speed and an ultra-smooth ride, to ease long journeys. Hill Start Assist (HSA) helps get away when parked on an incline. DCT features Idling Stop, which seamlessly restarts the engine in first gear for a smooth take off when the throttle is opened.

Pannier space for all that matters
Sleek, with room for what you need; there’s 60L capacity between the two panniers. They open with a button and hydraulic dampers provide a smooth action. Also, a USB Type-C socket is tucked away in the left pannier, ready to plug straight into.

Smart key operation
Simply keep the Smart Key in your pocket, press the start button and go. There’s no need to manually unlock the panniers, the Gold Wing senses the Smart Key as you approach, unlocks and locks them as you move away.

Tire pressure measuring system
The Gold Wing now comes equipped with the Tire pressure monitoring system (TPMS) to ensure you can be aware of any changes in tire pressure wherever you are. Available on the Gold Wing, the TPMS warning sign will appear on the display when there is a change in pressure.

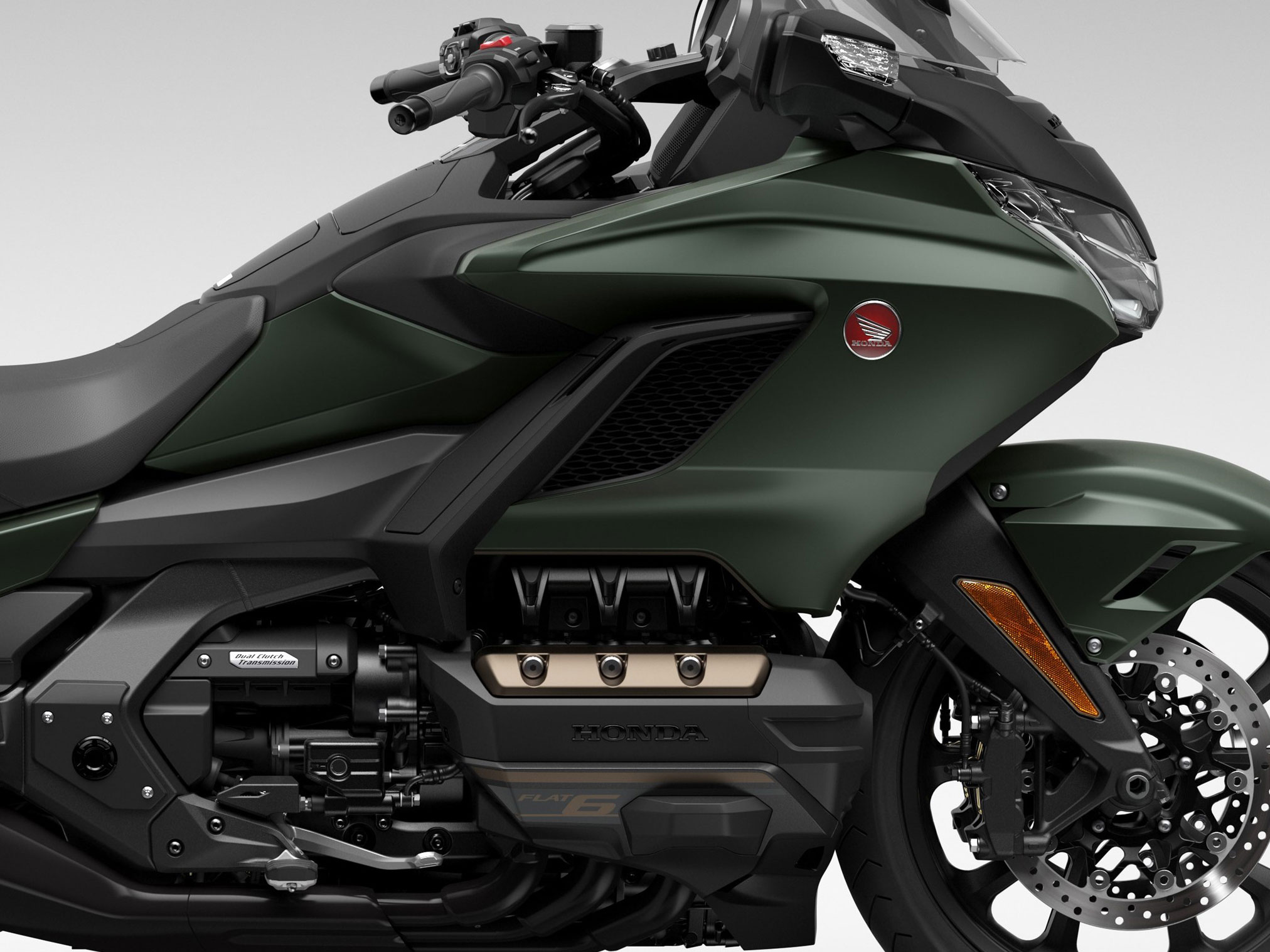

1,833cc, 24V SOHC flat six-cylinder engine
Revel in this mechanical masterpiece and enjoy a hugely strong, 170Nm of torque peaking at just 4,500rpm, delivered with unique character. Acceleration from standstill on through the rev-range is effortless and exhilarating.

Finely honed chassis
Under the sleek bodywork, a strong, aluminum twin-beam frame provides rock-solid stability in a straight line. The single-sided rear Pro-Arm operates through Pro-Link offering balanced rigidity. Dual Combined Braking System (D-CBS) distributes braking force evenly, and with ABS control, enabling efficient stopping power and providing you with full confidence.

Rider infotainment
Cockpit instrumentation highlights everything you need to know in luxurious detail. The navigation system features a gyrocompass, for continued guidance in long tunnels or areas where GPS signal can be challenging, while the audio system and lightweight speakers show off ultimate sound quality.



The Gold Wing’s engine and chassis were designed in unison for the 2018 rebirth, to move the riding position forward and create a much more compact motorcycle. The aluminum beam frame is constructed around a double wishbone front fork, which allows the engine to sit forward in the machine – as the front wheel moves up and down in a more vertical plane – while providing high quality suspension control and front-end stability thanks to its stiffness and reduced friction.

Optimized for size, the 24V flat six-cylinder engine lost none of its power, avalanche of torque or addictive power delivery. The addition of Throttle By Wire (TBW) control brought with it 4 rider modes: TOUR, SPORT, ECON and RAIN; the operation of the Dual Combined Brake System (D-CBS) alters depending on the mode selected. Hill Start Assist (HSA) and Idling Stop offer ease of use and improved fuel efficiency.

The DCT features 7-speeds, with clutch feel, shift speed and rpm range of up/downshifts tailored specifically to each riding mode. It also features a ‘creep’ forward and back function.

The Gold Wing offers a total sense of freedom, with sheer riding enjoyment and performance matched by stylish design. An aerodynamically efficient fairing channels air around the rider, while the electric screen adjusts for preference; the luxurious seats offer all-day comfort. The lightweight audio system and speakers show off incredible sound quality. And features like Smart Key operation, Apple CarPlay, Android Auto and Bluetooth provide modern-day convenience and connectivity.

For 2024 GL1800 Gold Wing is available exclusively in a beautiful, brand-new Matt Armoured Green Metallic with brown detailing on the engine cases.



The Honda Gold Wing, since its introduction as a naked 1000cc machine in 1975, has always represented the ultimate in two-wheeled travel. And it’s a motorcycle that’s been very much on its own journey, growing in physical size and displacement over the decades, all the while creating an enduring and unrivalled reputation for luxury, quality and comfort.

For 2018, in response to the evolution of demographics and the motorcycle market, it made a radical departure from what would have been a traditional update trajectory. The GL1800 Gold Wing and Gold Wing Tour* took a new direction and, brand new from the wheels-up, became sleeker, lighter and more agile – very much a rider’s motorcycle – while adding a host of new features to cement its reputation as a technological flagship.

And, as a result, the Gold Wing’s appeal became instantly broader, reaching out to a younger generation of motorcyclists that may have overlooked – or simply not been aware of – the previous incarnation.

For 2020, improvements to suspension and slow speed manoeuvrability further complemented the evocative, flat six-cylinder engine beating at the heart of Honda’s premium tourer. In 21YM, the Gold Wing gained an audio upgrade and 22YM saw it become available in Dual Clutch Transmission (DCT) form only.

The 2023 Gold Wing received a new Tire Pressure Monitoring System (TPMS) that quickly and clearly warns the rider if tire pressures are low and for 2024 the GL1800 Gold Wing receives a stunning new colour scheme.







2024 Honda Gold Wing DCT Totalmotorcycle.com Key Features

Model updates:  For 2024 the Gold Wing – Honda’s seminal touring flagship – benefits from the option of an eye-catching all-new colour scheme.

The Gold Wing was completely reborn in 2018 with a radical weight reduction, double wishbone front suspension and brand-new, flat six-cylinder engine. Its status as a flagbearer for new technology is well-founded, with cutting edge features including 7-speed Dual Clutch Transmission (DCT), 7-inch TFT screen, gyrocompass navigation, Apple CarPlay, Android Auto, electric screen, Smart Key operation, 4 riding modes and Hill Start Assist.









2024 Honda Gold Wing DCT Totalmotorcycle.com Features and Benefits

Styling & Equipment

  • 7-inch TFT display provides riding, navigation, audio information and the Tire Pressure Monitoring System (TPMS) which for warns of sub optimal pressures
  • Taut lines with a contemporary edge show off the motorcycle underneath
  • Electric windscreen adjustable for angle and height
  • Cruise control operates smoothly via Throttle By Wire (TBW)
  • Ample luggage capacity for weekend touring
  • Apple CarPlay and Android Auto allow smartphone use
  • Full LED lighting and auto-cancelling indicators
  • Smart Key control adds convenience for ignition and luggage
  • Two USB Type-C sockets



The Gold Wing’s lines exude a honed, athletic ethos. The styling presents a unique silhouette and counterpoints comfort with the dynamic abilities of chassis and engine, with the traditional Gold Wing premium level of fit, finish and materials. Its ‘face’ is daringly forward-slanting; combined with the compact fairing proportions, it presents an energetic frontal signature.



The key line of the body, stretching front to back, highlights the differing upper and lower bodywork functions. A central element is the fairing, with its sharp and solid flat surfaces, and nuanced aerodynamic detailing. It adds a tension that hints at the performance potential on offer.



Also on display is the motorcycle itself – the double wishbone front suspension, flat six-cylinder engine, exhausts – in all their functional beauty. Drawn together, the design elements create cutting edge style, underpinned by incredible levels of engineering and electronics



Comfort, heat management and, most importantly, air management are also high on the Gold Wing’s agenda. The fairing channels airflow around the rider and pillion, effectively providing a pleasant cooling breeze.



A small electric screen operated from the left handlebar provides excellent wind protection yet, at the same time, a sense of space and freedom when required. Screen angle and height adjustment is step-less. Available as options are a larger screen, a fully adjustable deflector for the arms and upper body, and fixed deflectors for the lower legs and feet.



From a seating perspective, rider and pillion are separated. The rider can enjoy a total focus on riding the bike. The rider’s seat shape is comfortable and supportive while allowing movement and easy ground reach.



All lighting is LED. The lower portion of the headlights use 5 polished optical lenses on both sides to create a Jewel-Eye low beam light signature. Using high beam (in the upper portion) creates a stereoscopic impression. The front indicators are housed in the mirrors and the indicators also auto-cancel; the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the riding situation.



When riding, the speed that’s been set with the cruise control switch (located on the right handlebar) is shown in the bottom left area of the speedometer. Through TBW the system achieves a smooth transition to the specified speed and an ultra-smooth operation, especially when going uphill. And, after completing a deceleration with the cruise control system in operation, the Gold Wing returns to the pre-set speed with an appropriate shifting schedule.



Luxurious instrumentation creates a unique cockpit. Different low-contrast colours with dark tones are applied to the dials, of which the peripheral areas form cone-shaped slopes to create a feeling of depth. A ring with a metal texture surrounds each dial, and the graduations glow in LED, giving concrete depth and a calm, cool image.



The 7-inch full-colour TFT liquid crystal display screen provides all the information for the audio and navigation systems, as well as the riding modes and suspension adjustment. Information is displayed in differentiated segments in a very functional order, so the rider can get all the relevant data with the minimum of eye movement.



Brightness adjusts automatically (with the maximum luminous intensity of the screen being 1000 cd) and the rider can also choose from 8 brightness levels. Tire pressure is displayed as a numerical figure in the bottom left area of the instruments and warns the rider quickly and clearly if tire pressures become sub-optimal.



Pride of place on the center console and Smart Key is the Gold Wing emblem. Its crisp 3D, two-tone chrome design merges the strength and dignity of a lion’s head with the majestic wings of an eagle ready to pounce with open talons. The Smart Key activates all the motorcycle’s systems and also incorporates the emergency key. The ignition and handlebar lock can be turned on or off while carrying the Smart Key.



Most Gold Wing owners ride short, 2–3-day tours, so the total volume of 60L between both panniers is ample. Exclusively designed inner bags are available as an option. With the Smart Key present, a simple push of a button opens the panniers. It’s also possible to temporarily unlock via remote control; the unlock button on the Smart Key enables the passenger instant access. Hydraulic dampers smooth the opening and closing. Pushing and holding the call button results in the indicators flashing.



The Gold Wing is compatible with Apple CarPlay and Android Auto, so the rider can utilize the personalized information and content inside their smartphone, such as telephone numbers and music playlists. Bluetooth connectivity has been adopted and there are two USB Type-C sockets to plug in to.



High quality, lightweight speakers achieve superb sound quality with vivid presence. A passenger audio control switch is available to ensure an even more pleasant riding experience; the switches are located on the upper part of the right pannier and adjusting the volume, switching the source and fast forwarding is possible.



The navigation system is displayed on the 7-inch, full-colour TFT liquid crystal display screen in the central area of the instruments and includes a gyrocompass – which means guidance is continued even inside a tunnel. Cancellation of any waypoint or ‘go home’ instruction operation while riding is also possible. Maps are updated and also offer the possibility of entering up to 99 different waypoints for detailed journey planning.



The capacity of the fuel tank is 21L with fuel economy of 5.5 litres/100km.



Chassis



  • Diecast, aluminum twin-beam frame
  • Double wishbone front suspension and Pro-Arm rear
  • ABS and Dual-Combined Braking System (D-CBS)



The Gold Wing’s diecast, aluminum twin-beam frame is designed to package the engine in a tight space; its structural thickness is optimized in each area to deliver a smooth and stable ride, from walking speed upwards, whether on tight city streets or out on the open road.



Aside from moving the front wheel forward under full suspension compression, another benefit of the double wishbone front suspension is the reduction in sliding friction (from bump deflection and steering input) that a standard telescopic fork creates, as the stanchions travel up and down in the fork leg. Bearings are used in all shaft bush areas for steering and suspension stroke, further reducing friction.



The steering input – via the dual fork holders – is also separated from the suspension provided by the single shock absorber, and the Gold Wing’s yaw moment make it nimble and easier to steer. In addition, patented steering cross tie-rods connect the handlebars to the front axle and the handlebar pivot, delivering an entirely natural feel to the rider.



Rake and trail are set at 30.5°/109mm, with wheelbase of 1695mm. The Gold Wing weighs 367kg wet.



The Dual Combined Brake System (D-CBS) optimally distributes braking forces to the front and rear wheels. The use of a single, light circulation type ABS modulator – integrated with the brake ECU – keeps weight down within the braking system. It also operates in linkage with the current riding mode of choice, automatically adjusting the braking characteristics to the riding situation. Dual 320mm front discs are gripped by 6-piston calipers, the rear 316mm disc by a 3-piston caliper.



The Gold Wing also benefits from a Pro-Arm swingarm, which attaches to the frame on its left side. The right side serves as a maintenance access. This allows much greater freedom of design and makes the machine easier to manage; it also contributes to stability. Pro-Link provides progressive suspension action and comfort while spherical joints are used throughout, cancelling out torsion. The rear preload is manually adjustable.



Engine



  • Horizontally opposed, flat six-cylinder SOHC 24-valve engine
  • Throttle By Wire (TBW) with 4 rider modes to tailor power output
  • Riding modes also manage suspension damping and brake force
  • Idling Stop, Integrated Starter Generator (ISG) and Hill Start Assist (HSA)



To realise the handling potential of the chassis – and maintain the addictive power delivery and feel that’s so much part of this icon’s appeal – the Gold Wing’s 1,833cc, horizontally-opposed flat six-cylinder engine uses four valves per cylinder.



Peak power of 93kW arrives @ 5,500rpm, with peak torque of 170Nm delivered @ 4,500rpm. The bore size of 73mm matches the stroke of 73mm; the left and right cylinders are offset 4mm and the cylinder sleeves are aluminum. Compression ratio is set at 10.5:1.



The Unicam cylinder heads – the inlet valves are operated by finger-follower rocker arm, the exhaust valves by roller rocker arms – also employ a co-axial rocker-arm shaft for both inlet and exhaust. The combustion chambers are a 4-valve ‘pentroof’ design with the inlet ports designed to promote ‘tumble’ flows inside the cylinders thus improving efficiency. The piston skirts wear a molybdenum coating to reduce friction.



Throttle By Wire (TBW) engine management adds 4 rider modes to alter character and power delivery, linked to suspension damping and the Dual Combined Brake System (D-CBS):



TOUR mode is the base setting for comfort and power. It gives a direct 100% opening ratio between throttle grip and throttle body butterfly, with ‘default’ damping and front/rear brake force distribution.



SPORT serves up the highest throttle to butterfly ratio and delivers strong acceleration, with firmer damping and rear brake lever pressure.



ECON mode offers maximum fuel economy and easy cruising, with lower throttle to butterfly ratio and default damping and brake force.



RAIN turns the dial down to suit wet and slippery conditions, with lowest throttle to butterfly ratio, default braking force distribution and soft suspension damping.



There are two air intake ducts sited front left and right rear. This structure generates swirling as the air is drawn in – the result is more effective use of the air filter’s entire surface area and reduction in resistance. The internal shaping of both ducts is optimized to align with the intake pulses of the engine’s low-rpm range, improving response and torque from smaller throttle openings. A single throttle body speeds up airflow and improves response.



To complement the engine’s deep bass signature the mufflers emit a powerful throb, without excessive noise. The cross-sectional areas of the exhaust pipes for two out of the six cylinders are reduced 20%, bringing the sound volume and depth.



The ISG (Integrated Starter Generator) combines the generator and starter motor into one component, with the generator effectively becoming the starter motor when supplied with reverse power. It’s 2.4 kg lighter than a standard system. Helical gears are employed for the ISG driving gears, reducing mechanical noise.



Key characteristics of Idling Stop are the ultra-quiet start-up of the engine thanks to the use of ISG, and the smooth starting feeling achieved through a combination of DCT and TBW control. When stopping at a traffic light with Idling Stop on, the engine automatically stops after 3 seconds and, when restarting, the rider only needs to turn the throttle, which immediately starts the engine.



The system is controlled so that hydraulic oil pressure is applied in advance to the DCT line that activates the clutch when the engine starts, so the time lag from when the rider opens the throttle to movement is reduced. To curb any abruptness the TBW makes the throttle butterfly open gradually following the throttle opening – thus the smooth acceleration befitting of a Gold Wing. Idling Stop can be turned ON or OFF from the right handlebar switch.



Hill starts on a conventional motorcycle involve simultaneously releasing the brakes, opening the throttle and engaging the clutch according to the grade of the slope. To ease this effort, the Gold Wing has Hill Start Assist (HSA). After stopping on a slope, further squeezing the brake lever quickly results in the ABS modulator generating hydraulic pressure for the rear brake caliper. When setting off – even when the brake lever is released – the hydraulic pressure temporarily retains braking force (for about 3 seconds) so starting on the uphill slope with the throttle is possible. When in operation, the HSA indicator is switched on to inform the rider.



Dual Clutch Transmission (DCT)



  • Third-generation 7-speed DCT as standard equipment
  • Smooth and quiet, with ultra-fast shifting
  • Walking mode allows machine to ‘creep’ forward or back
  • The 4 riding modes also manage DCT for optimized response



Honda has sold over 240,000 DCT-equipped motorcycles across Europe since the system first appeared as an option on the VFR1200F in 2009. It delivers consistent, seamless gear changes up or down and very quickly becomes second nature in use. It uses two clutches: one for start-up and 1st, 3rd, 5th & 7th the other for 2nd, 4th and 6th, with the mainshaft for each clutch located inside the other for compact packaging.



Each clutch is independently controlled by its own electro-hydraulic circuit. When a gear change occurs, the system pre-selects the target gear using the clutch not currently in use. The first clutch is then electronically disengaged as, simultaneously, the second clutch engages.



The result is a consistent, fast and seamless gear change. Furthermore, as the twin clutches transfer drive from one gear to the next with minimal interruption of the drive to the rear wheel, any gear change shock and pitching of the machine is minimised, making the change feel direct as well as smooth. Extra benefits include durability (as the gears cannot be damaged by missing a gear) impossibility of stalling, low stress urban riding, reduced rider fatigue and increased ability to focus on riding lines, braking and acceleration points.



The DCT system offers two distinct riding approaches – the Automatic settings, with pre-programmed shift patterns which constantly read vehicle speed, gear selected and engine rpm to decide when a shift should occur, and the Manual Transmission setting for gear changes using the paddle-shift style triggers on the left handlebar.



Employing the third generation – and the only one to have 7-speeds – the Gold Wing’s DCT is specifically designed for long-distance cruising; it’s also extremely smooth and fast shifting.



It is also optimized for low-speed manoeuvrability, with close ratios reducing shift-shock. In the higher speed range, they are set wider apart to reduce engine rpm. In both speed ranges comfort is improved as shifting up or down is of the highest quality.



Shift noise and shock were addressed throughout the development of the third generation, with noise damper rubbers on both ends of the fork guide and the master arm greatly reducing any impact sound during gear changes.



A spring damper is installed between the clutch and the main shaft in order to absorb the torque in the rotational direction, thus reducing the noise and shock of the contact between the clutch and main shaft when shifting gears.



The Gold Wing’s DCT features a 1.8km/h forward Walking Mode with reverse of 1.2km/h, operated instantly from a +/- switch on the left handlebar.



The main shaft has a double tube structure, with the outer main shaft (connected with the even-number gears) linked to the inner shaft with a chain, by way of the gears on the counter shaft. This structure gives the outer main shaft the role of the reverse idle shaft, which has resulted in a lightweight reverse mechanism with a compact structure – with no need for any reverse idle shaft.



When activating Walking Mode, the two clutches of DCT are utilised to enable moving backward with clutch #1 and moving forward with clutch #2. In this way, moving forward or backward at walking speed is now possible with only clutch control, without any need for gear shifting. Furthermore, the throttle-by-wire system controls speed by minutely controlling the clutch capacity, while maintaining a certain engine speed, assuring controllability with a sense of security in wide-ranging situations.



The 4 riding modes are interleaved with DCT and feature DCT-specific parameters:



TOUR uses the default setting for smooth clutch engagement and gearshifts in AT mode, with a low-to-high rpm range for gear shifts.



SPORT deploys a more direct clutch engagement, with gear shifts programmed in a mid-to-high rev range.



ECON has a soft clutch engagement, with low-to-mid rpm gear hold and default shifting feel.



RAIN also operates a soft clutch, low-to-high rpm gear hold range and slower shifting in AT mode.



Accessories



A wide range of genuine Honda accessories have been developed to further enhance The Honda Goldwing ownership experience. These are available either as a pack or individually.





The Full Option Goldwing includes the following accessories:

  • Pannier Inner Bags & Mats
  • Rear Carrier
  • Main Stand
  • Passenger Backrest
  • High Wind Screen
  • 12V Socket
  • Fog Lamps



The following accessories are also available:

  • Passenger Audio Switch
  • Power Amplifier
  • Rear Speaker
  • Auxiliary Cord
  • LED Trunk light, LED Brake Light and Trunk Sub-Harness kit
  • Wheel Stripes (Available in 3 different colours)
  • Front Caliper covers (Available in Chrome / Black)
  • Trunk Base, Panels, Inner Bag, Mat, and Lid Organizer
  • Chrome Trunk Rack
  • Chrome Side Stand
  • Full Size or Half Covers (Available in Gray / Black)
  • Tall Passenger Grips
  • Passenger Armrests
  • Custom Seat
  • Upper & Lower Air Deflectors
  • Wider Rider Footpegs
  • Rider Backrest
  • DCT Foot Shifter











2024 Honda Gold Wing DCT – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $25,700 USD
Canada MSRP Price: $31,378 CDN
Europe/UK MSRP Price: £ TBA GBP (On The Road inc 20% Vat)

Model  Gold Wing Tour Airbag DCT
(GL1800DAP)
Gold Wing Tour DCT
(GL1800DP)
Gold Wing Tour
(GL1800P)
Gold Wing DCT
(GL1800BDP)
Gold Wing
(GL1800B)
ENGINE
Type 1,833cc horizontally opposed, liquid-cooled, six-cylinder four-stroke
Valve Train Single overhead Unicam® w/ 4 valves per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust valves
Bore x Stroke 73.0mm x 73.0mm
Compression Ratio 10.5:1
Induction Fuel injection; single throttle body w/ 50mm bore, Throttle By Wire (TBW)
Ignition Full transistorized ignition
Starter Electric w/ Integrated Starter Generator System (ISG)
Transmission 7-speed automatic DCT w/ Walking Mode F/R 6-speed manual w/ Reverse 7-speed automatic DCT w/ Walking Mode F/R 6-speed manual w/ Reverse
Clutch (2) multiplate wet Multiplate wet (2) multiplate wet Multiplate wet
Final Drive Shaft
SUSPENSION
Front Double-wishbone system w/ Showa shock absorber, 4.3 in. travel
Rear Pro-Link® system w/ Showa shock absorber, 4.1 in. travel
BRAKES
Front (2) radially mounted 6-piston Nissin hydraulic calipers w/ 320mm rotors, electronically controlled combined ABS
Rear (1) 3-piston Nissin hydraulic caliper w/ 316mm rotor, electronically controlled combined ABS
TIRES
Front 130/70-18
Rear 200/55-16
MEASUREMENTS
Rake (Caster Angle) 30º
Trail 109mm 110mm 109mm
Length 102.9 in. 97.6 in.
Width 35.6 in. 36.3 in. 35.6 in. 36.3 in.
Height 56.4 in. (windscreen in low position) 52.8 in.
Seat Height 29.3 in.
Ground Clearance 5.1 in.
Wheelbase 66.9 in.
Fuel Capacity 5.5 gal.
Curb Weight* 853 lbs. 845 lbs. 804 lbs. 802 lbs.
OTHER
Colors Pearl White Gray Metallic/Black; Pearl White Matte Armored Green Metallic

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment











2024 Honda Gold Wing DCT – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine type

Liquid-cooled horizontally opposed six-cylinder

Displacement

1,833 cc

Bore & stroke

73 mm x 73 mm

Compression ratio

10.5:1

Valve train

SOHC, 4 valves per cylinder

Fuel delivery

PGM-FI electronic fuel injection

Transmission

Seven-speed Dual Clutch Transmission with forward and reverse walking speed mode

Final drive

Shaft

Chassis & Suspension

Front suspension

Double Wishbone; 110 mm (4.3 in) travel

Rear suspension

Pro Arm® Single-sided swingarm and Pro-Link® single shock; 105 mm (4.1 in) travel

Dimensions & Additional Information

Tires

Front: 130/70R – 18
Rear: 200/55R – 16

Brakes

Front: dual 320 mm discs with radially mounted six-piston Nissin calipers
Rear: single 316 mm disc with three-piston Nissin caliper

ABS

Electronically controlled dual Combined Brake System (CBS) with ABS

Seat height

745 mm (29.3 in)

Wheelbase

1,695 mm (66.7 in)

Curb weight

366 kg (807 lb) including required fluids and full tank of gas – ready to ride

Fuel capacity

21 litres

Colour

Mat Armored Green Metallic

Warranty

3 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus.

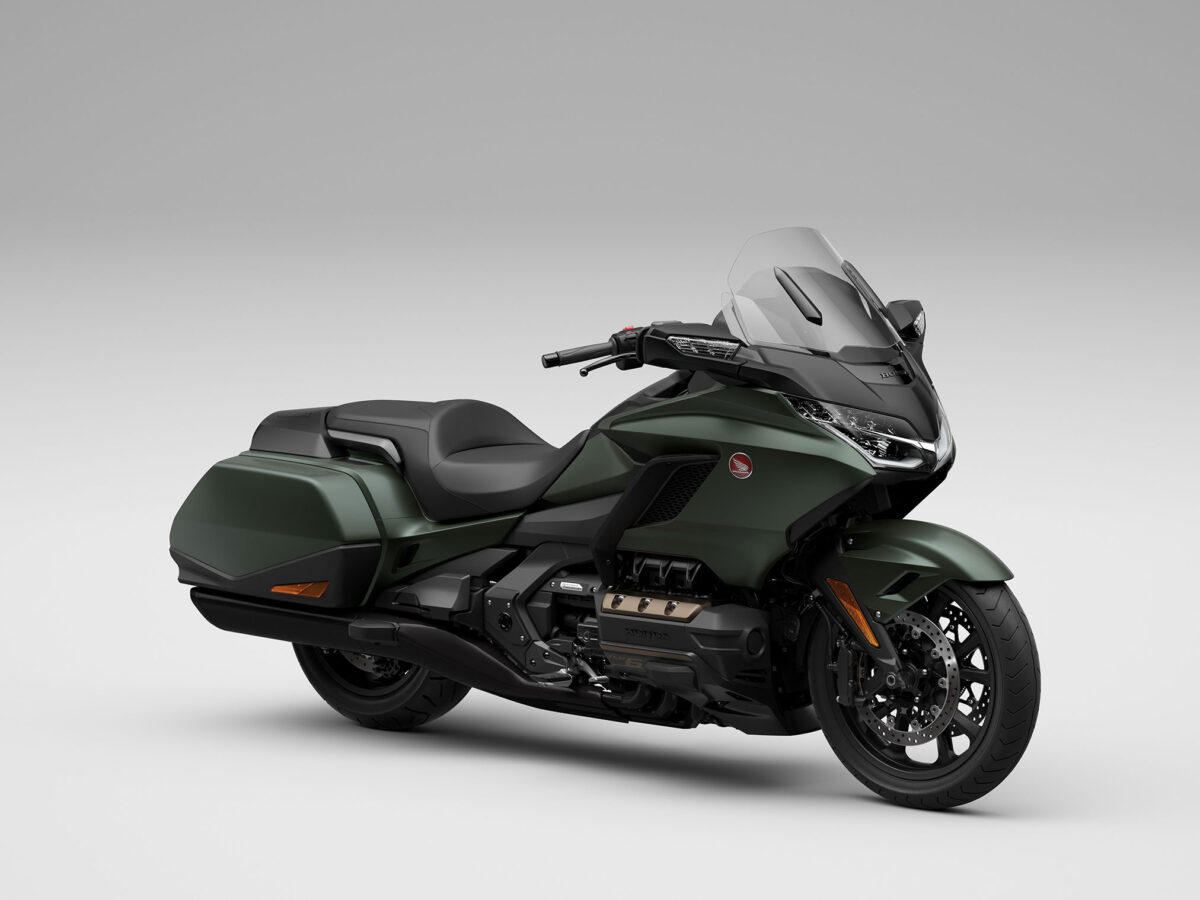

2024 Honda Gold Wing DCT – Totalmotorcycle.com Europe Specifications/Technical Details

 ENGINE
Type Liquid-cooled 4-stroke 24 valve SOHC flat-6
Displacement 1,833cc
Valves per cylinder 4
Bore x Stroke 73mm x 73mm
Compression Ratio 10.5:1
Max. Power Output 93kW/5,500rpm
Max. Torque 170Nm/4,500rpm
Oil Capacity 5.6 litres (DCT)
Noise Level (dB) Lwot 76, Lurban 69
CO2 emissions 127g/km
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Throttle Bore 50mm
Air cleaner Viscous, cartridge type paper filter
Fuel Tank Capacity 21.1 litres
Fuel Consumption 5.5 litres/100km
ELECTRICAL SYSTEM
Starter Integrated Starter Generator system
Battery Capacity 12V/20AH
ACG Power Generation Capacity 12V/120A
DRIVETRAIN
Clutch Type (DCT) Hydraulic, wet, multiplate with oil pressure
Transmission Type 7-speed forward and reverse DCT
Primary Reduction 1.795 (79/44)
Gear Ratios (DCT) 1st: 2.167    2nd: 1.696

3rd: 1.304              4th: 1.038

5th: 0.821              6th: 0.667

7th: 0.522              Rev: 1.190

Final Reduction Engine side 0.972

Rear Wheel side 2.615

Final Drive Enclosed shaft
FRAME
Type aluminum die-cast, twin tube
CHASSIS
Dimensions (L´W´H) L: 2,475mm

W: 925mm (DCT)

H: 1,340mm

Wheelbase 1,695mm
Caster Angle 30.5°
Trail 109mm
Turning radius 3.4m
Seat Height 745mm
Ground Clearance 130mm
Kerb Weight DCT: 367kg



SUSPENSION
Type Front Double Wishbone
Type Rear Pro Link
WHEELS
Type Front 130/70R 18
Type Rear 200/55R 16
Rim Size Front 18 x MT3.5
Rim Size Rear 16 x MT6.0
BRAKES
System Type Electronically-controlled combined ABS system
Type Front 320mm x 4.5mm dual hydraulic disc with 6-piston calliper, floating rotors and sintered metal pads
Type Rear 316mm x 11mm ventilated disc with 3-piston calliper and sintered metal pads

All specifications are provisional and subject to change without notice.

** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

2025 Newest Bike Reviews

LATEST 2025 Motorcycle Model Guides
About Michael Le Pard 11246 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
