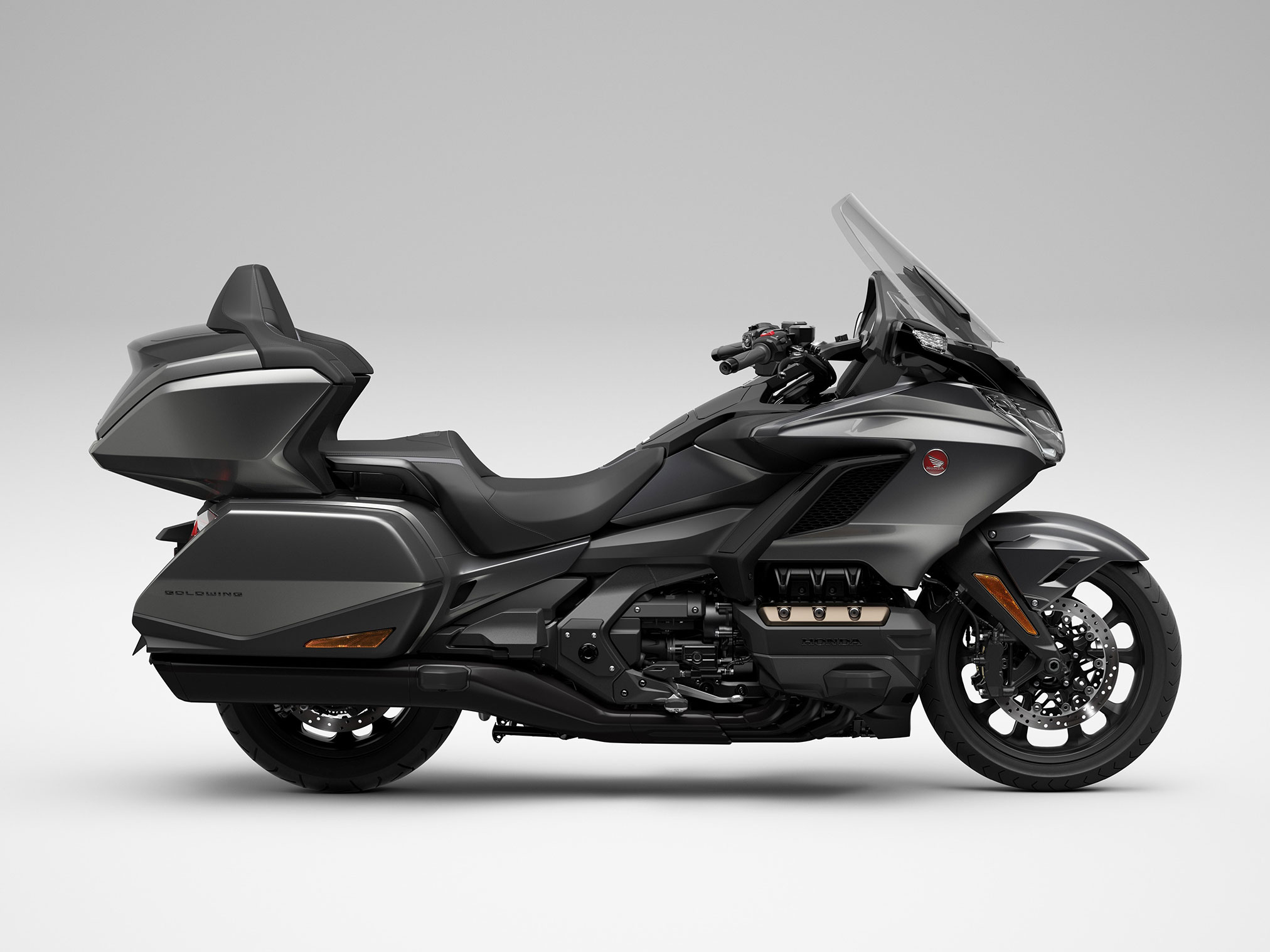

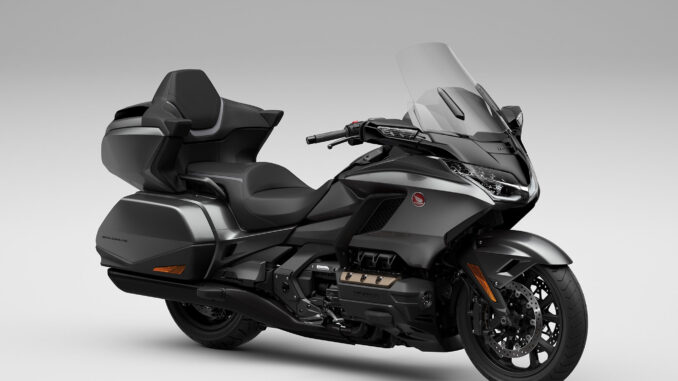

2024 Honda Gold Wing Tour DCT
ReviewKey FeaturesFeatures & BenefitsSpecifications
2024 Honda Gold Wing Tour DCT 2024 Honda Gold Wing Tour DCT 2024 Honda Gold Wing Tour DCT 2024 Honda Gold Wing Tour DCT

2024 Honda Gold Wing Tour: SHIFT INTO THE FUTURE.

Introducing the 2024 Honda Gold Wing Tour…

Discover your spirit of adventure and indulge your thirst for wanderlust with the touring bike that has dominated the segment for the past 50 years: the Honda Gold Wing Tour, Gold Wing Tour Automatic DCT, and Gold Wing Tour Airbag Automatic DCT. Like all Gold Wings, these trims boast our renowned 1833cc six-cylinder engine, ample storage space, and innovative technology such as Android Auto™ and Apple CarPlay™ compatibility. Choose between a conventional six-speed transmission or the advanced seven-speed automatic Dual-Clutch Transmission (DCT). Additionally, for 2024 the Gold Wing Tour and Tour DCT trims come in a bold Grey Metallic/Black combo, while all three are also available in a stunning Pearl White. So, embark on an unforgettable journey with the iconic Honda Gold Wing Tour lineup, the pinnacle of motorcycle touring.

INNOVATIVE TECHNOLOGY, ENDLESS ADVENTURE

The manual transmission is 6-speed, while DCT features 7-speeds, with clutch feel, shift speed and rpm range of up/downshifts tailored specifically to each riding mode. It also features a ‘creep’ forward and back function. The manual machine employs the same electric reverse system as featured on previous designs.

The 6-speed manual gearbox is also fitted with a ‘cam damper’ between the clutch and transmission, separating each inertial mass, reducing noise and improving shift quality/durability. A cam assist and slipper clutch (with fewer discs and reduced hydraulic friction in the release mechanism) replace the traditional hydraulic assist clutch. This reduces clutch load at the lever by 20% and also smooths downshifts; the slipper mechanism also contributes to the high-quality downshift feel. An electric reverse is a familiar feature from the previous design.

The Gold Wing Tour offers a total sense of freedom, with sheer riding enjoyment and performance matched by stylish design. An aerodynamically efficient fairing channels air around the rider, while the extended electric screen adjusts for preference; the seats, too provide all-day comfort and feature a suede/synthetic leather cover. The angle of the pillion back rest is also relaxed. High quality speakers show off vivid sound quality and features like Smart Key operation, Apple CarPlay, Android Auto and Bluetooth add modern-day convenience and connectivity.

The 2024 GL1800 Gold Wing Tour will be available in the following colour options:



**NEW** Heavy Gray Metallic with Graphite Black detailing and bronze engine covers

Pearl Glare White with NEW Graphite Black detailing

Beta Silver Metallic/Iridium Gray Metallic



The 2024 GL1800 Gold Wing Tour (manual gearbox option) is available exclusively in a

**NEW** Heavy Gray Metallic with Graphite Black detailing and bronze engine covers



Honda’s luxurious Gold Wing Tour – a flagship completely reborn in 2018 – with radical weight reduction, double wishbone front suspension, brand-new, flat six-cylinder engine, glides into 2024 essentially unchanged. The comprehensive spec. sheet includes 6-speed manual or 7-speed DCT, 7-inch TFT screen, gyrocompass navigation, Apple CarPlay, Android Auto, electric screen, Smart Key operation, 4 riding modes, HSTC and Hill Start Assist – underlining its status as a flagbearer for new technology.

The Honda Gold Wing, since its introduction as a naked 1000cc machine in 1975 has always represented the ultimate in two-wheeled travel. And it’s a motorcycle that’s been very much on its own journey, growing in physical size and displacement over the decades, all the while creating an enduring and unrivalled reputation for luxury, quality and comfort.

For 2018, in response to the evolution of demographics and the motorcycle market, it made a radical departure from what would have been a traditional update trajectory. The GL1800 Gold Wing* and Gold Wing ‘Tour’ took a new direction and, brand new from the wheels-up, became sleeker, lighter and more agile – very much a rider’s motorcycle – while adding a host of new features to cement the bike’s reputation as a technological flagship, including the option of 7-speed Dual Clutch Transmission (DCT).

And, as a result, the Gold Wing Tour’s appeal became instantly broader, reaching out to a younger generation of motorcyclists that may have overlooked – or simply not been aware of – the previous incarnation. In 20YM, standard-fit LED fog lights, larger pillion grab handles plus improvements to suspension and slow speed manoeuvrability further complemented the evocative, flat six-cylinder engine beating at the heart of Honda’s premium tourer.

For 2021, the Gold Wing Tour gained carrying capacity, improved pillion comfort and an audio upgrade. Every new model year brings fresh paint choices and 2024 is no exception, with two new colour combinations further cementing its standalone desirability.

For 2024 the GL1800 Gold Wing Tour will be available in two new dynamic colour combinations.

The Gold Wing Tour’s engine and chassis were designed in unison for the 2018 rebirth, to move the riding position forward and create a much more compact motorcycle. The aluminium beam frame is constructed around a double wishbone front fork, which allows the engine to sit forward in the machine – as the front wheel moves up and down in a more vertical plane – while providing high quality suspension control and front-end stability thanks to its stiffness and reduced friction. Suspension damping adjusts electrically.

Optimised for size, the 24V flat six-cylinder engine lost none of its power, avalanche of torque or addictive power delivery. The addition of Throttle By Wire (TBW) control brought with it 4 rider modes: TOUR, SPORT, ECON and RAIN; the operation of the Dual Combined Brake System (D-CBS) alters depending on the mode selected. Hill Start Assist (HSA) and Idling Stop (on the DCT option) offer ease of use and improved fuel efficiency. Honda Selectable Torque Control (HSTC) maintains rear wheel traction.







2024 Honda Gold Wing Tour Totalmotorcycle.com Key Features

  • Manual Transmission
  • 7-inch TFT display provides riding, navigation and audio information
  • Taut lines with a contemporary edge show off the motorcycle underneath
  • Ample luggage capacity for weekend touring; top box features 61L storage
  • Suede/synthetic leather seats, relaxed pillion back rest angle
  • High audio quality
  • Electric windscreen adjustable for angle and height
  • Cruise control operates smoothly via Throttle By Wire (TBW)
  • Apple CarPlay and Android Auto allow smartphone use
  • Full LED lighting, LED fog lights and auto-cancelling indicators
  • Smart Key control adds convenience for ignition and luggage
  • Two USB Type-C sockets



THE ART OF LUXURY TOURING
The Gold Wing Tour is a Honda flagship motorcycle for a reason, offering supreme levels of performance and luxury through the city, or out on the open road. Taking the incredible Gold Wing as a base, it adds carrying capacity and a more comfortable and relaxed ride for the pillion. Luxurious material features on both front and rear seats – ensuring ultimate riding comfort. The audio system and speakers deliver crisp sound quality, whilst dual LED fog lights guarantee piercing visibility.

A voyage of discovery.
The Gold Wing Tour takes care of rider and pillion alike. With dynamic handling and engine response to satisfy any rider, the pillion can settle back into their luxurious and even more expansive space and enjoy the journey ahead. They can also easily open each pannier to access contents while seated and there’s also an accessory audio switch (located on the right pannier) for soundtrack control. A USB socket in the left pannier offers a smartphone charging point. For added convenience, especially with a pillion, the Gold Wing comes equipped with two walking modes – forwards and backwards – which is ideal for parking.

Riding perfection.
Just like the Gold Wing, the Gold Wing Tour is a motorcycle built to handle curves. Its aluminium twin-beam frame leads with double wishbone front suspension, while electronic damping control provides precise suspension reaction. And then there’s the engine. The 1,833cc, flat six-cylinder engine is a masterpiece, delivering 170Nm torque at just 4,500rpm, minimising fatigue on the wrist. The powerful torque along with Honda Selectable Torque Control, makes the Gold Wing Tour one of the world’s most impressive, usable and enjoyable motorcycle powerplants. Put the two together and the Gold Wing Tour riding experience goes beyond next level.

The choice is yours.
Enjoy the luxury of long distance on the Gold Wing Tour with its 7-speed DCT gearbox as standard. To explore the engines full potential and strong performance, opt for manual. However, for longer journeys, Automatic modes such as Drive and Sport anticipate your every move, with a gear ready for you to utilise.

Stay In Touch and Increase Safety with Advanced Rider Aids.
The expansive, 7-inch full-colour TFT display provides infotainment information as well as riding mode management, suspension adjustment and navigation. And, to keep in touch with the world, via Apple CarPlay and Android Auto, meaning you can replicate the functions on your phone, to the TFT Display.



Full LED lighting with LED fog lights
The lower portion of the headlights use 5 polished optical lenses on both sides to create a distinct, Jewel-Eye low beam light signature. High beam creates a stereoscopic impression. LED fog lights deliver piercing visibility to other road users.

Honda Gold Wing Tour, Tire Pressure Measuring system
Tire Pressure Measuring system
The Gold Wing Tour now comes equipped with the Tire pressure monitoring system (TPMS) to ensure you can be aware of any changes in tire pressure wherever you are. Available on the Gold Wing Tour, the TPMS readout can be found on the 7-inch full-colour TFT display.

Honda Gold Wing Tour, Large storage capacity
Large storage capacity
For true day-to-day convenience, the rear top box has grown 11L in capacity, to 61L, which means it stores two large full-face helmets with ease. There’s a further 60L between both panniers. The luggage opens with a button or via Smart Key, and hydraulic dampers smooth the action.

Honda Gold Wing Tour, Comfortable pillion riding position
Comfortable pillion riding position
A more relaxed, 23° angle for the pillion back support – and luxurious new suede/synthetic material for both front and rear seats – ensure long-haul comfort for pillion and rider alike.

Honda Gold Wing Tour, Honda Selectable Torque Control (HSTC)
Honda Selectable Torque Control (HSTC)
For an extra layer of confidence in all riding conditions, alongside the 4 default riding modes, Throttle By Wire (TBW) engine management employs HSTC to constantly monitor and maintain rear wheel traction.

Honda Gold Wing Tour, Extended electrically operated screen
Extended electrically operated screen
The smoothly-adjusting windscreen provides excellent wind protection. The height and angle can be adjusted by simply pushing the button up or down on the left handlebar; it also memorises your favourite positions and will auto-adjust accordingly.

Honda Gold Wing Tour, Full LED lighting with LED fog lights
Full LED lighting with LED fog lights
The lower portion of the headlights use 5 polished optical lenses on both sides to create a distinct, Jewel-Eye low beam light signature. High beam creates a stereoscopic impression. LED fog lights deliver piercing visibility to other road users.

Honda Gold Wing Tour, Air bag technology
Airbag equipped
The Gold Wing Tour pioneered the concept of the motorcycle Airbag within a motorcycle more than 15 years ago. Available exclusively on Gold Wing Tour DCT, the inclusion of the airbag ensures rider safety.

Honda Gold Wing Tour, Tire Pressure Measuring system
Tire Pressure Measuring system
The Gold Wing Tour now comes equipped with the Tire pressure monitoring system (TPMS) to ensure you can be aware of any changes in tire pressure wherever you are. Available on the Gold Wing Tour, the TPMS readout can be found on the 7-inch full-colour TFT display.

Honda Gold Wing Tour, Large storage capacity
Large storage capacity
For true day-to-day convenience, the rear top box has grown 11L in capacity, to 61L, which means it stores two large full-face helmets with ease. There’s a further 60L between both panniers. The luggage opens with a button or via Smart Key, and hydraulic dampers smooth the action.

Honda Gold Wing Tour, Comfortable pillion riding position
Comfortable pillion riding position
A more relaxed, 23° angle for the pillion back support – and luxurious new suede/synthetic material for both front and rear seats – ensure long-haul comfort for pillion and rider alike.

Honda Gold Wing Tour, Honda Selectable Torque Control (HSTC)
Honda Selectable Torque Control (HSTC)
For an extra layer of confidence in all riding conditions, alongside the 4 default riding modes, Throttle By Wire (TBW) engine management employs HSTC to constantly monitor and maintain rear wheel traction.

Full option pack
This pack takes the Goldwing Tourer experience to the next level by including all the following accessories: tall screen, 12V-socket, 3 inner bags, luggage mats, trunk rack, trunk lights and organizer. A bike cover is also included.











2024 Honda Gold Wing Tour Totalmotorcycle.com Features and Benefits

The Gold Wing Tour’s lines exude a honed, athletic ethos. The styling presents a unique silhouette and counterpoints comfort with the dynamic abilities of chassis and engine, with the traditional Gold Wing premium level of fit, finish and materials. Its ‘face’ is daringly forward-slanting; combined with the compact fairing proportions, it presents an energetic frontal signature.



The key line of the body, stretching front to back, highlights the differing upper and lower bodywork functions. A central element is the fairing, with its sharp and solid flat surfaces, and its nuanced aerodynamic detailing. It adds a tension that hints at the performance potential on offer.



Also on display is the motorcycle itself – the double wishbone front suspension, flat six-cylinder engine, exhausts – in all their functional beauty. Drawn together, the design elements create cutting edge style, underpinned by incredible levels of engineering and electronics



Comfort, heat management and, most importantly, air management are also high on the Gold Wing Tour’s agenda. The fairing channels airflow around the rider and pillion, effectively providing a pleasant cooling breeze.



An extended electric screen operated from the left handlebar provides excellent wind protection yet, at the same time, a sense of space and freedom when required. Screen angle and height adjustment is step-less. Available as options are a larger screen, a fully adjustable deflector for the arms and upper body and fixed deflectors for the lower legs and feet.



From a seating perspective, rider and pillion are separated. The rider can enjoy a total focus on riding the bike. The rider’s seat shape is comfortable and supportive while allowing movement and easy ground reach. Both rider and pillion benefit from a luxurious new suede/synthetic leather seat cover; the angle of the pillion back rest is set at a relaxed 23°.



All lighting is LED, and the Gold Wing Tour is equipped with dual LED fog lights. The lower portion of the headlights use 5 polished optical lenses on both sides to create a Jewel-Eye low beam light signature. Using high beam (in the upper portion) creates a stereoscopic impression. The front indicators are housed in the mirrors and the indicators also auto-cancel; the system compares front and rear wheel speed difference and calculates when to cancel the indication relative to the riding situation.



When riding, the speed that’s been set with the cruise control switch (located on the right handlebar) is shown in the bottom left area of the speedometer. Through TBW the system achieves a smooth transition to the specified speed and an ultra-smooth operation, especially when going uphill. In the case of the manual transmission models, squeezing the clutch or brake, or twisting the throttle cancels cruise control.



Luxurious instrumentation creates a unique cockpit. Different low-contrast colours with dark tones are applied to the dials, of which the peripheral areas form cone-shaped slopes to create a feeling of depth. A ring with a metal texture surrounds each dial, and the graduations glow in LED, giving concrete depth and a calm, cool image.



The 7-inch full-colour TFT liquid crystal display screen provides all the information for the audio and navigation systems, as well as managing riding modes and suspension adjustment. Information is displayed in differentiated segments in a very functional order, so the rider can get all the relevant data with the minimum of eye movement.



Brightness adjusts automatically (with the maximum luminous intensity of the screen being 1000 cd) and the rider can also choose from 8 brightness levels. Tire pressure is displayed as a numerical figure in the bottom left area of the instruments warns the rider quickly and clearly if tire pressures becomes sub-optimal.



Pride of place – on the centre console and Smart Key – is the Gold Wing emblem. Its crisp 3D, two-tone chrome design merges the strength and dignity of a lion’s head with the majestic wings of an eagle ready to pounce with open talons. It activates all the motorcycle’s systems and also incorporates the emergency key. The ignition and handlebar lock can be turned on or off while just carrying the Smart Key.



Total carrying capacity is 121L. Exclusively designed inner bags are available as an option. Luggage operation is simple. With the Smart Key present, a push button opens all of the boxes. It’s also possible to temporarily unlock via remote control; the unlock button on the Smart Key enables the passenger instant pannier access. Hydraulic dampers smooth the opening and closing. Pushing and holding the call button results in the indicators flashing.



The Gold Wing Tour is compatible with Apple CarPlay and Android Auto, so the rider can utilise the personalised information and content inside their smartphone, such as telephone numbers and music playlists. Bluetooth connectivity has been adopted and there are two USB Type-C sockets to plug in to.



Lightweight speakers achieve superb sound quality with vivid presence. A passenger audio control switch is available to ensure an even more pleasant riding experience; the switches are located on the upper part of the right pannier and adjusting the volume, switching the source and fast forwarding is possible.



The navigation system is displayed on the 7-inch, full-colour TFT liquid crystal display screen in the central area of the instruments and includes a gyrocompass – which means guidance is continued even inside a tunnel. Cancellation of any waypoint or ‘go home’ instruction operation while riding is also possible. Maps are updated and also offer the possibility of entering up to 99 different waypoints for detailed journey planning.



The capacity of the fuel tank is 21 litres with fuel economy of 5.5litres/100km.



Chassis



  • Diecast, aluminium twin-beam frame
  • Double wishbone front suspension and Pro-Arm rear
  • Front and rear damping level adjusts to suit riding mode selected
  • Rear spring preload electrically adjustable
  • ABS and Dual-Combined Braking System (D-CBS)



The Gold Wing Tour’s diecast, aluminium twin-beam frame is designed to package the engine in a tight space; its structural thickness is optimised in each area to deliver a smooth and stable ride, from walking speed upwards, whether on tight city streets or out on the open road.



Aside from moving the front wheel forward under full suspension compression, another benefit of the double wishbone front suspension is the reduction in sliding friction (from bump deflection and steering input) that a standard telescopic fork creates, as the stanchions travel up and down in the fork leg. Bearings are used in all shaft bush areas for steering and suspension stroke, further reducing friction.



The steering input – via the dual fork holders – is also separated from the suspension provided by the single shock absorber, and the Gold Wing Tour’s yaw moment make it nimble and easier to steer. In addition, patented steering cross tie-rods connect the handlebars to the front axle and the handlebar pivot, delivering an entirely natural feel to the rider.



Rake and trail are set at 30.5°/109mm, with wheelbase of 1695mm. The manual Gold Wing Tour weighs 385kg wet; the DCT version 390kg.



The Dual Combined Brake System (D-CBS) optimally distributes braking forces to the front and rear wheels. The use of a single, light circulation type ABS modulator – integrated with the brake ECU – keeps weight down within the braking system. It also operates in linkage with the current riding mode of choice, automatically adjusting the braking characteristics to the riding situation. Dual 320mm front discs are gripped by 6-piston calipers, the rear 316mm disc by a 3-piston caliper.



The Gold Wing Tour also benefits from a Pro-Arm swingarm, which attaches to the frame on its left side. The right side serves as a maintenance access. This allows much greater freedom of design and makes the machine easier to manage; it also contributes to stability. Pro-Link provides progressive suspension action and comfort while spherical joints are used throughout, cancelling out torsion.



Damping level adjusts electrically relative to riding mode. Stepper motors housed within the front and rear shock absorbers move needles to control oil flow, tailoring damping force for the riding situation. Rear spring preload is also electrically adjusted. Separate from the 4 riding modes, there are 4 settings of preload relative to load from soft to hard: single rider; rider with luggage; rider with pillion, and rider with pillion fully loaded with luggage. The setting is displayed on the TFT screen and adjusted via switch.



Engine



  • Horizontally opposed, flat six-cylinder SOHC 24-valve engine
  • Throttle By Wire (TBW) with 4 rider modes to tailor power output
  • Honda Selectable Torque Control (HSTC)
  • Riding modes also manage HSTC, suspension damping and brake force
  • Hill Start Assist (HSA)
  • 6-speed manual gearbox option with assist/slipper clutch and electric reverse



To realise the handling potential of the chassis – and maintain the addictive power delivery and feel that’s so much part of this icon’s appeal – the Gold Wing Tour’s 1,833cc engine was completely redrawn for its rebirth back in 2018. Still as a horizontally opposed flat six, but with four valves per cylinder rather than two, much more compact in size and 6.2kg lighter.



Peak power of 93kW arrives @ 5,500rpm, with peak torque of 170Nm delivered @ 4,500rpm. The bore size of 73mm matches the stroke of 73mm; the left and right cylinders are offset 4mm and the cylinder sleeves are aluminium. Compression ratio is set at 10.5:1.



The Unicam cylinder heads – the inlet valves are operated by finger-follower rocker arm, the exhaust valves by roller rocker arms – also employ a co-axial rocker-arm shaft for both inlet and exhaust.



The combustion chambers are a 4-valve ‘pentroof’ design with the inlet ports designed to promote ‘tumble’ flows inside the cylinders thus improving efficiency. The piston skirts wear a molybdenum coating to reduce friction. Throttle By Wire (TBW) engine management adds 4 rider modes to alter character and power delivery, linked to suspension damping and the Dual Combined Brake System (D-CBS):



TOUR mode is the base setting for comfort and power. It gives a direct 100% opening ratio between throttle grip and throttle body butterfly, with ‘default’ damping and front/rear brake force distribution.



SPORT serves up the highest throttle to butterfly ratio and delivers strong acceleration, with firmer damping and rear brake lever pressure.



ECON mode offers maximum fuel economy and easy cruising, with lower throttle to butterfly ratio and default damping and brake force.



RAIN turns the dial down to suit wet and slippery conditions, with lowest throttle to butterfly ratio, default braking force distribution and soft suspension damping.



Honda Selectable Torque Control (HSTC) also seamlessly monitors and maintains rear wheel traction, in all riding conditions, for an extra layer of riding confidence. Its level of input too adjusts via TBW relative to riding mode selection.



There are two air intake ducts sited front left and right rear. This structure generates swirling as the air is drawn in – the result is more effective use of the air filter’s entire surface area and reduction in resistance. The internal shaping of both ducts is optimised to align with the intake pulses of the engine’s low-rpm range, improving response and torque from smaller throttle openings. A single throttle body speeds up airflow and improves response.



To complement the engine’s deep bass signature the exhausts emit a powerful throb, without excessive noise. The cross-sectional areas of the exhaust pipes for two out of the six cylinders are reduced 20%, bringing the sound volume and depth.



The ISG (Integrated Starter Generator) combines the generator and starter motor into one component, with the generator effectively becoming the starter motor when supplied with reverse power. Its 2.4 kg lighter than a standard system. Helical gears are employed for the ISG driving gears, reducing mechanical noise.



Key characteristics of Idling Stop (on the DCT option) are the ultra-quiet start-up of the engine thanks to the use of ISG, and the smooth starting feeling achieved through a combination of DCT and TBW control. When stopping at a traffic light with Idling Stop on, the engine automatically stops after 3 seconds and, when restarting, the rider only needs to turn the throttle, which immediately starts the engine.



The system is controlled so that hydraulic oil pressure is applied in advance to the DCT line that activates the clutch when the engine starts, so the time lag from when the rider opens the throttle to movement is reduced. To curb any abruptness the TBW makes the throttle butterfly open gradually following the throttle opening – thus the smooth acceleration befitting of a Gold Wing Tour. Idling Stop can be turned ON or OFF from the right handlebar switch.



Hill starts on a conventional motorcycle often involve simultaneously releasing the brakes, opening the throttle and engaging the clutch according to the grade of the slope. To ease this effort, the Gold Wing Tour has Hill Start Assist (HSA) on both Manual and DCT versions.

After stopping on a slope, further squeezing the brake lever quickly results in the ABS modulator generating hydraulic pressure for the rear brake caliper. When setting off – even when the brake lever is released – the hydraulic pressure temporarily retains braking force (for about 3 seconds) so starting on the uphill slope with the throttle is possible. When in operation, the HSA indicator is switched on to inform the rider.



The 6-speed manual gearbox is also fitted with a ‘cam damper’ between the clutch and transmission, separating each inertial mass, reducing noise and improving shift quality/durability. A cam assist and slipper clutch (with fewer discs and reduced hydraulic friction in the release mechanism) replace the traditional hydraulic assist clutch. This reduces clutch load at the lever by 20% and also smooths downshifts; the slipper mechanism also contributes to the high-quality downshift feel. An electric reverse is a familiar feature from the previous design.







Accessories



The Honda Goldwing Tour has been complemented with a wide range of premium-feel accessories, available either as a pack or individually.



A Full Option Goldwing Tour pack has been created to further complement the standard equipment and enhance the Gold Wing experience:

  • Pannier Inner Bags & Mats
  • Trunk Inner Bag, Mat, and Lid Organizer
  • Chrome Trunk Rack
  • Main Stand
  • Passenger Backrest
  • High Wind Screen
  • 12V Socket
  • Led Trunk light, Led Brake Light & Trunk Sub-Harness kit
  • Full Size Cover





The following accessories are also available individually.

  • Passenger Audio Switch
  • Power Amplifier
  • Rear Speaker
  • Auxiliary Cord
  • Wheel Stripes (available in 3 different colours)
  • Trunk Removal Kit, Rear Carrier and colour matching bodywork.
  • Front Caliper Covers (Available in Chrome / Black)
  • Chrome Side Stand
  • Passenger Armrests (standard fitment on the DCT version)
  • Custom Seat
  • Upper and Lower Air Deflectors
  • Wider Rider Footpegs
  • Rider Backrest









2024 Honda Gold Wing Tour – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ 28,700 USD
Canada MSRP Price: $34,478 CDN
Europe/UK MSRP Price: £ TBA GBP (On The Road inc 20% Vat)

Model  Gold Wing Tour Airbag DCT
(GL1800DAP)
Gold Wing Tour DCT
(GL1800DP)
Gold Wing Tour
(GL1800P)
Gold Wing DCT
(GL1800BDP)
Gold Wing
(GL1800B)
ENGINE
Type 1,833cc horizontally opposed, liquid-cooled, six-cylinder four-stroke
Valve Train Single overhead Unicam® w/ 4 valves per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust valves
Bore x Stroke 73.0mm x 73.0mm
Compression Ratio 10.5:1
Induction Fuel injection; single throttle body w/ 50mm bore, Throttle By Wire (TBW)
Ignition Full transistorized ignition
Starter Electric w/ Integrated Starter Generator System (ISG)
Transmission 7-speed automatic DCT w/ Walking Mode F/R 6-speed manual w/ Reverse 7-speed automatic DCT w/ Walking Mode F/R 6-speed manual w/ Reverse
Clutch (2) multiplate wet Multiplate wet (2) multiplate wet Multiplate wet
Final Drive Shaft
SUSPENSION
Front Double-wishbone system w/ Showa shock absorber, 4.3 in. travel
Rear Pro-Link® system w/ Showa shock absorber, 4.1 in. travel
BRAKES
Front (2) radially mounted 6-piston Nissin hydraulic calipers w/ 320mm rotors, electronically controlled combined ABS
Rear (1) 3-piston Nissin hydraulic caliper w/ 316mm rotor, electronically controlled combined ABS
TIRES
Front 130/70-18
Rear 200/55-16
MEASUREMENTS
Rake (Caster Angle) 30º
Trail 109mm 110mm 109mm
Length 102.9 in. 97.6 in.
Width 35.6 in. 36.3 in. 35.6 in. 36.3 in.
Height 56.4 in. (windscreen in low position) 52.8 in.
Seat Height 29.3 in.
Ground Clearance 5.1 in.
Wheelbase 66.9 in.
Fuel Capacity 5.5 gal.
Curb Weight* 853 lbs. 845 lbs. 804 lbs. 802 lbs.
OTHER
Colors Pearl White Gray Metallic/Black; Pearl White Matte Armored Green Metallic

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment











2024 Honda Gold Wing Tour – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine type

Liquid-cooled horizontally opposed six-cylinder

Displacement

1,833 cc

Bore & stroke

73 mm x 73 mm

Compression ratio

10.5:1

Valve train

SOHC, 4 valves per cylinder

Fuel delivery

PGM-FI electronic fuel injection

Transmission

Six-speed manual with overdrive and electric low speed reverse function

Final drive

Shaft

Chassis & Suspension

Front suspension

Double wishbone; 110 mm (4.3 in) travel.

Rear suspension

Pro Arm® single-sided swingarm and Pro-Link® single shock; 105 mm (4.1 in) travel

Dimensions & Additional Information

Tires

Front: 130/70R – 18
Rear: 200/55R – 16

Brakes

Front: dual 320 mm discs
Rear: single 316 mm disc

ABS

Electronically controlled dual Combined Brake System (CBS) with ABS

Seat height

745 mm (29.3 in)

Wheelbase

1,695 mm (66.7 in)

Curb weight

384 kg (847 lb)

Fuel capacity

21 litres

Colour

Grey Metallic, Pearl White

Warranty

3 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus.









2024 Honda Gold Wing Tour – Totalmotorcycle.com Europe Specifications/Technical Details

 ENGINE
Type Liquid-cooled 4-stroke 24 valve SOHC flat-6
Displacement 1,833cc
Valves per cylinder 4
Bore x Stroke 73mm x 73mm
Compression Ratio 10.5:1
Max. Power Output 93kW/5,500rpm
Max. Torque 170Nm/4,500rpm
Oil Capacity 4.4 litres (MT) / 5.6 litres (DCT)
Noise Level (dB) Lwot 76, Lurban 69
CO2 emissions 127g/km
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Throttle Bore 50mm
Air cleaner Viscous, cartridge type paper filter
Fuel Tank Capacity 21.1 litres
Fuel Consumption 5.5 litres/100km
ELECTRICAL SYSTEM
Starter Integrated Starter Generator system
Battery Capacity 12V/20AH
ACG Power Generation Capacity 12V/120A
DRIVETRAIN
Clutch Type (MT) Hydraulic, wet, multiplate with coil springs, assist slipper cam

(DCT) Hydraulic, wet, multiplate with oil pressure

Transmission Type 6 speed MT (including overdrive. Plus electric reverse)

7-speed forward and reverse DCT

Primary Reduction 1.795 (79/44)
Gear Ratios (DCT) 1st: 2.167    2nd: 1.696    3rd: 1.304

4th: 1.038    5th: 0.821     6th: 0.667     7th: 0.522 Rev: 1.190

(MT) 1st: 2.200      2nd: 1.417

3rd: 1.036    4th: 0.821     5th: 0.667 6th: 0.522

Final Reduction Engine side 0.972

Rear Wheel side 2.615

Final Drive Enclosed shaft
FRAME
Type Aluminum die-cast, twin tube
CHASSIS
Dimensions (L´W´H) L: 2,615mm

W: DCT 905mm / MT 925mm

H: 1,430mm

Wheelbase 1,695mm
Caster Angle 30.5°
Trail 109mm
Turning radius 3.4m
Seat Height 745mm
Ground Clearance 130mm
Kerb Weight MT: 385kg

DCT with Air Bag: 390kg

SUSPENSION
Type Front Double Wishbone
Type Rear Pro Link
WHEELS
Type Front 130/70R 18
Type Rear 200/55R 16
Rim Size Front 18 x MT3.5
Rim Size Rear 16 x MT6.0
BRAKES
System Type Electronically controlled combined ABS system
Type Front 320mm x 4.5mm dual hydraulic disc with 6-piston calliper, floating rotors and sintered metal pads
Type Rear 316mm x 11mm ventilated disc with 3-piston calliper and sintered metal pads





All specifications are provisional and subject to change without notice.



** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

RSS Latest Motorcycle Reviews

  • 2025 Ducati Panigale Tricolore Review
    Innovation, tradition, and passion come together in one extraordinary tale. The 2025 Ducati Panigale V4 Tricolore is a renewed promise: that of getting excited again, of experiencing the privilege of a history that continues to [...] The post 2025 Ducati Panigale Tricolore Review appeared first on Total Motorcycle.
  • RED BULL KTM FACTORY RACING CHARGING INTO 2025 SMX WORLD CHAMPIONSHIP SEASON
    MURRIETA, Calif. – A returning four-rider Red Bull KTM Factory Racing Team will feature Chase Sexton and Aaron Plessinger in the 450 Class alongside 250 Class duo Tom Vialle and Julien Beaumer in the 2025 SuperMotocross [...] The post RED BULL KTM FACTORY RACING CHARGING INTO 2025 SMX WORLD CHAMPIONSHIP SEASON appeared first on Total Motorcycle.
  • 2025 Ducati Motorcycles: Setting new benchmarks for Riders!
    Two great news stories today! Ducat’s new V2 engine is a game changer for not only the company but also riders the new 2025 Ducati Motorcycles: Setting new benchmarks for Riders! And Total Motorcycle has [...] The post 2025 Ducati Motorcycles: Setting new benchmarks for Riders! appeared first on Total Motorcycle.
  • New 2025 Ducati Multistrada V2 Review
    The new Multistrada V2 is the mid-size crossover designed for lovers of the twin-cylinder engine, which with the 2025 model significantly improves in terms of lightness, handling and ease of riding. The new Multistrada V2 [...] The post New 2025 Ducati Multistrada V2 Review appeared first on Total Motorcycle.
  • New 2025 Ducati Multistrada V2S Review
    The Multistrada V2 S boasts semi-active suspension with Ducati Skyhook Suspension electronic control, with a weight saving of 18 kg, furthering improving comfort, safety and performance thanks to new electronic strategies that limit diving during [...] The post New 2025 Ducati Multistrada V2S Review appeared first on Total Motorcycle.
  • 2025 Ducati Multistrada V2S Travel Review
    The design of the new Multistrada V2 is elegant and sporty while the essence of Multistrada V2S has been completely redesigned and with the Travel trim includes plastic side cases a center stand and heated [...] The post 2025 Ducati Multistrada V2S Travel Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Int650 / Interceptor 650 Review
    The all-new, all-black INT 650 features a blacked-out engine and exhaust that unite the aesthetics of the motorcycle. The INT 650’s new look seamlessly fuses with its chassis, while keeping the spotlight on its tank [...] The post 2025 Royal Enfield Int650 / Interceptor 650 Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Shotgun 650 Review
    Review – Key Features – Features & Benefits – Specifications 2025 Royal Enfield Shotgun 650: CUSTOMIZATION IN ITS BONES. Introducing the 2025 Royal Enfield Shotgun 650… The Shotgun 650 defies categorization in both spirit and [...] The post 2025 Royal Enfield Shotgun 650 Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Super Meteor 650 Review
    Review – Key Features – Features & Benefits – Specifications 2025 Royal Enfield Super Meteor 650: EXHILARATING. Introducing the 2025 Royal Enfield Super Meteor 650… The Super Meteor 650 has been built on our enduring [...] The post 2025 Royal Enfield Super Meteor 650 Review appeared first on Total Motorcycle.
  • 2025 Aprilia Motorbikes: Both Fun & Affordable? YES!
    $6599, new, Italian, motorcycle. Let that sink in. $6899 for the sportbike. In today’s world of ever increasing expenses, inflation pricing and rising public and private debt levels isn’t it nice to get a breeze [...] The post 2025 Aprilia Motorbikes: Both Fun & Affordable? YES! appeared first on Total Motorcycle.
About Michael Le Pard 11246 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
