2024 Honda Shadow Aero ABS Guide

2024 Honda Shadow Aero ABS
ReviewKey FeaturesFeatures & BenefitsSpecifications

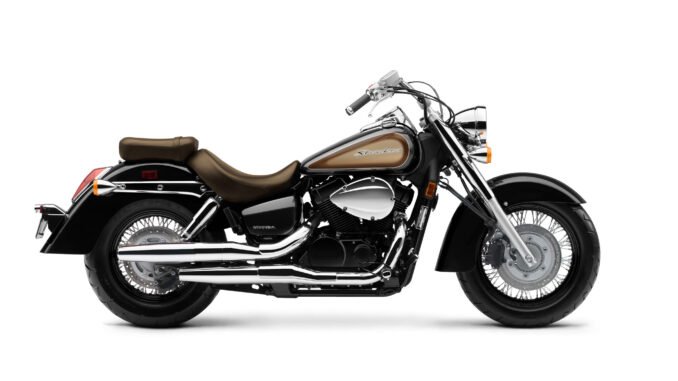

2024 Honda Shadow Aero ABS 2024 Honda Shadow Aero ABS

2024 Honda Shadow Aero ABS: CLASSIC FROM 2006 TO 2024.

Introducing the 2024 Honda Shadow Aero ABS…

A true classic, the Shadow Aero combines the signature long and low cruiser look with modern engineering and performance. For the 2024 model year, this cruiser icon is updated with new colors and a new disc rear brake for the standard version, a feature that was previously reserved for the ABS version. The low-slung seat and pullback handlebars offer a relaxed riding position, while the large front fender, chrome components, spoke wheels and V-twin engine contribute to its perennial styling. Thanks to sensible features like programmed fuel injection and a shaft final drive, the Shadow Aero lives up to Honda’s reputation for reliability and ease of ownership.

Note: Non-ABS version not available in California.







2024 Honda Shadow Aero ABS Totalmotorcycle.com Key Features

Special Features

  • Anti-Lock Braking System (ABS)

Base Features

  • 745cc liquid-cooled V-twin engine
  • Classic retro styling
  • Chrome engine components
  • Shaft final drive
  • Low seat height
  • 2-into-2 exhaust system
  • Spoked wheels

PERFORMANCE

V-TWIN ENGINE

Nothing pumps out the torque like a big V-twin. The Aero’s power makes it perfect for around-town cruising, commutes and casual weekend-long rides.

PROGRAMMED FUEL INJECTION (PGM-FI)

Forget about fiddling with a choke—the Shadow’s fuel injection system means no-hassle startups on cold mornings or at high altitudes, and optimal performance in any condition.

THREE-VALVE DUAL-PLUG COMBUSTION CHAMBER

It’s the best of both worlds: The three-valve combustion chambers used on many of our V-twin cruisers feature two intake valves and one exhaust, helping them breathe efficiently to boost both horsepower and torque.



STYLE

2-INTO-2 EXHAUST SYSTEM

Sleek pipes feature bullet-style mufflers for that classic cruiser style of yesteryear. Large-diameter head pipes and the 2-into-2 system design combine to put out true, V-twin cruiser sound.

TANK-MOUNTED INSTRUMENTS

A key element of the Shadow Aero’s look are the tank-mounted instruments. Set in a gorgeous chromed pod and complemented by the chromed fuel-filler cap, they really set off the bike’s classic lines.

BLACKED-OUT STYLING

The closer you look at a Shadow Aero, the better it looks. That’s because the styling is so unified. Check out the way the blacked-out engine, rims, and frame all work together visually.

CHROME HIGHLIGHTS

Chrome highlights include cylinder-head covers, air-cleaner cover, engine sidecovers, brake and clutch-lever brackets, rear brake pedal, shift lever, handlebar, rear shock covers and more.

FULL FRONT FENDER

A wide metal front fender gives the Aero a classic styling touch.

SPOKED WHEELS

Spoked wheels give the Aero a classic look.



COMFORT

COMFORTABLE SADDLE

Broad, low-slung solo seat features a detachable passenger seat.

LOW SEAT HEIGHT

The Aero’s low seat height makes flat-footing it at stoplights or in parking lots a breeze. And the Aero’s narrow seat/tank junction makes it feel even lower.

DRIVETRAIN

FIVE-SPEED TRANSMISSION

Wide-ratio five-speed transmission lets you cruise the boulevard at a low, unhurried pace, yet allows you to hop on the highway without revving the engine through the roof.

SHAFT FINAL DRIVE

Clean, efficient, proven, and low maintenance. Shaft final drive is the perfect choice for a machine like this, and for riders who pile on the miles. You never have to worry about lubrication or adjustment out on the road. And an added plus: it helps keep your bike cleaner, too.







2024 Honda Shadow Aero ABS Totalmotorcycle.com Features and Benefits

ENGINE / DRIVETRAIN

  • 745cc liquid-cooled V-twin engine produces impressive power over a broad rpm range.
  • Crankshaft features long-stroke design to produce strong V-twin feel and low-rpm torque peak.
  • Three-Valve Dual-Plug Combustion Chamber.
  • Wide-ratio five-speed transmission.
  • Programmed Fuel Injection (PGM-FI) for good throttle response and fuel efficiency.
  • Custom two-into-two exhaust system, flowing into bullet-style mufflers provides soul-stirring sound that’s classic V-twin cruiser.
  • Shaft final-drive system provides smooth and reliable low-maintenance operation.

CHASSIS / SUSPENSION

  • Chrome highlights throughout provide classic styling.
  • Wide metal front fender adds to the bike’s classic appearance.
  • Sturdy 41mm fork features large-diameter chrome-steel shrouds and large billet-aluminum triple-clamp for a distinctive retro look, and delivers confident, neutral handling control and plush 4.6-inch wheel travel.
  • Dual-shock rear suspension features five-position spring preload adjustability and eye-catching chrome covers, while offering 3.5 inches of wheel travel for a smooth, well-controlled ride.
  • New single rear disc brake on standard and ABS versions
  • Single front disc brake with twin-piston caliper grips a 296mm drilled rotor between sintered metal pads.
  • Low 25.9-inch seat height makes flat-footing it at stoplights or in parking lots a breeze.
  • Narrow seat/tank junction makes adds to the low seat height to make flat-footing even easier
  • Tank-mounted speedometer on a stylish 3.7-gallon fuel cell for classic retro styling.
  • Large, custom-styled taillight and attractive retro-styled turn-signal indicators.

Transferable one-year, unlimited-mileage limited warranty; extended coverage available with a HondaCare® Protection Plan.

  • ABS version meets current CARB and EPA standards; non-ABS version meets current EPA standards.
  • California version differs slightly due to emissions equipment.









2024 Honda Shadow Aero ABS – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,249 USD
Canada MSRP Price: $ NA Dealer CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Model Shadow Aero ABS (VT750CS) Shadow Aero (VT750C)
ENGINE
Type transverse-mounted 745cc liquid-cooled 52º V-twin four-stroke
Valve Train SOHC; three valves per cylinder
Bore x Stroke 79.0mm x 76.0mm
Compression Ratio 9.6:1
Induction PGM-FI w/ automatic enrichment; one 34mm throttle body
Ignition Digital transistorized w/ electronic advance
Starter Electric
Transmission 5 speed manual
Clutch Multiplate wet
Final Drive Shaft
SUSPENSION
Front 41mm telescopic fork; 5.5 in. travel
Rear Dual shocks w/ 5-position spring preload adjustability; 3.6 in. travel
BRAKES
Front Single twin-piston hydraulic caliper w/ 296mm disc; ABS Single twin-piston hydraulic caliper w/ 296mm disc
Rear Single one-piston hydraulic caliper w/ 276mm disc; ABS Single one-piston hydraulic caliper w/ 276mm disc
TIRES
Front 120/90-17
Rear 160/80-15
MEASUREMENTS
Rake (Caster Angle) 34º
Trail  161mm (6.3 in.)
Length 96.8 in.
Width 36.2 in.
Height 44.3 in.
Seat Height 26.0 in.
Ground Clearance  5.1 in.
Wheelbase 64.6 in.
Fuel Capacity 3.9 gal.
Curb Weight* 570 lbs. 560 lbs.
OTHER
Color Black

*Includes all standard equipment, required fluids and full tank of fuel—ready to ride
Meets current EPA standards
Models sold in California meet current CARB standards and may differ slightly due to emissions equipment
Specifications subject to change









2024 Honda Shadow Aero ABS – Totalmotorcycle.com Canada Specifications/Technical Details

NA





2024 Honda Shadow Aero ABS – Totalmotorcycle.com Europe Specifications/Technical Details

NA
