2024 Husqvarna TE300: THE ULTIMATE HARD ENDURO MACHINE.

Introducing the 2024 Husqvarna TE300…

The flagship TE 300 offers astonishing power in a light and agile package. While retaining exceptional reliability and low maintenance costs, the 300cc 2-stroke engine features innovative throttle body fuel injection and sets the benchmark for unrivalled power and lightweight construction. While offering the highest 2-stroke performance in the enduro range, the TE 300 is even more controllable and benefits from added convenience by eliminating the need for premixing fuel.

With world championship winning pedigree, you can go where few have gone before with the TE 300. Designed with a focus on performance, the new engine, complete with the introduction of Throttle Body Injection (TBI), makes scaling the most technical climbs easier than ever thanks to its smooth and strong power delivery. Together with a new frame and WP Suspension, the rideability and handling of the TE 300 is much improved over the previous generation. Complete with a fresh and striking new look for 2024, the TE 300 is the ultimate hard enduro machine.

2024 Husqvarna TE300 Totalmotorcycle.com Key Features

Husqvarna Motorcycles – Enduro Model Year 2024

Husqvarna Motorcycles’ all-new 2024 TE and FE machines set a new standard for riding offroad. Expertly crafted with new frames, subframes, bodywork, suspension, and brakes, the extended list of shared innovations across the new enduro platform further improves the overall rideability of all seven machines.

The change to WP XACT Closed Cartridge spring forks will be favoured by many riders and by incorporating a mid-valve piston and hydrostop, smooth action and predictable performance is guaranteed. A redesigned WP XACT shock features a new piston to improve comfort and is 100 g lighter and 15 mm shorter while retaining 300 mm of travel. Both the fork and shock settings can be adjusted by hand for a fast and easy personalised set-up.

Working in perfect harmony with the WP suspension is the new chromium molybdenum steel frame. Improving anti-squat behaviour and offering revised flex characteristics, the chassis, which includes a new and much more durable polyamide/aluminium hybrid subframe, guarantees each machine is exceptionally agile without sacrificing straight line stability.

All seven models feature new bodywork adorned with modern, Swedish-inspired graphics and a new high-grip seat cover. The rider triangle has been refined to provide more knee contact and therefore, better control. The slim design of the bodywork offers complete freedom of movement when riding. The new LED headlight produces a brighter light output and is installed with a much more efficient and user-friendly mounting system.

The TE 150, TE 250 and TE 300 2-stroke models are now powered by new engines that are fuelled using Throttle Body Injection (TBI) technology. Introduced to maintain their best-in-class performance, TBI guarantees a much more consistent and controllable spread of power throughout the rev range, even in the toughest of conditions.

The FE 250 and FE 350 machines benefit from new and much more compact DOHC engines. Positioned in the frame two degrees backwards when compared to the previous generation, the engines are designed to centralise mass and contribute to the improved anti-squat behaviour of the chassis. In addition, both engines position all major components as centrally as possible for improved handling as well as generating maximum torque and power.

The line-up is complete with premium components shared across the range including a new LED headlight, enhanced BRAKTEC brakes with high performance GSK discs, a combined start/stop button, ProTaper handlebars, and Michelin enduro tyres.

On the global racing stage, Billy Bolt’s most recent success clearly underlines Husqvarna Motorcycles’ reputation as a highly competitive manufacturer. Competing in the FIM SuperEnduro World Championship, the Husqvarna Factory Racing star secured his third consecutive title indoors to once again demonstrate the exceptional capability of the FE 350.

2024 Technical Highlights

• New chromium molybdenum steel frame optimised for improved anti-squat behaviour and enhanced flex characteristics
• New polyamide/aluminium hybrid subframe offers exceptional strength and durability
• New 48 mm WP XACT Closed Cartridge spring forks deliver consistent damping and predictable handling
• New WP XACT rear shock is lighter and developed specifically for enduro riding
• New ergonomic bodywork offers revised rider triangle for enhanced control
• New 2-stroke engines feature TBI technology for improved rideability and ease of use
• New 250cc and 350cc DOHC 4-stroke engines provide class-leading power and torque
• New LED headlight provides a brighter light output and simplified fitment
• New BRAKTEC brake system and high-performance GSK discs provide superior stopping power
• New multifunctional Map Select Switch design controls the Quickshifter and Traction Control (4-stroke only)
• New Offroad Control Unit (OCU) for highest level of reliability and user-friendly serviceability of electronics
• Premium-quality ProTaper handlebar and ODI Grips
• Electric starter powered by a lightweight Li-ion 2.0 Ah battery

2024 Husqvarna TE300 Totalmotorcycle.com Features and Benefits

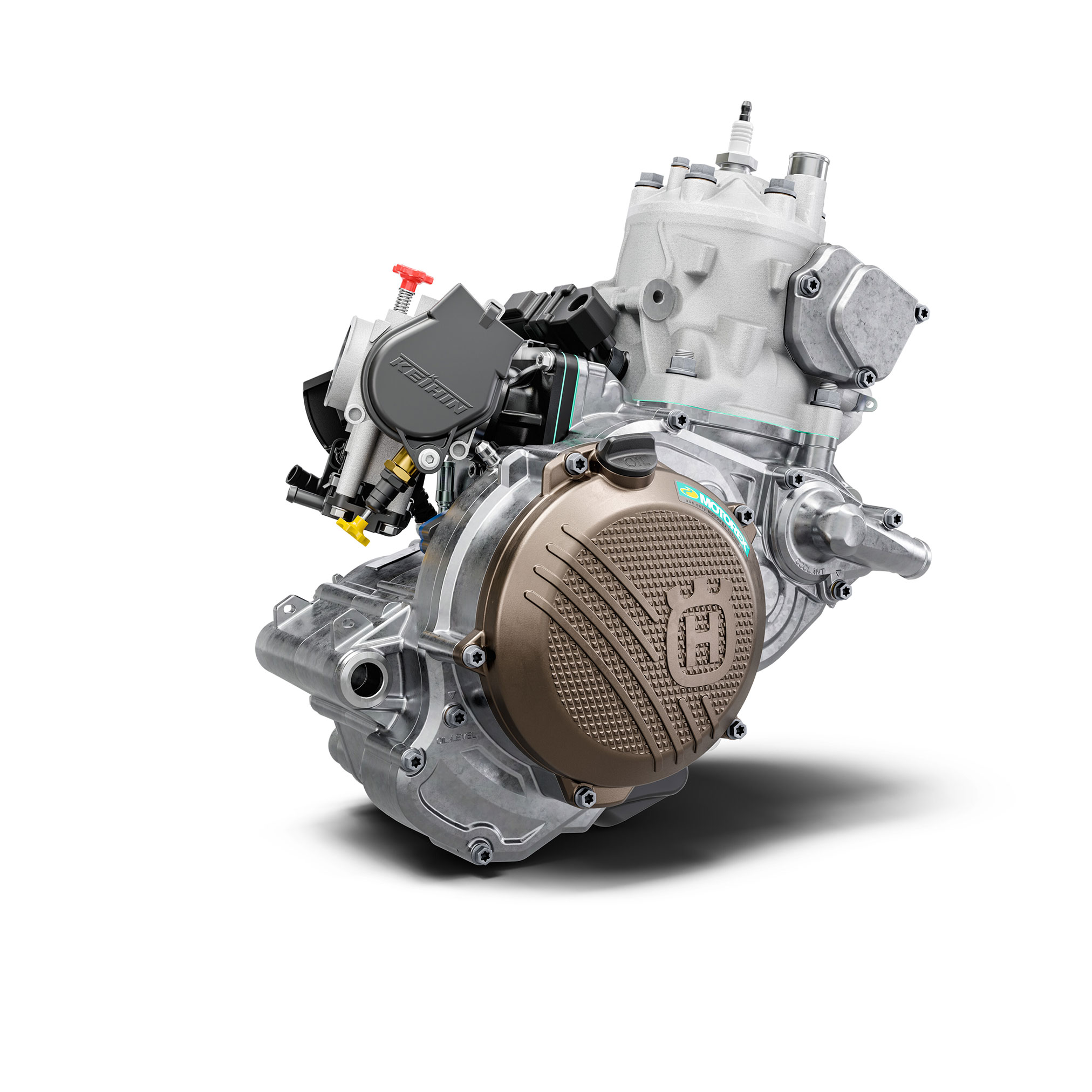

Engine

All the latest innovations have been brought into the 2-stroke enduro platform. Many parts of the TE 300 engine have been rearranged, modified, or developed from the ground up.

With an overall weight of just 24.6 kg, the new TE 300 engine sets the benchmark when it comes to weight/performance ratio. Many championships will see the TE 300 on top of the result sheets of the highly competitive E3 class, underlining this new era of 2-stroke technology.

The lightweight engine is designed to provide more torque than any previous 2-stroke engine, without losing its typical high-revving, lightweight 2-stroke character.

Engine weights (incl. oil, gear lever, without clutch slave cylinder):

• TE 300 2024: 24.6 kg
• TE 300 2023: 25.8 kg

The engine is designed to centralize rotating mass for optimal operation with the chassis resulting in a light and agile handling feel. The power train has been positioned in the same place as on the TE 250. Together with the benefits of mass centralization and reduced weight the anti-squat behaviour of the chassis was significantly improved by changing the backbone of the steel frame concept while the engine is mounted symmetrically on both sides.

An all-new throttle body fuel injection system (Keihin 39 mm throttle body in combination with Vitesco EMS) and an electronic exhaust control was implemented on the TE 300 engine, allowing for a more compact engine design and free definable values for engine speed and load. The result is a tailormade power delivery for each gear and every situation.

Another focus in development was put on the serviceability of the new TE 300 engine. Service markers on the engine (▲) clearly show where to use washers, making maintenance and service easier than in the past.

A new water pump concept includes a shaft featuring a drive wheel instead of the previous centrifugal regulator and is protected by the new aluminium diecast water pump cover. The new water pump concept is shared among all 2-stroke enduro engines, making it easy for dealers to supply spare parts in the rare case it’s needed.

• Pinnacle of performance → high power output, 24.6 kg
• Mass-centralisation → significant benefits in handling and manoeuvrability
• Improved serviceability of engine internals → added service markers

Cylinder head

The cylinder head cover now features an external water temperature sensor located within the tubing for a maximum level of accurate values. A “front” indication makes it close to impossible to mount the cylinder head the wrong way, which will help dealers but also tech-savvy end customers servicing engines by themselves.

The redesigned combustion chamber inserts follow the same logic. Mixing up inserts from different models will be a thing of the past. All these details significantly improve the overall engine quality.

The enduro-specific cylinder timing and porting results in a higher compression ratio and no compromise between the motocross and enduro range, as each engine configuration is tailor made for its own use case.

• “Front” indication on cylinder head → avoiding wrong installations
• Redesigned combustion chamber inserts → impossible to mix-up with insert of other models
• Enduro-specific cylinder timing and porting → enduro typical compression ratio without compromises

Cylinder

The cylinder features a 72 mm bore. The highly innovative electronical exhaust control manages the opening of both the main exhaust and lateral exhaust ports via newly developed kinematics, activated via an actuator. On the TE 300 the main exhaust port opens before the lateral exhaust port opens to deliver maximum, yet controllable power.

The results are a significantly improved rideability, engine control and a larger adjustability range of the engine characteristics (differences between the 2 engine maps).

The power valve can be controlled according to the throttle position and engine rpms (vs. only engine rpms on mechanical system). Additionally, its auto-calibrating, meaning there is no more hassle with wrong power valve adjustments.

The machined finish on the upper contour of the exhaust port ensures accurate port timing delivering unrivalled performance in every situation.

• Electronical exhaust control → tailormade, linear and predictable power delivery
• Machined exhaust port → Outstanding performance and controllability

Crankshaft

The crankshaft is designed with weight reduction in mind to increase the liveliness and response of the engine. The perfect balance of rotating masses is achieved by balancing the weights of the crankshaft flywheel, the new rotor and the counter balancer shaft. With a perfect combination of these components, vibrations are kept to an absolute minimum. Engine internals are also positioned to ensure that the rotational mass created has very little effect on the handling of the motorcycle.

• Lightweight crankshaft → responsive engine character
• Combination of crankshaft, rotor, and counter balancer shaft → very little vibration

Counter balancer shaft

The TE 300 features a laterally mounted counter balancer shaft. This shaft significantly reduces vibrations resulting in a smoother and more comfortable ride with less rider fatigue.

• Counter balancer shaft → significantly reduced vibration

Crankcases

The new TE 300 engine is designed with mass centralisation and weight reduction as one of the main criteria. As a result, the crankcases have been designed to house the internal components of the engine in the perfect position to achieve the ideal centre of gravity while adding the least possible weight. The casings are manufactured using a high-pressure die cast production process, resulting in thin wall thickness while retaining exceptional reliability.

The black powder coating provides additional durability and a premium look, while service markings and oil level markings improve the serviceability. Additionally, the engine is connected to the frame with symmetrical engine mounts (left and right side) resulting in an improved flex characteristic.

• Light and compact crankcase, optimised mass-centralisation
• Redesigned, symmetrical engine mounts
• Improved serviceability of engine internals with added service markers
• Optimized crank case pressure sensor: larger hose diameter, more robust against soiling with oil carbon particles, better signal quality and better engine load detection

Gearbox

The 6-speed gearbox is manufactured exclusively by Pankl Racing Systems ensuring the highest level of durability and reliability. The gearbox features specific enduro gearing while the new gear lever features an innovative tip design that prevents dirt build-up. A new transmission ventilation concept rounds of the shift mechanism.

• 6-speed gearbox → manufactured by Pankl Racing Systems
• New gear lever → improved leverage, smooter and precise shifting
• Improved shifting mechanism, friction optimized in every detail → less necessary lever force
• New gear ratio for model harmonization → almost identical feel to old gearing

DDS Clutch

The TE 300 features a Dampened Diaphragm Steel (DDS) clutch. The exclusive characteristics of this system include a single diaphragm steel pressure plate instead of traditional coil springs. It integrates a damping system for better traction and durability. The clutch basket is a single-piece CNC machined steel component that allows the use of thin steel liners and contributes to the compact design of the engine.

• DDS clutch featuring consistent action and exceptional durability
• Light action with integrated damping system, increased traction and reliability

EFI (TBI)

The Husqvarna 2-stroke enduro models come with an all-new electronics-controlled fuel injection. The Throttle Body Injection (TBI) was initially introduced with the 2023 2-stroke motocross range.

In cooperation with Keihin, we developed a 39 mm throttle body fulfilling the needs of an innovative and state of the art 2-stroke enduro injection. The ECU is supplied by Vitesco and works in harmony with the Keihin throttle body by always delivering the right amount of air-fuel mixture. Therefore, the ECU continuously analyses water temperature, air temperature, ambient pressure, pressure within the crankcase, rpm, and Throttle Position (TPS) to calculate the perfect air-fuel mixture for any riding situation.

Additionally, the reed valve case received an important design update too. Newly added composite flaps on the outside of the reed valve case provide an improved sealing of the intake tract. This new design avoids fuel excess in extreme up or downhill sections, which could lead to overly rich engine settings. Boyesen Inc. continues to supply the carbon fibre reed petals inside the reed valve case.

A beneficial side effect of the new electronic fuel injection and the ECU is the implementation of the innovative electronic exhaust control.

With all these innovative features it was also possible to further refine engine maps on the 250 enduro engine. Map 1 is the standard, more mellow map for linear, predictable power, while Map 2 is the more aggressive map for added throttle response and a crisper, explosive power output. Both maps can be selected via the new 2-stroke map-select switch on the left side of the handlebar.

• New EFI by Keihin (39 mm throttle body) → optimal power delivery and performance in any condition
• Updated reed valve case design → guarantees right air-fuel mixture even in most extreme up or downhill sections
• New injectors with improved Sauter Mean Diameter (SMD) → smaller droplets

Oil Injection

Additionally, the ECU controls the specific amount of oil injected into the throttle body. It’s not consistently a mix of 1:60 but varies pending on the riding situation and can be leaner or richer.

The new TBI injection has the big benefit of a more homogeneous fuel/air mixture due to a later oil injection compared to the older TPI engine. Now (TBI), the injection point is at the membrane flange while in the past (TPI) the position was at the throttle body. The oscillation of membranes increases the oil/fuel mix further and leads to an unreached level of atomization. As a result, the engines have a lower risk of engine seizing, a better internal combustion and a better rideability in all conditions. The drawback is a higher fuel and oil consumption.

The engine character of the TPI engines was not known for being very lively. Actually, quite often in low revs with low engine loads, “oil nests” were common, which led to delayed and sluggish engine responses. This is now a thing of the past and the new engines are much more versatile, fulfilling the needs of different rider levels and use cases. From hard enduro to classic enduro.

E-Start

The Husqvarna enduro range now comes with E-Start only. A kickstart is not in place any longer and cannot be retrofitted. The starter motor comes without any intermediate shaft, saving weight and allowing a compact engine design with perfect integration. A robust but also compact cover protects the starter motor from damages caused by roost or rocks. The 12.8V 2 Ah Lithium-Ion battery is placed under the rider’s seat close to the centre of gravity. The engine can easily be fired into life by pressing the new combined start/stop switch on the right side of the handlebar. A new high-quality stator and pickup is built into the TE 300 engine for improved reliability and an efficient power supply for the electronics.

• E-Start → less loss of time when stalling engine in races and improved user friendliness
• Li-Ion battery → lightweight, 1 kg lighter than a conventional battery
• High-quality stator and pickup → improved reliability / efficient power supply for electronics

2024 Husqvarna TE300 – Totalmotorcycle.com Specifications/Technical Details
US MSRP Price: $11,549 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £10,349 GBP (On The Road inc 20% Vat)
