2024 Kawasaki KLX110RL Guide

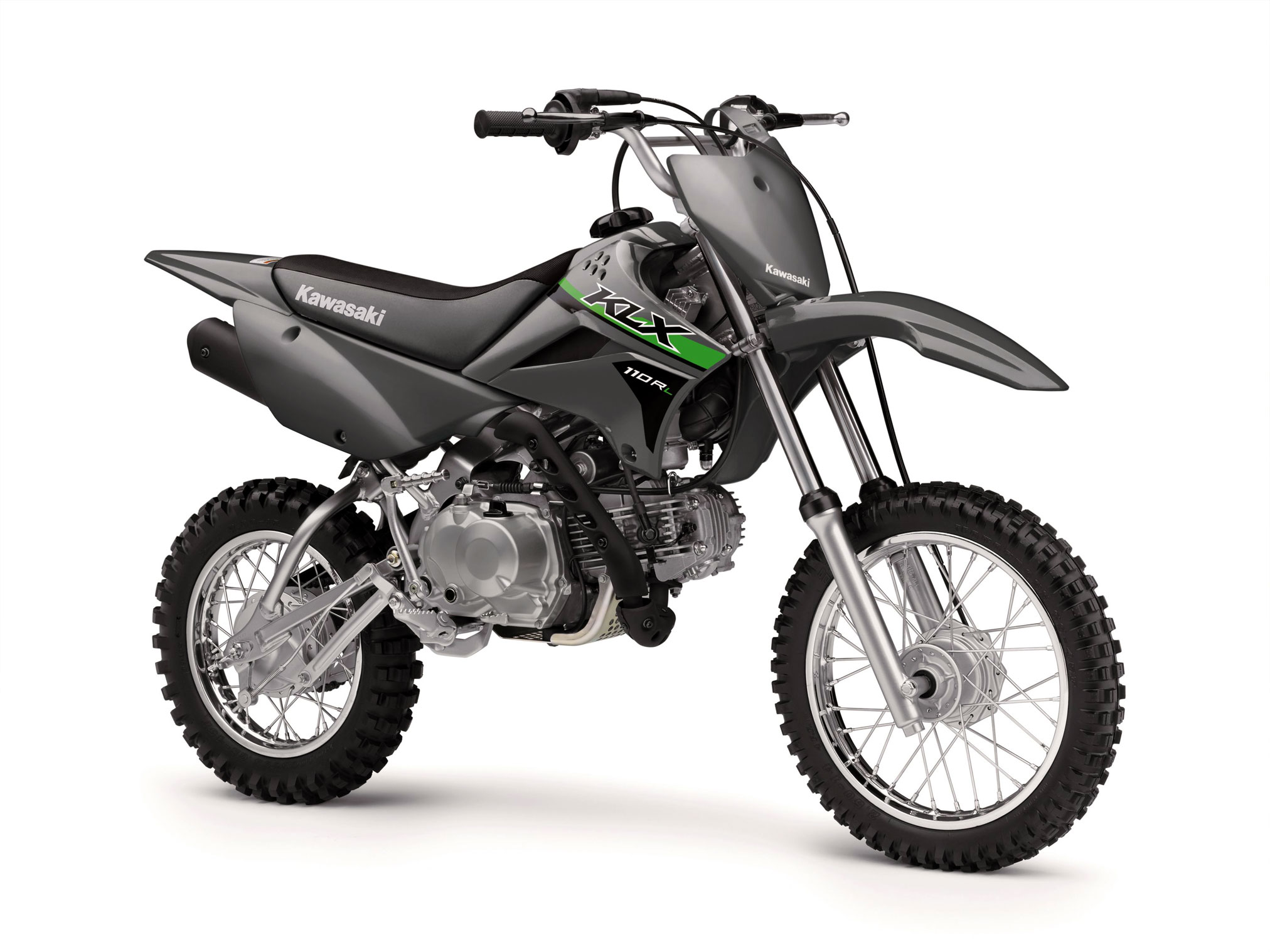

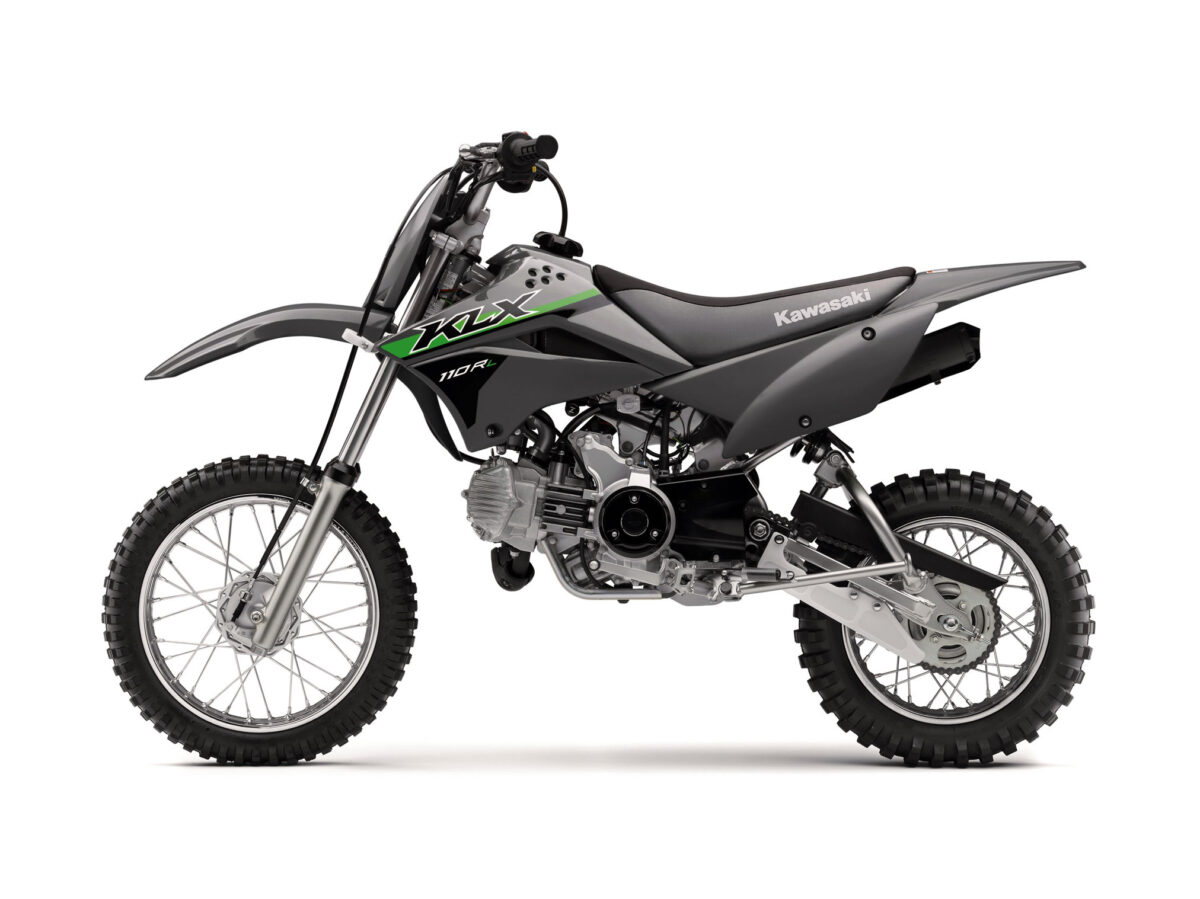

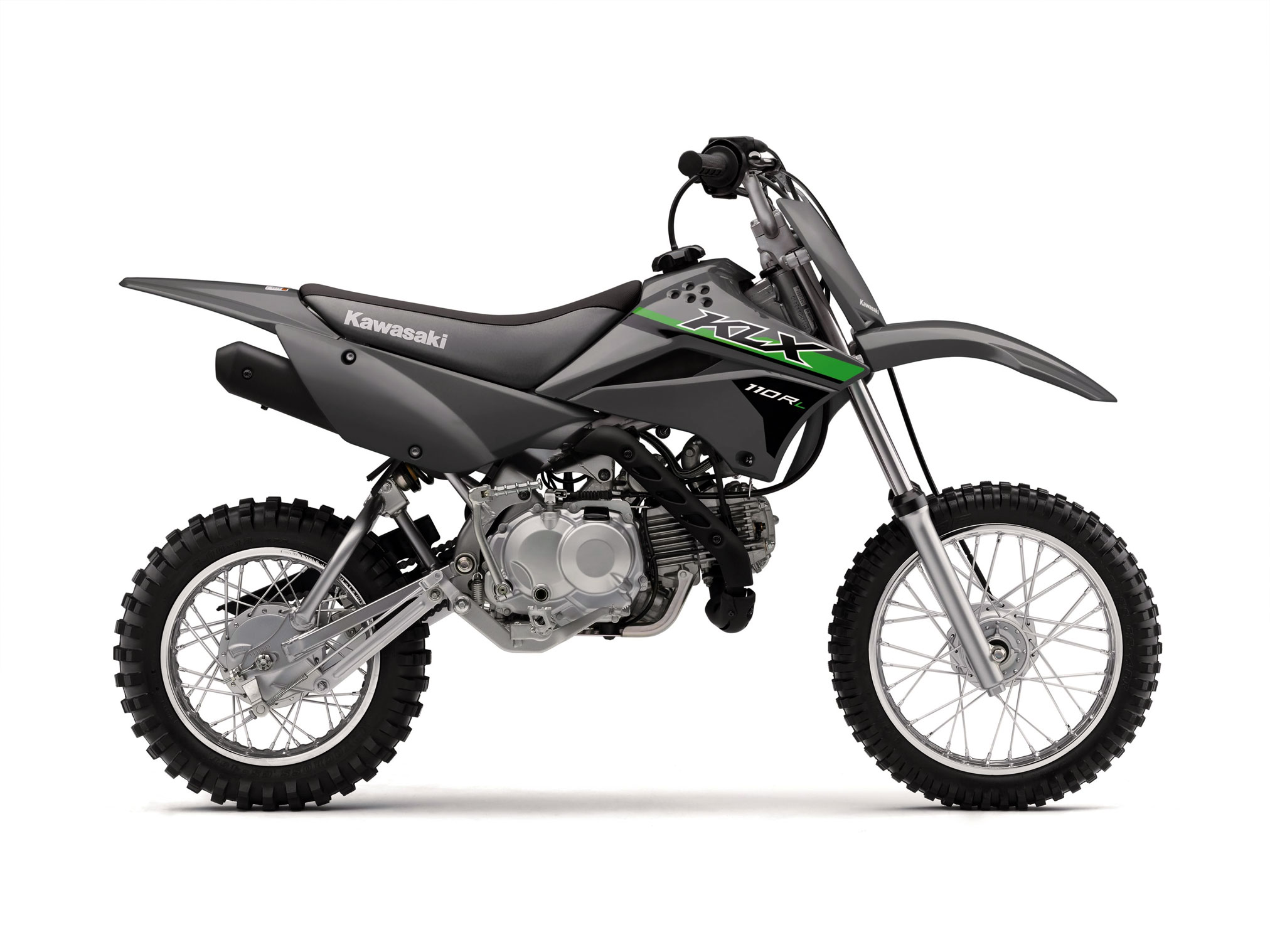

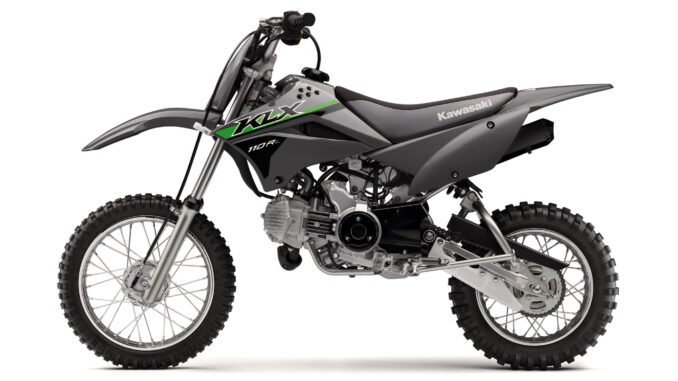

2024 Kawasaki KLX110RL
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 Kawasaki KLX110RL 2024 Kawasaki KLX110RL 2024 Kawasaki KLX110RL 2024 Kawasaki KLX110RL

2024 Kawasaki KLX110RL: TAKE THE MINI-MOTO MISCHIEF OFF THE ROAD.

Introducing the 2024 Kawasaki KLX110RL…

The KLX110R is available in two model variations and is a great motorcycle for new riders looking to experience off-road for the first time. A high-tensile steel frame, 30mm telescopic fork, and single rear shock provide easy handling and maximum longevity. It also incorporates an automatic centrifugal clutch system that allows easy take off and shifting through the gears, helping the rider maintain focus on the terrain and to make the most of the 112cc single-cylinder, four-stroke engine. The larger KLX110R L motorcycle has a taller seat height (28.7” compared to 26.8” for the KLX110R), longer suspension travel, an extra 1.9” of ground clearance and a four-speed transmission with a manual clutch. No matter your size or skill level, there is a KLX model motorcycle to allow you to get out and play with Kawasaki.

Kawasaki’s KLX110R/R L offers two ways for riders to get started in off-road riding: the base KLX110R model with a low seat height and automatic clutch, and the KLX110R L with longer suspension travel, nearly two-inch taller seat height and manual clutch.

Whether it’s a friendly bike for beginners or the ultimate pitbike for more experienced riders, the KLX110R and the slightly larger KLX110R L off-road motorcycles are up for the task. The playful 112cc engine and compact chassis are versatile enough to handle fun for any young rider.





2024 Kawasaki KLX110RL Totalmotorcycle.com Key Features

EXCLUSIVE KLX110R L MODEL FEATURES

• Manual clutch provides greater rider control over engine power and accommodates sportier riding.
• Longer shock and front forks, specific to the R L model, increase wheel travel and seat height to better
fit taller riders.

  • 112cc AIR-COOLED, 4-STROKE ENGINE
  • SPORTY RACE-INSPIRED STYLING

ADDITIONAL VEHICLE FEATURES:

  • Taller seat height (730 mm [28.7 in]) and higher ground clearance (265 mm [10.4 in])
  • Sporty styling
  • Four-speed transmission with manual clutch

GET OUT AND PLAY

The Kawasaki KLX off-road lineup brings enjoyment to novice and experienced riders alike and is largely popular for its easy-to-ride character, incredible capabilities while on trails and low maintenance needs. For 2024, Kawasaki welcomes the return of its KLX300R, KLX230R, KLX140R, KLX140R L, KLX140R F, KLX110R, and KLX110R L models that are built to suit a wide variety of riders, and new for 2024 is an exciting new color option of Battle Gray in addition to the traditional Lime Green.









2024 Kawasaki KLX110RL Totalmotorcycle.com Features and Benefits

112cc Single Cylinder, SOHC Engine
• Electric start [1] makes starting easy.
• Tuned to produce user-friendly power that can be easily managed by entry-level riders.

U.S. Forest Service-Approved Spark Arrester
• U.S. Forest Service-approved spark arrester allows access to designated public riding areas.

Throttle Limiting Screw
• Located on the throttle housing, allows parents to control throttle opening to help new riders gain experience at reduced speeds.

Capacitor Discharge Ignition (CDI)(KP)
• ECU precisely controls timing, no matter how fast the rpm changes.
• Ignitor only allows engine to be started in neutral for added safety.
• Requires no maintenance.

4-Speed Transmission
• Gear ratios chosen to enhance engine power.

Automatic (KLX110R) or Manual (KLX110R L) Clutch
• Automatic clutch model (KLX110R) allows riders to concentrate on riding, not coordinating a clutch.
• Manual clutch mode (KLX110R L) allows sportier riding and greater control.

High Tensile Steel Frame
• Long shock with model-specific damping and spring rates and low swingarm pivot increase rear wheel travel and provide a firm ride.

30mm Front Forks
• Front fork settings match the firm rear end.
• Minimal overhang below axle to catch in ruts.
• The upper triple clamp is made of aluminum to reduce weight.
• The gas tank, seat, shrouds, side panels and fenders have KX styling to maintain a consistent look with other Kawasaki off-road models.















2024 Kawasaki KLX110RL – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,049 USD
Canada MSRP Price: $3,349 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Engine Type 4-Stroke, Air-Cooled, SOHC, Single, 2-Valve Cylinder Head
Displacement 112cc
Bore & Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Carburetor Keihin PB18
Ignition CDI
Transmission 4-Speed
Rake/Trail 24.8˚/2.0 in. (KLX110R) 24.2˚/1.9 in. (KLX110R L)
Front Wheel Travel 4.3 in. (KLX110R) 5.5 in. (KLX110R L)
Rear Wheel Travel 4.3 in. (KLX110R) 5.2 in. (KLX110R L)
Front Tire Size 2.5 x 14
Rear Tire Size 3.0 x 12
Front Suspension 30 mm Telescopic Fork
Rear Suspension Single Shock
Wheelbase 42.3 in.
Front Brake Type Drum
Rear Brake Type Drum
Fuel Tank Capacity 1.0 gal.
Ground Clearance 8.5 in. (KLX110R) 10.4 in. (KLX110R L)
Seat Height 26.8 in. (KLX110R) 28.7 in. (KLX110R L)
Curb Weight= 168 lb.
Warranty 6 months
Kawasaki Protection Plus 12, 24, or 36 months
Specifications subject to change without notice.
Ask about Kawasaki’s Team Green amateur rider support program.
(KP) = See Kaw-Pedia section for more details.
* = Changes from previous model year.
= = Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied).







2024 Kawasaki KLX110RL – Totalmotorcycle.com  Canadian Specifications/Technical Details

POWER
Engine 112cc, air-cooled, 4-stroke, SOHC 2-valve single
Bore x Stroke 53.0 x 50.6 mm
Compression Ratio 9.5:1
Fuel System Carburettor: Keihin PB18
Ignition Digital DC-CDI
Starting Electric & kick
Lubrication Forced lubrication, wet sump
Transmission 4-speed, return
Clutch Wet multi-disc, manual
Final Drive Chain

PERFORMANCE
Frame Backbone, steel
Front Suspension / Wheel Travel ø30 mm telescopic fork / 140 mm (5.5 in)
Rear Suspension / Wheel Travel Single shock / 132 mm (5.2 in)
Rake / Trail 24.2° / 47 mm
Steering Angle (L/R) 45° / 45°
Front Tire 2.50-14 4PR
Rear Tire 3.00-12 4PR
Front Brake Drum (ø90 mm)
Rear Brake Drum (ø110 mm)

DETAILS
Dimensions (L x W x H) 1,560 x 650 x 990 mm (61.4 x 25.6 x 39.0 in)
Wheelbase 1,075 mm (42.3 in)
Road Clearance 265 mm (10.4 in)
Seat Height 730 mm (28.7 in)
Curb Mass** 76 kg (168 lb)
Fuel Capacity 3.6 litres
Warranty 6 months
Kawasaki Protection Plus 12 / 24 / 36 / 48 months









2024 Kawasaki KLX110RL – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
