2024 KTM 990 Duke Guide

2024 KTM 990 Duke
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 KTM 990 Duke 2024 KTM 990 Duke 2024 KTM 990 Duke 2024 KTM 990 Duke 2024 KTM 990 Duke 2024 KTM 990 Duke

2024 KTM 990 Duke: POLISHED AND PERFORMANCE FOCUSED.

Introducing the 2024 KTM 990 Duke…

Heralding a massive leap forward for the KTM Naked range, the all-new KTM 990 DUKE takes aim directly at the coveted 1000 Naked bike segment – without making any excuses about why it exists.

With 2024 marking 30 YEARS OF DUKE, the all-new KTM 990 DUKE slots into the line-up like a well-polished round in the chamber. In its quest to be the most performance-focused NAKED machine possible, the KTM 990 DUKE ticks all the right boxes mechanically, while deploying extreme new styling.

The KTM 990 DUKE makes its intentions perfectly clear. Apart from a blisteringly potent engine, an all-new chassis, and swingarm design – not to mention updated ergonomics and technology – it now sizes up to larger capacity motorcycles in both displacement and proportions.

Side-on, the new design has been modeled around the concept of an explosion in a freeze-frame, harnessing extreme energy ready to be released. This new design is further enhanced by two colorway options in Black and Electric Orange – the latter being developed specifically to celebrate 30 YEARS OF DUKE.

Hitting every target with devastating accuracy, the all-new KTM 990 DUKE brings unmatched levels of precision to the street. Packing a reworked engine into an all-new frame, with adjustable WP APEX suspension and highly tuned electronics to boot, this – put simply – is the lightest, sharpest, most performance focused mid-class NAKED motorcycle to ever wear the DUKE nameplate.







2024 KTM 990 Duke Totalmotorcycle.com Key Features

At the face of it, predatory design meets reduced styling with an evolved LED headlight being a stand-out feature of the all-new KTM 990 DUKE. Constructed from a carefully chosen mix of materials, the new design ensures lighting stability in all road conditions. Position and daytime running lights are located on the profile of the headlight, which also auto-adjusts in intensity according to ambient light conditions thanks to a light sensor integrated into the dashboard.

Additionally, the KTM 990 DUKE is fitted with a Coming Home light function as standard. Here, the headlight will remain on after the ignition has been switched off, awarding the rider with a few seconds of light to open doors or for better visibility in the garage.

Power is taken care of by a dramatically updated version of the LC8c engine found in the KTM 890 DUKE R. Boasting 947 cc, the roaring heart of the KTM 990 DUKE receives new pistons, crankshaft, and conrod producing a fire-breathing 123 HP and 103 Nm, with a total motorcycle weight of only 179 kg.

The KTM 990 DUKE takes its DNA from the long lineage of hard-hitting DUKE models that have come before it, adding more verve and aggression. It is a performance-oriented machine at its core, designed around a lightweight, flickable chassis that inspires utmost rider confidence.

In typical DUKE fashion, a stiff trellis frame and a new closed-lattice swingarm come together to welcome high-quality adjustable WP APEX Suspension components. These, together with track-proven Bridgestone S22 tires, provide SNIPER-like accuracy when it comes to cornering stability.

The WP APEX Suspension fitted to the KTM 990 DUKE features easy-to-adjust settings, encouraging the rider to push the limits comfortably. Upfront, the 43 mm WP APEX Suspension can be easily and accurately dialed in with 5 clicks on both rebound and compression. On the rear, the WP APEX Monotube shock absorber can be adjusted in 5-clicks, with manual preload adjustment also possible.

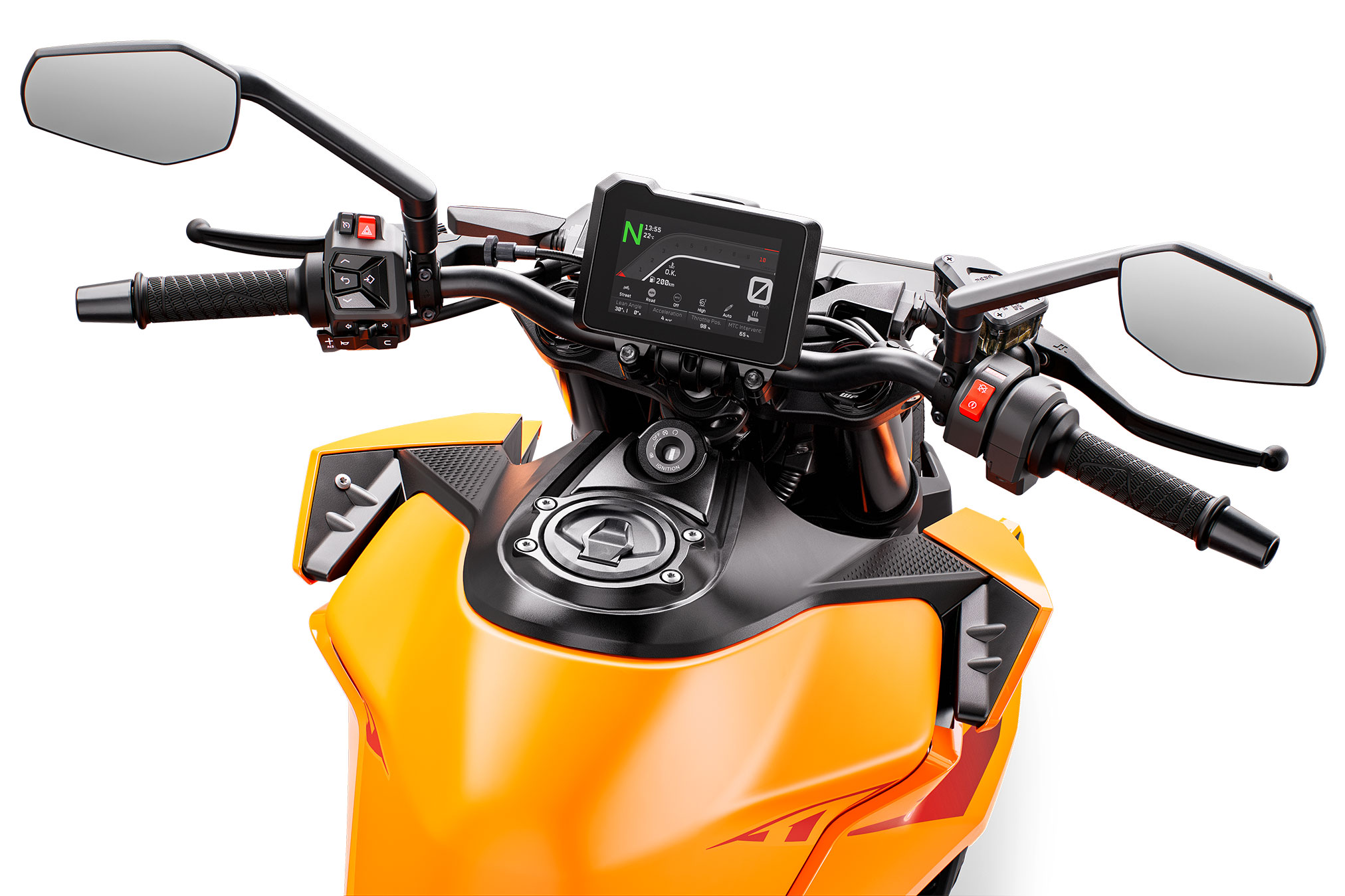

Once seated, riders are greeted by a 5-inch, anti-scratch bonded glass dashboard providing all the information a KTM 990 DUKE pilot could need. Revised graphics and menu structures are designed for faster, more intuitive access to the various features of the KTM 990 DUKE. This includes a new function that displays Lean Angle data, with an optional TRACK Mode complete with lap timer and telemetry stats. A USB-C connection is also added for device charging duties.

In short, the brief was simple; Develop the ultimate mid-class NAKED machine. In achieving this, the 2024 KTM 990 DUKE hits the mark dead center.









2024 KTM 990 Duke Totalmotorcycle.com Features and Benefits

5-CLICK PRECISION

Adjustability

Precision and setup go hand-in-hand. In this case, 5-click adjustability on both the WP APEX 43 mm front fork and the WP APEX rear shock provide the ideal setup for maximum attack, while an adjustable handlebar and levers ensure the perfect posture for hitting the bullseye, everytime.

TARGET LOCKED

TFT Display & Connectivity

An all-new 5″ bonded glass TFT dashboard is upgraded with he latest graphic and information software, making it faster, easier to navigate and designed to give riders faster access to the various features of the bike with far fewer clicks. The TFT also works in conjunction with optional KTMConnect, which connected with your smartphone to the dash to access navigation, audio and calls. A USB-C connection is also available for charging your smart device.

NAKED AGGRESSION

Bodywork

An all-new and purposefully NAKED build is devoid of any clutter but packed with attitude. Wicked at standstill, and imposing on the move, the The KTM 990 DUKE debuts an all new look for DUKE, boasting aggressive lines and design elements that shout POWER! This new design is further set off with two unique colorway options of Black and Orange, celebration 30 years of DUKE.

LIGHT UP THE DARKNESS

LED Headlight

An all-new, lightweight LED headlight design adds to the KTM 990 DUKE’s menacing look while turning night to day. With daytime running lights that automatically adjust in intensity according to the ambient light conditions, and automatic low leam that stays illuminated for a moment after the ride is done, not only do the LEDs on KTM 990 DUKE burn a hole into the darkness – they are smart too.



TAKE AIM, FIRE

POWER HUNGRY

Engine

Of course, this isn’t the first time the DUKE nameplate and 990 have been seen together. However, this machine is a completely different powerplant. Nestled into the all-new frame is a 990 cc LC8c parallel-twin engine pumping out asphalt-ripping power. Not only powerful, it is also the most compact twin in class, adding to the KTM 990 DUKE’s nimble handling characteristics. More aggressive camshaft profiles and longer valve openings result in improved rideability, while a wider radiator with optimized airflow ensures things stay cool. A new exhaust system rounds off this powerhouse package.

PICK YOUR POWER

Ride Modes

Configurable with up to 5 different ride modes, the KTM 990 DUKE is ready to dominate just about any eventuality. In the default STREET setting, riders have full power, traction control, and limited front wheel lift, with easy throttle response. SPORT steps the experience up with sharper throttle control and some wheel slip, while RAIN mode does what it says on the box, providing maximum traction and reduced power in wet conditions. The optional PERFORMANCE and TRACK modes crank the KTM 990 DUKE all the way to 11, providing enhanced rider customization and focused sport riding.

FULL THROTTLE

Track Mode

Toggle the optional TRACK mode, and the KTM 990 DUKE goes from a no-holds-barred NAKED street motorcycle to an all-out apex-brawling race machine. TRACK mode allows you to take full control of rear wheel traction with a 10-level slip control, as well as the sharpest throttle response possible. Want more? How about 5 levels of anti-wheelie, and maximum acceleration thanks to LAUNCH CONTROL!

LIKE A BULLET

Launch Control

Unleashing maximum acceleration from a standing start, the KTM 990 DUKE is fitted with LAUNCH CONTROL for rapid starts off the line. Simply select launch control, wind on the throttle, drop the clutch, and blast off the line.



RACE TO COMFORT

Ergonomics

The brief for the 2024 KTM 990 DUKE was simple; develop the ultimate mid-weight street bike. The result is the lightest, most precise, most performance-focused mid-class NAKED, providing unmatched rider feedback, performance, and comfort in all riding scenarios. What’s more, the KTM 990 DUKE is designed to inspire confidence in all riders, from beginners looking for a little more, all the way up to advanced riders who want to rip up the tarmac.



TAKE A SEAT

Seat

At 32.4 inches (825 mm) tall and with a 2° tilt upfront, the rider seat on the KTM 990 DUKE has been specifically developed to provide a sporty, aggressive seating position, without compromising on comfort. The seat cover is also designed to provide the sweet spot between grip and freedom of movement, for both textile and leather riding gear.

FIND YOUR FOOTING

Footpegs

Made from high-strength, lightweight aluminum, with a non-slip rubber insert, the footpegs ensure grip and provide some vibration damping. The pillion hasn’t been forgotten either, with emphasis placed on passenger comfort thanks to a more comfortable knee angle.



THE BACKBONE

Frame

The KTM 990 DUKE has been developed with a completely new tubular frame, with torsional stiffness and rider feel as a top priority, thanks to the use of forged parts over sheet metal and an integrated swingarm pivot point, adding additional stiffness. An aluminum diecast subframe integrates the airbox and air intakes under the seat, reducing weight.

PIVOT POINT

Swingarm

Featuring a new lightweight, gravity die-cast swingarm, the KTM 990 DUKE boasts increased stability and perfect levels of flex. Why flex, you ask? City streets and rural backroads aren’t perfect, and even small bumps can affect handling. The increased flex of the swingarm dramatically improves bump absorption, improving the effectiveness of the rear shock, and feedback to the rider.

SPRING INTO ACTION

Fork

Keeping the front end in check, a WP APEX 43 mm open-cartridge, upside-down front fork provides 140 mm of suspension travel and uses split-function technology to control compression and rebound damping in separate fork legs. The front fork can be easily and simply adjusted in a 5-click setting for both compression and rebound to suit rider skills and road conditions.

MAX TRACTION

Rear Shock

The high-quality, gas-assisted WP APEX Monotube rear shock absorber is fitted with a new lighter, linear spring which, together with a newly developed setting, offers riders enhanced responsiveness and comfort. Rebound can also be adjusted through a 5-click setting, as well as manual preload adjustment.

ROLLING THUNDER

Wheels and Tires

A set of grippy Bridgestone S22 tires – 120/70-R17 on the front and 180/55-R17 on the rear – are wrapped around a set of lightweight, alloy wheels, delivering excellent performance in various road conditions.



STOPPING POWER

Brakes

When the going gets quick, the slowing needs to match. Upfront, twin lightweight 300 mm floating discs are paired with 4 piston radially mounted calipers, with a 240 mm disc on the rear. These are mated to a tried and tested anti-lock braking system, with Supermoto ABS functionality.











2024 KTM 990 Duke – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $ See Dealer for pricing in USD
Canada MSRP Price: $ See Dealer for Pricing CDN
Europe/UK MSRP Price: £ See Dealer for pricing in GBP (On The Road inc 20% Vat)

ENGINE
TORQUE 103 Nm
TRANSMISSION 6-speed
BATTERY CAPACITY 10 Ah
COOLING Liquid cooled with water/oil heat exchanger
POWER IN KW 90.5 kW
STARTER Electric starter
STROKE 70.4 mm
BORE 92.5 mm
CLUTCH PASC™ antihopping clutch, mechanically operated
DISPLACEMENT 947 cm³
EMS Bosch EMS with RBW
DESIGN 2-cylinder, 4-stroke, parallel twin
LUBRICATION Forced oil lubrication with 2 oil pumps
CHASSIS
WEIGHT (WITHOUT FUEL) 179 kg
ABS Bosch 9.3 MP Two Channel (Supermoto ABS)
FRONT BRAKE DISC DIAMETER 300 mm
REAR BRAKE DISC DIAMETER 240 mm
FRONT BRAKE 2x radially mounted 4 piston caliper
REAR BRAKE 2 piston caliper, brake disc
CHAIN 520 X-Ring
FRAME DESIGN Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
FRONT SUSPENSION WP APEX 43
GROUND CLEARANCE 195 mm
REAR SUSPENSION WP APEX – Monoshock
SEAT HEIGHT 825 mm
STEERING HEAD ANGLE 65.8 °
SUSPENSION TRAVEL (FRONT) 140 mm
SUSPENSION TRAVEL (REAR) 150 mm



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
