2024 Suzuki DR-Z125L Guide

2024 Suzuki DR-Z125L
ReviewKey FeaturesFeatures & BenefitsSpecification

2024 Suzuki DR-Z125L 2024 Suzuki DR-Z125L 2024 Suzuki DR-Z125L

2024 Suzuki DR-Z125L: LOADS OF FUN.

Introducing the 2024 Suzuki DR-Z125L…

Here comes the DR-Z125L to make sure young and smaller stature riders can tackle the dirt. Larger 19-inch front and 16-inch rear tires, as well as a front disc brake, deliver big bike performance to a size-appropriate motorcycle. Here’s the perfect platform to build essential riding skills upon, as the DR-Z125L has a true manual clutch and a five-speed transmission so riders can develop these skills as they advance within the sport of motorcycling. Styled to mirror Suzuki’s Championship-winning RM-Z and RMX models, this DR-Z arrives with a race-oriented look, while the sharp handling and strong low-end and mid-range power provide the get-up-and-go that defines off-road bikes. The bike’s race ready looks prove you can’t judge a book by its cover, because the DR-Z125L is an unassuming, easy to ride package packed with loads of fun.

Blending race-inspired looks along with an exciting entry-level off-road package creates the DR-Z. Built around a time-proven chassis and engine package. Inheriting sleek designs from its RM-Z brothers, the DR-Z yields motocross styling that looks good at the local track or a favourite trail.





2024 Suzuki DR-Z125L Totalmotorcycle.com Key Features

  • Compact and reliable, 124cc, 4-stroke, single cylinder engine
  • Smooth-shifting transmission with easy-pull clutch
  • Strong steel frame and beam-style swingarm
  • Telescopic forks and link-type rear suspension
  • Champion-approved RM-Z styling with race-inspired graphics



TWO FOR THE TRAILS

The DR-Z comes stocked with all the necessities for long, exciting rides. A larger 19-inch front tire and 16-inch rear tire as well as a front disk brake provide a longer lifespan of usefulness. Styled to reflect the RM-Z models, this DR-Z promotes a more race-oriented look while the sharp handling and strong low-to-mid end power provide the get-up-and-go that defines off-road bikes. The looks are a testament that you can’t judge a book by its cover because the DR-Z125L is a simple package packed with loads of fun.



RELIABLE 125CC ENGINE

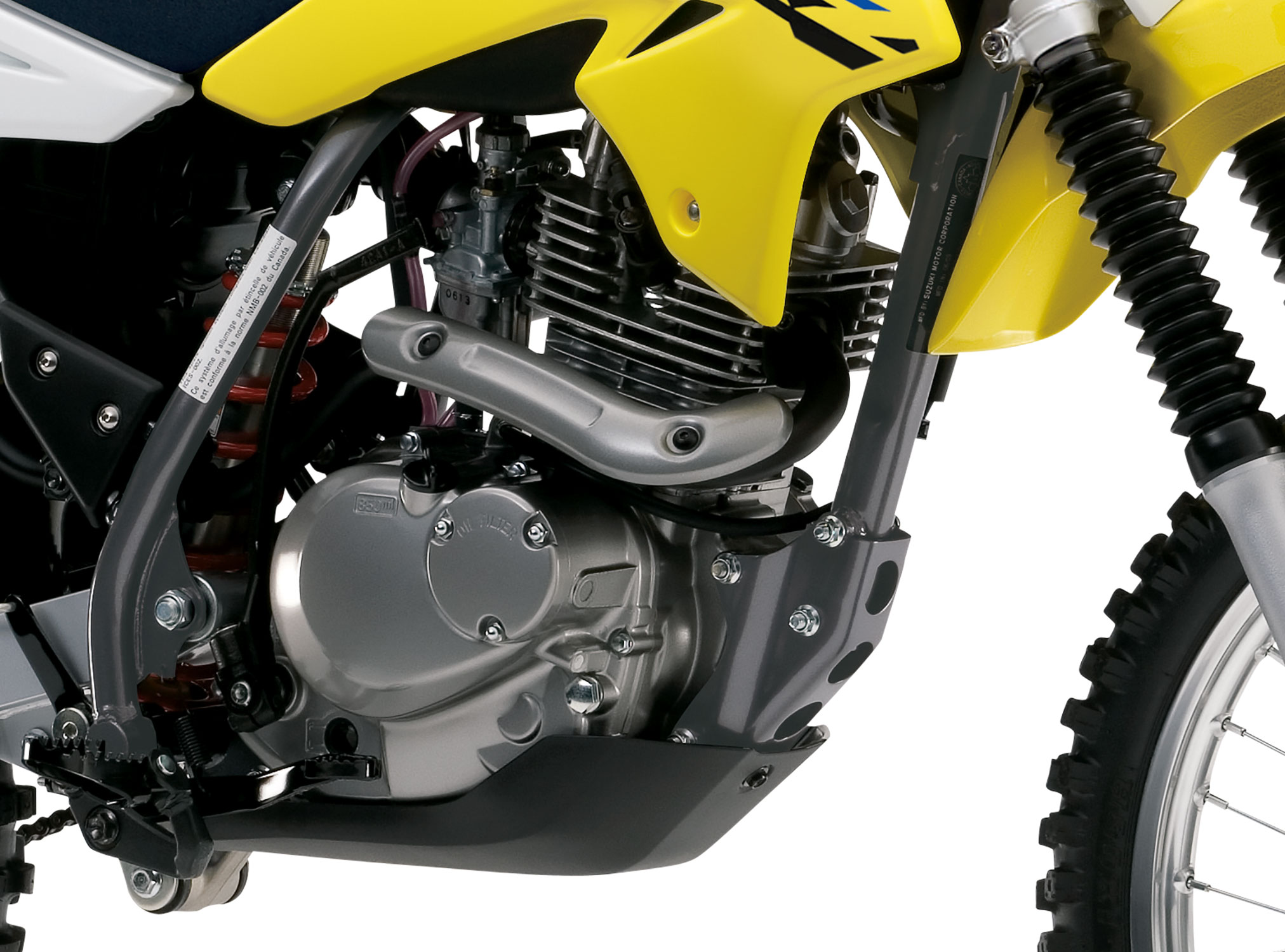

Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.



LIGHTWEIGHT ENGINE SKID PLATE

A lightweight plastic skid plate helps protect the bottom of the engine.



LINK-TYPE REAR SUSPENSION

Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.



LIGHTWEIGHT ALUMINUM RIMS

Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.



STRONG BRAKING PERFORMANCE

Strong braking performance is provided by a lightweight front disc brake and rear drum brake.

LIGHTWEIGHT FRAME

Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.





OFF ROAD

Suzuki’s off-road lineup features bikes ranging in size and power so that your whole family can ride together. TheDR-Z50 offers kid-friendly performance and parental safety controls, while the DR-Z125L ups the power for small-profile riders of intermediate experience and outsized determination. When the wilderness calls for fun, Suzuki off-road bikes are the answer.







2024 Suzuki DR-Z125L Totalmotorcycle.com Features and Benefits

ENGINE FEATURES

Compact, 124cc, four-stroke, single cylinder, SOHC, air-cooled engine provides strong low- to mid-range power delivery that can be easily handled.

Precise digital CDI ignition system has an ignition-timing map that’s tuned to optimize the engine’s power characteristics.

Mikuni VM20SS carburetor contributes to excellent throttle response.

Suzuki Composite Electrochemical Material (SCEM)-plated cylinder is used for durability, weight reduction, and superior heat transfer.

Spark-arrestor equipped muffler is environmentally friendly yet has a pleasant exhaust note.

Clean-burning four-stroke engine is Environmental Protection Agency (EPA) Emissions compliant.

The 2024 DR-Z125L is eligible for California Green Sticker Off-Road registration.



TRANSMISSION FEATURES

Five-speed transmission with link-type, foot-operated gearshift system for precise operation and good feedback to the rider.

Easy-pull, rack-and-pinion manual clutch lets the rider control takeoffs and power delivery.



CHASSIS FEATURES

Lightweight, high-rigidity steel pipe frame and rear beam-style swingarm are designed specifically to create a compact, mid-sized off-road machine.

Lightweight aluminum rims (19-inch front/16-inch rear) for reduced weight contribute to agile handling and smooth suspension performance.

The seat and bodywork design provides a seamless surface for easy maneuverability.

Appropriate 32-inch seat height lets the bike fit a variety of riders.

Strong braking performance is provided by a lightweight front disc brake and rear drum brake.

Telescopic front forks and link-type rear suspension provide long wheel travel and smooth, progressive action that creates an enjoyable, comfortable ride.

The rear shock absorber spring preload is fully adjustable for a wide range of riding conditions and rider weight.

Bright Suzuki Factory Yellow bodywork includes blue, black, and red race-inspired graphics.

A lightweight plastic skid plate helps protect the bottom of the engine.



ADDITIONAL FEATURES

6-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New Off-Road Motorcycle Limited Warranty.

A variety of Genuine Suzuki Accessories for DR-Z125L owners are available, including a large selection of Suzuki logo apparel.









2024 Suzuki DR-Z125L – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3,599 USD
Canada MSRP Price: $4399 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)

Engine124cc, 4-stroke, air-cooled, single cylinder, SOHC

Bore x Stroke0 mm x 48.8 mm (2.244 in. x 1.921 in.)

Compression Ratio5:1

Fuel SystemMikuni VM20SS, single carburetor

StarterPrimary kickstarter

LubricationWet sump



ClutchWet multi-plate

Transmission5-speed constant mesh

Final DriveChain, DID 428HG, 130 links



Suspension FrontTelescopic, coil spring, oil damped

Suspension RearLink type, coil spring, oil damped

Brakes FrontDisc brake, single rotor

Brakes RearDrum brake

Tires Front70/100-19 M/C 42M, tube type

Tires Rear90/100-16 M/C 52M, tube type

Fuel Tank Capacity8 L (1.3 US gal.)

ColorChampion Yellow No. 2



IgnitionElectronic ignition (CDI)

Spark PlugNGK DR8EA or DENSO X24ESU



Overall Length1885 mm (74.2 in.)

Overall Width770 mm (30.3 in.)

Overall Height1110 mm (43.7 in.)

Wheelbase1270 mm (50.0 in.)

Ground Clearance290 mm (11.4 in.)

Seat Height805 mm (32.0 in.)

Curb Weight0 kg (196 lb.)



Warranty6-month limited warranty

ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)











2024 Suzuki DR-Z125L – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE

Type 4-stroke, air-cooled, OHC
Displacement 124 cc
Bore x Stroke 2.244.60 in x 1.921 in
Compression Ratio 9.5 : 1
Fuel System MIKUNI VM20SS
Starter Primary Kick
Lubrication Wet sump
Ignition Electronic ignition (CDI)

DRIVE TRAIN

Transmission 5-speed constant mesh
Final Drive DID 428HG, 130 links

CHASSIS

Length 1885 mm (74.2 in)
Width 770 mm (30.3 in)
Height 1110 mm (43.7 in)
Wheelbase 1270 mm (50.0 in)
Seat Height 805 mm (32.0 in)
Curb Mass 89 kg (196 lbs)
Suspension Front Telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Disc brake
Brakes Rear Drum brake
Tires Front 70/100-19 42M, tube type
Tires Rear 90/100-16 52M, tube type
Fuel Tank 4.8L (1.3 US gal)

WARRANTY

6 Months unlimited mileage limited warranty.











2024 Suzuki DR-Z125L – Totalmotorcycle.com European Specifications/Technical Details

NA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
