Review – Key Features – Features & Benefits – Specification
2024 Suzuki DR-Z400S: JOIN THE DUALSPORT MOVEMENT.
Introducing the 2024 Suzuki DR-Z400S…
The 2024 DR-Z400S is the latest version of the motorcycle that is the foundation of the modern DualSport movement. Starting with the DR350S and then again with the DR-Z400S, Suzuki continues to make fun, dependable, and capable motorcycles available to anyone who is ready to take a ride down their favorite off-road trail or ribbon of asphalt.
Riders will be impressed with the amount of torque coming from the 398cc, liquid-cooled powerplant, as well as the crisp handling from the fully adjustable suspension. This ultra-reliable bike is completely street legal, with an electric start and easy-to-use, multi-function LCD instrument panel. Fully black, aluminum EXCEL rims laced with bright stainless-steel spokes are setup to accept rim locks if you want to move to serious DualSport rubber.

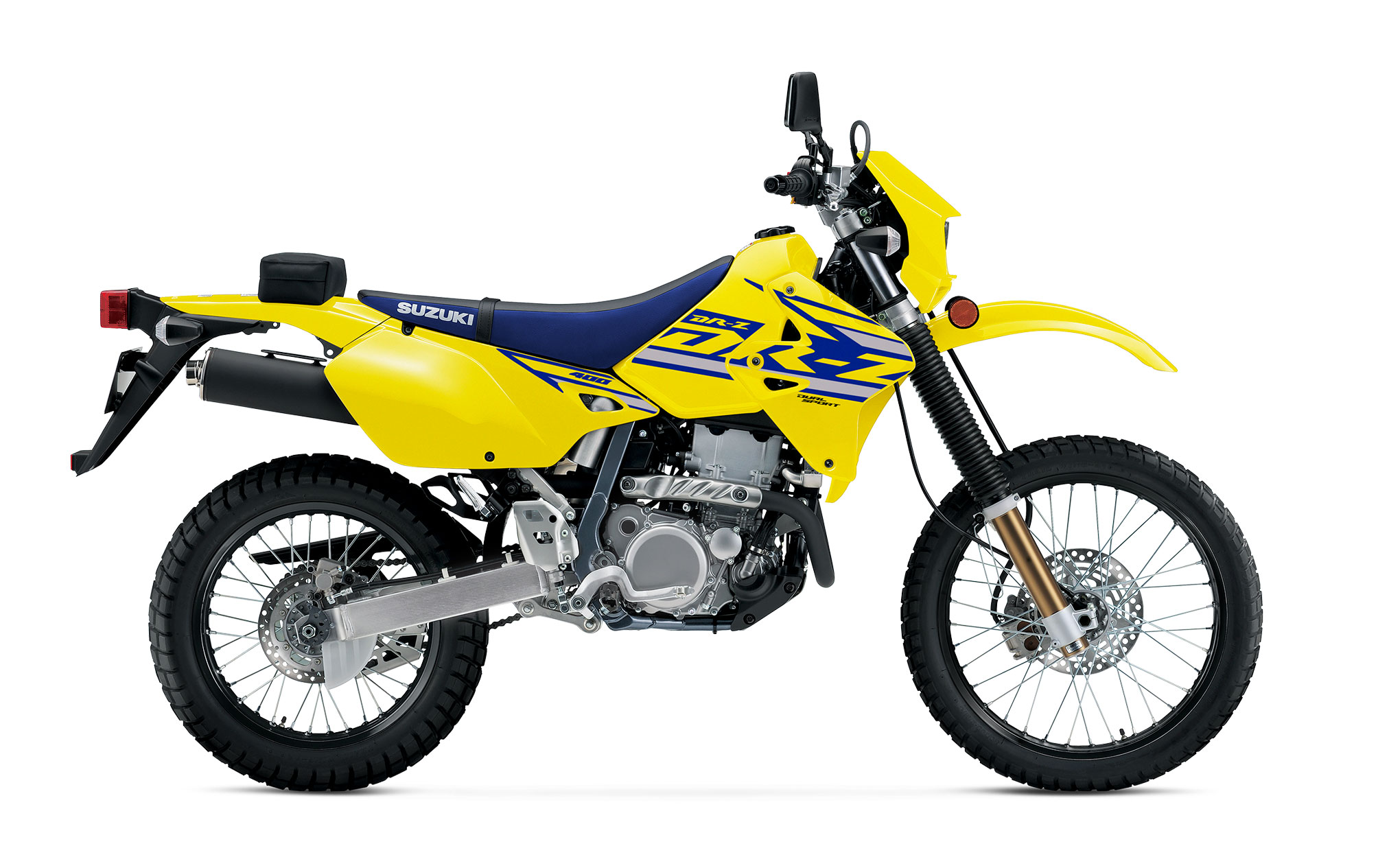

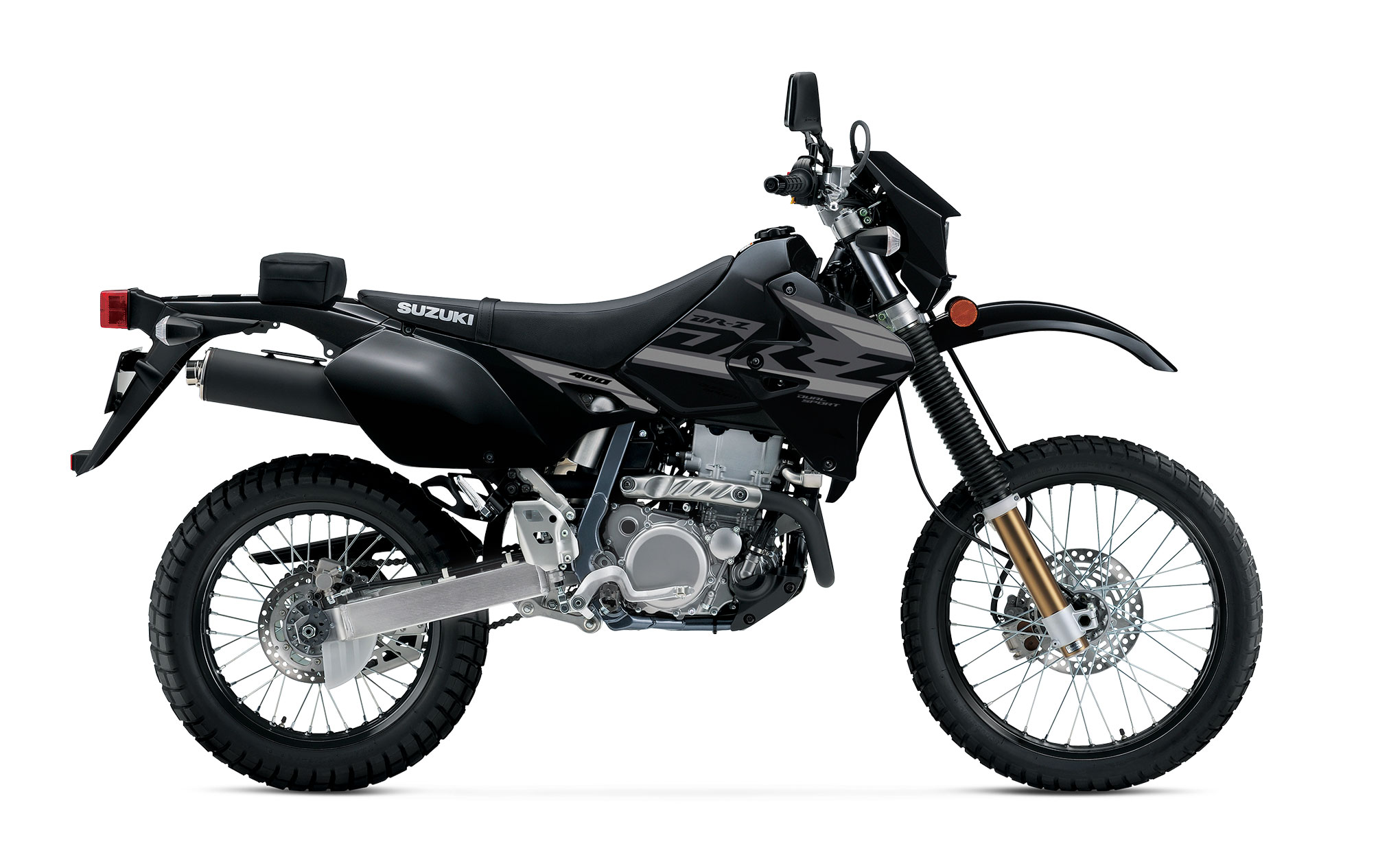

True to its Suzuki off-road heritage, the 2024 DR-Z400S is available with Champion Yellow body work that is augmented with new blue and silver graphics. Also new are gray and silver graphics on the Solid Black bodywork that makes the DR-Z stand out on the road, on the trail, or even when parked.
Whether you are on the highway or on a twisty forest path, the Suzuki DR-Z400S cannot be beat.
BREAKING NEW GROUND IN 4-STROKE DUAL-SPORT RIDING
The DR-Z400S is ideal for taking a ride down your favorite off-road trail. You’ll be impressed with the amount of torque coming from the 398cc liquid-cooled powerplant as well as the crisp handling from the adjustable suspension. This bike is completely street legal with an electric start and easy-to-read instrument cluster. Whether you’re on the highway or in a tight twisty forest trail, the Suzuki DR-Z400S can’t be beat.
2024 Suzuki DR-Z400S Totalmotorcycle.com Key Features
Compact, liquid-cooled, 398cc, single engine produces widespread power
Electric starting and street-legal lighting
Narrow and strong chrome-moly frame
Fully adjustable, off-road capable suspension
Black, spoke-style wheels with 21- and 18-inch aluminum rims
A COMPACT DESIGN
A compact design, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong low-rpm power. Its compact, four-valve cylinder head features large 36mm intake valves and 29mm exhaust valves to help produce broad, tractable power and torque that’s ready for any terrain.
DC-CDI SYSTEM
Digitally-mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.
ALUMINUM PISTON
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.
PAIR SYSTEM
The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.
TRANSMISSION
Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.
STOPPING POWER
Sure stopping power is supplied by a 250mm front disc with a dual-piston caliper and a 220mm rear disc brake with a single-piston caliper.
CARTRIDGE-STYLE FORKS
Long travel (11.3-inch), 49mm cartridge-style fork has protective rubber boots plus adjustable compression/rebound damping and adjustable spring preload for smooth performance on all types of on- and off-road terrain.
REAR SHOCK ABSORBER
Rear shock absorber features 11.6 inches of travel, compression damping/preload adjustments, and connects to a lightweight aluminum swingarm through a progressive linkage system.
WHEELS
Spoke-style 21-inch front and 18-inch rear wheels with new blacked-out aluminum rims are fitted with Dunlop D208 dual-purpose tires. The wheels are sized perfectly to accept popular dual sport tires and are set up to accept rim-locks when a more aggressive tread pattern is used.
NARROW FRAME
A narrow frame combines thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum sub-frame helps reduce weight and simplify maintenance.
COMPACT DIGITAL INSTRUMENT
Digital instrument includes speedometer, odometer, dual tripmeters with addition/subtraction functions, clock and stopwatch.
LIGHTING
On-road legal lighting includes bright 60/55-watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.
ADDITONAL FEATURES
A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.
DUALSPORT
Suzuki DualSport motorcycles are consistently hailed as some of the best all-around, do-anything, go-anywhere bikes you can ride. They deliver a proven balance of torque-rich power, lightweight handling, and astonishing durability that continues to thrill. It’s a versatile package decked with features that lets you tackle single-track trails, multi-lane roads, and everywhere in between.
2024 Suzuki DR-Z400S Totalmotorcycle.com Features and Benefits
ENGINE FEATURES
A compact design, 398cc, DOHC, liquid-cooled, dry-sump engine produces strong low-rpm power. Its compact, four-valve cylinder head features large 36mm intake valves and 29mm exhaust valves to help produce broad, tractable power and torque that’s ready for any terrain.
Simple electric starting via a lightweight starter motor with an automatic mechanical decompression system.
Suzuki Composite Electrochemical Materials (SCEM) cylinder is durable and lightweight and provides superior heat transfer.
Digitally-mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling through a crankcase oil jet.
Fed by a six-liter air box, the Mikuni™ 36mm carburetor incorporates a deceleration enricher circuit to help provide smooth throttle response when accelerating or engine braking.
The left side body cover has quick-release fasteners for easy access to the air filter.
The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.
Magnesium-alloy clutch, magneto, and cylinder head covers contribute to the bike’s low weight.
Thermostatically-controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature.
TRANSMISSION FEATURES
Compact, five-speed transmission utilizes a cable-operated clutch with a separate magnesium outer cover for simplified clutch maintenance.
Low-maintenance, long-life sealed O-ring type drive chain produces minimal sounds when riding.
CHASSIS FEATURES
A narrow frame combines thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum sub-frame helps reduce weight and simplify maintenance.
Long travel (11.3-inch), 49mm cartridge-style fork has protective rubber boots plus adjustable compression/rebound damping and adjustable spring preload for smooth performance on all types of on- and off-road terrain.
Rear shock absorber features 11.6 inches of travel, compression damping/preload adjustments, and connects to a lightweight aluminum swingarm through a progressive linkage system.
Spoke-style 21-inch front and 18-inch rear wheels with new blacked-out aluminum rims are fitted with dual-purpose tires. The wheels are sized perfectly to accept popular dual sport tires and are set up to accept rim-locks when a more aggressive tread pattern is used.
Sure stopping power is supplied by a 250mm front disc with a dual-piston caliper and a 220mm rear disc brake with a single-piston caliper.
Special design mirrors rotate to avoid damage in case of impact.
A pouch on the rear fender carries the tool kit, owner’s manual, or other cargo.
Off-road inspired Suzuki Champion Yellow or Solid Black bodywork has daring contrasting graphics.
ELECTRICAL FEATURES
Electric start system provides convenient operation and features a lightweight starter motor and a compact, 6.5-amp, maintenance-free battery.
Compact digital instrument cluster includes speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer, and stopwatch functions.
On-road legal lighting includes bright 60/55-watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals, and horn.
ADDITIONAL FEATURES
Genuine Suzuki Accessories include a low-profile seat, cargo rack, handguard set, and more.
12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*
*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.
2024 Suzuki DR-Z400S – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $7,199 USD
Canada MSRP Price: $8599 CDN
Europe/UK MSRP Price: £ NA GBP (On The Road inc 20% Vat)
Engine398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
Bore x Stroke0 mm x 62.6 mm (3.54 in. x 2.44 in.)
Compression Ratio3:1
Fuel SystemMikuni BSR36, single carburetor
StarterElectric
LubricationSemi-dry sump
ClutchWet multi-plate
Transmission5-speed constant mesh
Final DriveChain, RK520KZ0, 112 links
Suspension FrontTelescopic, coil spring, oil damped, adjustable damping force
Suspension RearLink type, coil spring, oil damped, adjustable spring preload and damping force
Brakes FrontDisc brake, single rotor
Brakes RearDisc brake, single rotor
Tires Front80/100-21 M/C 51P, tube type
Tires Rear120/90-18 M/C 65P, tube type
Fuel Tank Capacity0 L (2.6 US gal.) / 9.5 L (2.5 US gal.) CA model
ColorGrand Blue No. 2 & Solid Black
IgnitionElectronic ignition (CDI)
Spark PlugNGK CR8E or DENSO U24ESR-N
Headlight12V 60/55W (H4)
Tail Light12V 21/5W
Overall Length2310 mm (90.9 in.)
Overall Width875 mm (34.4 in.)
Overall Height1230 mm (48.4 in.)
Wheelbase1485 mm (58.5 in.)
Ground Clearance300 mm (11.8 in.)
Seat Height935 mm (36.8 in.)
Curb Weight144 kg (317 lb.)
Warranty12-month limited warranty.
ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)
2024 Suzuki DR-Z400S – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| Type | 4-stroke, liquid-cooled, single cylinder, DOHC |
| Displacement | 398cc |
| Bore x Stroke | 90.0mm x 62.6mm (3.5in x2.5in) |
| Compression Ratio | 11.3 : 1 |
| Fuel System | Carbureted |
| Starter | Electric |
| Lubrication | Dry-Sump|Dry-Sump |
| Ignition | Electronic ignition (CDI) |
DRIVE TRAIN
| Transmission | 5-speed constant mesh |
CHASSIS
| Length | 2310 mm (90.9 in) |
| Width | 875 mm (34.4 in) |
| Height | 1230 mm (48.4 in) |
| Wheelbase | 1485 mm (58.5 in) |
| Seat Height | 935 mm (36.8 in) |
| Curb Mass | 144 kg (317 lbs) |
| Suspension Front | Telescopic, coil Spring, oil damped |
| Suspension Rear | Link type, coil spring, oil damped |
| Brakes Front | Disc |
| Brakes Rear | Disc |
| Tires Front | 80/100-21 M/C 51P, tube type |
| Tires Rear | 120/90-18 M/C 65P, tube type |
| Fuel Tank | 10.0L (2.6 US gal) |
WARRANTY
12 Month unlimited mileage limited warranty
2024 Suzuki DR-Z400S – Totalmotorcycle.com European Specifications/Technical Details
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
