2024 Suzuki GSX-S1000: STREET-DOMINATING POWER.

Introducing the 2024 Suzuki GSX-S1000…

The 2024 GSX-S1000 remains the performance standard for naked sportbikes by providing superb controllability, agility, and power for an exciting and rewarding riding experience, while complying with worldwide emissions standards. The long-stroke GSX-R1000 engine and nimble chassis combine with sharp, angular styling establish the GSX-S1000 as a naked streetfighter ready to turn heads and own the streets.

Styling immediately draws your attention to the GSX-S1000. Clean, straight lines make it clear that this light and muscular, naked sportbike is a serious contender.  It is hard not to stare at the stacked Mono-focus LED headlights housed in a minimalistic cowling that resides between a pair of MotoGP-inspired winglets protruding from the angular radiator shrouds.

The GSX-R-based engine is exposed as a clear message to others that this motorcycle makes more peak power with a broad torque curve that delivers street-dominating power. Riders can keep that power under control with the electronic Ride-by-Wire throttle bodies and the latest version of the Suzuki Clutch Assist System (SCAS) that smooths shifting and engine braking.

There is more GSX-R DNA in the chassis with its aluminum, twin-spar frame design and superbike-braced swingarm. The suspension features a fully adjustable, inverted KYB fork and easy-to-adjust rear shock. Stopping performance is supplied by dual, ABS-equipped**, radial-mounted, four-piston Brembo front brake calipers and 310mm floating rotors. A wide cast-aluminum handlebar provides a comfortable reach and the proper leverage to hustle the GSX-S1000 through the corners and maneuver in tight city streets and traffic.

The 2024 GSX-S1000 continues to have the Suzuki Intelligent Ride System (S.I.R.S.) in its corner. Make this bike your own using the three-mode Suzuki Drive Mode Selector and the updated, five-mode (and OFF) Advanced Traction Control* System. Give your clutch hand a rest with the Bi-directional Quick Shift system. Suzuki’s popular Easy Start and Low RPM Assist systems get the fun started without any hassle.

Two available body colors, including Suzuki’s popular Glass Sparkle Black or the new Metallic Matte Sword Silver with red accents combine with modern logos to help position the 2024 GSX-S1000 as the sport’s dominant naked sportbike not only in performance but in styling as well.

THE PURE SPORT ROADSTER

From the DNA of a supersport legend comes the pure sport roadster. The GSX-S1000 is a motorcycle built for real-world excitement. Derived from the legendary, championship-winning 2005-2008 generation GSX-R1000 the new GSX-S lineup carries the spirit of the Suzuki GSX-R to the street, with shared technology and components packaged into a chassis designed specifically for street riding comfort. With the legendary heritage of the GSX-R family, the ALL NEW GSX-S1000 was born to deliver heart pounding performance on every road you ride. The GSX-S1000 is powered by a 999cc inline four-cylinder powerplant that’s based on the long-stroke GSX-R1000 engine, which makes for ideal street-riding power and torque curve. Focused on making big power through the low and mid-range, this engine uses cams which are optimized for street-dominating power.
Ground beating power is paired with Suzuki’s Advanced Traction Control System*, Brembo brakes, and standard ABS** the 2024 GSX-S1000 is a street bike packed with serious all-around performance. Wild, aggressive styling completes the street fighter package to deliver a naked roadster ready to dominate the streets.

OWN THE STREETS
The New GSX-S1000 combines aggressive looks, relentless torque, exhilarating handling and enhanced electronics for an adrenaline fuelled ride on every street. Sharper. Stronger. Smarter. The complete Street machine.



*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Traction control cannot prevent the front wheel from losing grip.
**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.









2024 Suzuki GSX-S1000 Totalmotorcycle.com Key Features

152 POWER (PS)
106 TORQUE NM
999 ENGINE (CC)
214 WEIGHT KG



KEY FEATURES

Led by a stacked mono-focus LED headlight assembly and bold, angular styling that includes MotoGP inspired winglets, the GSX-S1000’s aggressive naked sportbike stance speaks of power and performance potential.

The 999cc, GSX-R-based engine produces high peak power with strong torque in the low- to mid-range that is smoothly controlled by Ride-by-Wire electronic throttle bodies for a stimulating sportbike experience.

Upright streetfighter ergonomics, a twin-spar aluminum frame and fully adjustable KYB suspension deliver controlled handling while ABS-equipped** Brembo Monobloc brake calipers with dual, floating brake rotors provide controlled stopping power.

The Suzuki Clutch Assist System (SCAS) smooths shifting and engine braking, while shifting has never been easier with the Bi-directional Quick Shift system.

The GSX-S1000 uses the Suzuki Intelligent Ride System (S.I.R.S.) with a three-mode Suzuki Drive Mode Selector and the five-mode Advanced Traction Control* System plus the popular Easy Start and Low RPM Assist systems.

Select from Suzuki’s popular Glass Sparkle Black paint scheme or the new Metallic Matte Sword Silver with red accents – each featuring unique logos that help identify this well-crafted naked sportbike.



OWN THE STREETS
Free to roam in its natural habitat, the GSX-S1000 gives street performance a sharper edge. Smooth, controlled handling. Dynamic acceleration.

POWERFUL ENGINE
The strong, four-stroke, liquid-cooled, DOHC, 999cc, inline-four engine is designed to provide smooth throttle response and controlled acceleration. Ventilation holes between the cylinders reduce pumping loss within the crankcase so the engine can deliver more power and torque. Long-stroke GSX-R engine design has broad low- to mid-range power and torque that is ideal for street riding.

PISTONS
Aluminum pistons, engineered with use of Finite Element Method (FEM) analysis, are cast with optimal rigidity and weight

IGNITION
Long-tip, 10-hole fuel injectors on each 44mm throttle body improve fuel atomization, while the automatic Idle Speed Control (ISC) improves cold starting and stabilizes the engine idle. The digital ignition fires iridium-type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs.

TRACTION CONTROL
Suzuki’s Advanced Traction Control System* lets the rider control the throttle with more confidence in various riding conditions. As a result, the rider can enjoy sport riding with less anxiety. There are four traction control modes (1, 2, 3, and OFF) that the rider can easily adjust at rest or on the fly via a handlebar-mounted control. The difference between the modes is their sensitivity to road conditions.

Mode 1 is the lowest sensitivity level-most suitable for skilled riders or in conditions that have good road surface grip (sport riding on good, smooth roads).
Mode 2 is a moderate sensitivity level-suitable for most riders or in conditions that have varied road surface grip (city riding, regular road conditions).
Mode 3 is the highest sensitivity level-suitable for road conditions where the grip may be limited (wet or cold surfaces).
OFF disengages all traction control features.

TRANSMISSION
The SCAS clutch increases plate pressure under acceleration, yet acts as a slipper clutch to smooth the engine response during engine braking and corner entry. This large-diameter, wet multi-plate clutch uses a precise cable-activated release, providing the rider with superb friction-point feel.

STRONG STOPPING POWER
Dual floating front brake rotors and Brembo Monobloc brake calipers, plus an Anti-lock Brake System (ABS)**, deliver controlled stopping power. Recent refinements, such as new front brake hoses, yield improved stopping performance with better feel at the lever

RIDING POSITION
Matte black aluminum Renthal Fatbar handlebar is standard equipment offering excellent riding ergonomics with great vibration damping. The reasonable sport riding position is created by a carefully crafted relationship between the Renthal Fatbar, footrests, and seat. The low seat height of 815mm (32 inches) contributes to the sporty, yet upright riding position and aids rider confidence at stops.

SUSPENSION
Twin-spar aluminum frame and fully adjustable KYB-supplied suspension delivers controlled handling. Link-type rear suspension, with arched aluminum swing arm and a single shock absorber that features spring preload, is seven-way adjustable with rebound damping force adjustment.



*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.











2024 Suzuki GSX-S1000 Totalmotorcycle.com Features and Benefits

ENGINE FEATURES

The GSX-S1000’s long-stroke GSX-R engine is refined to produce a broad, smooth torque curve through the full rev-range with increased peak horsepower.

  • The GSX-S1000 provides predictable and controllable throttle response with abundant top-end power to provide the rider an exciting, responsive, and rewarding riding experience.



The camshaft profiles have reduced lift and valve overlap to not only to improve emissions, but balance the engine’s performance and drivability, enhancing rider control.

  • The valve springs are carefully calibrated to the camshafts to aid performance and improve durability.

The cam chain tensioner and tension adjuster use special materials to reduce friction and improve durability.

Suzuki’s legendary Twin Swirl Combustion Chamber (TSCC) design is machined into the cylinder head that, with the flat-top pistons, achieves an optimal 12.2:1 compression ratio that helps deliver a broad spread of power throughout the entire rev range.

Aluminum pistons, engineered with use of Finite Element Method (FEM) analysis, are cast with optimal rigidity and weight.

  • Ventilation holes between the cylinders reduce pumping loss within the crankcase so the engine can deliver more power and torque.
  • Suzuki Composite Electrochemical Material (SCEM)–plated cylinders integrated into the upper crankcase reduce friction and improve heat transfer and durability.

The matte, textured engine finish presents a strong image of quality while the casting design of the engine covers (clutch, stator, and drive sprocket) are updated over the prior generation parts with a new shape and finish.

Electronic throttle bodies are used on the GSX-S1000, so engine response is smooth and controlled, especially when the rider is applying the throttle to accelerate out of a corner.

  • These Ride-by-Wire throttle bodies provide precise control for the Suzuki Drive Mode Selector (S-DMS), Traction Control* (TC), and Bi-directional Quick Shift system (QS).
  • Long-tip, 10-hole fuel injectors on each throttle body improve fuel atomization, while the ECM’s automatic idle speed control improves cold starting and stabilizes the engine idle.

The air cleaner has an internal structure that contributes to the GSX-S1000’s increased engine performance while maintaining the exciting intake sound that the GSX-S1000 is renowned for.

  • The air cleaner’s external shape was changed to accommodate the larger capacity fuel tank.

Retaining the under-chassis design, sharp looks, and exciting note of the prior generation’s system, the GSX-S1000’s stainless steel, 4-2-1 exhaust system was fully redesigned and tuned.

  • Behind the header pipes, the mid-chamber contains a second catalytic converter to help ensure emissions compliance, a low center-of-gravity, and good exhaust flow to help the engine deliver a strong low- to mid-range punch with an exciting rush to redline.

The effective Suzuki Exhaust Tuning (SET) valve manages flow from the mid-chamber into the sculpted muffler that has a pleasing appearance that is not common to under-chassis exhausts while creating an exciting, distinctive sound.

  • With the catalytic converters located in the mid-chamber, GSX-S1000 riders can fit an EPA or CARB-compliant silencer from suppliers such as Yoshimura R & D, USA.

The digital ignition fires iridium-type spark plugs that increase spark strength and combustion efficiency, contributing to higher power, more linear throttle response, easier engine start-up, and a more stable idle. These quality components also last longer than conventional spark plugs.

The angular radiator shrouds efficiently guide cooling air to the high-capacity curved radiator.

  • A thermostatically controlled cooling fan helps ensure lower coolant temperatures when riding in slow moving traffic. The design also deflects hot air away from the rider at speed.

Additional heat is removed from the engine via the use of a lightweight and compact liquid-cooled oil cooler (like those used on certain GSX-R models).





TRANSMISSION FEATURES

Like a GSX-R1000, the race-proven, six-speed, close-ratio transmission features vertically staggered shafts to reduce overall engine length.

The precise shift linkage helps the rider easily and quickly select the ideal gear for the riding conditions.

  • A unique shift position sensor sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions. This design creates an exceptionally positive feel at the shift lever on both upshifts and downshifts. This design is also less prone to damage on tip-overs. The transmission’s gearshift cam, shift shaft and clutch release cam were revised to support the function of this bi-directional Quick Shift system.

The latest generation of the Suzuki Clutch Assist System (SCAS) clutch is fitted to the GSX-S1000. More than ever before, the SCAS clutch increases plate pressure under acceleration, yet acts as a slipper clutch to smooth the engine response during engine braking and corner entry.

  • This large-diameter, wet, multi-plate clutch uses a precise cable-activated release, providing the rider with a light pull that also has superb friction-point feel.

The strong, 525 drive chain uses O-rings to preserve internal lubrication, so power is transmitted smoothly and quietly.





CHASSIS FEATURES

Suzuki’s proven, twin-spar aluminum frame helps to ensure nimble handling and great road holding ability. The main spars are straight from the steering head to the swingarm pivot, which is ideal for achieving high rigidity and light weight.

The sturdy aluminum-alloy swingarm comes straight from the GSX-R1000. It is ruggedly braced and helps to ensure great road holding ability, together with superbike looks.

Connected to the swingarm is a link-type rear suspension, with a single shock absorber that features spring preload, and is seven-way adjustable with rebound damping force adjustment.

The 43mm inverted KYB forks have adjustable compression and rebound damping, plus spring preload adjustment with a generous 120 mm (4.7 inches) of front wheel travel.

Unique to GSX-S1000 models, the TRP six-spoke, lightweight, cast aluminum wheels look great and contribute to the bike’s nimble handling and sporty performance.

Dunlop’s Roadsport 2 radial tires (120/70ZR17 at the front and a wide 190/50ZR17 at the rear) are custom-engineered to perform optimally on the GSX-S1000, providing great grip in dry or wet conditions, faster warm-up, and long tread life.

These wheels and tires work in harmony with carefully developed front and rear suspension settings to help realize the great grip, stability and nimble handling demanded for sporty performance, while also contributing to a comfortable ride.

Dual front brakes with fully floating 310mm discs and Brembo Monobloc calipers with four 32mm opposed pistons provide strong and consistent stopping power.

The front brakes are complemented by a 240mm rear disc brake with a Nissin single-piston caliper to help ensure controlled stops.

The front brakes are complemented by a 240mm rear disc brake with a Nissin single-piston caliper to help ensure controlled stops.

The GSX-S1000 features an upright riding position for superior comfort and control. This reasonable sport riding position is the result of a carefully crafted relationship between the handlebar, footrests, and seat.

  • The matte black tapered cast-aluminum handlebar contributes to the excellent riding ergonomics, with great vibration damping and performance-oriented style.
  • This handlebar is 23 mm (0.90 in.) wider than the prior generation model and is rotated slightly upward to raise the grip height in relation to the rider.
  • In addition to increased comfort and a more upright posture, these changes make it easier for the rider to steer the front end with less effort.

The black finish on the shifter, rear brake, and both hand levers matches the performance nature of the motorcycle.

  • The front brake lever features a multi-step adjuster that permits quick adjustment of the lever’s distance from the grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.





BODY & STYLING FEATURES

The GSX-S1000’s fuel tank capacity is a generous 19 L (5.0 US Gal.) to reduce the frequency of gas stops while commuting or on long rides.

  • Prior generation GSX-S1000 fuel tank capacity was 17.0 L (4.5 US gal.).

The front seat was designed for comfortable sport riding that includes a foam shape change to provide great support at the back of the seat while offering excellent freedom of movement for the rider.

  • Compared to the prior generation, the seat is lower, with a height of 810 mm (31.9 inches), and contributes to the sporty, yet upright riding position and aids rider confidence at stops.
  • Positioned on the motorcycle higher so the passenger can see over the rider’s shoulder, the rear seat shape matches the GSX-S1000’s angular styling but retains ample padding and a grab strap.
  • Both seats are covered in a rugged, weather-resistant cover that provides a good balance between grip and smooth movement.

The body work displays a sense of athleticism and muscular strength.

  • The development of the body work was aimed at creating a strong, athletic sense of a well-built and capable street fighter.

The styling is meant to convey an aggressive attitude.

  • The radical design of the stacked LED headlight assembly and its minimalist cowling adds sharp lines that are inspired by the latest stealth aircraft.
  • The fuel tank side cowling blends into the radiator shrouds that have angular winglets, reminiscent of the aerodynamic foils on Suzuki’s World Champion MotoGP race bikes.
  • The bike’s compact nose pairs with the short, compact muffler design and slim design of the tail section to establish a clean, agile look that accentuates the muscular appearance of the engine and fuel tank.
  • The result is a mass-forward image that emphasizes the GSX-S1000’s aggressive stance and eagerness to perform.

Straight, sharp lines emphasize a modern motorcycle of high quality.

  • Straight, sharp lines create a modern design with eye-catching appeal.
  • These accent lines and attention to detail, like the exposed metal finish of the front fork outer tubes and muffler, convey a look of high quality and premium status.

The 2024 GSX-S1000 rolls out with two body color choices:

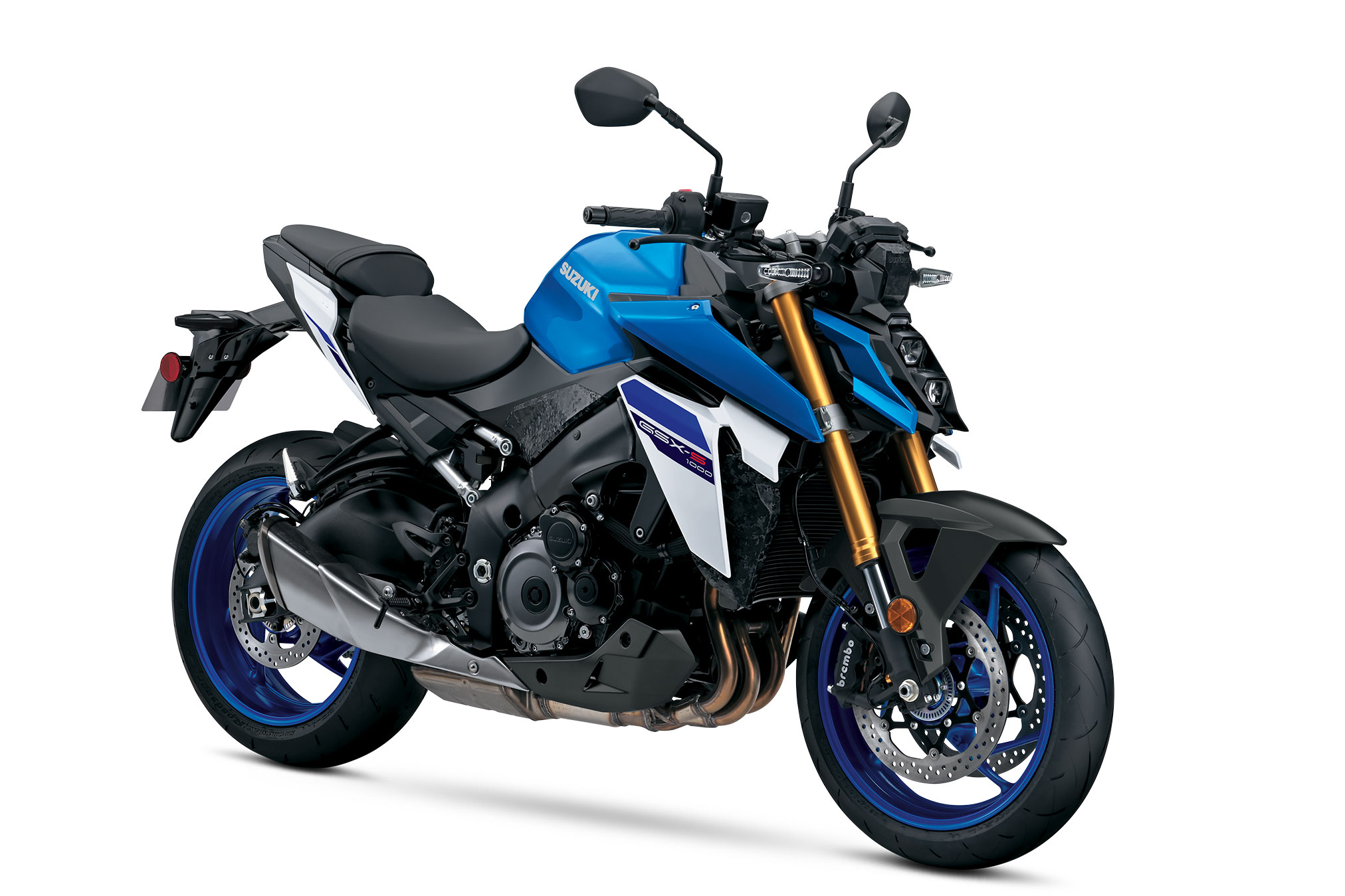

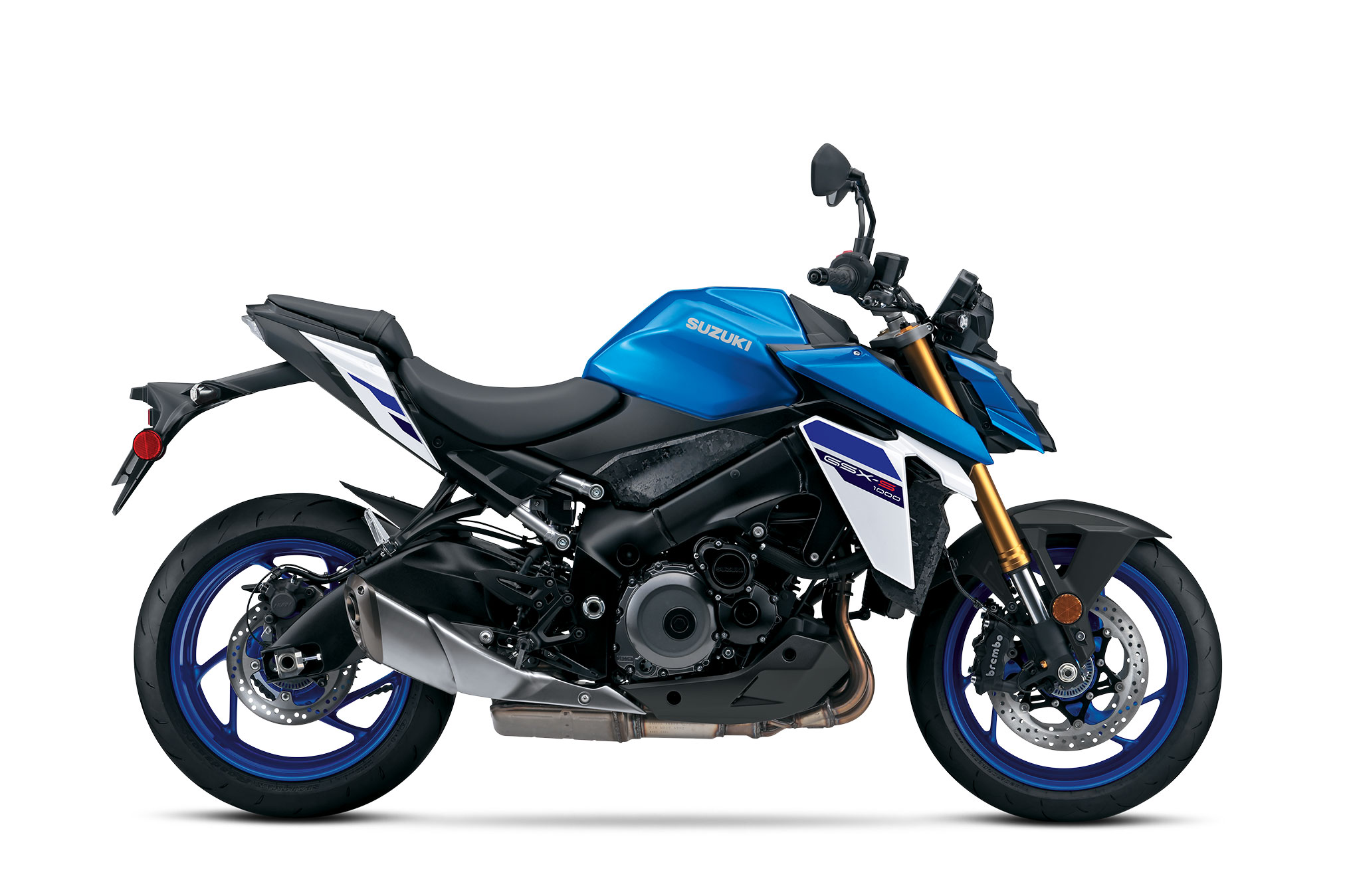

  • Metallic Triton Blue (YSF): the main color and brand symbol for Suzuki’s on-road sports identity.

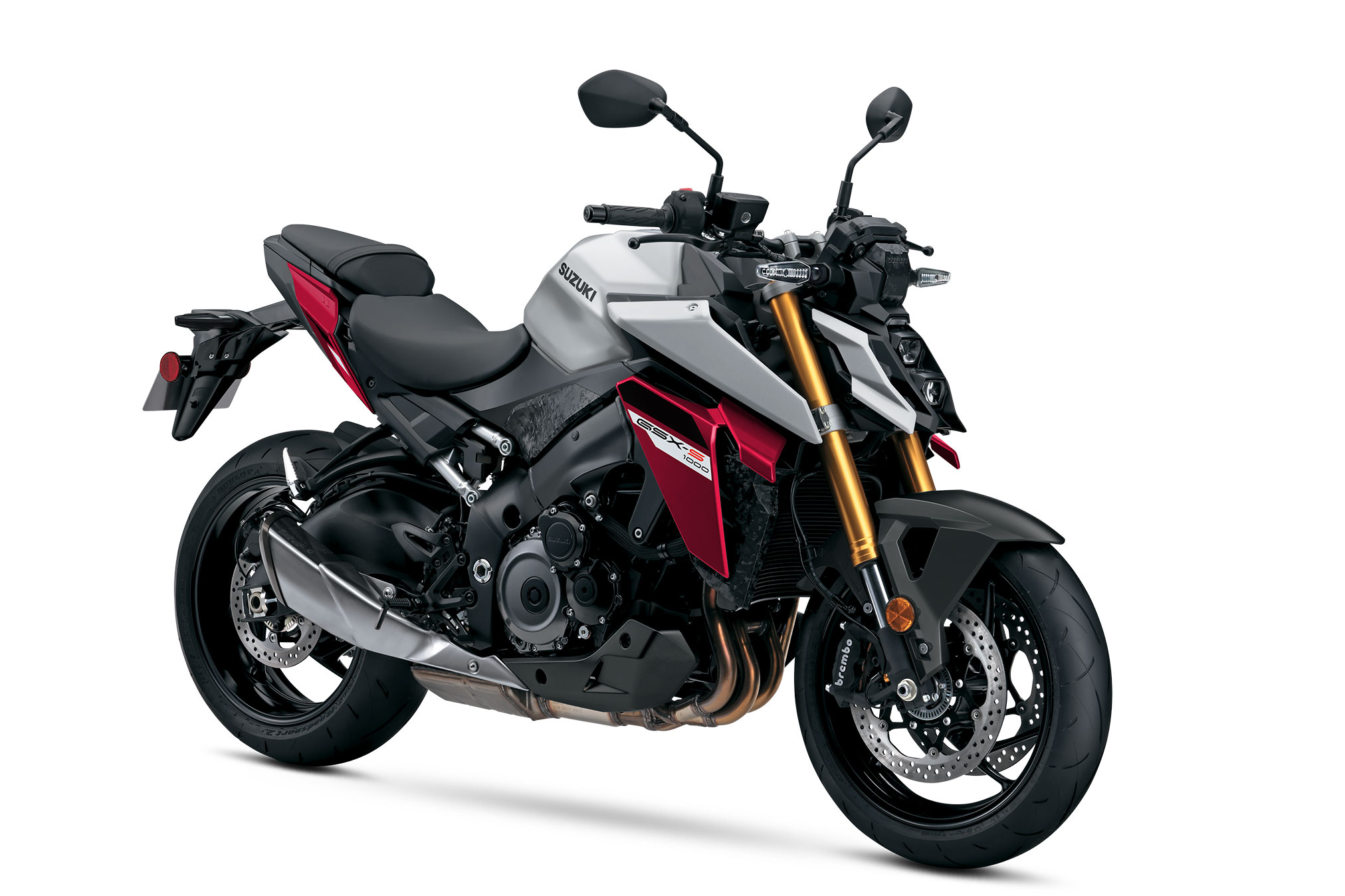

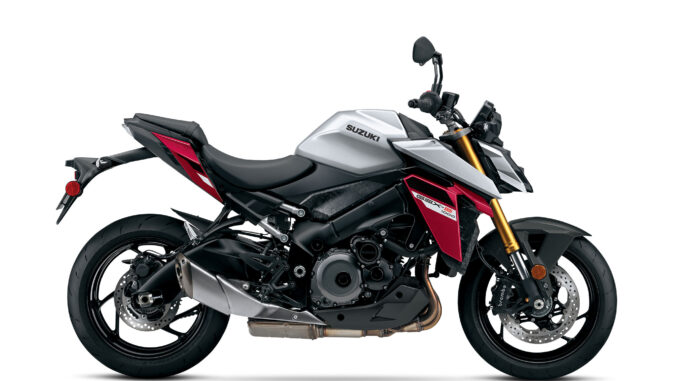

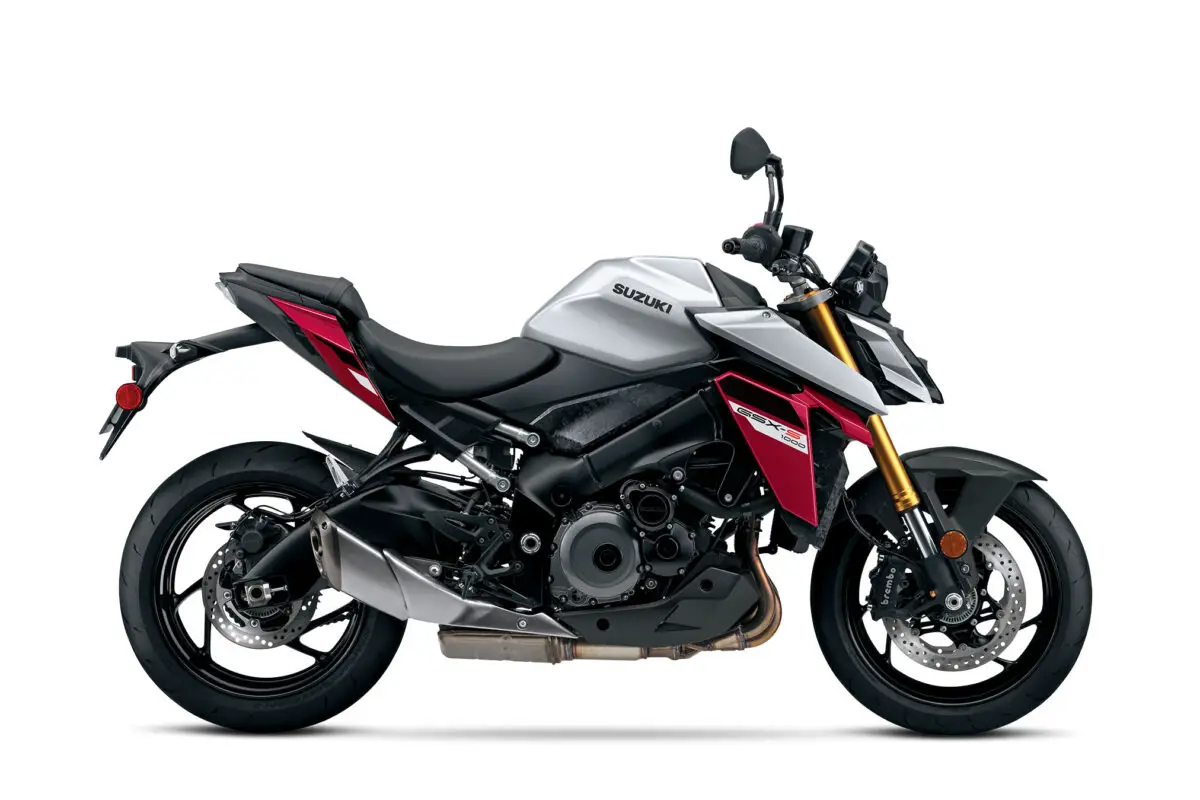

  • Metallic Matte Sword Silver (QKA): is a new colorway for the GSX-S1000 and includes red body panels for a stunning look.

Forward-looking model logos and textured surfaces:

  • The understated SUZUKI logos on the fuel tank and the futuristic font for the model’s name on the radiator shroud present a mature, sophisticated appearance.
  • Some panels use a textured pattern that is strategically applied to the sides of the frame so the rider’s legs can better grip the chassis. This pattern also adds a joint appearance of quality and high-performance while enhancing the GSX-S1000’s look of quality.





ELECTRICAL & LIGHTING FEATURES

The oil-cooled, three-phase charging system provides ample power for the GSX-S1000’s maintenance-free battery and ride-enhancing electronics.

Suzuki’s Easy Start System requires just a simple touch of the starter button to fire up the engine (without pulling the clutch lever if the transmission is in neutral).

The GSX-S1000’s Computer Area Network (CAN) style wire harness functions as an interconnected information network, rather than using a more complex and slower conventional wiring harness.

  • The CAN-wiring system enables the motorcycle’s various sensors and microcontrollers to communicate instantaneously with each other.
  • With fewer wires, CAN-wiring lets the GSX-S1000 be lighter and simpler and provides a way for the advanced components – like the electronic throttle bodies and bi-directional quick shifter – to communicate faster with the ECM.

A 32-bit ECM provides state-of-the-art engine management that contributes to the operation and optimization of the GSX-S1000’s electrical and S.I.R.S. components.

Using a high-visibility LCD display, the GSX-S1000’s brightness-adjustable instrument cluster, packs a wide range of useful information into a compact module positioned at the center of the large-diameter handlebars. The instrument’s exclusive graphics and adjustable backlighting create a high-quality appearance that will instill pride of ownership, and the fresh information format readouts are easy for the rider to recognize.

  • For 2023, a change from blue to bright white background lighting enhances the visibility of the Instrument Panel to the rider.
  • The LCD panel plays a brief custom animation when the ignition key is turned on, celebrating the GSX-S legacy, and providing anticipation of the ride to come.

The LCD readouts include:

  • Speedometer and tachometer, odometer with twin tripmeters, gear position, fuel gauge, clock, battery voltage and service reminder.
  • Specialized information includes real-time fuel consumption, average fuel consumption, riding range, and lap timer functions.
  • I.R.S. related information includes the Suzuki Drive Mode Selector (S-DMS) setting, Quick Shift (ON/OFF) and Traction Control* mode.

The main LCD panel is flanked by LED indicators for the turn signals, high beam, malfunction, traction control*, ABS**, plus coolant temperature and oil pressure alerts.

The GSX-S1000 is equipped with Suzuki innovative multifunction handlebar switches that are laid out to maximize operating ease and efficiency.

  • The rider can use the LCD panel information and the mode/set switch on the left handlebar to change Suzuki Intelligent Ride System (S.I.R.S.) settings.
  • The right handlebar switch has a poly-function rocker switch that is the engine stop- and start-button but also activates the Easy Start System.

A perfect complement to the GSX-S1000’s razor-sharp styling, the compact vertically stacked LED headlight assembly is trim, tight with the front fork.

Supplied by Koito®, the independent, polygon-shaped, high- and low-beam headlights feature Mono-focus LED technology that shines light directly through a convex lens to brightly illuminate the road.

The dual hexagonal shaped LED headlights are topped by a single LED position light that creates a clean face that is unlike any other motorcycle, making the GSX-S1000 clearly visible to pedestrians and other traffic. It is a light, nimble look that emphasizes the GSX-S1000’s aggressive stance and eagerness to perform.

Front LED turn signals in thin, arrow-shaped housings, extend outward from the steering mount and emphasize the extraordinary appearance of the vertically stacked headlights.

The thin, arrow-like LED rear turn signals combine with a flat rear LED combination light to complement the stylish lines of the svelte tail section and match the bike’s unique advanced styling.

With lower electrical draw than conventional lighting, the LED headlights, position light, turn signals and taillight complement the GSX-S1000’s sharp, angular styling while improving both visibility and durability.





SUZUKI INTELLIGENT RIDE SYSTEM (S.I.R.S.) FEATURES

The Suzuki Drive Mode Selector (SDMS) provides the rider a choice of three different engine power output modes. All three modes deliver maximum engine output but provide different throttle response and torque characteristics when accelerating.

  • These three modes (A, B, and C) provide the rider a quick and easy way to alter the GSX-S1000’s power delivery characteristic to match his or her riding style, or adjust to changing weather, road and other conditions.
    • Mode A (Active)is for active, sporty use that delivers the sharpest throttle response as the rider opens the throttle. Mode A’s torque characteristics are finely tuned to deliver exciting acceleration when hitting the throttle hard, such as when participating in track day events or enjoying a sporty run on clean, winding roads in good weather.
    • Mode B (Basic)is for general, all-around riding, as it features softer throttle response and a more linear power delivery curve as the rider opens the throttle. Settings are tuned to fit a wide range of riding styles and conditions, and to help make the bike controllable in everyday riding situations.
    • Mode C (Comfort)offers a softer throttle response and more gentle torque characteristics, with power increasing in a directly linear fashion as the throttle is opened. This mode is useful when riding on wet or slippery surfaces, or when the rider desires a relaxing, comfortable ride.
  • Using the mode and select switches on the left handlebar, the rider can change SDMS modes while riding. The mode settings are clearly displayed on the LCD instrument panel.

The advanced Ride-by-Wire Electronic Throttle System leverages the capability of the GSX-S1000’s 32-bit ECM and CAN-style wire harness to precisely control engine output relative to throttle action.

  • This precision allows the throttle body action to be tuned to best match each of the SDMS modes. The result is a controllable, linear power delivery that responds faithfully to the rider’s intentions, whether commuting or enjoying a sporty ride on a winding road.

The five-mode Suzuki Traction Control System (STCS) continuously monitors front- and rear- wheel speed, engine RPM, throttle position and gear position to adjust engine output to prevent undesired rear wheel spin, helping maintain traction and power delivery to the road.

  • Compared to the three-mode system on the prior generation GSX-S1000, this updated, five-mode version of STCS features a wider selection of sensitivity to better accommodate a variety of riding conditions, styles, and rider experience. The system can also be turned off when preferred. The higher number the mode, the quicker STCS intervenes to limit rear wheel spin.
  • The STCS modes are displayed on the LCD instrument panel and can be changed on-the-fly, using the left handlebar switch. When the system is trimming power to prevent wheel spin, the TC icon in the center of the instrument panel will illuminate and flash.

The Bi-directional Quick Shift System (QS) allows the rider to shift up or down quickly and easily, without operating the clutch or throttle.

  • To ensure smooth upshifts QS automatically interrupts power delivery just long enough to produce smooth, almost uninterrupted acceleration. When decelerating, the system automatically opens the throttle valves just enough to increase rpm and match engine speed to the next-lower gear. The result of this hands-free, automatic blipping function combines seamlessly with engine braking to create a highly satisfying experience when downshifting.
    • The bi-directional QS works seamlessly in concert with SDMS to bring riders even greater riding enjoyment.
    • Performance of the GSX-S1000’s SACS-style assist & slipper clutch ensures even smoother up- and down-shifts when using QS or manual clutch operation.
    • A unique shift position sensor sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions.

The Suzuki Easy Start System lets the rider start the motorcycle with a simple press of the starter button. There is no need to pull in the clutch lever when the transmission is in neutral, and the starter motor automatically disengages, the instant the engine fires up.

The Low RPM Assist System seamlessly increases engine speed to smooth the power delivery when launching from a standing start or riding at low speeds, which helps ensure better control and operation in stop-and-go traffic. The system also minimizes the possibility of the rider stalling the motorcycle during take-off.





ADDITIONAL FEATURES

A variety of Genuine Suzuki Accessories are available, such as a solo seat cowl, meter visor (acts as a sport screen), billet clutch and brake levers, fuel tank and engine cover protectors, clip-on tank bags, plus a selection of GSX-S logo apparel.

12-month unlimited mileage limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.











2024 Suzuki GSX-S1000 – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,699 USD
Canada MSRP Price: $14,949 CDN
Europe/UK MSRP Price: £11,699 GBP (On The Road inc 20% Vat)

Engine999cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC

Bore x Stroke4 mm x 59.0 mm (2.890 in. x 2.323 in.)

Compression Ratio2:1

Fuel SystemFuel injection with Ride-by-Wire electronic throttle bodies

StarterElectric

LubricationWet sump



ClutchWet, multi-plate SCAS type

Transmission6-speed constant mesh

Final DriveChain, RK525GSH, 525 x 116 links



Suspension FrontInverted telescopic, coil spring, oil damped

Suspension RearLink type, single shock, coil spring, oil damped

Brakes FrontBrembo, 4-piston, twin disc, ABS-equipped

Brakes RearNissin, 1-piston, single disc, ABS-equipped

Tires Front120/70ZR17M/C (58W), tubeless

Tires Rear190/50ZR17M/C (73W), tubeless

Fuel Tank Capacity0 L (5.0 US gal.)

ColorMetallic Matte Sword Silver or Glass Sparkle Black



IgnitionElectronic ignition (transistorized)

Spark PlugNGK CR9EIA-9 or DENSO IU27D Iridium-style

HeadlightStacked LED

Tail LightLED



Overall Length2115 mm (83.3 in.)

Overall Width810 mm (31.9 in.)

Overall Height1080 mm (42.5 in.)

Wheelbase1460 mm (57.5 in.)

Ground Clearance140 mm (5.5 in.)

Seat Height810 mm (31.9 in.)

Curb Weight214 kg (472 lb.)



Warranty12-month unlimited mileage limited warranty

ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)









2024 Suzuki GSX-S1000 – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE

Type 4-stroke, liquid-cooled, DOHC, inline-four
Displacement 999cc
Bore x Stroke 73.4 mm x 59.0mm (2.9 in x 2.3 in)
Compression Ratio 12.2 : 1
Fuel System Fuel Injection
Starter Electric
Lubrication Wet-sump
Ignition Electronic ignition (Transistorized)

DRIVE TRAIN

Transmission 6-speed constant mesh
Final Drive O-ring type, sealed drive chain

CHASSIS

Length 2115 mm (83.3 in)
Width 795 mm (31.3 in)
Height 1,080 mm (42.5 in)
Wheelbase 1460 mm (57.4 in)
Seat Height 810 mm (31.9 in)
Curb Mass 209 kg (461 lb)
Suspension Front Inverted telescopic, coil spring, oil damped
Suspension Rear Link type, coil spring, oil damped
Brakes Front Brembo, disc brake, twin rotor
Brakes Rear Disc brake, single rotor
Tires Front 120/70ZR17M/C (58W) tubeless
Tires Rear 190/50ZR17M/C (73W) tubeless
Fuel Tank 17.0 L

WARRANTY

No Warranty











2024 Suzuki GSX-S1000 – Totalmotorcycle.com European Specifications/Technical Details

DIMENSIONS AND WEIGHTS

Overall length 2115mm (83.27in) Overall width 810mm (42.50in)
Overall height 1080mm (42.52in) Wheelbase 1460mm (57.48in)
Ground clearance 140mm (5.5in) Seat height 810 mm (31.9in)
Kerb mass 214kg (472lbs) Fuel capacity 19.0L (4.2UK gallons)



ENGINE SPECIFICATIONS

Engine capacity 999cc Engine 4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore 73.4 x 59.0 (2.89in x 2.32in) Compression ratio 12.2 : 1
Lubrication Wet Sump Ignition Electronic ignition (transistorised)
Fuel system Fuel Injection Transmission 6-speed constant mesh
Drive chain Starter Electric
MPG* 46.31 CO2 143g/km
Power 112kW @ 11,000rpm (152PS) Torque 106.0Nm @ 9,250rpm (78.18lb. ft)



CHASSIS SPECIFICATION

Front suspension Inverted telescopic, coil spring, oil damped Rear suspension Link type, coil spring, oil damped
Front brakes Disc, twin Rear brakes Disc
Front tyres 120/70ZR17M/C (58W) Rear tyres 190/50ZR17M/C (73W)









Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 10379 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
