2024 Suzuki V-Strom 650XT Adventure Guide

Review – Key Features – Features & Benefits – Specification

2024 Suzuki V-Strom 650XT Adventure: NO OTHER BIKE IN ITS CLASS.

Introducing the 2024 Suzuki V-Strom 650XT Adventure…

Renowned for versatility, reliability, and value, Suzuki’s V-Strom 650 models attract riders who use their motorcycles for touring, commuting, or a fun ride when the spirit moves them. These are touchstone motorcycles balanced with a natural riding position, comfortable seat, and a flexible engine character that produces stress-free riding during brief daily use or a high-mile adventure.

Point the iconic DR-BIG beak of the V-Strom at the horizon as the 37L quick-release aluminum panniers, rugged accessory bar, handlebar cross-brace, and mirror extensions are standard equipment. Finished with Pearl Vigor Blue and Pearl Brilliant White paint, the 2024 V-Strom 650XT Adventure rolls out on tubeless-spoke wheels with blue-anodized rims that are sized right for the mission.

Loaded and ready for any road, the V-Strom 650XT Adventure continues the V-Strom family tradition of being a fun and logical motorcycle to buy and ride. The engine delivers stellar performance and great fuel economy while achieving worldwide emission standards. Suzuki’s engineering accomplishments also include low weight and a trim chassis, creating a V-Strom 650XT Adventure that is versatile, controllable, and financially accessible.

The V-Strom 650XT Adventure is a motorcycle that is greater than the sum of its parts, offering versatility, reliability, and function like no other bike in its class. Check out a 2024 V-Strom 650XT Adventure for your next ride and you will see it checks off every box on your exploration list. This V-Strom is so ready for adventure, all that is needed is you and a map.

MORE ADVENTURE, SIMPLY MORE V-STROM.

The V-STROM 650XT Adventure builds on the comfort, flexibility and performance of the DL650XT model, with the added Adventure Kit.

Renowned for its versatility, reliability and value, the V-STROM 650 has attracted many riders who use it for touring, commuting, or a fun ride when the spirit moves them. It is a touchstone motorcycle balanced with a natural riding position, comfortable seat and a flexible engine character that produces stress-free riding during brief daily use or a high-mile adventure.

The V-STROM 650XT features spoke style wheels with coordinated rim colour, knuckle guards, and engine under cowling, and a side case set.

The V-STROM has increased engine performance and great fuel economy while achieving worldwide emission standards. A number of other updates, including weight savings, a thinner chassis, and some adventure-ready extras has resulted in a V-STROM that is more versatile, more controllable, and more accessible to elevate its total performance so it’s simply “More V-STROM”. And that’s what a rider wants; more of a good ride.

2024 Suzuki V-Strom 650XT Adventure Totalmotorcycle.com Key Features

Dressed for real adventure with Pearl Vigor Blue / Pearl Brilliant White paint with blue graphics, this V-Strom has spoke-style wheels with blue-anodized aluminum rims that carry tubeless radial dual-sport tires, hand guards, and a protective lower engine cowl.

Liquid-cooled, 645cc, 90-degree, V-twin engine delivers strong torque in the low- to mid-rpm range, yet provides a strong rush of high-rpm power that’s ideal for any riding mission.

Suzuki’s Advanced Traction Control System*, Easy Start System, Low RPM Assist feature, plus ABS** technology make a great motorcycle really incredible.

ADV fairing, with vertically stacked headlights and adjustable windshield, houses a multifunction, illumination-adjustable instrument panel that delivers a wealth of information.

The strong and light chassis carries Suzuki V-Strom aluminum panniers that are easy to slide on and off, which keeps the motorcycle trim for short jaunts.

Unique to the Adventure version, 37L quick-release black aluminum panniers, rugged accessory bar, handlebar cross-brace, and mirror extensions are standard equipment.

ADVENTURE KIT
Adventure Kit includes Aluminum side cases, mounting brackets, mirror extensions, and handlebar brace.

EQUIPPED FOR ADVENTURE
Unique to the V-STROM 650XT Adventure are the knuckle covers to support harsh condition riding, and the engine under cowling to give the rider that extra adventure feel, both as standard equipment.

ADVANCED TRACTION CONTROL SYSTEM
Inheriting the favoured traction control system from the V-Strom 1000, the V-Strom 650XT Adventure also is equipped with this advanced technology. This system continuously monitors the front and rear wheel speeds, throttle position, crank position, and gear position with various sensors, and controls the engine output by managing the ignition timing and air delivery. The traction control system can be switched to either of two modes, or off. The modes differ in terms of sensitivity. Mode one allows modest rear wheel spin for more advanced, exhilarating riding, while mode two activates traction control at the slightest loss of rear-wheel grip to give you greater confidence on slippery surfaces or in the rain. The choice of modes can be quickly and easily made by selecting the traction control mode from the left switch cluster and confirming it with a glance at the instruments. In difficult riding situations such as cold or ragged road surfaces, fully loaded with luggage, or with a pillion rider, this advanced system already established on the V-Strom 1000 shall back up the ride.

Note: Traction control system is not a substitute for rider’s throttle control under the various conditions, and traction control cannot prevent loss of traction due to excessive speed when entering turns, or while braking, and it does not control front-wheel traction.

RICH INFORMATION TO SUPPORT MULTIPLE TASKS
By sharing the easy to see and easy-to-operate/understand instrument cluster, along with the cowling image with its bigger brother, the V-STROM 650XT Adventure has rich information with a quality design. The instrument cluster incorporates a large analogue tachometer and digital readouts for the gear position and speedometer. The digital section below displays the odometer, twin-trip meter, clock, fuel level, coolant temperature, ambient temperature, battery voltage, range on remaining fuel, average and instantaneous fuel consumptions, and traction-control modes. The remaining fuel range continues to display after the fuel gauge shows empty, offering the rider with accurate and comforting information. Plus, instantly recognizable LEDs provide freeze*, high-beam, neutral, malfunction indicator lamp (MIL), ABS, traction-control mode, and water-temperature indicators. All of this information is accessible from the left handlebar switch, where it is also possible to reset the trip meter.

*The freeze indicator starts blinking when the ambient temperature falls below 3°C. It continues to blink for 30 seconds then remains lit until the ambient temperature rises above 5°C.

ABS-EQUIPPED BRAKE SYSTEM
Equipped with 310mm diameter twin discs with twin two-piston callipers on the front and a 260mm diameter single disk with a single-piston calliper on the rear, the V-STROM 650XT Adventure provides controllable and dependable stopping performance. Also, the compact and light-weight ABS, to avoid wheel lock caused by excess hard braking, has been upgraded to the next generation with advanced settings for a further natural feel and secure activation.

Note: ABS is not designed to shorten the braking distance. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.

LOW RPM ASSIST
By adopting the Low RPM assist system, the concern of an unexpected engine stall has been relieved. This system will automatically raise the idle speed when engaging the clutch or when riding at low rpms, assisting frequent clutch work in congested town rides and preventing sudden and unexpected engine stall when running in the low rpm range.

SUZUKI EASY START SYSTEM
Conventional starter switches needed to be pressed by the rider until the engine starts, but the V-STROM 650XT Adventure has adopted the Suzuki Easy Start System enabling the engine to start with one push of the button. A computerized ECM checks the status and disengages the starter motor immediately after start, making the engine start easier for the rider.

SOPHISTICATED V-TWIN PERFORMANCE
The 645cm 3 DOHC V-twin is a masterpiece of Suzuki engineering which has an evolving history. For the V-STROM 650XT Adventure, this unit has been tuned for ample low to mid-range torque for practical use while maintaining an exhilarating top-end. The unit meeting emission standards has undergone a rebuild, installing technology such as the resin-coated pistons, and revising over 60 components of the engine to achieve a higher output in a broad area of the rev-range while keeping the unique V-twin character with low fuel consumption. With low fuel consumption combined with the large 20L fuel tank, the riding rage between fill-ups are at the top in this class, relieving the rider from the stress of frequent refueling. The further evolved engine has succeeded in emphasizing the attractions of the V-STROM 650XT Adventure character, making it another masterpiece by Suzuki.

SUZUKI DUAL THROTTLE VALVE (SDTV) FUEL-INJECTION SYSTEM
Featuring the performance-proven Suzuki Dual Throttle Valve (SDTV) injection system, each cylinder has two butterfly valves for enhanced power output and efficiency. One butterfly valve is directly linked to the riders throttle control while the other butterfly valve is controlled by the ECM and operates according to information from the throttle position sensor, engine speed sensor and gear position sensor for optimum intake flow, realizing an efficient and smooth power delivery with ample torque at low revs. Idle speed control is also a feature, supporting a steady idle speed and fewer emission. The injectors have been upgraded to a 10-hole type with a long nozzle for further efficiency.

RESIN COATED PISTONS
One of the upgraded features in the 645cm3 unit are the resin-coated pistons which is a coating technology to decrease friction in the cylinder, resulting in improved fuel economy and corresponding to latest emission control. Special L-shaped piston rings are also installed for enhanced sealing performance and blow-by gas reduction, all resulting in meeting up-to-date regulations while improving the output and the ease of use.

CAMSHAFTS FOR A DISTINCTIVE POWER FEEL
For the unique character of the V-STROM 650XT Adventure, the engine needs to be strong not only at the top end but at the frequently used low to mid-range. To meet these demands, the engine has an original intake camshaft with equally lengthened intake ports, while for the exhaust camshaft, has adopted the item from the SV650 road model which are higher lifting compared to the previous V-Strom 650. These features and a total set-up has resulted in a boost in torque and power in the mid to high rev-range, providing the rider with an exciting ride when with a sporty mind, and a stress-free character for daily rides or on a long haul, simply enhancing the attractions of this 650.

LIGHTER AND LOWER EXHAUST SYSTEM
The down-type exhaust system is lighter and closer to the center of gravity, contributing to nimble handling while being able to accommodate the slim and smart optional luggage system.

The catalyzers have been positioned in a tandem configuration achieving the required level of emission control for Euro4 emission standards, while successfully gaining exhaust efficiency to boost the output.

THE V-STROM FAMILY
With the design concept “Design is in our DNA”, the V-STROM 650XT Adventure has a solid and smart look, in kin to its 1037cm3 brother bringing the V-STROM family together. Suzuki’s original “Beak” style has been further emphasized by making it a straight line from the tip to the top of the tank, expressing the DNA from the DR-BIG and the desert racer DR-Z. The heritage and history of Suzuki’s adventure models are further expressed, giving the owners pride of ownership.

HEADLIGHTS AND TAIL LIGHT
Contributing in giving the V-STROM 650XT Adventure image is the headlights and tail light, a common feature with the V-Strom 1000. The high and low beam of the light weight headlight is in a compact vertical configuration and realize brightness equivalent to the previous twin headlights, while when on high beam, both low and high bulbs illuminate providing a broader lit up area. The featured LED tail light, also in kin with its bigger brother, has a high visibility and contributes to weight savings.

SLIMMER TANK, WITH A 20L CAPACITY
The slimmer and smarter tank holds a capacity of 20L, realizing a long riding range combined with the excellent fuel consumption. Also by eliminating the plastic covers on both sides of the tank from the previous model, the tank has become slimmer and is able to accommodate magnetically attachable tank bags. The frame covers which wore positioned directly underneath the seat on the previous model have been slimmed down as well, allowing the rider to reach straight down to the ground, resulting in better access to the ground and more confidence.

WHEELS AND TIRES
Ten spoked cast aluminum wheels/colour coordinated spoke style wheels are an eye-catching feature for the V-Strom 650. Not only do they give a sporty image in kin to its V-Strom 1000 brother in the Suzuki Adventure model family, tracking back to the DR-BIG and DR-Z, but improves the road holding ability and reduces weight. The V-Strom 650A/XA/XAA features tubeless tire applicable wire spoked wheels which absorb shock from the road better due to the flexible character of spokes, providing the rider with further comfort and exhilarated riding pleasure. Wheel sizes are 19-inch on the front and 17-inch on the rear, realizing the perfect balance of stable and nimble handling, and installed tires are the stability and grip level heightened Bridgestone BATTLAX ADVENTURE A40, specially developed for the V-Strom 650.

SUPPLE SUSPENSION
Flexible and comfortable conventional telescopic forks have a forgiving character, allowing stress-free long-distance rides to an exciting run on twisty roads. The rear suspension is equipped with rebound adjustment and a remote preload adjuster which can be operated by hand allowing the rider to quickly setup the suspension to match the riding style or in a case of two-up riding or with a full load of luggage without any tools needed.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.

2024 Suzuki V-Strom 650XT Adventure Totalmotorcycle.com Features and Benefits

ENGINE FEATURES

Using SV650 engineering, the V-Strom’s DOHC, liquid-cooled engine has been tuned to deliver clean, strong power at any rpm.

Low-friction resin-coated pistons and SCEM-coated cylinders help deliver high mileage for class-leading touring range.

Unique engine cover hardware and select fasteners are designed to permit the use of Torx or conventional hex-style tools.

The sleek 2-into-1 exhaust system routes below the chassis to reduce weight, centralize mass, and provide space for a narrow tail section (and optional luggage).

The exhaust system has twin catalyzers and employs O2 feedback to the EFI system to produce optimum combustion efficiency and reduce emissions to an incredibly low level.

The fuel-injection system employs Suzuki’s innovative SDTV (Suzuki Dual Throttle Valve) on 39mm throttle bodies. The secondary throttle valves are controlled by a servo motor for smooth power delivery.

Ten-hole, long-nose-type fuel injectors on each throttle body improve fuel atomization for better combustion efficiency while reducing fuel consumption.

Suzuki’s patented Throttle-body Integrated Idle Speed Control (TI-ISC) stabilizes the engine idle speed and helps lower emissions. The system is compact and lightweight.

The TI-ISC on the V-Strom 650XT Adventure has Suzuki’s Low RPM Assist feature that seamlessly adjusts engine speed during takeoff and low-speed riding to smooth the power delivery. It also helps reduce the possibility of the rider stalling the motorcycle.

The Engine Control Module (ECM) provides state-of-the-art engine management and has enhanced settings to suit the updated intake and exhaust systems, resulting in better fuel economy and linear throttle response.

The engine has dual spark technology heads with two high-energy, slim electrode spark plugs per cylinder, which aid in combustion efficiency and power production.

The V-Strom 650XT Adventure is equipped with Suzuki’s Advanced Traction Control System*, which lets the rider control the throttle with more confidence in various riding conditions. It continuously monitors front and rear wheel speeds, throttle opening, engine speed, and the selected transmission gear to adjust engine output if wheel spin is detected.

There are three traction control modes (1, 2, and OFF), and the difference between the modes is their sensitivity to road conditions. Mode 1 is lowest sensitivity level, most suitable for skilled riders or in conditions that have good road surface grip (riding on good, smooth roads). Mode 2 is highest sensitivity level, suitable for road conditions where the grip may be limited (wet or cold surfaces). OFF disengages all traction control features.

This V-Strom also features the Suzuki Easy Start System, which lets the rider start the motorcycle with a momentary press of the start button without pulling in the clutch lever when the transmission is in neutral.

The compact radiator is flanked by wind-directing plates that enhance cooling efficiency and direct heat out of the side vents away from the rider’s legs.

The six-speed transmission suits sporty rides with tight first through fifth gear ratios and a tall top gear (sixth gear) for highway cruising.

Low-maintenance, long-life sealed O-ring drive chain is standard.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

CHASSIS FEATURES

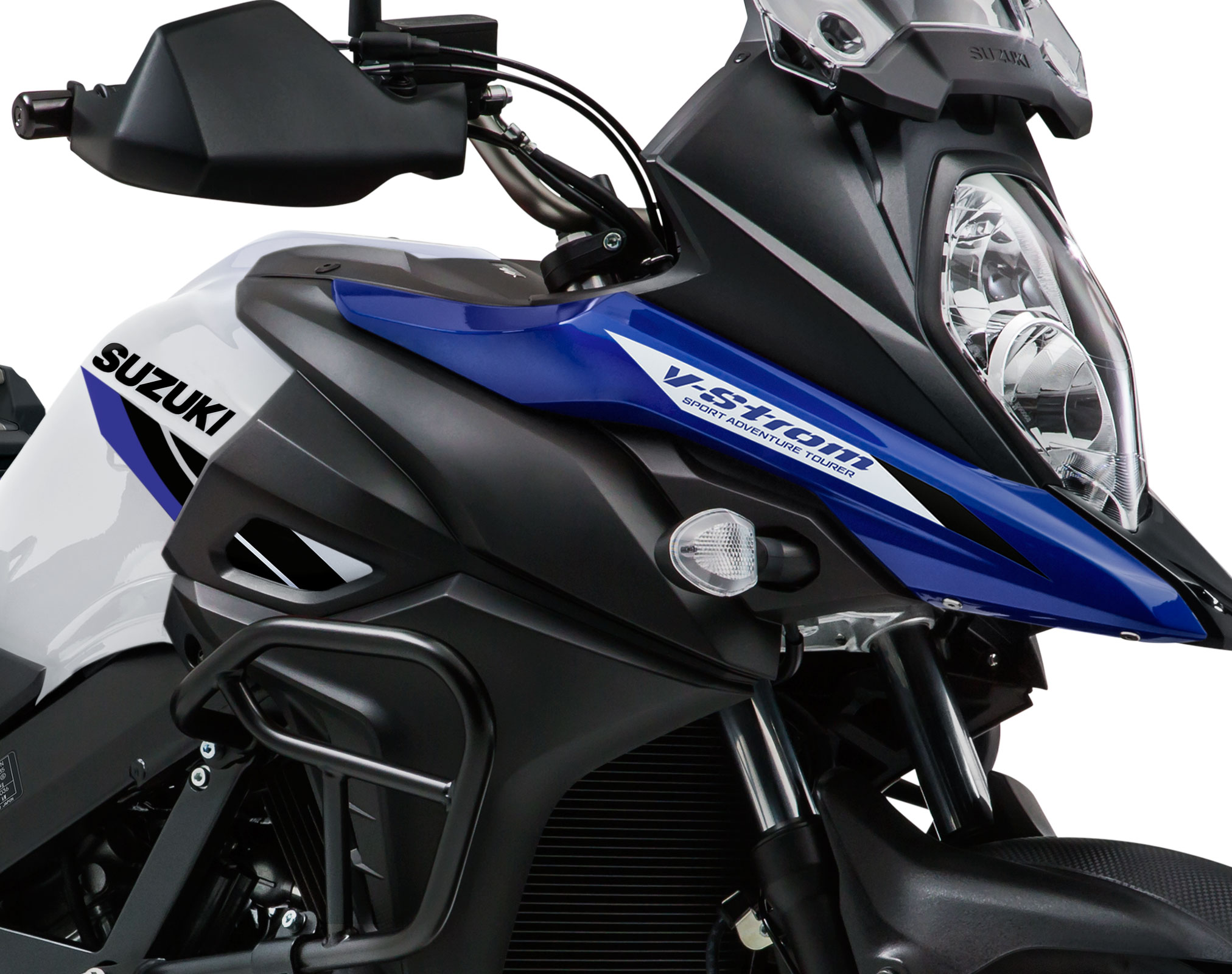

The beak-style fairing, with vertically stacked headlights and new mounting structure, helps the V-Strom 650XT Adventure cut through the wind, protecting the rider in style.

The three-way height-adjustable windscreen was wind-tunnel tested to reduce wind sounds, buffeting, and rider fatigue.

The fuel tank has a generous 5.3-gallon capacity but is shaped to be thin at the rear to flow into the slimmer seat, which aids the rider in touching the ground at stops.

The internal construction and cap of the fuel tank are updated so the gasoline capacity is the same for both the 49-state and California versions.

The spacious two-up seat combines smooth and slip-resistant surfaces, plus an embossed V-Strom logo.

Lightweight, rigid twin-spar aluminum frame and swingarm contribute to smooth handling performance and excellent stability.

Spring-preload-adjustable 43mm front forks and link-type rear suspension are combined with a rebound damping adjustment and hand-operated spring preload adjuster.

Spoke-style wheels, with black anodized aluminum rims laced with stainless steel spokes, absorb shock from irregular road surfaces well and accept tubeless tires.

Adventure-spec Bridgestone Battlax 19-inch front and 17-inch rear tubeless radial tires are mounted to the spoke-style wheels for all-around good performance.

Front dual 310mm disc brakes and a rear 260mm disc brake deliver controlled stopping power.

Compact Anti-lock Brake System (ABS)** monitors wheel speed to match braking to available traction.

The lightweight resin luggage rack incorporates easy-to-grasp grab bars and aligns with the passenger section of the seat, offering a larger surface for carrying cargo or luggage.

The V-Strom 650XT Adventure is ready to carry the gear you need as it is equipped with Suzuki’s ADV-style, 37-liter aluminum panniers that attach to powder-coated, stainless steel carriers. Fashioned out of 1.5mm thick aluminum plate with super-strong, no-pierce rivet technology, these panniers offer a number of features, including hinged lids that stay in place when open, internal and external tie-down points, plus keyed stainless steel latches and quick-release hardware. Built to be waterproof with rubber-sealing lids, these panniers have powder-coated interiors that avoid aluminum stains on cargo.

Other Adventure features include a handlebar cross-brace that’s an excellent foundation to mount accessories like a GPS, plus mirror extensions so you see less of you and more of what’s behind you.

The V-Strom 650XT Adventure also comes with a rugged accessory bar, hand guards, and a protective lower engine cowl.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.

ELECTRICAL FEATURES

The multifunction instrument panel features brightness-adjustable LED backlighting for its large diameter analog tachometer, digital speedometer, and LCD data display.

LCD readouts include odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clock. Switching between readings can be done with the left handlebar switch.

LED indicators include an ABS alert and a freeze warning icon, which together with the air temperature display warn of possible icy road conditions.

Strong three-phase charging system supplies the 10Ah maintenance-free battery for easy starting and additional accessory power. A dedicated accessory fuse is located under the seat.

The stacked, 65/55-watt halogen headlamps illuminate the road when your ride stretches into night.

The LED tail and brake light is bright and vibration resistant. The turn signals use bright amber incandescent bulbs with clear lenses.

A handy 12-volt DC accessory outlet is mounted on the inner dash.

ADDITIONAL FEATURES

Genuine Suzuki Accessories for the V-Strom 650XT Adventure includes a matching top case, center-stand, auxiliary lights, low- and high-profile seats, heated grips, high-grip footrests, fuel-cap mount tank bags, and more.

• The 2024 V-Strom 650XT Adventure is supplied with three lock cylinders that match the motorcycle’s ignition key so if you get Suzuki accessory plastic side or top cases you can enjoy one-key operation.
• The Suzuki accessory aluminum panniers fitted to the V-Strom 650XT Adventure have a sturdy lock and latch system that use a different style key that does not match the motorcycle’s ignition key.
• See the Suzuki Genuine Accessory catalog for information related to luggage setup on the V-Strom 650XT Adventure.

12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.

2024 Suzuki V-Strom 650XT Adventure – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $10,899 USD
Canada MSRP Price: $13,399 CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

Engine645cc, 4-stroke, liquid-cooled, DOHC, 90˚ V-twin

Bore x Stroke0 mm x 62.6 mm (3.2 in. x 2.5 in.)

Compression Ratio2:1

Fuel SystemFuel injection, SDTV-equipped

StarterElectric

LubricationWet sump

ClutchWet, multi-plate type

Transmission6-speed constant mesh

Final DriveChain, RK525SMOZ8, 118 links

Suspension FrontTelescopic, coil spring, oil damped

Suspension RearLink type, single shock, coil spring, oil damped

Brakes FrontTokico, 2-piston calipers, twin disc, ABS-equipped

Brakes RearNissin, 1-piston, single disc, ABS-equipped

Tires Front110/80R19 M/C (59V), tubeless

Tires Rear150/70R17 M/C (69V), tubeless

Fuel Tank Capacity0 L (5.3 US gal.)

ColorPearl Vigor Blue / Pearl Brilliant White

IgnitionElectronic ignition (transistorized)

Spark PlugNGK MR8E-9

Headlight12V 65W (H9 high-beam) and 12V 55W (H7 low-beam)

Tail LightLED

Overall Length2275 mm (89.6 in.)

Overall Width910 mm (35.8 in.) – No accessories installed / 940 mm (37.0 in.) – Approximate width with Adventure accessories installed

Overall Height1405 mm (55.3 in.)

Wheelbase1560 mm (61.4 in.)

Ground Clearance170 mm (6.7 in.)

Seat Height835 mm (32.9 in.)

Curb Weight216 kg (476 lb.) – No accessories installed / 239 kg (528 lb.) – Approximate weight with Adventure accessories installed

Warranty12-month limited warranty

ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)

2024 Suzuki V-Strom 650XT Adventure – Totalmotorcycle.com Canada Specifications/Technical Details

ENGINE

ELECTRONICS

DRIVE TRAIN

CHASSIS

WARRANTY

12 Month unlimited mileage limited warranty

2024 Suzuki V-Strom 650XT Adventure – Totalmotorcycle.com European Specifications/Technical Details

NA

Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
