2024 Suzuki V-Strom 800 Touring: FUN AND RUGGED DO ANYTHING BIKE.

Introducing the 2024 Suzuki V-Strom 800 Touring…

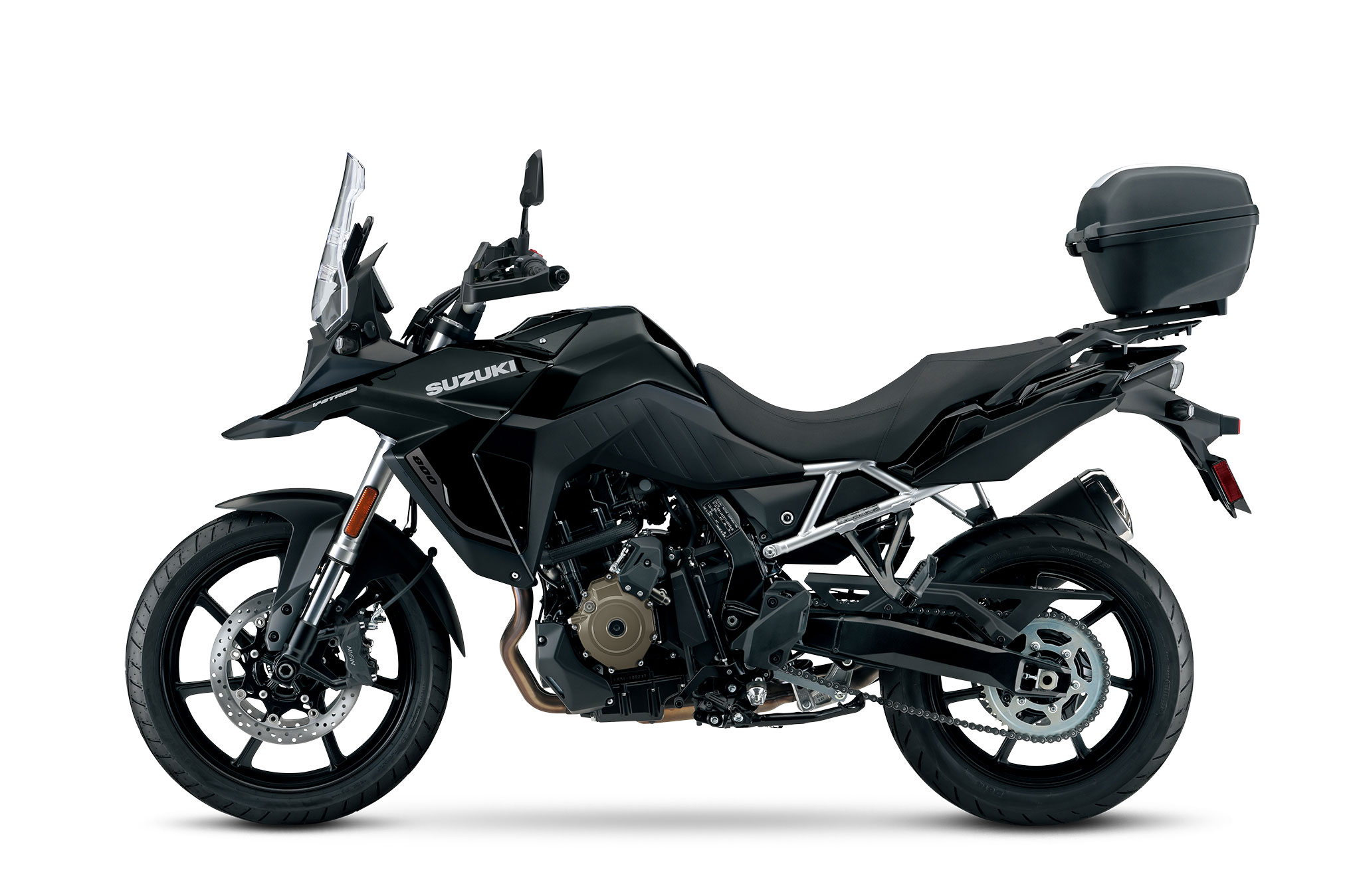

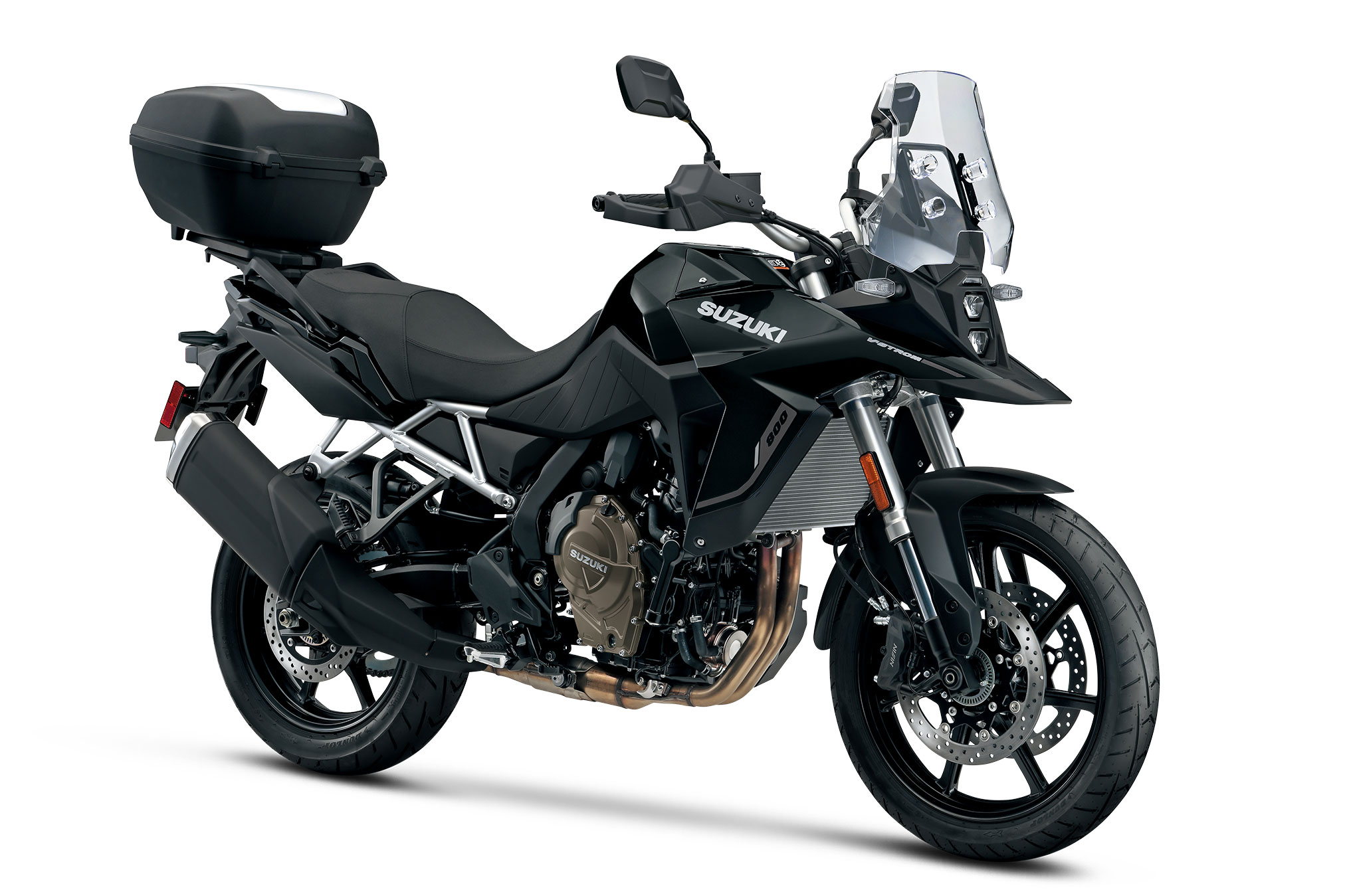

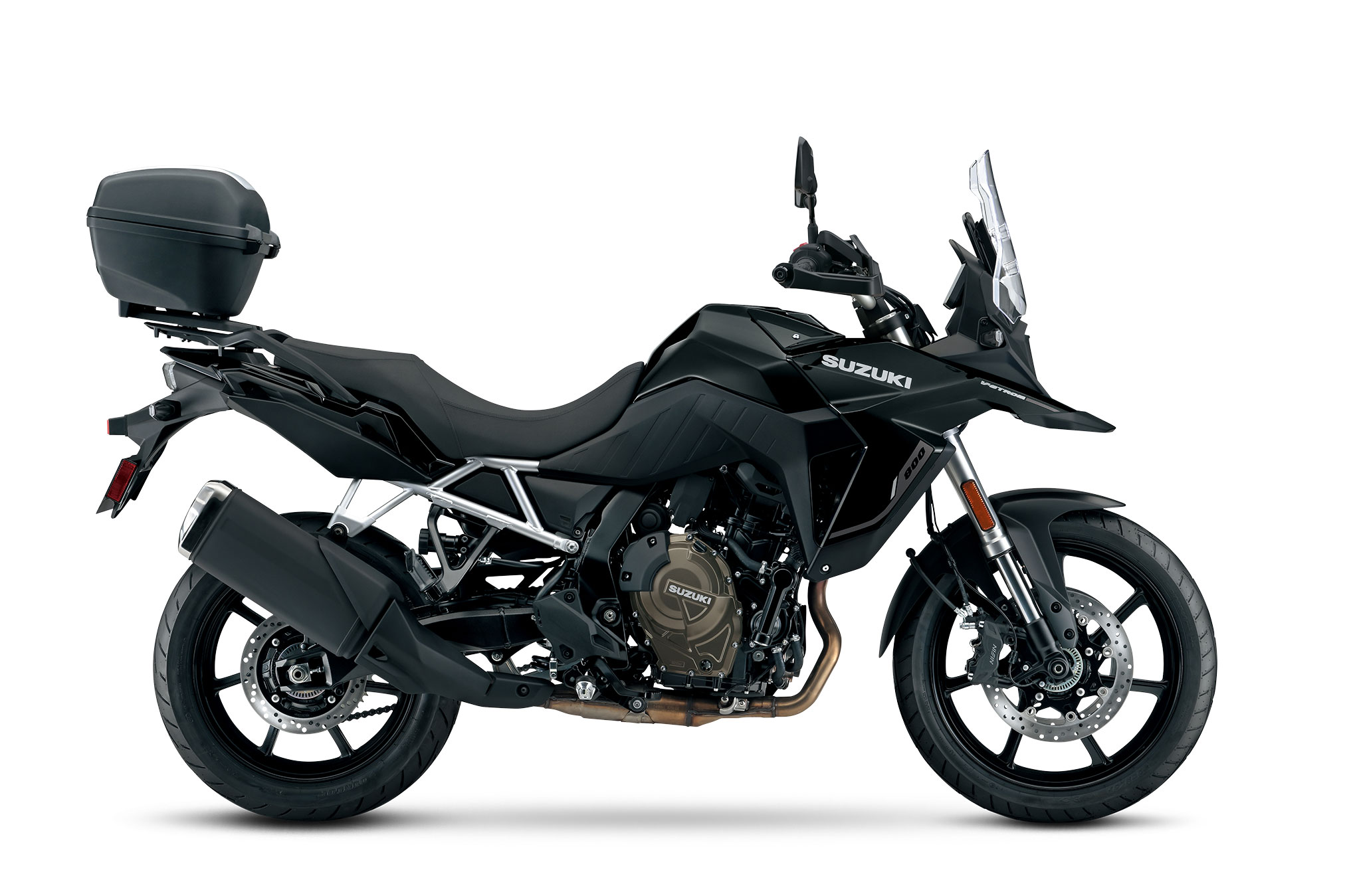

With the introduction of the 2024 Suzuki V-STROM 800 Touring, the V-STROM family of motorcycles grows again to bring even greater comfort, capability, and choice to Adventure touring. The “V” in V-STROM stands for “Versatile” and the V-STROM 800 fits that moniker well.

The excitement from the launch of the dirt-capable Suzuki V-STROM 800DE is still buzzing through the streets and trails, and now its siblings – the V-STROM 800 and V-STROM 800 Touring are here with a chassis setup to provide superb comfort and performance for sport riding and long-distance touring. Highly capable at highway speeds or when exploring less-traveled routes, it is equally as enjoyable and practical to ride daily around town for fun or commuting.

Like any V-STROM, you can ride nearly any road, propelled by a new-generation 776cc DOHC parallel-twin engine that delivers a balance of smooth, controllable power at low engine speeds and can deliver a free-revving rush of high engine speed performance. The 270-degree crankshaft configuration provides power delivery characteristics and an exciting exhaust note like V-Stroms with 90-degree V-twin engines. The patented Suzuki Cross Balancer further contributes to smooth operation and a compact, lightweight engine design

The rugged steel backbone frame takes advantage of the engine’s compact size, resulting in a chassis that is nimble and steady. The new SHOWA SFF-BP inverted fork smoothly controls front wheel movement, as does the rear shock absorber that employs a remote, hand-operated hydraulic spring preload adjuster so tuning for a passenger or cargo takes just seconds.

The SHOWA suspension is tuned to maximize straight-line and cornering performance. The fork also supports the new, radially mounted NISSIN four-piston brake calipers that grasp a pair of 310mm stainless steel brake rotors. The front calipers and the rear caliper with its 260mm rotor are monitored by a compact ABS** system that features a choice of two mode settings the rider can choose for differing road conditions.

New seven-spoke cast-aluminum wheels are shod with a 19-inch front and 17-inch rear tire. Dunlop’s new D614F/D614 tubeless ADV tires were engineered exclusively for the V-STROM 800 and feature a new tread pattern and custom-engineered internal structure for superb pavement operation plus the ability to explore that new unpaved road that just caught your eye.

A full-color, 5-inch TFT LCD multifunction instrument panel provides the rider access and on-the-fly control over the Suzuki Intelligent Ride System (S.I.R.S.) suite of advanced electronic control systems that include the Suzuki Drive Mode Selector, the Suzuki Traction Control System*, and Suzuki’s Bi-Directional Quick Shift system.

Ride all day in comfort and control thanks to a wide, vibration-damping tapered handlebar, standard hand guards, supportive seat, and rubber-padded footpegs. Carry the items you need quick access to in the standard 35L Top Case that is setup to operate with your bike’s ignition key. Tall and wide, the adjustable windscreen sits above a pair of stacked, compact Mono-focus LED headlights that throw out big-time illumination and the styling is unmistakably V-STROM with Suzuki’s iconic Dakar Rally-style beak.

The V-STROM 800 Touring is more than a motorcycle, and its even more than an Adventure motorcycle, it is really your new Adventure touring partner. Ride it as it is or grab the Suzuki Genuine Accessory catalog to personalize your V-STROM, so it is distinctly yours. Comfort, Capability and Choice – sounds like the beginning of a great riding partnership.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Traction control cannot prevent the front wheel from losing grip.
**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please drive carefully and do not overly rely on ABS.







2024 Suzuki V-Strom 800 Touring Totalmotorcycle.com Key Features

Parallel-Twin Engine

Smooth Operation

All-new compact 776cc parallel-twin engine uses a 270-degree firing order for strong torque production and is equipped with Suzuki’s exclusive Cross Balancer system for smooth operation.





Suzuki Intelligent Ride System

Advanced Rider Aids

The V-STROM 800 Touring features the Suzuki Intelligent Ride System (S.I.R.S.) with multi-mode Traction Control, rider-adjustable ABS** with two levels of sensitivity, and the convenient Easy Start and Low RPM Assist systems.





Modern Electronics

Be Prepared For Adventure

Bi-directional Quick Shifter, Ride-by-Wire throttle, and a bright, color TFT instrument panel, plus the Mono-focus LED headlights which are vertically stacked with a position light.







Nimble Chassis

Ready For Any Road

Engineered for touring comfort and everyday convenience the steel frame and sub-frame, and aluminum swingarm are supported by the new SHOWA SFF-BP (Separate Function Fork – Big Piston) fork and a gas-charged shock absorber with a hand-operated rear spring preload adjuster.





Road-Ready Wheels

Tackle The Streets

Exclusive 19-inch front and a 17-inch rear wheel combo featuring cast-aluminum tubeless wheels with seven, distinctive, V-shaped spokes.





TOURING READY ACCESSORIES

Geared Up For The Ride

A 35L Top Case and hand guards that come standard set you up for touring or commuting on the open roads.









2024 Suzuki V-Strom 800 Touring Totalmotorcycle.com Features and Benefits

KEY FEATURES

New, compact 776cc parallel-twin engine uses a 270-degree firing order for strong torque production and is equipped with Suzuki’s exclusive Cross Balancer system for smooth operation.

Engineered for touring comfort and everyday convenience the steel frame and sub-frame, and aluminum swingarm are supported by the new SHOWA SFF-BP (Separate Function Fork – Big Piston) fork and a gas-charged shock absorber with a hand-operated rear spring preload adjuster.

Created exclusively for the V-STROM 800 Touring are Dunlop’s D614 tires with a 19-inch front and a 17-inch rear that ride on new cast-aluminum tubeless wheels with seven, distinctive, V-shaped spokes.

Visually stunning, the angular bodywork retains Suzuki’s distinctive Adventure “beak” and arrives in Suzuki’s popular Glass Sparkle Black, topped with modern, subtle graphics.

Carry the items you need quick access to in the standard 35L Top Case that is setup to operate with your bike’s ignition key. The case can hold most helmets and unlocks off the motorcycle in seconds.

The Suzuki Intelligent Ride System (S.I.R.S.) includes multi-mode Traction Control, rider-adjustable ABS** with two levels of sensitivity, and the convenient Easy Start and Low RPM Assist systems.

Modern electronics include the Bi-directional Quick Shifter, Ride-by-Wire throttle, and a bright, color TFT instrument panel, plus the Mono-focus LED headlights which are vertically stacked with a position light below a trim, height-adjustable windscreen.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.

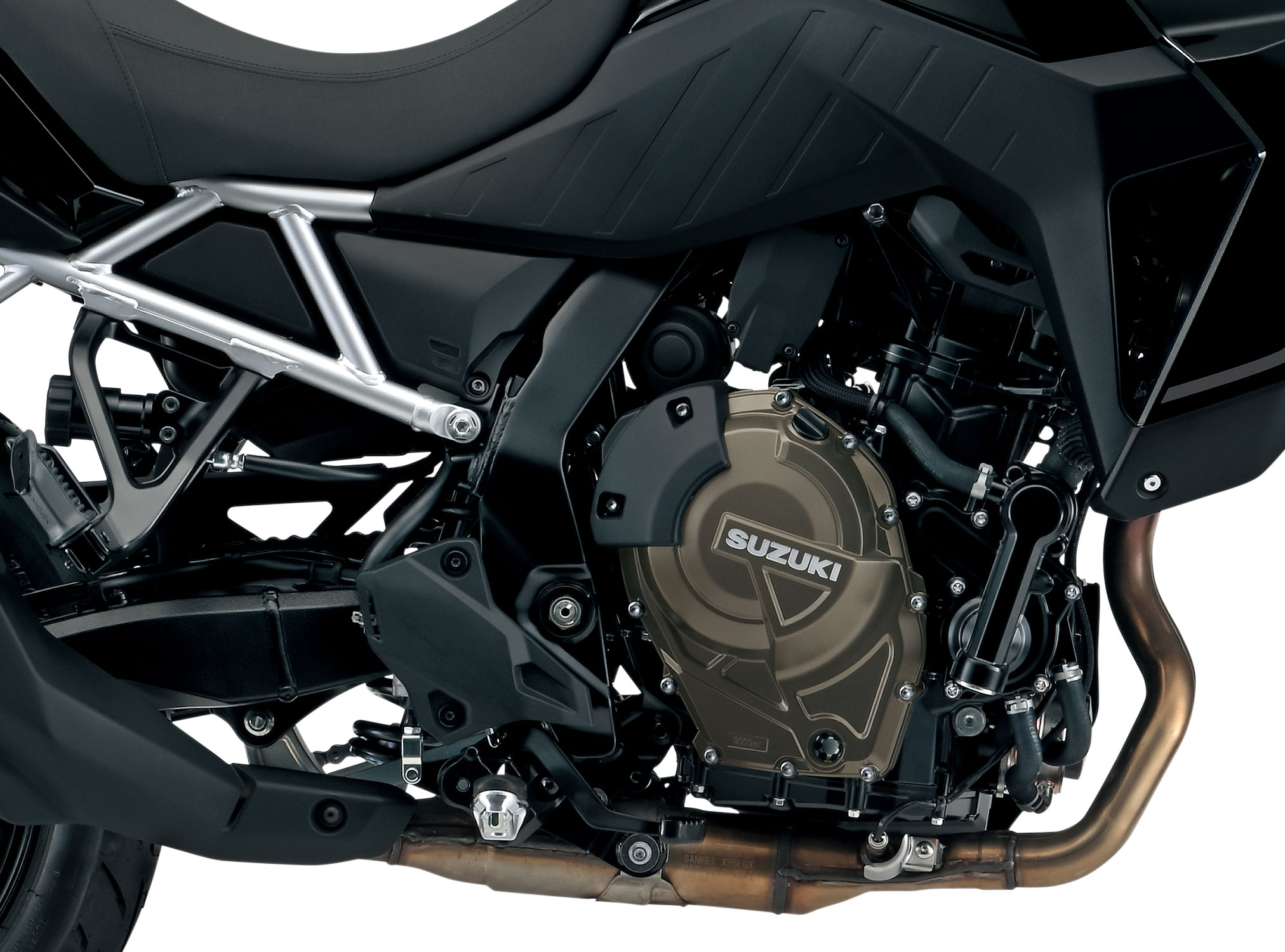

ENGINE FEATURES

The new design 776cc parallel-twin DOHC engine delivers a superb balance of smooth controllable torque-rich power from low RPM and freely revs up to its peak power output.

The 270-degree crankshaft configuration provides similar power delivery characteristics as the 90-degree V-twins used in other V-Strom models, while producing a unique and exciting exhaust note.

The spaced nature of the engine’s power pulses enhances traction and contributes to strong power output at all road speeds, to help make the V-STROM 800 Touring easy to control.

Suzuki Cross Balancer technology, patented by Suzuki and used for the first time on a production motorcycle, helps create a compact, lightweight design that delivers smooth operation.

The pistons were developed using FEM (Infinite Element Method) analysis to maximize strength and minimize weight.

The 84mm cylinder bores inside the aluminum die-cast cylinders are plated using Suzuki’s Suzuki Composite Electrochemical Material (SCEM) process. Originally developed for racing and proven on the track, the SCEM cylinder plating promotes better heat dissipation, reduces friction, and provides a consistent wear resistant seal to the pistons’ rings.

Dual, linked 42mm electronic throttle bodies provide an authentic response and feel to the rider’s throttle operation.

The V-STROM 800 employs two 10-hole, long-nose, 49 PSI (343kpa) high-pressure-feed fuel injectors that maximize fuel atomization for better combustion efficiency and lower fuel consumption.

The 6.0L air cleaner box shape and intake pipe lengths were created using computer-aided design to help maximize peak power output plus strong torque production at low engine speed. Positioned under the seat, the air box size and shape contribute to the V-STROM 800 Touring’s slim and compact chassis.

The stainless-steel 2-into-1 exhaust system uses a high flow, dual-stage catalytic converter inside the mid-pipe that helps satisfy worldwide emissions standards as a long, upswept muffler is attractive and well positioned for future accessory mounting.

A large-capacity radiator effectively cools the V-STROM 800 Touring’s parallel twin. A thermostatically controlled cooling fan helps stabilize coolant temperatures at low speed and stops.

The unique cooling system inlet control thermostat valve helps maintain consistent engine temperature and smooths the idle speed during warm-up. This helps stabilize combustion and contributes to reduced exhaust emissions.

The V-STROM 800 is also equipped with a lightweight, compact liquid-cooled oil cooler that helps reduce lubrication temperatures for smooth and reliable engine operation.



DRIVELINE FEATURES

The six-speed transmission features gear ratios that deliver exciting acceleration, whether shifting normally or when using the standard-equipment Bi-directional Quick Shift system to shift without clutch operation.

The V-STROM 800 Touring’s precise shift linkage helps the rider easily and quickly select the ideal gear for the riding conditions.

  • A sensor on the shift rod sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions.

The transmission’s output is managed by the Suzuki Clutch Assist System (SCAS). This system works like a slipper clutch by allowing a small amount of clutch slip to enable smooth downshifts. It also works as an assist clutch, increasing plate pressure under acceleration, but always keeps the clutch lever pull light and precise.

  • This large-diameter, wet, multi-plate clutch uses a precise cable-activated release, providing the rider with a light pull that also has superb friction-point feel.



Riding on durable steel sprockets, a strong O-ring style drive chain contains lubrication pre-packed between the pins and rollers for quiet, reliable operation.



CHASSIS FEATURES

Designed around the compact parallel twin engine and constructed with rugged steel pipe, the V-STROM 800 Touring’s backbone style frame was engineered to provide the strength needed for excellent straight-line stability and nimble handling when negotiating urban traffic or touring at highway speeds.

  • The engine is suspended and precisely fit to the frame to create a rigid chassis that also provides the compliance required for a variety of riding activities.
  • The removable steel sub-frame has a narrow seat rail width that results in a slim seat profile that helps riders control the motorcycle with their legs.
  • The frame and engine package helps create an off-road friendly chassis geometry with a long wheelbase and rake, tall ground clearance, and a wide handlebar grip.
  • The engine’s short length permits an ergonomic design that places the rider’s hip point further forward than it would be on other Adventure motorcycles. This enables riders to shift their weight forward to enhance control over rough terrain and when negotiating tight corners.
  • Compared to the V-STROM 800DE, the V-STROM 800 Touring has a lower seat height (32.5 in.) and handlebar position that helps provide comfort on long rides.

Matched to the V-STROM 800 Touring’s chassis geometry and suspension is a uniquely shaped aluminum swingarm that enhances vertical, lateral, and torsional rigidity to aid straight-line stability and controlled cornering.

The V-STROM 800 Touring’s suspension’s spring rate and damping force settings are tuned to maximize road performance and comfort.

The V-STROM 800 Touring is equipped with the advanced SHOWA SFF-BP (Separate Function Fork – Big Piston) inverted style fork that eliminates conventional damping cartridges in both fork legs to exclusively use the right fork leg as a large damping unit. This reduces weight and stabilizes the damping force characteristics to help cornering and straight-line performance for both sport and long-distance riding.

  • The top of the left fork leg has a front spring preload adjuster so the spring preload can be tuned to match the rider’s preference or the riding conditions.
  • The fork’s stroke is (150 mm) and the inner tube diameter is 43mm.



Also supplied by SHOWA, the shock absorber in the link-type rear suspension has a remote gas reservoir to stabilize operation on sporty or long rides.

  • The shock absorber has a remote hydraulic preload adjuster so the spring rate may be adjusted quickly by hand when adding a passenger or cargo.
  • In addition to the spring preload adjuster, the shock absorber also features adjustable rebound damping force that can be tuned to match the conditions or rider’s preference.

The V-STROM 800 Touring rides on new 7-spoke cast aluminum wheels that feature a distinctive “V” shape on each of the spokes. For optimal performance on all types of roads, the front wheel is 19-inches in diameter with a 17-inch diameter wheel in the back.

Engineered exclusively to the V-STROM 800 and 800 Touring are the new Dunlop D614F 110/80R19 front and D614 150/70R17 rear tires that feature a new tread pattern and custom-engineered internal structure.

  • The exclusive tread pattern on these tubeless tires helps provide sure traction and braking, as well as smooth handling, even when riding on unpaved roads. The tread also introduces a new silica compound that enhances grip in wet conditions and minimizes wear.

The brake components on the V-STROM 800 Touring are well-matched to the bike’s suspension and cast aluminum wheels.

  • The new front brakes use a pair of strong, but lightweight four-piston NISSIN-supplied front brake calipers grasping 310mm diameter discs.
  • The front calipers are radially mounted to the cast aluminum axle holders at the bottom of each fork leg.
  • The rear brake combines a single-piston, slide-pin style NISSIN caliper with a 260mm disc, providing the rider precise braking control that aids low-speed maneuvering.

Compact Anti-lock Brake System (ABS)** monitors wheel speed to match braking to available traction.

  • The rider can select from two levels of ABS sensitivity (see the Suzuki Intelligent Ride System (S.I.R.S.) section for more information).

The V-STROM 800 Touring has a wide tapered handlebar cast in strong yet flexible aluminum that allows it to flex and absorb shock. The handlebar’s wide grip position helps provide enhanced control and feedback to the rider.

The standard hand guards (knuckle guards) help shield the rider’s hands from the elements as well as flying stones.

The front brake lever has an adjustment knob so the rider can quickly set it to a comfortable reach. The shifter and rear brake pedal can also be adjusted (with hand tools) to the rider’s preference.

The mirrors feature a design that complements the V-STROM 800 Touring’s styling while providing an excellent view of objects behind the rider.

The V-STROM 800 Touring’s rubber-covered aluminum footpegs are designed for comfort when touring with a good grip to the rider’s boots in all conditions. To help damp vibration, the rubber-covered steel passenger footpegs are attached to cast aluminum brackets to achieve the right balance of comfort and support.

Designed for durability and comfort, the one-piece seat is built upon a strong, but lightweight base that helps keep seat height reasonable. The seat bottom, dense foam, and slip-resistant cover stand up to rigorous use while still providing all-day touring comfort for the rider and a passenger.

The fuel tank has a generous 5.3-gallon (20L) capacity but is shaped to be thin at the rear to flow into the slim seat, which aids the rider in touching the ground at stops.

  • The internal construction and cap of the fuel tank were engineered so the gasoline capacity is the same for both the 49-state and California versions.

Developed through wind tunnel testing and CAE (computer-aided evaluation) analysis, the V-STROM 800 Touring’s windscreen maximizes the rider’s visibility while minimizing the impact of wind pressing on the rider’s abdomen, chest, and shoulders.

  • The windscreen’s mount provides for 3-step height adjustment that may be set in 0.6-inch (15mm) increments (using an included hex tool).

The lightweight resin luggage rack incorporates easy-to-grasp grab bars and aligns with the passenger section of the seat, offering a larger surface for carrying cargo or luggage.

  • The cargo section of the rack was designed to make installation of a Suzuki Genuine Accessory top case simple and secure.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.



BODY & STYLING FEATURES

When developing the styling for the V-STROM 800, Suzuki’s design team chose to continue the heritage of the V-Strom series while presenting a thoroughly modern look in line with current trends, and blend in other features to push the motorcycle ahead of others in its category. And the total look must reflect the all-around capabilities of this extraordinary Adventure model.

Retaining the prominent “beak” that was pioneered on Suzuki’s legendary DR-Z Dakar racer and the large DualSport DR-Big, the lines of the bodywork are sharper with flatter surfaces to create a tough yet sophisticated look. Different colored panels feature angular lines that further amplify the V-STROM 800 Touring’s modern, aggressive look.

The body graphics are modernized and presented in a subtle manner to not detract from the motorcycle’s overall appearance.

  • The “800” decals on the sides of the cowling pieces in front of the engine reflect the image of the competition numbers used on motocross and other competition motorcycles, while the “V-STROM” logo continues the motif introduced with the V-STROM 1050DE.

The V-STROM 800 has front fender mounted close to the front tire to reduce road dust and water from being thrown up on the motorcycle. The front edge of the fender acts as a fork guard for the fork’s inner tubes.

Mindfulness extends to the engine as the clutch cover and magneto cover have a bronze-like finish that complements the V-STROM 800 Touring’s body color, while the SUZUKI name on the cover is in a contrasting color to bring attention to the modern engine.



SUZUKI INTELLIGENT RIDE SYSTEM (S.I.R.S.) FEATURES

The advanced electronic systems of the Suzuki Intelligent Ride System (S.I.R.S.) helps V-STROM 800 Touring riders optimize performance characteristics to best suit their riding style, level of experience, and riding conditions. This makes the V-STROM 800 Touring more predictable and enjoyable on a twisty road or touring down the highway, and it adds up to a more exciting, confident, and fun riding experience.

The S.I.R.S. suite includes the Suzuki Drive Mode Selector (SDMS), the Suzuki Traction Control System (STCS) and the Bi-directional Quick Shift System (QS) that supports the rider in a variety of conditions.

  • The S.I.R.S. suite of rider aids also includes the Ride-by-Wire Electronic Throttle System, the Suzuki Easy Start, and Low RPM Assist systems for accurate and convenient motorcycle operation.

Suzuki Drive Mode Selector (S-DMS)



  • TheS-DMS system provides the rider a choice of three different engine power output modes. Working in concert with the Traction Control System*, S-DMS permits peak power in each mode while changing the nature of the power delivery.
  • These three modes (A, B, and C) provide the rider a quick and effortless way to alter the V-STROM 800’s power delivery characteristic to match his or her riding style, or adjust to changing weather, road or trail, and other conditions.
    • Mode A (Active)is for active, sporty use that delivers the sharpest throttle response as the rider opens the throttle. Mode A’s torque characteristics are finely tuned to deliver exciting acceleration when hitting the throttle hard, when enjoying a sporty run on a clean, winding road in good weather.
    • Mode B (Basic)is for general, all-around riding, as it features softer throttle response and a more linear power delivery curve as the rider opens the throttle. Settings are tuned to fit a wide range of riding styles and conditions, and to help make the bike controllable in everyday riding situations.
    • Mode C (Comfort)offers a softer throttle response and more gentle torque characteristics, with power increasing in a directly linear fashion as the throttle is opened. This mode is useful when riding on wet or slippery surfaces, or when the rider desires a relaxing, comfortable ride.
  • Using the mode and select switches on the left handlebar, the rider can change S-DMS modes while riding. The mode settings are clearly displayed on the TFT instrument panel.

Suzuki Traction Control System (STCS)*



  • Suzuki debuted its first motorcycle Traction Control System* on the 2014 V-Strom 1000, and the five-mode system on the V-STROM 800 Touring lets the rider control the throttle with more confidence by limiting rear wheel spin in a variety of riding conditions.
  • The Traction Control System* continuously monitors front and rear wheel speeds, throttle opening, engine speed, and transmission gear. It quickly reduces engine output when it detects wheel spin by adjusting ignition timing and air delivery.
  • The rider can select one of four modes (1, 2, 3, and OFF). The three active modes differ in terms of rear wheel spin sensitivity.
    • Mode 1 is the lowest sensitivity – it allows a certain degree of rear wheel spin and is best suited for good road conditions.
    • Mode 2 is a moderate sensitivity level – the system engages traction control sooner than Mode 1 and is for average road conditions.
    • Mode 3is the highest sensitivity level – the system engages traction control sooner than the other modes to virtually eliminate wheel spin and is for poor or slippery road conditions, like wet and cold gravel surfaces.
    • OFF disengages all traction control features – the rider has sole control of the engine’s throttle and any resulting rear wheel spin.

Bi-directional Quick Shift System (QS)



  • This system allows the V-STROM 800 Touring rider to shift up or down quickly and easily, without operating the clutch lever.
  • To help ensure smooth upshifts, QS automatically interrupts power delivery just long enough to produce smooth, almost uninterrupted acceleration. When decelerating, the system automatically opens the throttle valves just enough to increase RPM and match engine speed to the next-lower gear. The result is that this hands-free, automatic function combines seamlessly with engine braking to create a highly satisfying experience when downshifting.
    • The bi-directional QS works seamlessly in concert with S-DMS to bring riders even greater riding enjoyment.
    • Performance of the V-STROM’s SACS-style, assist-and-slipper clutch ensures even smoother up- and down-shifts when using QS or manual clutch operation.
  • The shift sensor on the shift rod sends shifter movement data to the ECM, so the Bi-directional Quick Shift system precisely responds to the rider’s actions.

Two-mode Anti-lock Brake System (ABS)**

  • Associated with S.I.R.S. is the V-STROM 800 Touring’s ABS** system which allows riders to select between two levels of anti-lock brake activation sensitivity. ABS function and modes are displayed on the multifunction instrument panel.
    • ABS mode 1 provides minimal anti-lock brake intervention.
    • ABS mode 2 provides more anti-lock brake intervention than Mode 1.
  • The V-STROM 800 Touring is equipped with a new generation Anti-lock Brake System (ABS) control unit that is more compact and lighter in weight than the units used in prior V-Strom models.

Ride-by-Wire Electronic Throttle System

  • Suzuki’s electronic throttle control system is the key to the V-STROM’s faithful response to the rider’s S.I.R.S. setting and throttle operation.
  • Throttle grip movement and sensor input is used by the ECM which activate practically instantaneous throttle plate movement in the two 42mm throttle bodies.
  • Mechanically uncomplicated, this electronic system provides the rider a natural throttle feel while maximizing engine control when riding on trails or twisty roads.

The Suzuki Easy Start System

  • Easy Start allows the rider to easily start the engine with a single, momentary press of the starter button. In any weather conditions or with any engine temperature, there is no need to hold down the starter button until the engine fires. Easy Start is managed by the ECM so that the starter motor automatically stops once the engine has started.

Low RPM Assist System

  • Low RPM Assist seamlessly increases engine speed to smooth the power delivery when launching from a standing start or riding at low speeds, which helps ensure better control and operation in stop-and-go traffic. The system also minimizes the possibility of the rider stalling the motorcycle during take-off.

S.I.R.S. Supporting Technologies



  • Controller Area Network (CAN bus)

    • Key to the operation of the S.I.R.S., the V-STROM 800 Touring uses an interconnected information network instead of a conventional wiring harness.
    • Because it requires fewer wires, this CAN bus wiring lets the vehicle be lighter and simpler and provides a way for the advanced components to have faster data transmission with the ECM.
    • The CAN bus also provides a single connection point for diagnosing any errors that may occur throughout the entire network.
  • Engine Control Module (ECM)

    • The 32-bit, dual-core ECM has a fast processor and specific programming to efficiently operate the fuel-injection system, Ride-by-Wire throttle bodies, ignition, and other electrical features on the V-STROM 800 Touring.

*The Traction Control System is not a substitute for the rider’s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.

**Depending on road surface conditions, such as wet, loose, or uneven roads, braking distance for an ABS-equipped vehicle may be longer than for a vehicle not equipped with ABS. ABS cannot prevent wheel skidding caused by braking while cornering. Please ride carefully and do not overly rely on ABS.



ELECTRICAL FEATURES

The V-STROM 800 Touring’s instrument panel uses a full-color, 5-inch, TFT LCD screen.

This high-quality instrument panel is set into the upper fairing above the handlebars, for good visibility and protection from road debris. The TFT panel, itself, features a scratch-resistant surface, and an anti-reflective coating that improves visibility in bright light.

The brightness adjustable TFT display delivers a wide range of useful information, keeping the rider fully aware of all the bike’s systems, settings, and real-time operating status.

  • The display can be set for manual or automatic switching between Day Mode (white background) and Night Mode (black background). The display’s general brightness can be set to automatically adjust to the ambient light-level, or manually set to suit the rider’s preference.

The TFT panel provides operational information in an easily recognizable way:

  • The left side of the panel has an analog tachometer animation with a sweeping red needle that accurately shows engine speed all the way up to the 9,500 RPM redline.
    • The tachometer can be preset to flash at certain engine speeds, acting like a shift light (it can be set in 250 RPM increments within a range from 4,000 to 9,500 RPM).
  • To the left, center of the panel is a digital speedometer, quick-shift system status indicator, and gear position indicator. Directly below the speed display is a fuel level gauge.
  • The upper right portion of the panel displays the clock and S.I.R.S. feature information such as the Traction Control, plus the S-DMS and ABS settings.
  • Depending upon the rider’s selection, the lower portion of the right side of the panel can display coolant temperature, ambient air temperature, odometer, dual tripmeters, fuel consumption, and riding range.
  • The panel can also be configured to display large pop-up alerts and warnings. These alerts can present service reminders or advise of an operational issue.

The main TFT panel is flanked by LED indicators, including:

  • Left-turn signal indicator, MIL (Malfunction Indication Lamp), neutral indicator light, master warning indicator, high-beam indicator light, right-turn signal indicator, TC (Traction Control) indicator, low oil pressure warning light, ABS indicator, and coolant temperature warning light.

The charging system uses a durable, oil-cooled three-phase stator. A high-capacity, maintenance-free style battery and fuses are easily accessible under the seat.

  • Charging output is 375W @ 5,000 RPM.

A USB-type accessory slot is conveniently located on the left side of the instrument panel dash. This fused slot can provide up to 5.0 VDC at a maximum current of 2.0A. The slot is ideal for powering a GPS unit or charging mobile devices.

The handlebar switches are designed for intuitive operation (so the rider can maintain focus on the trail or the road).

  • The right handlebar switch includes a poly-function engine stop-on-start rocker switch and a hazard flasher switch.
  • The left handlebar switch was designed so selecting modes and making settings and adjustments for each of the advanced S.I.R.S. features simply involves operating the MODE button and the UP/DOWN switch (which recognizes long and short presses).
  • Headlight control is literally a flip of the finger – the left index finger to be precise. Set on the forward side of the left handlebar switch, the headlight control lever easily toggles between low beam, high beam, and flashing the high beam.

The V-STROM 800’s fairing features a stacked pair of hexagonal headlights that employ the bright, mono-focus LED light technology that provides the rider clear and bright illumination of the road ahead.

  • The dual LED headlights are topped by a bright LED position light that improves the visibility of the motorcycle to other traffic while emphasizing the V-STROM’s Suzuki Dakar Rally bike styling and heritage.

The V-STROM 800 Touring has lightweight and low-draw LED turn signals that are brighter than the signals used on the prior generation V-Strom models.

The rear tail and brake light is an LED type with a clear lens that offers higher visibility, low electrical draw, and excellent durability.



ADDITIONAL FEATURES

Genuine Suzuki Accessories for the V-STROM 800 Touring include plastic side cases that match the standard top case, engine guards, center stand, low- and high-profile seats, heated hand grips, fog lamps, and more.

  • Suzuki’s rugged plastic side and top cases include locks that can be set by your Suzuki dealer to match the bike’s ignition key for true, one key operation.
  • The Suzuki accessory aluminum side cases and top cases have a sturdy lock and latch system that use a unique style key that does not match the motorcycle’s ignition key.
  • See the Suzuki Genuine Accessory catalog for information related to luggage setup on the V-STROM 800 Touring.

12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New On-Road Motorcycle Limited Warranty.











2024 Suzuki V-Strom 800 Touring – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $10,499 USD
Canada MSRP Price: $ See Dealer CDN
Europe/UK MSRP Price: £ See Dealer GBP (On The Road inc 20% Vat)

  • Engine776cc, 4-stroke, liquid-cooled, DOHC parallel-twin
  • Bore x Stroke0 mm x 70 mm (3.3 in. x 2.8 in.)
  • Compression Ratio8:1
  • Fuel SystemFuel injection
  • StarterElectric
  • LubricationForce-fed circulation, wet sump



  • ClutchWet, multi-plate type
  • Transmission6-speed constant mesh
  • Final DriveO-ring style chain, D.I.D. 525 x 126L



  • Suspension FrontInverted telescopic, coil spring, oil damped
  • Suspension RearLink type, single shock, coil spring, oil damped
  • Brakes FrontNissin, 4-piston calipers, dual 310mm discs, adjustable ABS-equipped
  • Brakes RearNissin, 1-piston, single disc, adjustable ABS-equipped
  • Tires Front110/80R19M/C (59V), tubeless type
  • Tires Rear150/70R17 M/C (69V), tubeless type
  • Fuel Tank Capacity0 L (5.3 US gal.)
  • ColorGlass Sparkle Black



  • IgnitionElectronic ignition (transistorized)
  • Spark PlugIridium type x 2
  • HeadlightMono-focus LED x 2
  • Tail LightLED



  • Overall Length2,255 mm (88.8 in.) *May differ with the Top Case accessory installed.
  • Overall Width905 mm (35.6 in.)
  • Overall Height1,355 mm (53.3 in.)
  • Wheelbase1,515 mm (59.6 in.)
  • Ground Clearance185 mm (7.3 in.)
  • Seat Height825 mm (32.5 in.)
  • Curb Weight223 kg (492 lb.) *May differ with the Top Case accessory installed.



  • Warranty12-month unlimited mileage limited warranty
  • ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)











2024 Suzuki V-Strom 800 Touring – Totalmotorcycle.com Canada Specifications/Technical Details

TBA









2024 Suzuki V-Strom 800 Touring – Totalmotorcycle.com European Specifications/Technical Details

TBA







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

RSS Latest Motorcycle Reviews

  • 2025 Ducati Panigale Tricolore Review
    Innovation, tradition, and passion come together in one extraordinary tale. The 2025 Ducati Panigale V4 Tricolore is a renewed promise: that of getting excited again, of experiencing the privilege of a history that continues to [...] The post 2025 Ducati Panigale Tricolore Review appeared first on Total Motorcycle.
  • RED BULL KTM FACTORY RACING CHARGING INTO 2025 SMX WORLD CHAMPIONSHIP SEASON
    MURRIETA, Calif. – A returning four-rider Red Bull KTM Factory Racing Team will feature Chase Sexton and Aaron Plessinger in the 450 Class alongside 250 Class duo Tom Vialle and Julien Beaumer in the 2025 SuperMotocross [...] The post RED BULL KTM FACTORY RACING CHARGING INTO 2025 SMX WORLD CHAMPIONSHIP SEASON appeared first on Total Motorcycle.
  • 2025 Ducati Motorcycles: Setting new benchmarks for Riders!
    Two great news stories today! Ducat’s new V2 engine is a game changer for not only the company but also riders the new 2025 Ducati Motorcycles: Setting new benchmarks for Riders! And Total Motorcycle has [...] The post 2025 Ducati Motorcycles: Setting new benchmarks for Riders! appeared first on Total Motorcycle.
  • New 2025 Ducati Multistrada V2 Review
    The new Multistrada V2 is the mid-size crossover designed for lovers of the twin-cylinder engine, which with the 2025 model significantly improves in terms of lightness, handling and ease of riding. The new Multistrada V2 [...] The post New 2025 Ducati Multistrada V2 Review appeared first on Total Motorcycle.
  • New 2025 Ducati Multistrada V2S Review
    The Multistrada V2 S boasts semi-active suspension with Ducati Skyhook Suspension electronic control, with a weight saving of 18 kg, furthering improving comfort, safety and performance thanks to new electronic strategies that limit diving during [...] The post New 2025 Ducati Multistrada V2S Review appeared first on Total Motorcycle.
  • 2025 Ducati Multistrada V2S Travel Review
    The design of the new Multistrada V2 is elegant and sporty while the essence of Multistrada V2S has been completely redesigned and with the Travel trim includes plastic side cases a center stand and heated [...] The post 2025 Ducati Multistrada V2S Travel Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Int650 / Interceptor 650 Review
    The all-new, all-black INT 650 features a blacked-out engine and exhaust that unite the aesthetics of the motorcycle. The INT 650’s new look seamlessly fuses with its chassis, while keeping the spotlight on its tank [...] The post 2025 Royal Enfield Int650 / Interceptor 650 Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Shotgun 650 Review
    Review – Key Features – Features & Benefits – Specifications 2025 Royal Enfield Shotgun 650: CUSTOMIZATION IN ITS BONES. Introducing the 2025 Royal Enfield Shotgun 650… The Shotgun 650 defies categorization in both spirit and [...] The post 2025 Royal Enfield Shotgun 650 Review appeared first on Total Motorcycle.
  • 2025 Royal Enfield Super Meteor 650 Review
    Review – Key Features – Features & Benefits – Specifications 2025 Royal Enfield Super Meteor 650: EXHILARATING. Introducing the 2025 Royal Enfield Super Meteor 650… The Super Meteor 650 has been built on our enduring [...] The post 2025 Royal Enfield Super Meteor 650 Review appeared first on Total Motorcycle.
  • 2025 Aprilia Motorbikes: Both Fun & Affordable? YES!
    $6599, new, Italian, motorcycle. Let that sink in. $6899 for the sportbike. In today’s world of ever increasing expenses, inflation pricing and rising public and private debt levels isn’t it nice to get a breeze [...] The post 2025 Aprilia Motorbikes: Both Fun & Affordable? YES! appeared first on Total Motorcycle.
About Michael Le Pard 11246 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
