Review – Key Features – Features & Benefits – Specifications
2024 Triumph Bonneville Speedmaster: BRITISH LIKE PORK AND PICKLE.

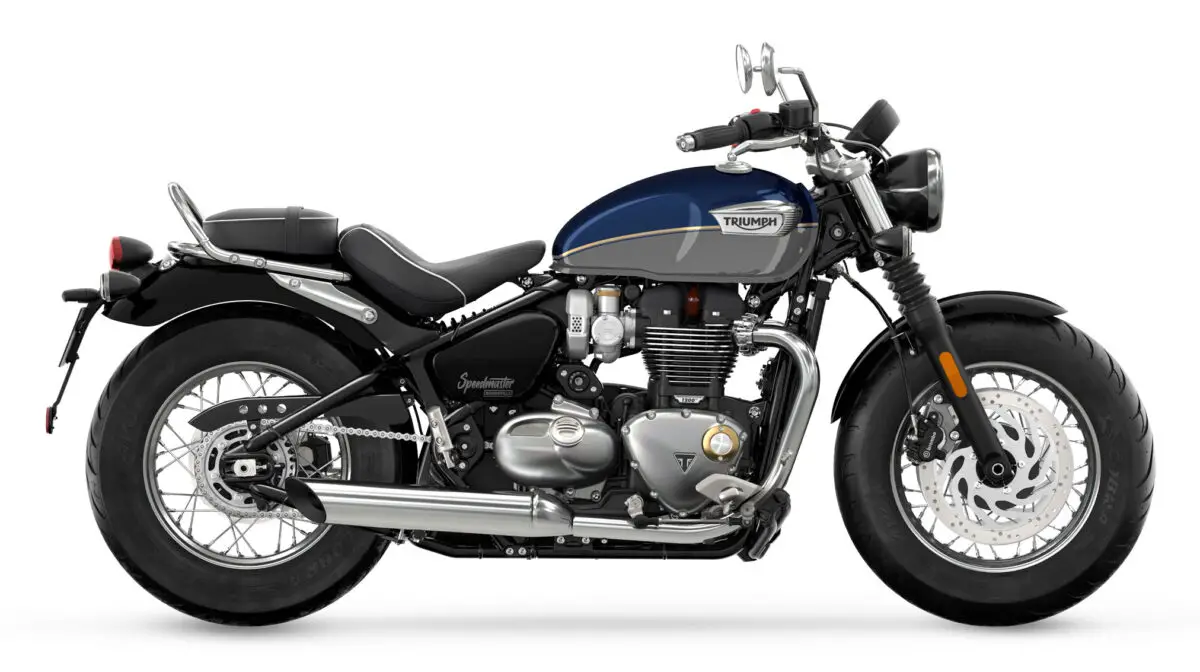

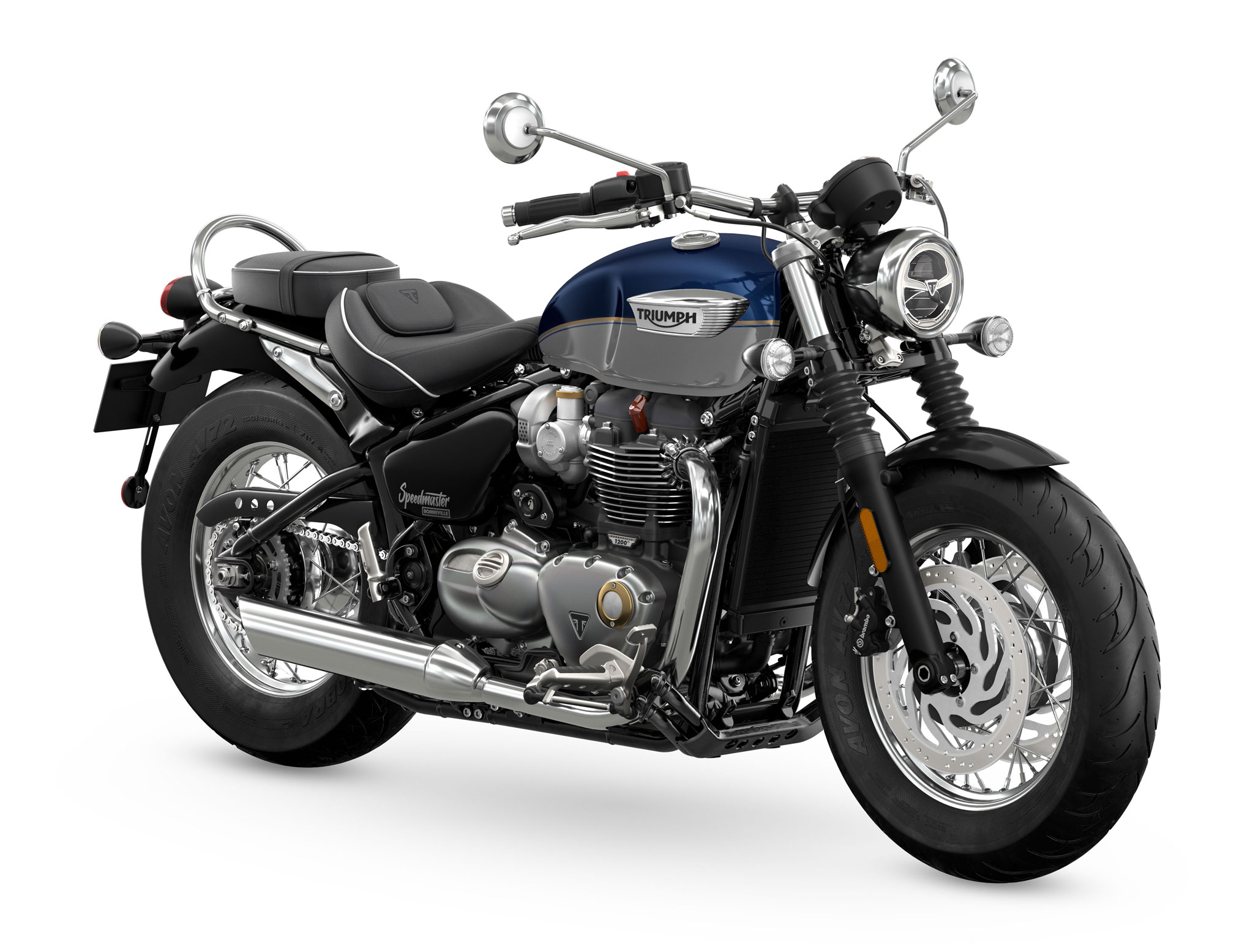

Introducing the 2024 Triumph Bonneville Speedmaster…
ICONIC BONNEVILLE DNA, WITH TIMELESS SOPHISTICATED STYLE MARRIED TO TRULY MODERN CAPABILITY.
Classic custom attitude, comfortable cruiser riding position and premium specification, all beautifully evolved.
With its authentic British custom style, responsive 1200cc engine, and laid-back riding position, the Speedmaster delivers a beautifully refined and relaxed cruiser ride.
BRITISH CUSTOM CLASSIC ICON
Original British custom laid-back style, with enhanced performance and handling, and an even more comfortable ride.
2024 Triumph Bonneville Speedmaster Totalmotorcycle.com Key Features
Bonneville Speedmaster
Triumph’s British customer classic, the Bonneville Speedmaster, is available in three colour choices with a classic Jet Black, sophisticated Cordovan Red and a stunning new Pacific Blue and Silver Ice two-tone option with gold coachline detailing. This is complemented by a Sapphire Black headlight bowl, side panels and mudguards.
Pacific Blue & Silver Ice – NEW
Cordovan Red
Jet Black
2024 Triumph Bonneville Speedmaster Totalmotorcycle.com Features and Benefits
UPDATED HIGH TORQUE ENGINE

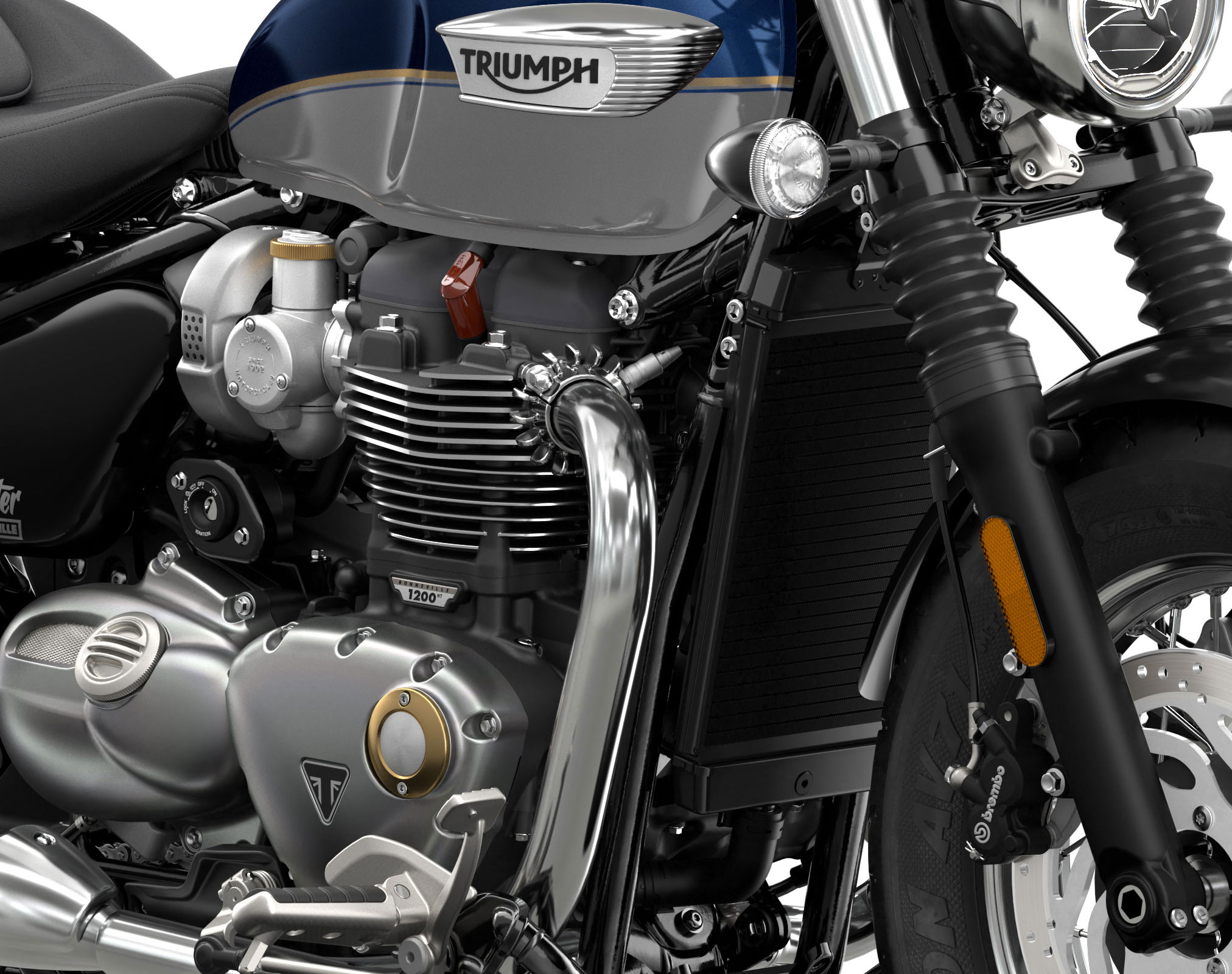

The 1200cc parallel twin provides effortless acceleration, with its smooth, linear power delivery and charismatic 270° firing interval. Now lighter, more responsive.
DISTINCTIVE SOUNDTRACK
An innovative twin airbox setup and unique twin-skin, bright chrome exhaust system deliver the Speedmaster’s rich, deep and distinctive sound, neatly hiding the catalyst under the bike.
ICONIC CUSTOM STYLE
Swept back beach bars, forward foot controls, 16” wire spoked wheels, and premium finish and detailing, give the Speedmaster its trademark classic British custom attitude and superior laid-back style.
ENHANCED SEATING
The versatile and interchangeable twin seat setup now features even more comfortable new sculpted deep foam construction and separate lumbar support for the rider seat, and 0.4 in thicker foam for the passenger
IMPROVED RIDE AND HANDLING
The Speedmaster’s excellent maneuverability, comfort and control were all enhanced further, thanks to new larger diameter 47mm Showa forks.
HIGH-SPECIFICATION BRAKES
Twin 310mm discs and Brembo 2-piston calipers at the front, a single Nissin caliper at the rear, and high-performance ABS fitted as standard, deliver excellent stopping power for great rider control.
RIDER-FOCUSED TECHNOLOGY
Beautifully integrated technology includes ride by wire throttle, Road and Rain riding modes, switchable traction control, ABS, full-LED lighting, cruise control and immobilizer.
ENHANCED MULTI-FUNCTION CLOCK
The feature-packed Speedmaster instrument setup is controlled via an intuitive handlebar mounted scroll button, and now features a new dial face and bezel, with premium Bonneville branding.
SIGNATURE SPEEDMASTER FEATURES
The feature-packed Speedmaster instrument setup is controlled via an intuitive handlebar mounted scroll button, and now features a new dial face and bezel, with premium Bonneville branding.
BUILT TO PERSONALIZE
Over 75 Genuine Triumph accessories and 3 stylish color choices allow you to customize your Speedmaster with even more style and capability, including a wide range of luggage choices for even more touring capability.
THRILLING PERFORMANCE
Critically acclaimed 1200cc high torque parallel twin engine, now lighter and more responsive.
LAID-BACK CUSTOM STYLE
Unmistakable classic British custom attitude and style, featuring swept-back beach bars and a forward foot position.
BEAUTIFULLY REFINED HANDLING
The Speedmaster’s signature handling setup, enhanced with higher spec components and a significant weight saving.
ALL-DAY COMFORT
Now with even more comfortable rider and passenger seats, and a low 27.75 in seat height, for a superior ride.
HIGH-SPEC TECHNOLOGY
Two riding modes, cruise control, ABS, Switchable Traction Control, Torque-Assist clutch, and all-LED lighting.
THE NEW BONNEVILLE SPEEDMASTER IN NUMBERS
1200 cc ENGINE
78 LB-FT PEAK TORQUE
76 HP PEAK POWER
10,000 MILES SERVICE
2024 Triumph Bonneville Speedmaster – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: from $13,795 USD
Canada MSRP Price: from $15,695 CDN
Europe/UK MSRP Price: from £12,995 (On The Road inc 20% Vat)
ENGINE & TRANSMISSION | |
Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
Capacity | 1200 cc |
Bore | 97.6 |
Stroke | 80 |
Compression | 10.0:1 |
Max Power EC | 76.9 HP @ 6100 RPM |
Max Torque EC | 78.2 LB-FT @ 4000 rpm |
System | Multipoint sequential electronic fuel injection |
Exhaust | Chromed stainless steel 2 into 2 twin-skin exhaust system with chromed stainless silencers |
Final Drive | Chain |
Clutch | Wet, multi-plate torque assist clutch |
Gearbox | 6-speed |
CHASSIS | |
Frame | Tubular steel, twin cradle frame |
Swingarm | Twin sided fabrication |
Front Wheel | Wire 32-spoke, 16 x 2.5 |
Rear Wheel | Wire 32-spoke, 16 x 3.5 |
Front Tire | MT90B16 |
Rear Tire | 150/80 R16 |
Front Suspension | Ø 47 mm Showa cartridge forks |
Rear Suspension | Mono-shock RSU with linkage and preload adjustment |
Front Brakes | Twin Ø310mm disc, Brembo 2-piston sliding axial calipers |
Rear Brakes | Single Ø255mm disc, Nissin single piston sliding axial caliper |
Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
DIMENSIONS & WEIGHTS | |
Width Handlebars | 35.8 in (910 mm) |
Height Without Mirror | 41.5 in (1055 mm) |
Seat Height | 27.8 in (705 mm) |
Wheelbase | 59.1 in (1500 mm) |
Rake | 25.3 º |
Trail | 3.6 in (91.4 mm) |
Tank Capacity | 3.2 US gal (12 litres) |
Wet Weight | 580 lb (263 kg) |
FUEL CONSUMPTION | |
Fuel Consumption | 60.9 mpg (4.6 liters/100km) |
CO2 Figures | EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
SERVICE INTERVAL: 10,000 miles/16,000 Km or 12 Months, whichever comes first.
2024 Triumph Bonneville Speedmaster – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE & TRANSMISSION | |
Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
Capacity | 1200 cc |
Bore | 97.6 |
Stroke | 80 |
Compression | 10.0:1 |
Max Power EC | 76.9 HP @ 6100 RPM |
Max Torque EC | 78.2 LB-FT @ 4000 rpm |
System | Multipoint sequential electronic fuel injection |
Exhaust | Chromed stainless steel 2 into 2 twin-skin exhaust system with chromed stainless silencers |
Final Drive | Chain |
Clutch | Wet, multi-plate torque assist clutch |
Gearbox | 6-speed |
CHASSIS | |
Frame | Tubular steel, twin cradle frame |
Swingarm | Twin sided fabrication |
Front Wheel | Wire 32-spoke, 16 x 2.5 |
Rear Wheel | Wire 32-spoke, 16 x 3.5 |
Front Tire | MT90B16 |
Rear Tire | 150/80 R16 |
Front Suspension | Ø 47 mm Showa cartridge forks |
Rear Suspension | Mono-shock RSU with linkage and preload adjustment |
Front Brakes | Twin Ø310mm disc, Brembo 2-piston sliding axial calipers |
Rear Brakes | Single Ø255mm disc, Nissin single piston sliding axial caliper |
Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
DIMENSIONS & WEIGHTS | |
Width Handlebars | 35.8 in (910 mm) |
Height Without Mirror | 41.5 in (1055 mm) |
Seat Height | 27.8 in (705 mm) |
Wheelbase | 59.1 in (1500 mm) |
Rake | 25.3 º |
Trail | 3.6 in (91.4 mm) |
Tank Capacity | 3.2 US gal (12 litres) |
Wet Weight | 580 lb (263 kg) |
FUEL CONSUMPTION | |
Fuel Consumption | 60.9 mpg (4.6 liters/100km) |
CO2 Figures | EPA Procedure CO2 emissions and fuel consumption data are measured according to regulation 40 CFR Part 86 Subpart F. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
SERVICE | |
Service Interval | 10,000 miles/12 months service interval, whichever comes first |
SERVICE INTERVAL: 10,000 miles/16,000 Km or 12 Months, whichever comes first.
2024 Triumph Bonneville Speedmaster – Totalmotorcycle.com European Specifications/Technical Details
ENGINE & TRANSMISSION | |
Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
Capacity | 1200 cc |
Bore | 97.6 mm |
Stroke | 80 mm |
Compression | 10.0:1 |
Max Power EC | 78 PS / 76.9 bhp (57.5 kW) @ 6100 rpm |
Max Torque EC | 106 Nm @ 4000 rpm |
System | Multipoint sequential electronic fuel injection |
Exhaust | Chromed stainless steel 2 into 2 twin-skin exhaust system with chromed stainless silencers |
Final Drive | Chain |
Clutch | Wet, multi-plate torque assist clutch |
Gearbox | 6-speed |
CHASSIS | |
Frame | Tubular steel, twin cradle frame |
Swingarm | Twin sided fabrication |
Front Wheel | Wire 32-spoke, 16 x 2.5 |
Rear Wheel | Wire 32-spoke, 16 x 3.5 |
Front Tyre | MT 90 B16 |
Rear Tyre | 150/80 R16 |
Front Suspension | Ø 47 mm Showa cartridge forks |
Rear Suspension | Mono-shock RSU with linkage and preload adjustment |
Front Brakes | Twin Ø310mm disc, Brembo 2-piston sliding axial calipers, ABS |
Rear Brakes | Single Ø255mm disc, Nissin single piston sliding axial caliper, ABS |
Instrument Display and Functions | Analogue speedometer with LCD multi-functional display |
DIMENSIONS & WEIGHTS | |
Width Handlebars | 910 mm |
Height Without Mirror | 1055 mm |
Seat Height | 705 mm |
Wheelbase | 1500 mm |
Rake | 25.3 º |
Trail | 91.4 mm |
Tank Capacity | 12 L |
Wet Weight | 263 kg |
FUEL CONSUMPTION | |
Fuel Consumption | 60.9 mpg (4.6 l/100km) |
CO2 Figures | 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
SERVICE INTERVAL: 10,000 miles/16,000 Km or 12 Months, whichever comes first.
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
