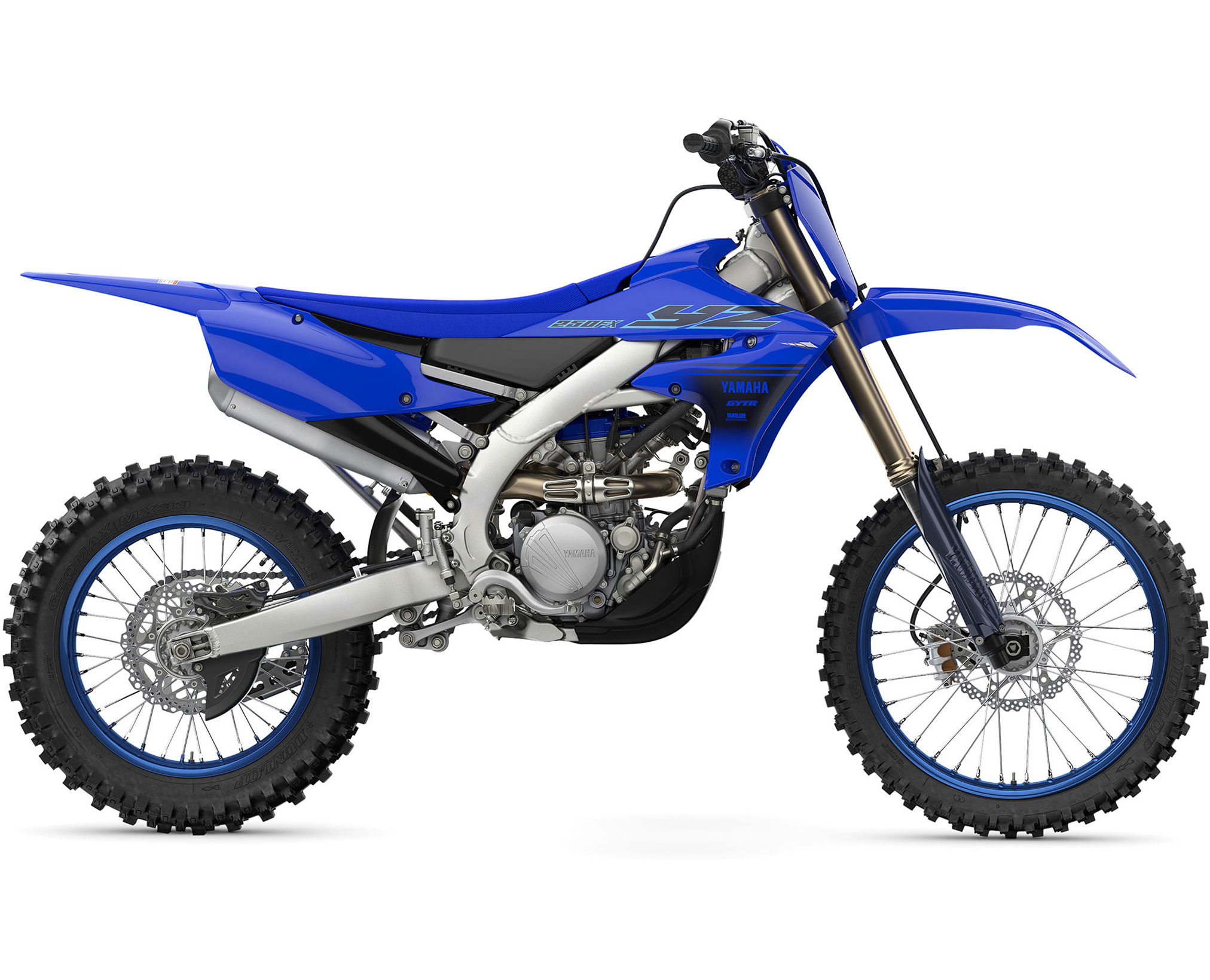

2024 Yamaha YZ250FX: YOUR POWER. YOUR WAY.
Introducing the new 2024 Yamaha YZ250FX…
This Cross-Country racer has all the features to win including the smartphone Power Tuner app that adjusts the bike’s settings to fit your style and the track.
Out-of-the-Box Hare Scramble/GNCC® Racer
Based on the championship-winning YZ250F that features Yamaha’s revolutionary front-intake, rear-exhaust, liquid-cooled, DOHC 4-stroke power plant with an added sixth gear, wide ratio transmission and a range of cross country upgrades, the YZ250FX is an “out-of-the-box” Hare Scrambles and GNCC® competition machine.
This Cross Country racer has all the features to win including the smartphone Power Tuner app that adjusts the bike’s settings to fit your style and the track. Based on the championship-winning YZ250F and boasting a wide range of cross-country features, the YZ250FX is a true “out-of-the-box” hare scramble/cross-country competition machine.
HIGH PERFORMANCE FOUR-STROKE ENGINE
The compact, powerful YZ250FX engine includes all the same race-developed technologies of the championship-winning YZ250F, tuned for cross country performance. Revised intake duct, intake port, exhaust camshaft profile, muffler and balancer weight position combine to further improve power and usability across the entire rev range.
SELECTABLE FUEL MAPS
Increasing the YZ250FX’s ability to tackle a wide range of riding environments, two optimized fuel injection maps—both of which can be loaded and tuned in the Yamaha Power Tuner App—are accessible through a handlebar-mounted map switch for on-the-fly adjustments to changing riding conditions. Pre-loaded maps include one for fast, aggressive high-traction conditions and one with a smoother engine character for extreme, low-traction conditions.
2024 Yamaha YZ250FX Totalmotorcycle.com Key Features
- Liquid-cooled 250cc four-stroke churns out stronger mid- to high-range power thanks to an improved air intake, wider intake port, redesigned exhaust camshaft, improved muffler and optimized ECU settings
- Industry-leading and free-of-charge Yamaha Power Tuner app allows instant fueling and ignition timing changes on your smartphone for ultimate track-side tuning
- Two-mode adjustable engine mapping allows rider to select between two tuneable engine maps at the push of a button
- The highly developed aluminum bilateral beam frame taken from the class-leading YZ250F has been tuned for cross country performance and modified to match the more powerful engine
- Class-leading KYB® fully adjustable spring-type forks with speed-sensitive damping and linkage-type KYB® rear shock have been thoroughly tested and tuned specifically for cross country racing
The revolutionary front-intake/rear-exhaust, liquid-cooled, fuel-injected, four-stroke engine has been developed for victories in the highly competitive GNCC® and Hare Scrambles race series. Intake and exhaust ports work with a higher compression piston for a wider spread of power without losing top-end performance.
The free-of-charge Yamaha Power Tuner app brings the power of the GYTR® Power Tuner to your iOS® or Android® device. Using wireless connectivity to talk to the bike’s onboard CAN-bus network, the app allows owners to adjust air/fuel mixture and ignition timing maps to tune engine performance for track conditions, record race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more.
With the electric starting system, a 8.2 litre fuel tank, rugged plastic skid plate, 18-inch rear wheel and high performance Dunlop® Geomax MX33 tires, the YZ250FX is ready to win right out of the box.
2024 Yamaha YZ250FX Totalmotorcycle.com Features and Benefits
TOP FEATURES
Cross Country Features
With the electric starting system, a 2.16-gallon fuel tank, rugged plastic skid plate, 18-inch rear wheel and high performance Dunlop® Geomax MX33 tires, the YZ250FX is ready to win right out of the box.
High Performance Four-Stroke Engine
The compact, powerful YZ250FX engine includes all the same race-developed technologies of the championship-winning YZ250F, tuned for cross country performance. Revised intake duct, intake port, exhaust camshaft profile, muffler and balancer weight position combine to further improve power and usability across the entire rev range.
High-Spec Braking Components
The high performance braking system provides exceptional stopping power and control through high-spec componentry, including a rigid front caliper with larger diameter pistons, aggressive brake pad compound and a 270mm front rotor. The rear brake gets a lightweight rear caliper and hanger with a 240mm rear rotor to reduce unsprung weight.
Innovative Yamaha Power Tuner App
Yamaha’s free-of-charge Power Tuner App puts the flexibility and precision tunability of the GYTR® Power Tuner into your smartphone. Make fueling and ignition timing changes instantly and upload them to the bike for ultimate track-side tuning.
Out-of-the-Box Hare Scramble/GNCC® Racer
Based on the championship-winning YZ250F that features Yamaha’s revolutionary front-intake, rear-exhaust, liquid-cooled, DOHC 4-stroke power plant with an added sixth gear, wide ratio transmission and a range of cross country upgrades, the YZ250FX is an “out-of-the-box” Hare Scrambles and GNCC® competition machine.
Precisely Tuned Chassis
The highly developed aluminum bilateral beam frame features precisely tuned flex characteristics for competition-ready performance. The forged section at the swingarm pivot, and improved engine mounting brackets provide a nimble lightweight feeling in tight, technical terrain while still providing control in fast sections. As always, Yamaha’s class-leading KYB® suspension ensures maximum control and traction.
Selectable Fuel Maps
Increasing the YZ250FX’s ability to tackle a wide range of riding environments, two optimized fuel injection maps—both of which can be loaded and tuned in the Yamaha Power Tuner App—are accessible through a handlebar-mounted map switch for on-the-fly adjustments to changing riding conditions. Pre-loaded maps include one for fast, aggressive high-traction conditions and one with a smoother engine character for extreme, low-traction conditions.
Sharp, Durable Graphics Scheme
Sharp competition-inspired graphics scheme highlights the YZ’s unmatched racing pedigree. Premium Yamaha Blue and dark blue graphics are embedded to provide excellent durability and scratch resistance. Dark radiator louvers add to the aggressive look.
ADDITIONAL FEATURES
Easy Servicing
The air cleaner cover features tool-free access to the air filter. Thanks to a WR-style fuel level sensor in the tank, the YZ250FX includes a convenient low fuel indicator along with an engine warning indicator on the handlebar.
Practical Touches
Quick-adjust clutch, wide 55mm platform footpegs, four-position rubber-mounted handlebar clamps, aluminum handlebars and a side stand come standard for added rider convenience. The YZ250FX is also pre-wired for an optional radiator fan for the most grueling conditions.
Sealed O-Ring Chain
High-quality O-ring chain is tough, durable and light.
CHASSIS/SUSPENSION
Advanced Bilateral Aluminum Frame
An all-aluminum bilateral beam frame taken from the class-leading YZ250F provides strength, lightness and durability for cross country racing conditions and comes standard with a rugged plastic skid plate.
Class-Leading Suspension
Industry favorite Speed Sensitive System KYB® fully adjustable spring-type forks and a KYB® rear shock have been thoroughly tested and tuned specifically for cross country racing.
High-Spec Braking Components
The high performance braking system provides exceptional stopping power and control through high-spec componentry, including a rigid front caliper with larger diameter pistons, aggressive brake pad compound and a 270mm front rotor. The rear brake gets a lightweight rear caliper and hanger with a 240mm rear rotor to reduce unsprung weight.
Purpose-Built Tires
Special cross country racing Dunlop® Geomax MX33 tires maximize traction while delivering excellent durability.
Slim Bodywork
The compact bodywork eases the rider’s movement across the machine in tough terrain. The fuel tank provides 2.16 gallons of fuel with a larger fuel cap opening. Quality graphics are embedded in the body moldings for long-lasting good looks.
ENGINE
Adjustable Engine & Fuel Mapping
A handlebar-mounted map switch allows the rider to quickly select between two preloaded engine maps—loaded and tunable in the Power Tuner App—to account for changing riding conditions. The fuel injection system uses 3D-mapped electronic control for the fuel and ignition timing that are optimized for cross country racing. Pre-loaded maps include one for fast, aggressive high-traction conditions and one with a smoother engine character for extreme, low-traction conditions.
Competition-Ready Engine Performance
The revolutionary front-intake/rear-exhaust, liquid-cooled, fuel-injected, four-stroke engine has been developed for victories in the highly competitive GNCC® and Hare Scrambles race series. Intake and exhaust ports work with a higher compression piston for a wider spread of power without losing top-end performance.
Forward-Thinking Engine Design
Reversing the cylinder head while placing the intake forward and the exhaust to the rear allow for a straight shot, downdraft intake and straight exhaust port for maximized engine performance.
Innovative Yamaha Power Tuner App
The free-of-charge Yamaha Power Tuner App brings the power of the GYTR® Power Tuner to your iOS® or Android® device. Using wireless connectivity to talk to the bike’s onboard CAN-bus network, the app allows owners to adjust air/fuel mixture and ignition timing maps to tune engine performance for track conditions, record race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more.
Mass-Centralized Electric Starter System
The YZ250FX features a compact, centrally-mounted electric starter system to minimize restart delays mid-race and add convenience everywhere else. Powered by a high-capacity lightweight four-cell lithium-ion battery, the system adds minimal weight.
Six-Speed Gearbox
A six-speed transmission is used to ensure the right gear is available for the wide variety of terrain found in cross country racing. Updated gearing ratios and a heavy-duty, large-diameter clutch bring enhanced durability in the extreme conditions of a three-hour GNCC® race.
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha YZ250FX – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $8,999 USD
Canada MSRP Price: $10,599 CDN
Europe/UK MSRP Price: £ See Dealer for Pricing in GBP (On The Road inc 20% Vat)
ENGINE
| Engine Type | 250cc liquid-cooled DOHC 4-stroke; 4 titanium valves |
| Bore x Stroke | 77.0mm x 53.6mm |
| Compression Ratio | 13.8:1 |
| Fuel Delivery | Mikuni® fuel injection, 44mm |
| Transmission | 6-speed; multiplate wet clutch |
| Final Drive | Chain |
| Fuel Capacity | 2.2 gal |
CHASSIS
| Suspension/Front | KYB® spring-type fork with speed sensitive damping; fully adjustable, 12.2-in travel |
| Suspension/Rear | KYB® single shock; fully adjustable, 12.5-in travel |
| Brakes/Front | Hydraulic disc, 270mm |
| Brakes/Rear | Hydraulic disc, 240mm |
| Tires/Front | 80/100-21 Dunlop® Geomax MX33F |
| Tires/Rear | 110/100-18 Dunlop® Geomax MX33 |
DIMENSIONS
| LxWxH | 85.6 in x 32.5 in x 50.4 in |
| Seat Height | 37.6 in |
| Wheelbase | 58.3 in |
| Rake (Caster Angle) | 27.2° |
| Trail | 4.6 in |
| Max. Ground Clearance | 12.6 in |
| Fuel Capacity | 2.2 gal |
| Wet Weight*** | 245 lb |
OTHER
| Warranty | 30 Day (Limited Factory Warranty) |
*Manufacturer’s Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
2024 Yamaha YZ250FX – Totalmotorcycle.com Canada Specifications/Technical Details
ENGINE
| ENGINE | Liquid-cooled, DOHC, 4-valve (titanium), single |
| DISPLACEMENT | 250 cc |
| BORE AND STROKE | 77 x 53.6 mm |
| COMPRESSION RATIO | 13.8:1 |
| FUEL DELIVERY | 44 mm Keihin throttle body F.I. |
| LUBRICATION | Wet sump |
| IGNITION / STARTING | TCI / Electric |
| TRANSMISSION | Constant mesh, 6-speed |
| FINAL DRIVE | Chain |
CHASSIS
| SUSPENSION (FRONT) | Fully adj. 48 mm, inverted fork / 310 mm (12.2″) wheel travel |
| SUSPENSION (REAR) | Fully adj. Monocross / 318 mm (12.5″) wheel travel |
| BRAKES (FRONT) | 270 mm, floating disc / twin piston caliper |
| BRAKES (REAR) | 240 mm disc / single piston caliper |
| TIRES (FRONT) | 80/100-21 Dunlop® Geomax MX33F |
| TIRES (REAR) | 110/100-18 Dunlop® Geomax MX33 |
CRITICAL DATA
| LENGTH | 2,174 mm (85.6″) |
| WIDTH | 825 mm (32.5″) |
| HEIGHT | 1,280 mm (50.4″) |
| WHEELBASE | 1,481 mm (58.3″) |
| GROUND CLEARANCE | 320 mm (12.6″) |
| SEAT HEIGHT | 955 mm (37.6″) |
| FUEL CAPACITY | 8.2 litres (1.8 imp. gallons) |
| WET WEIGHT | 111 kg (245 lb) |
| COLOUR(S) | Yamaha Racing Blue |
2024 Yamaha YZ250FX – Totalmotorcycle.com European Specifications/Technical Details
NA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
