2003 Honda 919 (CB919, CB900F, Hornet 900)

Back to 2003 Honda Motorcycle Index Page

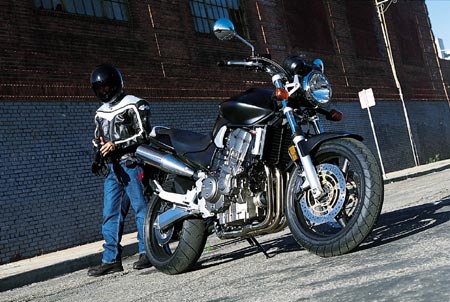

Click on photos to enlarge.
It makes a great desktop image.

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)

2003 Honda CBR919, CB919, CB900F, Hornet 900
2003 Honda 919 (CB919, CB900F, Hornet 900)


– 2003 Honda 919 (CB919, CB900F, Hornet 900)

The (919, CB919, CB900F, Hornet 900) defines what a versatile street bike should be-then ups the ante with aggressive good looks, open-class power, a lightweight chassis and exhilarating performance.

New for 2003
· Exciting new Smoke color joins Asphalt for 2003.

Unique Features
· A muscular 919cc open-class engine–inspired by the previous generation CBR900RR Fireblade–pounds out torque and surprising top-end horsepower.
· A featherweight 194kg dry weight makes the (919, CB919, CB900F, Hornet 900) the lightest bike in its class.
· The comfortable, upright seating position is ideal for commuting, sport riding and long trips.
· Honda’s latest programmed fuel injection (PGM-FI) and electronic digital ignition maximize power output and offer immediate throttle response.
· Stylish, dual center-up exhausts exit below the rear cowl.
· Massive square-tube mono-backbone frame and a large aluminum swingarm combine to provide an ideal balance of rigidity and flexibility for superb road feel.
· 43mm cartridge front fork, single-shock rear suspension and lightweight cast aluminum three-spoke wheels contribute to exceptional handling.

· Compact 919cc DOHC liquid-cooled inline four-cylinder engine is tuned for low-end and mid-range power for spirited acceleration.
· One-piece upper crankcase/cylinder assembly, right-side cam-drive design and a narrow, 32 degree included valve angle help make the Hornet engine the lightest, most compact powerplant in its class.
· Sixteen-valve cylinder head with a 10.8:1 compression ratio promotes efficient combustion and high horsepower production.
· Direct shim-under-bucket valve actuation system is compact, ensures high-rpm durability and allows 25,600 km valve maintenance intervals.
· High-pressure programmed fuel injection (PGM-FI) delivers fuel at 50 psi to four injectors, each mounted in a 36mm throttle body. Fuel is delivered through four laser-drilled nozzle holes in each injector, producing a highly atomized air/fuel charge for maximum combustion efficiency and power.
· Advanced programmed fuel injection (PGM-FI) features a sophisticated throttle sensor and advanced fuel-injection mapping to produce smooth and linear throttle response, responding precisely to fine throttle adjustments.
· 16-bit electronic control unit (ECU) provides two digital 3-D fuel injection maps for each cylinder and one digital 3-D ignition map for cylinder pairs, creating ideal fuel mixture and spark advance settings for superb rideability.
· Liquid-cooled oil cooler and a lightweight aluminum radiator keep engine temperatures in check for consistent performance and long engine life.
· Spring-loaded scissors-type gear on the drive side of the crankshaft and a rubber-mounted, floating clutch-cover help reduce noise.
· Weight-saving features include a compact, lightweight one-piece alternator.
· Unique four-into-two-into-one-into-two exhaust design features expanding-diameter tubing leading into the two center-up mufflers, contributing to strong mid-range torque and an exhilarating exhaust note. Stainless steel exhaust header and main pipe are attractive and corrosion-resistant. Polished stainless steel muffler-covers shield passenger’s legs from muffler heat.
· High-capacity, 320-watt AC generator.
· Maintenance-free automatic cam-chain tensioner.
· Smooth-shifting six-speed transmission with gear ratios carefully matched to the engine’s power band.
· Durable #530 O-ring-sealed drive chain.

· Massive square-tube mono-backbone steel frame utilizes the engine as a stressed frame member. Together with the reinforced steering head, the chassis provides an optimal balance of rigidity and tuned flex for superb handling.
· A single box-section downtube reaches down to a unique front engine-mount that incorporates a cross-member to link the frame to the engine’s solid front mounts.
· Lightweight aluminum swingarm features a large one-piece cast pivot block and extruded triple-box-section spars.
· 43mm cartridge front fork with 120mm of travel offers excellent rigidity for precise action and excellent handling on a variety of road surfaces.
· Lightweight aluminum upper triple-clamp adds rigidity for even better steering control.
· Single-shock rear suspension features a high-quality damper with seven-position-adjustable spring preload, 127mm of plush wheel travel and a remote fluid-reservoir for added suspension control in all riding conditions.
· Braking system features two huge, 296mm front discs with four-piston calipers and a 240mm rear disc with a single-piston caliper for exceptional stopping power.
· Aluminum-alloy super-light, hollow three-spoke wheels with 3.5 x 17-inch front and 5.5 x 17-inch rear dimensions.

Additional Features
· Wide, durable vinyl-covered seat with thick foam padding provides plush comfort for commuting and two-up day trips.
· A stylish hugger-type rear fender closely follows the curve of the rear tire.
· Instrumentation includes black-face analog speedometer; tachometer and water temperature with white numerals; digital odometer/tripmeter; indicator lights for neutral, FI (fuel injection), oil pressure, low fuel and high beam.
· 19-litre fuel tank is hinged for servicing ease.
· Aviation-style fuel cap.
· Engine-mounted manual fuel enricher provides smooth idling speed for cold engine starts.
· A bank-angle sensor shuts off fuel supply to the PGM-FI system if the motorcycle tips over and is unaffected by bumps and vibration during normal operation.
· A large multi-reflector headlight with a twin-filament H4 low/high beam provides superb roadway illumination.
· Maintenance-free battery is lightweight with sufficient starting capacity for all riding seasons.
· Rugged plastic chip guards on top of the fork sliders protect the front suspension from flying debris.
· Aluminum passenger grabrail.
· Convenient ignition switch/fork lock for added security.
· Handlebar switches and controls use internationally approved ISO graphic symbols.
· Transferable one-year unlimited-mileage limited warranty.


2003 Honda 919 (CB919, CB900F, Hornet 900) Specifications:
919cc liquid-cooled DOHC inline four-cylinder

Bore and Stroke
71mm x 58mm

Compression Ratio

Valve Train
DOHC; four valves per cylinder

PGM-FI with manual enricher circuit


Final Drive
#530 O-ring-sealed chain

Front Suspension
43mm cartridge fork; 120mm travel

Rear Suspension
Single shock with seven-position spring preload adjustability; 127mm travel

Front Brakes
Dual full-floating 296mm discs with four-piston calipers

Rear Brake
Single 240mm disc with single-piston caliper

Front Tire
120/70ZR-17 radial

Rear Tire
180/55ZR-17 radial

1460mm (57.5 in.)

Seat Height
800mm (31.5 in.)

Dry Weight
194kg (427 pounds)

Fuel Capacity
19 litres (4.2 gal.)

Specifications are subject to change without notice, in accordance with national regulation and legislations.
