2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

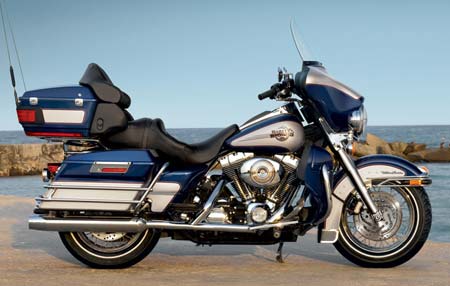

2006 Harley Davidson FLHTCUI Ultra Classic Electra Glide

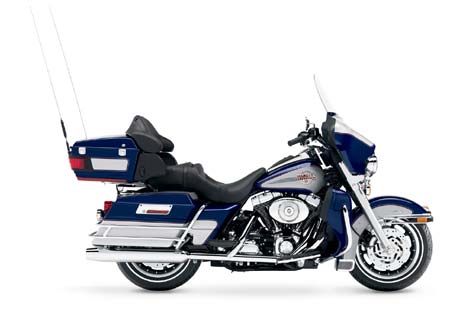

2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide

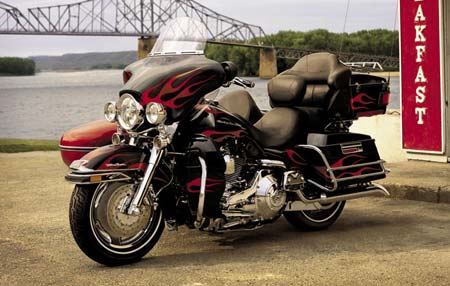

2006 Harley Davidson FLHTCUI Ultra Classic Electra Glide
2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide

2006 Harley Davidson FLHTCUI Ultra Classic Electra Glide
2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide



– 2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide

For those who want it all. The Ultra Classic® Electra Glide®. Down to the EFI Twin Cam 88® core, it’s everything you expect a Harley® road machine to be. Powerful. Refined. Legendary. Then it goes further in the ways of creature comforts. Comfort-stitched saddle with wraparound passenger backrest. Spacious hardbags and a restyled, two-position King Tour-Pak® with new LED side lights and more passenger room. Vented fairing lowers keep legs cool. Reduced clutch lever effort. Integrated storage. Electronic passenger controls. Cruise. A new Advanced Audio System by Harman/Kardon®. But the best music is when rubber meets a few million miles of road.


OVERVIEW
FLHTCUI Ultra Classic® Electra Glide® Model Overview
The FLHTCUI Ultra Classic Electra Glide is the ultimate touring motorcycle from Harley-Davidson, made even better for 2006 with the addition of a redesigned adjustable Tour-Pak with LED side lights and the new 80-watt Advanced Audio System by Harman/Kardon. Electronic Sequential Port Fuel Injection, passenger sound system, CB radio and intercom system, cruise control and full instrumentation are all standard. Custom luggage liners add convenience for overnight tours. The lower fairings feature large vent doors for ventilation in warm weather. Offered in 12 color options for 2006, including solid, Sunglo and two-tone combinations.

FLHTCUI Ultra Classic Electra Glide features:

Vibration-isolated, 1450cc Twin Cam 88 engine with ESPFI
Black powder-coated engine with chrome covers
New low-effort clutch
Bat-wing, fork-mounted fairing
New 80-watt Advanced Audio System by Harman/Kardon
Vented lower fairings with storage compartments
New locking GTX nylon alloy adjustable Tour-Pak with LED side lights
Tour-Pak mounted tail/stop light
Locking GTX nylon alloy saddlebags
Custom-fit soft luggage liners
Comfort-stitch touring saddle
New lower passenger backrest
Full instrumentation (electronic tachometer and speedometer, fuel gauge, voltmeter, oil-pressure gauge,
ambient air temperature gauge and odometer/tripmeter)
CB and intercom
Passenger sound system and CB/intercom controls
Vented lower fairings with storage compartments
Electronic cruise control
Triple-disc brakes
Air-adjustable rear suspension
New clear-lens, reflector-optic auxiliary lamps
New Pinstripe footboard inserts
New ignition switch
New 50 amp/650 watt charging system




2006 FLHTCUI ULTRA CLASSIC® ELECTRA GLIDE® SPECIFICATIONS1

DIMENSIONS
Length 98.3 in. (2497 mm)
Seat Height:
Laden2 27.3 in. (693.4 mm)
Unladen 30.7 in. (779.8 mm)
Ground Clearance 5.1 in. (129.5 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series, narrow whitewall):
Front – D402F NW MT90B16 72H
Rear – D402 NW MU85B16 77H
Fuel Capacity3 5.0 gal. (18.9 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light at approx. 1.0 gal.)
Oil Capacity 4.0 qts. (3.8 L)
Weight:
Dry Weight 788 lbs. (358 kg)
Vehicle Weight in Running Order 819 lbs. (372 kg)
Gross Vehicle Weight Rating 1259 lbs. (572 kg)



ENGINE
Engine (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-plate, wet
Transmission 5-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150



CHASSIS
Frame Mild steel, square-section backbone w/twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm; Triple Circuit Damping (TCD)
Rear Shocks Air-adjustable
Wheels5 (Chrome Aluminum Profi le Laced option):
Black, 9-spoke cast aluminum
Front – D402F 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Rear – D401 16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (dual) 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 4.6 in. (116.8 mm)
Rear Wheel 3.0 in. (76.2 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 86 ft. lbs. @ 3500 rpm (117 NM @ 3500 rpm)
Lean Angle (per SAE J1168): Right: 31° Left: 30°
MPG (EPA urban/highway test)7 39/46 mpg (6.0/5.1 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 28-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system
(585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Auxiliary Lamps Two @ 35W ea. (except where prohibited by law)
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure, engine
diagnostics, accessory, speakers, turn signals, low
fuel warnings, cruise control, security system8 (optional)



STYLING/CONVENIENCE
Engine Trim Black powder-coated w/chrome treatment
Exhaust System Chrome, cross-over duals
Handlebars Stainless steel, easy-reach Touring
Seat Comfort-stitch, two-up
Passenger Backrest Integrated in Tour-Pak® carrier lid w/wrap-around armrest
Footboards Height-adjustable operator and passenger
Fairing Fork mounted “bat-wing”
Fairing Air Defl ectors Clear Lexan® w/hand-removable fasteners
Lower Fairings GTX nylon, vented, removable
Windshield Clear Lexan
Glovebox Two located inside fairing lowers w/snap-on covers
Instruments Electronic speedometer and tachometer, fuel gauge,
voltmeter, oil pressure gauge, clock (integrated in stereo), ambient
air temperature gauge, odometer and resettable tripmeter
Stereo Premium sound system (80 watt), w/AM/FM/CD/MP3,
fairing-mounted speakers, weather band, digital clock,
radio controls for passengers, bi-directional seek and scan,
track search and scan, eight presets and automatic
volume control w/adjustable sensitivity
Auxiliary Audio On radio face, will accommodate any line-level audio
Output output device, like personal cassette or MP3 player
Antenna Twin AM/FM/WB and CB antennas
Rear Speakers Integral w/passenger backrest
Intercom Voice-activated w/adjustable sensitivity
CB 4-watt, 40-channel electronically-tuned CB
(prohibited in some countries) w/passenger controls
Headset/Headset Driver and passenger stereo headset receptacles
Recepticles for CB/intercom/sound system (use restricted in
some states and countries), single headset included
Cruise Control Electronic w/set, resume, accelerate and decelerate functions
Handlebar Start, engine cut-off, left/right turn signals, horn,
Controls hi/low beam, sound system audio and channel
control, CB/intercom and cruise control
Hazard Warning Integrated into turn signal controls
Electrical Power Outlet Cigarette lighter, accessory connector under seat
TourPak Injection-molded GTX,® carpet-lined, tail lights and LED
side lights, adjustable fore-aft, volume 2.24 cu.ft. (64.0 L)9
Saddlebags Injection-molded GTX volume: 2.26 cu.ft. (64.0 L)
Luggage Locks Tour-Pak luggage carrier and saddlebag,
barrel key; common w/ignition
Fork Lock Integrated into ignition
Gas Cap Lock Common w/ignition key



COLORS10
Vivid Black, Black Cherry Pearl, Black Pearl, Deep Cobalt Pearl, Glacier
White Pearl, Rich Sunglo Blue, Brandy Wine Sunglo, Two-Tone Rich
Sunglo Blue/Chopper Blue Pearl, Two-Tone Chopper Blue Pearl/Brilliant
Silver Pearl, Two-Tone Black Cherry Pearl/Black Pearl, Two-Tone Fire Red
Pearl/Vivid Black, Two-Tone Deep Cobalt Pearl/Brilliant Silver Pearl



WARRANTY
Warranty11 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter12



1 Harley-Davidson reserves the right to discontinue models or change specifications at any time without incurring any obligations. Vehicle specifications may vary from country to country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures. Your mileage will vary depending on your personal riding habits, weather conditions, trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 GTX is a registered trademark of General Electric Company.
10 Availability may vary from dealer to dealer, and is subject to change without notice.
11 See motorcycle owner’s manual for complete details.
12 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
