2006 Harley-Davidson FXDLI Dyna Low Rider
Back to 2006 Harley-Davidson Motorcycle Index Page

Click photos to enlarge.
They make great desktop images.

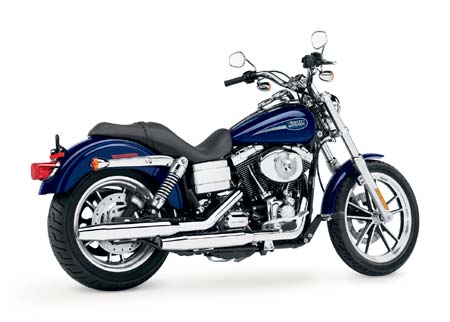

2006 Harley Davidson FXDLI Dyna Low Rider
2006 Harley-Davidson FXDLI Dyna Low Rider

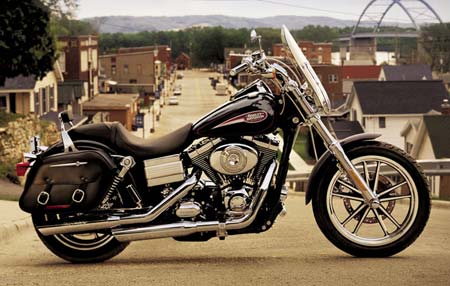

2006 Harley Davidson FXDLI Dyna Low Rider
2006 Harley-Davidson FXDLI Dyna Low Rider

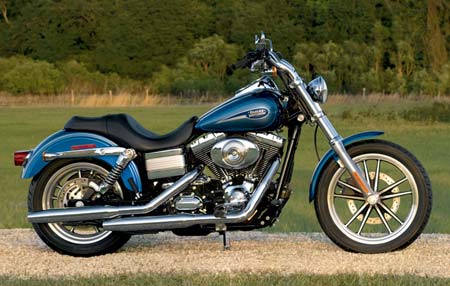

2006 Harley Davidson FXDLI Dyna Low Rider
2006 Harley-Davidson FXDLI Dyna Low Rider

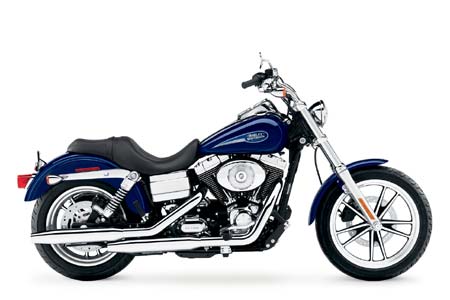

2006 Harley Davidson FXDLI Dyna Low Rider
2006 Harley-Davidson FXDLI Dyna Low Rider



– 2006 Harley-Davidson FXDLI Dyna Low Rider

Ask anyone in the know to define a Harley® and you’ll undoubtedly hear the words long and low. The Low Rider® has always pushed that envelope. This year, it gets 49mm forks, new stylized low-profile suspension and cast wheels. The low-slung custom seat is less than 26″ high, so it’s easy to put boots on pavement. The ride feels good thanks to pullback handlebars, mid-mount controls and highway pegs. New handlebar-mounted indicator lights, new tank graphic and tank-mounted speedo/tach. The Low Rider also gets the new 6-speed Cruise Drive™ transmission mated to the powerful Twin Cam 88® engine. That’s plenty of go with your long and low.


OVERVIEW
FXDL/I Dyna Low Rider® Model Overview
The FXDL Dyna Low Rider appeals to riders with traditional tastes seeking a motorcycle that’s comfortable and easy to handle. The seat height is just 25.8-inches and mid-mounted foot controls, highway pegs and new pull back bars combine for a low center of gravity and ergonomics that fit many riders. Black 10-Spoke Cast Aluminum wheels and a handlebar-mounted instrument cluster are new for 2006. A new single floating brake rotor allows more of the front wheel to be visible. Chrome Aluminum Profile Laced wheels are an option. The Low Rider is offered in 10 color combinations, including solid, Sunglo and two-tone combinations, with a new tank decal for 2006.

FXDLI Dyna Low Rider features:

Vibration-isolated Twin Cam 88 engine with ESPFI
Black powder-coated engine with chrome covers
Chrome staggered shorty dual exhaust
New 6-speed Cruise Drive transmission
New 49 mm forks
New 30.5 degree fork angle/29 degree steering head angle
New wrap-around rear fender
New 160 mm rear tire
New black 10-Spoke Cast Aluminum wheels
New stylized low-profile suspension
New low-slung custom seat
New easy-reach pull-back handlebars
New handlebar-mounted instrument cluster
New single floating front brake rotor
Mid-mounted foot controls



2006 FXDLI DYNA LOW RIDER® SPECIFICATIONS1

DIMENSIONS
Length 93.1 in. (2364.0 mm)
Seat Height:
Laden2 25.8 in. (655.3 mm)
Unladen 26.8 in. (680.0 mm)
Ground Clearance 5.6 in. (142.0 mm)
Rake (steering head) 29°
Fork Angle 30.5°
Trail 4.5 in. (114.3 mm)
Wheelbase 64.6 in. (1640.0 mm)
Tires (Dunlop® Harley-Davidson Series):
Front – D401F 100/90-19 57H
Rear – D401 160/70B17 73V
Fuel Capacity3 4.7 gal. (17.8 L)
Reserve Fuel Capacity No reserve due to fuel injection
(warning light @ approx. 1.2 gal.)
Oil Capacity 3.0 qts. (2.8 L)
Weight:
Dry Weight 641 lbs. (291 kg)
Vehicle Weight in Running Order 672 lbs. (305 kg)
Gross Vehicle Weight Rating 1085 lbs. (493 kg)



ENGINE
Engine4 (vibration isolation-mounted) Air-cooled, Twin Cam 88®
Valves Pushrod-operated, overhead valves w/hydraulic,
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.00 in. (95.18 mm x 101.52 mm)
Displacement 88 cu. in. (1450 cu. cm)
Compression Ratio 8.9:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)



DRIVETRAIN
Primary Drive Chain
Final Drive Belt, 70/32 ratio (68/32 ratio)
Clutch 9-plate, wet
Transmission 6-speed
Overall Ratio:
1st 3.337
2nd 2.313
3rd 1.718
4th 1.391
5th 1.175
6th 1.000



CHASSIS
Frame Mild steel, tubular frame; rectangular section
backbone; stamped, cast and forged junctions;
forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 49 mm w/polished aluminum fork
triple clamp and dual-rate springs
Rear Shocks Coil-over shock
Wheels5 (Chrome Aluminum Profi le Laced option):
Black/silver 10-spoke Cast Aluminum
Front 19 in. x 2.5 in. (482.6 mm x 57.15 mm)
Rear 17 in. x 4.5 in. (431.8 mm x 102.87 mm)
Brakes:
Caliper Type 4-piston front and rear
Rotor Type (diameter x width): Patented, uniform expansion rotors
Front (single fl oating) 11.81 in. x .20 in. (300 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
Front Wheel 5.0 in. (127.0 mm)
Rear Wheel 3.1 in. (79.0 mm)



PERFORMANCE
Engine Torque (per SAE J607)6:
North America 85 ft. lbs. @ 3000 rpm (115 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 30.5°
Left 31°
MPG (EPA urban/highway test)7 44/50 mpg (5.3/4.7 L/100 km)



ELECTRIC
Battery Sealed, maintenance-free, 12V, 19-amp/hour,
270 cca (per Battery Council International Rating)
Charging Three-phase, 38-amp system
(439W @ 13V, 2000 rpm, 489W max power @ 13V)
Starting 1.2 kW electric w/solenoid shift
starter motor engagement
Lights (as per country regulation):
Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
Tail/Stop Lights 8W/28W (5W/21W)
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, neutral, low oil pressure,
turn signals, engine diagnostics,
security system8 (optional)
Electrical Power Outlet Standard



STYLING/CONVENIENCE
Engine Trim Black powder-coated w/chrome treatment
Exhaust System Chrome, staggered shorty duals
Oil tank Under transmission
Front Fender Sport style w/painted brace
Rear Fender Sport wrap-around w/chrome supports
Brake and Shift Lever Mid-mount controls
Handlebars Stainless steel, low-rise
Rider Foot Conrols Footpegs
Passenger Foot Controls Footpegs
Seat Two-up
Instruments Electronic speedometer w/odometer and
resettable tripmeter, diagnostic readout,
fuel gauge, tachometer
Fork Lock Barrel key on steering head; key common w/ignition
Hazard Warning Integrated into turn signal controls



COLORS9
Vivid Black, Brilliant Silver Pearl, Black Pearl, Chopper Blue Pearl,
Fire Red Pearl, Deep Cobalt Pearl, Glacier White Pearl, Two-Tone
Rich Sunglo Blue/Chopper Blue Pearl, Two-Tone Fire Red Pearl/
Vivid Black, Two-Tone Deep Cobalt Pearl/Brilliant Silver Pearl



WARRANTY
Warranty10 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every
5,000 miles (8,000 km) thereafter11



1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary from country
to country depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Includes reserve on carburetor-equipped models.
4 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL883 models).
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance varies by country.
7 Based on tests conducted under ideal lab conditions per U.S. EPA test procedures.
Your mileage will vary depending on your personal riding habits, weather conditions,
trip length, vehicle conditions, and vehicle configuration. Break-in mileage will vary.
8 North American security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 Availability may vary from dealer to dealer, and is subject to change without notice.
10 See motorcycle owner’s manual for complete details.
11 Inspections of certain systems and components are required at 2,500 mile
(4,000 km) intervals.
