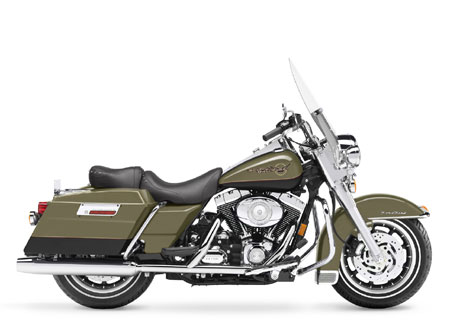

2007 Harley-Davidson FLHR Road King
2007 Harley-Davidson FLHR Road King

2007 Harley-Davidson FLHR Road King
2007 Harley-Davidson FLHR Road King

2007 Harley-Davidson FLHR Road King
2007 Harley-Davidson FLHR Road King

2007 Harley-Davidson FLHR Road King
2007 Harley-Davidson Touring Group Shot

– 2007 Harley-Davidson FLHR Road King

2007 Harley-Davidson FLHR Road King

FLHR Road King® Model Overview
The FLHR Road King provides timeless Harley-Davidson styling with riding comfort of a Touring chassis now featuring the Twin Cam 96 engine and 6-speed Cruise Drive transmission. Locking, weather-resistant hard-shell saddlebags and a large, detachable windshield help resist the elements. A two-up touring seat, air-adjustable rear suspension and footboards enhance the experience for the rider and passenger. The large, clear-lens Hiawatha headlight and clear-lens auxiliary passing lights, console-mounted speedometer and a deep skirted FL front fender provide a commanding presence on the road. Ten color options for 2007 include four two-tone combinations.



FLHR Road King features:

New rubber mount, 1584cc Twin Cam 96 engine
Black powder-coated engine with chrome treatment
New 6-speed Cruise Drive transmission
Standard Electronic Sequential Port Fuel Injection (ESPFI)
New redesigned football shape air cleaner
Heritage-rich styling
Large Hiawatha headlight and chrome nacelle
Detachable windshield
Large, tank-mounted speedometer
Two-piece Touring seat
Weather resistant and lockable GTX nylon hard saddlebags
Triple-disc brakes
Air-adjustable rear suspension




SPECIFICATIONS:

Dimensions
Length 93.7 in. (2380.0 mm)
Overall Width 34.5 in. (876.3 mm)
Overall Height 55.1 in. (1399.5 mm)
Seat Height:
– Laden2
– Unladen
27.3 in. (693.4 mm)
29.9 in. (779.8 mm)
Ground Clearance 5.1 in. (129.5 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.2 in. (157.5 mm)
Wheelbase 63.5 in. (1612.9 mm)
Tires (Dunlop® Harley-Davidson Series, narrow whitewall):
– Front – D402F
– Rear – D402
MT90B16 72H
MU85B16 77H
Fuel Capacity 5.0 gal. (18.9 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (with filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts. (0.95 L)
Primary Chain Case
Capacity10
1.4 qts. (1.3 L)
Weight:
– As Shipped
– In Running Order
– Gross Vehicle Weight
Rating
– Gross Axle Weight Rating:
– Front
– Rear
737 lbs. (335 kg)
769 lbs. (349 kg)
1259 lbs. (572 kg)
500 lbs. (227 kg)
827 lbs. (375 kg)



Engine
Engine Air-cooled, Twin Cam 96®
Valve Train Pushrod-operated, overhead valves
with hydraulic, self-adjusting lifters;
two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.25 mm x 111.13 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System3 Electronic Sequential Port Fuel Injection
(ESPFI)
Air Cleaner Paper, washable
Lubrication System Pressurized, dry-sump



Drivetrain
Primary Drive Chain, 46/34 ratio
Final Drive9 Belt, 32/66 ratio
Clutch 9-plate, wet
Transmission 6-speed Cruise DriveTM
Gear Ratios (overall):
– 1st
– 2nd
– 3rd
– 4th
– 5th
– 6th
U.S. HDI JPN
9.321 9.312 9.030
6.421 6.421 6.226
4.774 4.774 4.630
3.926 3.926 3.807
3.279 3.279 3.179
2.790 2.790 2.706


Chassis
Frame Mild steel, square-section backbone with
twin downtubes
Swingarm Mild steel, rectangular tube sections,
stamped junctions; MIG welded
Front Forks 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels4 (Chrome, Profile
Laced Aluminum option):
Black, 9-spoke Cast Aluminum
– Front
– Rear
16 in. x 3.0 in. (406.4 mm x 76.2 mm)
16 in. x 3.0 in. (406.4 mm x 76.2 mm)
Brakes:
– Caliper Type
– Rotor Type (diameter x width):
– Front (dual)
– Rear
4-piston front and rear
Patented, uniform expansion rotors
11.5 in. x .20 in. (292.1 mm x 5.08 mm)
11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension Travel:
– Front Wheel
– Rear Wheel
4.6 in. (116.8 mm)
3.0 in. (76.2 mm)


Performance
Engine Torque (per SAE J1349)5:
– North America
– World
– France opt. Germany
– Japan
92.6 ft. lbs. @ 3500 rpm (125.5 NM @ 3500 rpm)
90.2 ft. lbs. @ 3400 rpm (122.3 NM @ 3400 rpm)
90.2 ft. lbs. @ 3400 rpm (122.3 NM @ 3400 rpm)
86.9 ft. lbs. @ 2500 rpm (117.8 NM @ 2500 rpm)
Lean Angle (per SAE J1168):
– Right
– Left
32°
30°
Fuel Economy11
(EPA urban/highway test)
32.5/45.0 mpg (7.24/5.23 L/100 km)


Electric
Battery (per Battery Council
International Rating)
Sealed, maintenance-free, 12V,
28-amp/hour, 270 cca
Charging Three-phase, 50-amp system
(58W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter
motor engagement
Lights (as per country regulation):
– Headlamp (quartz halogen)
– Auxiliary Lamps
– Tail/Stop Lights
– Turn Signal Lights
– Indicator Lamps
55-watt low beam, 60-watt high beam
Two @ 35W each (except where prohibited by law)
8W/28W (5W/21W)
28W (21W) self-canceling
High beam, running lights, front fender
running lights, directional light bar, neutral,
low oil pressure, engine diagnostics, turn
signals, security system (optional)6, 6-speed,
low fuel warning


Styling / Convenience
Foot Supports
and Controls
Full-length, height-adjustable rider and
passenger footboards; rider footboards
with heel/toe shift levers
Windshield Large, clear Lexan®, quick-release detachable
Instruments Electronic speedometer (tank-mounted) with
odometer, time-of-day clock on odometer,
resettable tripmeter, fuel gauge with low fuel
warning light, low oil pressure indicator light,
engine diagnostics readout, brighter/balanced
LED lights, 6-speed indicator light
Cruise Control Wired to accept electronic cruise control
Hand Controls
Start, engine cutoff, left/right turn signals,
horn, high/low beam
Hazard Warning Integrated into turn signal controls
Electric Power Outlet Accessory connector under seat
Saddlebags Injection-molded GTX®12;
Volume: 2.26 cu. ft. (64.0 L)
Luggage Locks Saddlebags, barrel key; common with
ignition key
Fork Lock Barrel key; common with ignition key
Smart Security System Optional, next-generation hands-free security
fob; operates based on proximity to vehicle
Gas Cap Lock None (side fill)

Colors12
Vivid Black, Black Cherry Pearl, Black Pearl, Fire Red Pearl, Deep Cobalt
Pearl, White Gold Pearl (new), Suede Blue Pearl/Vivid Black (new), Olive
Pearl/Vivid Black (new), Black Cherry Pearl/Pewter Pearl (new), Fire Red
Pearl/Black Pearl (new)


Warranty
Warranty7 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km),
every 5,000 miles (8,000 km) thereafter8

1 Harley-Davidson reserves the right to discontinue models or change specifications at
any time without incurring any obligations. Vehicle specifications may vary by country
and region depending on local laws. Some models are not available in certain countries.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2 (87 octane or higher for XL 883
models). Standard and optional fuel systems may vary by country and region.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 North America security system includes immobilizer; outside North America the security
system includes immobilizer and siren.
7 See motorcycle owner’s manual for complete details.
8 Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals.
9 U.S. and HDI markets except Japan: Belt 32/64 ratio.
10 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
11 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary
among motorcycle models within a family. Your Mileage may vary depending on your
personal riding habits, weather conditions, trip length, vehicle condition and vehicle
configuration and other conditions. Break-in mileage may vary.
12 GTX® is a registered trademark of General Electric Company.
13 Availability may vary from dealer to dealer, and is subject to change without notice.
